Enough Long 14 Gauge 35 Ft 6-Way Conductor Trailer Wiring

HiFind 14-gauge 35-foot, 6-conductor bonded trailer wiring harness provides a single flat cable with color-coded, stranded CCA conductors for dependable 12V lighting, brake controller, and auxiliary power connections on trailers, RVs, and tow vehicles.

This bonded harness bundles six 14AWG stranded copper-clad aluminum conductors side-by-side inside a durable PVC jacket to simplify routing and reduce splicing. It’s engineered for longer runs and higher loads than typical 16AWG trailer wires, offers clear color coding for fast hookups, and is rated to withstand road vibration, UV exposure, moisture and a wide temperature range.

What does the HiFind 6-way wiring harness include and how is it built?

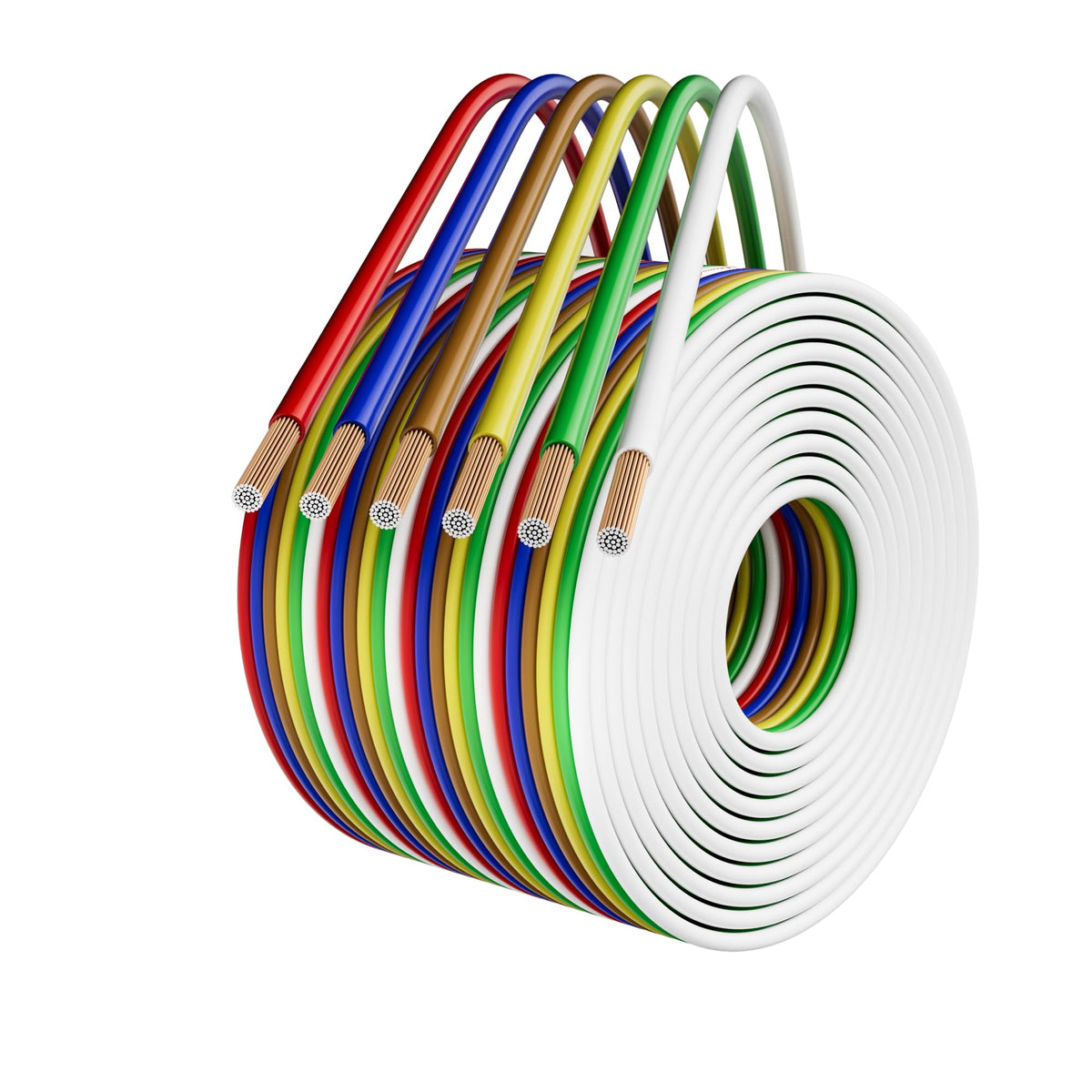

The harness contains six individual, bonded conductors in a flat ribbon-style assembly to allow neat installation through frames and channels without twisting. Conductors are 14AWG stranded CCA, balancing lower cost and lighter weight with improved current capacity compared with thinner wires. The outer PVC insulation protects the bundle from weather and abrasion.

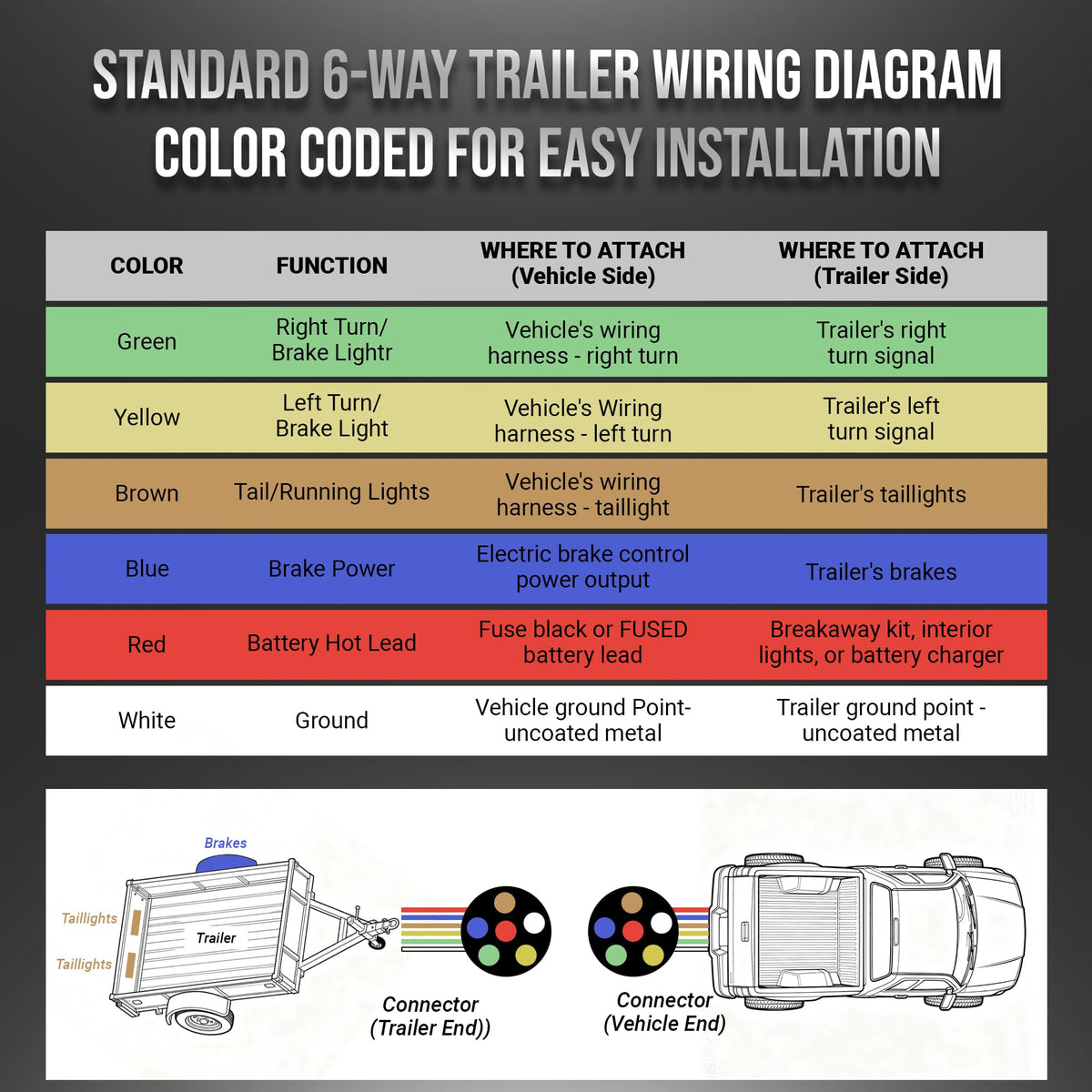

• Six conductors: white (ground), brown (tail/running), yellow (left turn), green (right turn), blue (brake controller), red (12V aux)
• 35 feet overall length for long trailer runs and routing flexibility

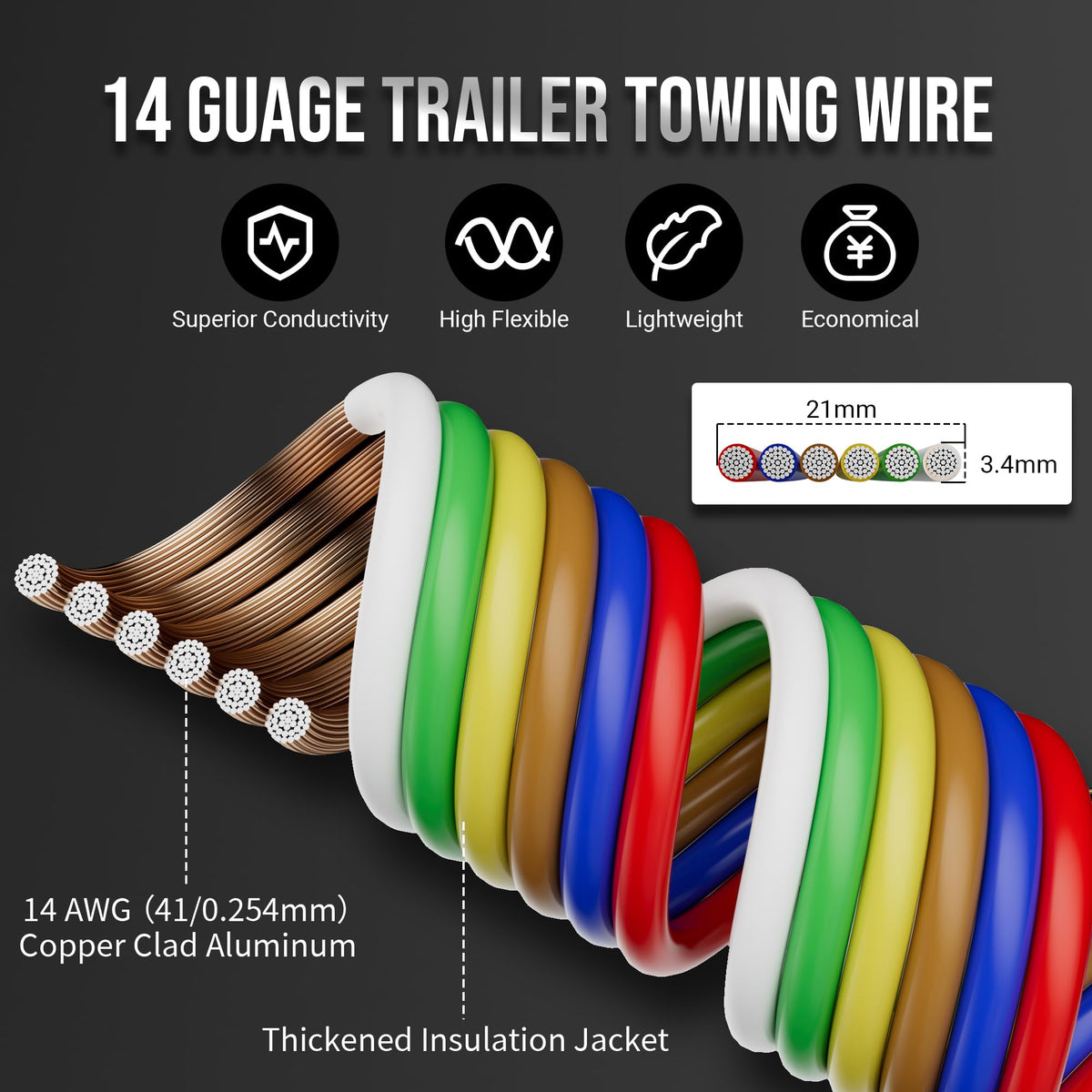

• 14AWG stranded CCA for reduced resistance versus 16AWG alternatives
• Flat, bonded construction for easy threading and tidy cable management

How will this harness perform in harsh weather and on the road?

The outer PVC jacket is formulated to resist UV, oil, grease and common road chemicals while tolerating temperatures from -40°C to +105°C. CCA conductors inside are wrapped and insulated to limit corrosion and maintain electrical continuity under vibration. This combination makes the harness suitable for under-chassis routing and exposed trailer locations.

• Meets SAE J1128 automotive wiring standards for electrical performance
• Waterproof and moisture-resistant outer jacket
• Designed to resist abrasion, vibration, and chemical exposure
• White ground conductor uses full 14AWG to improve grounding longevity

Can I use this harness for electric brakes, lights and auxiliary power?

Yes — the 6-way layout was created for just those tasks: running lights, turn signals, a dedicated brake-controller feed, and a 12V auxiliary battery feed. The thicker 14AWG conductors handle higher currents more reliably over longer distances, which is helpful for electric brake controllers and powered accessories.

• Blue conductor reserved for brake controller signal and power
• Red conductor supplies 12V auxiliary power for accessories or charge lines
• Brown, yellow, green and white handle standard lighting and grounding
• Splitter/individual separation possible for custom runs or repairs

How easy is installation and what tools or steps are typical?

The flat bonded format is intended to slip through factory channels and around frame members with minimal fuss, reducing the need for splices. Color coding speeds terminal identification; typical installs require cutting to length, terminating with ring/lug terminals or a 6-pin plug, and securing with clips or zip ties.

• Cut to fit, strip ends and crimp or solder terminals as needed
• Use dielectric grease on connections to limit corrosion
• Secure harness to frame to prevent chafing and movement
• Test each circuit with a multimeter or trailer tester before finalizing

Who is this for: The HiFind 14AWG 35ft 6-way bonded harness is aimed at DIYers, trailer repair shops, and vehicle owners who need a single, organized wiring solution for full 6-way trailer functionality — lighting, turn signals, electric brakes and auxiliary 12V power. It’s a practical upgrade for longer trailer runs, new trailer builds, or replacing brittle, undersized or spliced wiring on RVs, boat trailers, horse and cargo trailers, and specialty tow rigs. Backed by a two-year warranty, it’s suitable for anyone seeking a cleaner install and more robust current capacity than common 16AWG kits.
