EVIL ENERGY 1/2" Transmission Oil Cooler Hose 5FT 250PSI

EVIL ENERGY's 1/2" transmission oil cooler hose is a 5‑foot CPE hose engineered to safely connect oil coolers to transmissions at up to 250 psi working pressure.

This durable SAE J1532‑style hose is built for vehicles and equipment that need a heat‑ and oil‑resistant line between the transmission and its external cooler. Constructed from CPE compound, the hose balances flexibility and toughness across a wide temperature range, giving a reliable replacement or upgrade for installations that demand corrosion resistance, vibration tolerance, and long service life.

How does this hose handle heat and cold conditions?

The CPE construction and tested rating allow continuous use across extreme temperatures without hardening or softening prematurely. It maintains flexibility down to -40°F and resists breakdown up to 257°F, making it suitable for under‑hood heat as well as cold climates.

• Temperature range: -40°F to 257°F

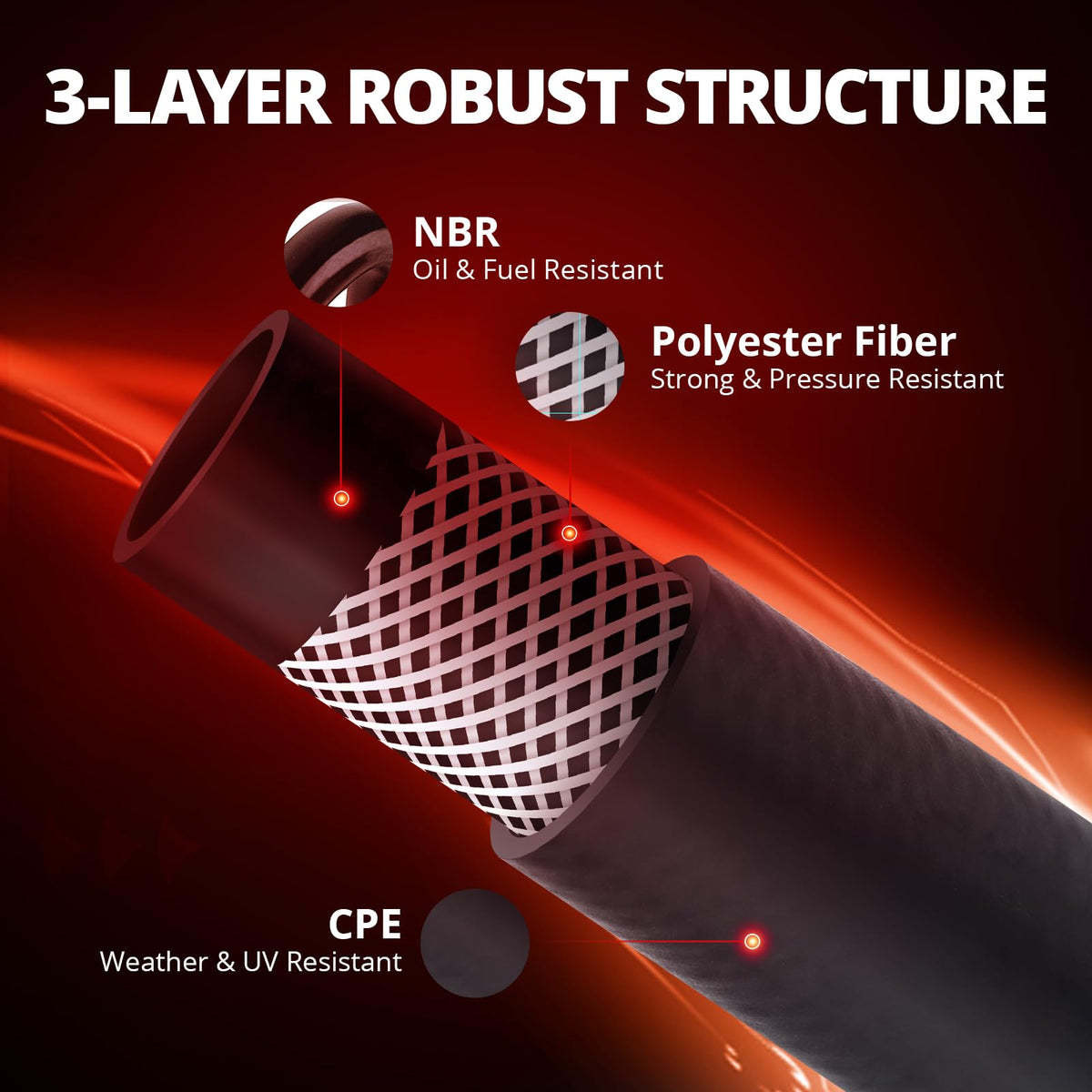

• Material: chlorinated polyethylene (CPE) for heat and ozone resistance
• Designed to resist oil swelling and cracking from thermal cycling

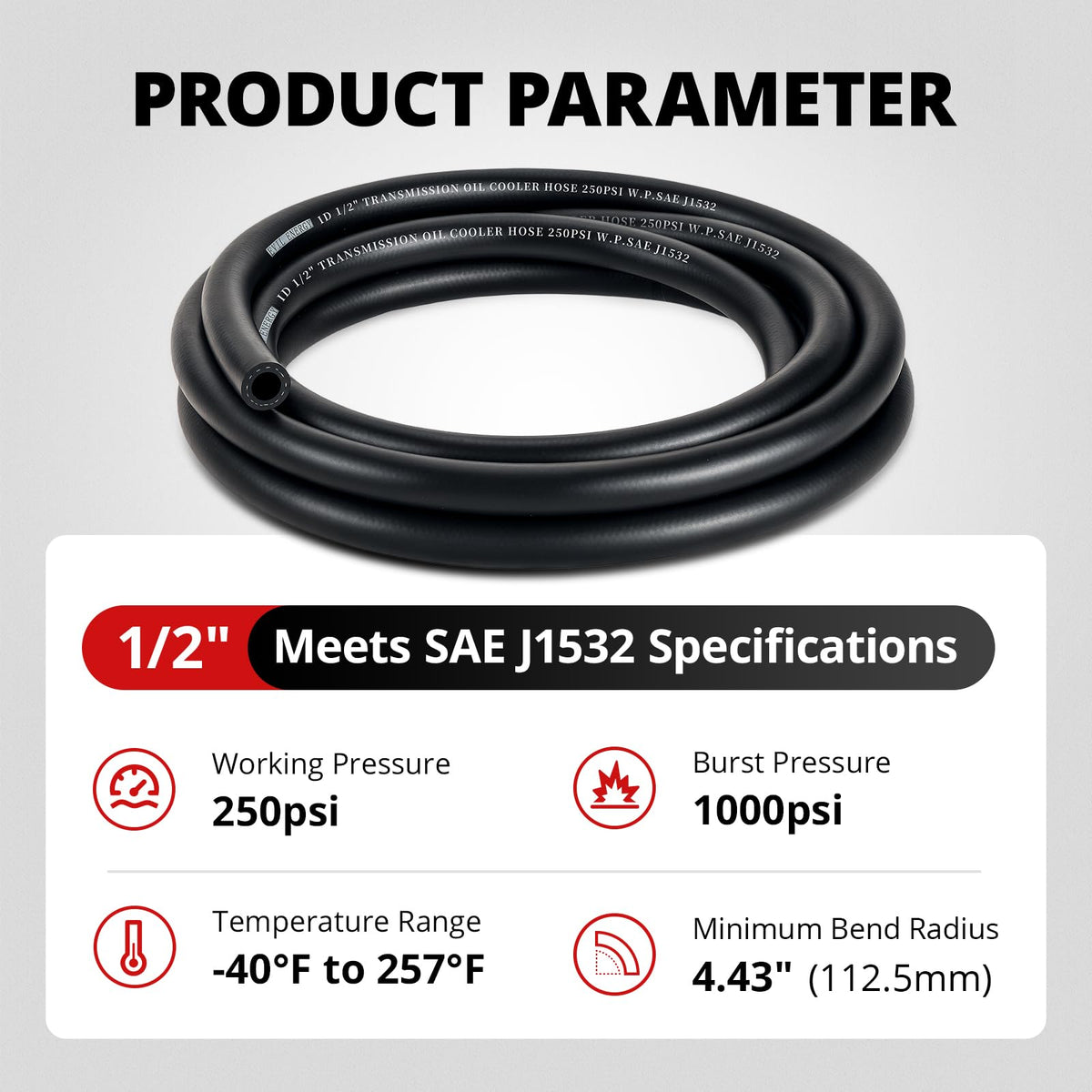

What pressure and strength ratings should I expect?

This hose is rated for a 250 psi working pressure with a 1,000 psi burst pressure, giving a wide safety margin for most transmission cooler circuits. The SAE J1532 compliance reflects industry expectations for transmission and oil cooler service, helping ensure dependable performance under pumping and pressure spikes.

• Working pressure: 250 psi
• Burst pressure: 1,000 psi
• Manufactured to SAE J1532 design intent for transmission cooler applications

Will this hose fit my installation and what are the dimensions?

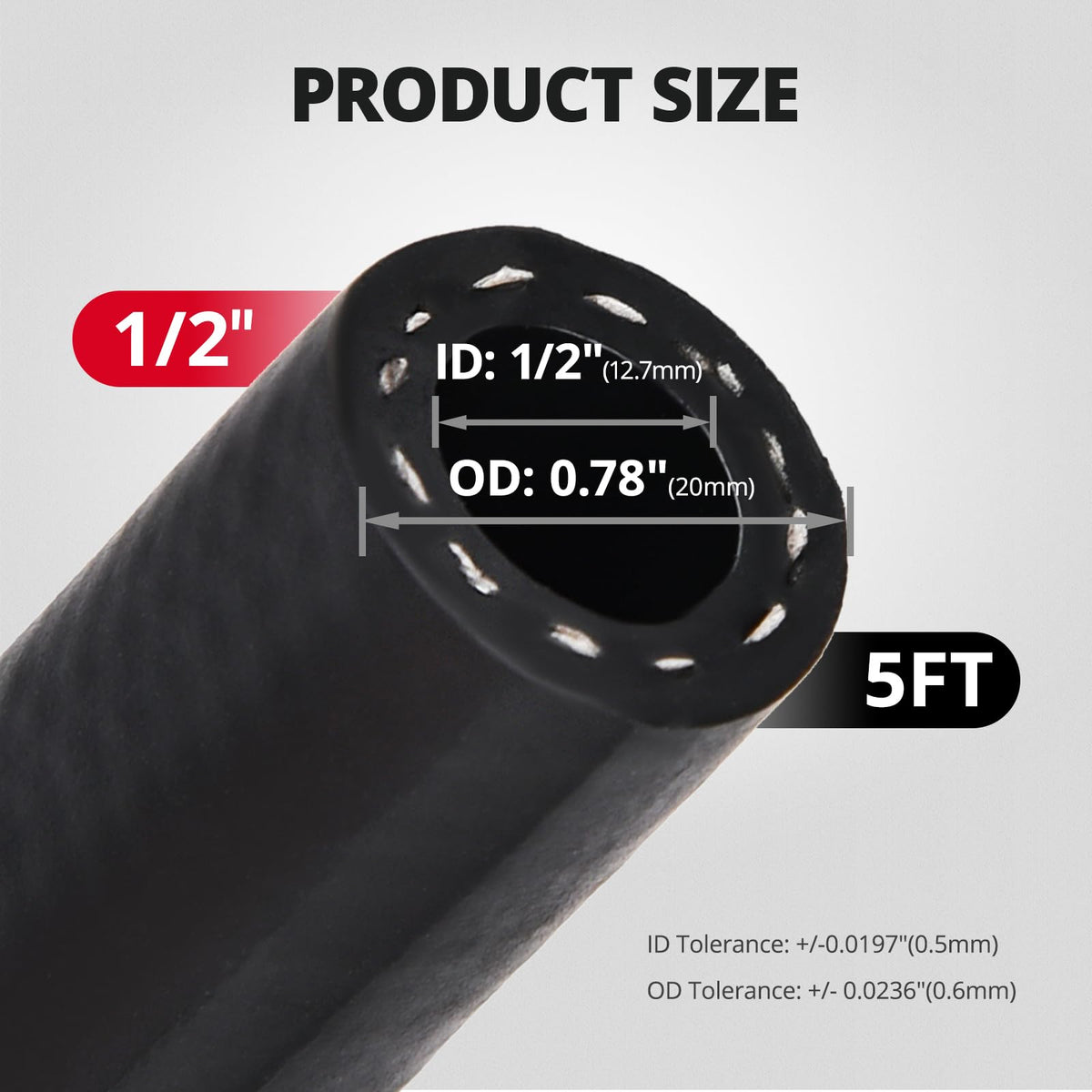

The hose has a 1/2" (12.5 mm) inner diameter and a 0.79" (20 mm) outer diameter, supplied as a continuous 5‑foot length for common cooler runs. A minimum bend radius of 112.5 mm helps installers plan routing without kinking while still allowing flexible placement in tight engine bays.

• Inner diameter: 1/2 inch (12.5 mm)
• Outer diameter: 0.79 inch (20 mm)

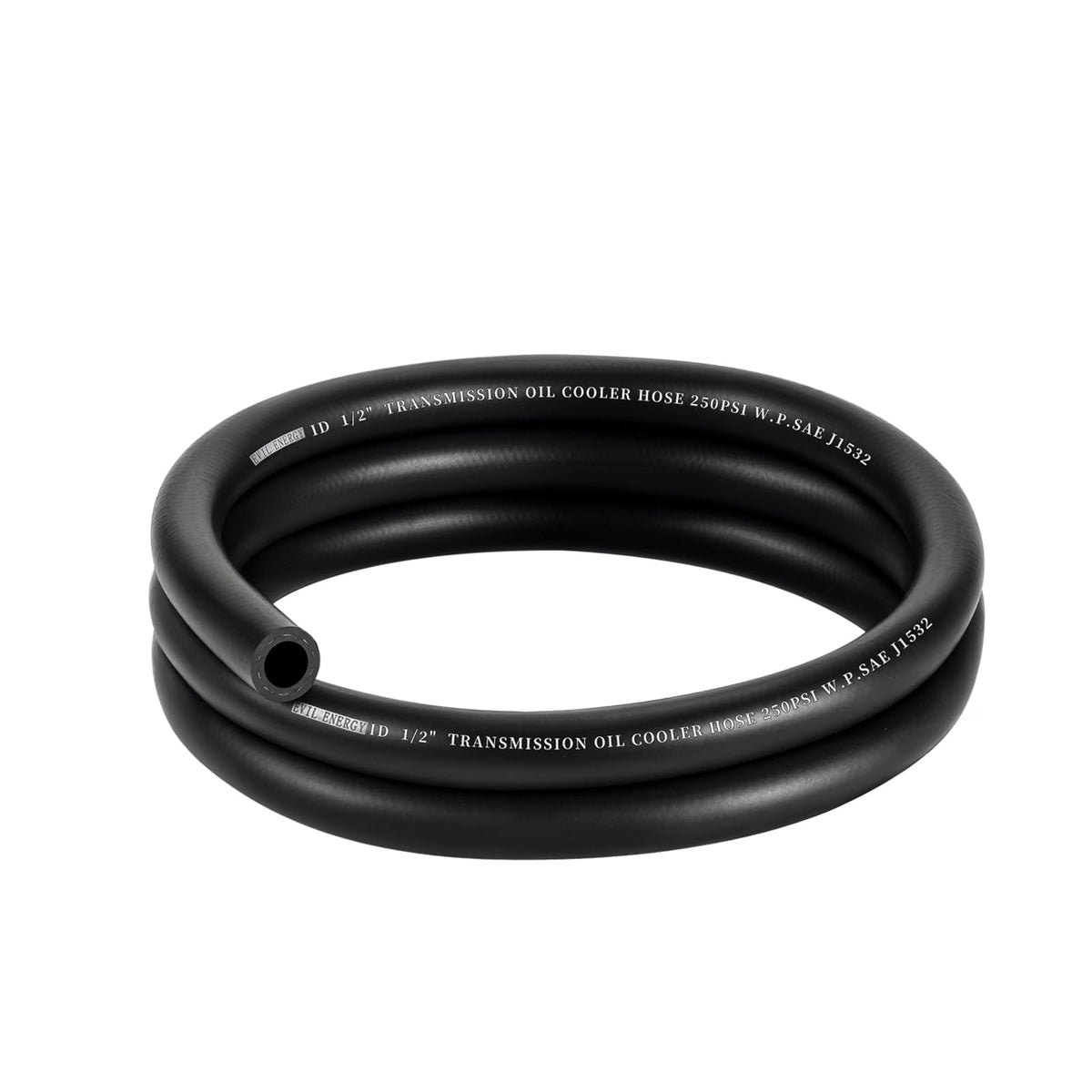

• Length: 5 feet (suitable for many cooler to transmission runs)
• Minimum bend radius: 112.5 mm to prevent flow restriction

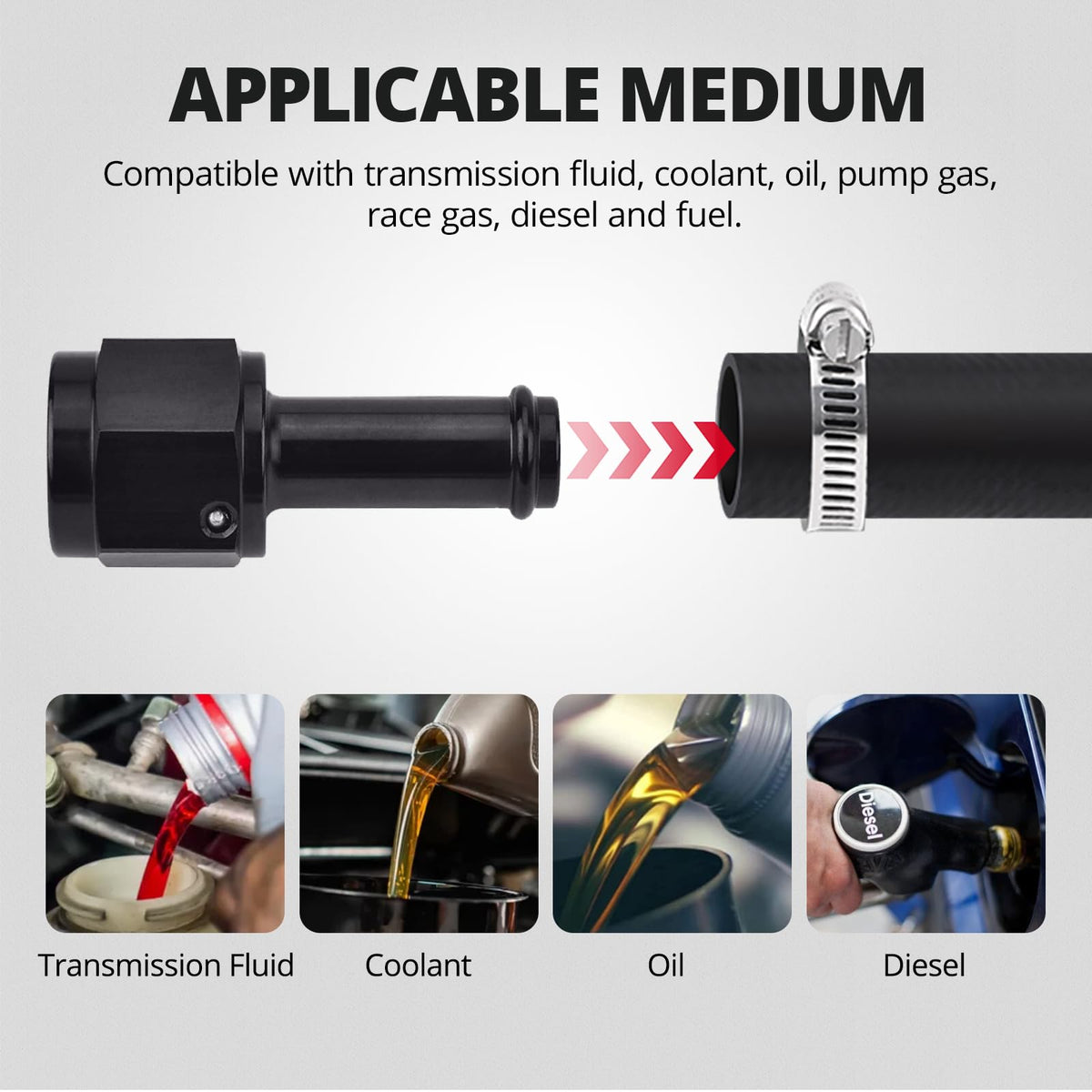

Which fluids and applications is this hose compatible with?

EVIL ENERGY's hose is suitable for transmission fluid and a wide range of hydraulic and lubricant media, including many oils and light fuels where CPE elastomers are appropriate. It functions as the connecting line between oil coolers and transmissions, and can also be used for hydraulic or lubrication circuits where SAE J1532‑style hose is acceptable.

• Compatible with transmission fluid, oils, hydraulic fluids, and lubricants
• Not intended for continuous high‑pressure fuel injection systems

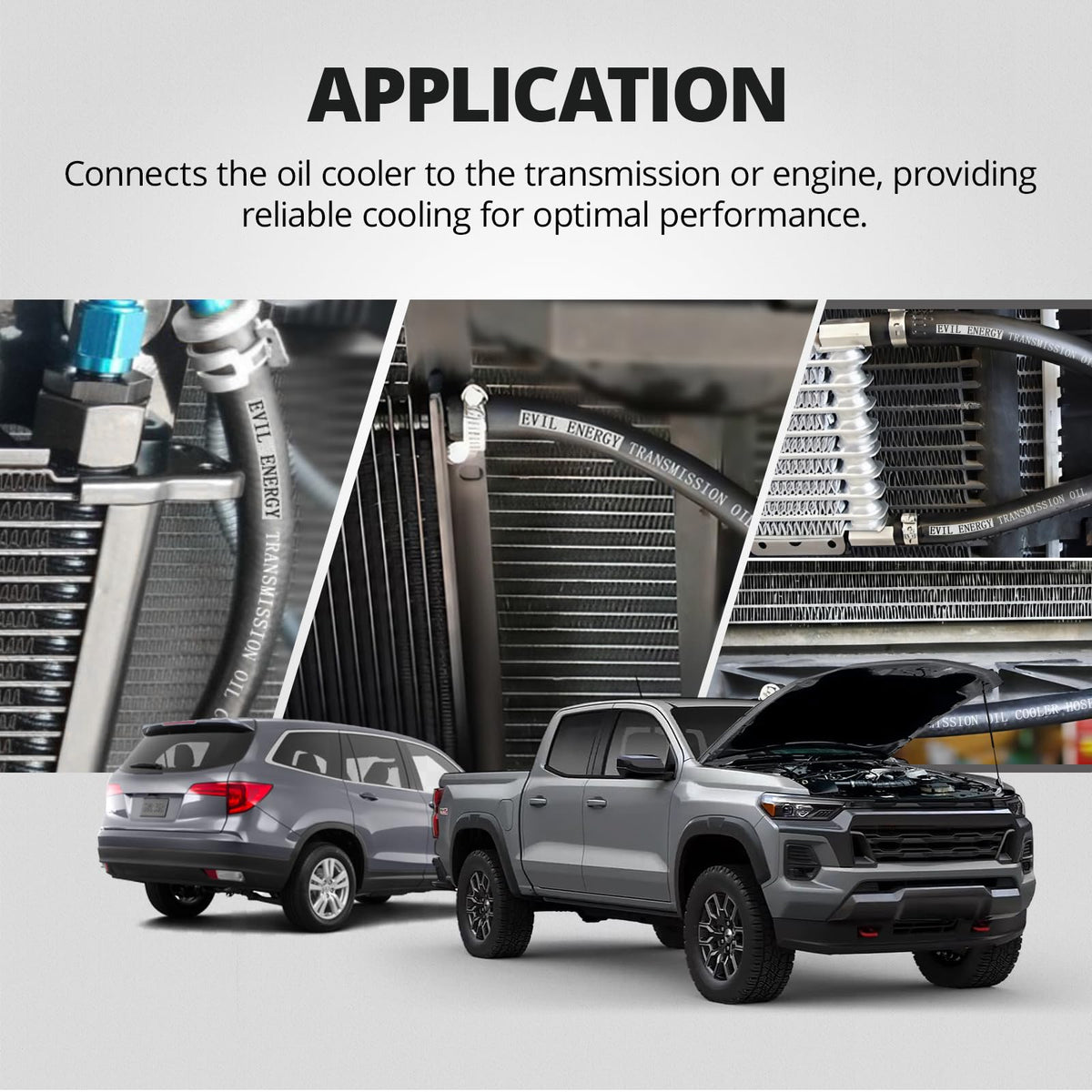

• Recommended as an oil‑cooler to transmission connecting hose

Who is this for: installers, mechanics, and vehicle owners seeking a reliable replacement or upgrade for oil cooler lines. This hose is aimed at anyone needing a mid‑length, flexible, oil‑resistant hose rated to SAE J1532 for automotive and light‑equipment transmission cooler connections. If you need a 5‑foot, 1/2" ID hose with solid temperature and pressure margins for under‑hood environments, EVIL ENERGY's transmission oil cooler hose is built for that purpose.
