EVIL ENERGY 1.75" Exhaust Clamp 2-Pack — 1.75in Butt-Joint Stainless Steel, 3in Strap

EVIL ENERGY 1.75" exhaust clamp is a two-piece stainless steel butt-joint band clamp designed to join 1.75-inch outer-diameter exhaust pipes, mufflers or catalytic converter outlets without welding.

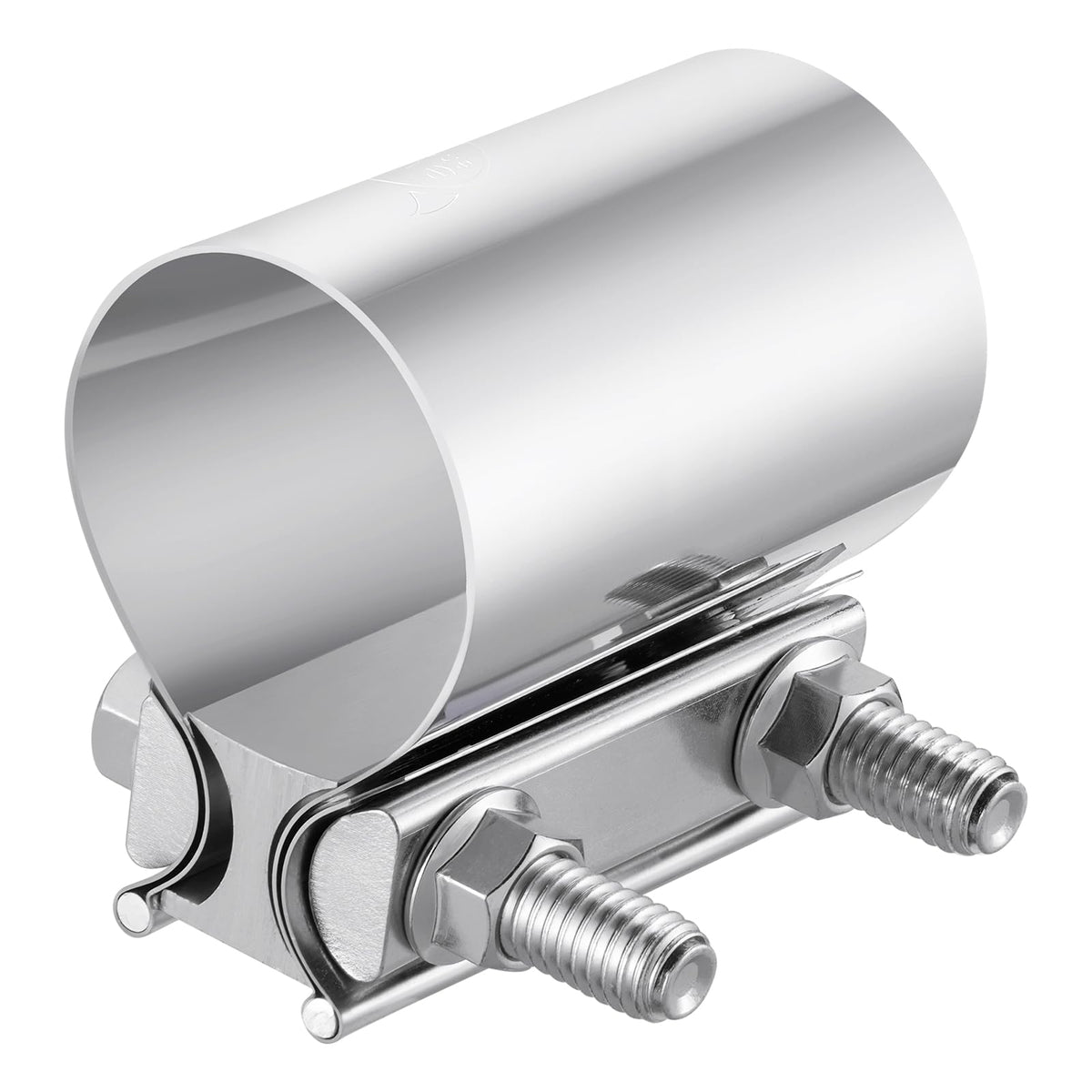

This clamp kit contains two 1.75" butt joint band clamps built from 304 stainless steel with a zinc-plated M10 bolt and nut, steel gasket and aluminum alloy I-block. The design spreads compressive force 360 degrees around the joint to form a mechanical seal and resist deformation. With a 3-inch (76.7 mm) strap width and 81 N·m recommended torque, these clamps offer a removable, no-weld alternative for exhaust connections and repairs.

How does this clamp join 1.75" exhaust pipes without welding?

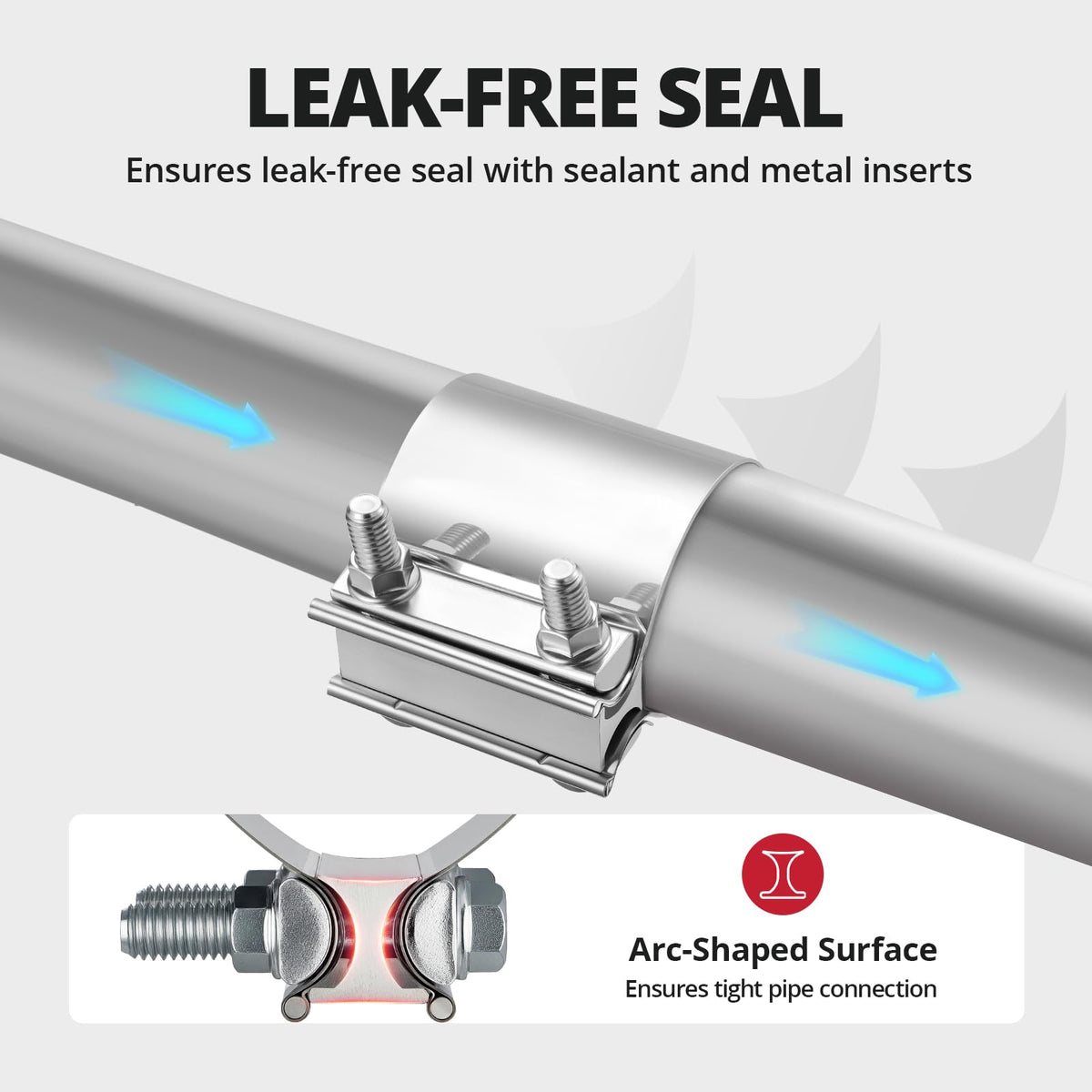

The band sleeve wraps around the abutted pipe ends and tightens via the M10 bolt and I-block, compressing the steel gasket to form a seal. Because the strap is wide and continuous, pressure is distributed evenly rather than concentrated at one point.

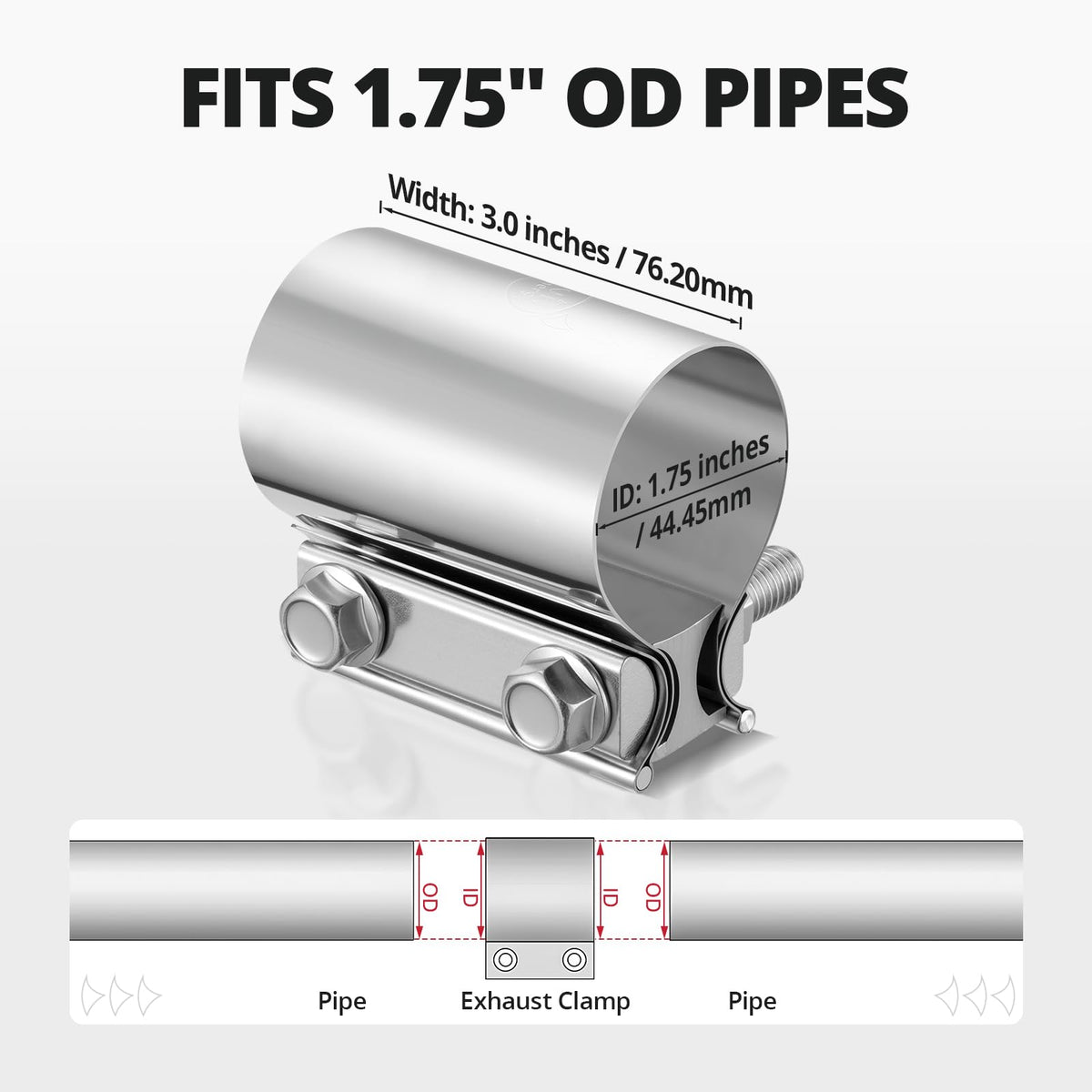

• Fits 1.75-inch OD to 1.75-inch OD butt joints
• 3-inch strap width for broader contact area
• Steel gasket and I-block for consistent compression
• Zinc-plated M10 bolt for secure clamping

Will this clamp resist corrosion and hold up under exhaust conditions?

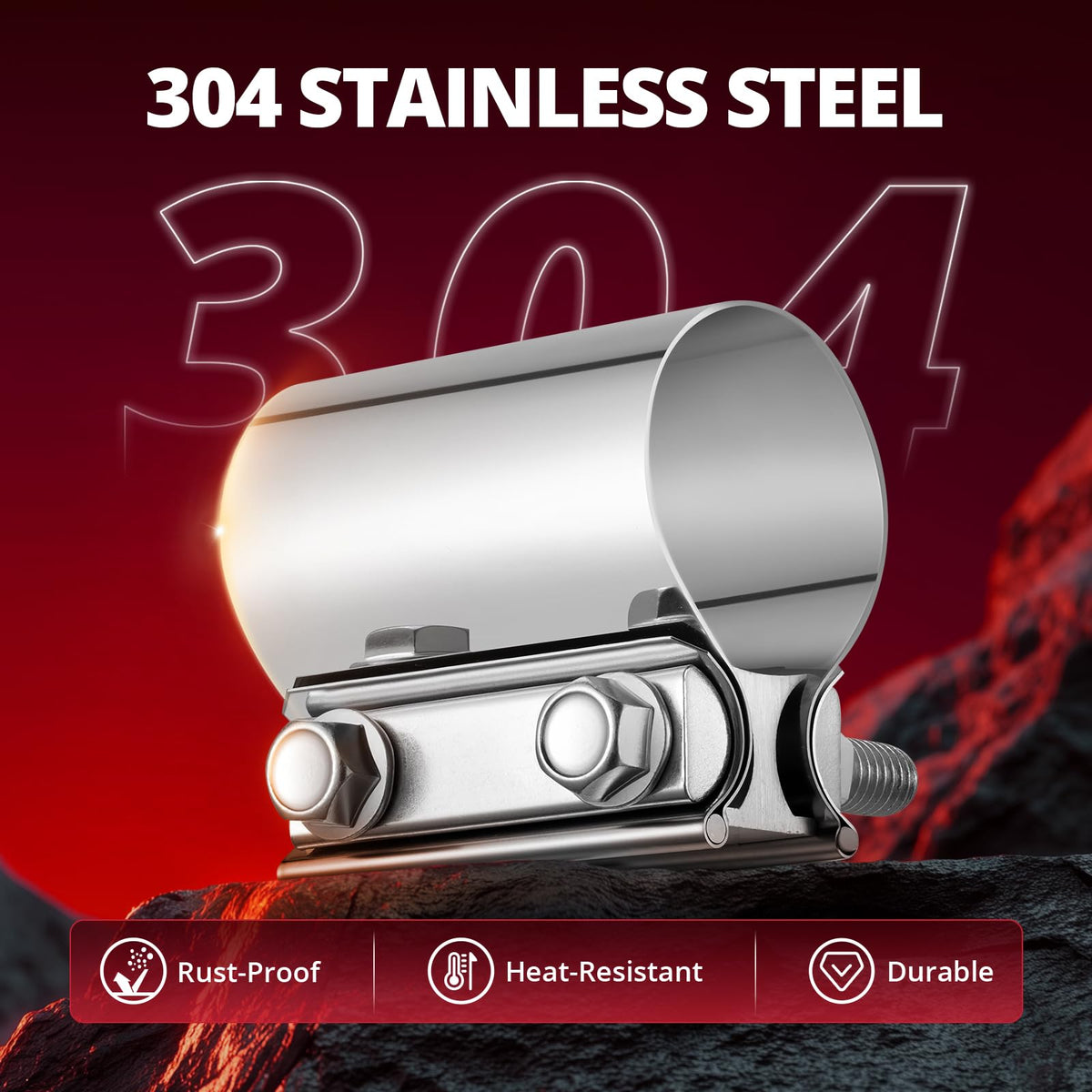

The main band is made of 304 stainless steel, chosen for its corrosion resistance in typical exhaust environments. Fasteners are zinc-plated to provide sacrificial protection; however, regular inspections are recommended in harsh or salted-road conditions.

• 304 stainless steel band for rust resistance
• Zinc-plated bolt and nut to reduce surface corrosion
• Aluminum alloy I-block resists galling during installation
• Steel gasket provides a durable sealing surface

How do I install and tighten this butt joint band clamp correctly?

Position the band over the butt joint so the gasket aligns with the pipe seam, then hand-start the nut and tighten the M10 bolt incrementally. Torque to the specified 81 N·m in small steps to ensure even compression and avoid over-tightening which could deform the pipes.

• Align pipe ends and slide the band over the joint
• Hand-thread the M10 nut, then tighten gradually with a torque wrench
• Tighten to around 81 N·m in several passes for even compression
• Inspect the seal and retorque after initial heat cycles if needed

What applications and limitations should I expect from this clamp?

This clamp is intended for mechanical joining of exhaust components such as resonators, mufflers, pipes and catalytic converter outlets where a 1.75" OD butt joint exists. It’s not a substitute for a structural repair in severely damaged or misaligned systems and should not be used on pipes with larger diameters than specified.

• Ideal for exhaust pipes, mufflers, and catalytic converter connections
• Designed only for 1.75" OD to 1.75" OD butt joints
• No welding required, making installation and removal faster
• Not intended to replace severely corroded or crushed pipe sections

Who is this for? The EVIL ENERGY 1.75" exhaust clamp is suited to DIY mechanics, professional exhaust shops and vehicle owners who want a removable, no-weld solution for joining 1.75-inch exhaust pipes and components. It’s especially useful for quick repairs, prototype exhaust builds, or when you need a secure mechanical seal without cutting and welding. For heavily damaged sections or custom fabrications beyond the clamp’s size range, consult a qualified technician.
