EVIL ENERGY 10AN 90° Hose End Fitting Set — Black 4pc Swivel AN Adapter, 6061‑T6 Aluminum

EVIL ENERGY 10AN 90-degree hose end fitting is a black 6061-T6 aluminum swivel adapter designed to connect 10AN braided fuel or fluid lines with a 37° AN seal.

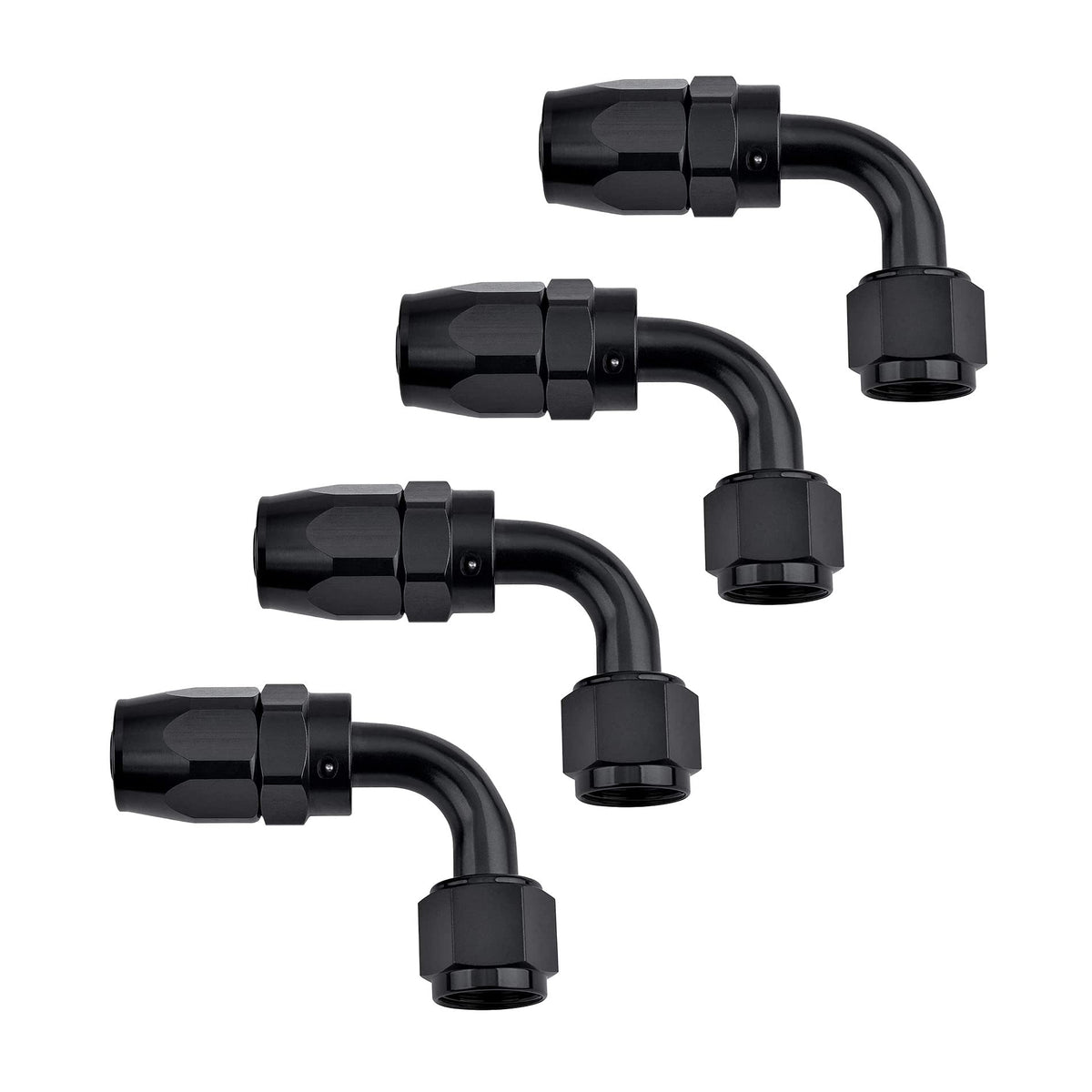

This four-piece set of 10AN hose end fittings provides a compact, durable solution for routing braided stainless steel or nylon fuel lines where space is tight. Machined from aircraft-grade 6061-T6 aluminum and anodized black, each fitting combines a 7/8-14 UNF threaded inlet with a 37° AN sealing face and a 360° swivel body to simplify installation and reduce hose twist under pressure. The parts are reusable, rated for typical automotive and racing plumbing loads, and accommodate temperatures and pressures commonly encountered in vehicle systems.

How does the swivel design make installation easier?

The 360° swivel lets you position the hose end without twisting the hose, which speeds up assembly and prevents stress on the braid. This is especially helpful in confined engine bays or tight fittings where alignment is difficult.

• Full rotation body aligns hose without rotating the hose itself
• Reduces torque on hose braid during tightening
• Saves time when making multiple angled connections

Which hoses and fittings are compatible with this 10AN adapter?

These fittings are built to work with stainless steel braided and nylon braided hoses that accept 10AN ends. They rely on a 37° AN cone seat, so they pair with AN-style hoses and adapters for leak-resistant connections when properly assembled.

• Compatible with 10AN (37°) hose assemblies
• For use with stainless steel and nylon braided lines only

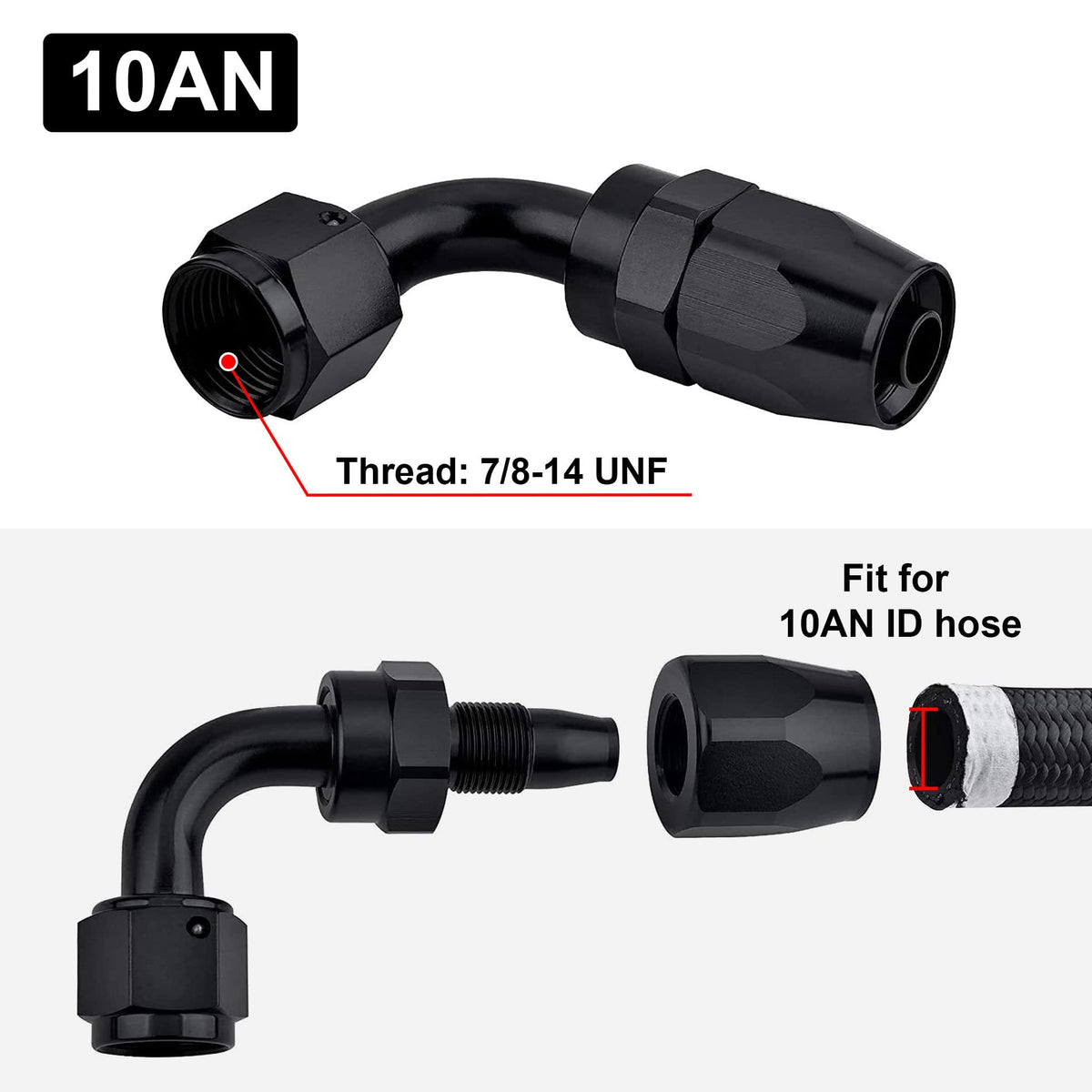

• Threaded inlet is 7/8-14 UNF for standard AN thread engagement

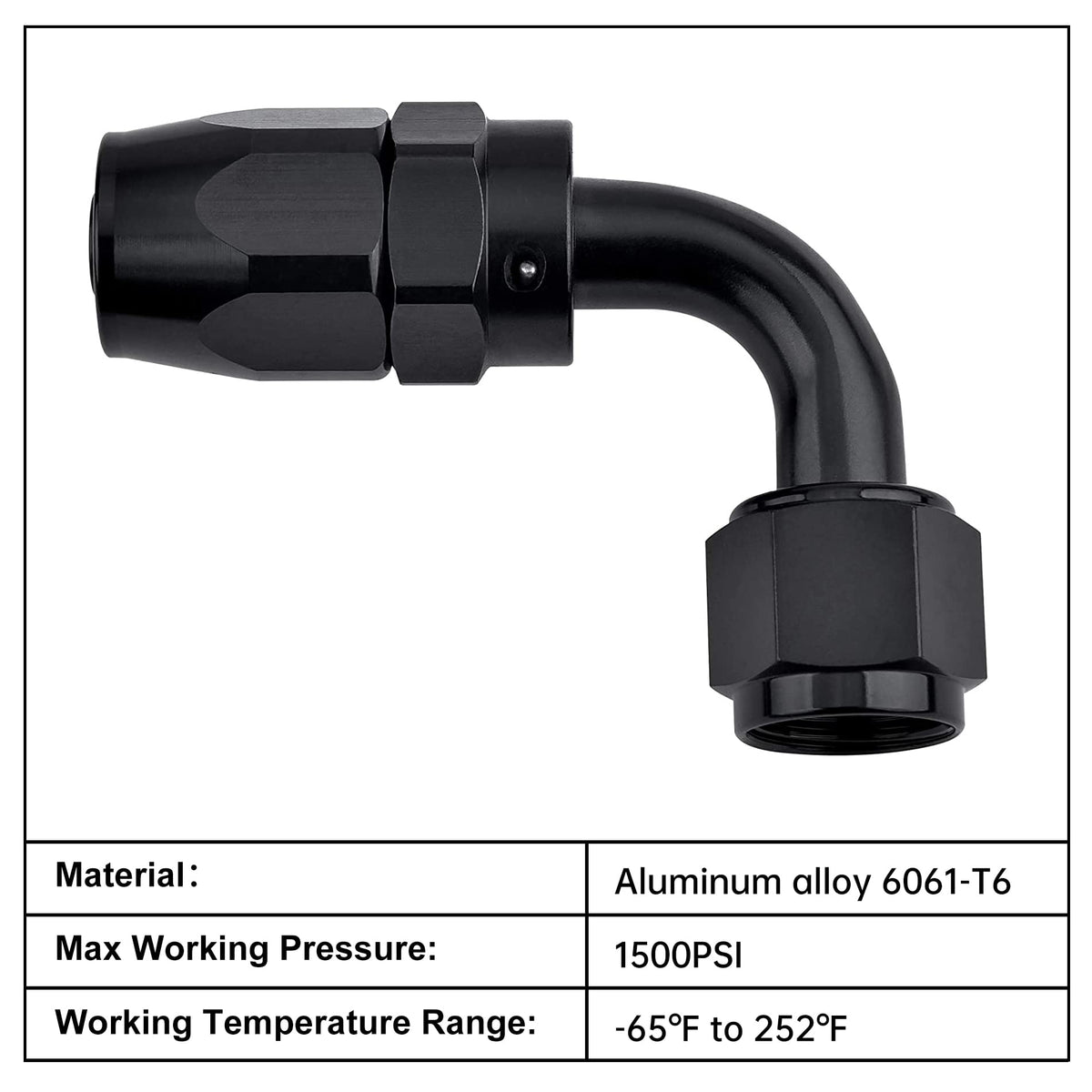

What are the pressure, temperature, and material specifications?

The fittings are machined from 6061-T6 aluminum for a high strength-to-weight ratio and anodized for corrosion resistance. They are rated to a maximum working pressure of 1,500 PSI and operate across a broad temperature range, making them suitable for many automotive and motorsport fluid systems.

• Material: 6061-T6 aluminum alloy, black anodized finish
• Maximum working pressure: 1,500 PSI
• Operating temperature: -65°F to 252°F (-53°C to 122°C)

Can these fittings be reused and how should they be serviced?

Yes — the EVIL ENERGY 10AN 90° fittings are reusable when inspected and maintained properly. Clean mating surfaces, check the 37° sealing face for nicks or debris, and replace any hose ferrules or collars that show wear to maintain a reliable seal.

• Inspect sealing faces before reuse to avoid leaks
• Replace damaged ferrules or collars as needed

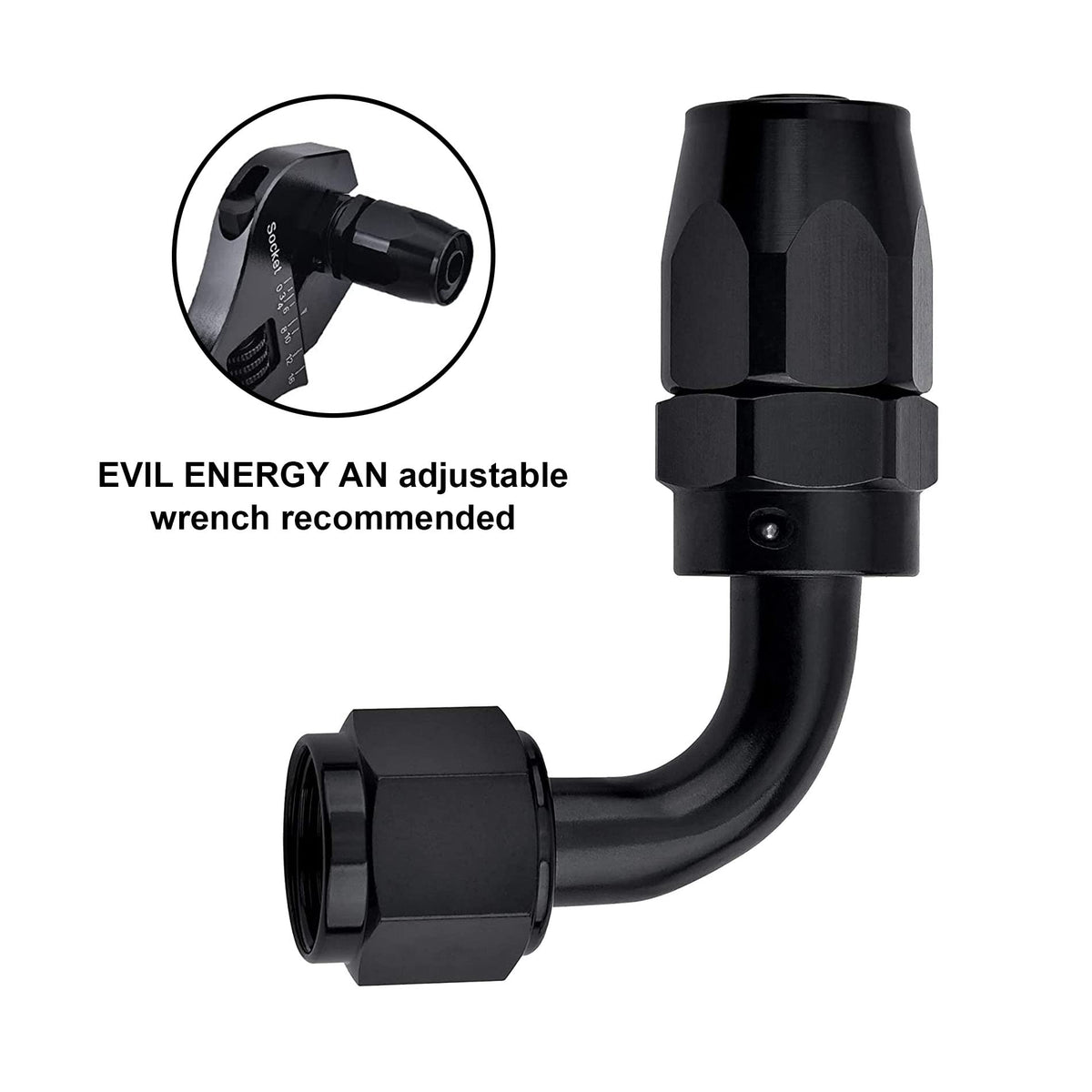

• Hand-start threads and tighten to recommended torque for AN fittings

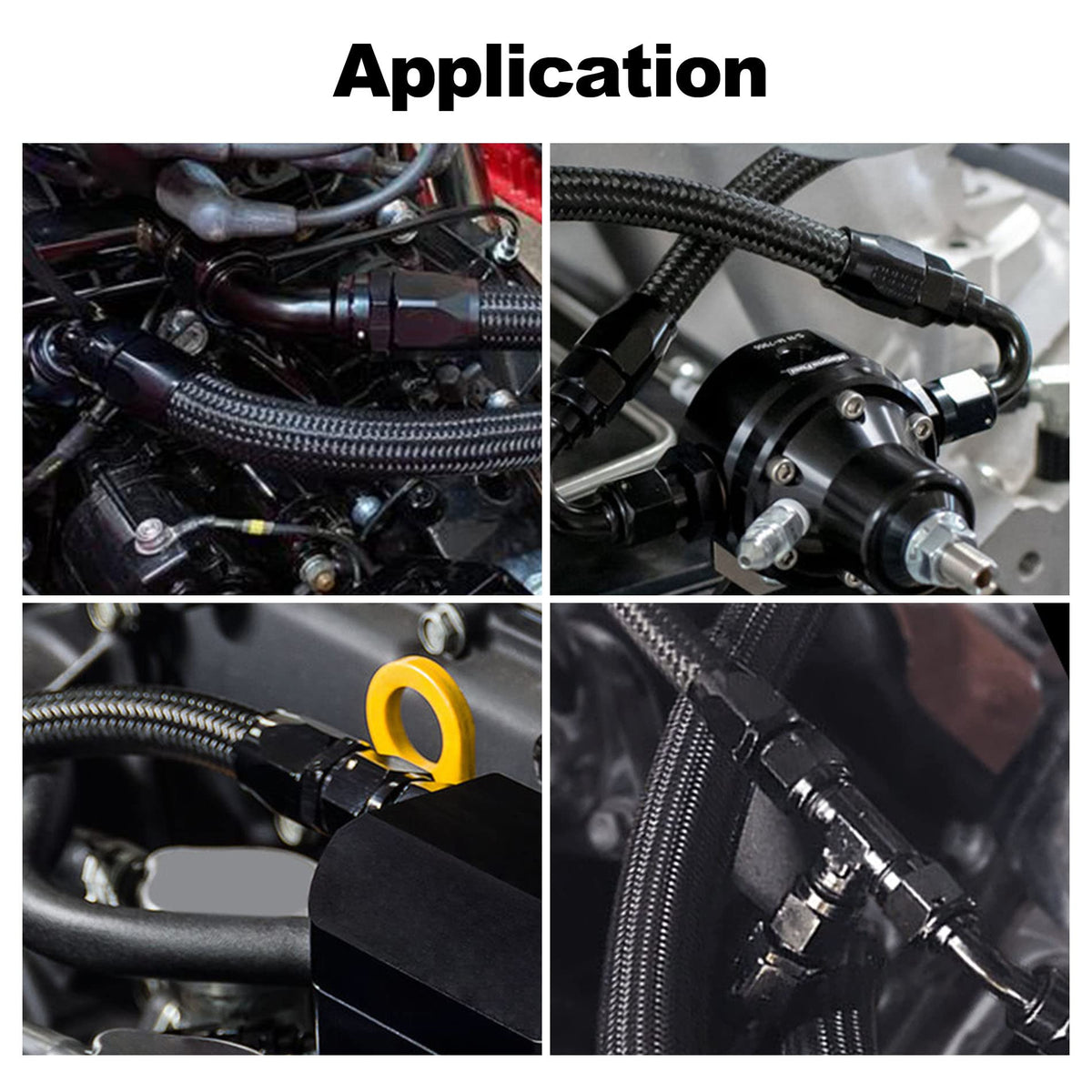

Who is this for: These 10AN 90-degree swivel hose end fittings are aimed at automotive enthusiasts, race teams, custom fabricators, and maintenance professionals who need compact, reliable hose routing solutions for braided fuel, oil, or coolant lines. They suit projects that demand durable, reusable AN-style connections in cramped or angled installations.
