EVIL ENERGY 10AN Braided Fuel Line Kit — 20ft Black CPE Hose with 10 Swivel Fittings and 625 psi Working Pressure

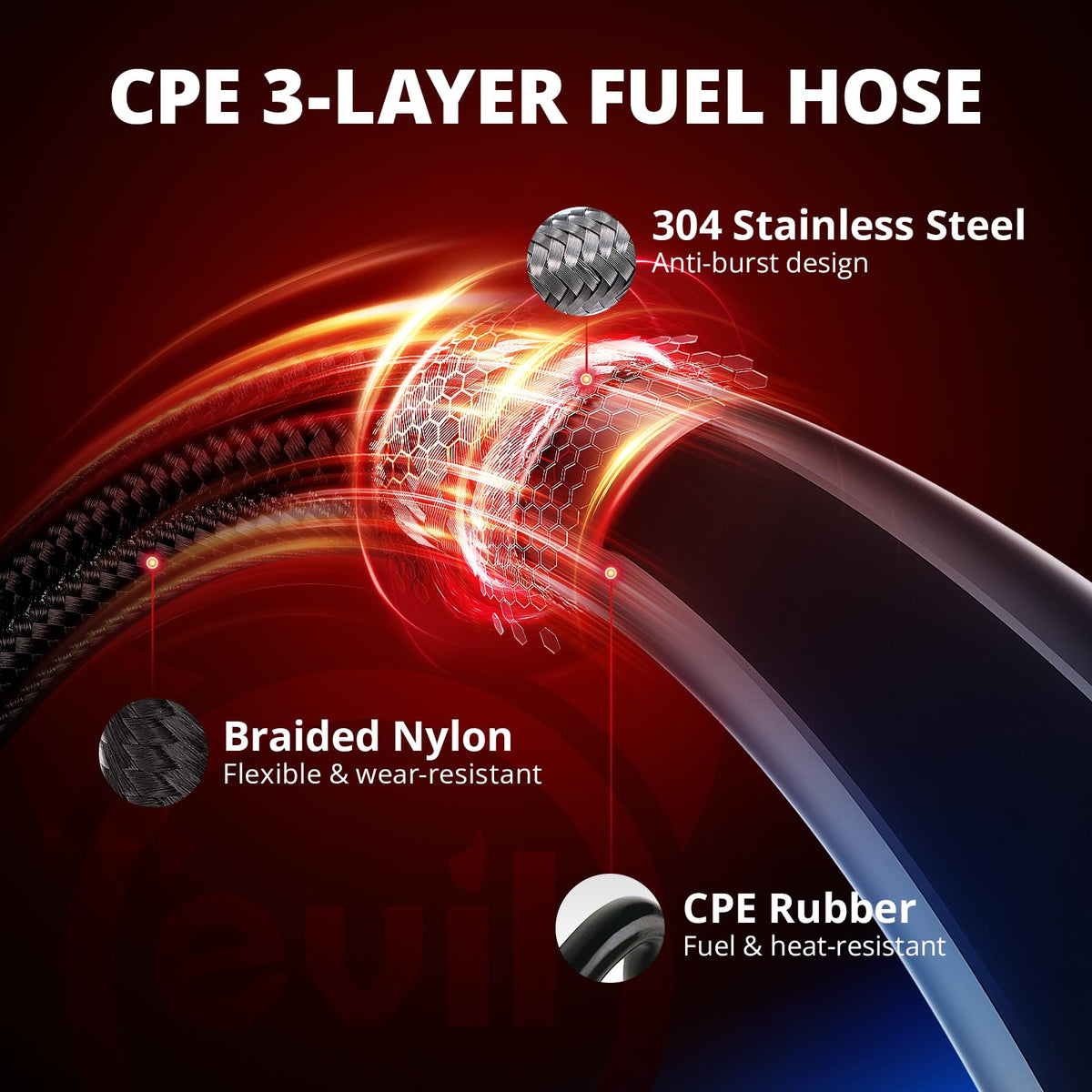

This complete 10AN braided fuel line kit supplies a flexible, durable replacement for fuel return, supply, transmission cooler, turbo cooler and general fluid routing. The hose combines a CPE rubber core resistant to fuels and oils with a braided 304 stainless wire layer and a nylon outer braid to balance pressure capacity, abrasion resistance and flexibility. Included swivel ends in straight, 45°, 90° and 180° orientations plus mounting clamps let you route lines cleanly in tight engine bays or race applications.

How durable is the hose under pressure and heat?

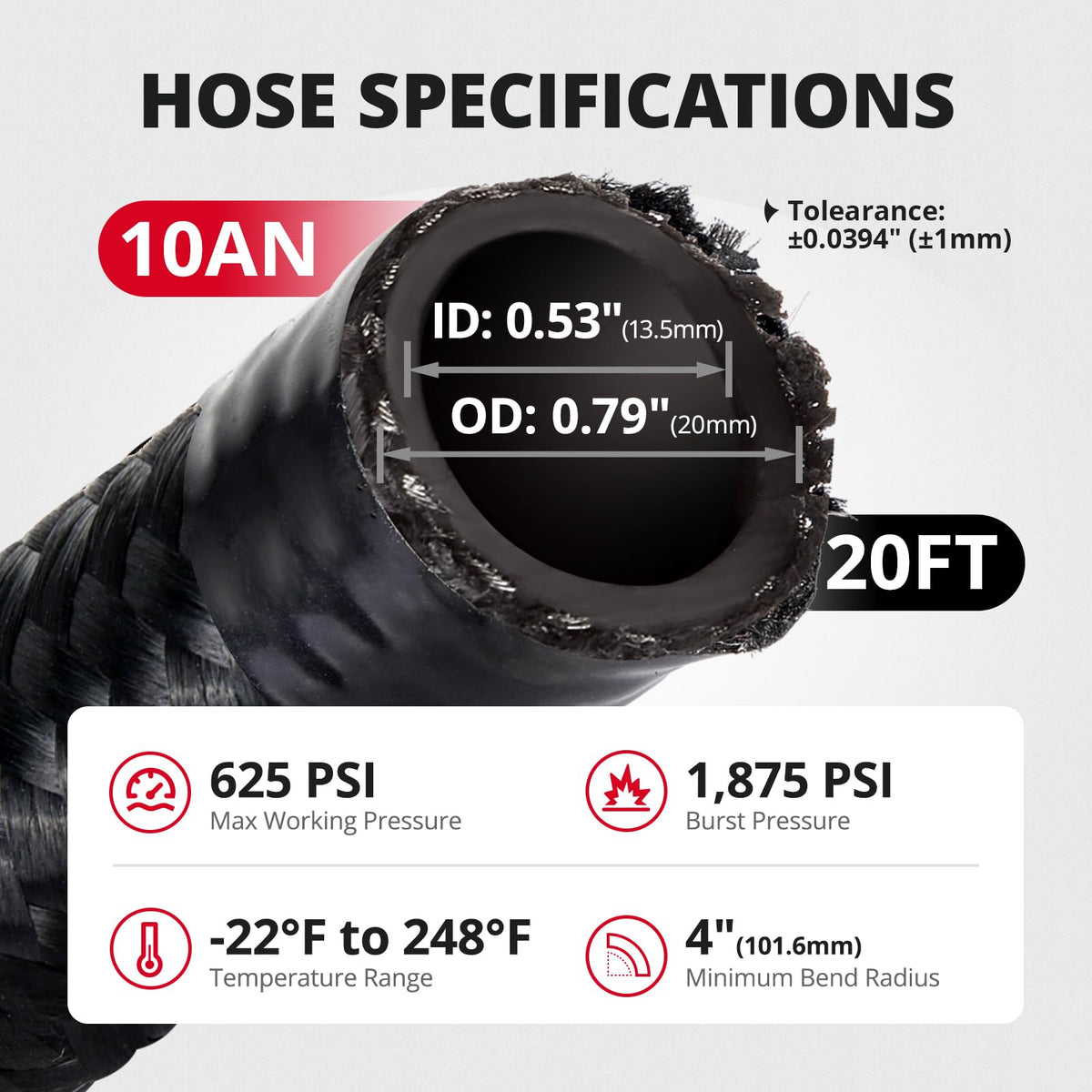

The hose is rated for a 625 psi maximum working pressure and a 1875 psi burst pressure, giving a wide safety margin for most automotive and light industrial uses. Its operating temperature range is -22°F to 248°F, making it suitable for standard underhood environments and many performance applications.

• Maximum working pressure: 625 psi for sustained use
• Burst pressure: 1875 psi for safety reserves
• Temperature tolerance: -22°F to 248°F for varied climates
• 304 steel wire braid resists expansion and puncture under load

What fluids can I run through this 10AN line?

The CPE inner tube is compatible with a long list of automotive and industrial fluids without rapid degradation. This makes the kit suitable for gasoline (including some race blends), diesel, transmission fluid, oil, hydraulic fluid, coolant return lines and vacuum lines when routed correctly.

• Compatible with gasoline, diesel and race fuel blends
• Safe for engine oil and transmission fluid applications
• Acceptable for vacuum and hydraulic fluid lines within ratings
• Not for use with incompatible aggressive chemicals—verify fluid compatibility

What components are included and how does installation look?

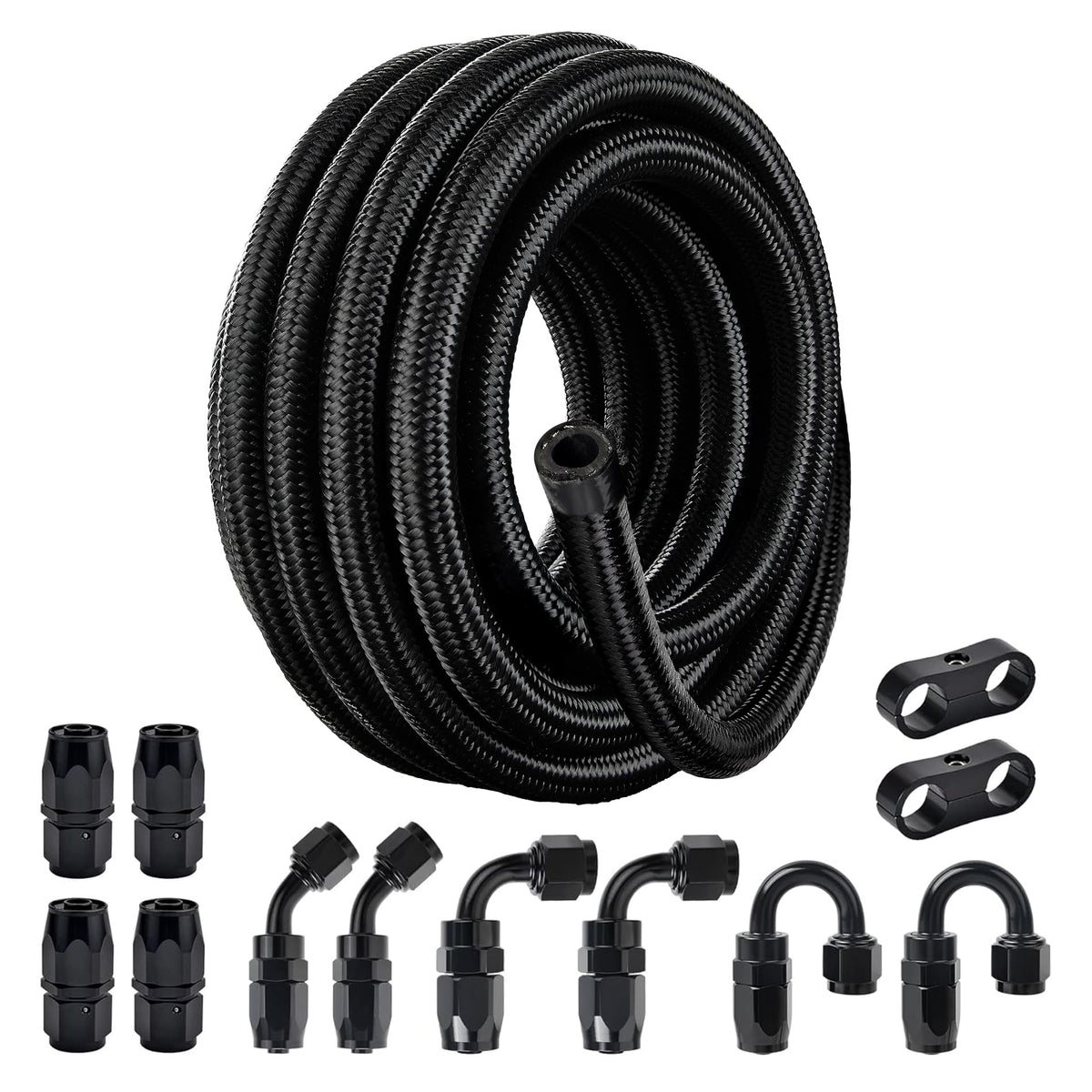

The kit ships with 20 feet of 10AN hose (0.53" ID, 0.79" OD), ten 10AN swivel hose ends in multiple orientations and two separator clamps for secure mounting. The variety of fittings—four straight, two 45°, two 90° and two 180°—lets you create clean, leak-resistant runs without excessive bending; fittings are aluminum alloy for light weight and corrosion resistance.

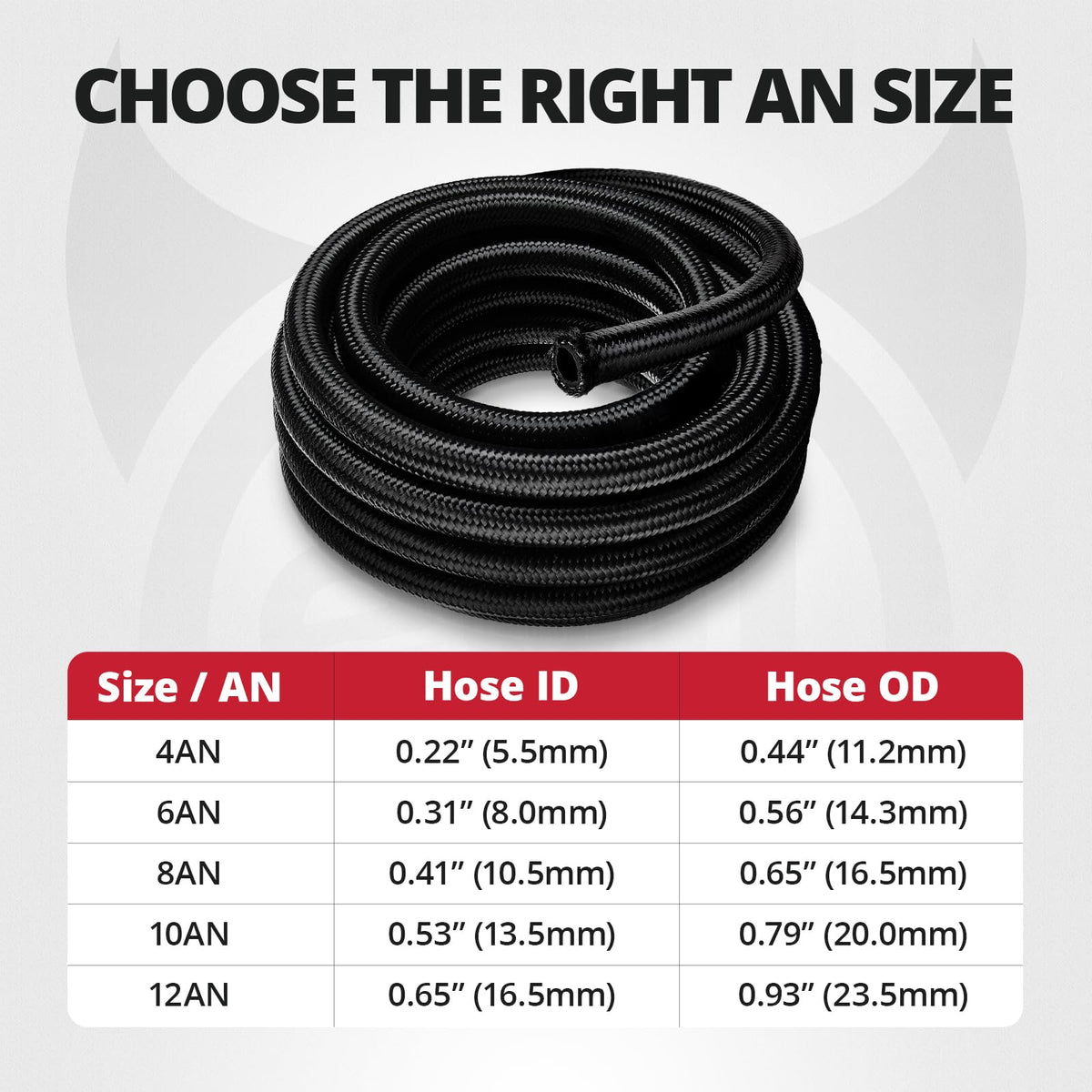

• 20 ft of 10AN braided hose: 0.53" ID, 0.79" OD

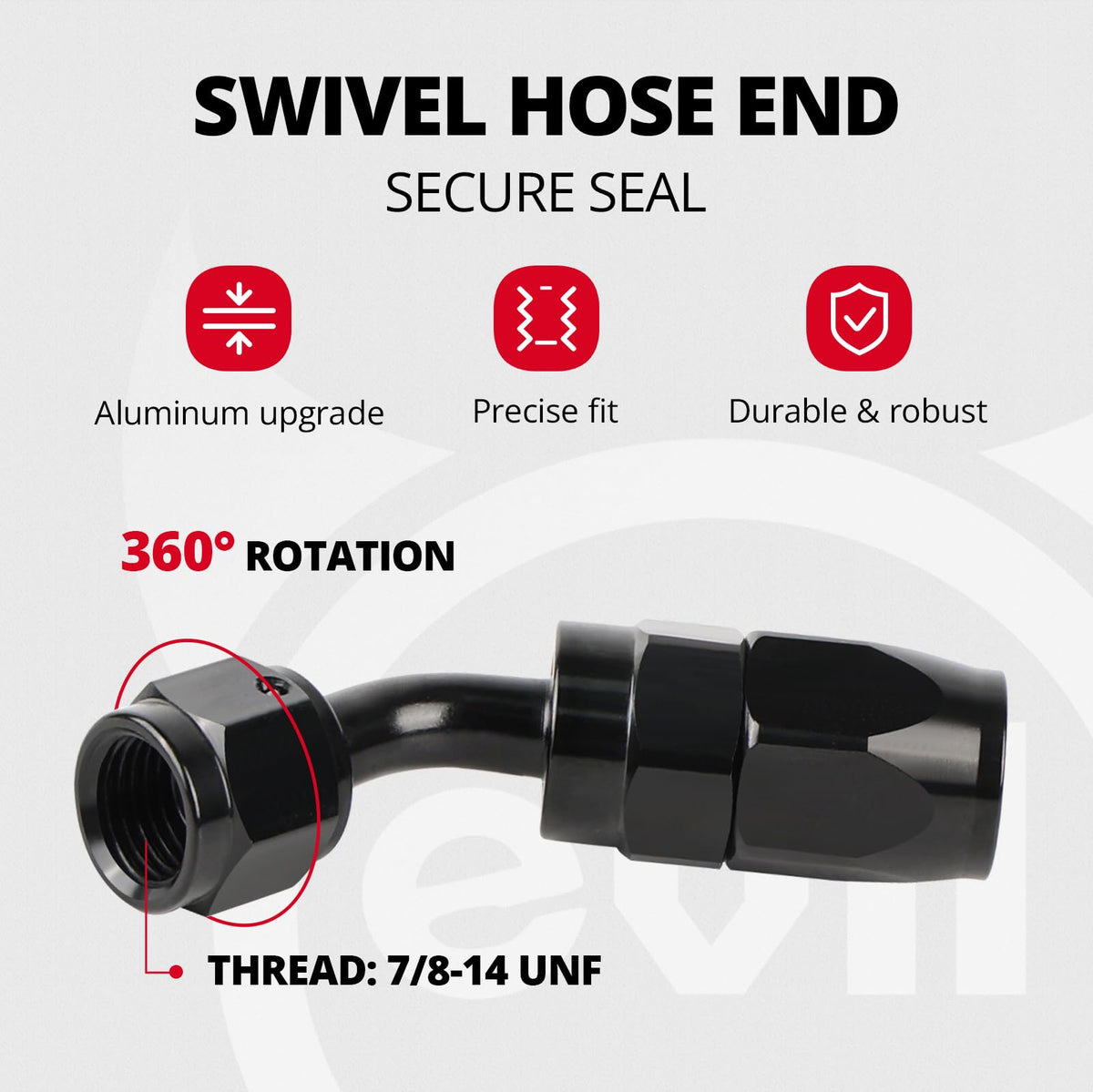

• 10 x 10AN swivel hose ends: straight, 45°, 90°, 180° angles
• 2 x 10AN hose separator clamps for tidy installation
• Aluminum alloy fittings + durable CPE inner hose construction

Will this kit fit my vehicle or performance project?

If your application calls for 10AN plumbing (commonly used in performance fuel systems, oil feed/return, and cooler lines), this kit provides universal components you can route and trim to length. Confirm thread types and AN sizing match your existing adapters or ports before final assembly.

• Designed for universal 10AN applications in automotive and race setups
• Trim-to-fit hose length and rotate swivel fittings during assembly
• Verify AN thread and port compatibility prior to installation
• Use appropriate clamps and brackets in high-vibration areas

Who is this for? EVIL ENERGY's 10AN Fuel Line Kit is aimed at mechanics, racers, hobbyists and fabricators who need a flexible, pressure-rated braided line for fuel, oil, coolant or vacuum routing. It suits DIY engine bay upgrades, custom fuel systems, transmission cooler hookups and other projects that require robust, easily routed 10AN plumbing. If you need a ready set of hose, swivel ends and mounting hardware to build or repair fluid lines quickly, this kit offers a practical, versatile option.
