EVIL ENERGY 10AN Fuel Line

EVIL ENERGY 10AN braided fuel line is a 5-foot, high-pressure AN10 hose with a CPE rubber core, 304-steel wire reinforcement and a nylon outer braid designed for fuel, oil and hydraulic use.

This EVIL ENERGY AN10 fuel hose combines a chemical-resistant CPE inner layer, a braided 304 stainless wire reinforcement and a durable nylon outer sleeve to deliver reliable flow for fuel, oil, transmission fluid and more. Rated for up to 625 PSI working pressure and tested to a 1875 PSI burst, this 0.53-inch ID / 0.79-inch OD hose provides a compact, serviceable solution for engine bays, race cars, marine rigs and hydraulic applications where an AN10 swivel fitting is used.

How durable is the 10AN braided fuel hose under pressure and heat?

The EVIL ENERGY hose is engineered for demanding environments: it handles continuous working pressure up to 625 PSI and resists temperatures from -22°F to 248°F. The combination of a CPE rubber inner liner and 304 stainless steel wire braid prevents collapse and supports long-term integrity under repeated cycles.

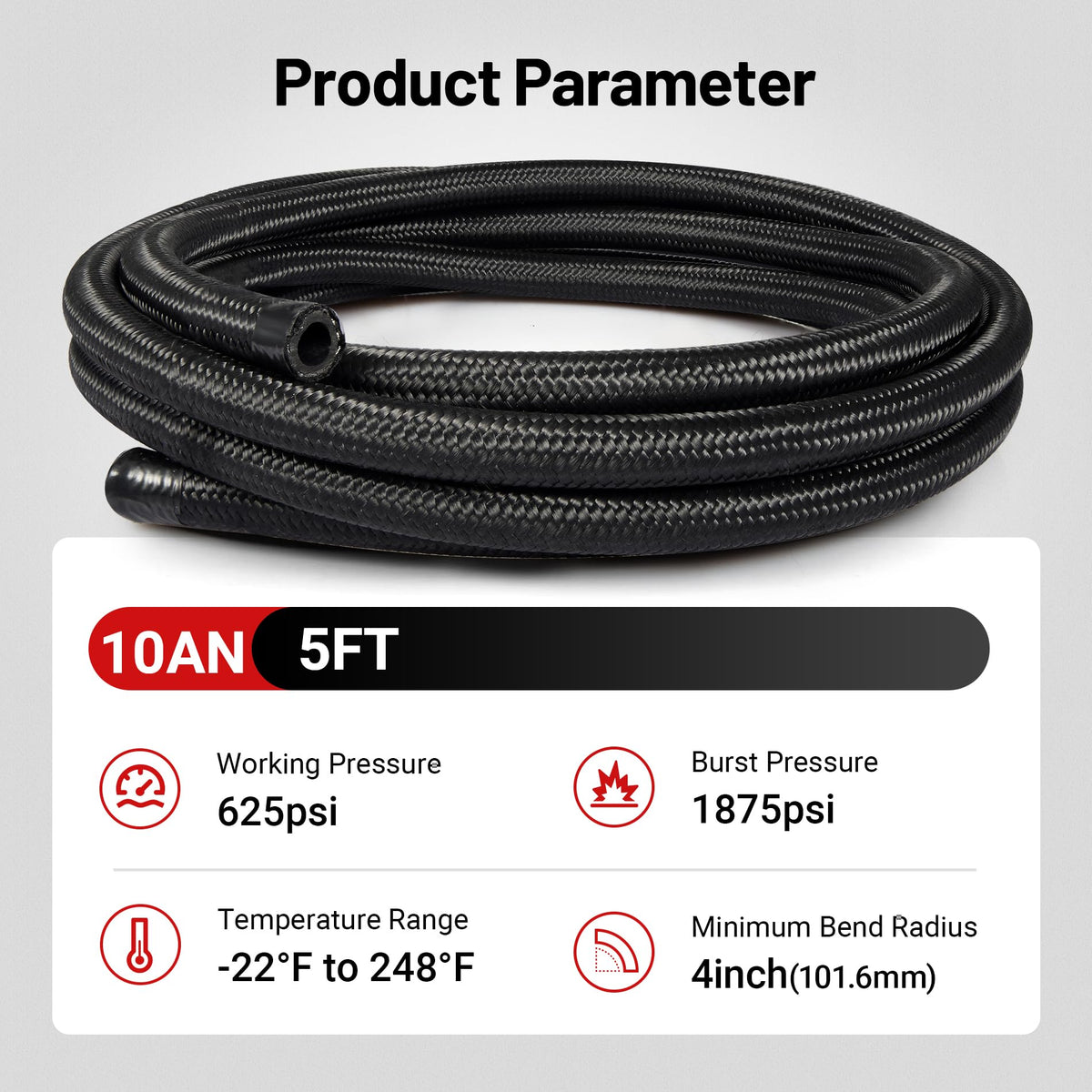

• Maximum working pressure: 625 PSI
• Bursting pressure: 1875 PSI
• Temperature range: -22°F to 248°F
• Reinforced with 304 stainless wire for flex and strength

What fluids and systems is this AN10 hose compatible with?

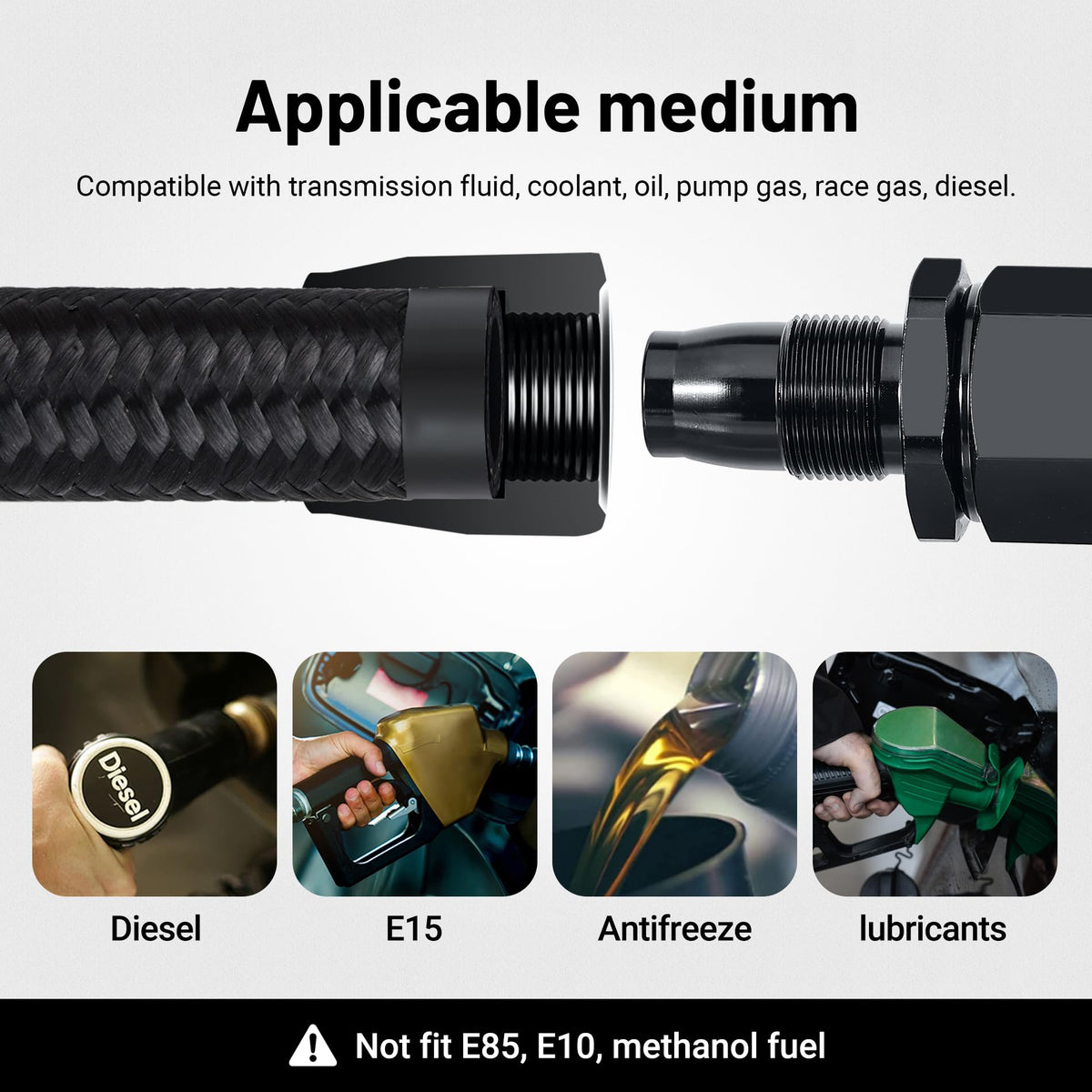

This braided line accepts a wide range of automotive and industrial fluids, including gasoline formulations, diesel, engine oil, transmission fluid, hydraulic fluid and vacuum lines. It is commonly used for fuel supply and return lines, oil feed lines, coolant bypasses and turbo cooler plumbing where chemical compatibility and pressure ratings match the application.

• Compatible with fuel, race gas, diesel, oil, transmission fluid and hydraulic fluid
• Suitable for vacuum lines and fuel gauge lines
• Works well for turbo cooler and oil feed routing
• Designed to be used with 10AN swivel hose ends

What are the physical dimensions and installation notes?

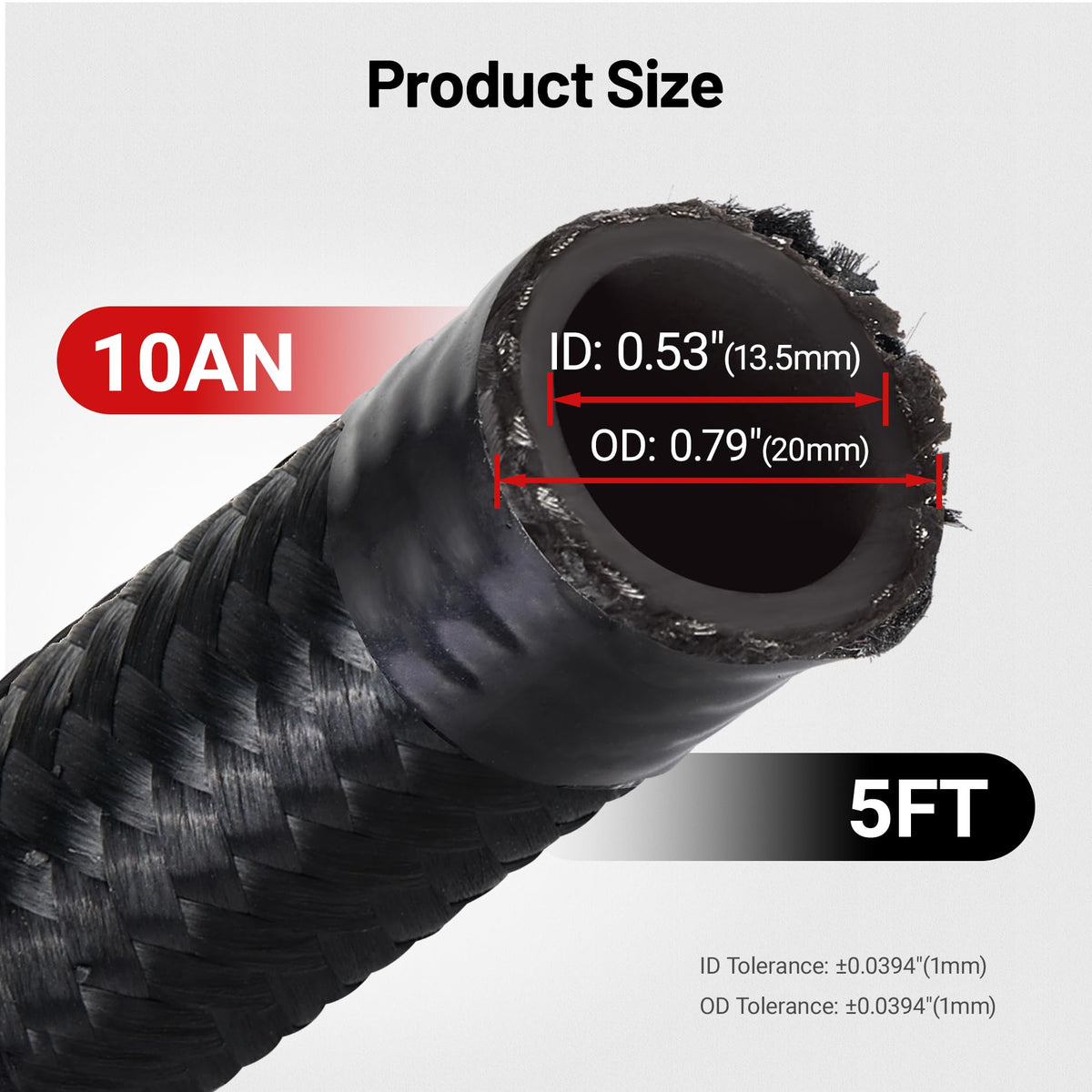

The hose measures 5 feet long with an inner diameter of 0.53 inches and an outer diameter of 0.79 inches, fitting standard AN10 swivel fittings. Installation is straightforward — route away from sharp edges and extreme heat sources, secure with clamps or brackets, and use the included instructions for proper AN10 swivel hose-end attachment.

• Length: 5 feet (pre-cut)
• Hose ID: 0.53 inch; Hose OD: 0.79 inch
• Requires AN10 swivel hose ends for fittings
• Includes installation instructions for correct assembly

How does the construction help in real-world use?

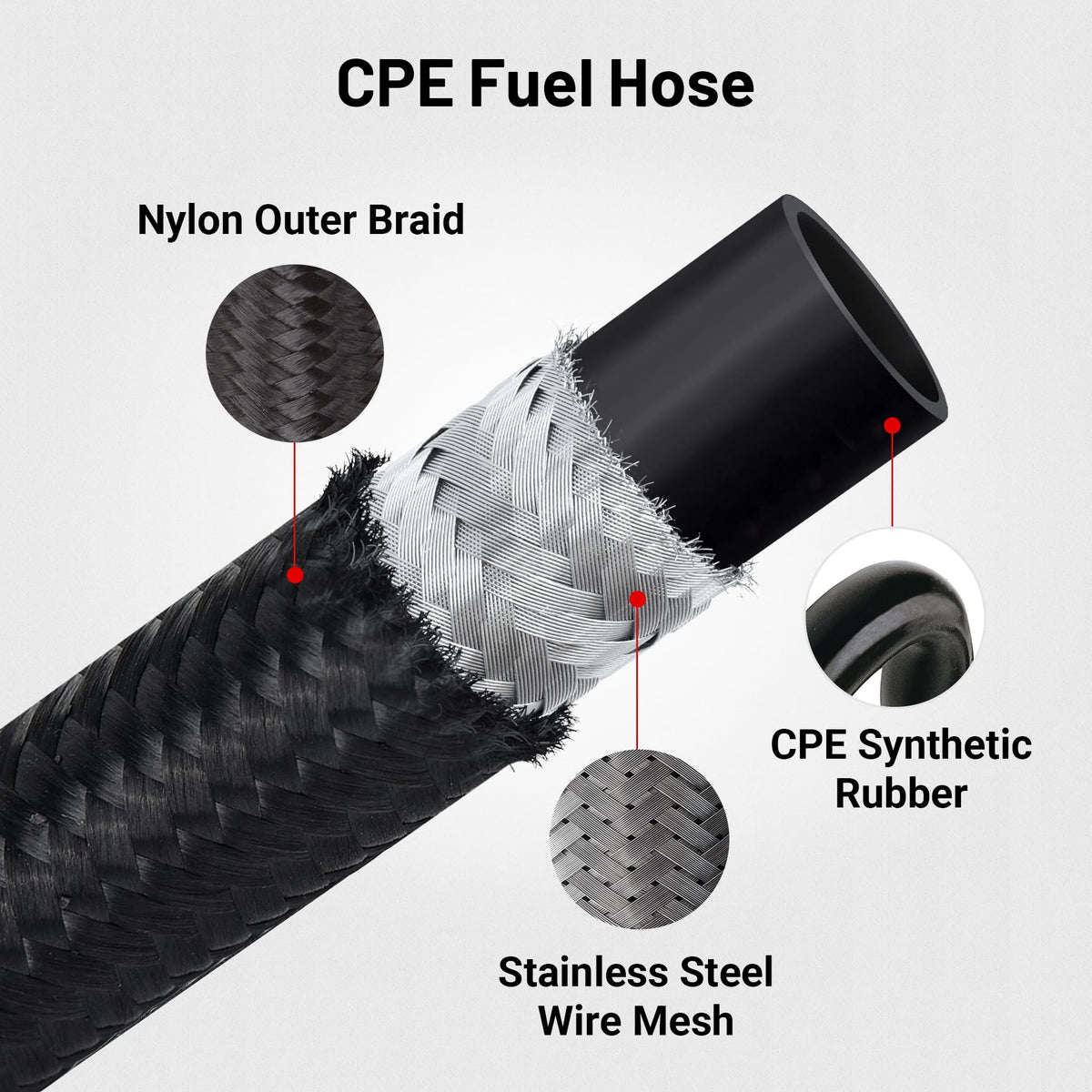

The layered build — CPE inner liner, 304 steel wire braid, and nylon outer jacket — balances chemical resistance, pressure containment and abrasion resistance. That makes the hose a good choice for tight engine bays and mobile or racing setups where vibration, flexing and exposure to fluids are common.

• CPE inner layer resists fuels and oils for longevity
• Steel wire braid prevents expansion and supports pressure loads
• Nylon outer braid protects against abrasion and oils
• Flexible enough for tight routing while maintaining flow

Who is this for? The EVIL ENERGY 10AN braided fuel hose is suited for mechanics, tuners and DIY enthusiasts who need a reliable AN10 line for fuel, oil, transmission or hydraulic routing. It’s particularly useful for racers, performance builds, marine installations and anyone upgrading stock lines to a reinforced AN10 solution. If you require a 5-foot, high-pressure hose compatible with common automotive fluids and intended for use with AN10 swivel fittings, this hose provides a balance of strength, flexibility and chemical compatibility.
