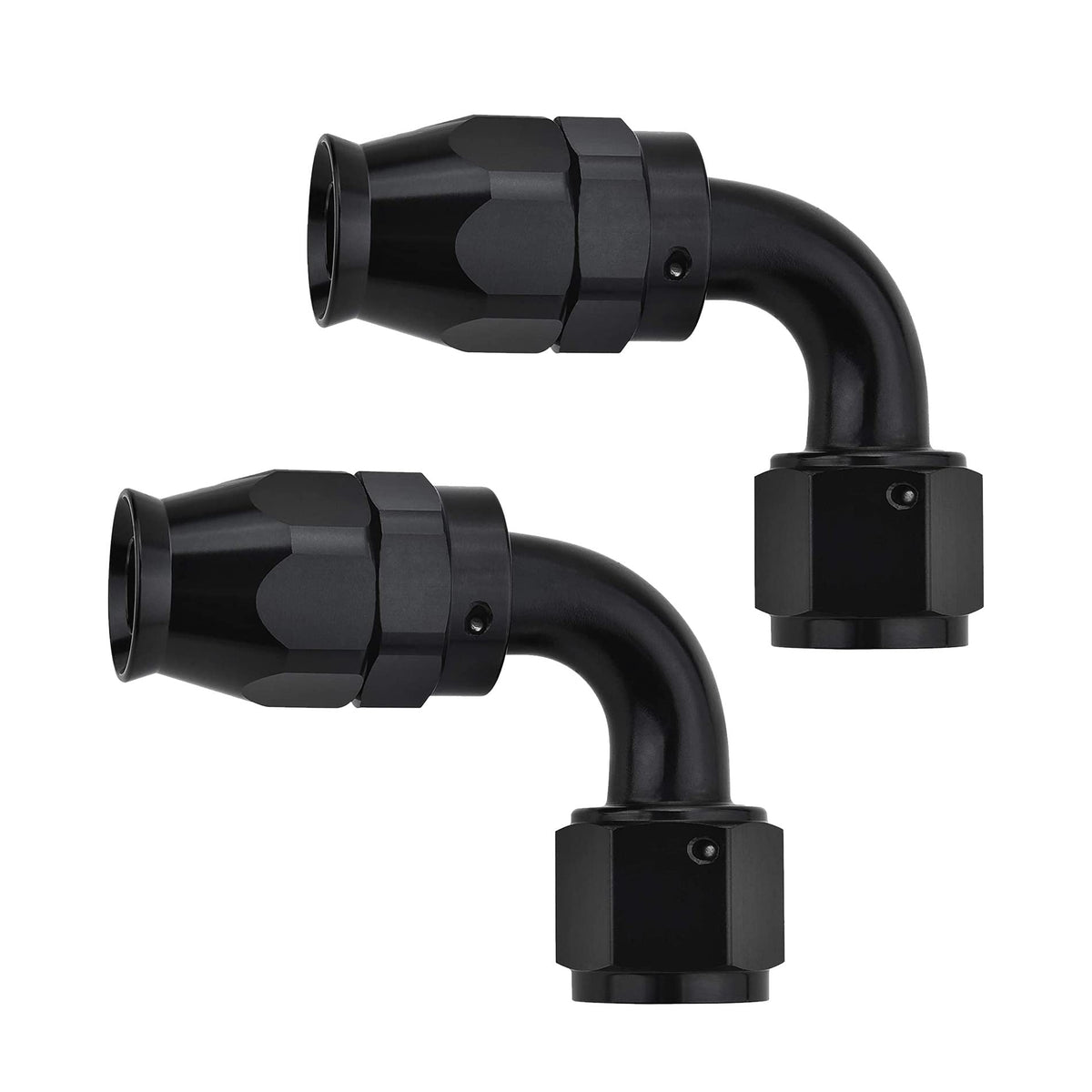

EVIL ENERGY 10AN PTFE 90° Hose End Fitting Black — 2pc, 6061-T6 Aluminum, 360° Swivel

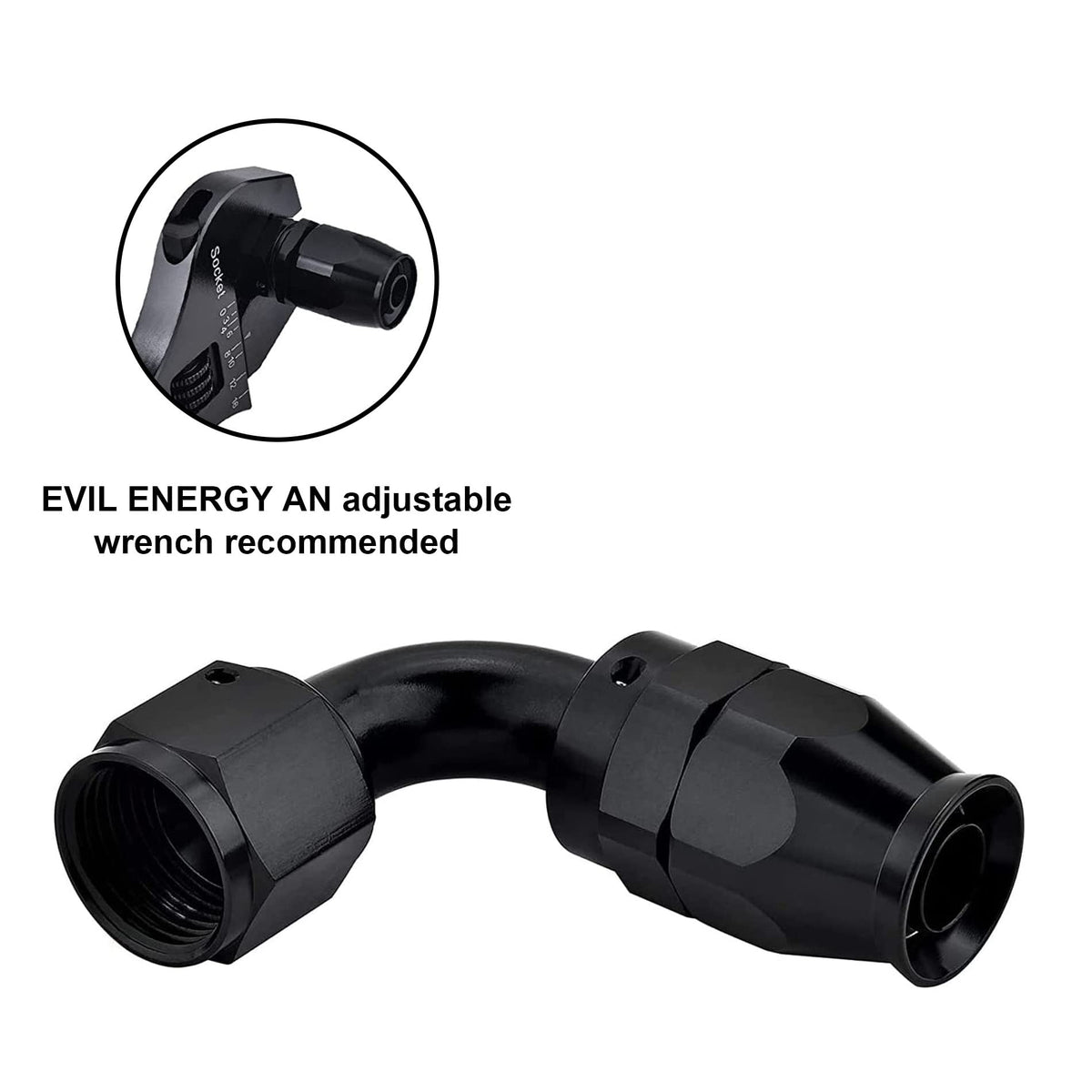

EVIL ENERGY 10AN 90° PTFE hose end fittings are black 90-degree aluminum adapters designed specifically to connect PTFE fuel lines using a 7/8-14UNF (10AN) thread, sold as a pair.

These 10AN, 90-degree fittings are engineered for PTFE-lined hoses and provide a compact, swiveling connection where space is limited or where a directional change is needed. Constructed from 6061-T6 aluminum with a 37° sealing angle on the AN side, they deliver high working pressure capability and a wide temperature tolerance. The set includes two fittings and is intended only for use with PTFE fuel line systems.

How does this 90° fitting help when routing PTFE fuel lines?

The 90° elbow lets you steer PTFE hoses around tight corners without kinking the inner liner. Its low-profile bend reduces stress on the hose and creates a cleaner installation path in engine bays or equipment compartments.

• Right-angle orientation for tight clearance or compact assemblies
• 360° swivel feature eases alignment during installation
• Specifically matched to PTFE hose inner diameters to avoid slippage

What are the key durability and performance specs?

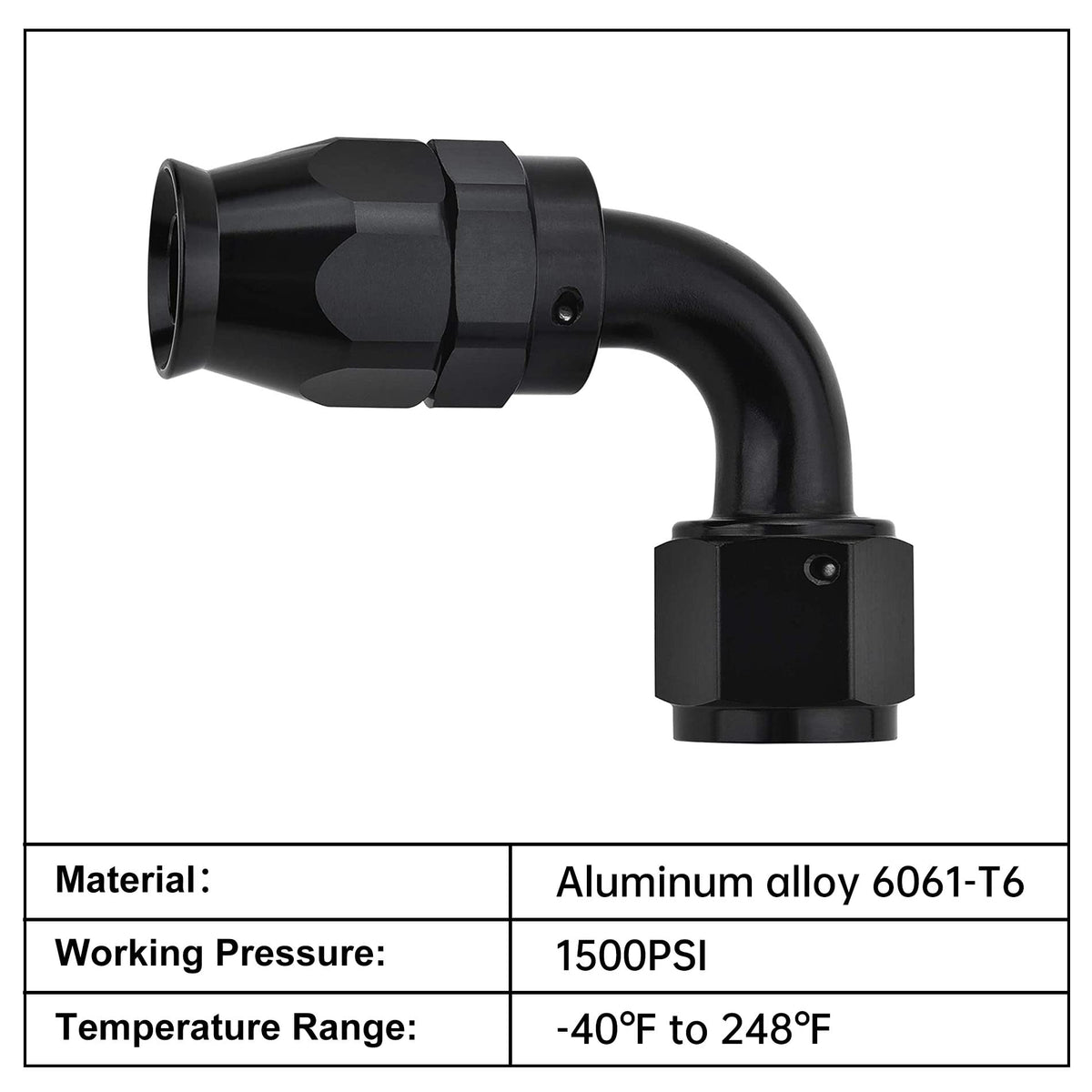

These fittings are machined from 6061-T6 aluminum for a balance of light weight and corrosion resistance. They are rated for a working pressure up to 1500 PSI and acceptable across a broad temperature range, making them suitable for many fuel-system environments.

• Material: aluminum alloy 6061-T6 for strength and weight savings
• Working pressure: rated to 1500 PSI for fuel-line use
• Temperature range: -65°F to 252°F for thermal stability

Will these fittings seal reliably and fit my existing AN hardware?

The AN connection seals with a 37° flare angle, matching standard AN sealing geometry for a metal-to-metal seal when torqued properly. The thread size is 10AN (7/8-14UNF), so they pair with components rated for that thread and angle.

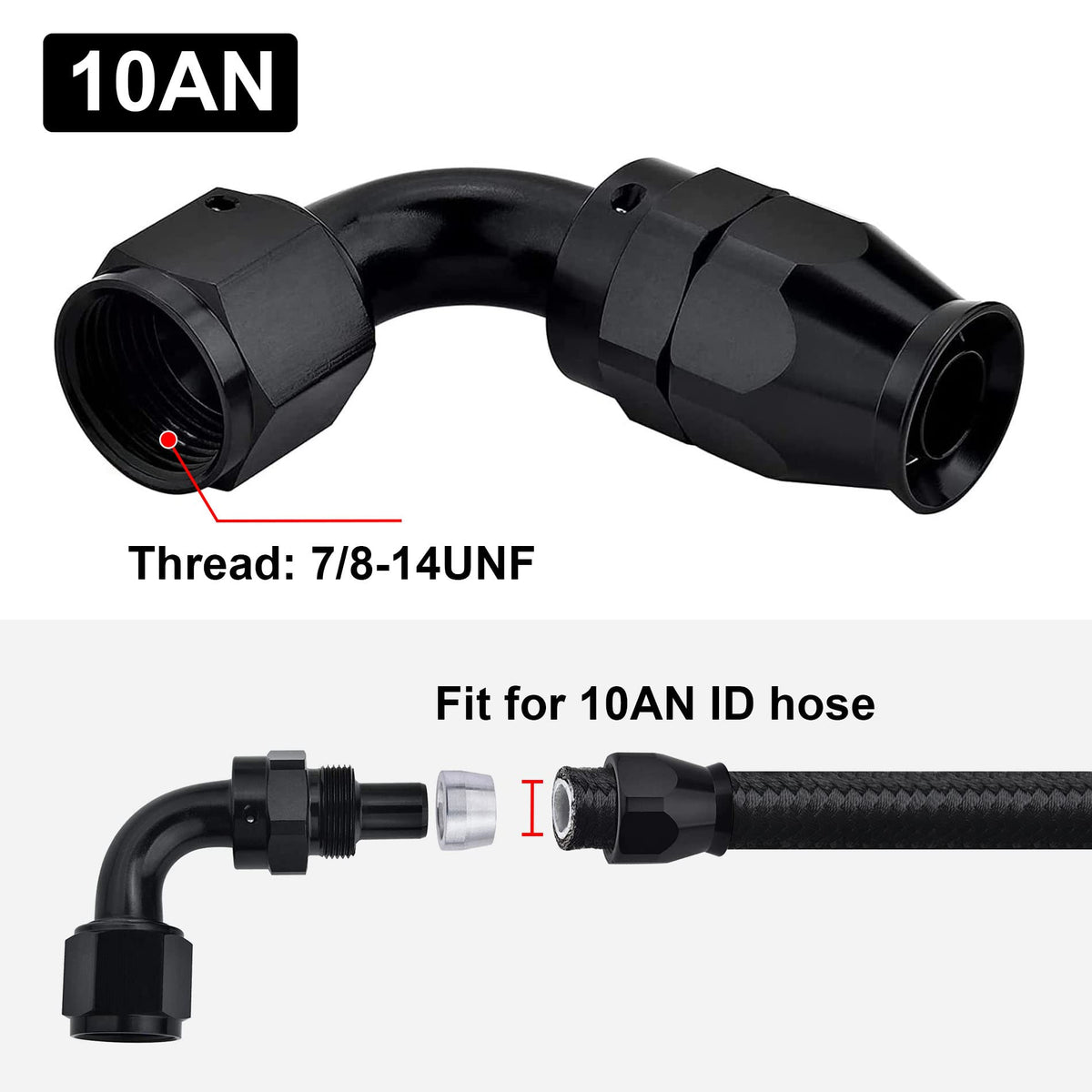

• Thread size: 10AN (7/8-14UNF) compatible with AN-10 components
• 37° AN seal angle for standard flare sealing when installed correctly

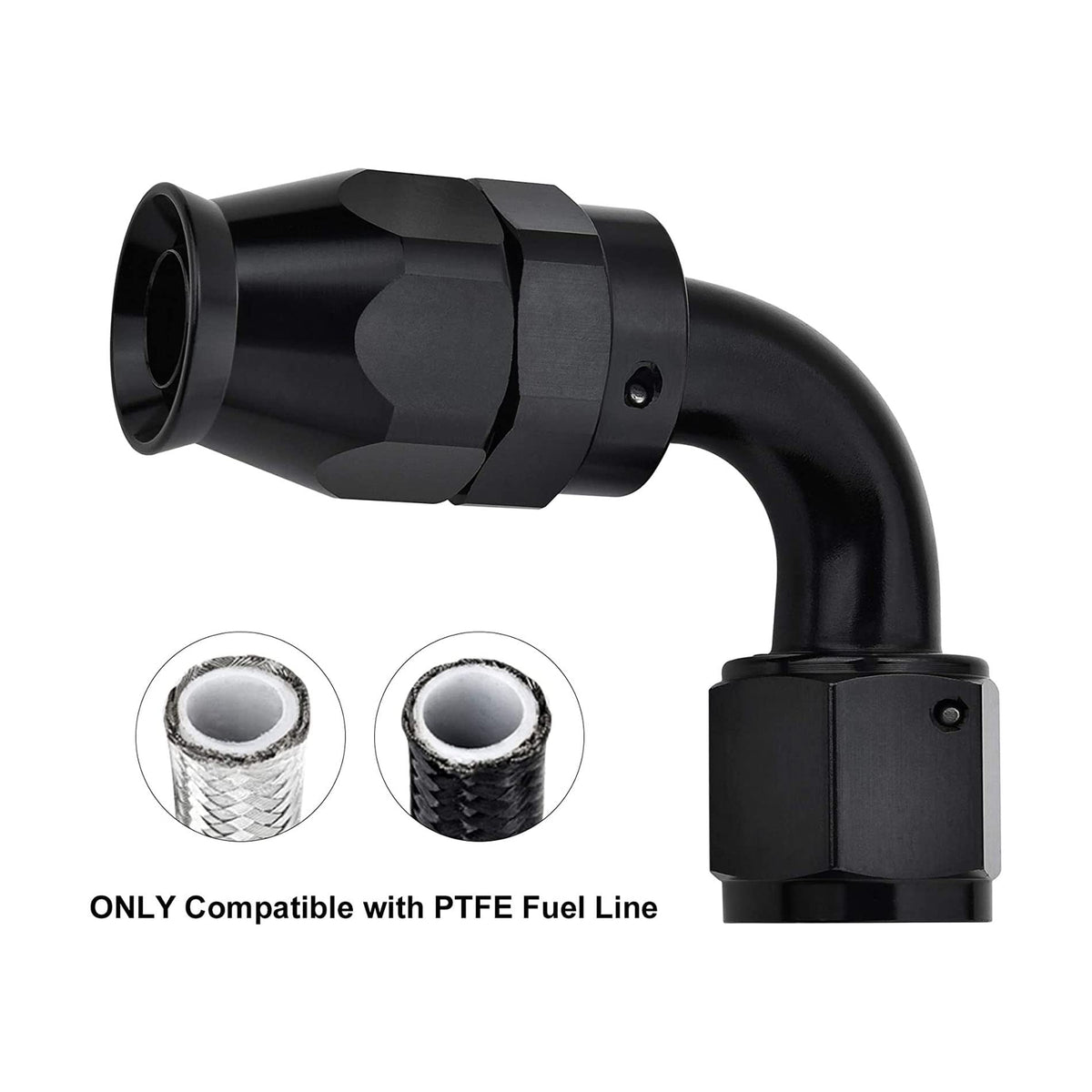

• Use only on PTFE-lined hoses to maintain intended sealing and function

How easy is installation and alignment?

The fittings incorporate a 360° swivel on the hose end, allowing you to pre-position the hose then rotate the fitting to engage the threaded AN connection without twisting the hose. This minimizes installation time and reduces stress on hose fittings during torque-up.

• 360° swivel design simplifies alignment and prevents hose twisting
• Compact 90° shape reduces interference with surrounding components
• Sold as a pair so both inlet and outlet turns can be matched

Who is this for: These EVIL ENERGY 10AN 90° PTFE hose end fittings are aimed at automotive and motorsport enthusiasts, custom-fabrication shops, and technicians installing PTFE-lined fuel systems who need a reliable, compact, and pressure-rated elbow connection. They are suitable for any project that specifies AN-10/7/8-14UNF threading and PTFE hose compatibility, and they are not intended for non-PTFE hoses or non-fuel uses without confirming compatibility.
