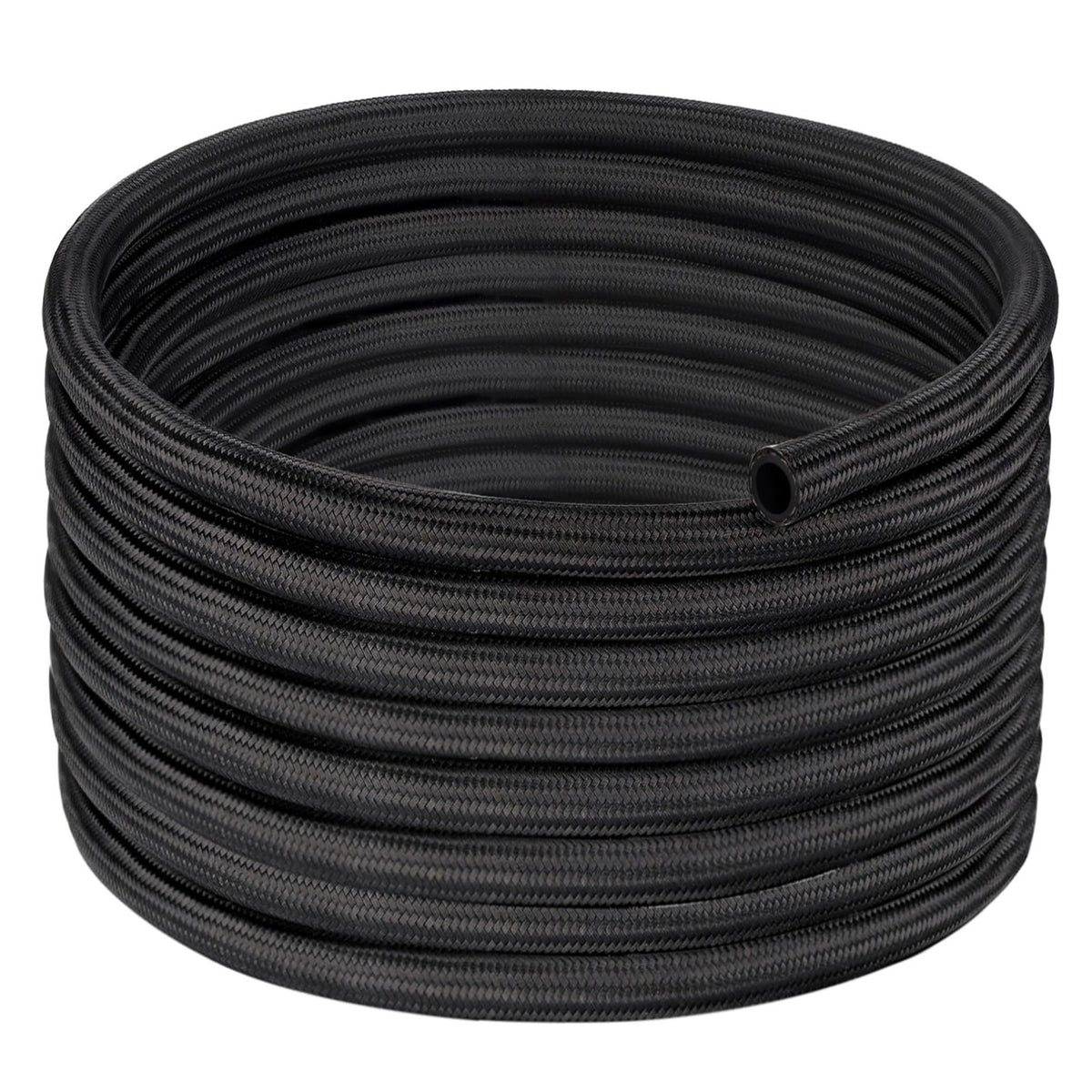

EVIL ENERGY 12AN Braided Fuel Hose 20ft Black — CPE Core, 500 PSI Working Pressure

EVIL ENERGY 12AN braided fuel hose is a 20-foot, CPE rubber fuel line with 304 steel wire and nylon outer braid built for high-pressure automotive and racing fluid transfers.

This 12AN fuel line combines heat- and chemical-resistant CPE core material with a steel-reinforced layer and a durable nylon outer braid to deliver consistent performance across fuel, oil, coolant, and hydraulic applications. Designed for vehicle builders, tuners, and heavy-duty technicians, the hose is sized to work with 12AN swivel fittings and offers a wide operating temperature and pressure range suitable for demanding environments.

How does this hose hold up under pressure and heat?

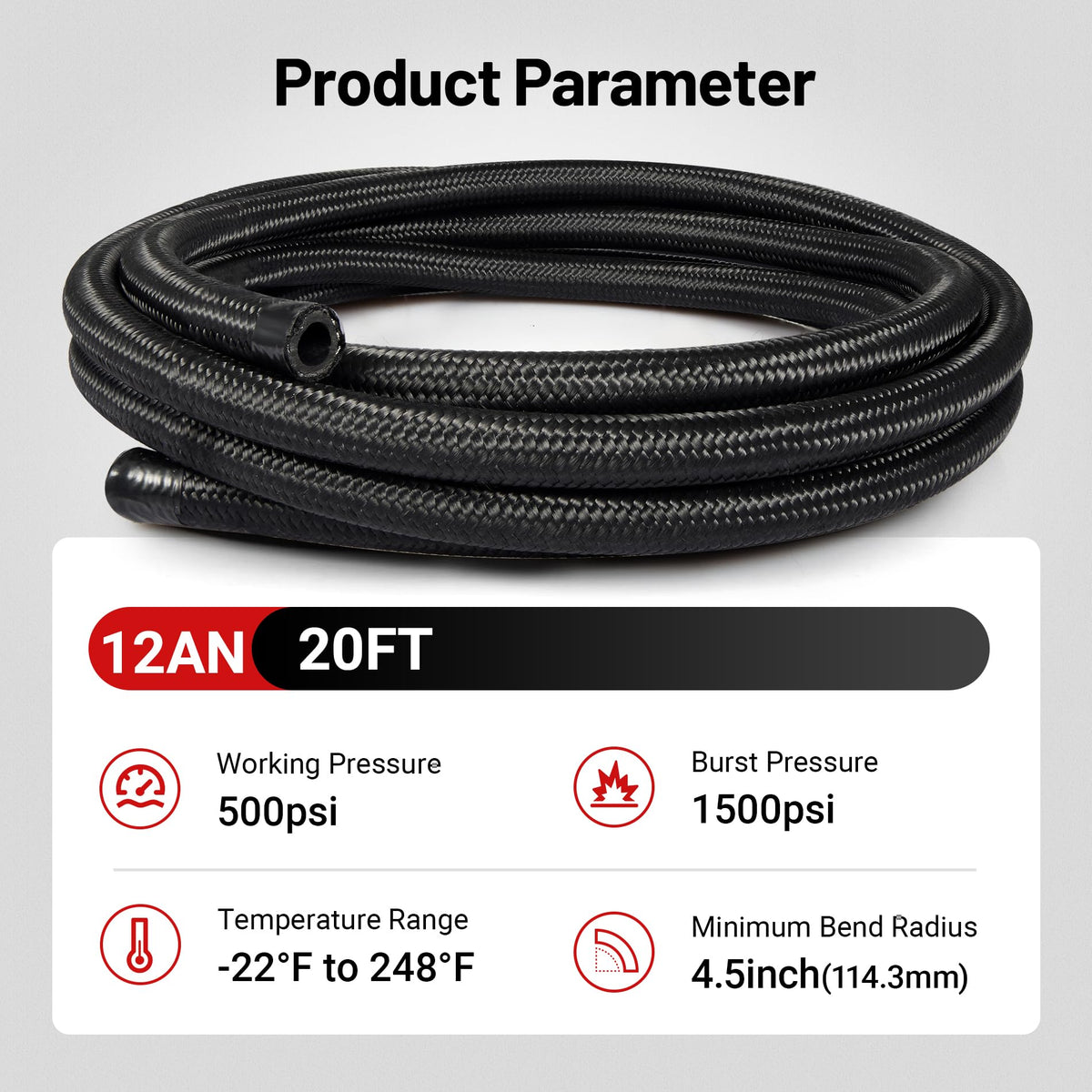

The EVIL ENERGY AN12 hose is engineered for reliability when fluid systems are pushed hard. With a maximum continuous working pressure of 500 PSI and a burst rating around 1500 PSI, it resists deformation and maintains flow integrity at elevated temperatures.

• Maximum working pressure: 500 PSI
• Bursting pressure: approximately 1500 PSI
• Operating temperature range: -22°F to 248°F (-30°C to 120°C)
• Steel wire reinforcement prevents kinking under load

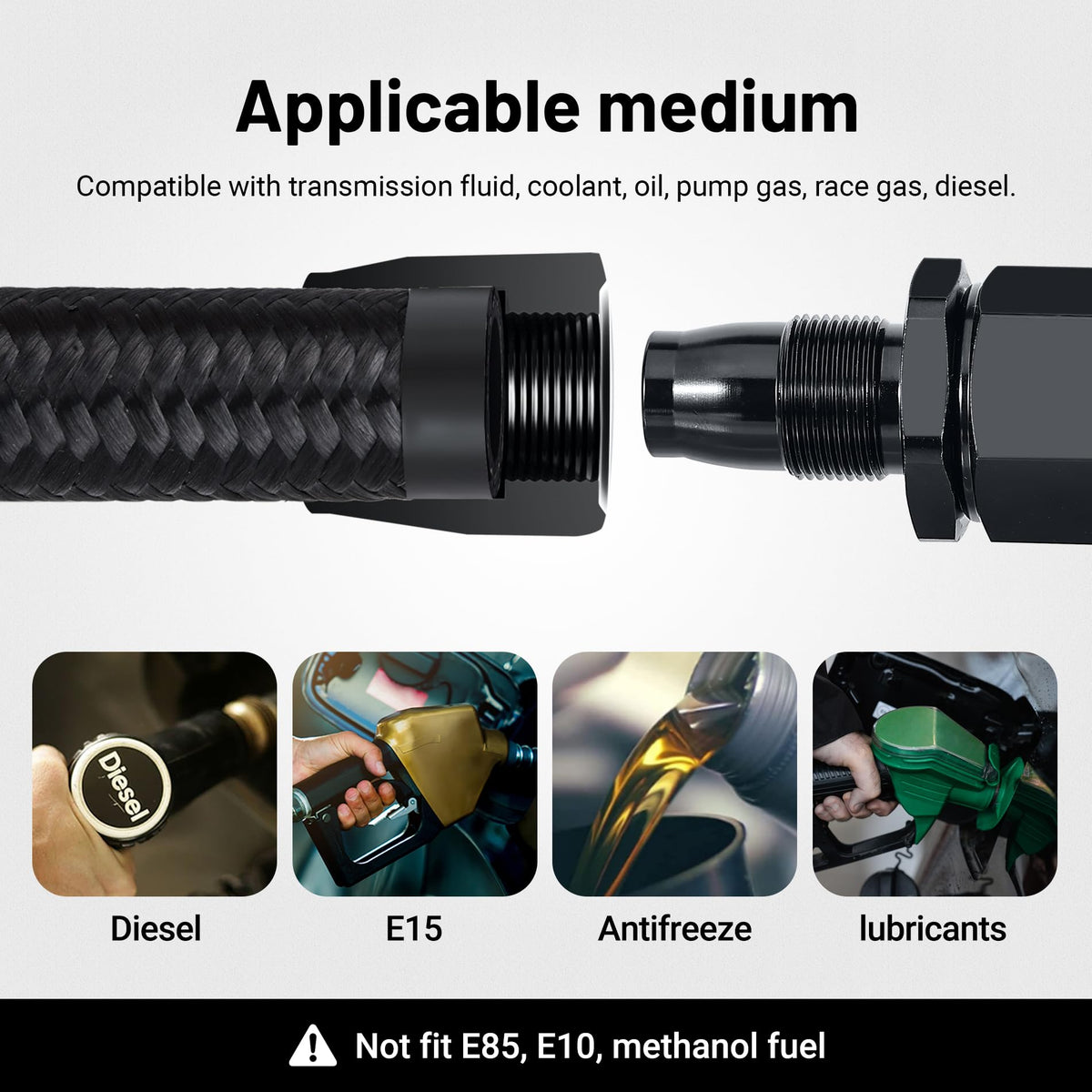

Which fluids and systems is the AN12 braided hose compatible with?

This hose was developed to accept a broad spectrum of automotive and industrial fluids without rapid degradation. From gasoline blends and diesel to transmission oil and hydraulic fluids, the CPE core resists common fuel additives and lubricants.

• Compatible with gasoline, race gas, diesel, and fuel blends
• Suitable for transmission fluid, oil, coolant, and hydraulic fluid
• Can be used as fuel supply, return, vacuum, or oil feed line
• Not intended for use without proper 12AN fittings and installation

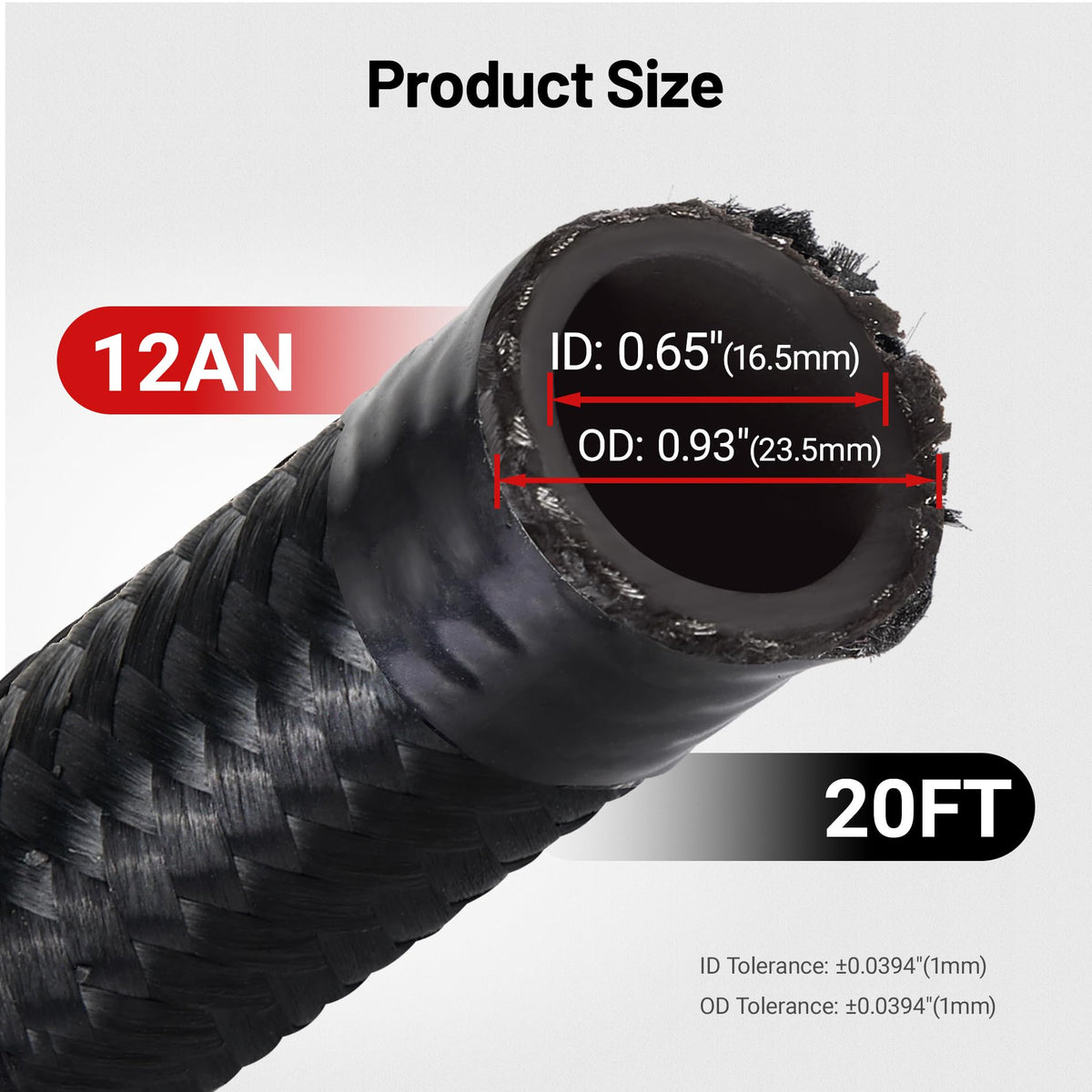

What are the hose dimensions and installation requirements?

The EVIL ENERGY 12AN hose provides a balance of internal flow and external compatibility for AN12 systems. The internal diameter and outer dimensions match common AN12 swivel fittings; installation instructions are included and proper fittings are required for leak-free connections.

• Internal diameter (ID): 0.65 inch
• Outer diameter (OD): 0.93 inch
• Length: 20 feet (single continuous length)
• Works with 12AN swivel hose ends only; installation instructions included

How durable is the hose construction for real-world use?

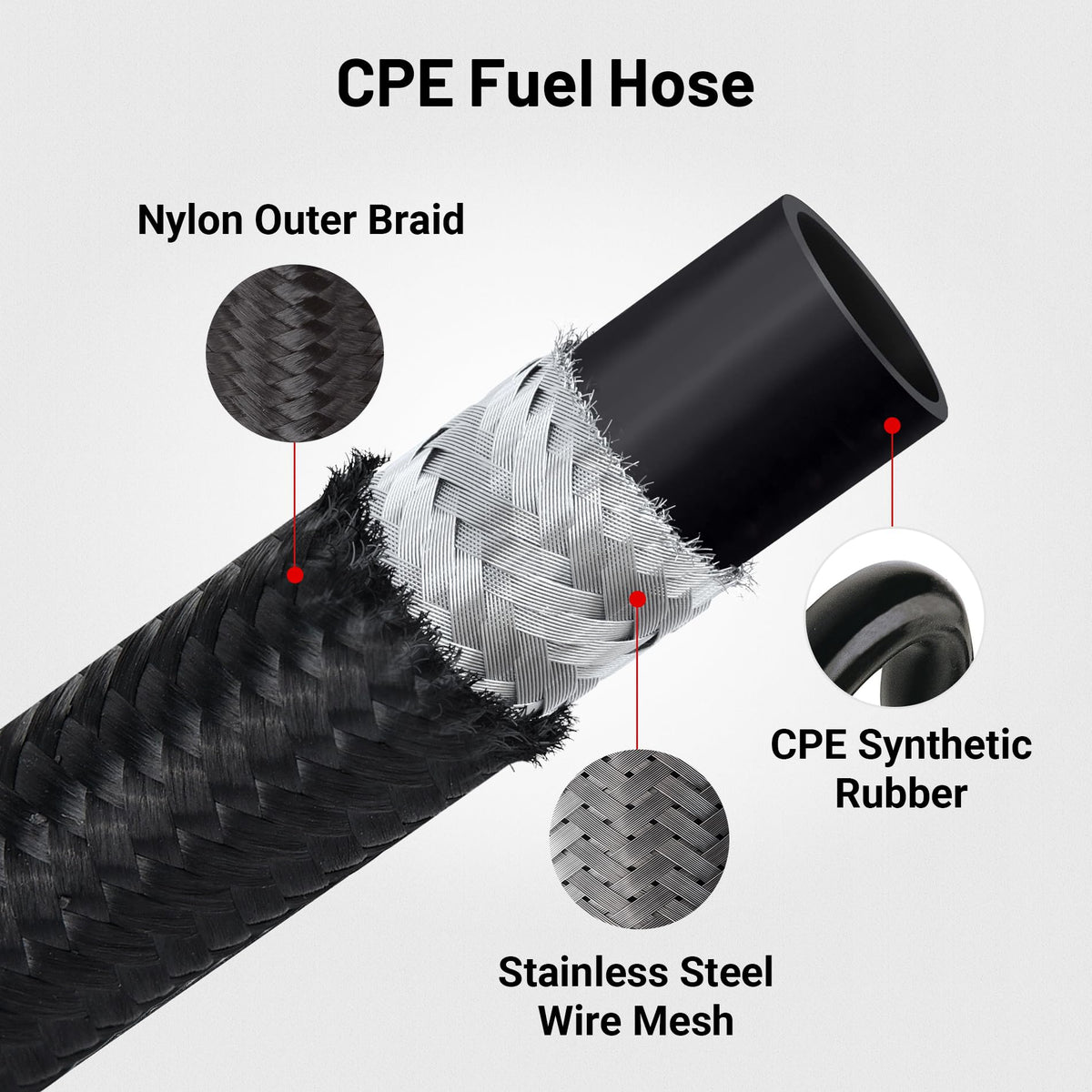

Durability was prioritized through a three-layer design: a CPE rubber core for chemical resistance, a 304 stainless steel wire reinforcement for pressure handling, and a nylon braid for abrasion and UV resistance. That combination extends service life in racing, marine, and workshop environments where abrasion and heat are common.

• CPE rubber core resists fuels and oils
• 304 stainless steel wire improves pressure tolerance
• Nylon outer braid protects against abrasion and sunlight exposure
• Suitable for repeated flexing and routing in tight engine bays

Who is this for? If you are a motorsports enthusiast, performance mechanic, custom fabricator, or fleet technician needing a reliable AN12-rated feed or return line, this EVIL ENERGY 12AN braided hose is built for those tasks. It suits projects that demand a continuous 20-foot length for routing, or those that will be cut to length and terminated with 12AN swivel fittings. Choose this hose when you want broad fluid compatibility, robust pressure endurance, and a reinforced construction that stands up to heat, vibration, and abrasion.
