EVIL ENERGY 12AN Hose End Fitting 90 Degree Swivel for CPE

These compact 90-degree hose ends are engineered for performance installations where a reliable AN-style seal, tight routing and repeated serviceability matter. Machined from 6061-T6 aluminum and anodized black, they combine a 37° AN sealing surface with a 1 1/16-12 UNF (12AN) thread, and are supplied as a pair for fuel, oil, coolant or air lines using stainless or nylon braided hoses.

How do these 12AN fittings create a leak-resistant connection?

The fittings use a standard 37° AN sealing angle that seats against the mating flare for a high-integrity metal-to-metal seal. Proper installation and compatible braided hose end prep ensure the seal holds under cyclic pressure and temperature changes.

• 37° AN seat for proven metal-flare sealing

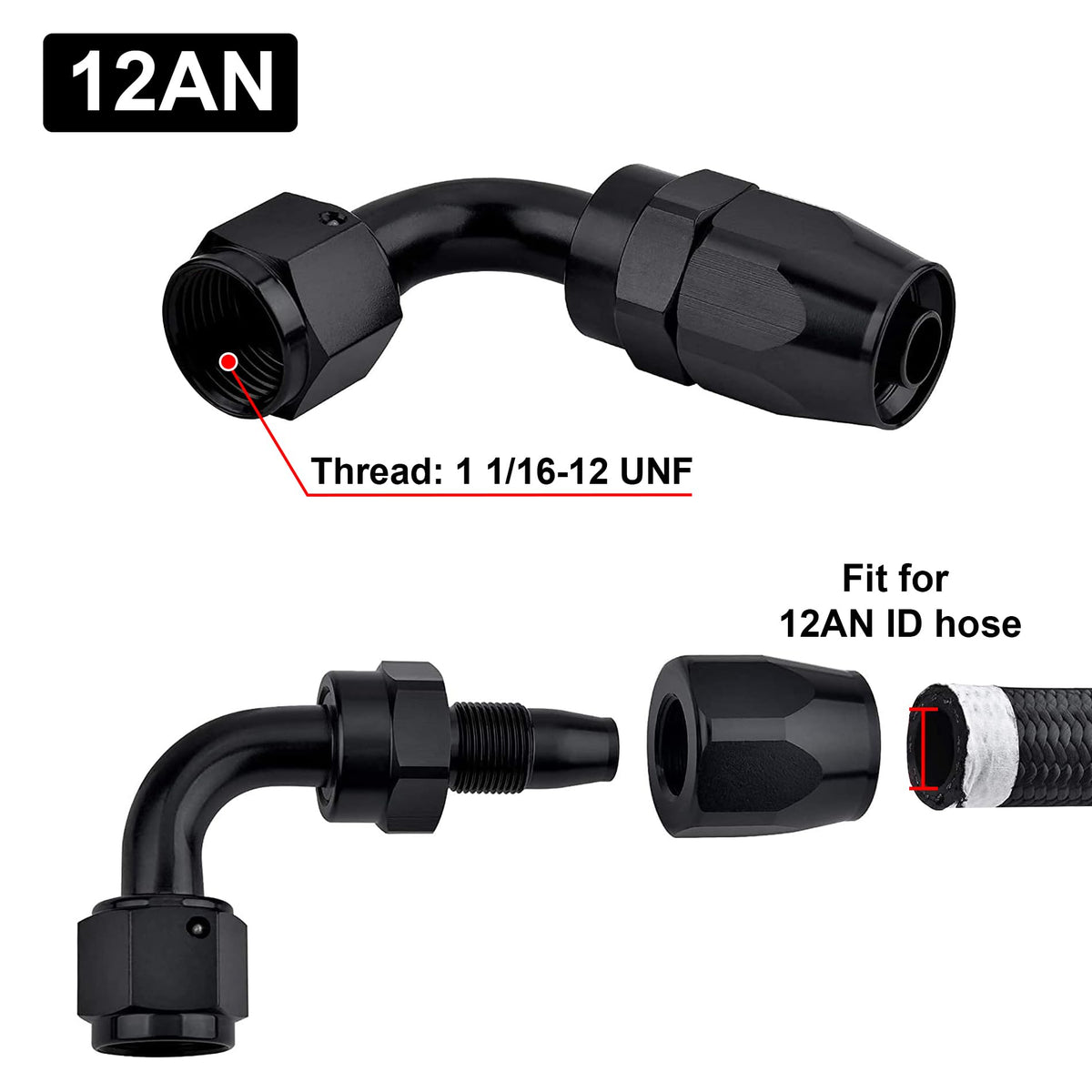

• 1 1/16-12 UNF thread (12AN) for common AN hose systems
• Compatible with stainless and nylon braided CPE hose types only
• Rated to 1500 PSI for heavy-duty applications

Will the 90° swivel make routing and maintenance easier?

Yes — the fittings employ a full 360° swivel design so the hose can rotate independently of the threaded port. That freedom simplifies tight-routing in engine bays and allows quick alignment during assembly or removal without twisting the hose body.

• 360° rotation to reduce hose stress and prevent kinking
• Swivel speeds installation and teardown in cramped spaces
• Reusable design supports multiple service cycles
• Black anodize helps resist corrosion while keeping a discreet look

What materials and operating limits should I expect?

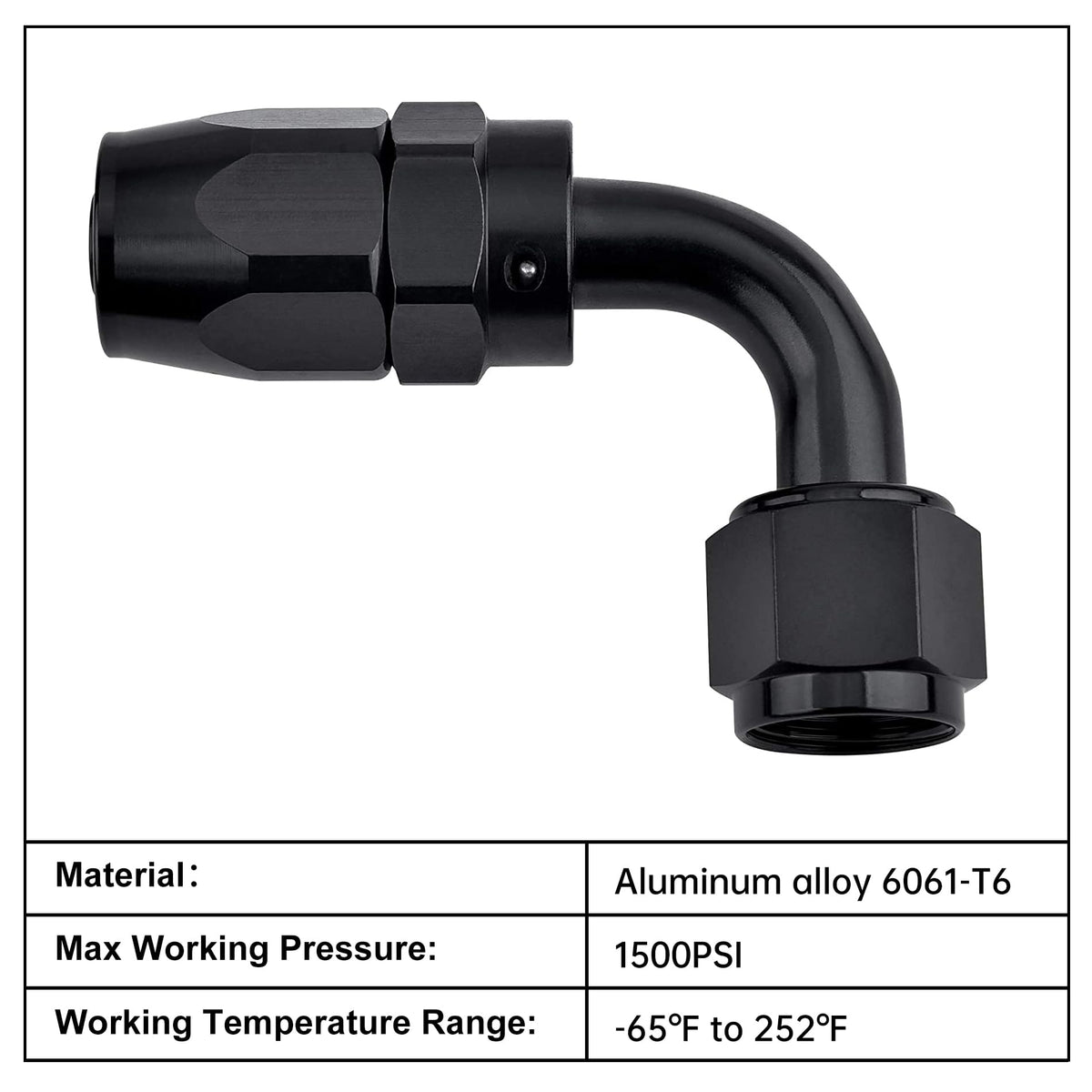

Each fitting is CNC-machined from aircraft-grade 6061-T6 aluminum for strength-to-weight balance and then finished in black anodize. They’re rated for temperatures from -65°F to 252°F (-53°C to 122°C) and a maximum working pressure of 1500 PSI when used with compatible braided hose.

• 6061-T6 aluminum construction for durability and light weight
• Temperature range: -65°F to 252°F (-53°C to 122°C)
• Max working pressure: 1500 PSI
• Designed specifically for stainless or nylon braided CPE hoses

How do I know this will fit my system and hose type?

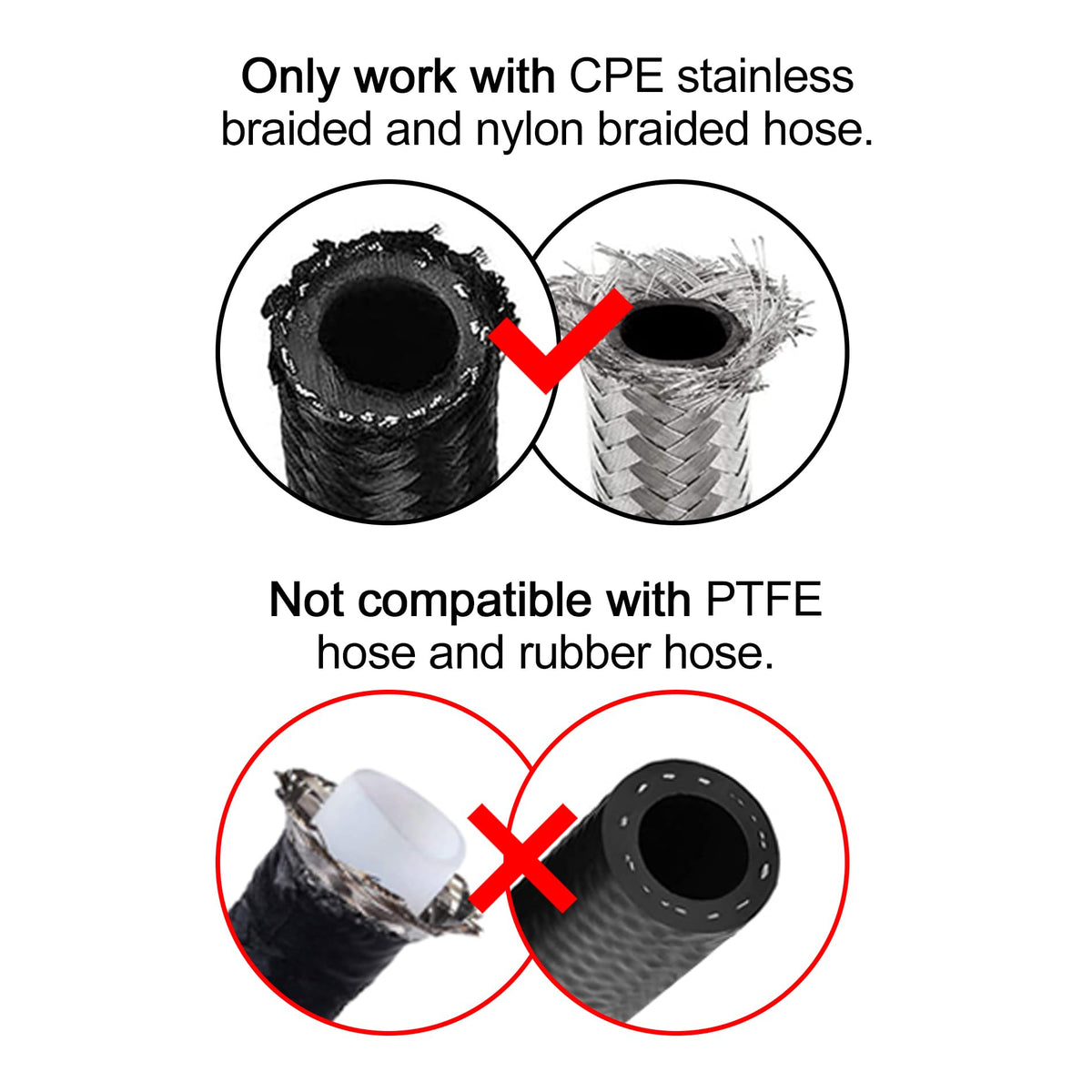

Check that your hose uses a CPE braid with AN-style flare ends and that your port or adapter accepts a 1 1/16-12 UNF (12AN) thread. These fittings are intended only for stainless braided or nylon braided hose constructions and are not suitable for other hose types or push-lock systems.

• Confirm hose braid material: stainless or nylon braided CPE
• Verify thread engagement: 1 1/16-12 UNF (12AN)
• Confirm mating surface uses a 37° AN flare

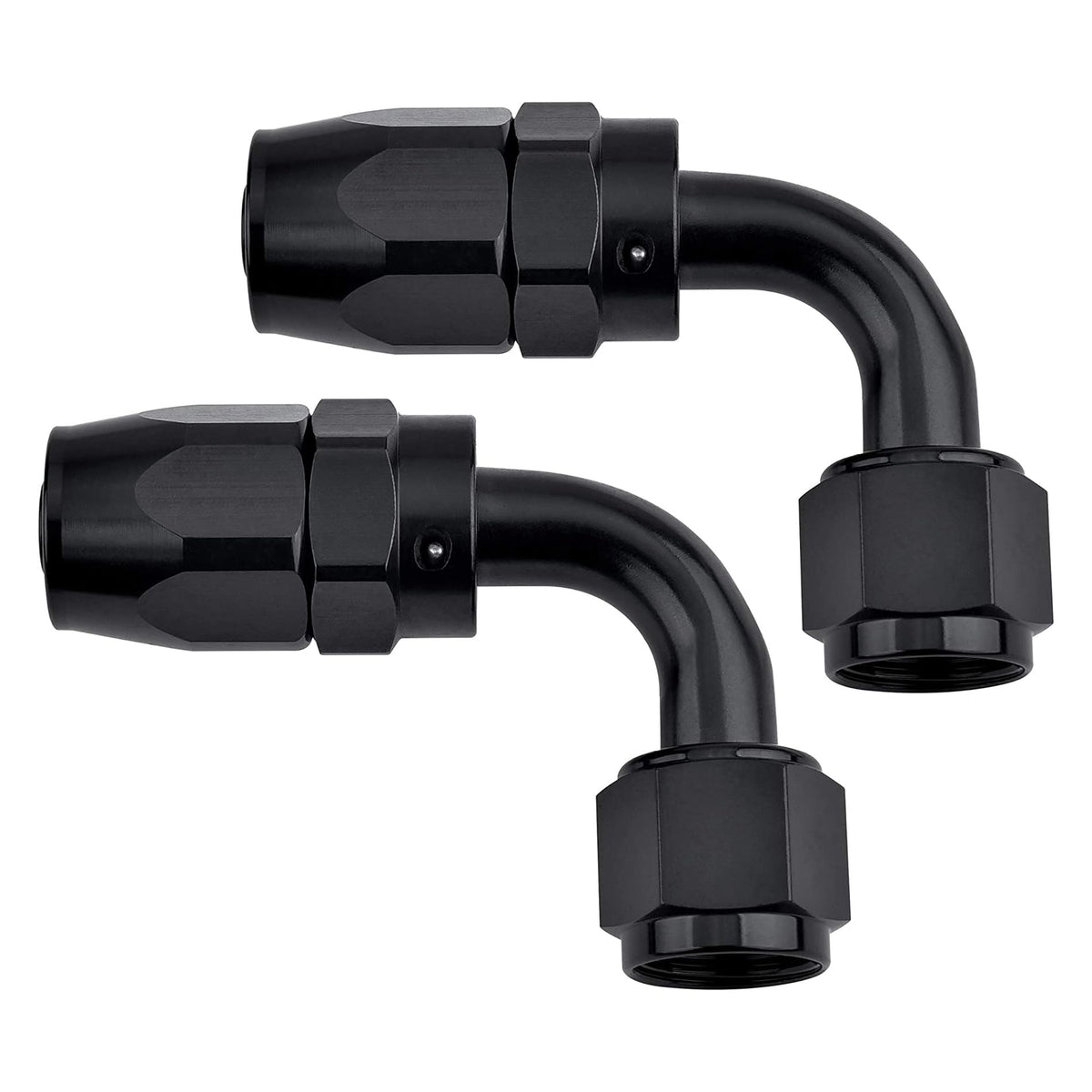

• Sold as a set of 2 black swivel hose ends

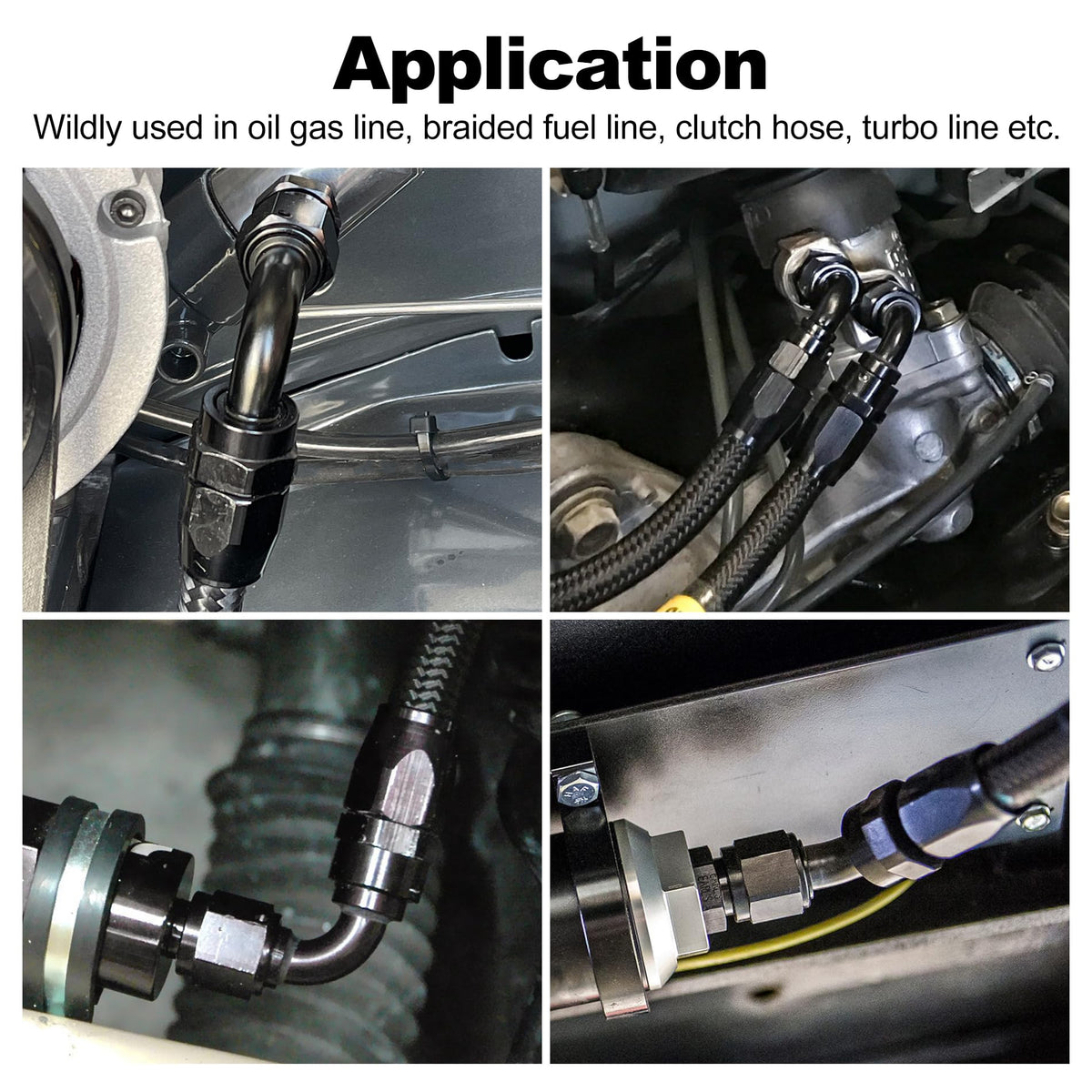

Who is this for? These EVIL ENERGY 12AN 90° swivel hose end fittings are ideal for mechanics, fabricators and DIY enthusiasts building or servicing high-flow braided lines in motorsports, custom automotive, marine or industrial applications. If you need a durable, serviceable AN swivel with a compact 90° profile for precise hose routing and dependable sealing, this two-piece kit delivers the necessary specifications and repeatable performance.
