EVIL ENERGY 15-Gallon Aluminum Fuel Cell — Black, 3–90Ω Sender & Anti-Slosh Foam

This aluminum fuel cell is designed for motorsport and performance street applications where reliable fuel supply, accurate level sensing, and durable lightweight construction matter. The tank measures 19" × 17" × 10.03" and uses 1060-H24 aluminum alloy with a plastic cover. It accepts 10AN inlet/outlet fittings and includes a factory-installed 3–90 ohm level sender. Built-in anti-slosh foam reduces fuel movement in aggressive driving and helps maintain steady pickup under cornering or braking.

How does this fuel cell improve fuel delivery in high-G driving?

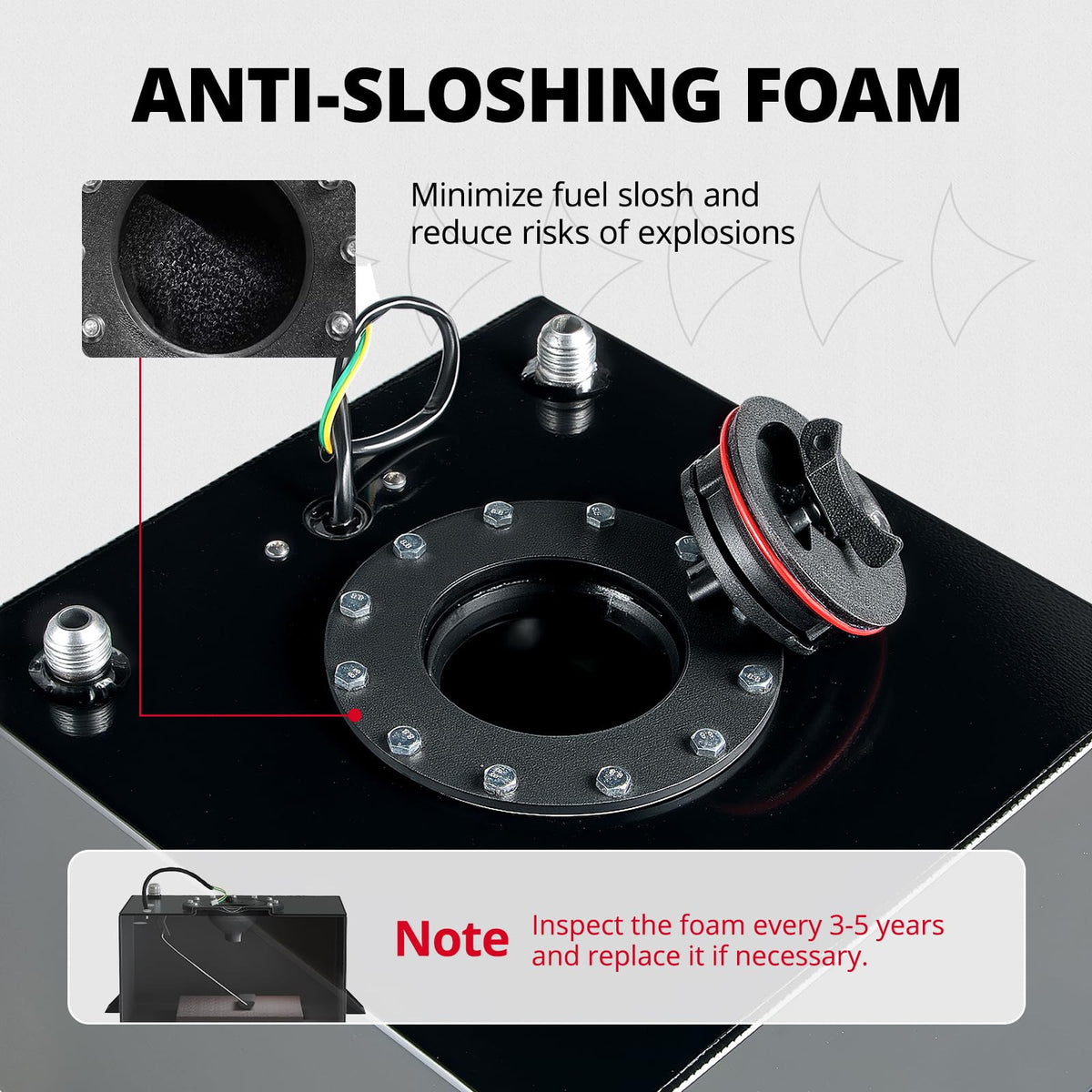

The internal anti-slosh foam reduces fuel movement so the pump maintains consistent suction during hard cornering, acceleration, or braking. That lowers the chance of momentary fuel starvation and makes fuel pickup more predictable in race or drift environments.

• Internal anti-slosh foam prevents large fuel sloshes and maintains steady pickup.

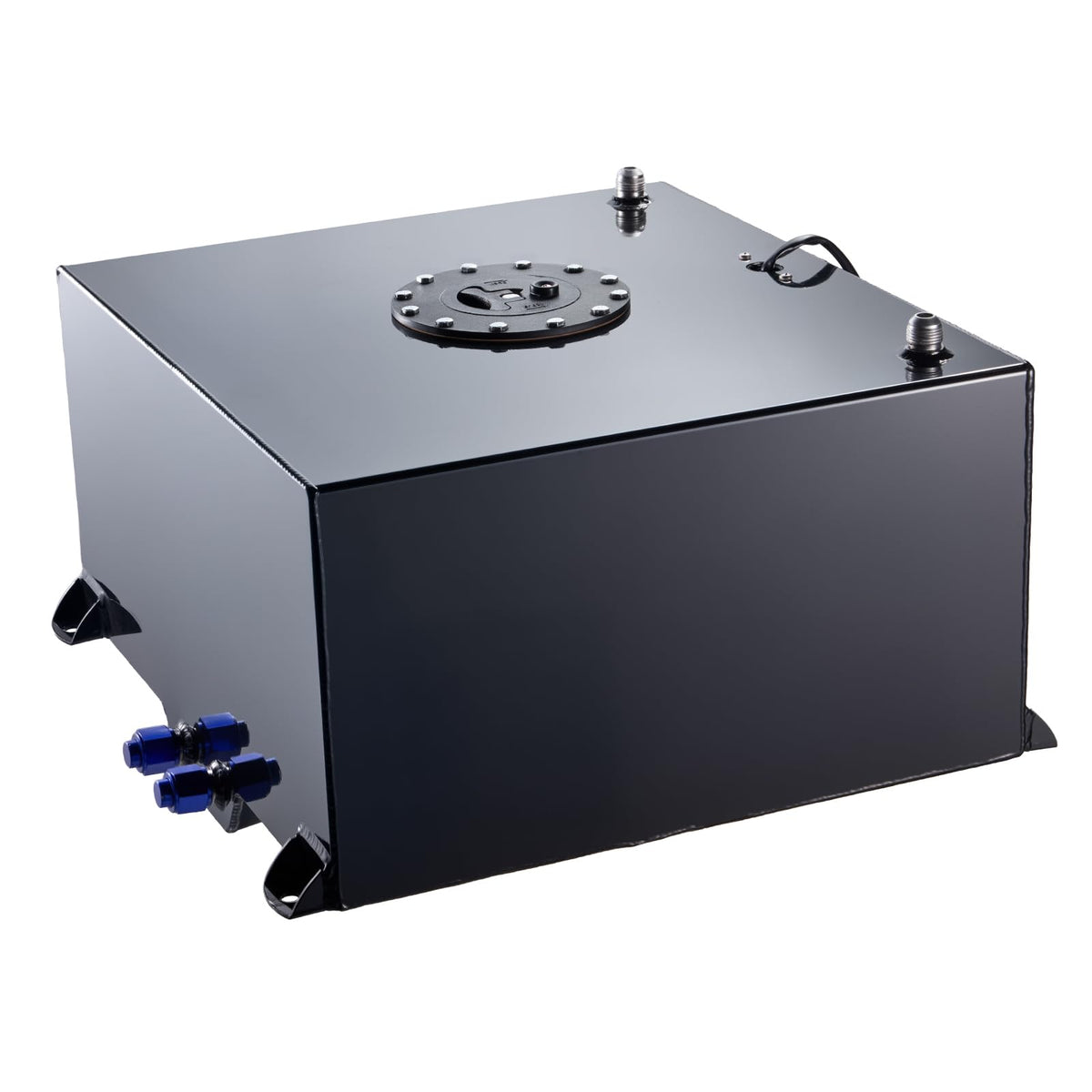

• Compact shape (19" × 17" × 10.03") fits tight trunk or rear-cargo locations.

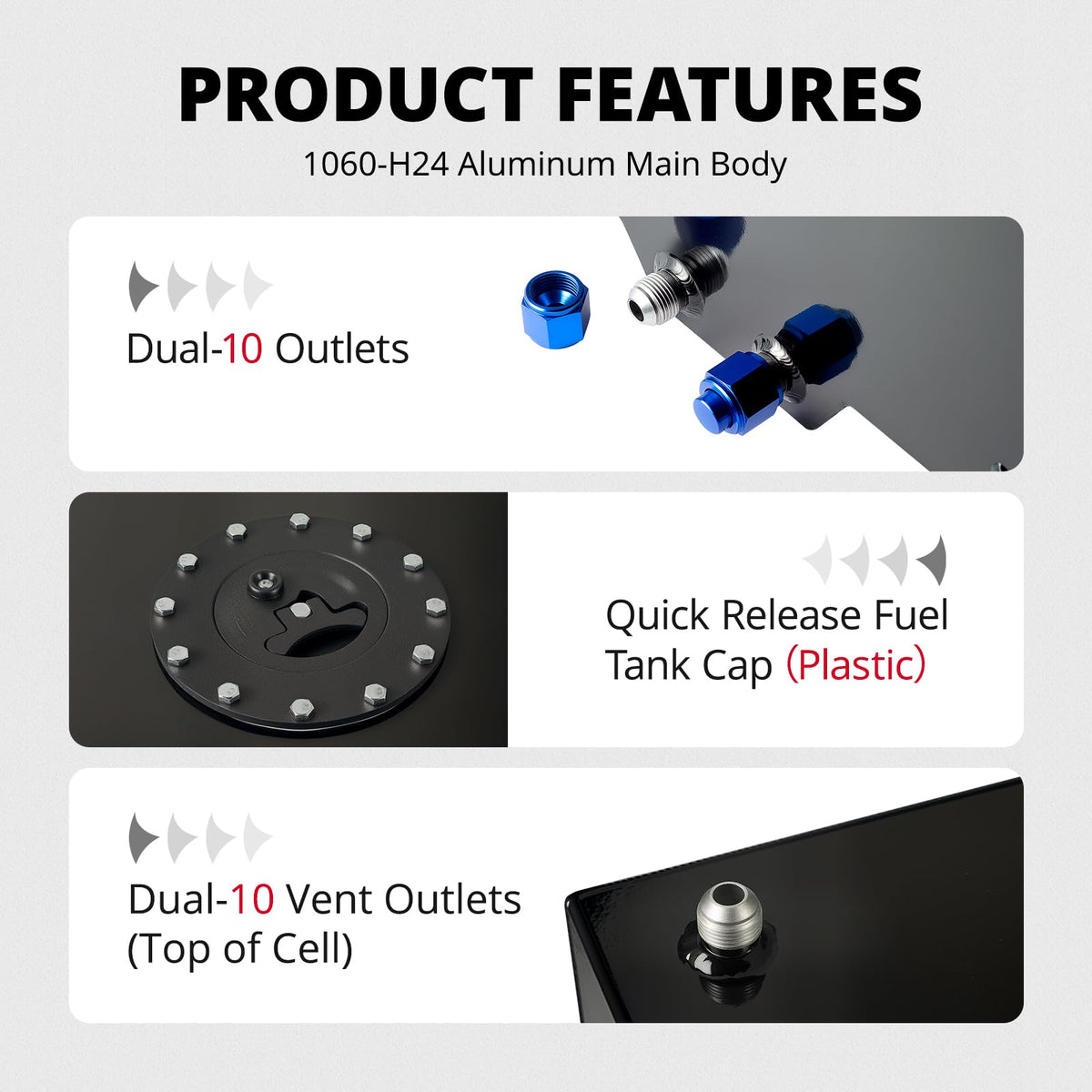

• 10AN inlet/outlet compatibility simplifies plumbing to common performance fittings.

What electrical and sensing features does the EVIL ENERGY tank include?

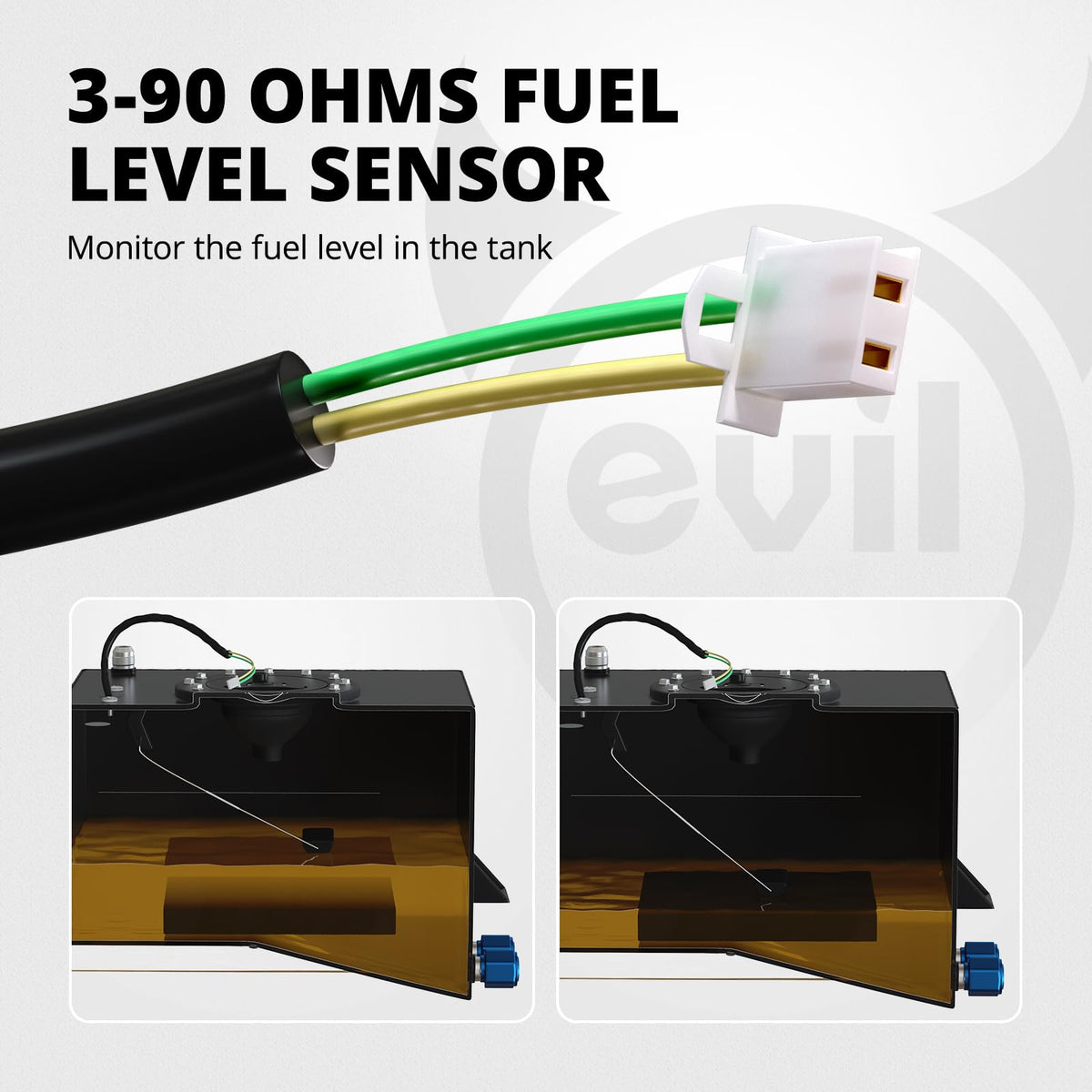

The tank ships with a 3–90 ohm level sender already installed, compatible with many aftermarket gauges and fuel monitoring systems. The sensor gives a reliable resistance range so you can integrate the cell into your dash or data logger without additional modifications.

• Factory-installed 3–90 ohm level sender for gauge compatibility.
• Pre-cut openings and fittings sized for 10AN plumbing help speed installation.
• Wiring access provided under the plastic cover for neat routing and protection.

Which fuels are safe to use with this aluminum fuel cell?

The EVIL ENERGY cell accepts gasoline and diesel, making it suitable for a range of petrol and compression-ignition engines. Do not use this tank with corrosive or alcohol-based fuels such as methanol, ethanol, or water-mixed blends, as those can degrade the internal foam and components.

• Approved: gasoline and diesel fuels for performance and street use.
• Not approved: methanol, ethanol blends, water-containing fuels, or pure alcohol fuels.
• Inspect internal foam periodically for signs of wear or breakdown if used heavily.

How does the tank mount and what are the physical details to plan for?

The fuel cell includes mounting tabs sized for secure installation; each tab diameter measures 3.46". Its compact footprint and shallow 10.03" height make it easy to fit in many trunks, behind seats, or in engine bays with custom brackets. The 1060-H24 aluminum alloy shell balances weight savings with corrosion resistance suitable for motorsport environments.

• Overall dimensions: 19" (L) × 17" (W) × 10.03" (H) for tight installations.
• Mounting tab diameter: 3.46" for bolt-through mounting points.

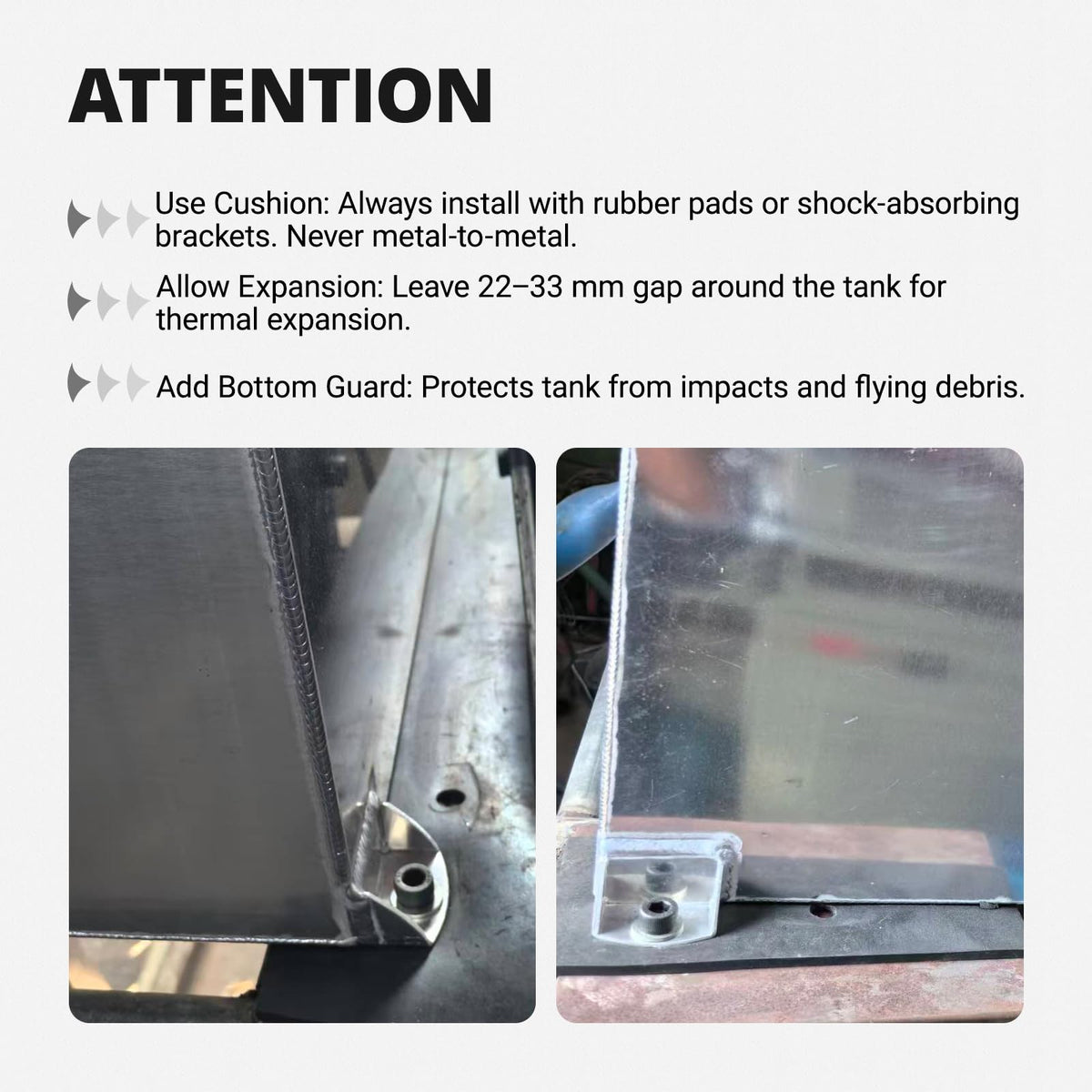

• Material: 1060-H24 aluminum body with a protective plastic cover.

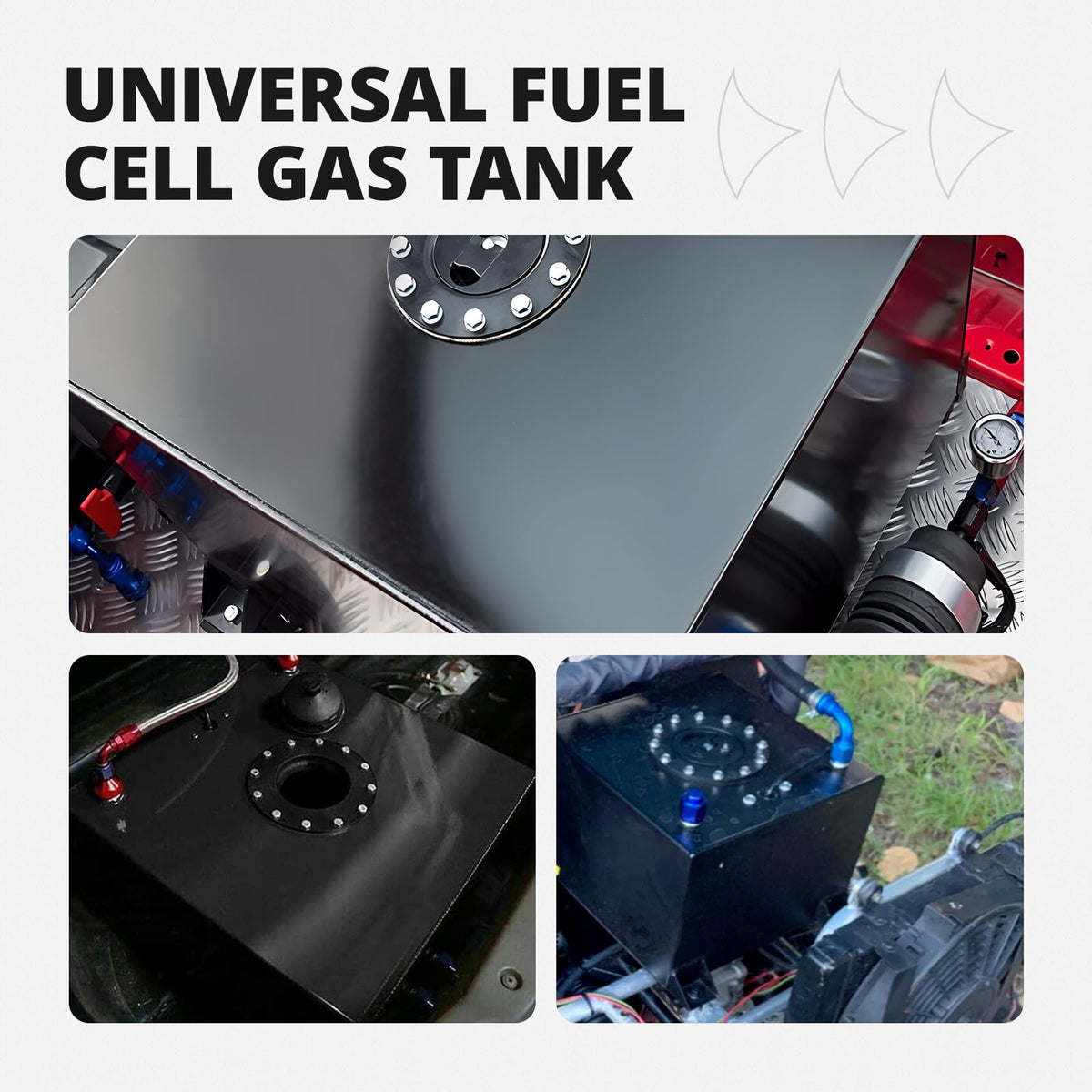

Who is this for? The EVIL ENERGY 15-gallon aluminum fuel cell suits street-drift drivers, club racers, and custom-build enthusiasts who need a compact, lighter-than-steel replacement tank with an integrated level sender and anti-slosh foam. It’s ideal for projects where accurate fuel level feedback and consistent delivery under dynamic driving are priorities. If you plan to run alcohol-based fuels, choose a cell approved for those fuels instead.
