EVIL ENERGY 3/8" Barb Fuel Filter — 30 Micron Black Billet Aluminum, Cleanable

EVIL ENERGY 3/8" barb billet inline fuel filter is a compact, cleanable aluminum fuel filter with a 30-micron sintered bronze element designed for EFI and carbureted systems on cars, motorcycles, and boats.

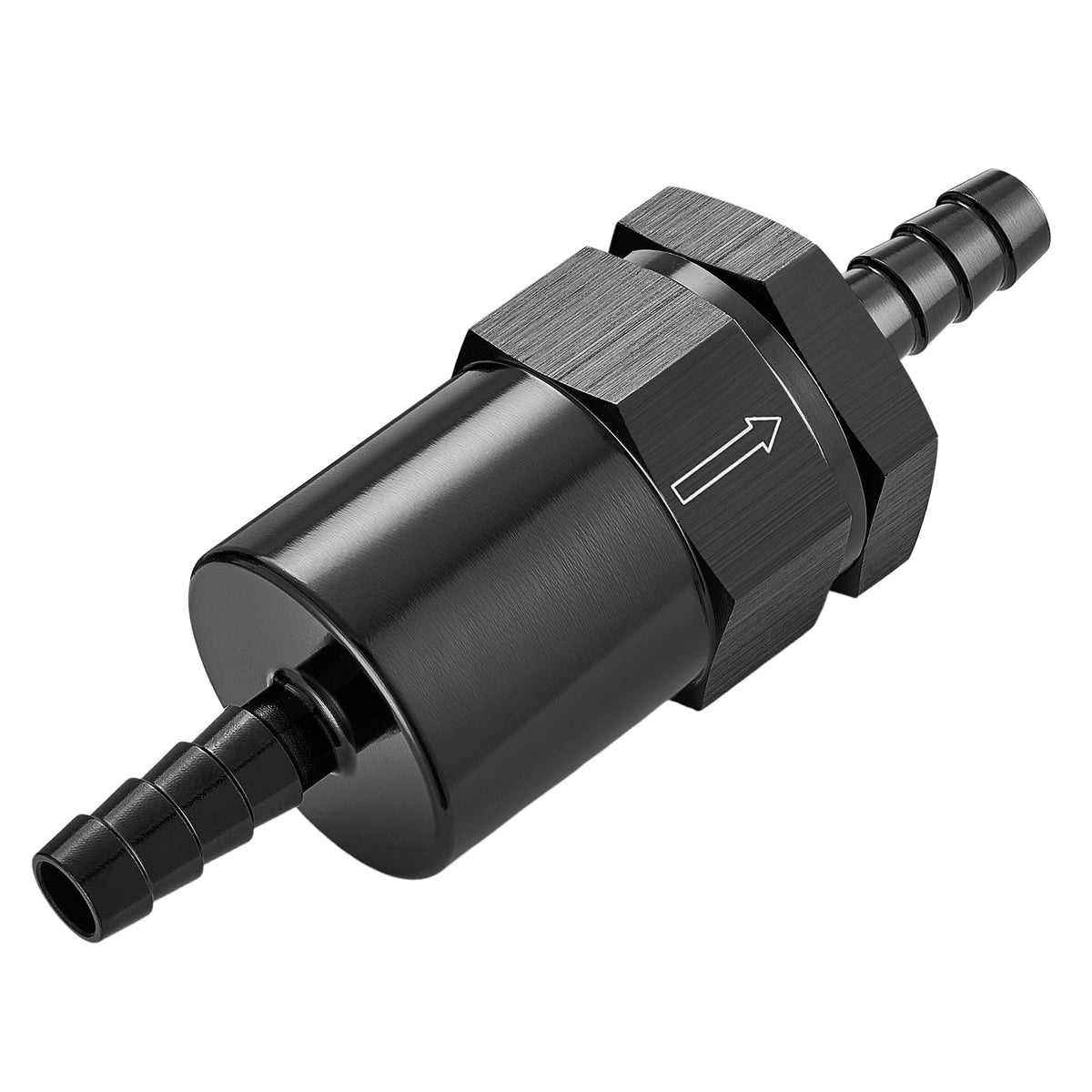

This compact inline filter combines a durable billet aluminum housing with a sintered bronze 30-micron element to trap contaminants while maintaining steady flow. Finished in black, the filter measures roughly 2.07 inches long (excluding fittings) and uses a 3/8" barb inlet/outlet for common fuel lines. It resists heat and corrosion, can be serviced for repeated use, and is suitable for gasoline, diesel, and E85 blends.

How does the 30-micron element protect my fuel system?

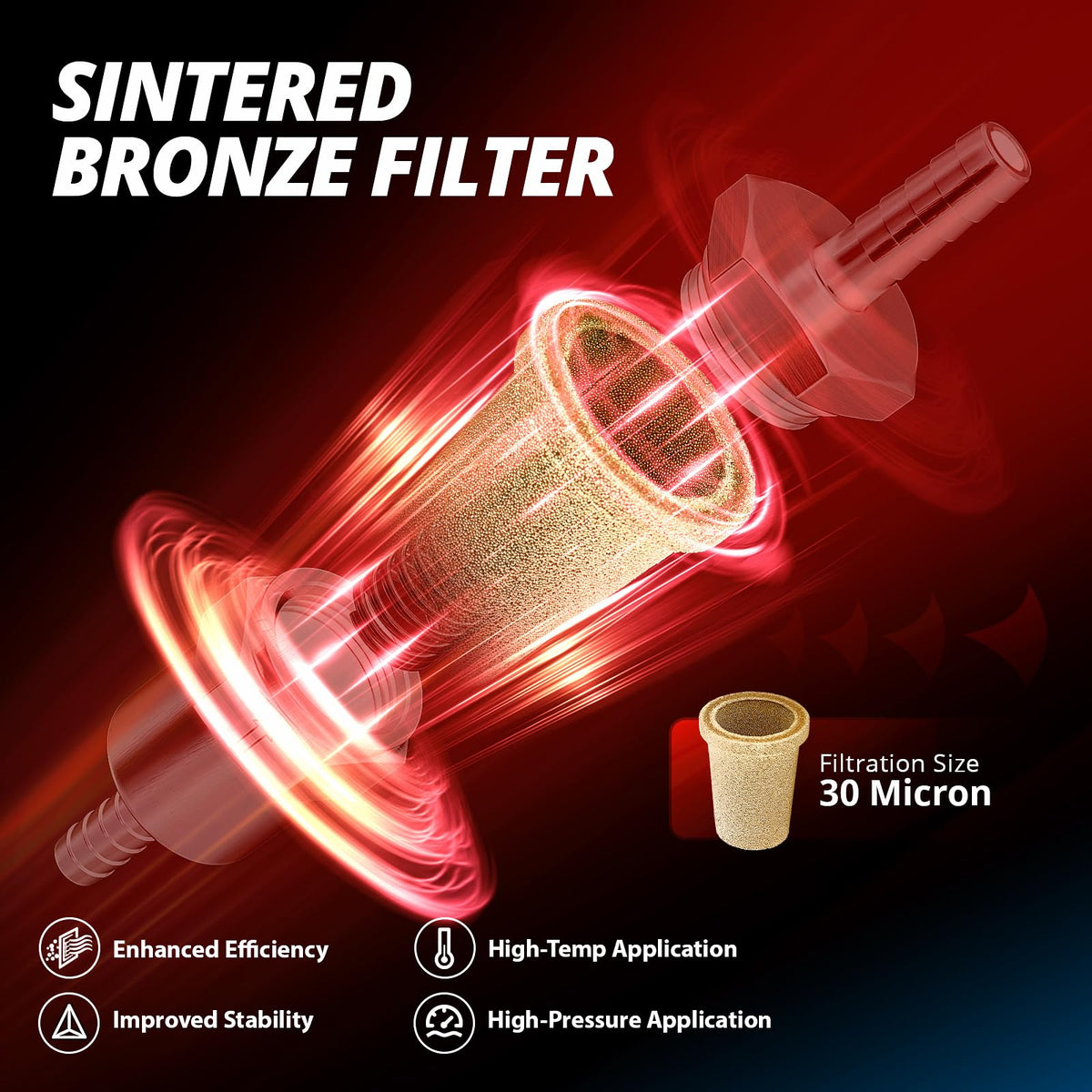

The sintered bronze element captures small particles that can damage injectors, carburetors, or pumps while tolerating higher temperatures and corrosive fuels. Because it’s sintered metal rather than paper, you can clean and reuse it to extend service life instead of replacing disposable cartridges.

• 30-micron filtration removes fine debris typical from tanks and lines.
• Sintered bronze construction withstands heat and fuel exposure.
• Cleanable design reduces replacement frequency and waste.

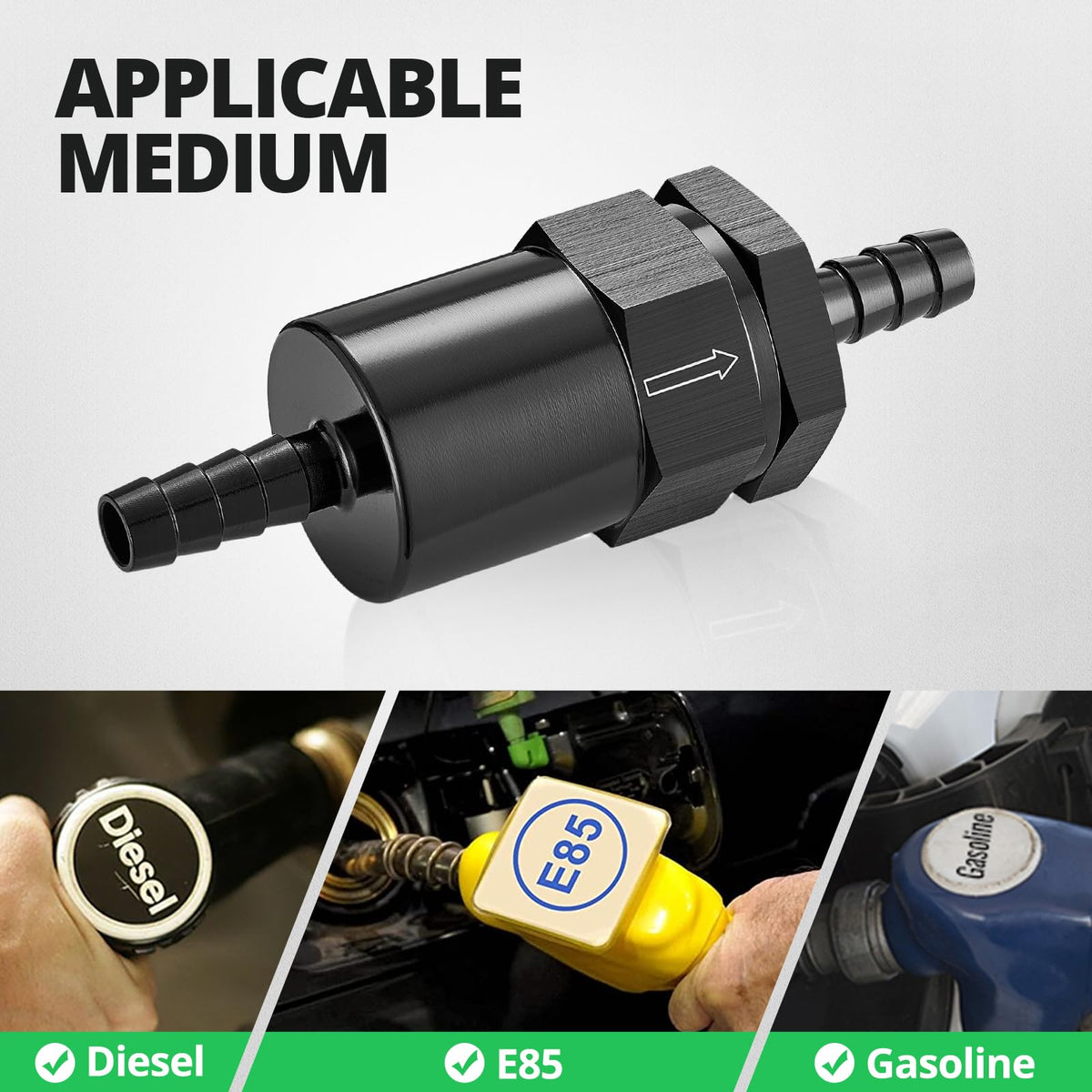

• Works with gasoline, diesel, and ethanol blends like E85.

Will this filter fit my vehicle and fuel line setup?

Yes — the unit uses a 3/8" barb inlet and outlet that match standard 3/8" ID fuel hoses and supports both EFI and carbureted systems. Space-conscious installations benefit from the short billet housing that fits into tighter engine bays and under dashboards.

• 3/8" barb connections for common fuel hoses.

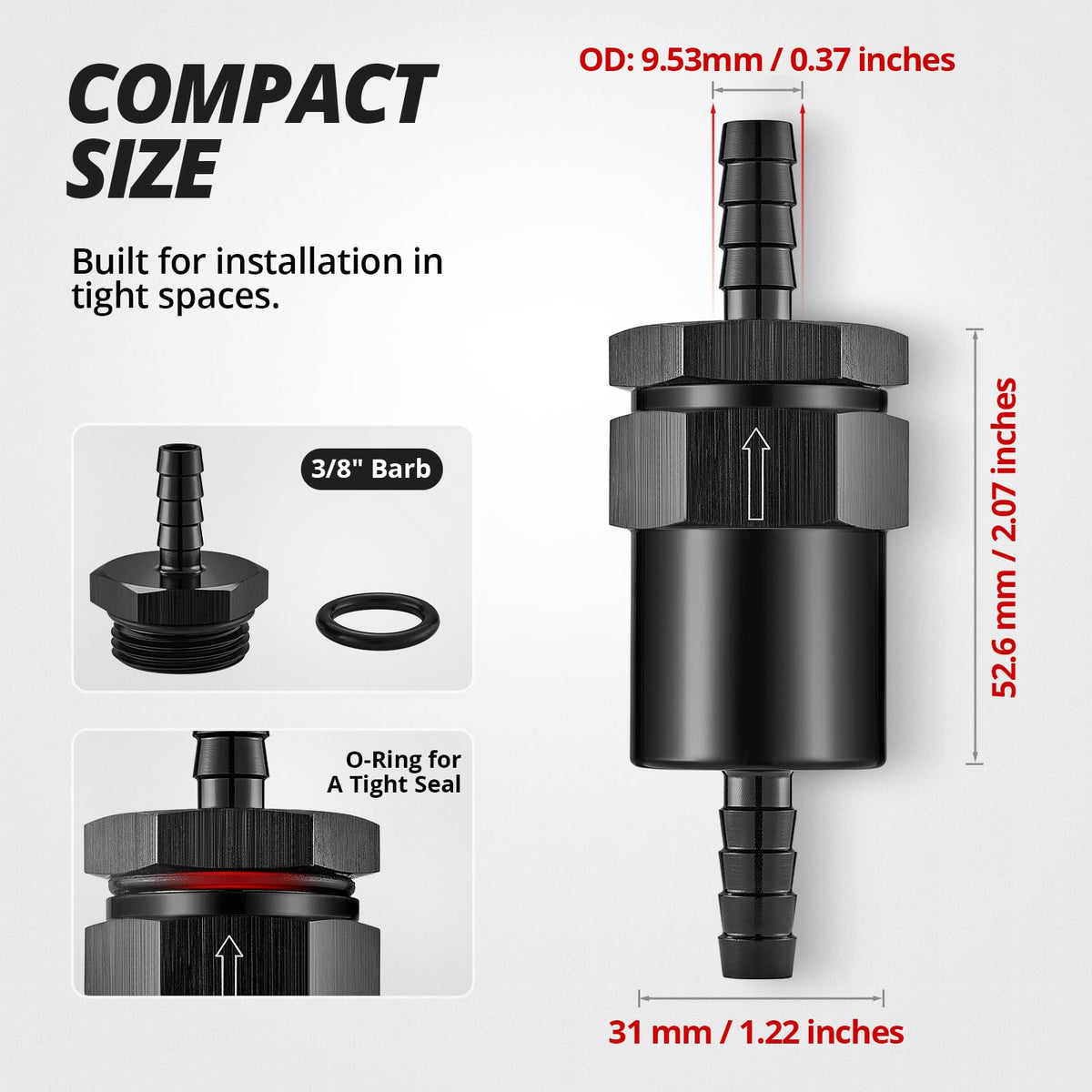

• Approximately 2.07 inches long (body only) for compact installs.

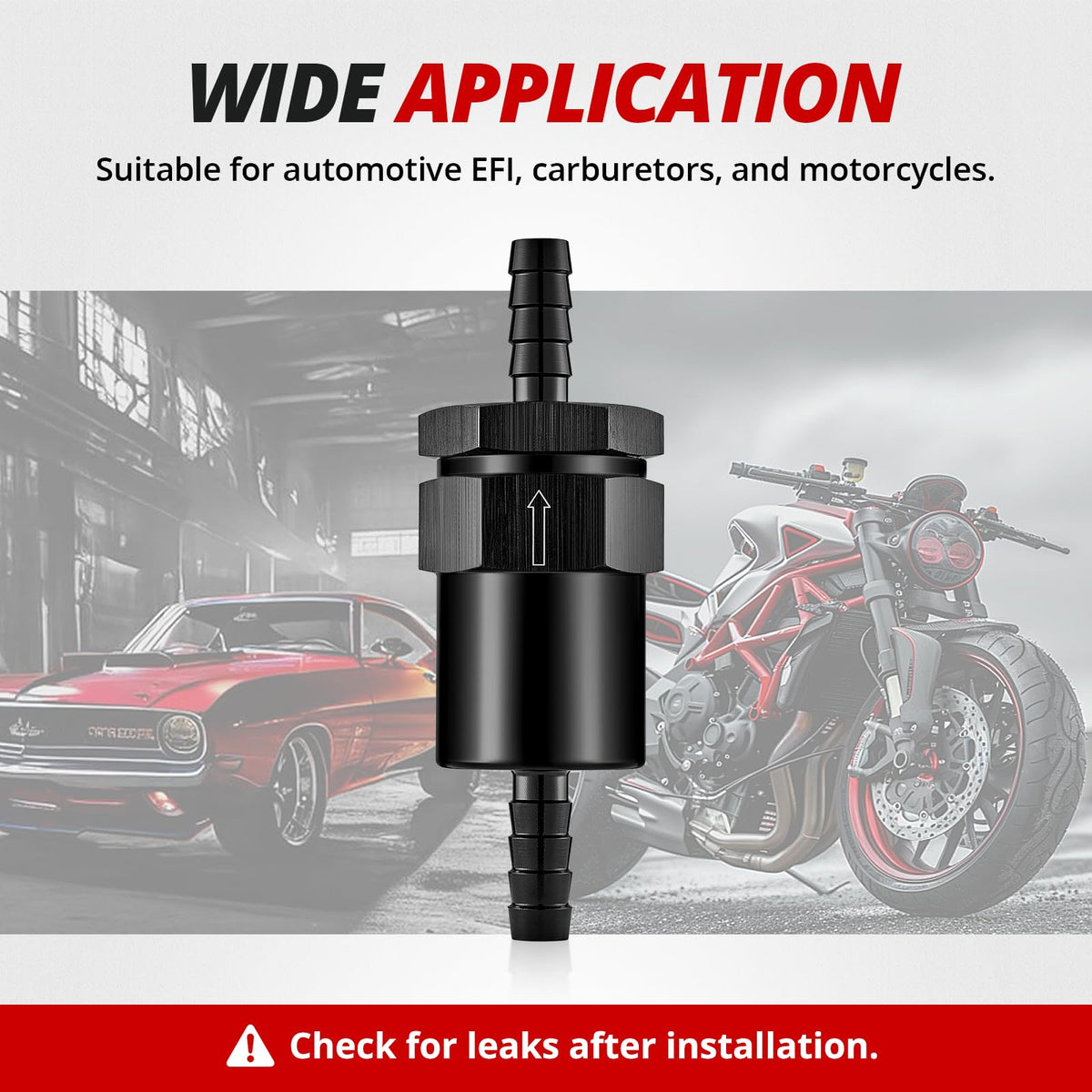

• Compatible with cars, motorcycles, and marine craft.
• Supports up to ~900 liters per hour with minimal pressure drop.

How reliable is the seal and what maintenance is required?

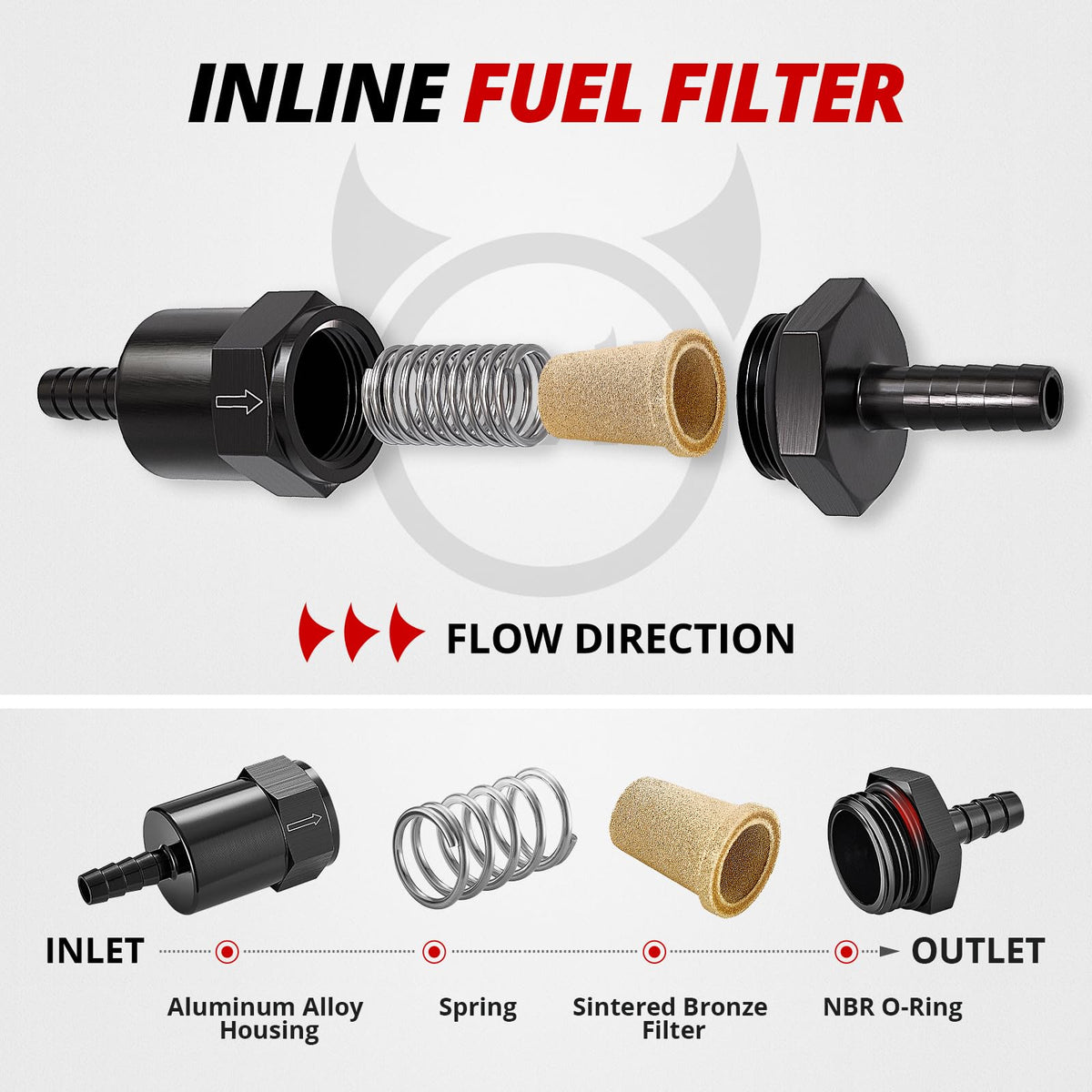

The filter uses a rubber O-ring to create a leak-resistant seal at the end caps; proper installation and periodic inspection ensure reliable performance. For maintenance, remove the end caps, clean the sintered bronze element with solvent or compressed air, and reassemble with fresh O-ring lubrication if needed.

• Durable O-ring seal provides leak control when installed correctly.
• Disassemble for inspection and cleaning of the bronze element.
• Replace O-ring if hardened or damaged to maintain sealing integrity.
• Recleaning prolongs filter life and reduces replacement costs.

What flow and pressure characteristics should I expect?

Designed to preserve fuel delivery, the EVIL ENERGY filter supports high flow rates while producing less than 1 PSI pressure drop under rated conditions. This balance keeps EFI systems and mechanical pumps supplied without starving the engine or inducing excessive backpressure.

• Rated to handle up to approximately 900 L/h flow capacity.
• Pressure drop kept below 1 PSI under normal flow ranges.
• Suitable for typical automotive and motorcycle fuel demands.
• Aluminum housing dissipates heat and resists corrosion in marine use.

Who is this for: The EVIL ENERGY 3/8" barb billet inline fuel filter is aimed at mechanics, home tuners, and boat owners who need a compact, serviceable filter that handles modern fuels and tight installation spaces. It’s a practical upgrade for anyone running EFI or carbureted engines who prefers a reusable sintered bronze element and a durable aluminum body for long-term use.
