EVIL ENERGY 300LPH Inline Fuel Pump 12V — Black with 60mm Bracket, High-Flow Reliable

EVIL ENERGY's 300LPH external inline fuel pump is a high-flow 12V electric pump built for EFI systems that delivers steady fuel pressure and rugged, all-season operation.

Built for performance vehicles, custom installs, and engine swaps, this EVIL ENERGY inline pump combines strong flow rates with durable components and clear installation hardware. It is rated for up to 300 liters per hour under nominal conditions and works across a wide temperature range, making it suitable for street, track, and diesel applications where a reliable in-line feed is required.

How much fuel flow and pressure can I expect from this pump?

The pump is rated for multiple test points: approximately 200 LPH at 75 PSI (12V), 255 LPH at 43 PSI (12V), and up to 300 LPH at 43 PSI when tested at 13.5V. Its maximum operating pressure is listed at 75 PSI, giving you headroom for high-demand setups while maintaining steady delivery.

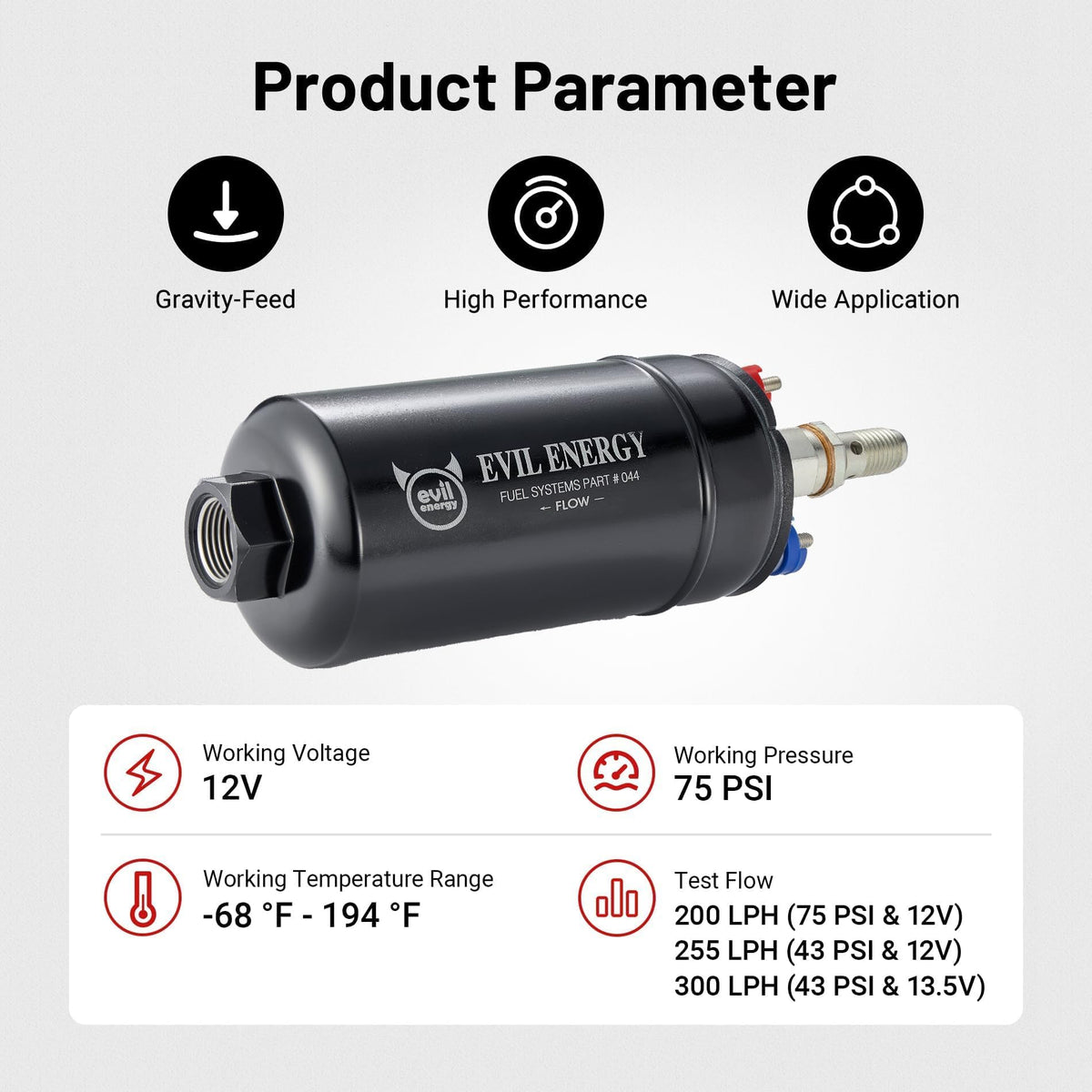

• Tested flows: 200 LPH @ 75 PSI (12V), 255 LPH @ 43 PSI (12V), 300 LPH @ 43 PSI (13.5V)
• Maximum operating pressure: 75 PSI
• Designed specifically for 12V DC EFI fuel systems

What fuels and temperatures does the EVIL ENERGY pump handle?

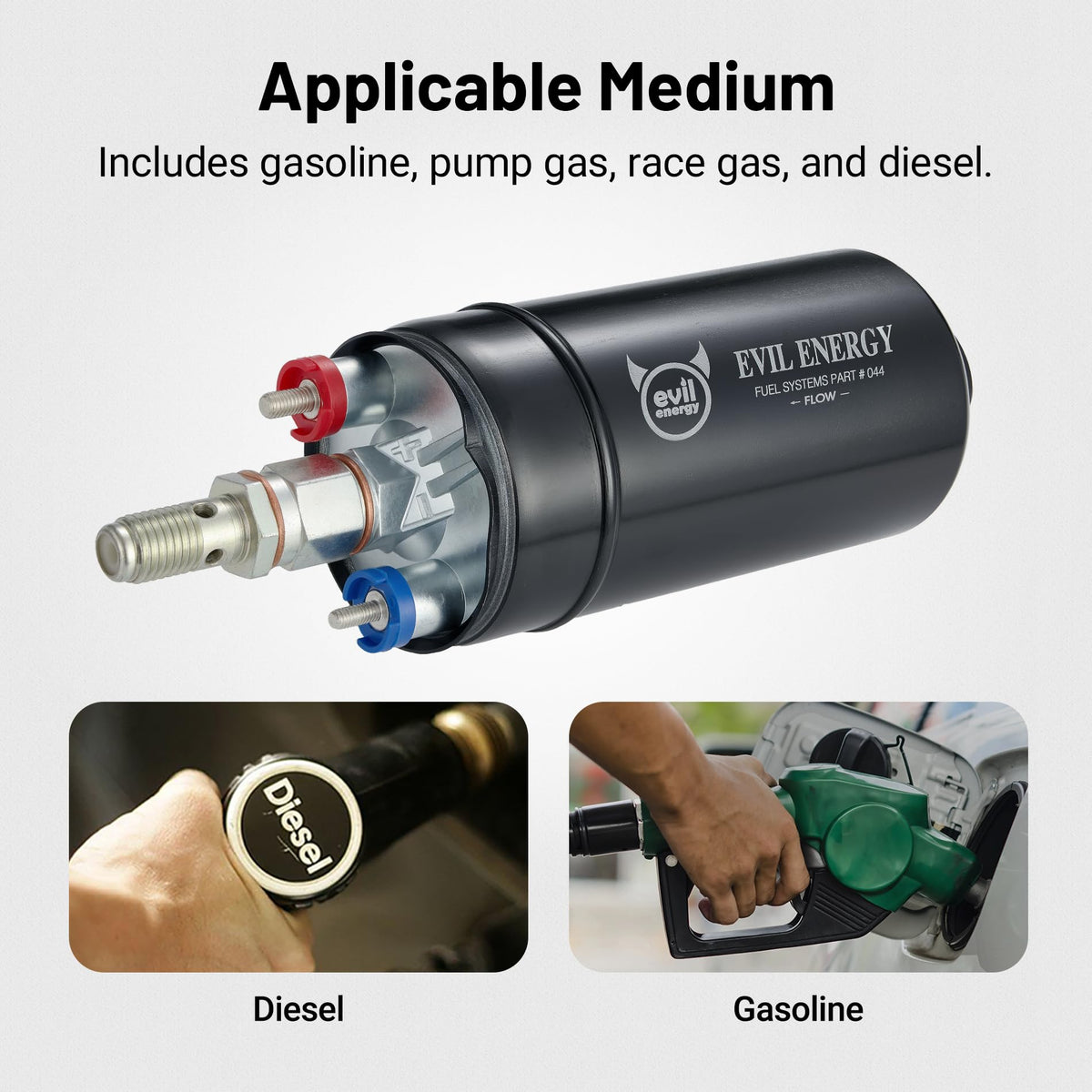

This inline pump is compatible with gasoline, pump gas, race gas, and diesel, so it fits a wide range of performance and diesel conversions. The thermal tolerance is broad, rated from -68°F up to 194°F, allowing reliable operation in extreme cold or hot environments.

• Compatible media: gasoline, pump gas, race gas, diesel
• Operating temperature range: -68°F to 194°F
• Sealed design and materials selected for varied fuel types

What comes in the box and how easy is installation?

EVIL ENERGY supplies a complete mounting and connection kit so you can install the pump below the fuel tank for gravity-fed inlet flow. The package includes a bracket, gaskets, adapters, terminals, and a user manual that walks through fitting and wiring, reducing guesswork during installation.

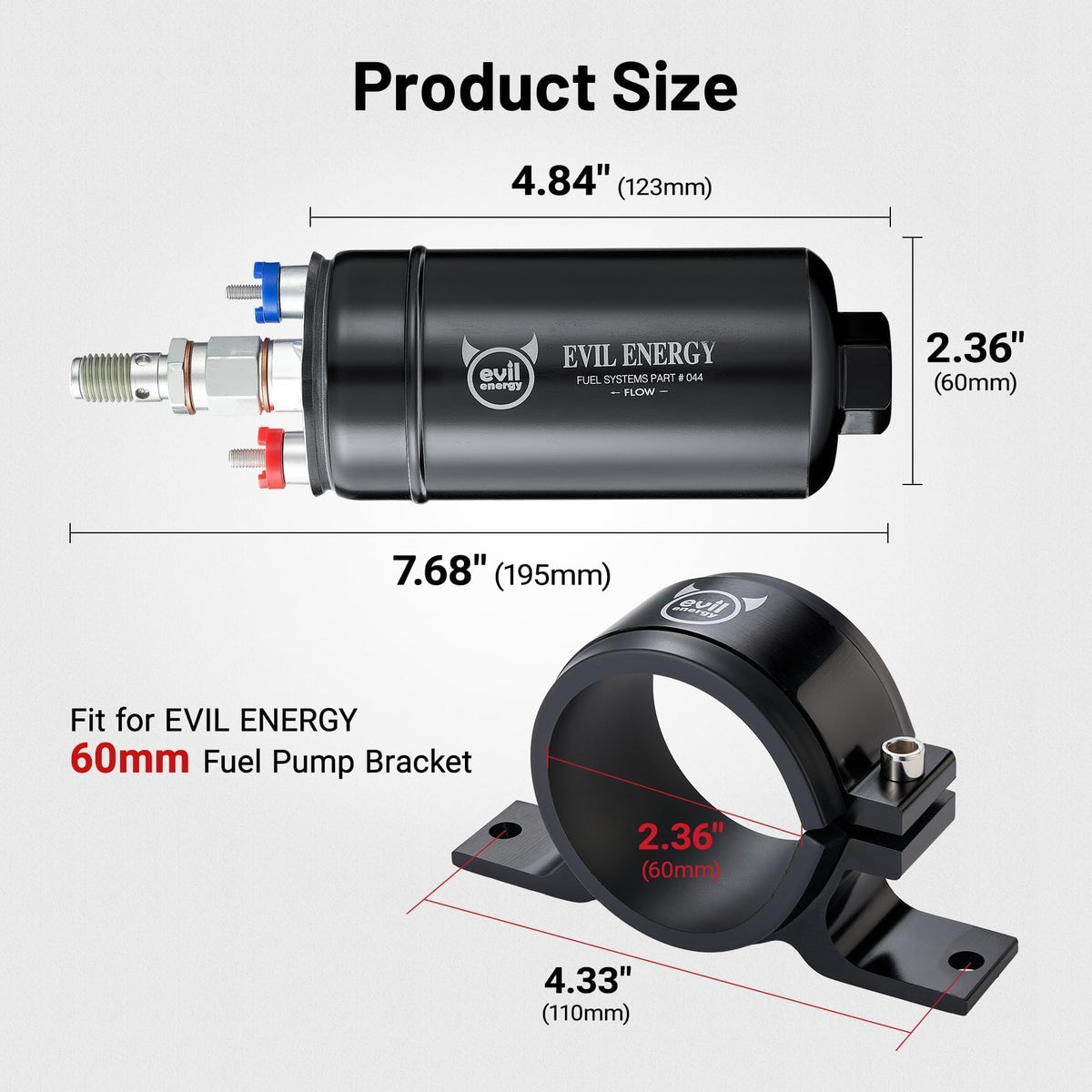

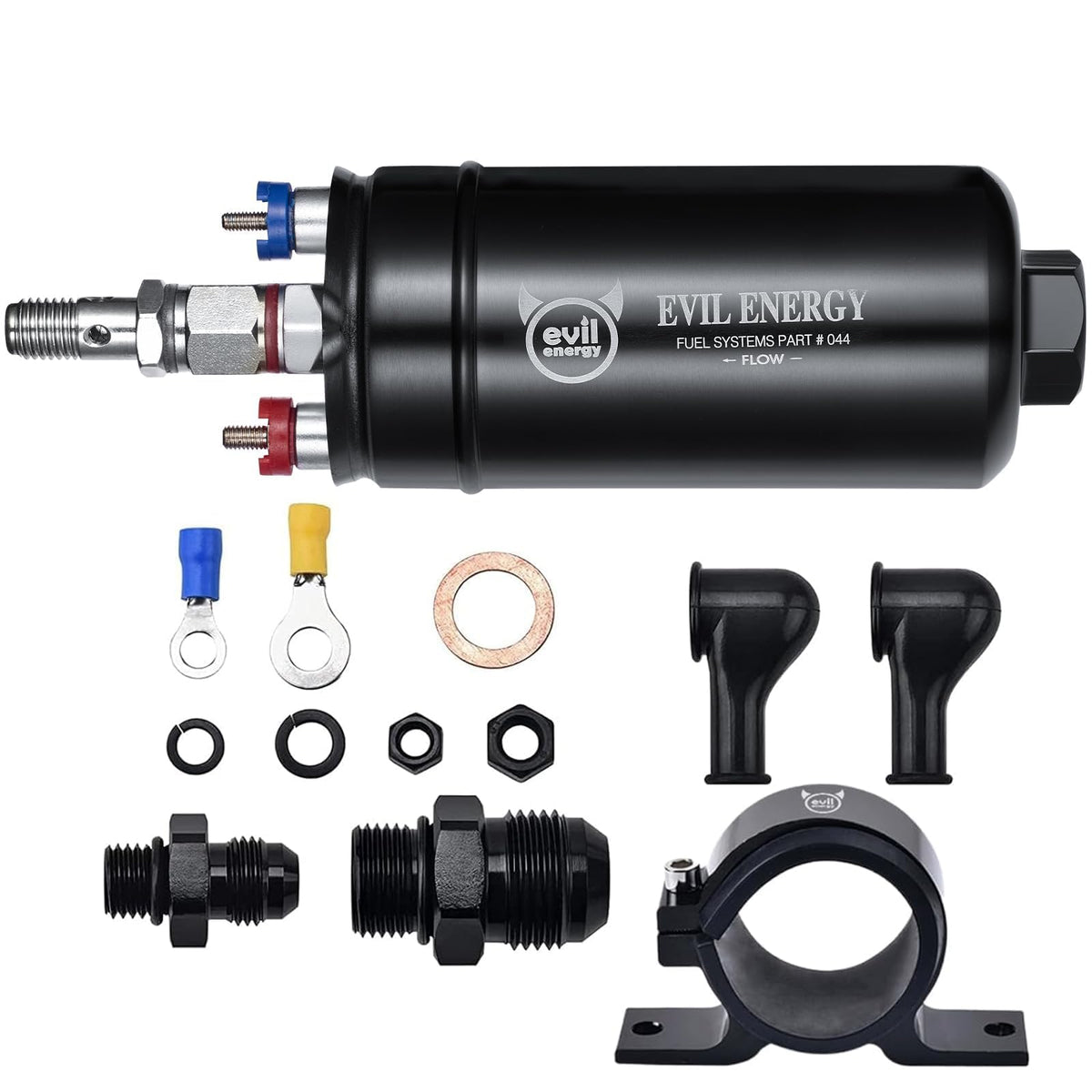

• Included: pump, 60mm mounting bracket, 2 gaskets, washer, 2 nuts

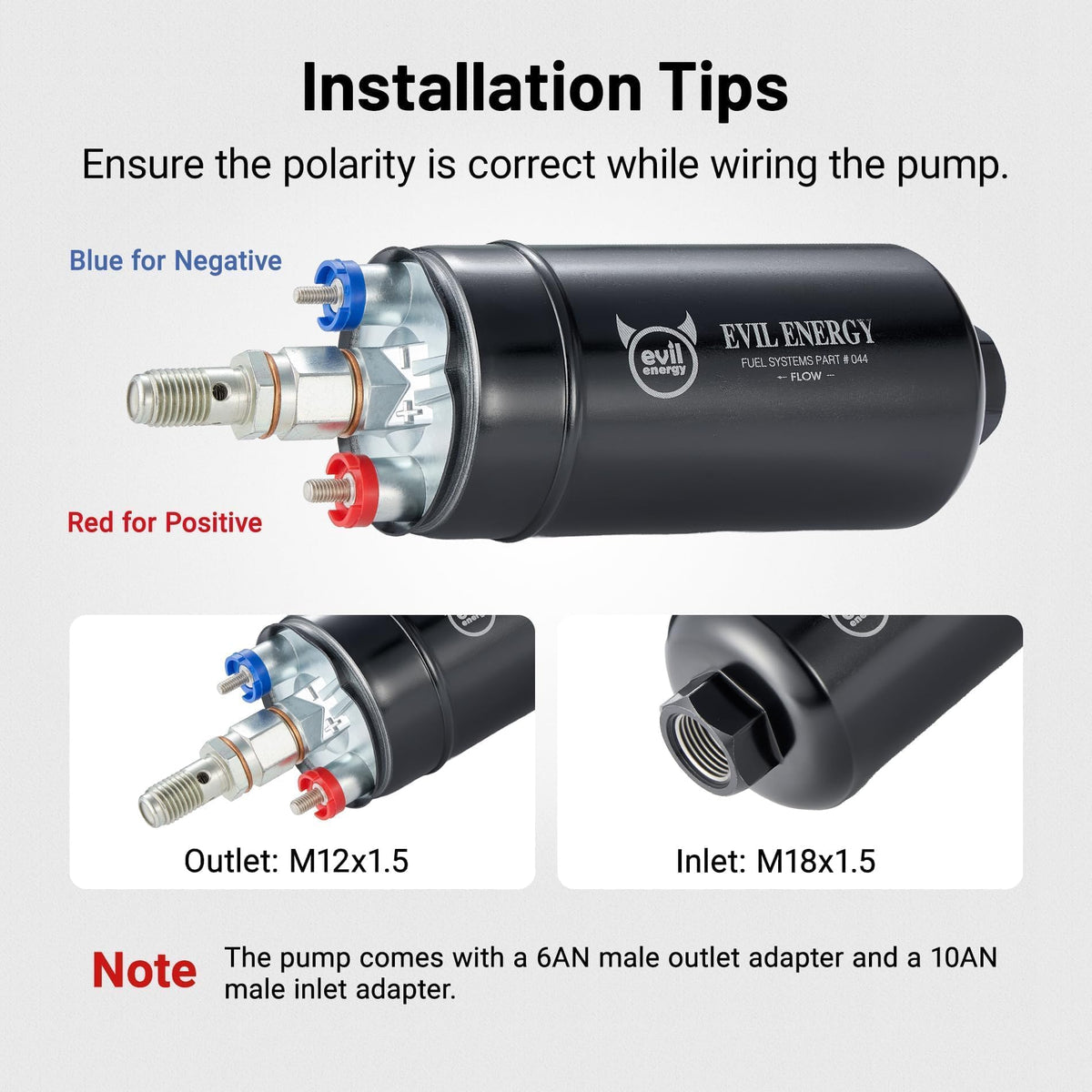

• Electrical and hose accessories: 2 insulated terminals, 10AN inlet adapter, 6AN outlet adapter
• Extras: 2 rubber connection covers and a detailed user manual

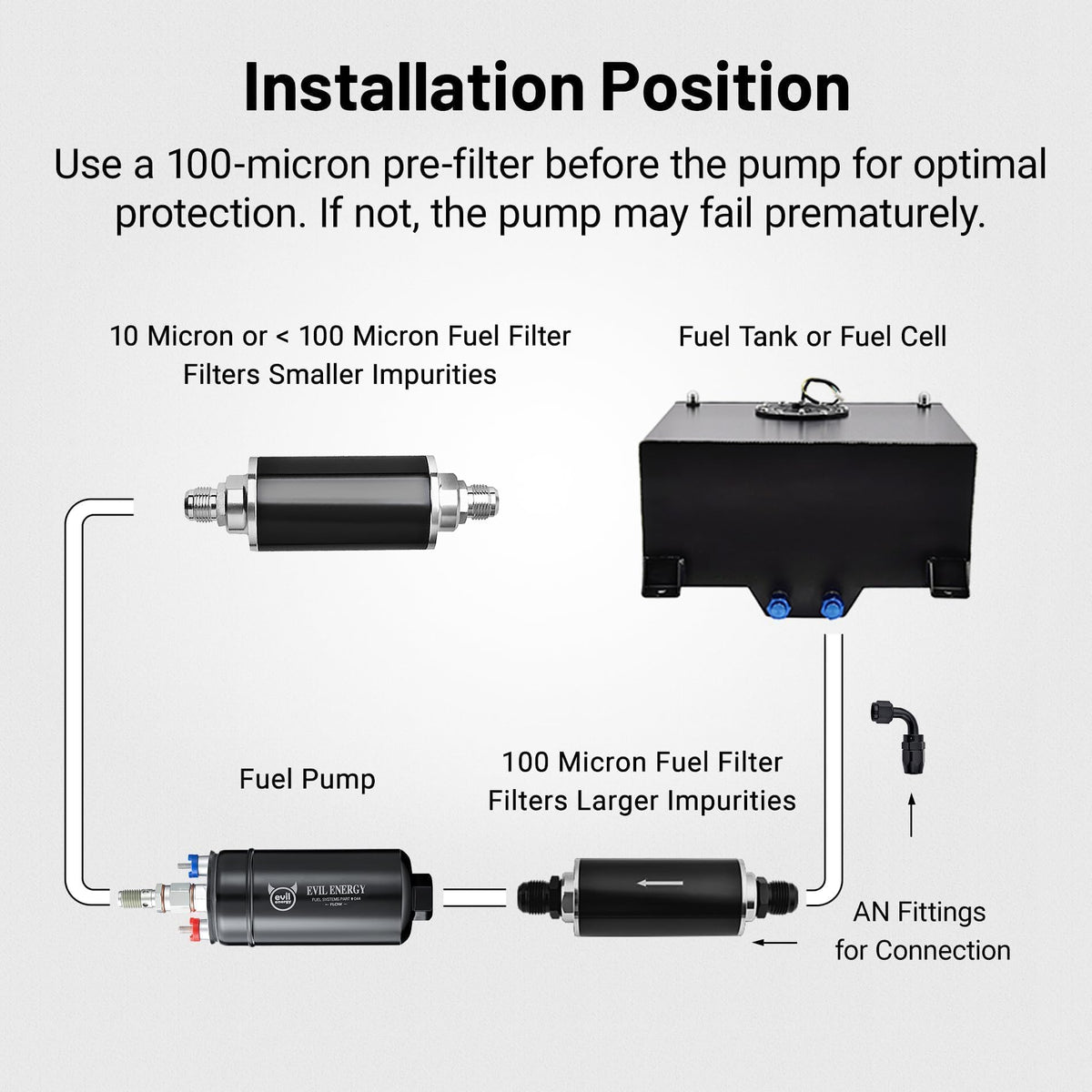

How should I position and wire the pump for best performance?

For reliable priming and longevity, position the pump below the fuel tank so fuel can gravity-feed into the inlet. Use the supplied bracket and hardware for secure mounting, and follow the manual for correct 12V wiring and fuse placement to protect the circuit.

• Mount beneath the tank to maintain gravity-fed inlet flow
• Secure with the included 60mm bracket and fasteners
• Wire to a 12V DC supply with appropriate fuse and use insulated terminals

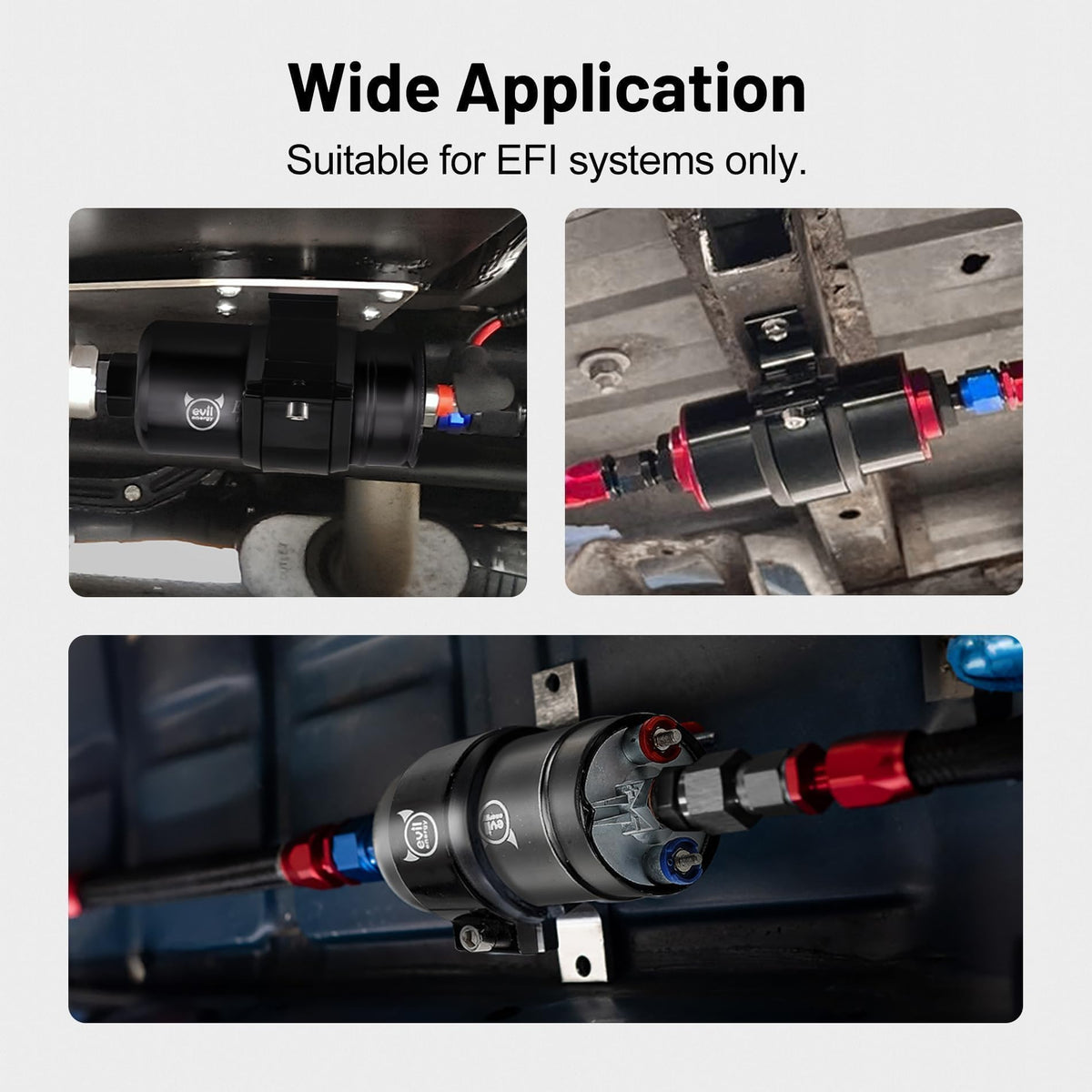

Who is this for: The EVIL ENERGY 300LPH inline pump suits performance car builders, tuners, and diesel or EFI conversion projects that need a robust, high-flow external pump with comprehensive mounting hardware. Choose this unit when you require a dependable 12V pump with broad fuel compatibility, strong tested flow rates, and a kit that simplifies installation.
