EVIL ENERGY 4.0 Inch V-Band Clamp with Male/Female Flange — 304 Stainless, Gasketless Turbo/Exhaust Seal

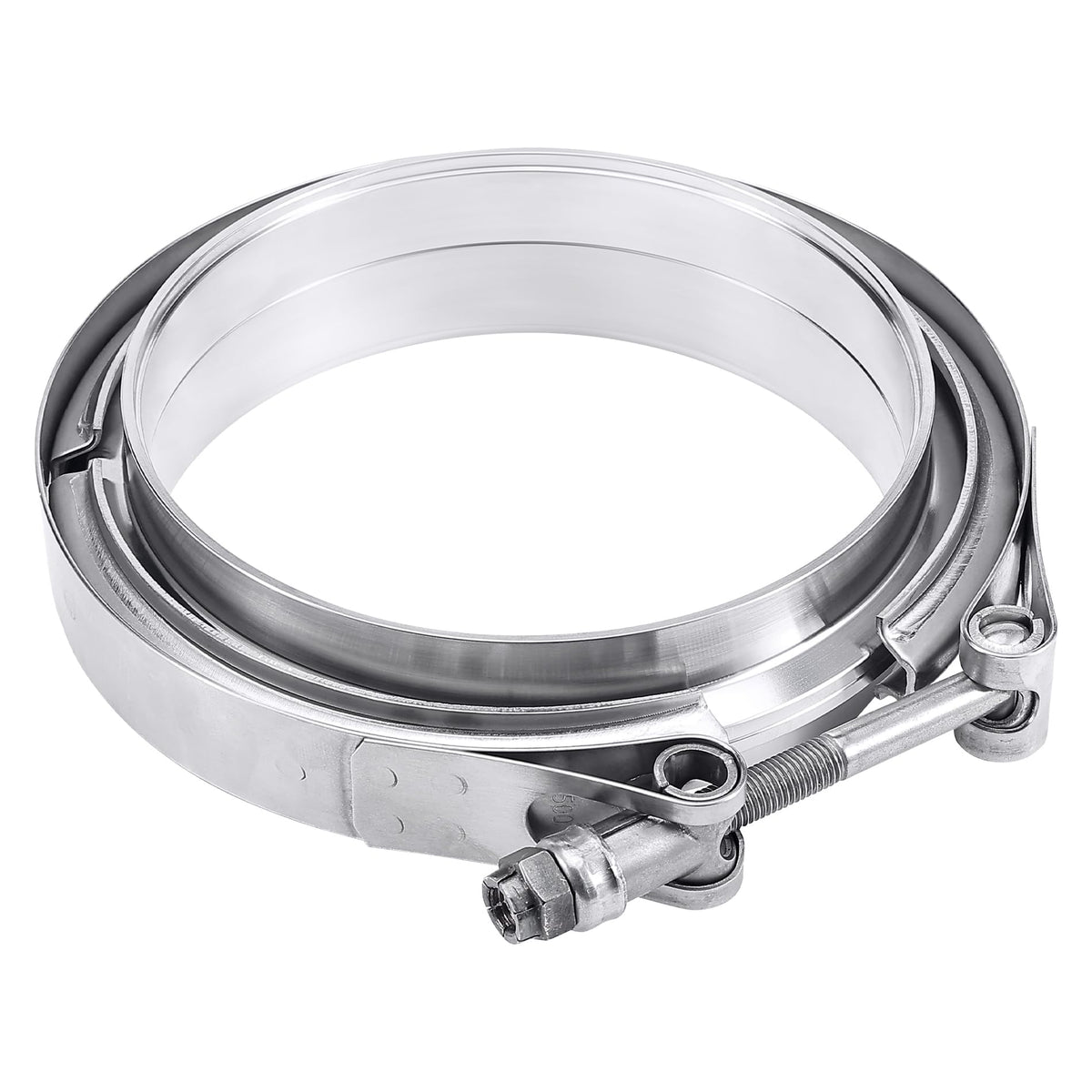

The EVIL ENERGY 4.0-inch V-band clamp with male/female flange is a 304 stainless steel coupling that fastens 4.0" ID to 4.0" OD exhaust or turbo piping for a reliable, gasketless seal.

Built for performance exhaust, turbo and downpipe assemblies, this V-band kit uses a precision-matched male/female flange inside a V-profile clamp to create even, repeatable clamping force without separate gaskets. The clamp body and flanges are made from corrosion-resistant 304 stainless steel while the T-bolt hardware is mild steel sized M8 x 1.25, giving a balance of durability, heat tolerance and serviceability for frequent disassembly.

How does this V-band join two pipes securely?

The male/female flange design nests the pipe ends concentrically so the V-band clamp applies uniform pressure around the circumference. That alignment eliminates the need for gaskets in many setups and helps maintain a tight mechanical seal under vibration and heat cycles.

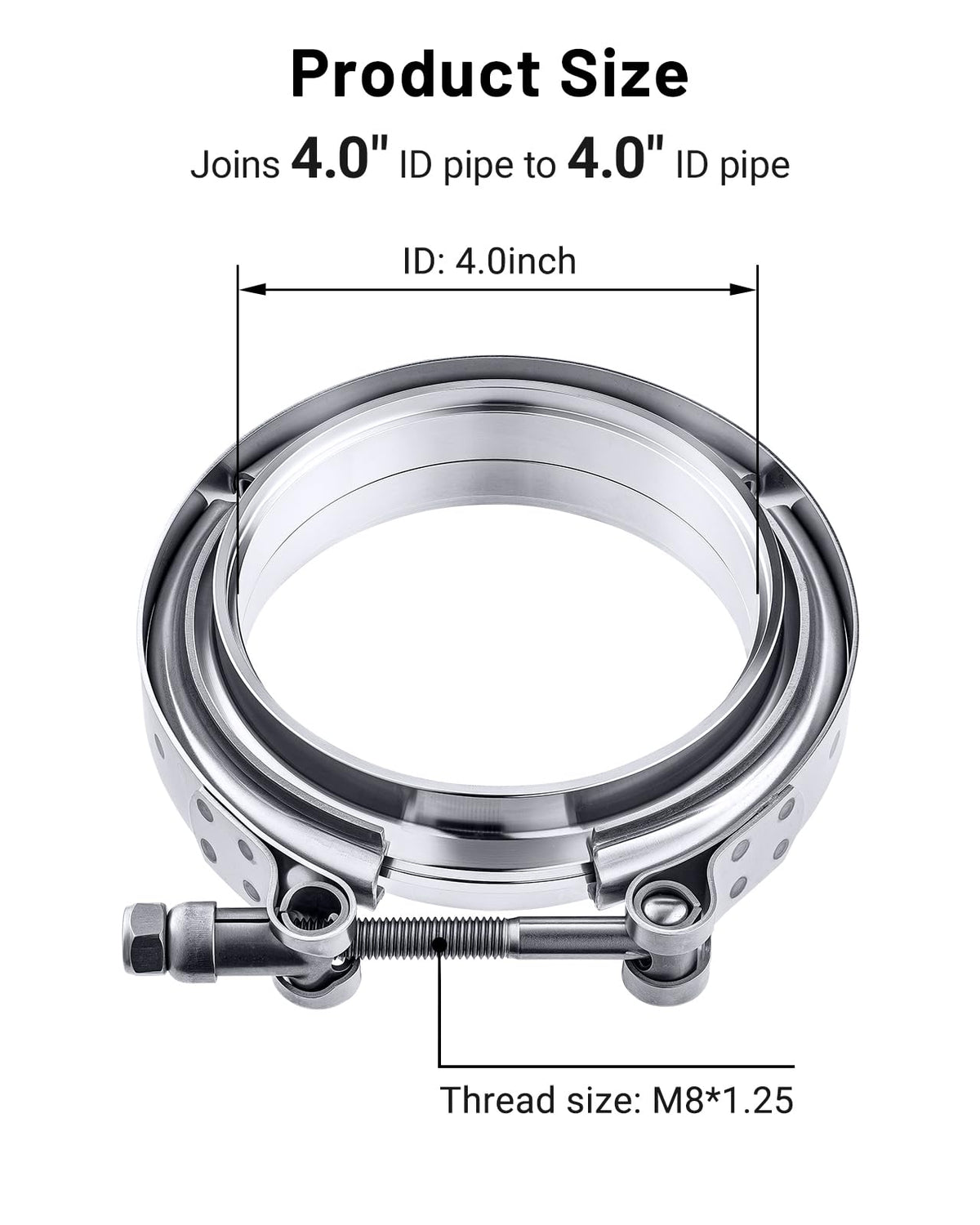

• 4.0" ID to 4.0" OD pipe compatibility for standard turbo and exhaust tubing
• V-profile clamp spreads clamping force evenly to prevent leaks
• Flanges locate inside clamp to ensure correct alignment
• M8 x 1.25 T-bolt fastener for secure, serviceable tightening

Is this V-band assembly durable enough for high-temperature use?

Yes — the primary clamp and the male/female flanges are fabricated from 304 stainless steel, which resists oxidation and maintains strength at elevated temperatures typical of exhaust and turbo systems. The mild steel T-bolt offers robust clamping torque, though in highly corrosive or salt-exposed environments you may prefer fully stainless fasteners.

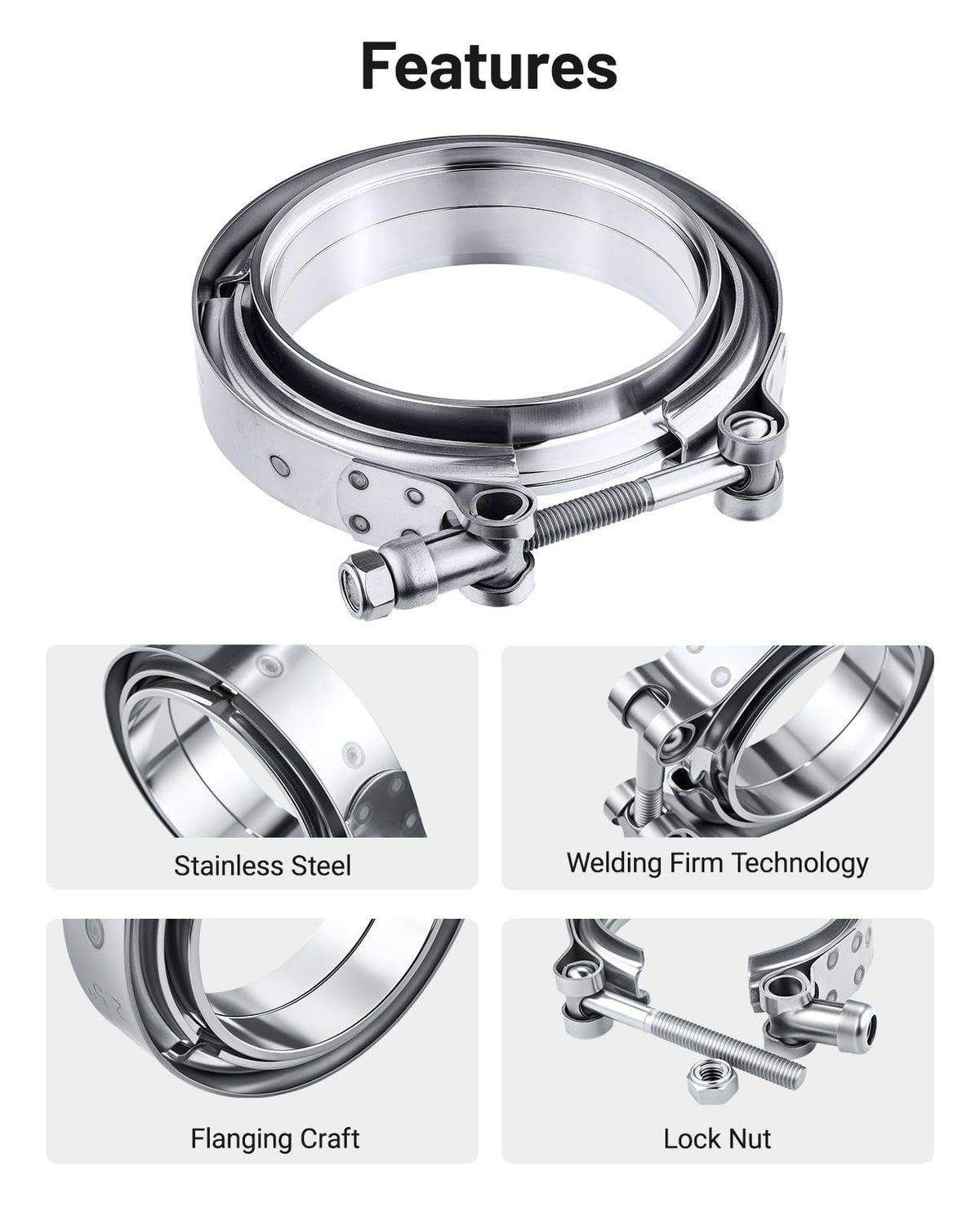

• 304 stainless clamp and flanges for corrosion and heat resistance
• Mild steel T-bolt sized to provide strong mechanical clamping
• Designed for repeated removal and reassembly without losing seal integrity

How easy is installation and maintenance?

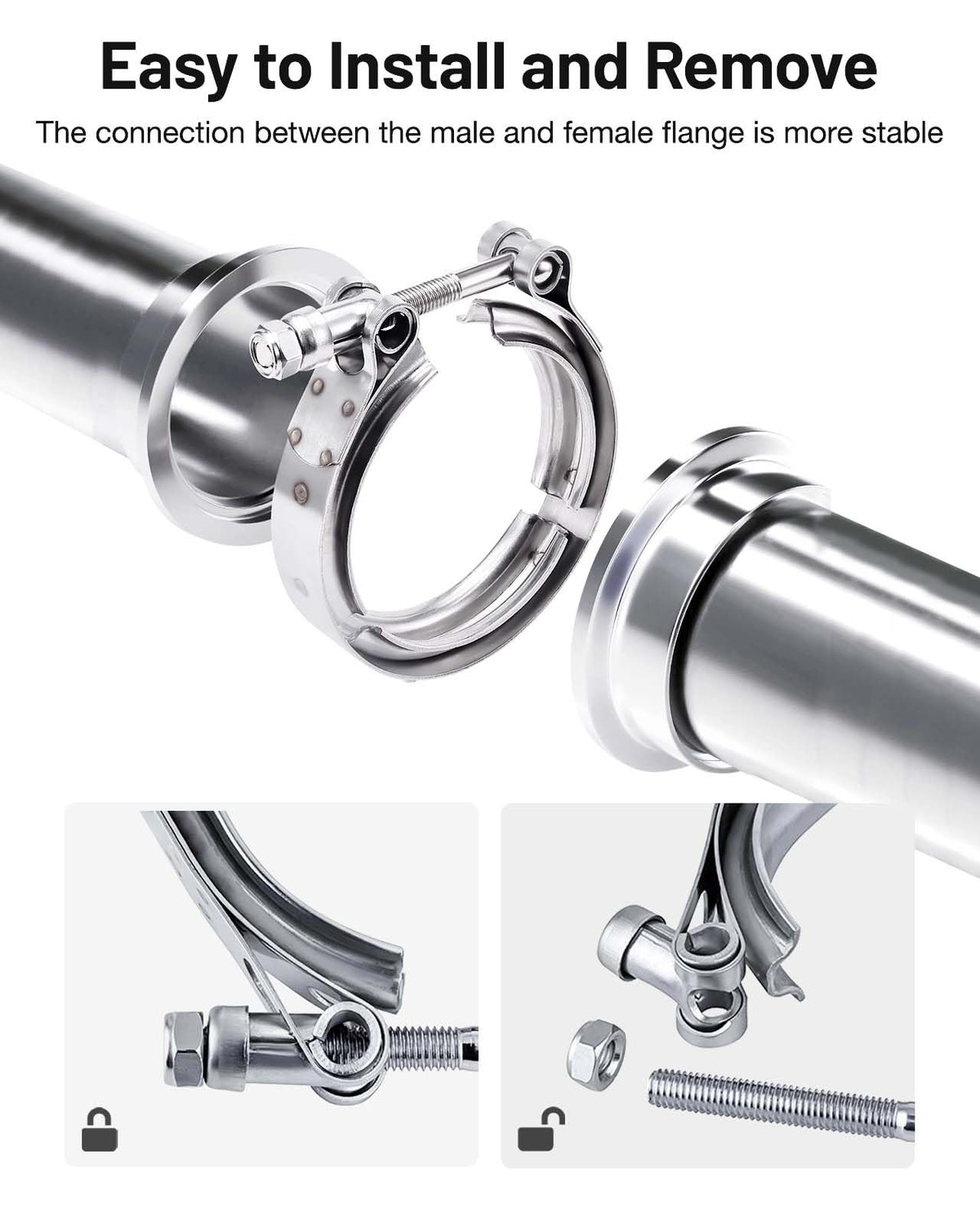

Installation is straightforward: position the male and female flanges together, center the V-band clamp over them, and torque the T-bolt to specification. The design is particularly helpful where components are serviced often because the clamp removes quickly and restores alignment on reassembly.

• No separate gasket usually needed due to flange alignment
• Quick-release style with a single T-bolt for fast service
• Ideal for test, tuning, or modular exhaust/turbo setups

What vehicles and systems is this V-band suited for?

This EVIL ENERGY kit is compatible with aftermarket turbochargers, downpipes, muffler connections, and custom exhaust systems that use 4.0" diameter tubing. It’s commonly used in performance and racing applications where secure, repeatable joins and simple disassembly are required.

• Aftermarket turbocharger and downpipe connections
• Muffler sections and custom exhaust manifolds
• Fabrication projects requiring quick, reliable pipe joins

Who is this for? This V-band clamp and flange set is aimed at performance enthusiasts, fabricators and mechanics who need a dependable, serviceable connection for 4.0" exhaust and turbo plumbing. If you value even clamping pressure, precise flange alignment, and the convenience of rapid removal for maintenance or upgrades, this EVIL ENERGY stainless assembly is a practical choice.
