EVIL ENERGY 6AN 90° PTFE Hose End Fitting Black — 2pc, 6061‑T6 Aluminum, 360° Swivel, 1500 PSI

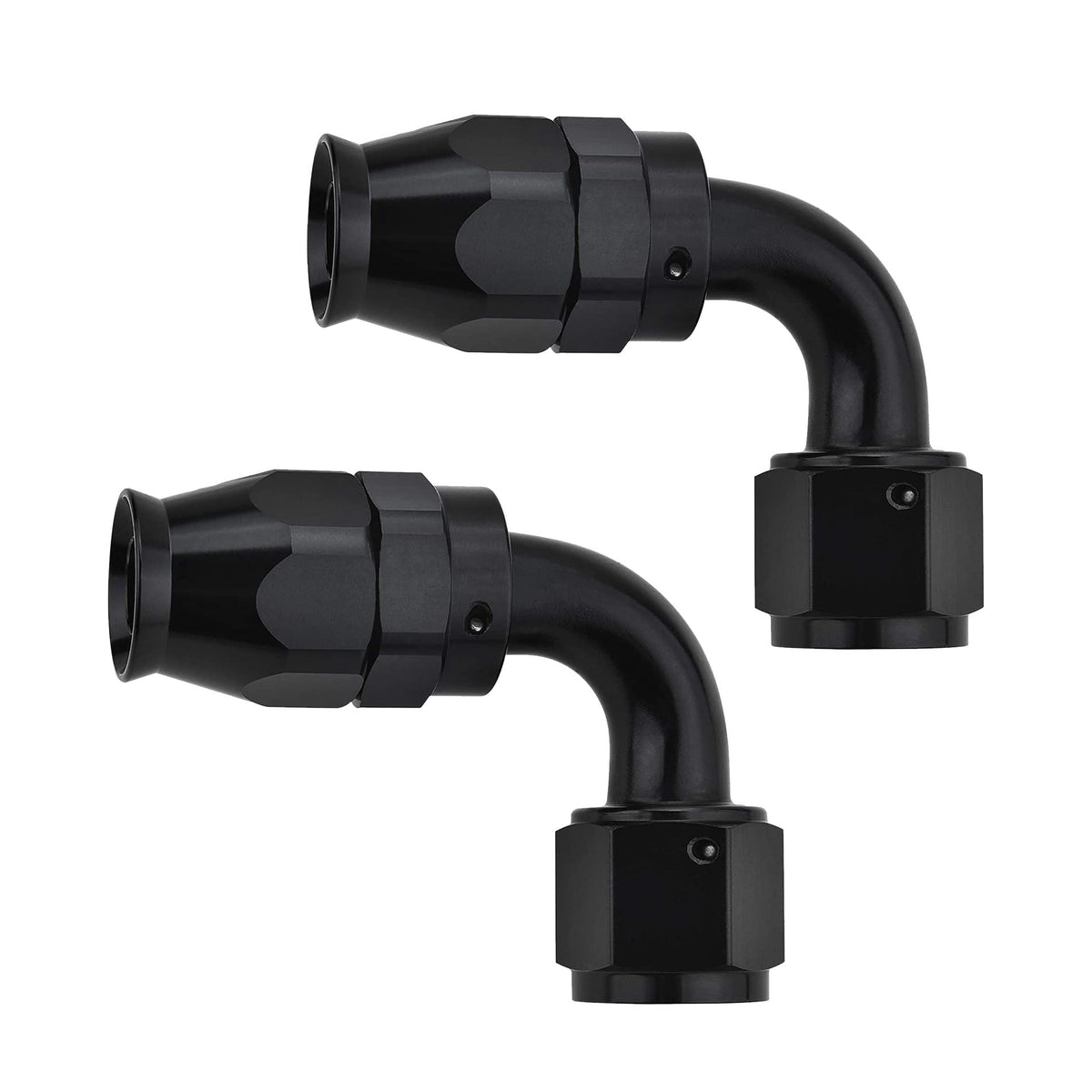

EVIL ENERGY 6AN 90° PTFE hose end fittings are aluminum swivel AN connectors designed specifically for PTFE fuel lines, sold as a two-piece set in black.

These 6AN 90° hose ends pair a 37° AN sealing face with a 360° swivel collar and are machined from 6061‑T6 aluminum for a balance of strength and light weight. They are built for PTFE fuel hose installations where space is tight and a reliable AN seal is required. Rated to 1500 PSI and usable across a wide temperature span, these fittings simplify routing and secure connections in motorsport, performance, and custom plumbing applications.

How do these fittings connect to PTFE hose and what do I need to install them?

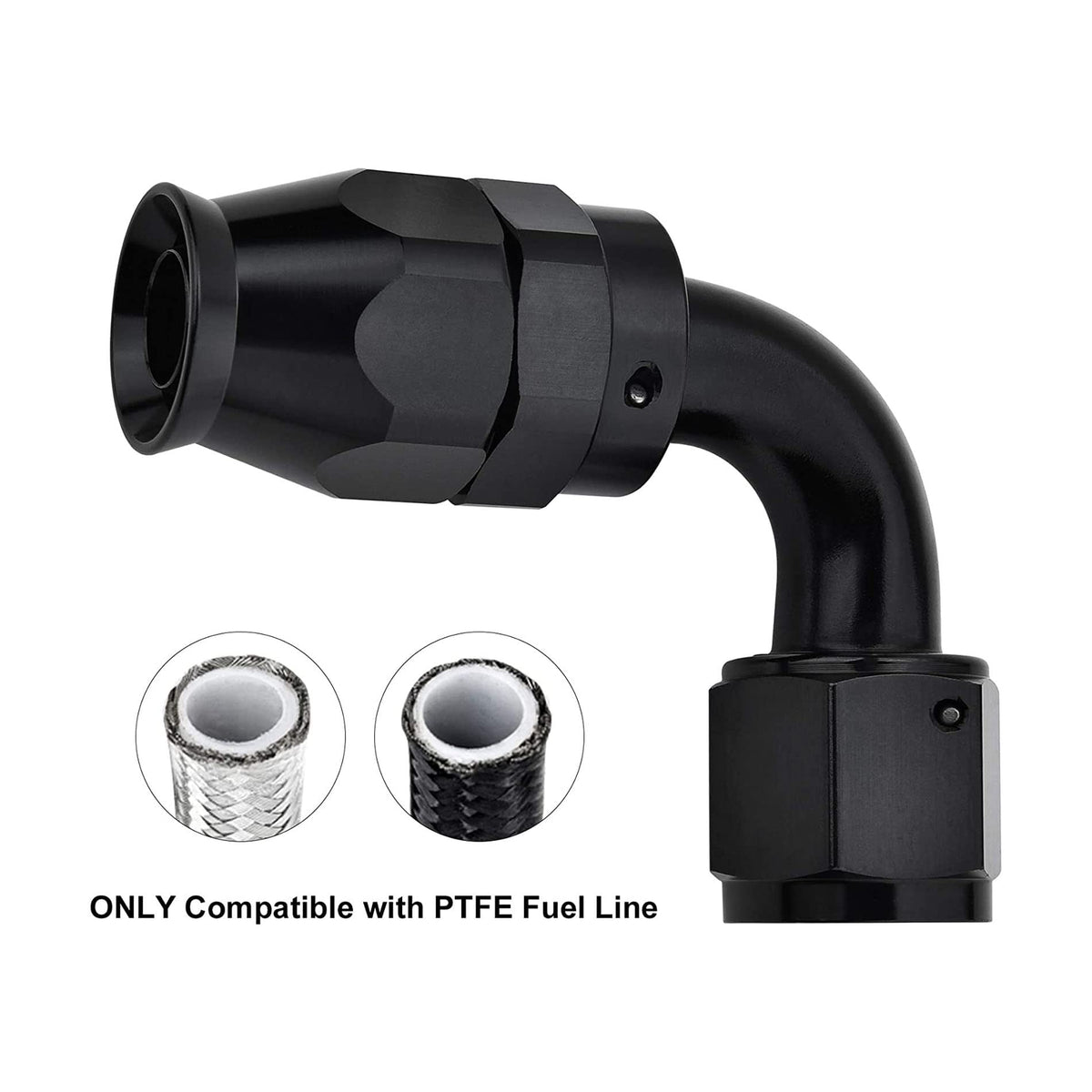

These fittings are made to fit PTFE-lined fuel hose only and use a crimp or clamp method depending on your hose and assembly setup. The AN side seals with a 37° flare seat, so the mating component must be a matching 6AN port. Installation requires proper hose preparation, a compatible sleeve or ferrule, and tightening to recommended torque to ensure the flare seat seals correctly.

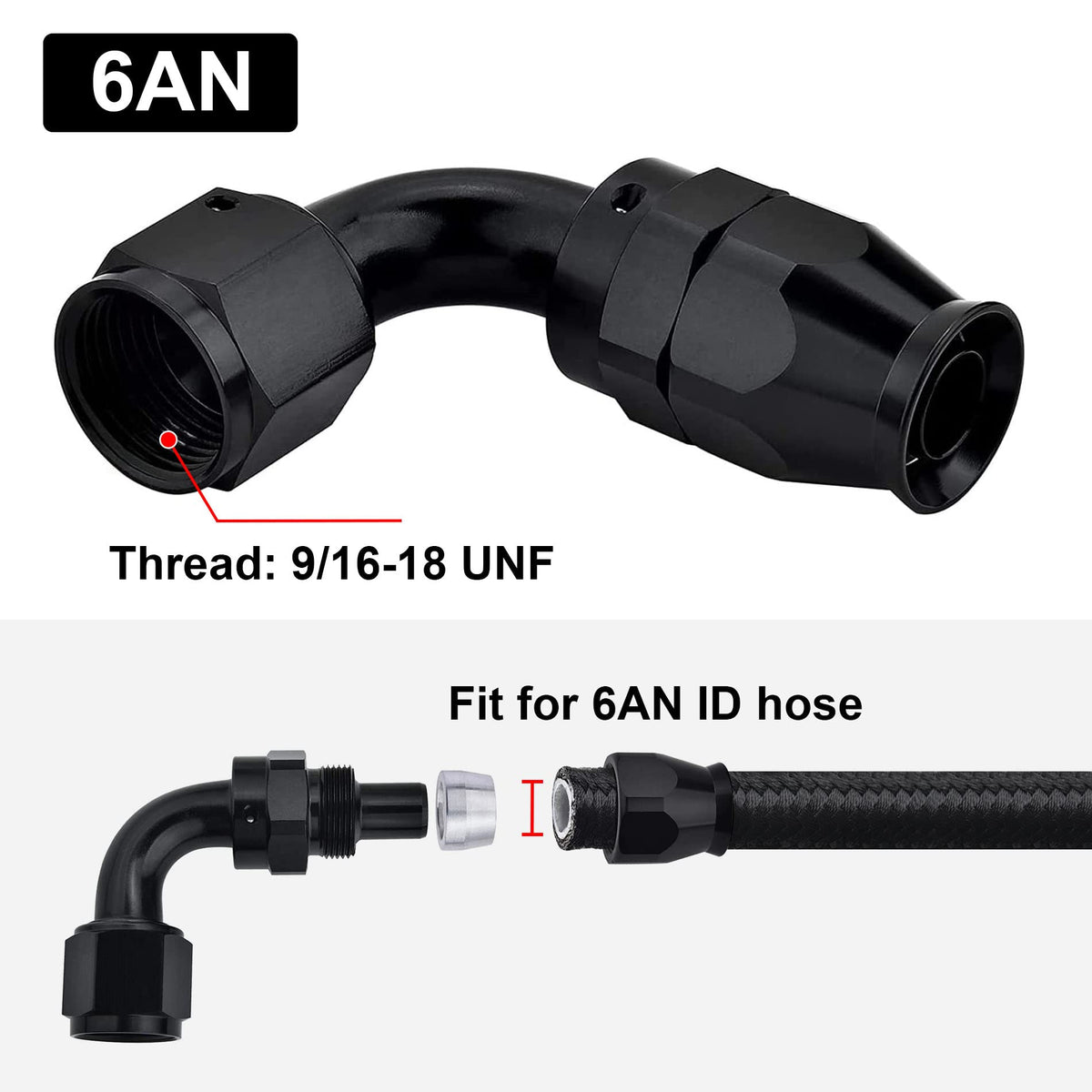

• Thread size: 6AN (9/16-18 UNF).
• Sealing: 37° AN flare seat for leak-resistant connection.
• Swivel: 360° rotating collar for easier hose orientation during assembly.

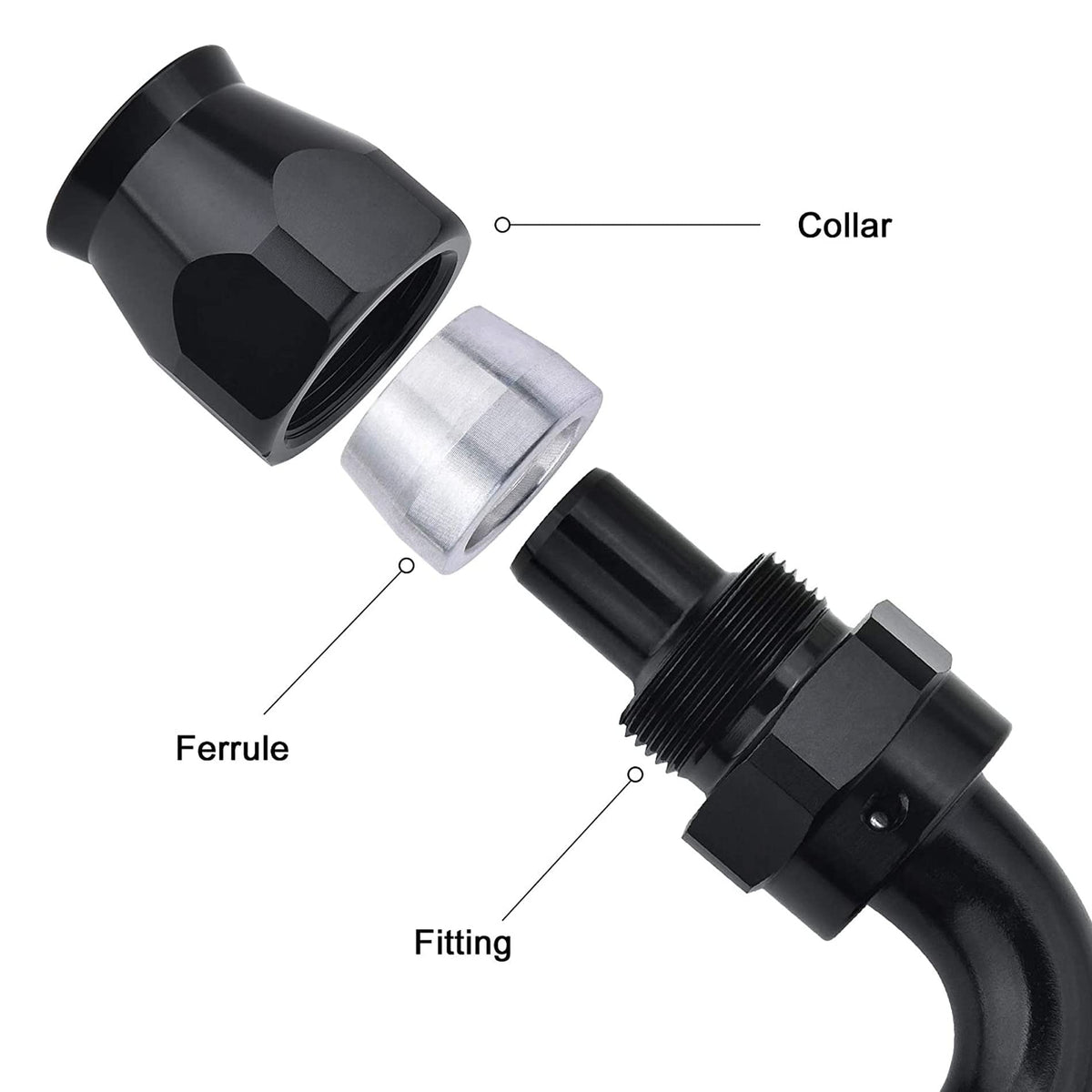

• Installation: Requires PTFE-specific sleeve/ferrule and correct hose assembly technique.

What are the performance limits and operating conditions?

These fittings are rated for working pressures up to 1500 PSI and accommodate a wide operating temperature range from -65°F to 252°F. The 6061‑T6 aluminum construction provides corrosion resistance and strength suitable for many automotive and racing environments. Always match the fitting pressure rating with your system and inspect assemblies regularly for wear.

• Working pressure: 1500 PSI maximum.
• Temperature range: -65°F to 252°F (-54°C to 122°C).
• Material: 6061‑T6 aluminum for durability and light weight.
• Finish: black anodized for appearance and surface protection.

Why choose a 90° 6AN swivel fitting instead of a straight fitting?

A 90° swivel fitting helps route PTFE hose around tight corners and prevents kinks or strain at the connection point. The rotating collar allows you to position the hose without twisting the assembly, making installation faster and reducing stress on the hose. This is especially useful where space constraints or chassis geometry require precise hose orientation.

• Space-saving 90° profile for compact installations.
• 360° swivel reduces hose twisting during assembly.
• Helps maintain hose bend radius and prevents premature wear.
• Ideal for brake, fuel, oil, and other PTFE-lined fluid systems.

How do I match these fittings to my existing AN hardware?

Match the thread (6AN / 9/16-18 UNF) and the 37° flare sealing face to any standard AN port or adapter. Confirm your hose is PTFE-lined and that the sleeve/ferrule you plan to use is compatible with PTFE inner liners. Use a calibrated wrench and follow torque guidelines for aluminum fittings to avoid damage.

• Thread match: 6AN (9/16-18 UNF) required for mating ports.
• Seal match: 37° AN flare seat for leak-proof connection.
• Hose type: PTFE-lined hose only; not for rubber-only hoses.

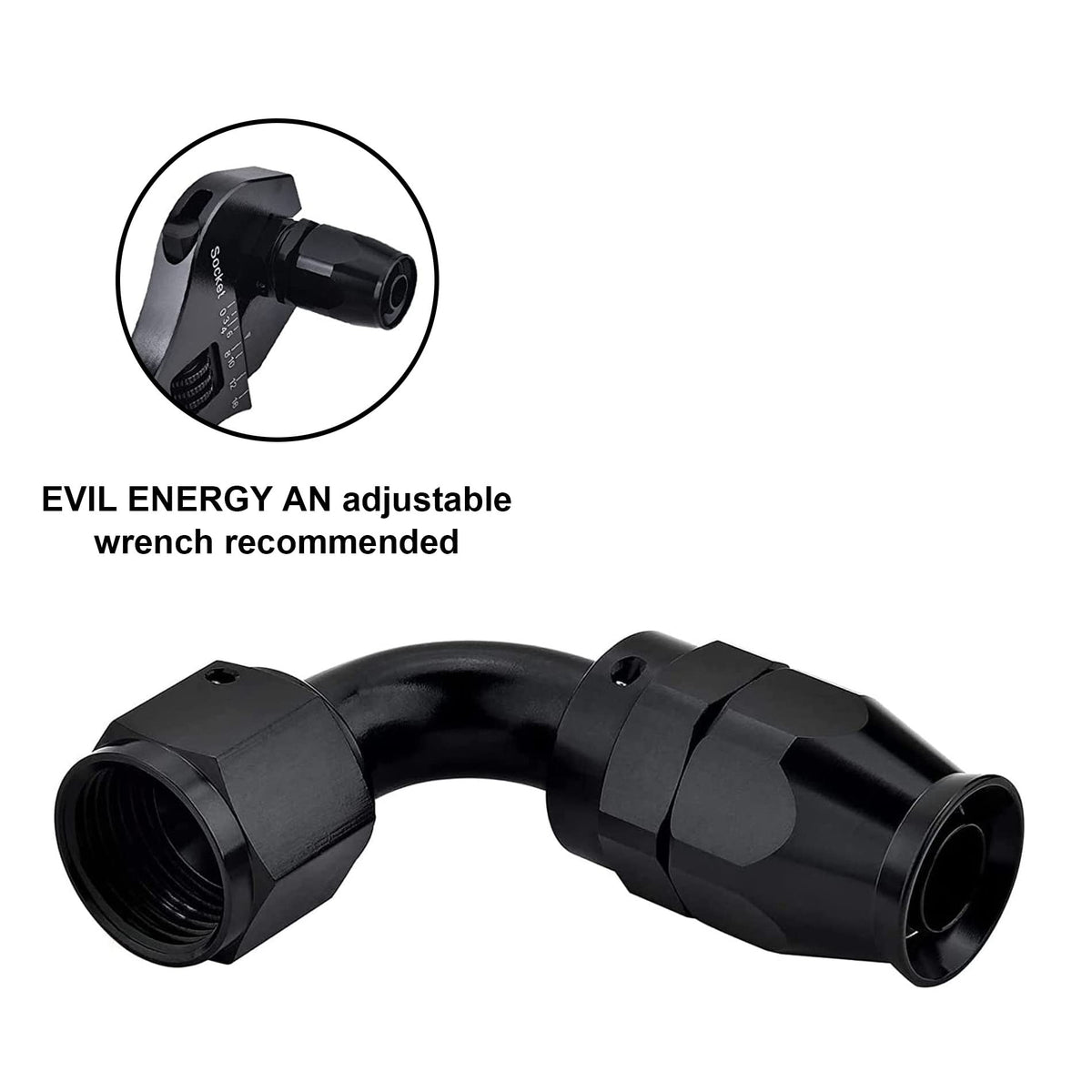

• Assembly tip: tighten by hand then wrench to specified torque.

Who this is for: These EVIL ENERGY 6AN 90° PTFE hose end fittings suit automotive enthusiasts, race teams, and custom fabricators who need compact, reliable AN connections for PTFE-lined fluid lines. If you work with fuel, oil, or other compatible fluids and require a robust 90° swivel connection that seals on a 37° flare, this two-piece black set provides a lightweight, serviceable option for professional and DIY builds alike.
