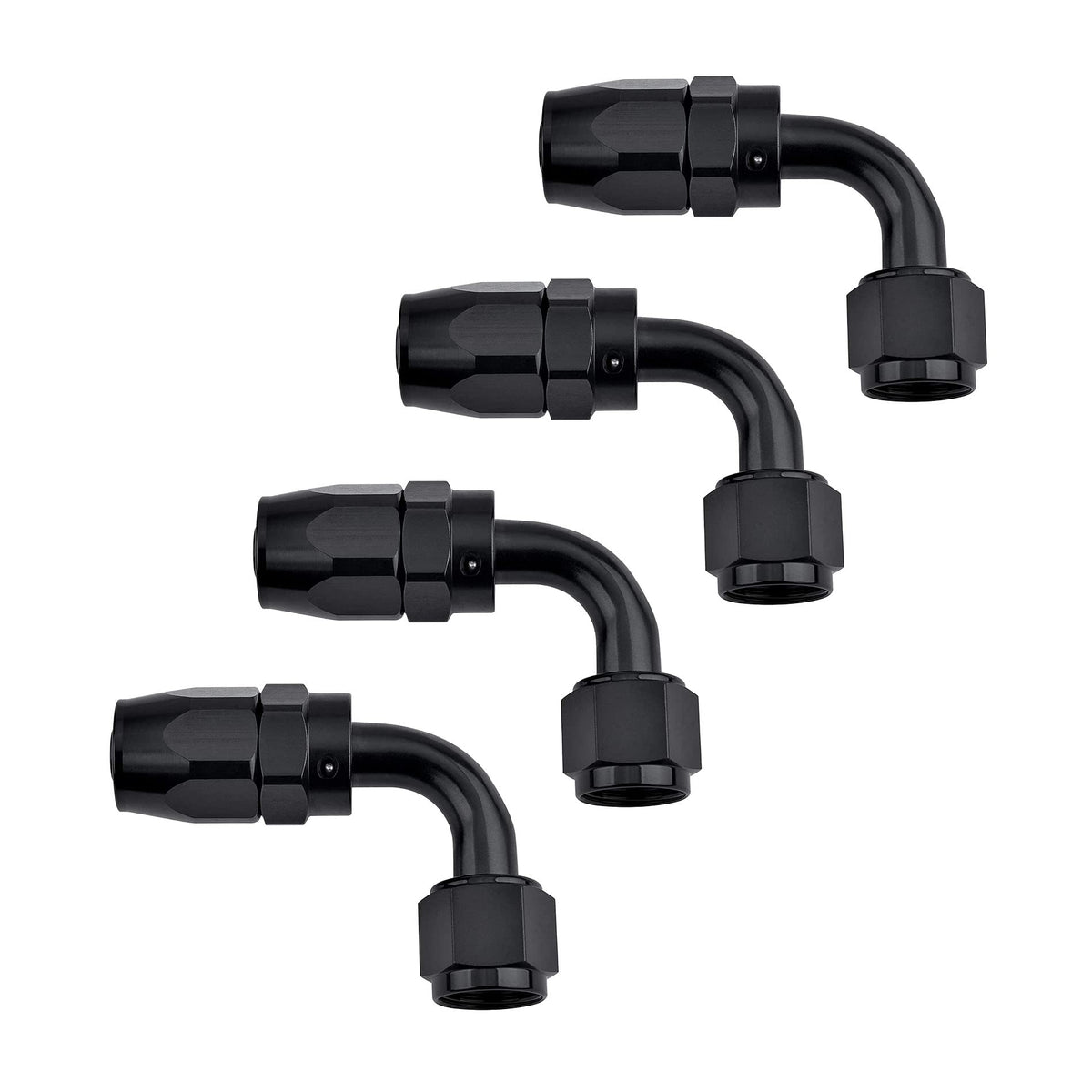

EVIL ENERGY 6AN 90° Swivel Hose End Fitting — Black 4pc, 6061-T6 Aluminum, 37° AN Seal

EVIL ENERGY 6AN 90° swivel hose end fitting is a black, 4-piece aluminum connector that delivers a reusable, 360° rotating seal for stainless-steel and nylon braided CPE hoses.

This compact 6AN hose end was engineered for high-performance fluid routing where space is tight and reliable sealing is required. Machined from 6061-T6 aluminum with a 37° AN sealing face, the fittings accept standard 9/16-18 UNF threads and handle temperatures and pressures common to automotive and industrial fluid lines. The 90-degree orientation and full swivel design simplify installation, reduce hose stress, and let you orient lines without twisting the hose.

How does the 90° swivel help during installation?

The 90° swivel allows you to change hose direction at tight angles while the rotating collar prevents hose twist. This reduces installation time and protects the hose from kinking or premature wear.

• 360° swivel collar adjusts without removing the hose

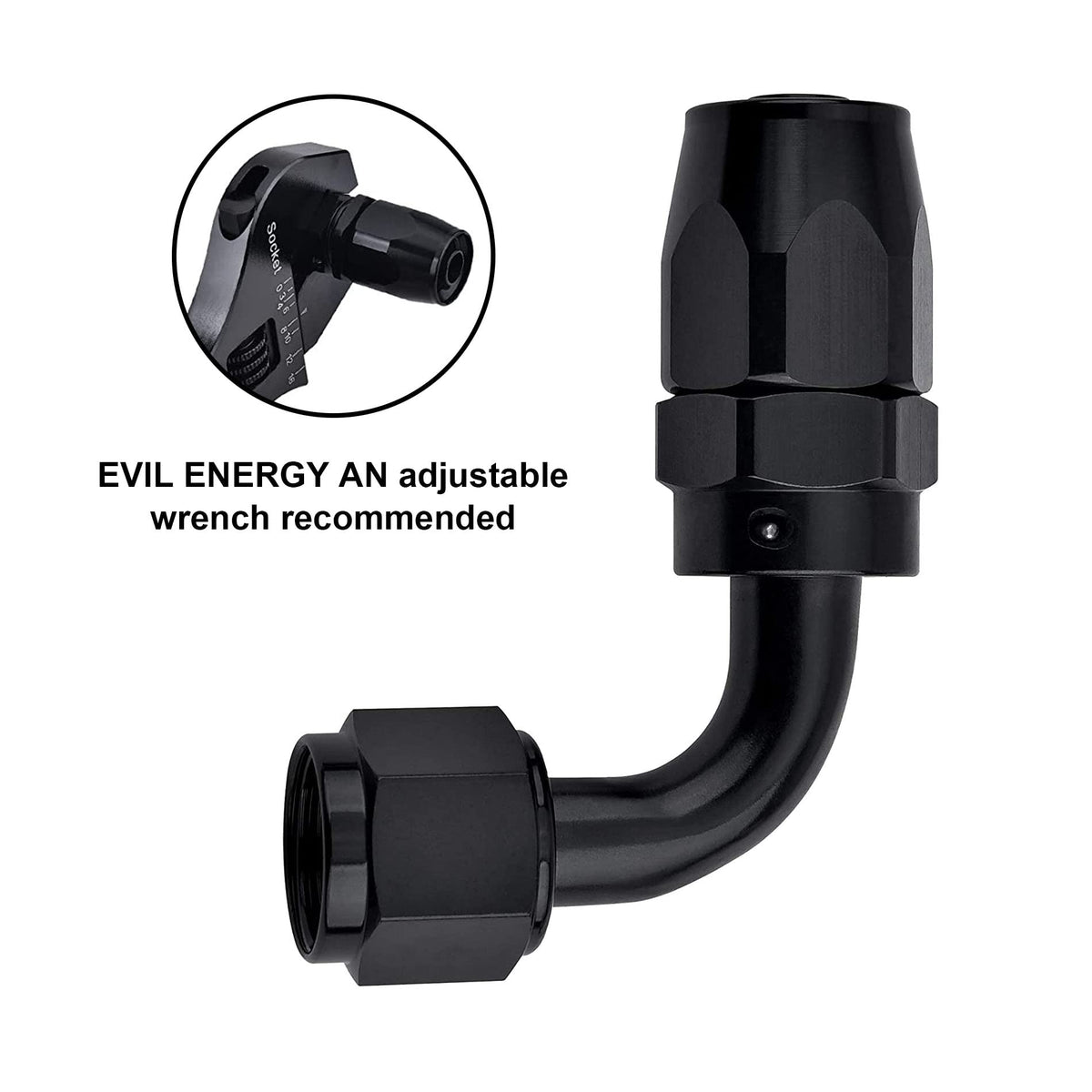

• Right-angle body fits confined engine bays or equipment racks
• Re-usable design for repair or rerouting jobs

What materials and thread standards are used?

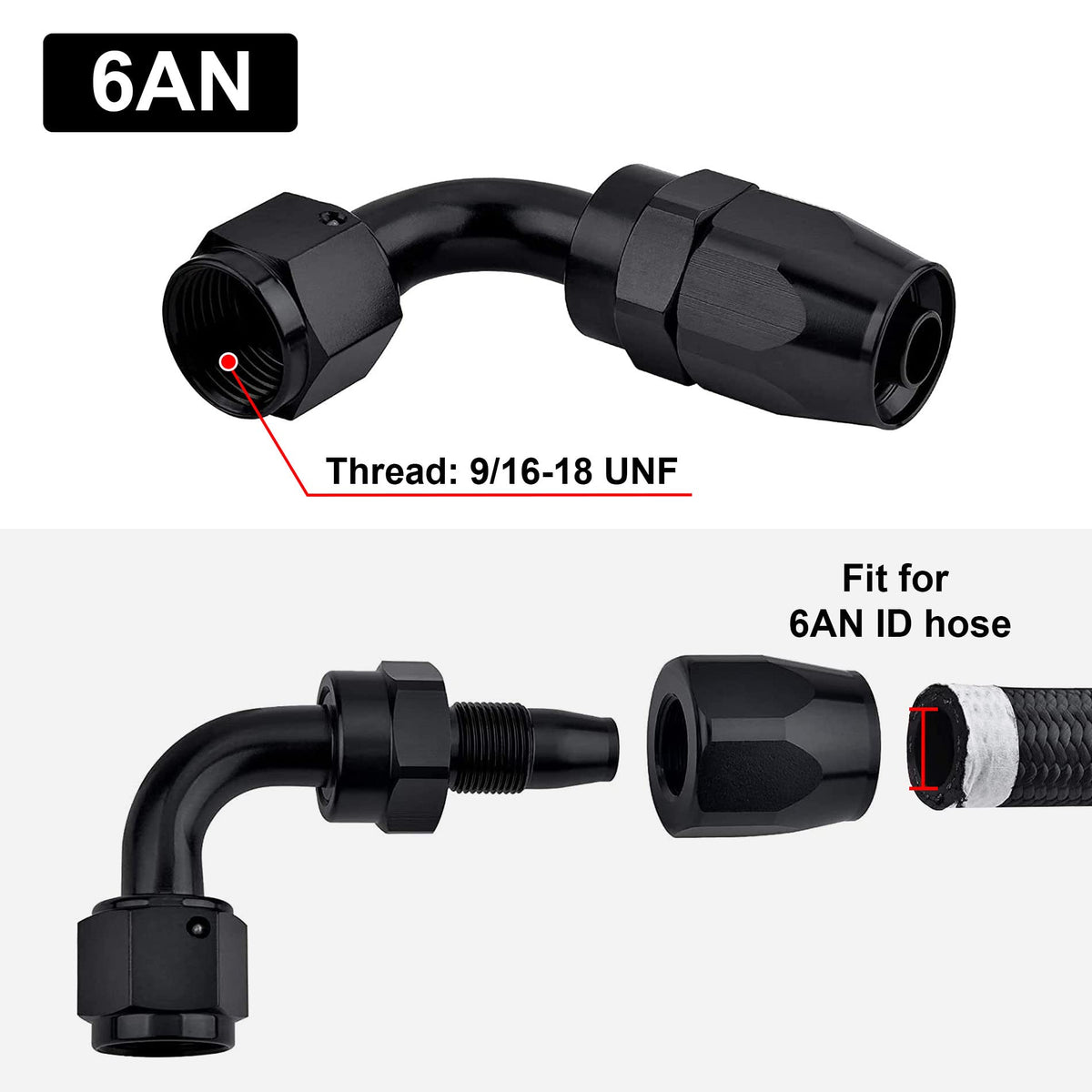

Each fitting is made from aerospace-grade 6061-T6 aluminum for a favorable strength-to-weight ratio and corrosion resistance when anodized. The threaded portion uses 9/16-18 UNF sizing and seals on a 37° AN flare face for compatibility with AN-standard hose ends.

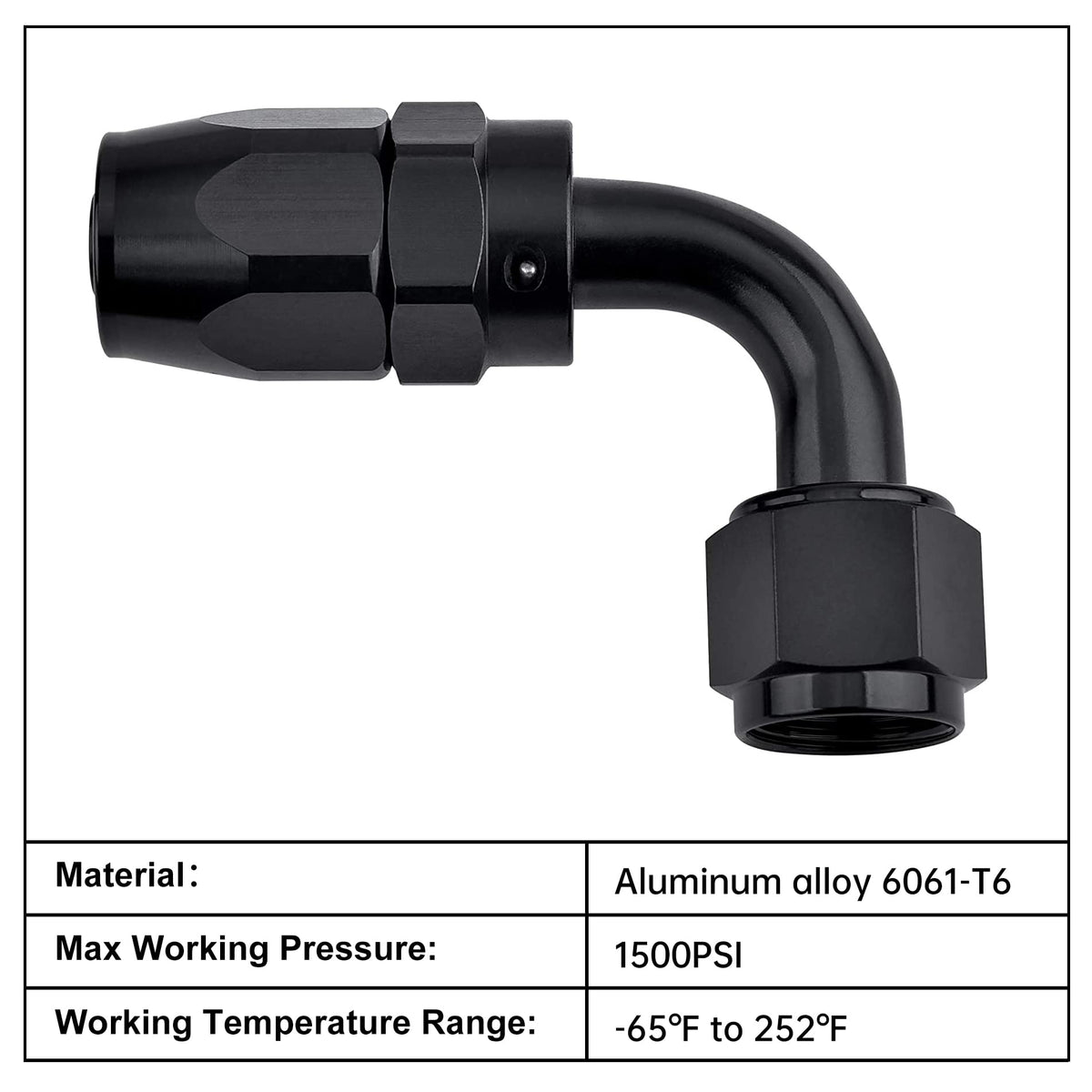

• 6061-T6 aluminum construction for strength and lightness
• 9/16-18 UNF external threading (6AN standard)
• 37° AN sealing angle for leak-resistant flare connections

Which hoses and operating conditions are compatible?

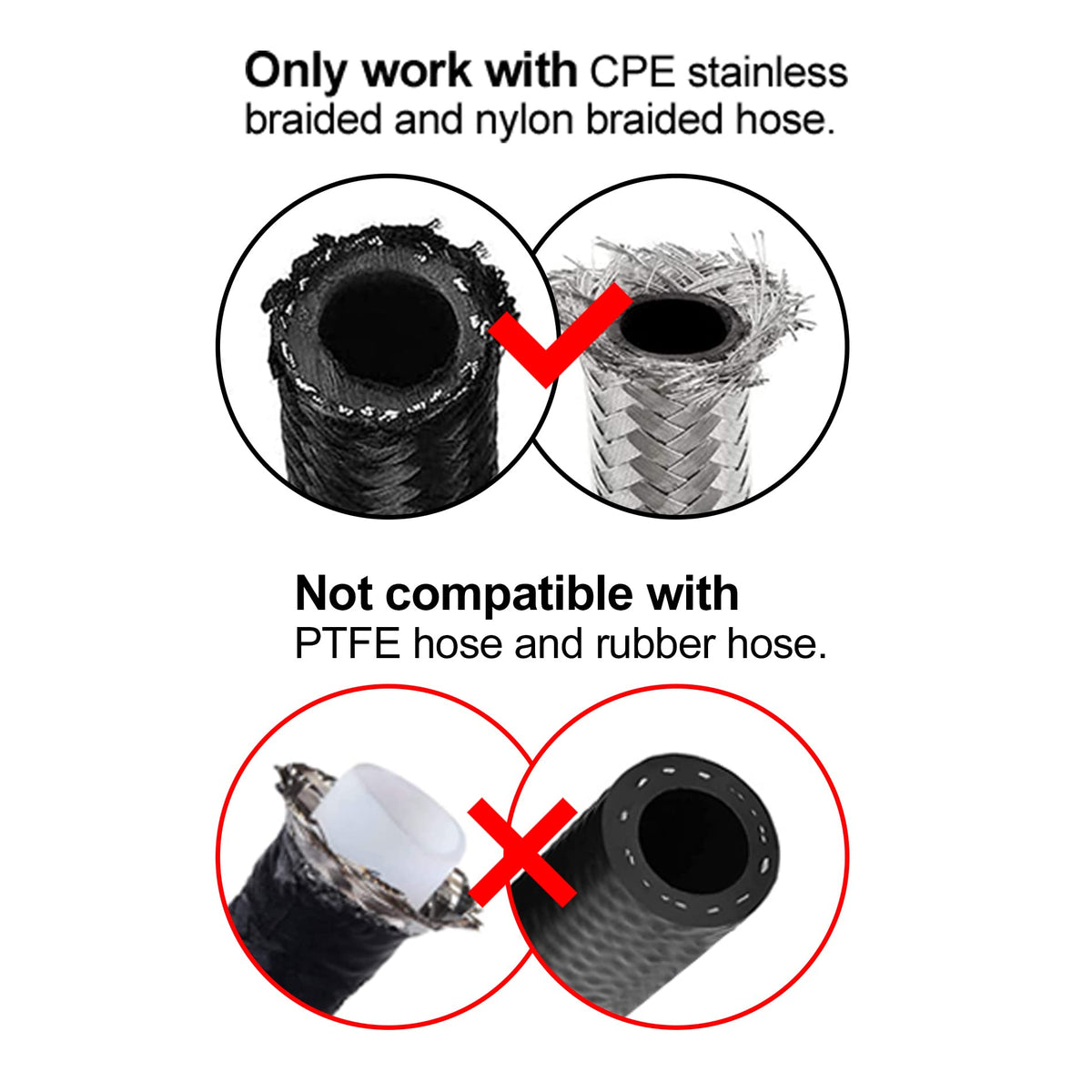

These fittings are intended for use with stainless-steel braided or nylon braided CPE hoses; they are not designed for soft rubber or non-braided lines. Rated for a maximum working pressure up to 1,500 PSI and a wide temperature span, they suit many automotive and industrial fluid tasks.

• Compatible with stainless-steel and nylon braided CPE hoses only
• Maximum working pressure: 1,500 PSI
• Operating temperature range: -65°F to 252°F (-53°C to 122°C)

Can these fittings be reused or recycled?

Yes — the fittings are designed for multiple cycles of assembly and disassembly without compromising the AN flare sealing surface when handled properly. At end of life, the aluminum body is recyclable through standard metal-recycling channels.

• Re-usable 360° swivel design for maintenance and rerouting
• Durable sealing face maintains integrity across uses
• 6061 aluminum is widely recyclable

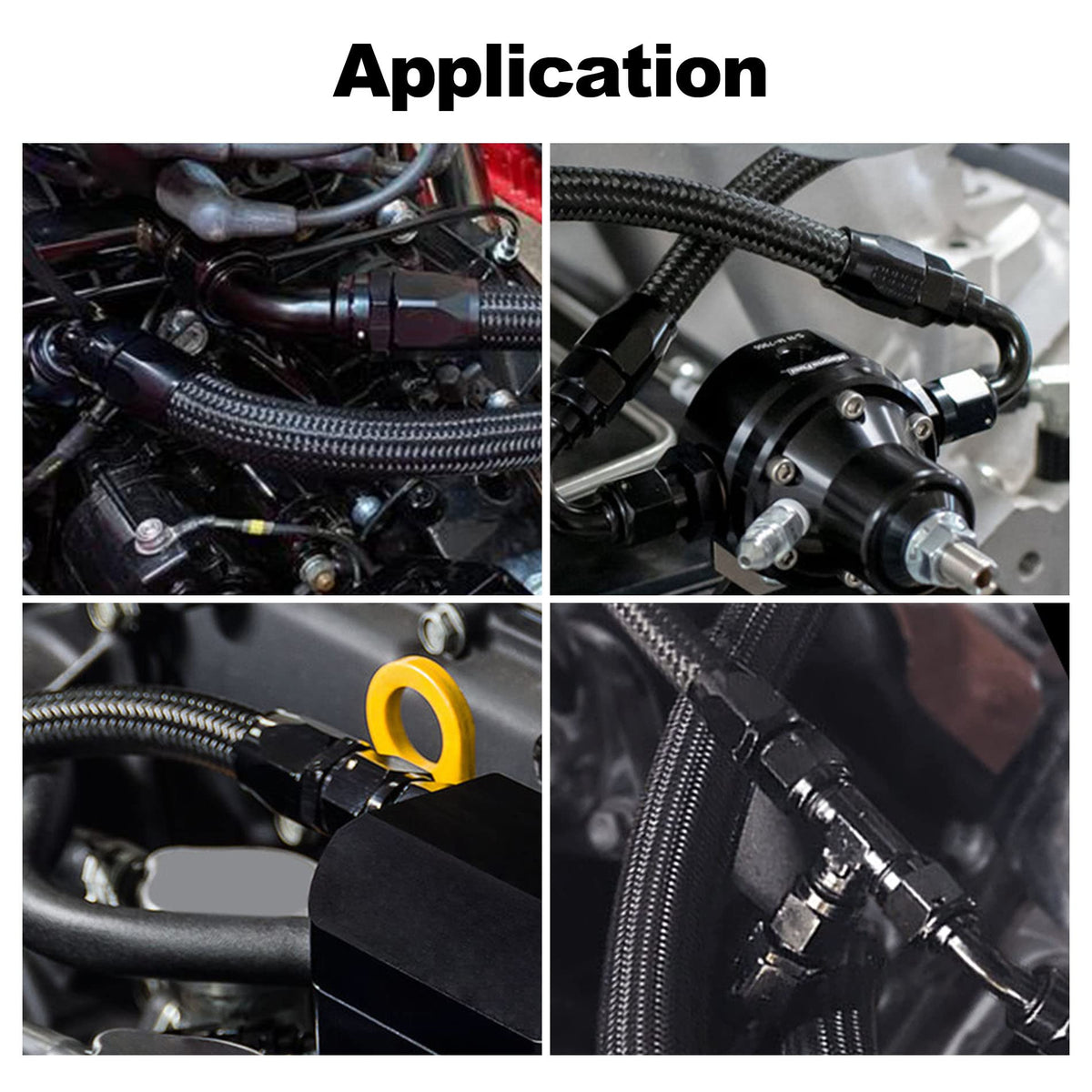

Who is this for: These EVIL ENERGY 6AN 90° swivel hose end fittings are aimed at automotive technicians, motorsport mechanics, custom fabricators, and DIY enthusiasts who need compact, serviceable fittings for braided CPE fuel, oil, or coolant lines. If you require a durable, AN-standard 90-degree connection that saves space and prevents hose strain while offering straightforward reuse, this four-piece set is a practical choice.
