EVIL ENERGY 6AN Hose End Fitting 45 Degree Swivel for CPE

EVIL ENERGY 6AN 45° hose end fittings are black anodized, 6061-T6 aluminum swivel connectors designed for stainless steel and nylon braided CPE hoses, sold as a pack of four for reusable, high-pressure plumbing connections.

These 6AN (9/16-18 UNF) fittings provide a compact 45-degree routing option for fuel, oil, coolant, or hydraulic lines where stainless steel or nylon braided hoses are used. Built with a 37° AN sealing angle and a full 360° swivel, the fittings simplify installation in tight or awkward spaces while resisting corrosion and repeated assembly. Rated for up to 1,500 PSI and functional across a wide temperature span, they suit demanding automotive and industrial environments that require durable, serviceable hose ends.

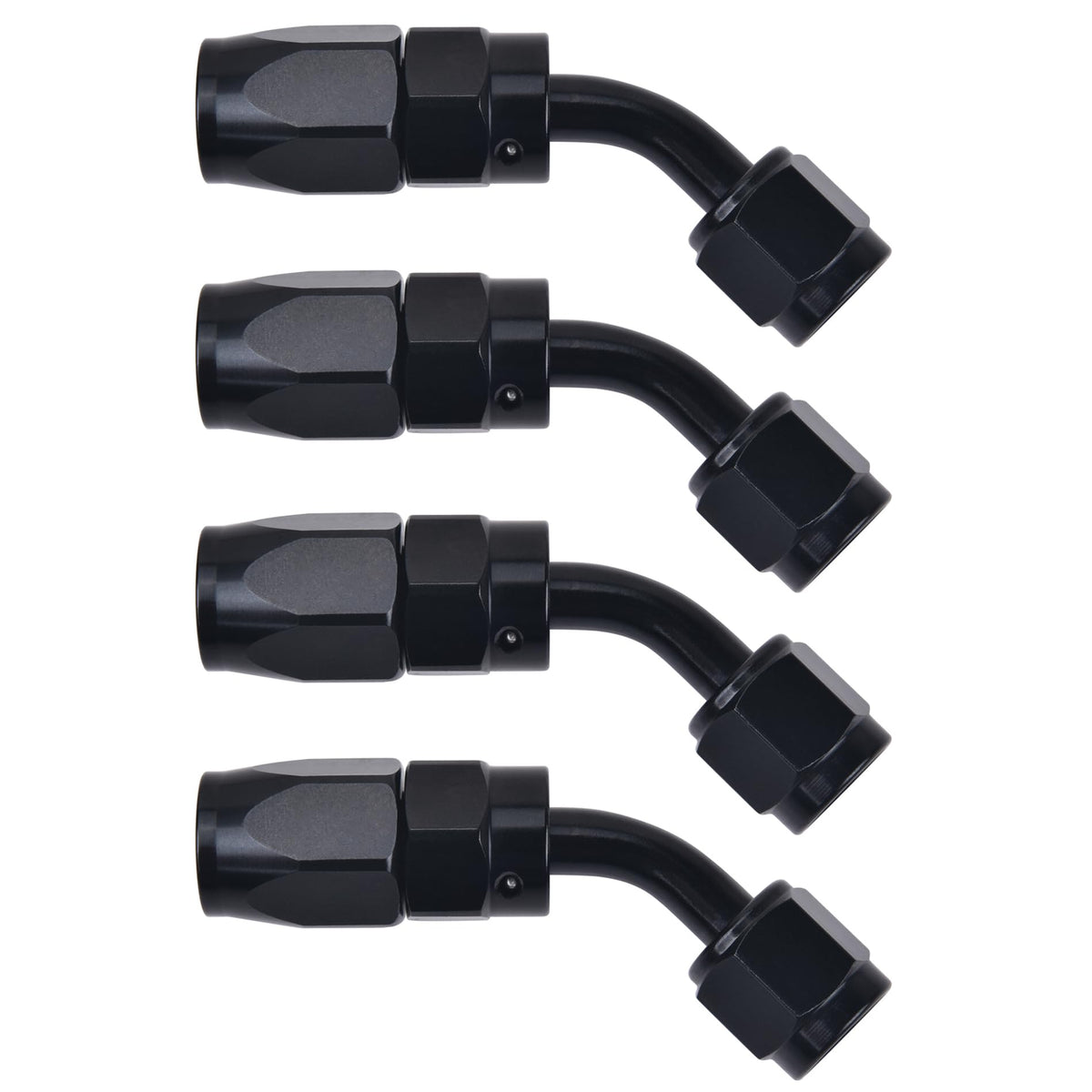

How do these 45° swivel fittings simplify hose routing?

The 45° angle reduces sharp bends and stress on hoses, creating smoother flow paths and cleaner installations. The swivel design lets you align the hose without twisting the line, speeding up assembly and preventing torque transfer to hose ends.

• 45° offset for reduced hose bending and improved routing
• 360° swivel to orient fittings without twisting the hose
• Compact profile fits tight engine bays or machinery enclosures
• Saves time during installation and maintenance

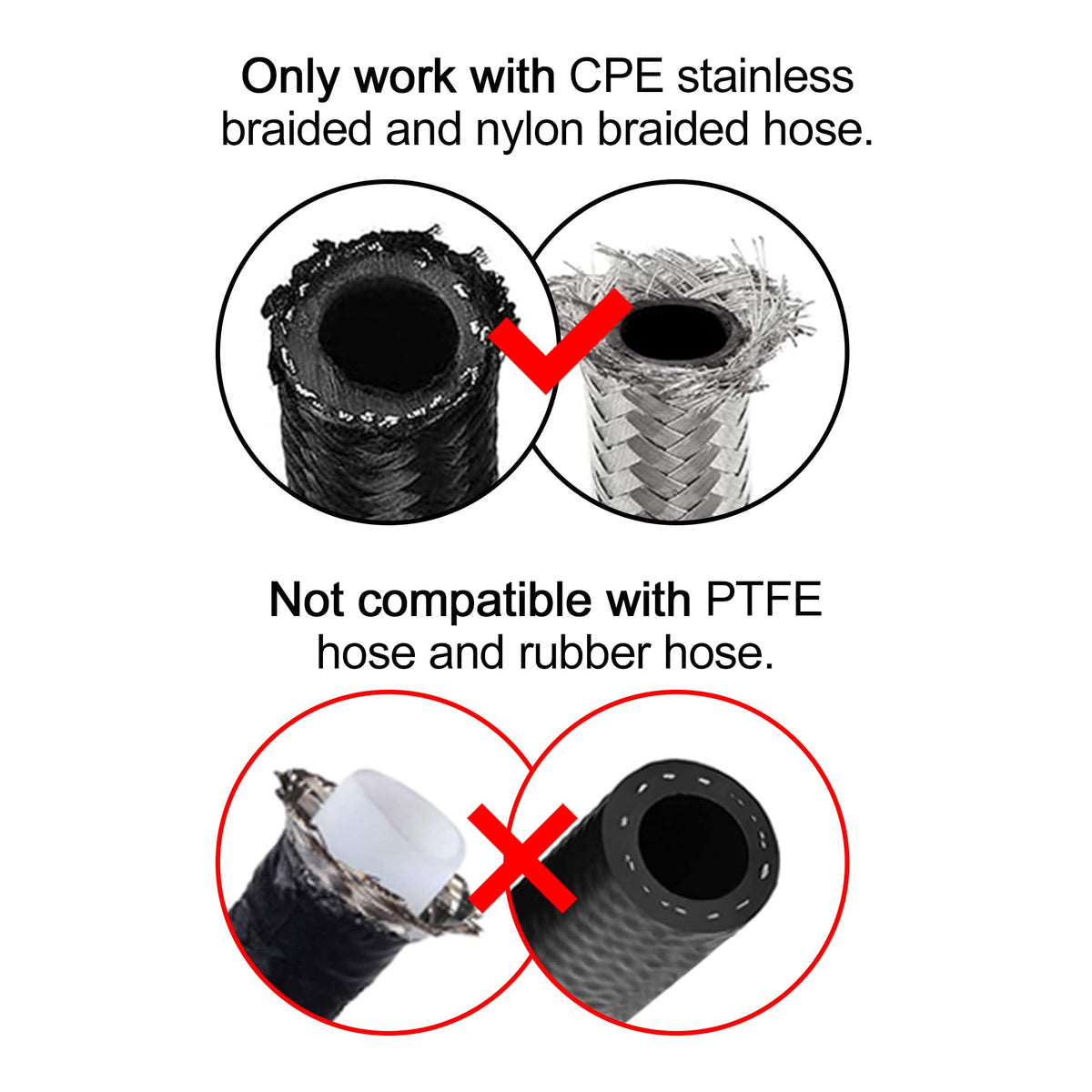

Are these fittings compatible with my braided hose and ports?

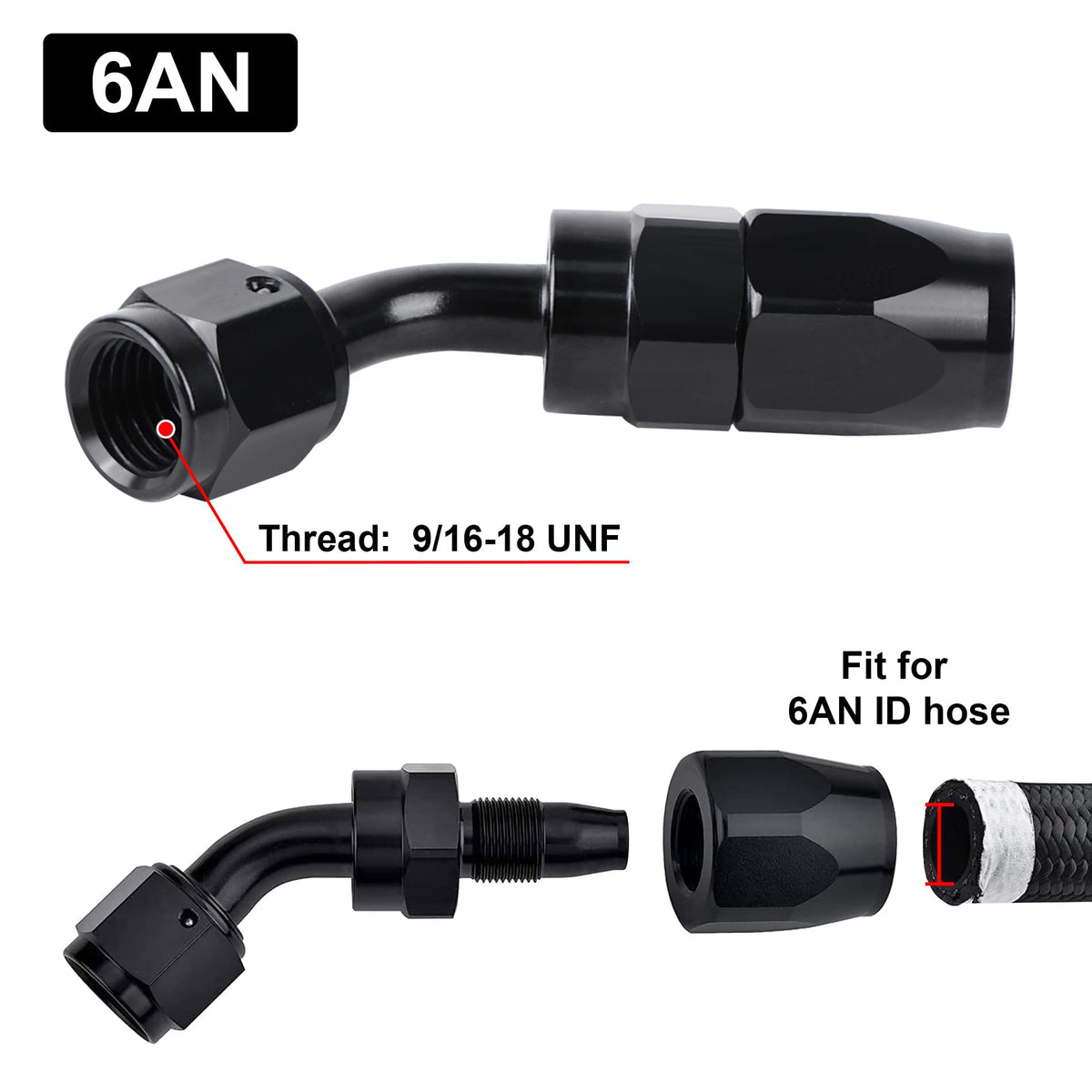

These fittings are engineered for use with stainless steel braided and nylon braided CPE hoses and seal with a standard 37° AN flare. Verify the female port or hose end accepts a 9/16-18 UNF thread (6AN) to ensure a proper fit.

• Thread size: 6AN (9/16-18 UNF)
• Sealing: 37° AN flare mating surface
• Intended hoses: stainless steel braided and nylon braided CPE hoses
• Not recommended for hoses or ports outside AN specification

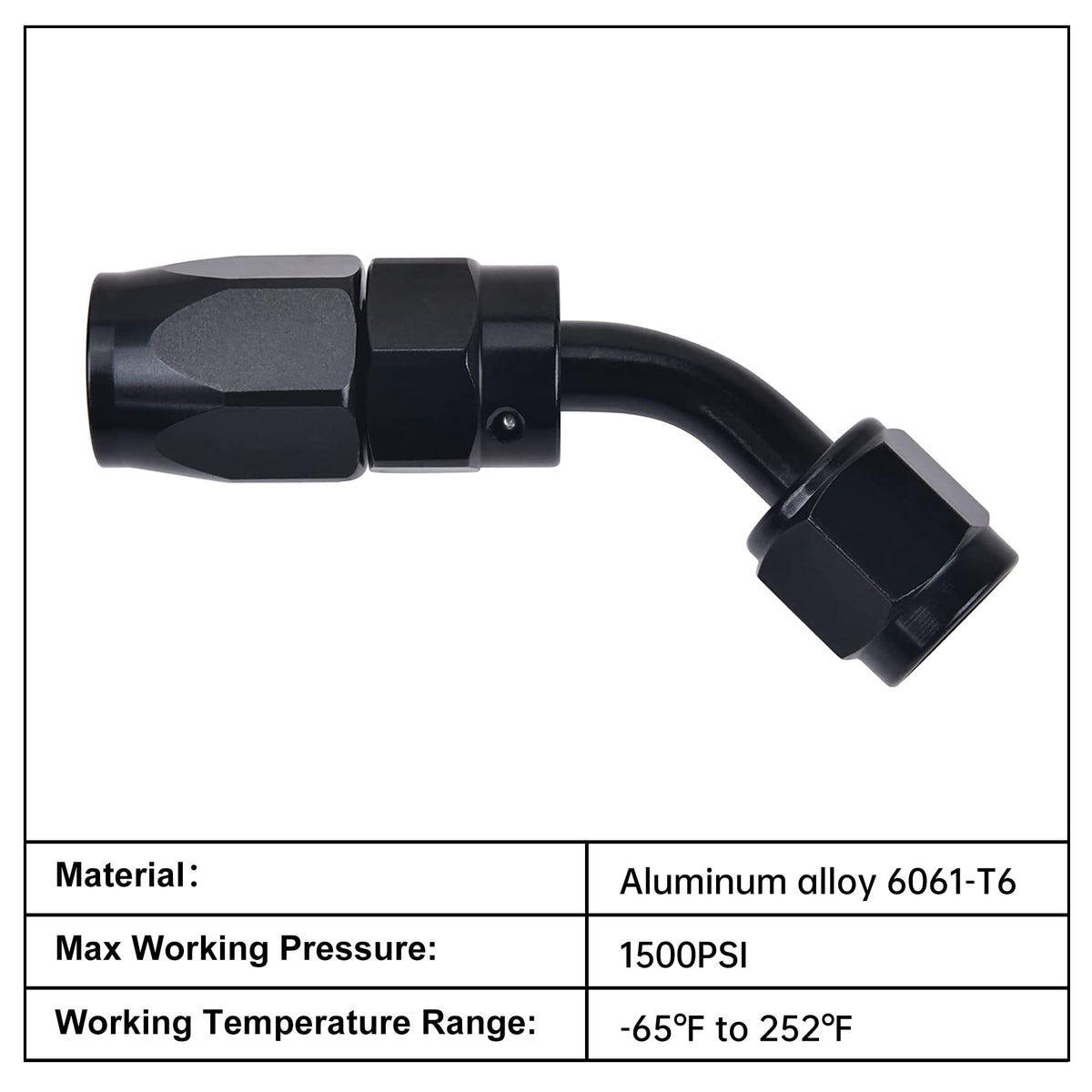

What are the material, pressure, and temperature capabilities?

Manufactured from 6061-T6 aluminum and finished in black anodized coating, these fittings balance strength with weight savings. They have a maximum working pressure of 1,500 PSI and operate across a broad temperature range suitable for automotive and light industrial fluids.

• Material: 6061-T6 aluminum alloy for strength and corrosion resistance
• Working pressure: up to 1,500 PSI
• Temperature range: -65°F to 252°F (-53°C to 122°C)
• Finish: black anodized for added surface protection

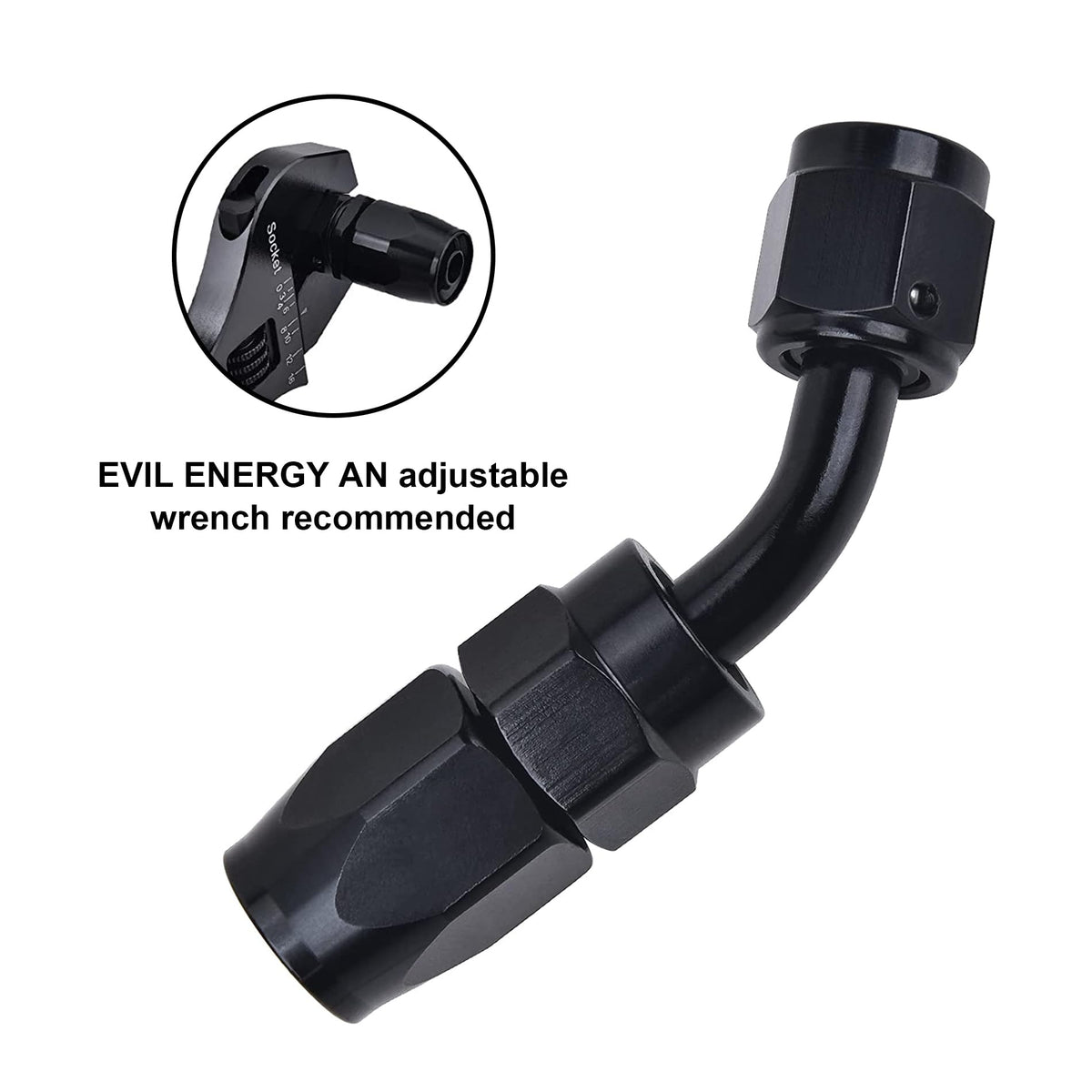

Can these fittings be reused and how do I maintain them?

The fittings are reusable and designed for multiple assembly cycles when installed correctly with compatible hoses. Regular inspection and proper torqueing, along with avoiding cross-threading, will extend service life and maintain sealing performance.

• Reusable design for disassembly and reassembly
• Inspect threads and sealing surfaces for nicks before reuse
• Hand-start threads then torque to recommended spec to avoid damage
• Keep mating flares clean and free of debris for reliable seals

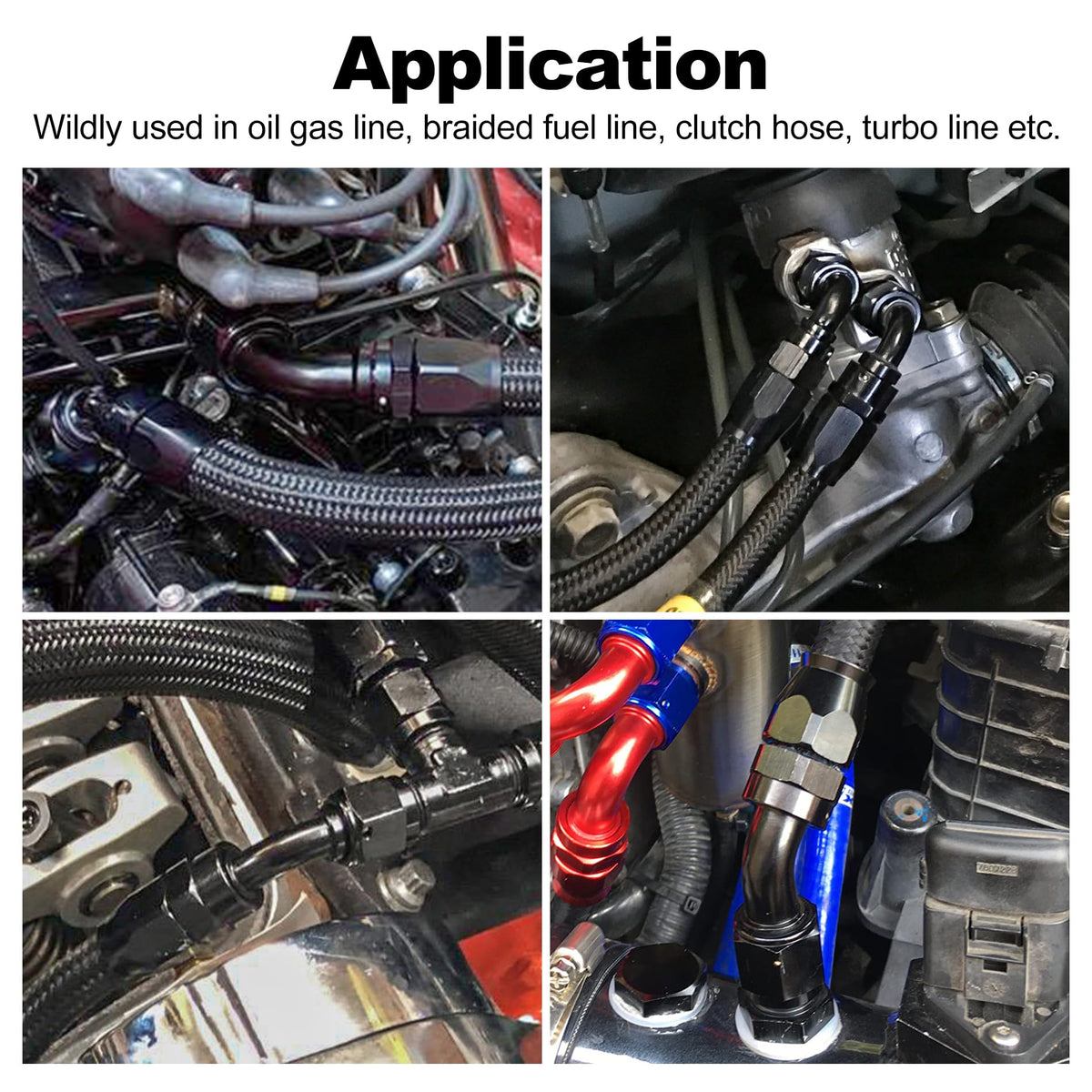

Who is this for: Professional tuners, race shops, custom fabricators, and experienced DIY mechanics who install braided CPE hoses in engines, racecars, motorcycles, or industrial machinery. This 4-piece set suits anyone needing durable, low-profile 45° hose ends that swivel for easier alignment, withstand elevated pressures, and can be serviced multiple times.
