EVIL ENERGY 6AN Swivel Hose End Fittings 45° Outlet Black 2PCS — 6061‑T6 Aluminum, 360° Swivel for Tight Engine Bays

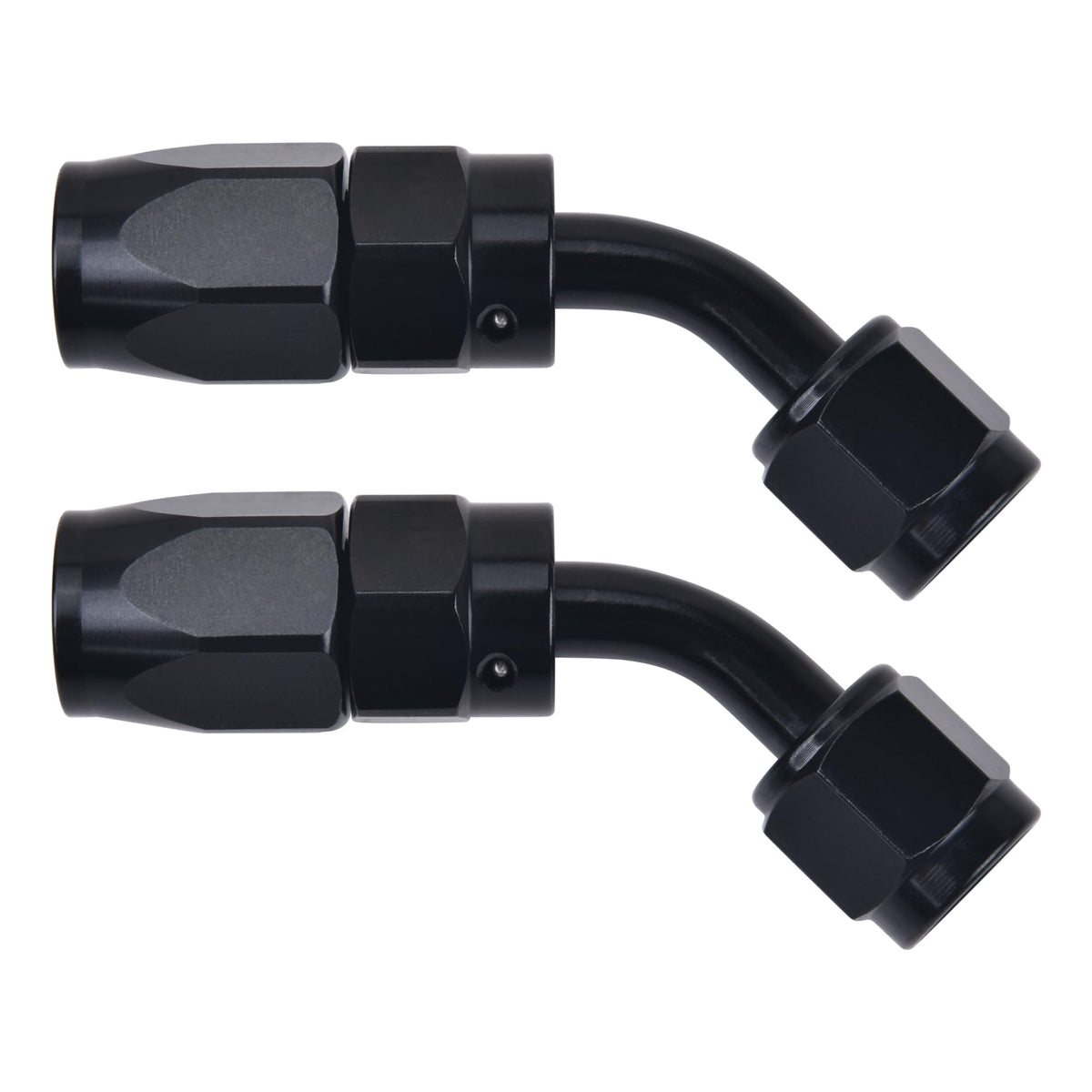

EVIL ENERGY 6AN 45° swivel hose end fittings are lightweight aluminum alloy connectors designed to create a reusable, leak-resistant connection with stainless or nylon braided CPE hoses. These two 6AN fittings (9/16-18 UNF thread, 37° sealing angle) provide a compact 45° outlet and a full 360° swivel for straightforward assembly and routing in tight engine bays, racecars, and performance plumbing. Machined from 6061-T6 aluminum, they strike a balance between strength and weight, supporting applications up to 1500 PSI and operating between -65°F and 252°F (-53°C to 122°C). The fittings come as a set of two in a black finish and are intended for use with stainless or nylon braided hose constructions only.

How does the 45° swivel help with hose routing?

The 45° angled outlet positions hoses away from obstructions while the 360° swivel lets you rotate the connector for the best alignment before final tightening. This reduces stress on the hose and simplifies installation in confined spaces.

• 45° exit minimizes interference with chassis and engine components
• 360° swivel allows final orientation without twisting the hose
• Compact profile saves space compared with bulkier fittings

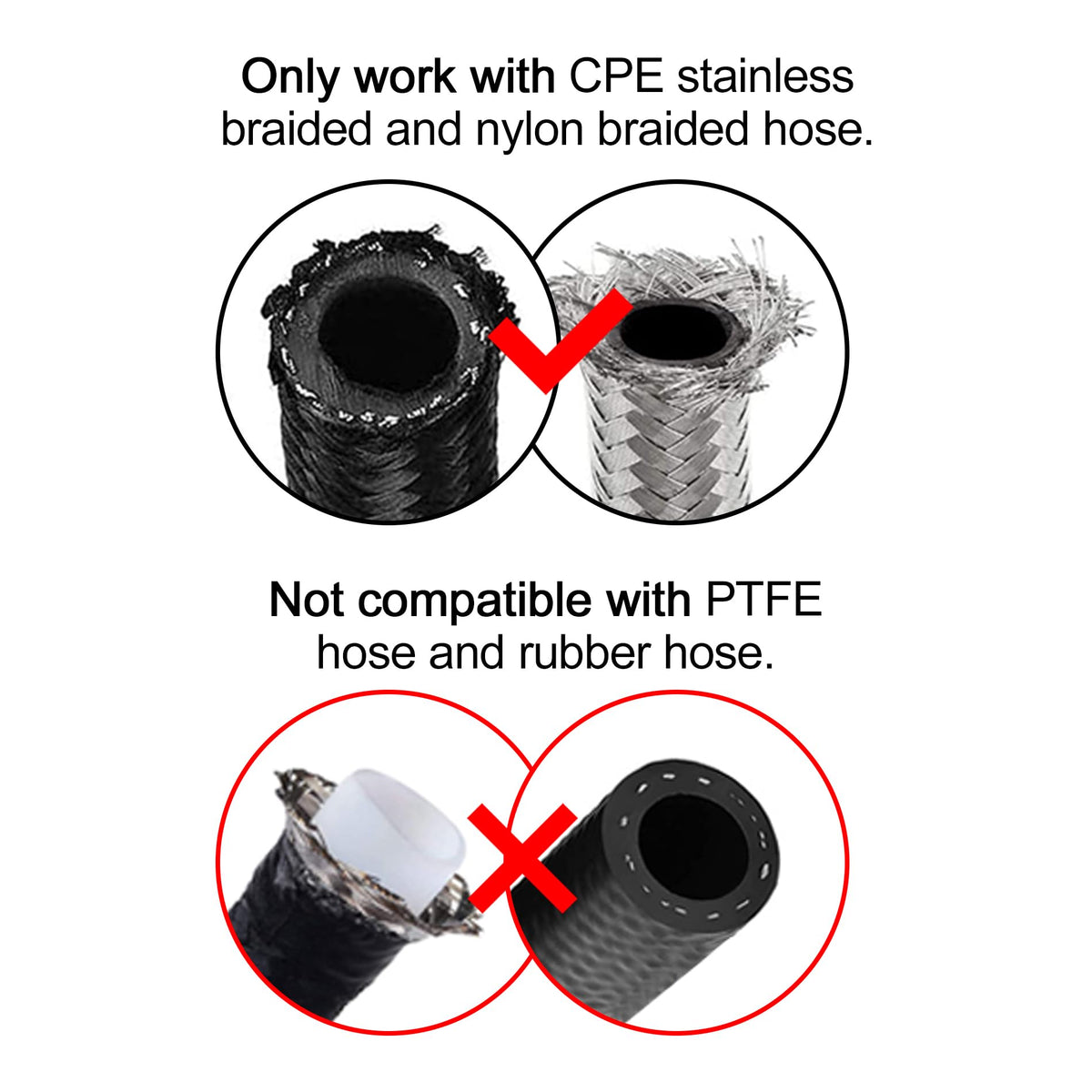

What hoses and sealing type are compatible?

These fittings are specified for use with stainless braided and nylon braided CPE hoses that accept AN-style ends. The AN side uses a 37° flare seal, the industry standard for reliable metal-to-metal sealing when properly assembled.

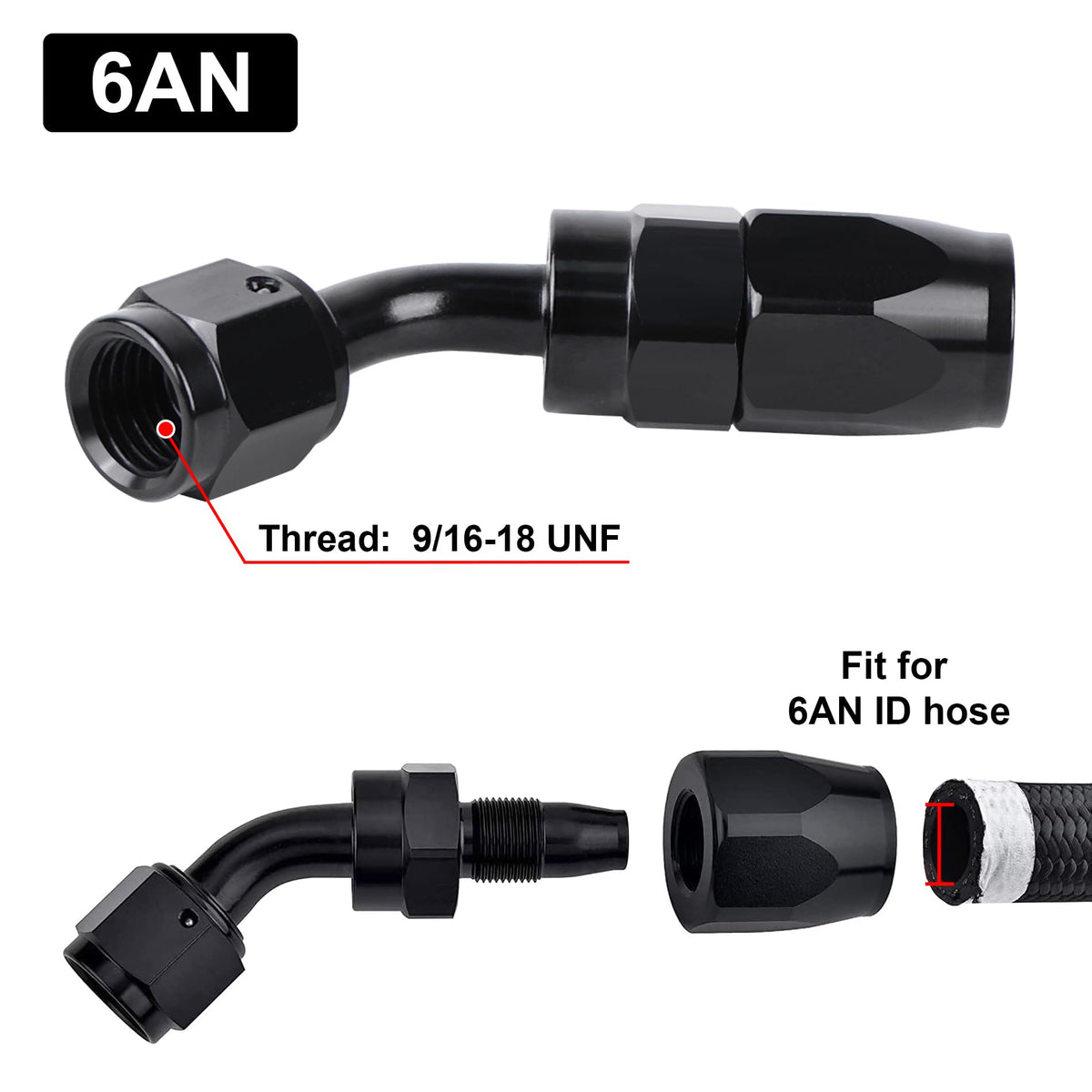

• Thread size: 6AN (9/16-18 UNF)
• Seal: 37° flare on the AN mating face
• Designed for braided stainless or nylon braided CPE hose only

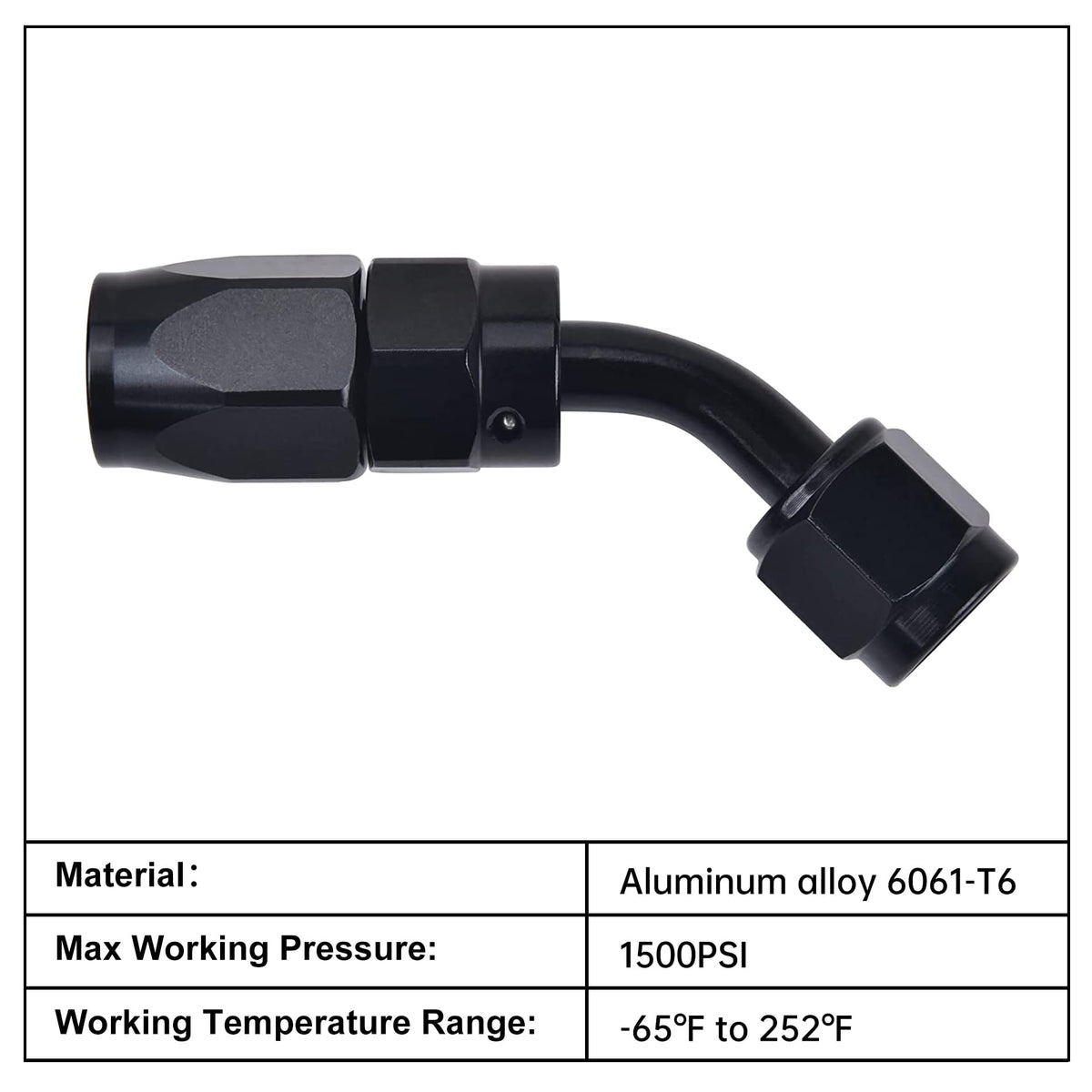

How durable and high-pressure are these fittings?

Machined from 6061-T6 aluminum, the fittings deliver an excellent strength-to-weight ratio suitable for many automotive and motorsport fluid systems. They are rated to a maximum working pressure of 1500 PSI and perform across a wide temperature range.

• Material: aluminum alloy 6061-T6 for corrosion resistance and light weight
• Max working pressure: 1500 PSI
• Working temperature range: -65°F to 252°F (-53°C to 122°C)

Can I reuse these fittings after disassembly?

Yes — the design allows reuse and recycling when they remain in good condition. Reusing fittings helps reduce waste, but always inspect sealing surfaces and threads before reassembly to ensure a reliable seal.

• Recyclable aluminum construction
• Reusable when free of damage, burrs, or deformation
• Inspect 37° sealing face and threads before reinstalling

Who is this for These EVIL ENERGY 6AN 45° swivel hose end fittings are intended for mechanics, motorsport builders, and DIY enthusiasts who need compact, rotatable AN connections for braided CPE hose. Choose this two-piece set if you require a low-profile 45° exit, dependable 37° flare sealing, and a durable aluminum fitting rated for high-pressure automotive fluid systems. Avoid using them with non-braided hoses or fittings that require different sealing geometries.

FAQ

Q: What size and thread does the fitting use?

A: The fittings are 6AN with a 9/16-18 UNF thread and a 37° AN sealing face.

Q: Can I use these fittings on any hose?

A: They work only with stainless braided or nylon braided CPE hoses designed for AN ends.
