EVIL ENERGY 8AN 45° Swivel Hose End Fittings — Black 2‑Pack, 6061‑T6 Aluminum, 360° Rotation

EVIL ENERGY 8AN 45° swivel hose end fittings are lightweight 6061‑T6 aluminum connectors designed to join 8AN braided CPE hoses with a 3/4-16 UNF threaded port while allowing full 360° rotation for easier installation.

These 2-piece fittings are built for performance and repeatable use on stainless steel and nylon braided hoses, offering a 37° AN sealing face and a compact 45° offset that improves routeability in tight engine bays or hydraulic runs. Machined from aircraft-grade 6061-T6 aluminum and anodized in black, they combine corrosion resistance with a rated working pressure suitable for many automotive and industrial fluid-transfer applications.

How does the 45° swivel help when routing braided hoses?

The 45° angle reduces sharp bends and stress at the hose end, while the swivel allows the hose to rotate independently of the port, preventing twisting during installation. This improves hose longevity and simplifies alignment in crowded assemblies.

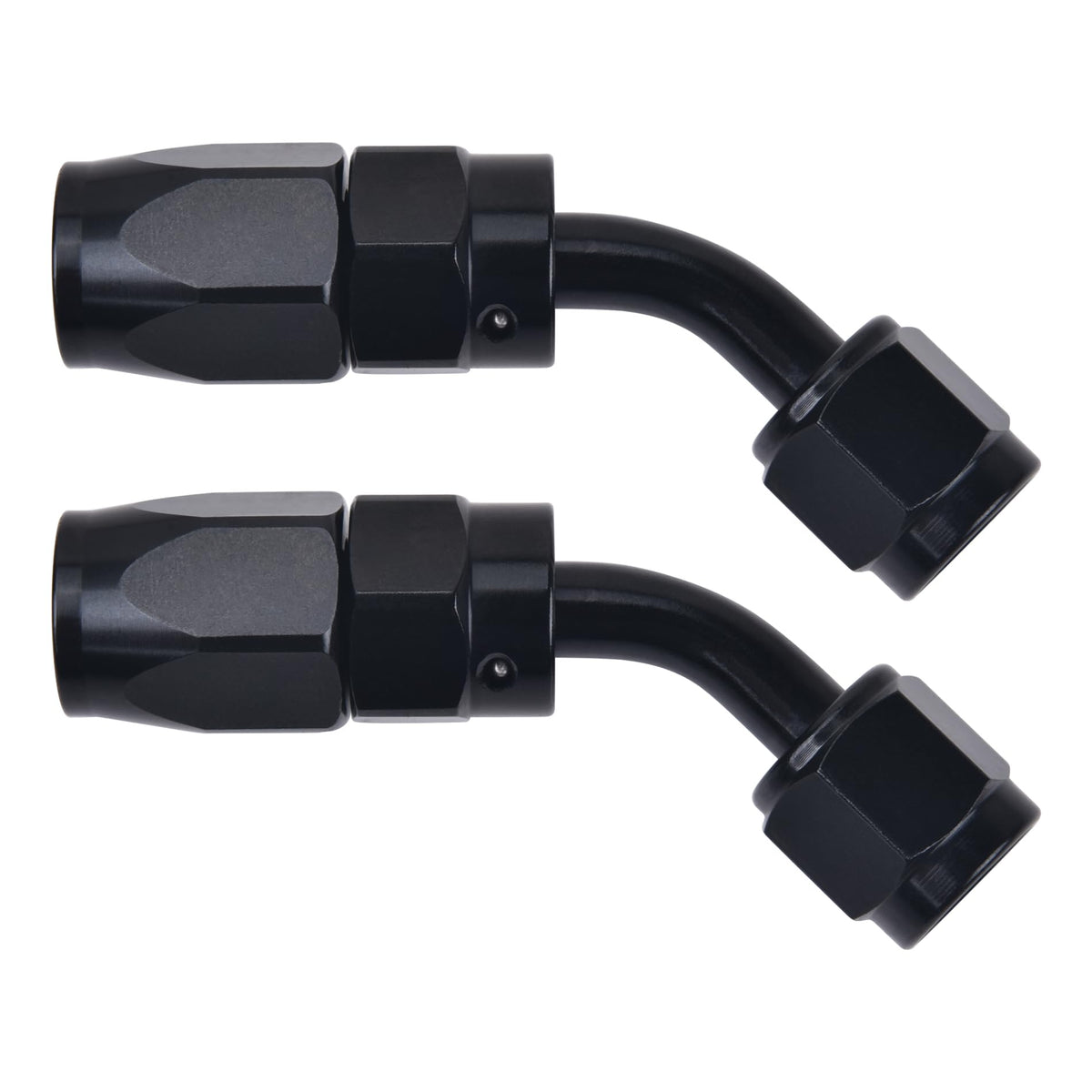

• 45° offset for improved clearance around engine components
• 360° swivel reduces twisting during assembly
• Designed to minimize sharp hose bends and pressure points

What hoses and threads are compatible with these fittings?

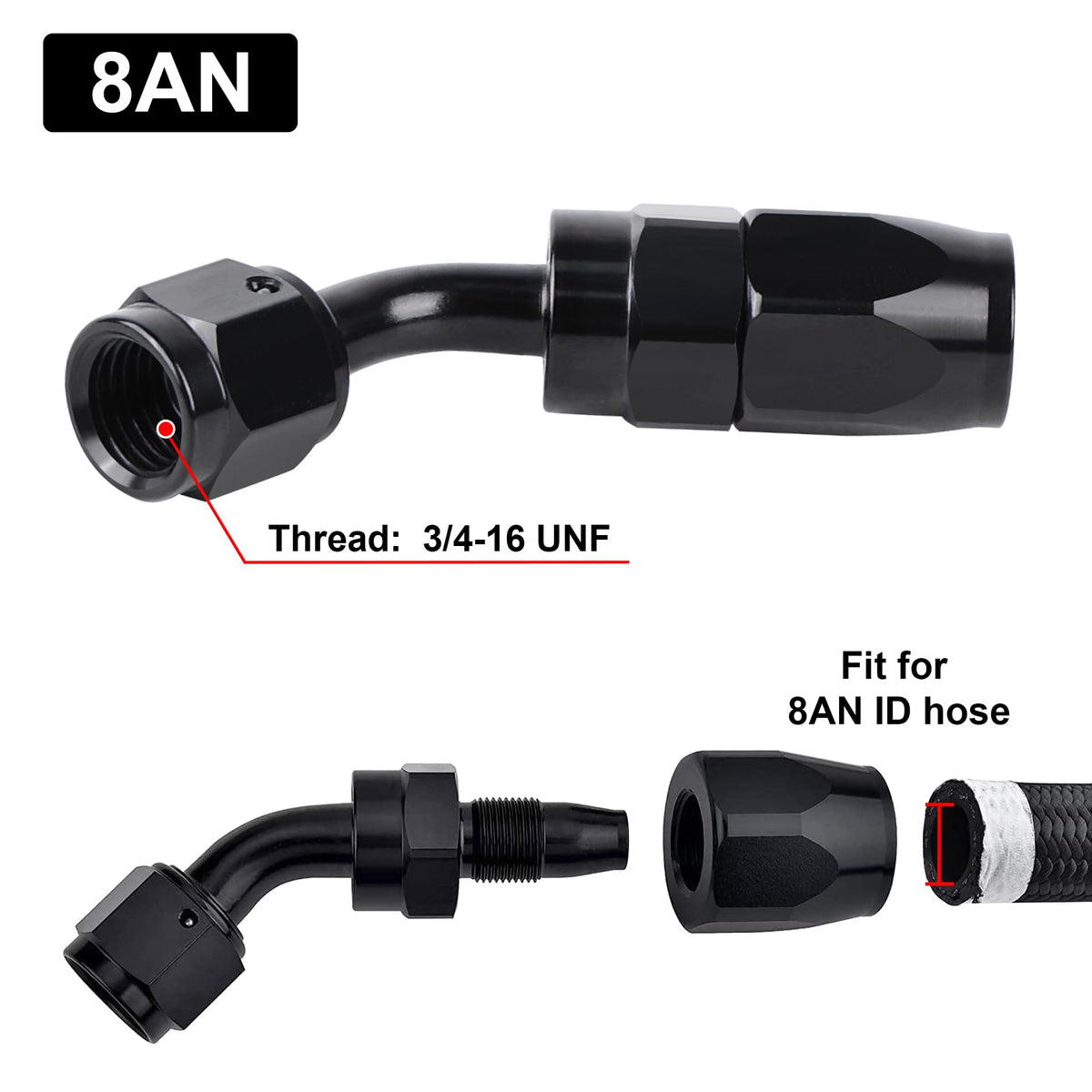

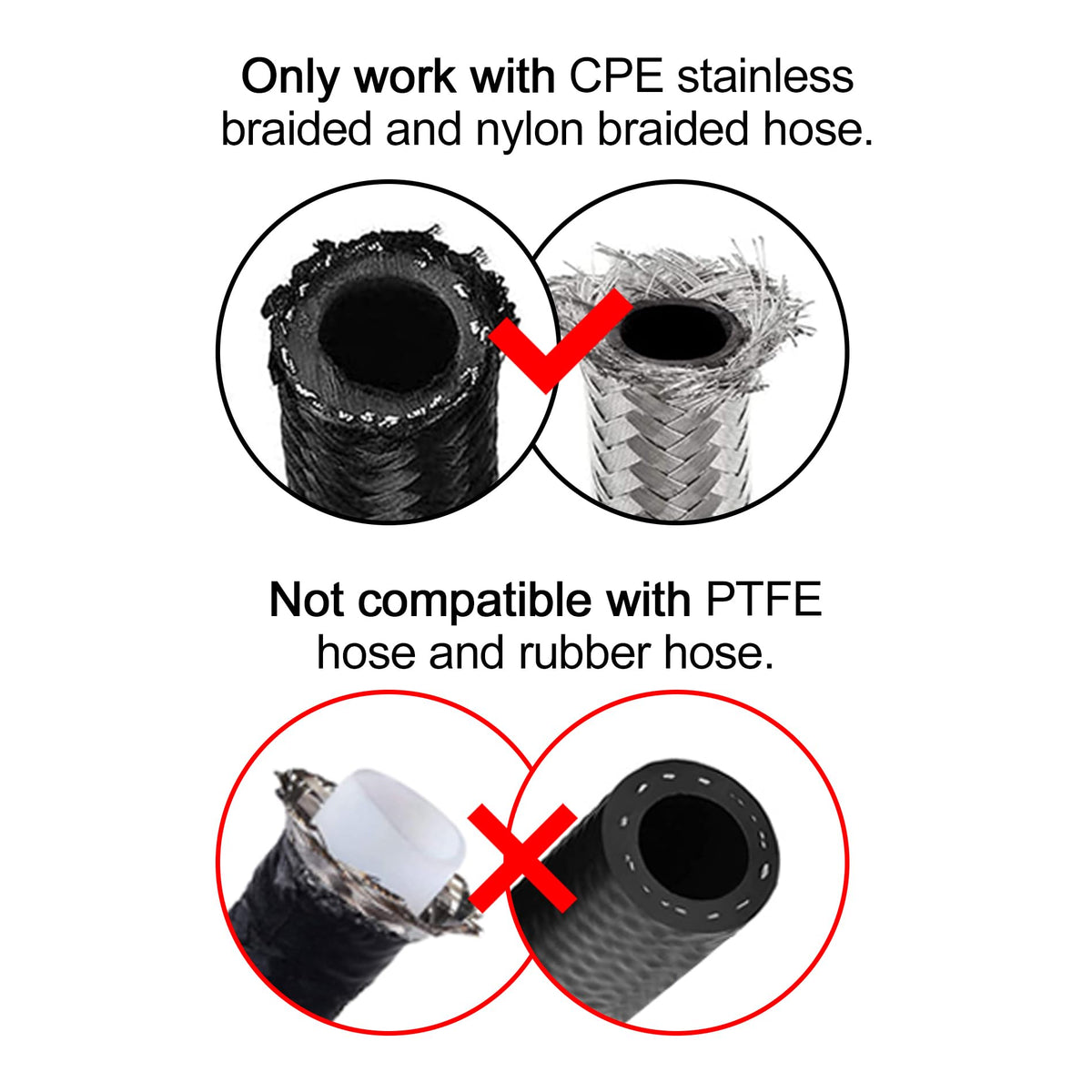

These fittings are specifically engineered for stainless steel braided and nylon braided hoses using an 8AN hose size. The threaded end uses a 3/4-16 UNF female thread and seals with the standard 37° AN mating face.

• Fits 8AN (AN-8) braided CPE hoses
• Thread: 3/4-16 UNF — mates to standard AN ports
• Sealing: 37° AN flared seating surface for leak-resistant connections

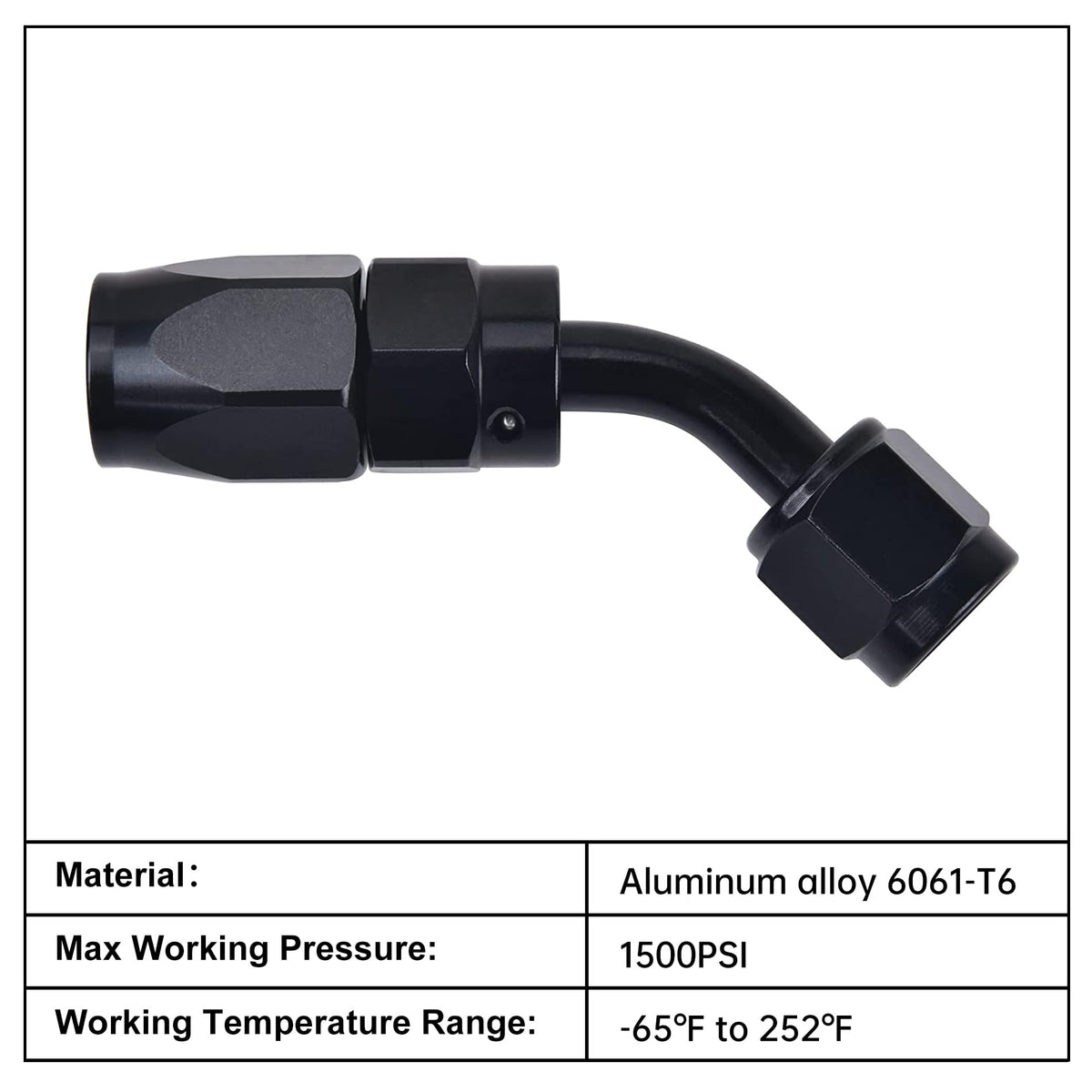

What are the material, pressure, and temperature specifications?

Constructed from 6061-T6 aluminum, these fittings balance strength and weight for demanding environments. They are rated for up to 1,500 PSI working pressure and handle a wide temperature range for typical automotive and industrial uses.

• Material: 6061-T6 aluminum alloy with black anodized finish
• Max working pressure: 1,500 PSI
• Operating temperature: -65°F to 252°F (-53°C to 122°C)

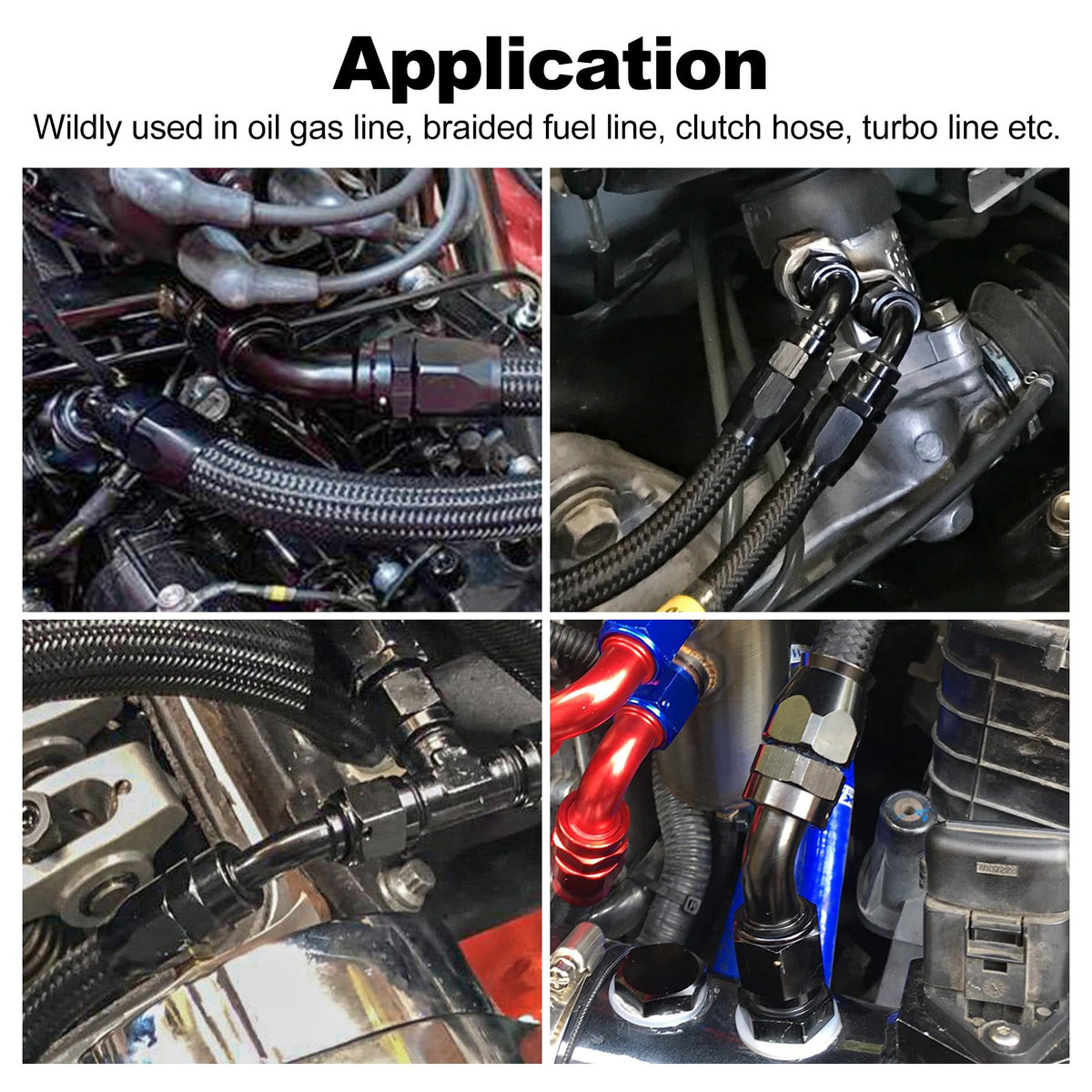

Who is this for? These EVIL ENERGY 8AN 45° swivel hose end fittings suit mechanics, tuners, and fabricators who need dependable, reusable hose terminations for fuel, oil, coolant, or hydraulic lines where space is limited. They are also appropriate for hobbyists and small shops working on performance vehicles or custom fluid systems that require standard AN connections, corrosion resistance, and easy assembly without sacrificing seal integrity.
