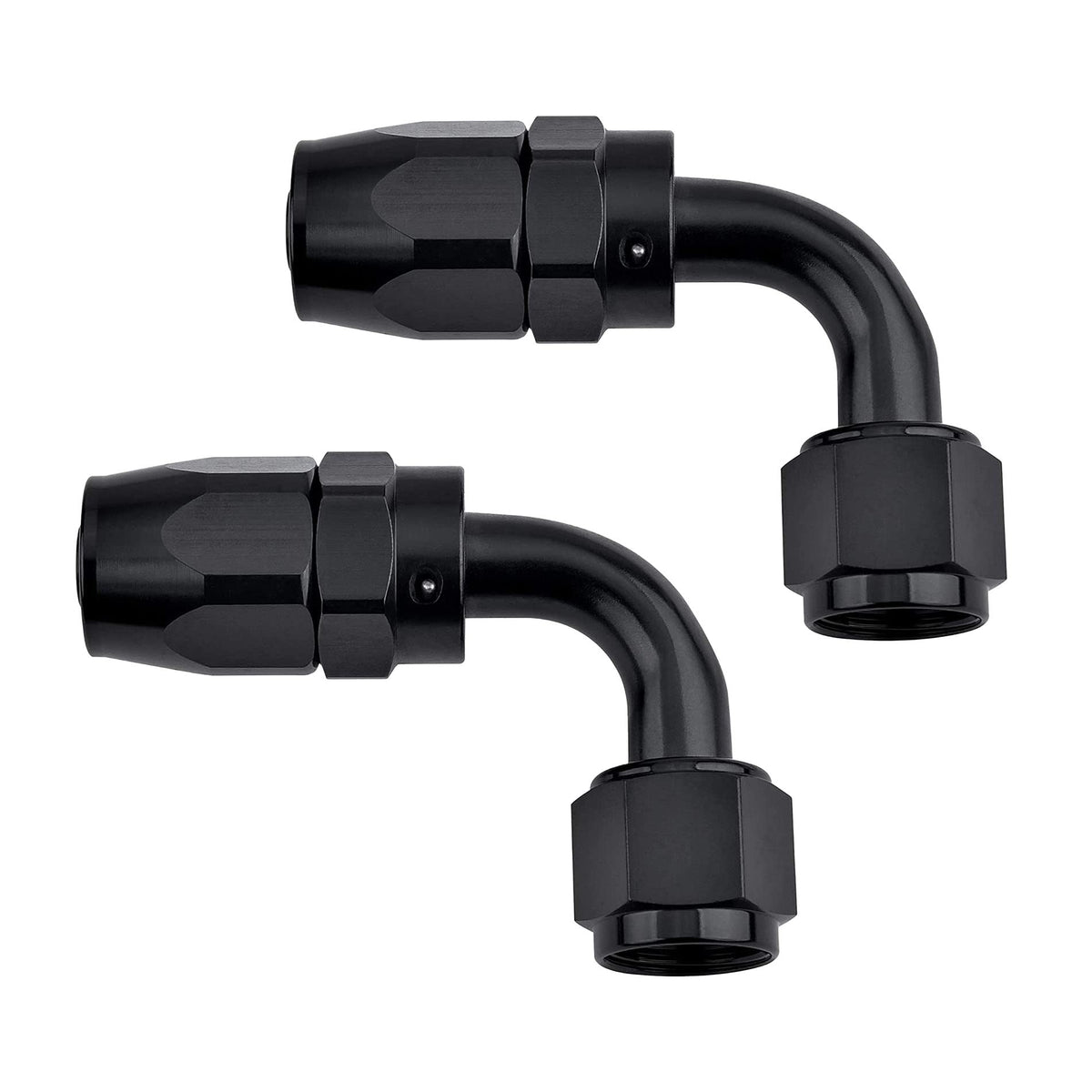

EVIL ENERGY 8AN 90° Swivel Hose End Fittings Black 2pcs — 6061-T6 Aluminum, 1500 PSI

EVIL ENERGY 8AN 90-degree swivel hose end fitting is a black 2-piece aluminum adapter designed to connect 8AN (3/4-16 UNF) braided fuel or fluid lines with a reusable 360° swivel joint for easier assembly and routing.

This compact pair of fittings is tailored for systems using stainless-steel or nylon braided hoses, providing a boxed 37° AN sealing angle on the AN side and a threaded 3/4-16 UNF on the hose end. Machined from 6061-T6 aluminum, these fittings are built to meet a broad range of temperature and pressure conditions typical of automotive, racing, and industrial fluid-transfer applications. The swivel design reduces hose twist and simplifies installation in tight spaces.

How does the 90° swivel make installation easier?

The 90° body changes the hose direction without sharp bending, and the 360° swivel lets you orient the hose after the fitting is tightened. This reduces stress on the hose and allows precise routing in crowded engine bays or equipment compartments.

• 360° swivel for post-installation alignment
• Right-angle body eliminates sharp hose bends
• Reduces stress and possible kinking at connection points
• Speeds up assembly when clearance is limited

What hoses and threads are compatible with this EVIL ENERGY fitting?

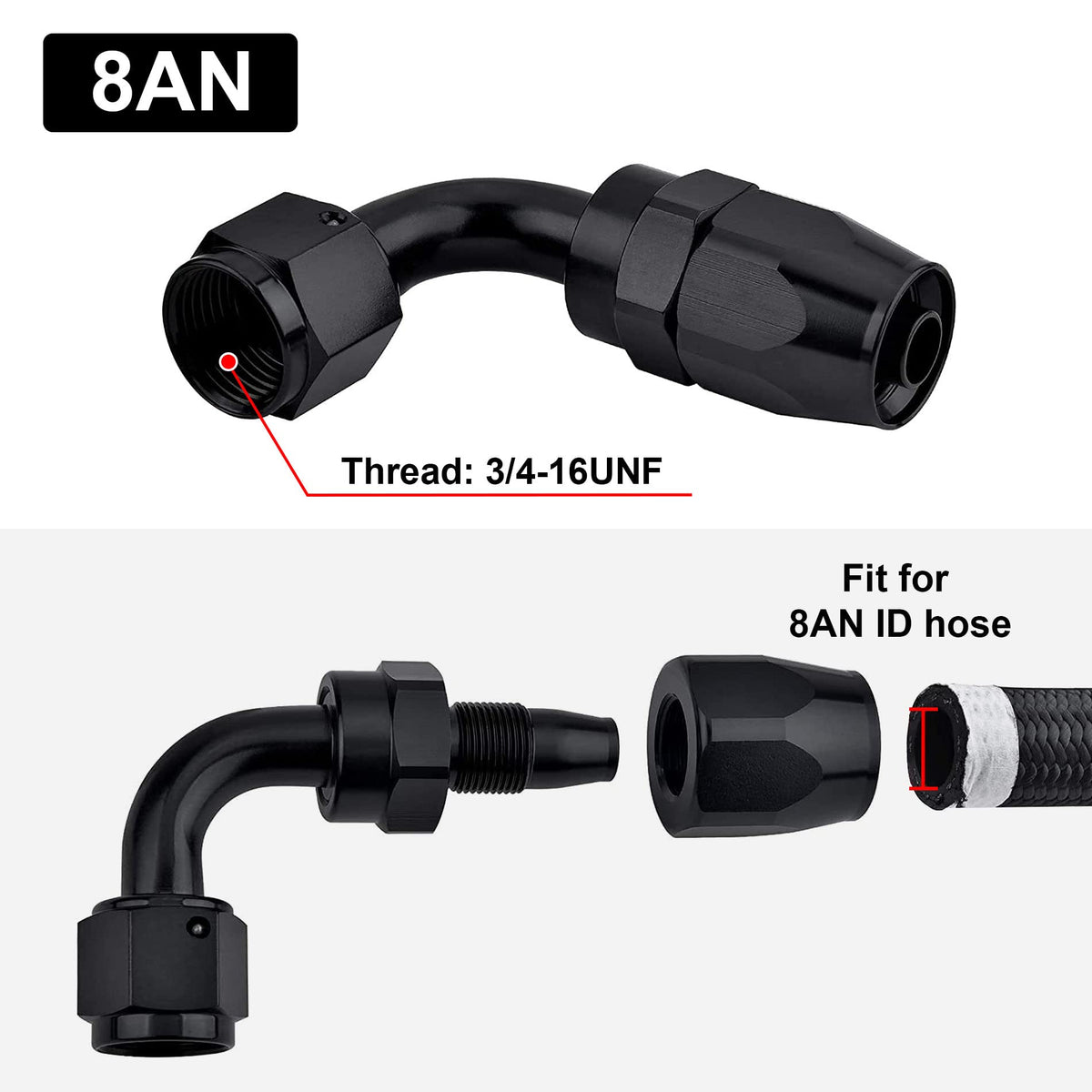

This fitting is intended specifically for stainless steel braided and nylon braided hoses that accept AN-style hose ends. The threaded side uses a 3/4-16 UNF thread, and the AN sealing face is the standard 37° angle used across AN fittings.

• AN side sealed by a 37° angle for standard AN hoses
• Thread size: 3/4-16 UNF on the hose end

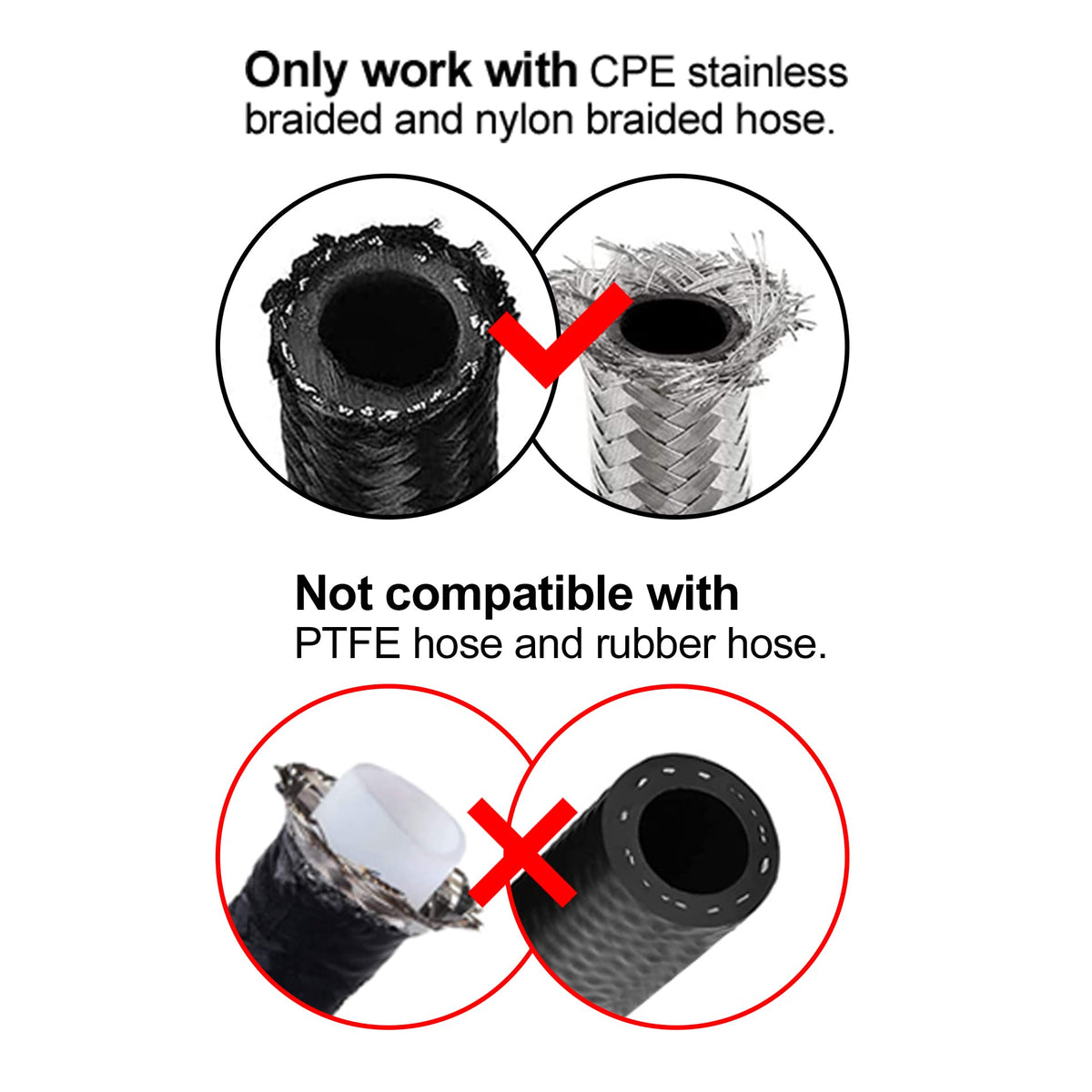

• Compatible with stainless-steel and nylon braided hoses only
• Not designed for push-on or barb-style hoses

How durable is the aluminum construction and what are the operating limits?

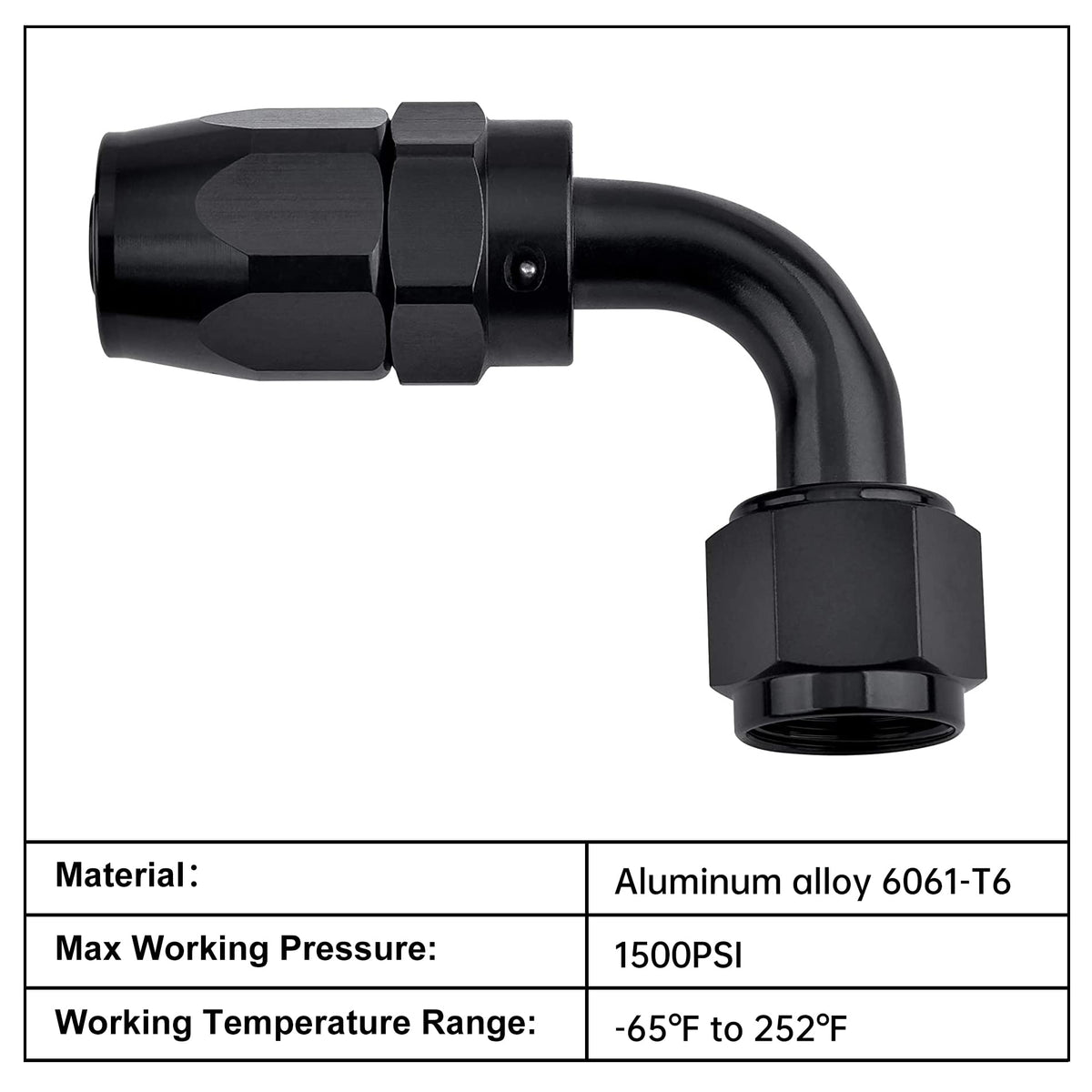

Machined from 6061-T6 aluminum, the fittings balance corrosion resistance and weight savings for motorsport and industrial use. They are rated for a maximum working pressure of 1,500 PSI and a wide temperature span to cover common operating environments.

• Material: 6061-T6 aluminum alloy for strength and lightness
• Maximum working pressure: 1,500 PSI
• Working temperature range: -65°F to 252°F (-53°C to 122°C)
• Re-usable and recyclable design for serviceability

Can I reuse these fittings and how do they hold up in service?

The fittings are designed to be reused when installed correctly and inspected during maintenance. The aluminum body and AN 37° sealing surface allow multiple assembly cycles, provided sealing surfaces and hoses remain free of damage.

• Designed for multiple installation cycles if not damaged
• Inspect sealing surfaces and hose ferrules before reassembly
• Swivel mechanism allows adjustments without disassembly in many cases
• Black finish resists visible wear and blends with engine components

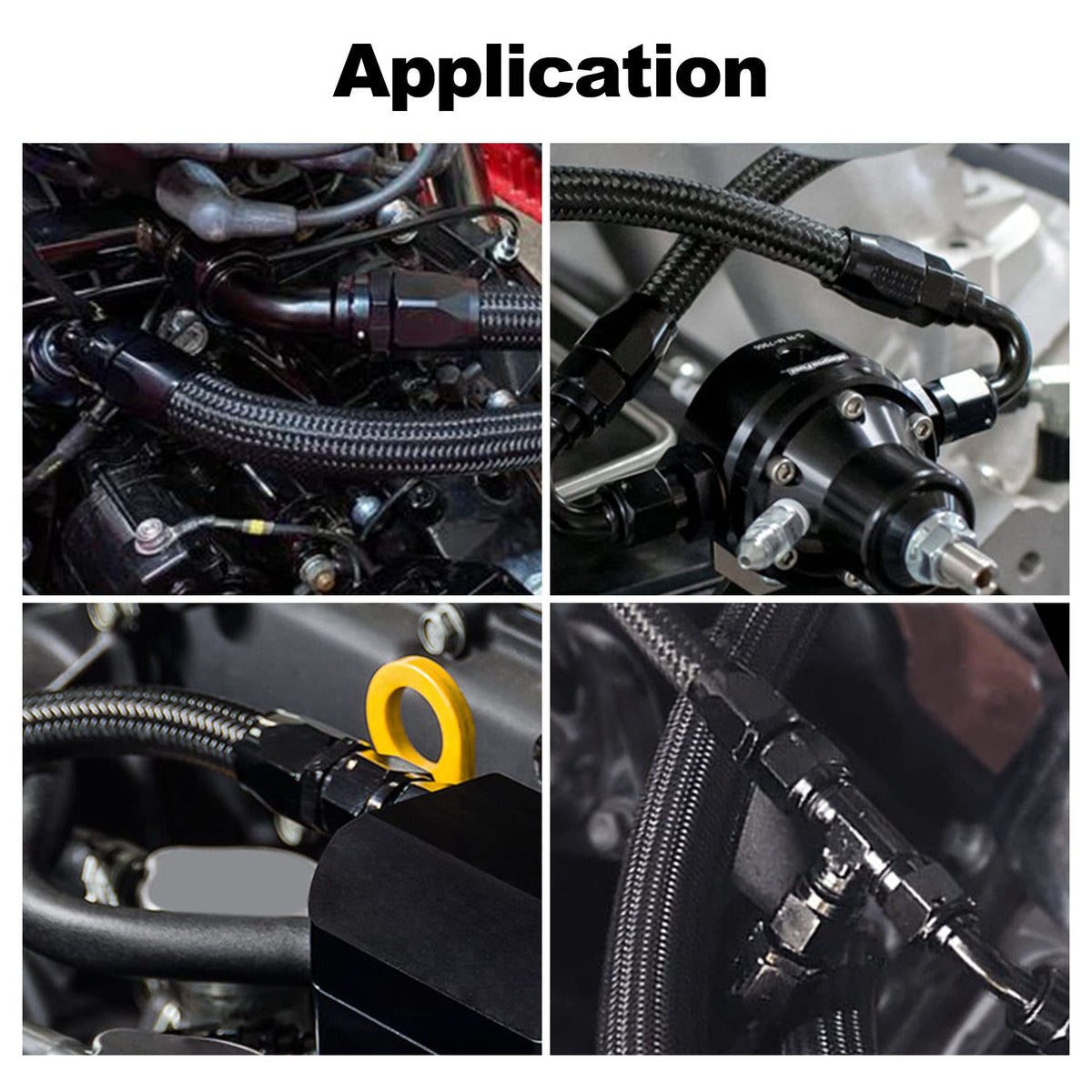

Who is this for: These EVIL ENERGY 8AN 90-degree swivel hose end fittings are intended for automotive enthusiasts, fabricators, racers, and maintenance professionals who work with braided AN hose assemblies and need compact, reusable right-angle connections. They are especially useful where space is at a premium, when precise hose routing is required, or when frequent disassembly and reassembly are part of service routines.
