EVIL ENERGY 8AN Fuel Line Kit 20FT — Stainless Steel Braided CPE Hose with Aluminum Fittings, 750 PSI Working

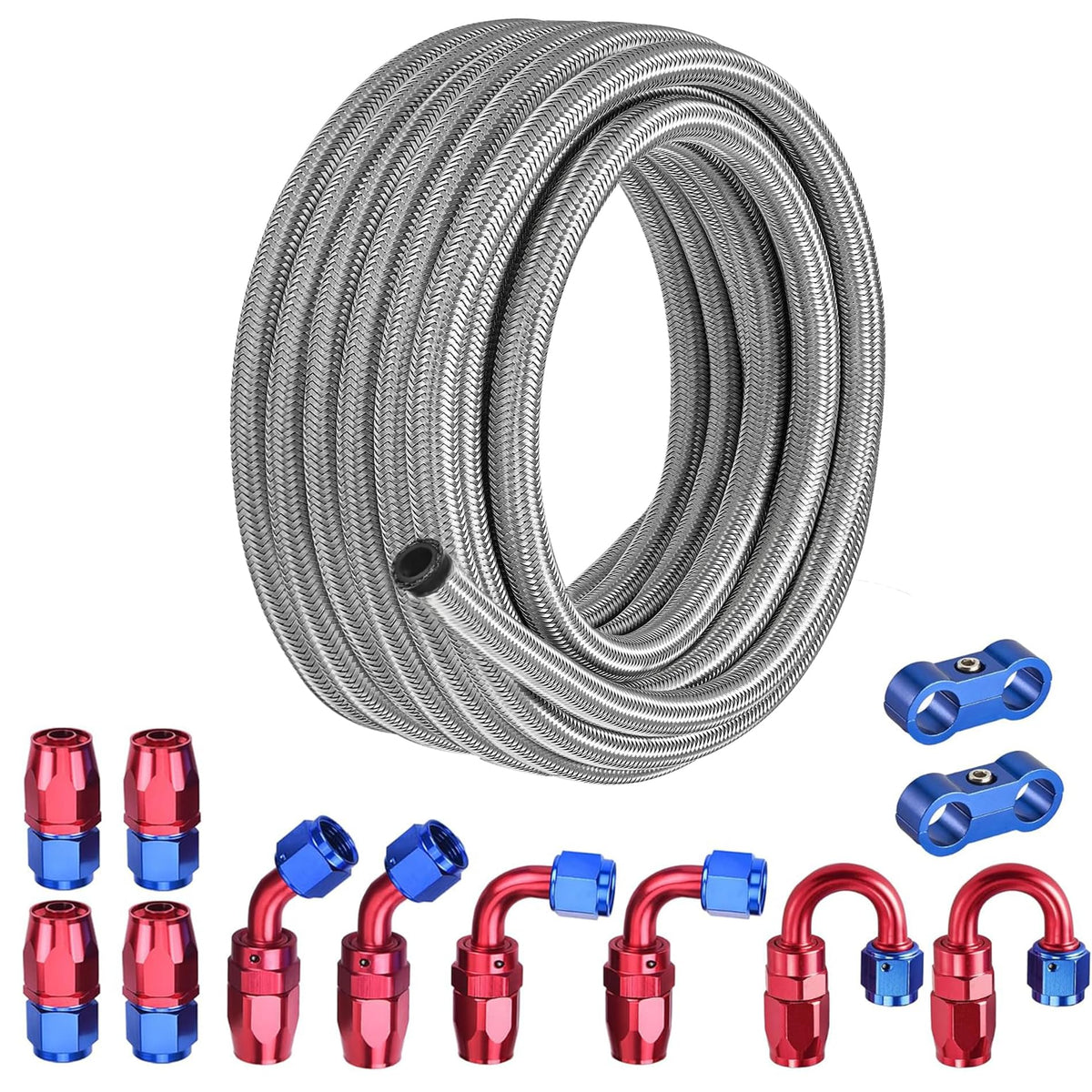

The EVIL ENERGY 8AN Fuel Line Kit is a 20-foot, stainless-steel-braided CPE hose assembly with 8AN aluminum fittings built for high-pressure fuel, oil and coolant routing.

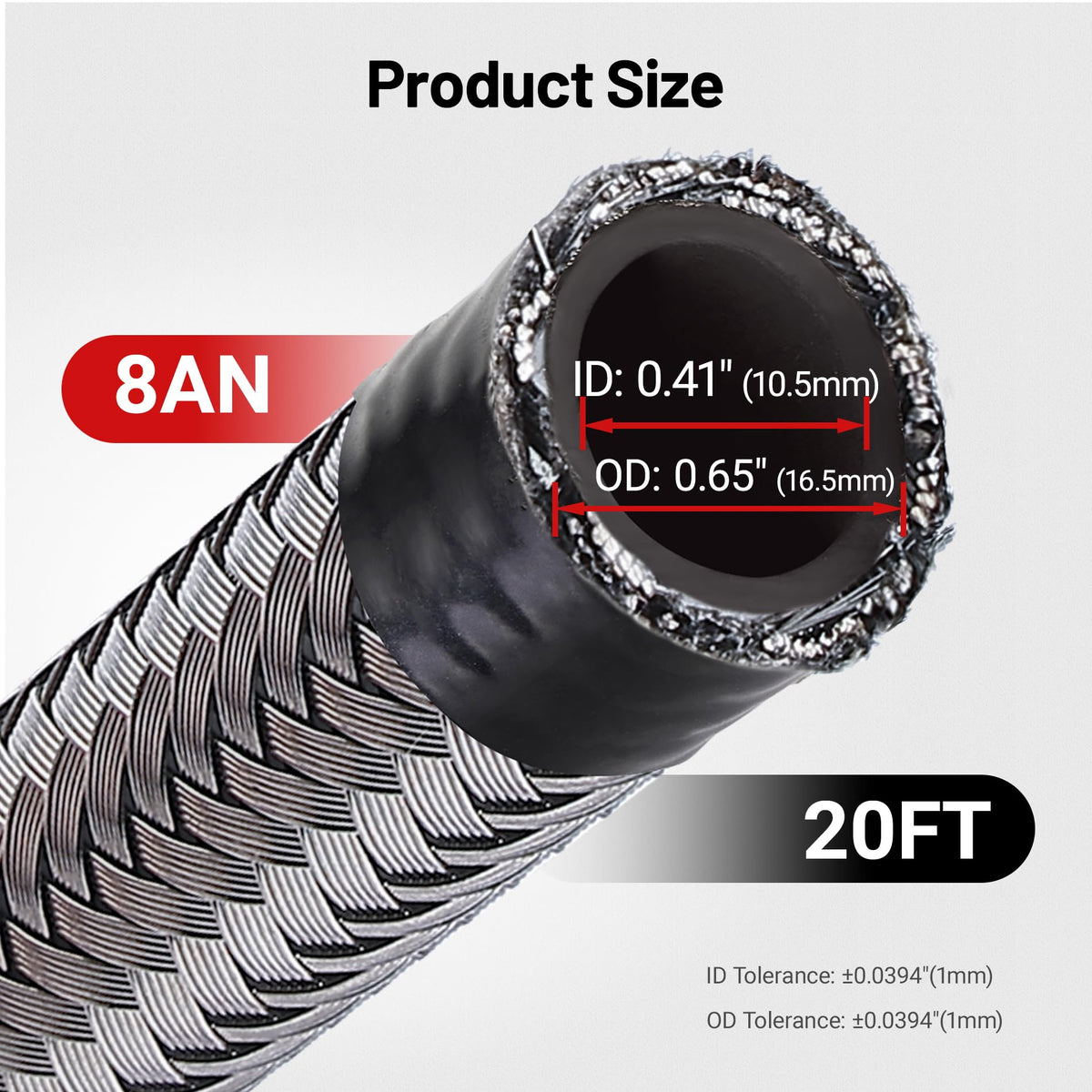

This 8AN fuel line set combines a chemically resistant CPE inner tube with a woven 304 stainless outer braid and lightweight aluminum alloy connectors to deliver a durable, flexible run for performance vehicles, custom plumbing and fluid-transfer projects. It’s sized to an inner diameter of 0.41 inch and an outer diameter of 0.65 inch, supplied as a single 20-foot length so you can cut and fit runs to suit fuel supply lines, returns, cooler connections or oil-feed circuits. The hose balances pressure capacity, bendability and temperature tolerance for workshop and track environments.

What operating pressures and temperatures can this 8AN fuel line handle?

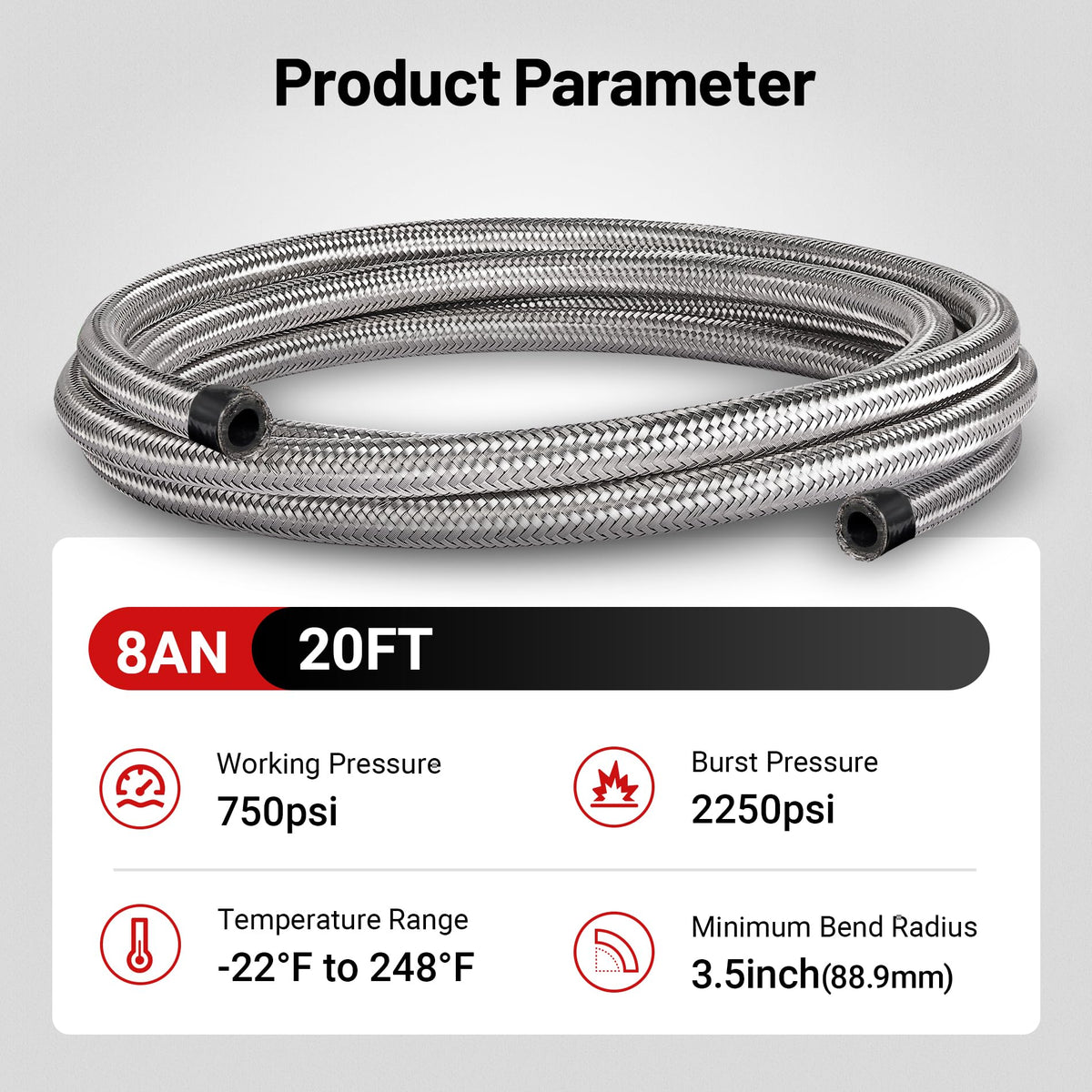

The hose is engineered for demanding conditions: it supports a continuous working pressure up to 750 psi and a burst rating around 2250 psi, with a usable temperature band from roughly -22°F to 248°F (-30°C to 120°C). That makes it appropriate for many automotive and light industrial fluid tasks without immediate heat-related degradation. Always verify system pressures and thermal exposure before installation.

• Working pressure: 750 psi maximum
• Burst pressure: approximately 2250 psi
• Temperature range: -22°F to 248°F (-30°C to 120°C)
• Minimum bend radius: 88.9 mm for safe routing

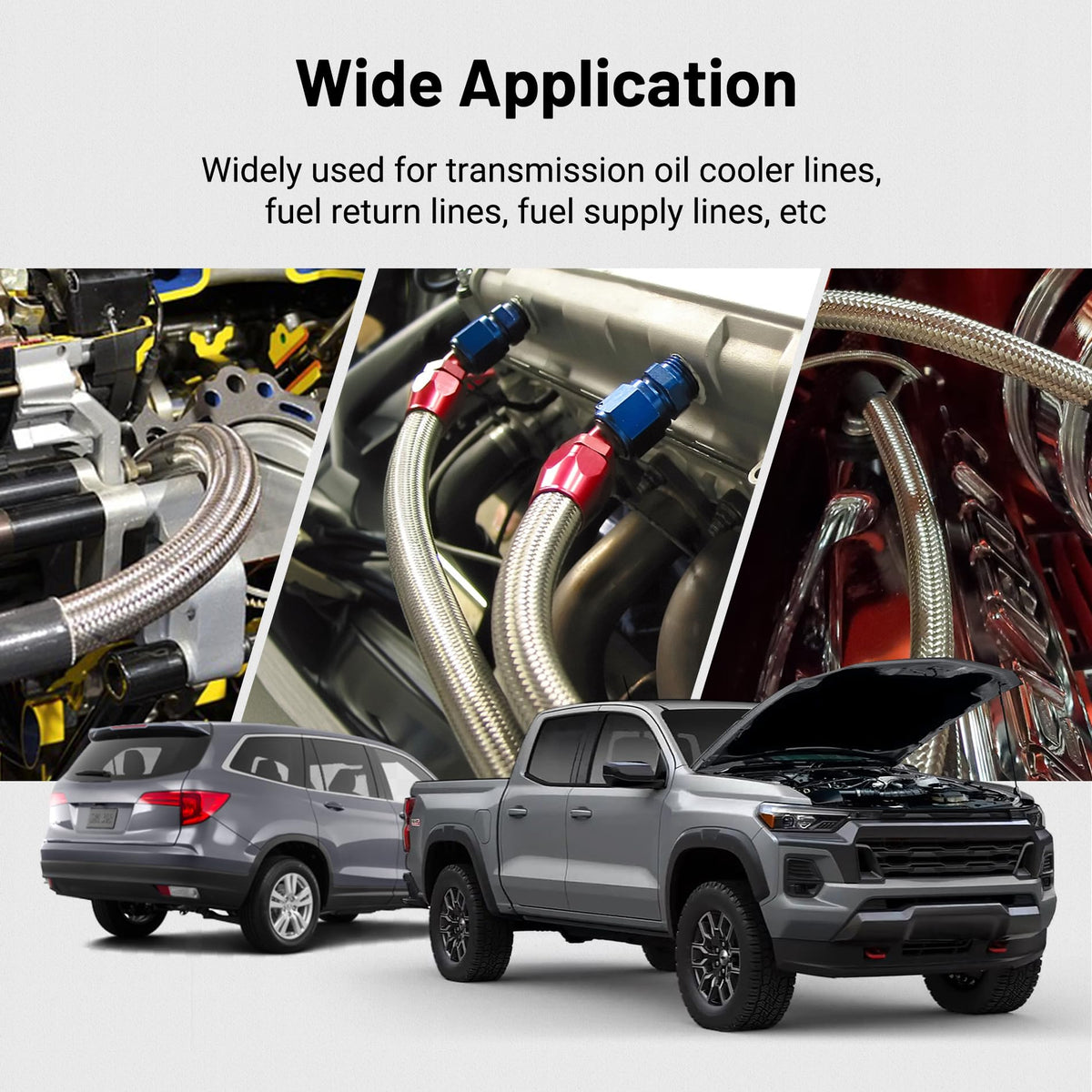

Which fluids and applications suit this stainless braided 8AN hose?

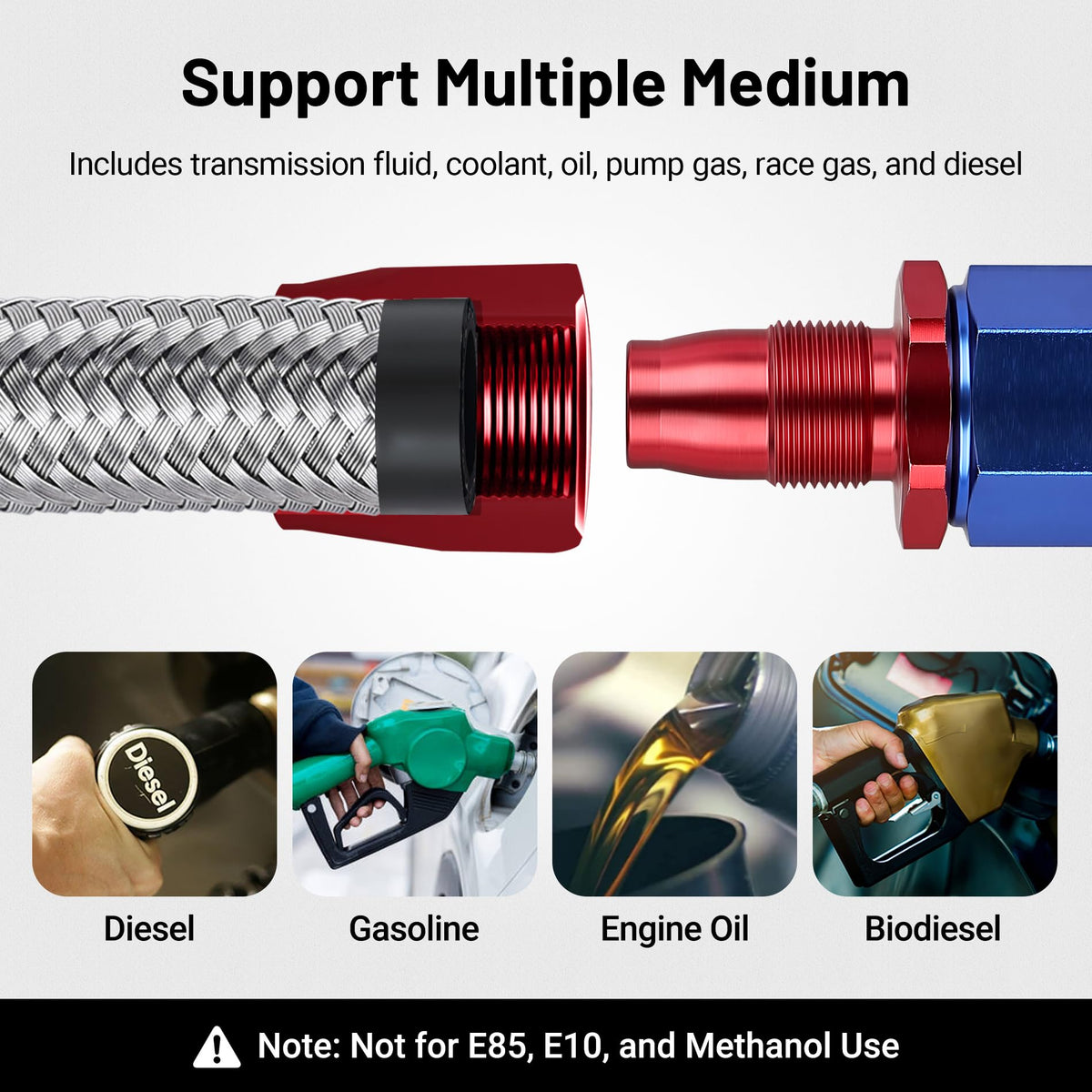

The CPE-lined, stainless-braided construction is compatible with a wide range of automotive fluids, including gasoline blends, race fuels, transmission fluid, engine oil and coolant lines where chemical resistance is required. It’s commonly used for fuel supply and return lines, oil feed to turbos, transmission cooler connections and vacuum or gauge runs. Avoid prolonged contact with incompatible solvents and verify fluid compatibility for specialty chemicals.

• Compatible with fuel, race gas, transmission fluid and engine oil
• Works as fuel supply, return, oil-feed, and cooler lines
• Also suitable for vacuum and gauge hoses in automotive systems
• Not intended for unknown corrosive chemicals without testing

How easy is it to install and cut to length for custom setups?

The kit ships as a continuous 20-foot hose so you can trim it to the exact length required. Use a proper hose cutter or fine-tooth saw for a clean, square cut to prevent fraying of the braid; install the included aluminum 8AN fittings to the prepared ends according to torque specifications. Observe bend radius and avoid sharp kinks—support clamps and routing away from extreme heat or moving parts will extend service life.

• 20-foot continuous length for custom trimming
• Cut with a hose cutter or fine-tooth blade for best results
• Install 8AN fittings and follow recommended torque and sealing practice
• Maintain ≥88.9 mm bend radius; secure away from heat sources

What materials and build details make this hose durable?

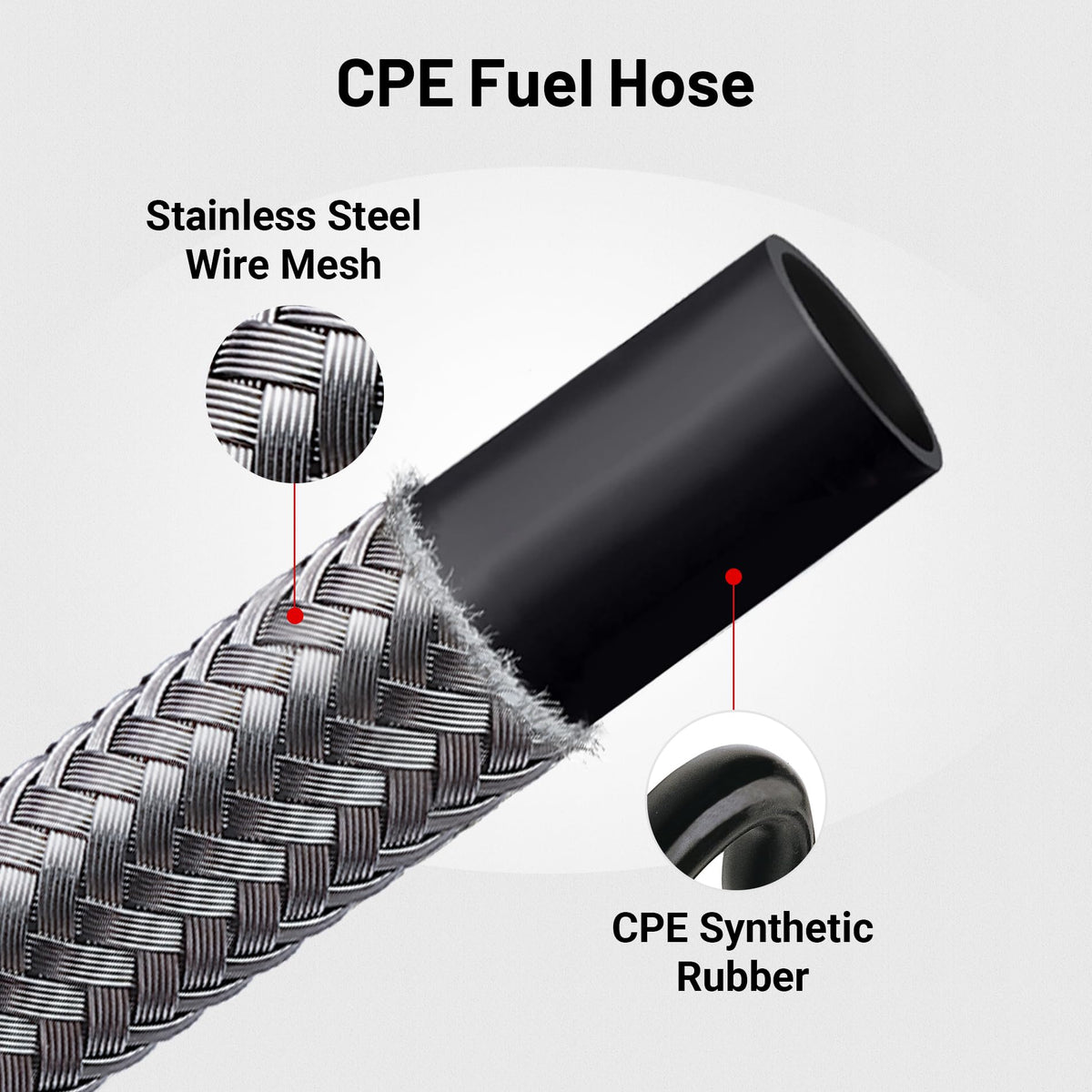

The inner tube is formulated from CPE rubber for chemical resistance and flexibility while a 304 stainless steel woven braid provides mechanical protection and pressure containment. Aluminum alloy fittings keep overall weight low and resist corrosion in automotive environments. This combination delivers a robust line that stands up to vibration and abrasion better than unbraided hoses.

• CPE rubber inner tube for chemical resistance and flexibility
• 304 stainless steel braid for abrasion and pressure protection
• Lightweight aluminum alloy fittings to reduce added mass
• Designed for automotive and performance applications

Who this is for: The EVIL ENERGY 8AN Fuel Line Kit is aimed at professional mechanics, performance builders and DIY enthusiasts who need a reliable, cut-to-fit fuel or oil hose capable of handling elevated pressure and temperature. Choose this kit when you want a rugged, stainless-braided solution for custom fuel systems, turbo oil feeds, transmission cooler connections or other fluid-routing tasks where a balance of flexibility, strength and chemical compatibility matters.
