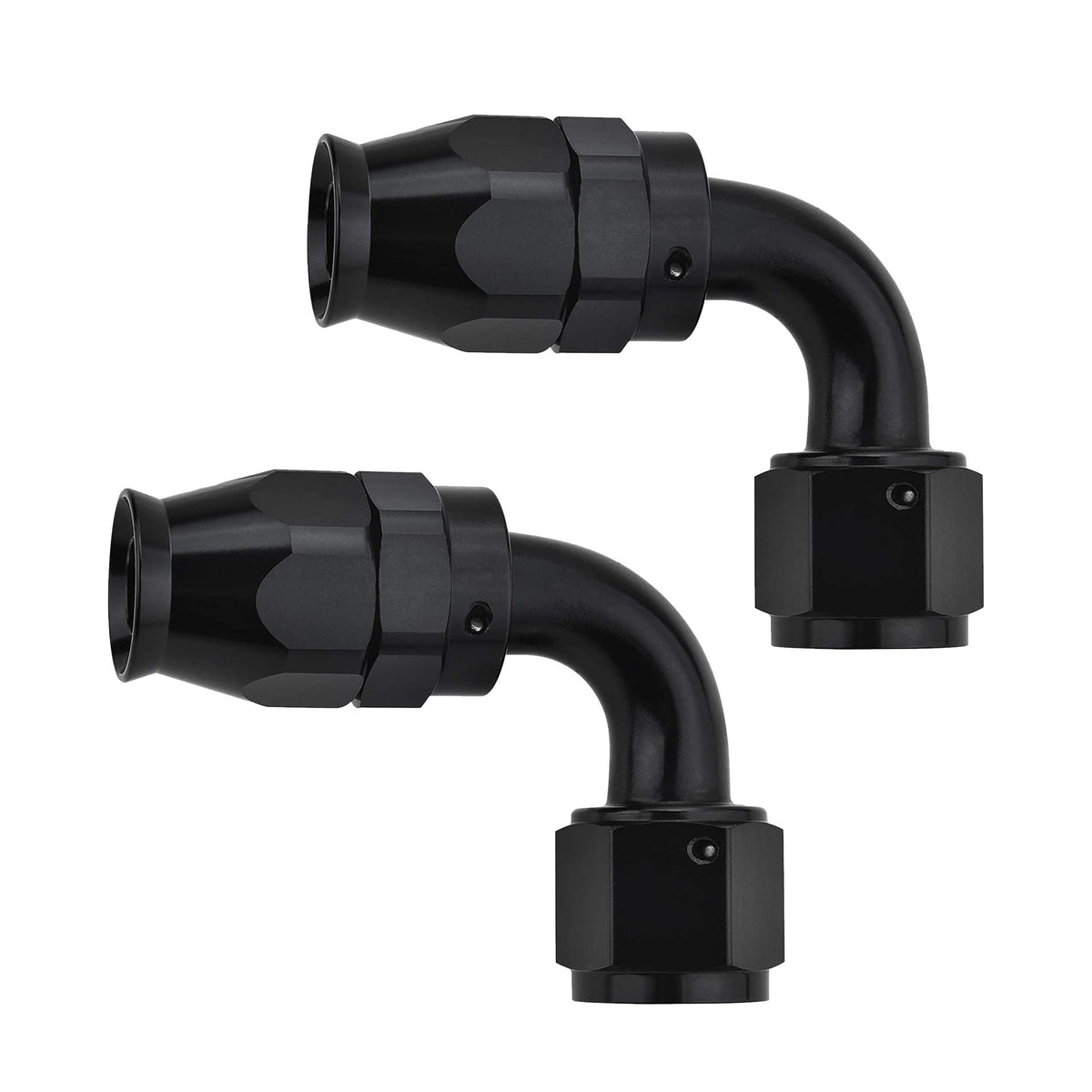

EVIL ENERGY 8AN PTFE 90° Hose End Fitting — Black 2pc, 360° Swivel, 1500 PSI

These 8AN 90° hose ends are built for PTFE fuel hoses where high pressure, chemical resistance, and a compact routing angle are needed. Machined from 6061-T6 aluminum with a 37° AN sealing face and a full 360° swivel, they let you make leak-resistant, tight-radius connections while keeping installation straightforward. Rated to 1500 PSI and able to tolerate temperatures from -65°F to 252°F, they work in demanding automotive, racing, and industrial plumbing setups that use PTFE-lined hoses.

How do these fittings attach to PTFE hose and prevent leaks?

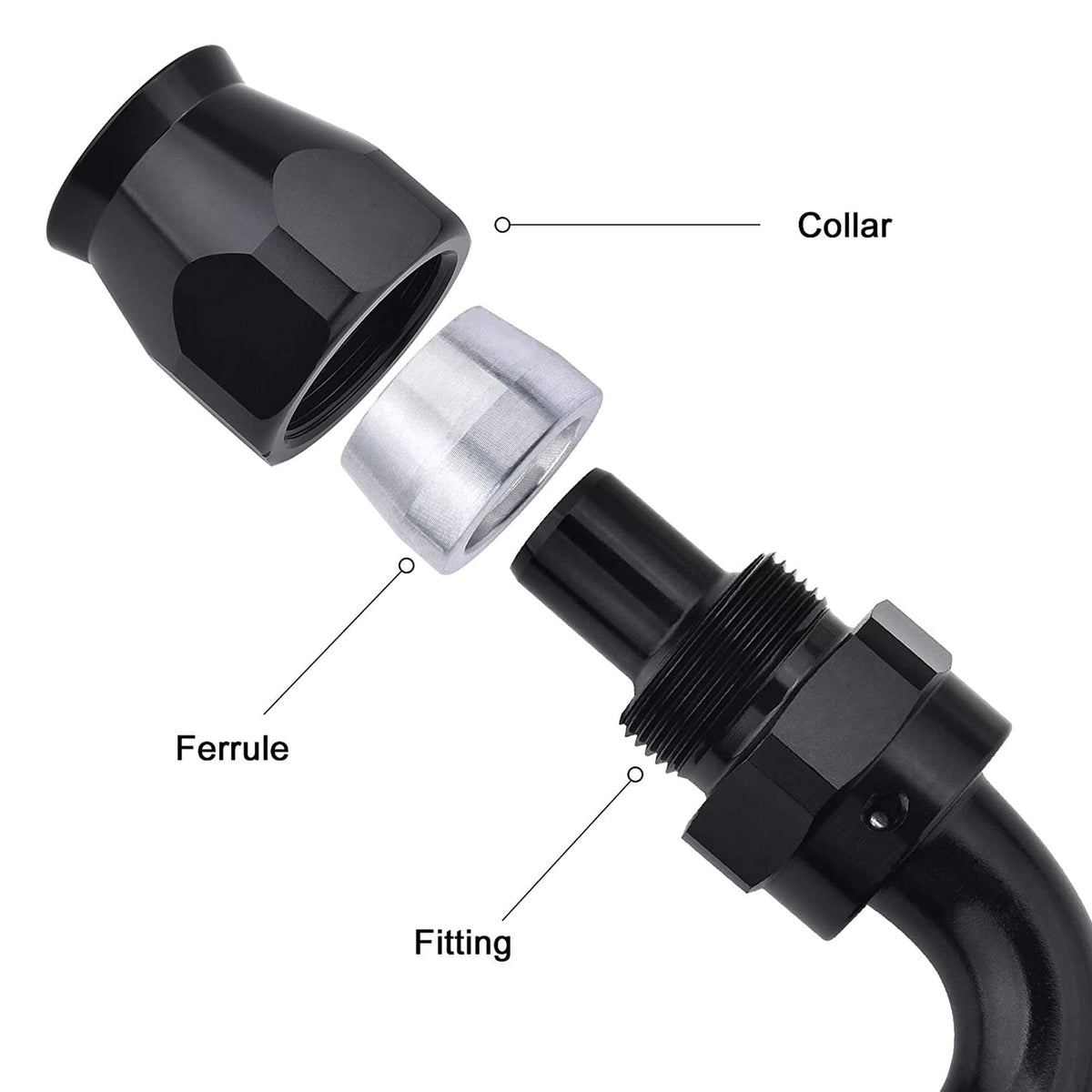

These fittings are made to mate with PTFE-lined hoses only; they do not fit standard rubber or braided hoses. The AN-side seal uses a 37° mating angle that contacts the matching AN port to form a metal-to-metal seal, while the hose tail is sized to accept PTFE inner tubing for a secure, pressure-ready connection.

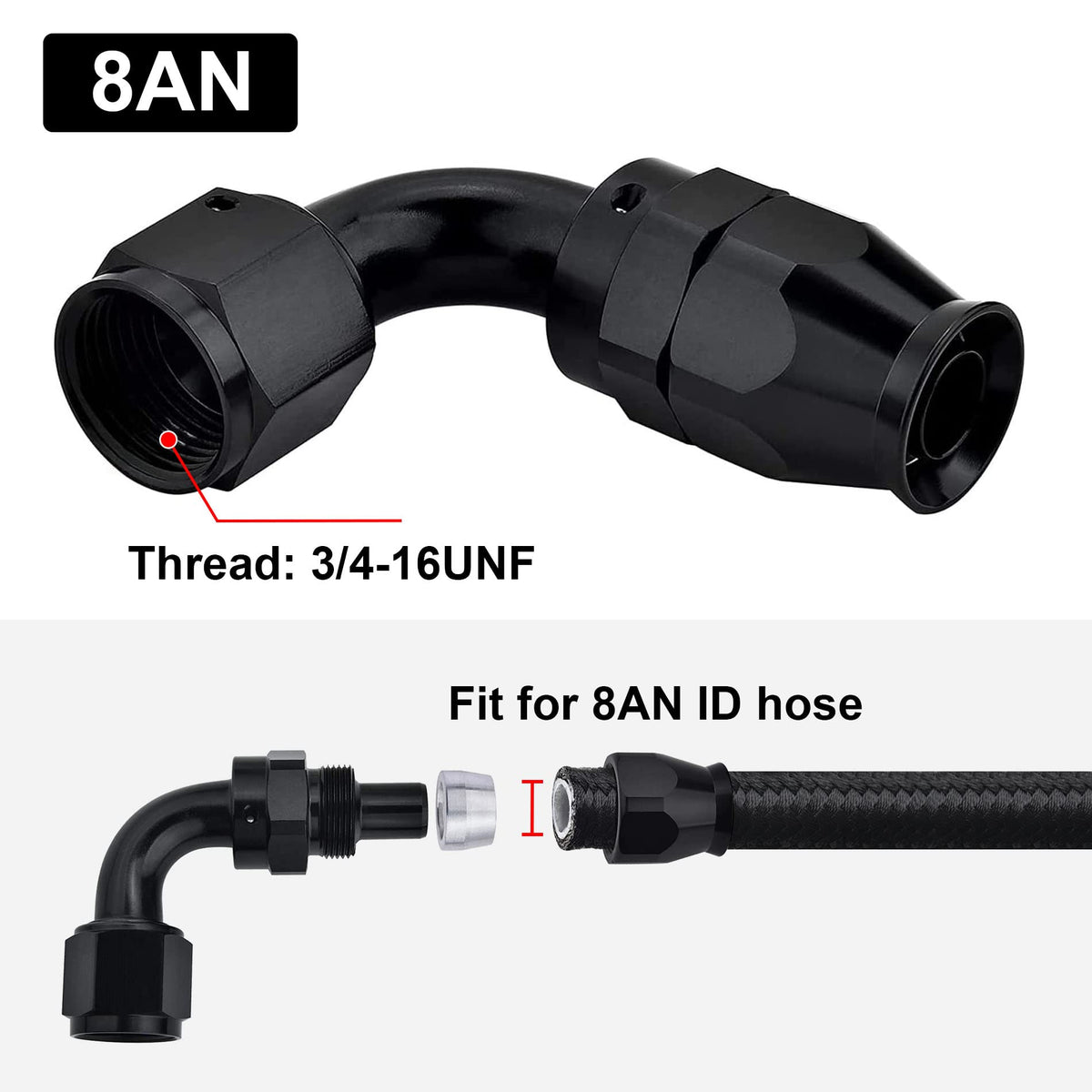

• Thread size: 8AN (3/4-16 UNF) for standard AN ports.
• 37° AN sealing face for a proven metal seal method.

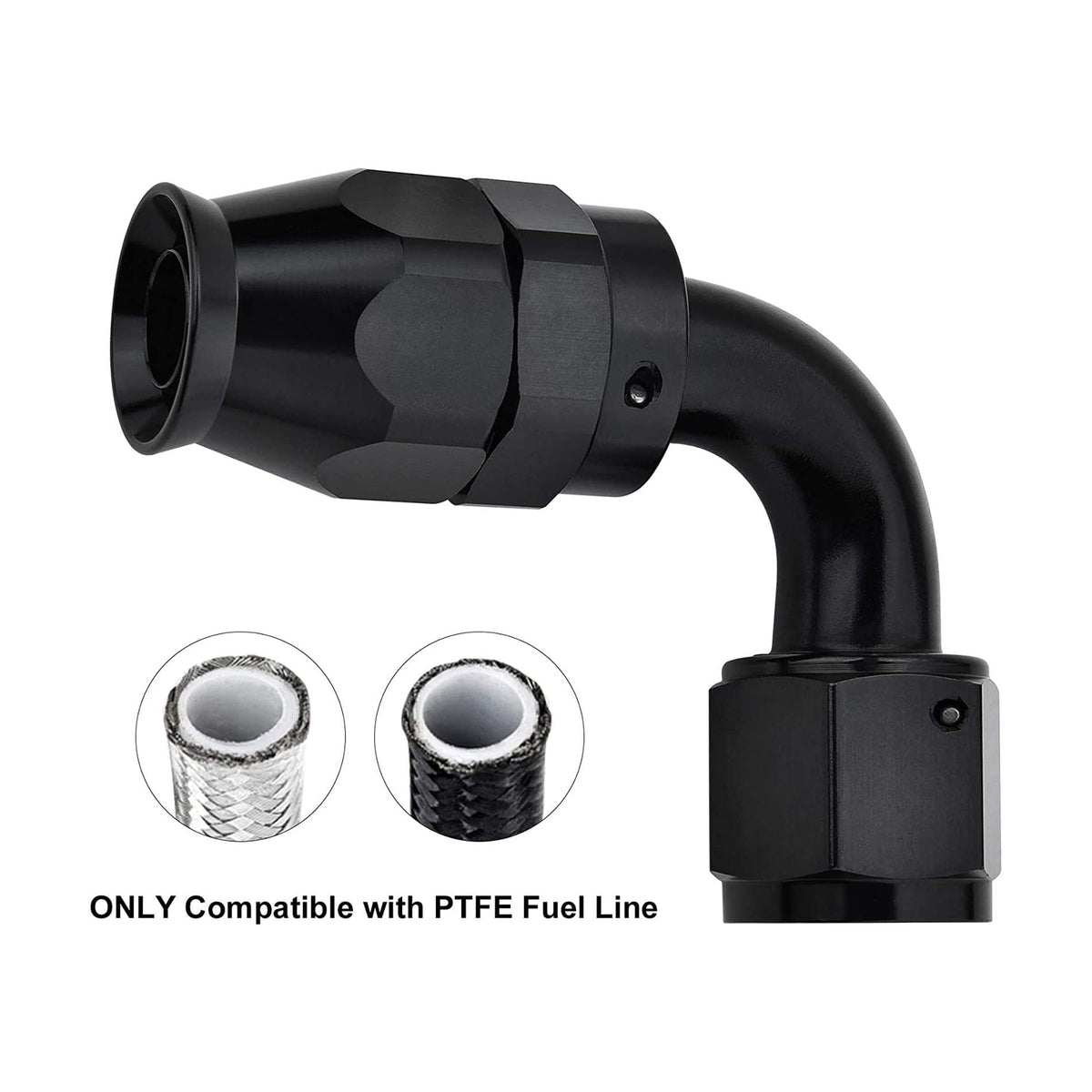

• Designed exclusively for PTFE-lined fuel hose (not for other hose types).

What performance can I expect under pressure and temperature extremes?

The fittings are rated to 1500 PSI working pressure under normal operating conditions and tolerate a wide temperature span, making them suitable for many high-performance fuel and fluid systems. Because the body is 6061-T6 aluminum, the fittings combine strength and light weight while resisting corrosion when anodized.

• Working pressure: 1500 PSI — suitable for many fuel system applications.
• Temperature range: -65°F to 252°F for cold-starts and hot environments.
• 6061-T6 aluminum construction balances durability and weight savings.

Why choose a 90° swivel fitting over a straight or fixed elbow?

A 90° swivel fitting reduces strain on the hose by allowing rotational adjustment during assembly and adapting to tight routing paths. The 360° swivel lets you align the hose without twisting the PTFE liner, helping preserve hose integrity and simplifying installation in confined spaces.

• 360° swivel design for easier alignment and reduced hose stress.
• Compact 90° profile saves space in tight engine bays or assemblies.
• Black anodized finish reduces surface corrosion and glare.

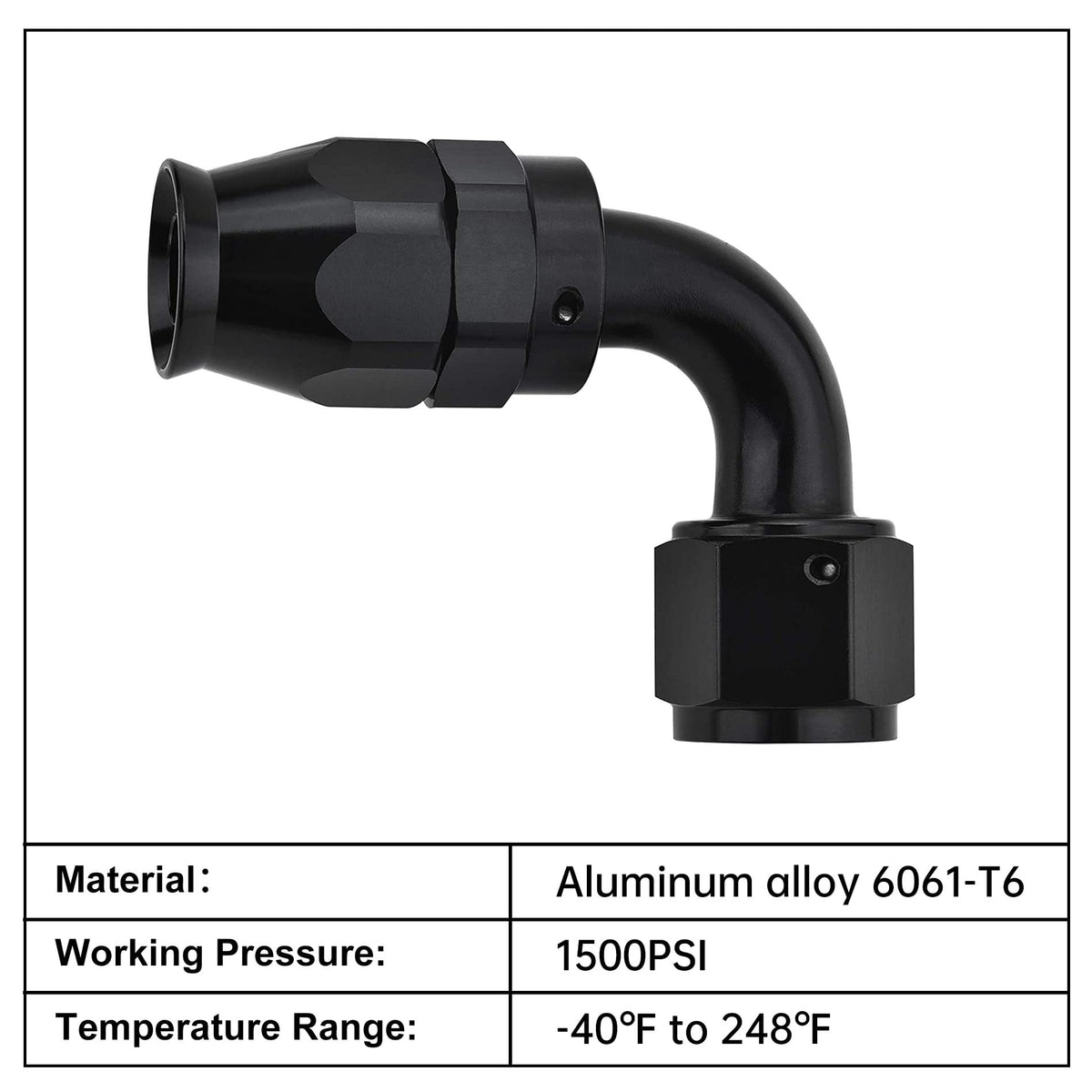

What are the material details and compatibility considerations?

The fittings are machined from 6061-T6 aluminum and finish in a black anodized coating for wear and corrosion resistance. They are compatible only with PTFE-lined hoses sized for 8AN connections; using incompatible hose types or incorrect assembly can compromise the seal and safety.

• Material: aluminum alloy 6061-T6 — strong and lightweight.
• Finish: black anodized for durability and aesthetic consistency.
• Compatibility: for PTFE fuel line only — follow hose manufacturer recommendations.

Who this is for: Mechanics, performance builders, motorsport technicians, and DIYers who route PTFE-lined fuel or fluid lines in tight spaces will value these 8AN 90° swivel hose ends. If you need rugged, compact, and serviceable fittings for high-pressure PTFE hose assemblies and require a standard 3/4-16UNF AN thread, this two-piece set offers a practical solution.
