EVIL ENERGY 8AN PTFE 90° Hose End Fittings — Black 4-Pack, 6061-T6 Aluminum, 360° Swivel

This four-piece kit provides a compact, right-angle connection engineered for PTFE-lined fuel lines and similar high-performance fluid systems. Built from 6061-T6 aluminum and featuring a 360° swivel, these fittings let you route hose with reduced twisting while maintaining a 37° AN seal. They are rated for up to 1500 PSI and operate across a wide temperature range, making them suitable for many automotive, motorsport, and industrial PTFE hose installations.

Will these fittings work with my PTFE-lined fuel hose?

These hose ends are made exclusively for PTFE-lined hose; the compression-style sleeve and tailpiece are sized to grip the PTFE lining properly. Do not use them with rubber, braided nylon, or non-PTFE hose unless specifically stated by the hose manufacturer.

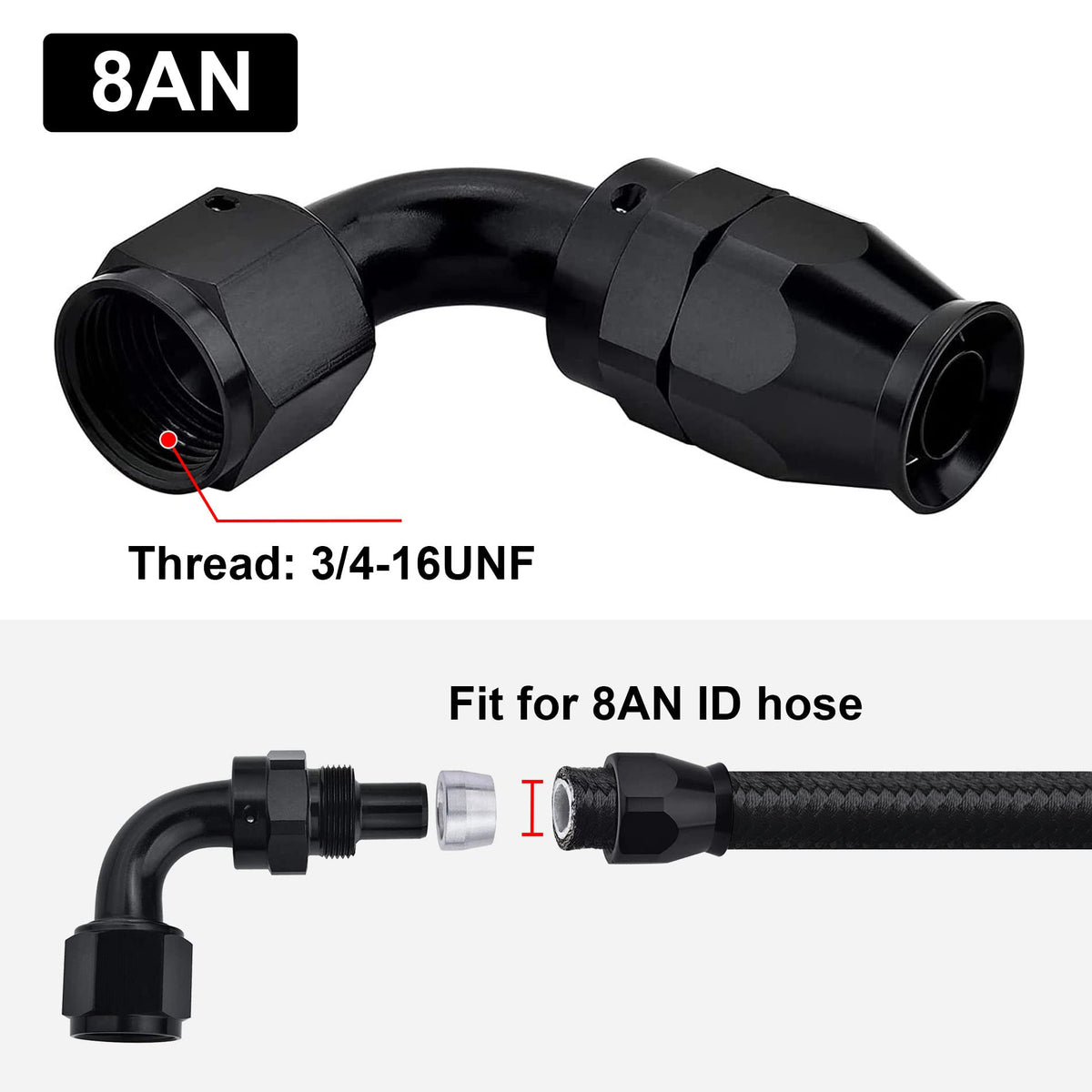

• Thread size: 8AN (3/4-16UNF) AN male thread.

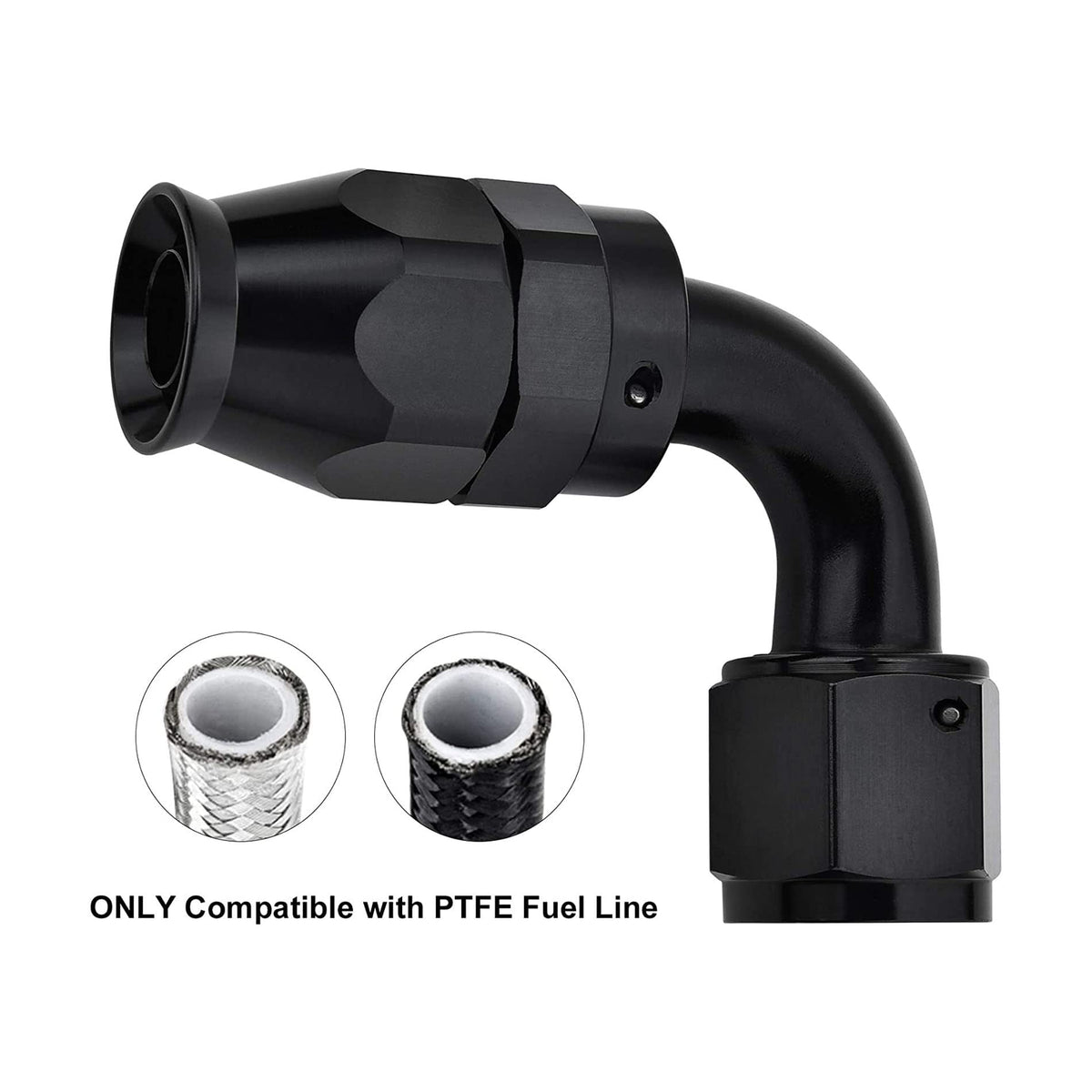

• Compatible only with PTFE-lined hose construction.
• 37° AN seat ensures a standard AN flare seal.

How durable and heat-resistant are these 90° hose ends?

Manufactured from aircraft-grade 6061-T6 aluminum, the fittings provide a strong, corrosion-resistant body suitable for repeated use and high-vibration environments. Their temperature tolerance spans from -65°F to 252°F, delivering stable performance across cold starts and elevated operating temperatures.

• Material: 6061-T6 aluminum for strength and light weight.
• Operating temperature: -65°F to 252°F.
• Working pressure rating: 1500 PSI (static rating for typical PTFE systems).

How do the 90-degree and swivel features help installation?

The 90° angle reduces hose bending stresses in tight routing locations while the 360° swivel allows the hose to be rotated independently of the threaded AN connection. This combination eases alignment, prevents hose kinking, and speeds assembly in cramped engine bays or brackets.

• Right-angle design for compact routing and reduced hose bend radius.
• 360° swivel lets you torque the AN fitting without twisting the hose.

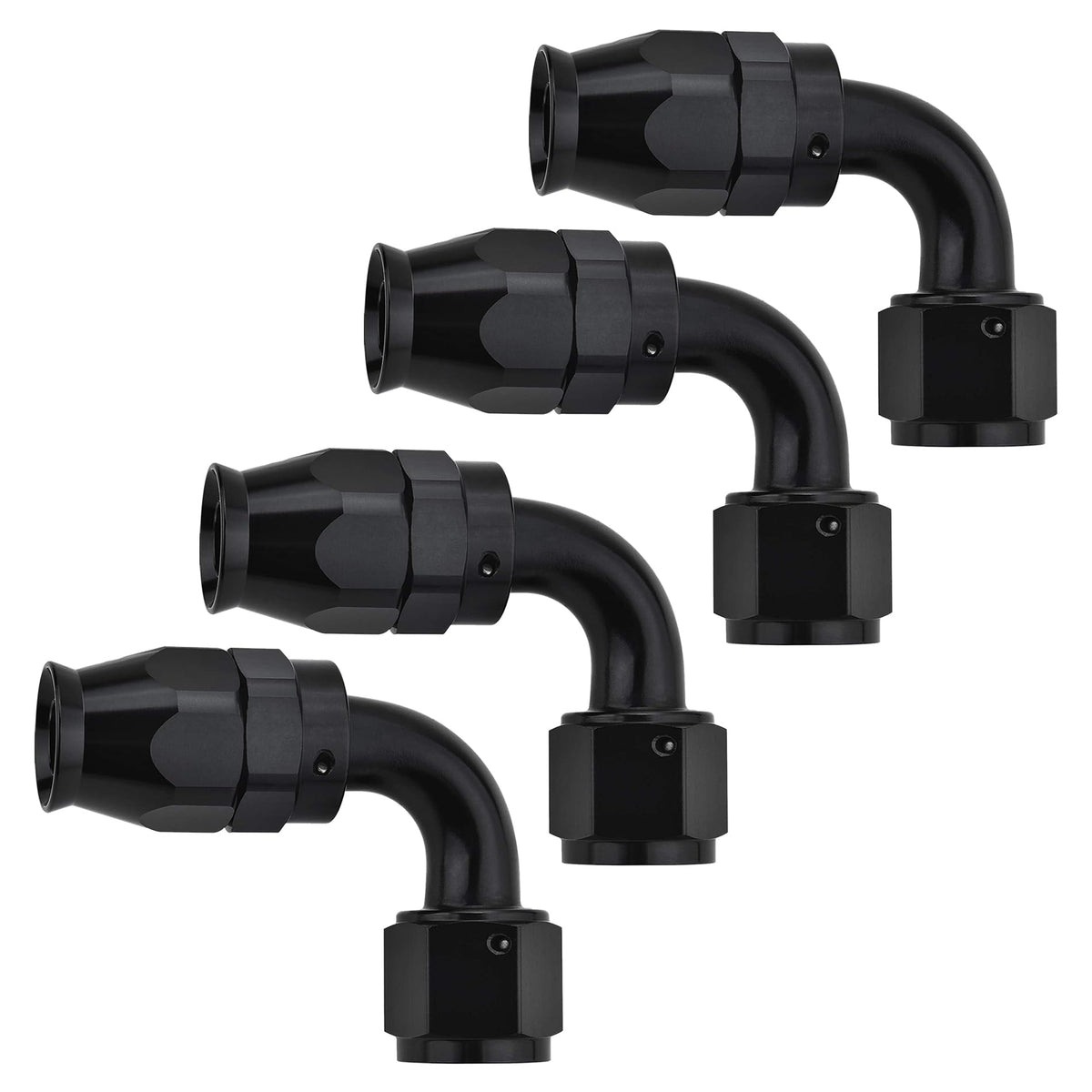

• Four-piece set enables multiple runs or replacements at once.

What sealing method and assembly details should I expect?

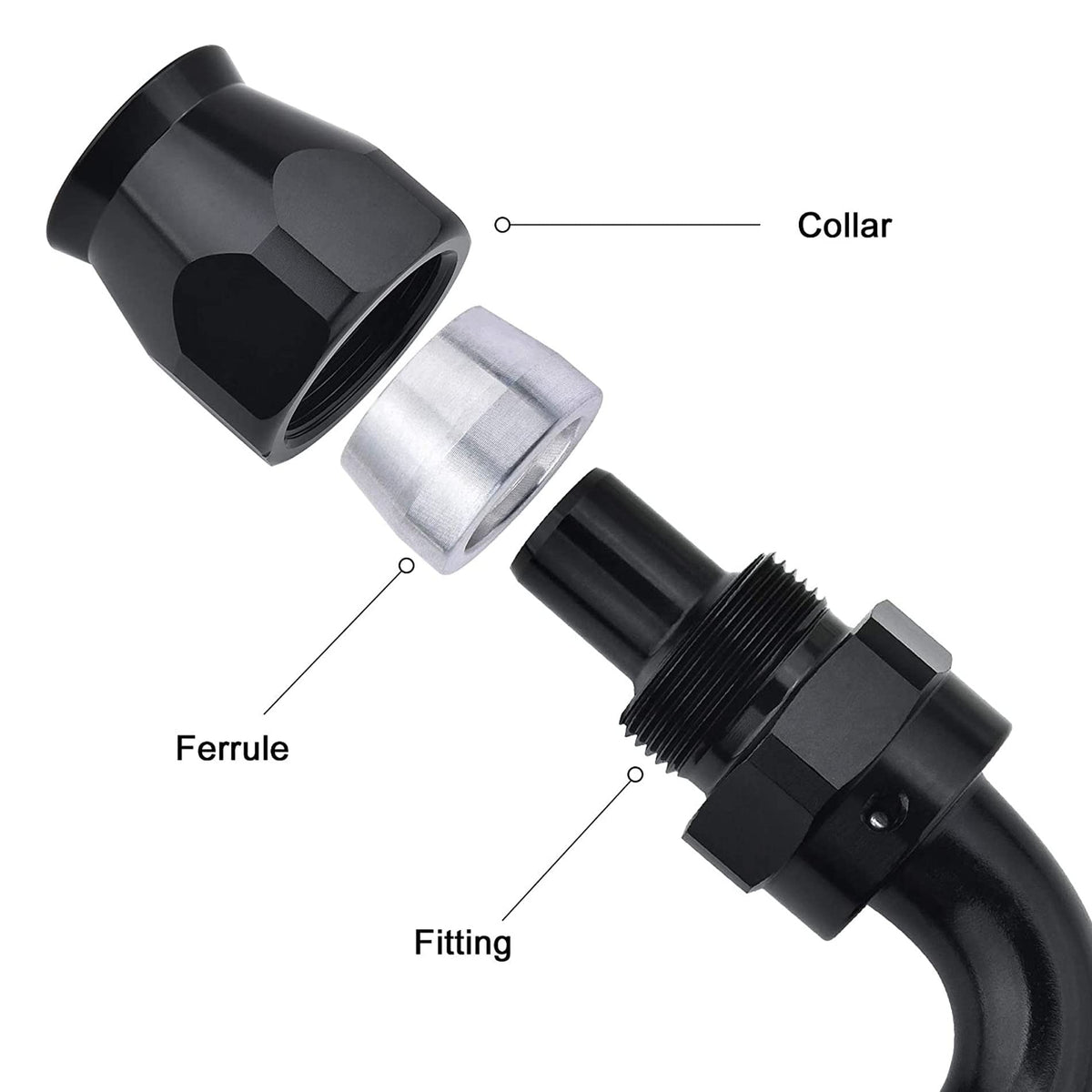

The fitting uses a standard 37° AN flare seat on the threaded side for metal-to-metal sealing when mated with AN-compatible ports or adapters. Assembly requires proper cutting and insertion of the PTFE hose into the tailpiece, then tightening to engage the swivel and clamp elements; follow hose maker guidelines for preparation and torque.

• AN side seal: 37° angle for standard AN compatibility.
• Tailpiece accepts PTFE lining; ensure clean, squared hose ends for a reliable seal.
• Sold as 4PCS black anodized fittings for consistent appearance.

Who is this for: These 8AN 90° PTFE hose end fittings are aimed at enthusiasts, mechanics, and fabricators installing or repairing PTFE-lined fuel, oil, or fluid lines on cars, race machines, and industrial equipment. They suit anyone needing compact 90° routing, reliable AN sealing, and a lightweight, corrosion-resistant connector for PTFE hose systems.
