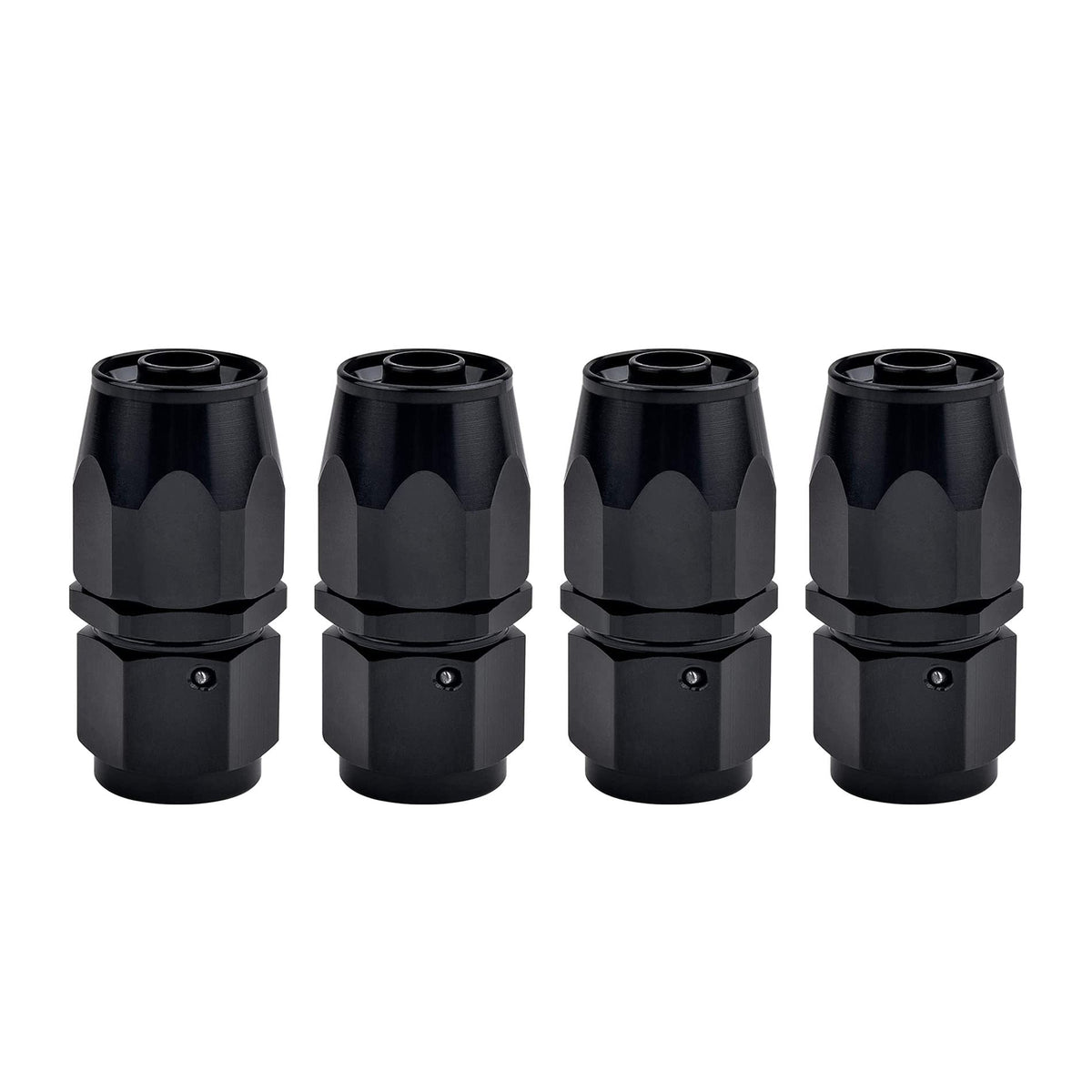

EVIL ENERGY 8AN Straight Swivel Hose End Fitting Black — 4PC, 360° Swivel, 6061-T6 Aluminum

EVIL ENERGY 8AN straight swivel hose end fitting is a 4-piece black, 360°-swivel connector designed for CPE braided stainless and nylon braided hoses, built from 6061-T6 aluminum for reusable, high-pressure connections.

These 8AN (3/4-16 UNF) hose end fittings give you a durable, reusable option for assembling braided fuel, oil, and coolant lines where a compact straight swivel is required. Machined from 6061-T6 aluminum and finished in black, each fitting uses a 37° AN sealing angle and is rated for up to 1,500 PSI with a temperature range suitable for wide automotive and industrial applications. The swivel capability makes routing and assembly easier while keeping connections serviceable.

How does the 360° swivel design improve assembly?

The swivel feature lets you tighten the threaded side while the AN end remains oriented, reducing hose twist and simplifying final positioning. This is especially useful in tight engine bays or confined routing runs where maintaining hose alignment is critical.

• Separate rotation between threaded and AN ends for precise alignment
• Less hose twisting reduces stress and extends hose life
• Faster installation and reassembly during maintenance

What hoses and sealing standard are compatible with this fitting?

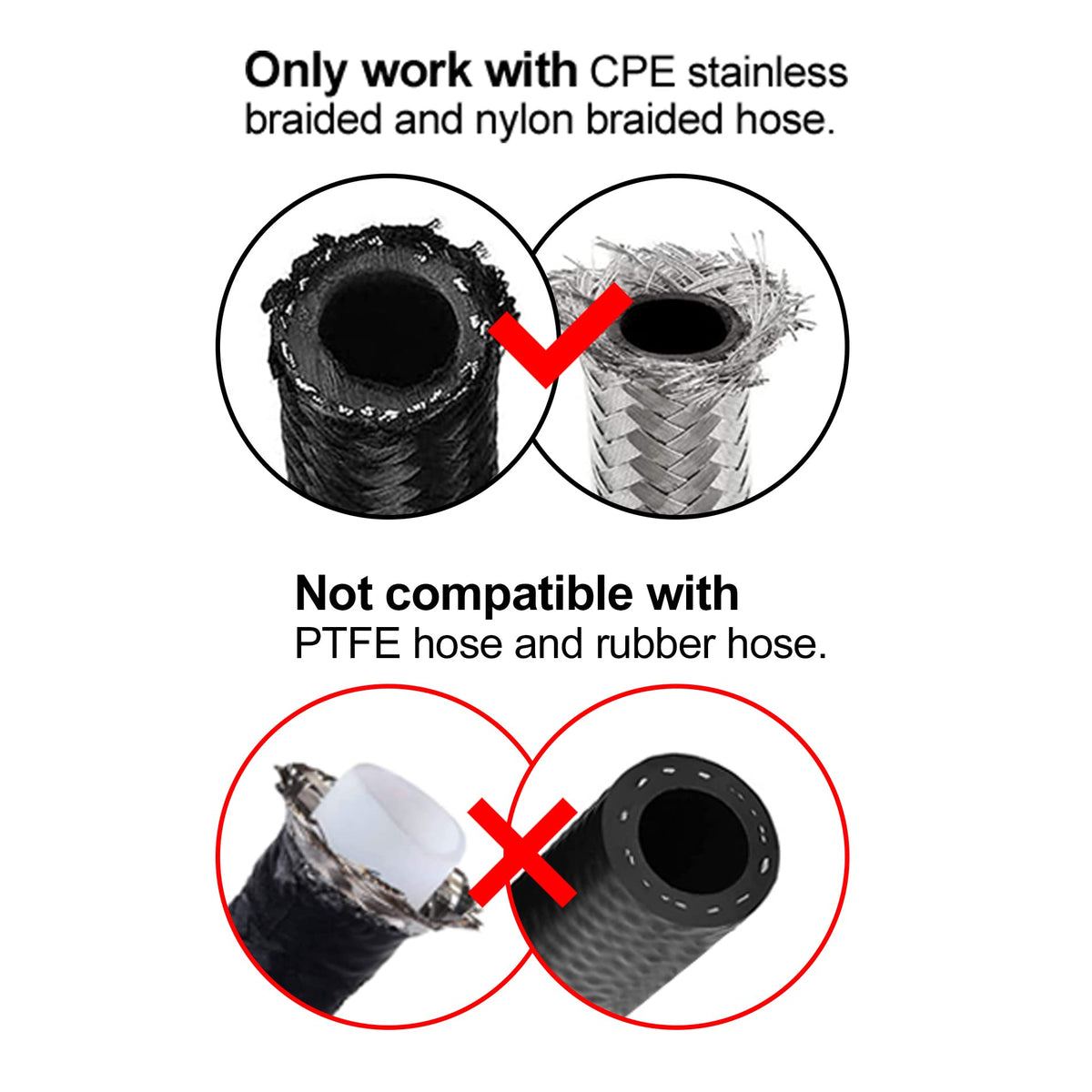

These fittings are designed specifically for braided stainless steel and nylon braided hoses that accept AN-style 37° flare sealing. They are not intended for push-fit or barbed hose types. Correct pairing ensures a reliable metal-to-metal seal at the specified angle.

• Fits braided CPE-compatible stainless or nylon hoses only
• Uses AN 37° angle sealing—match to AN hose ends and adapters
• Not suitable for barbed or non-braided push-on hoses

What mechanical and environmental limits should I expect?

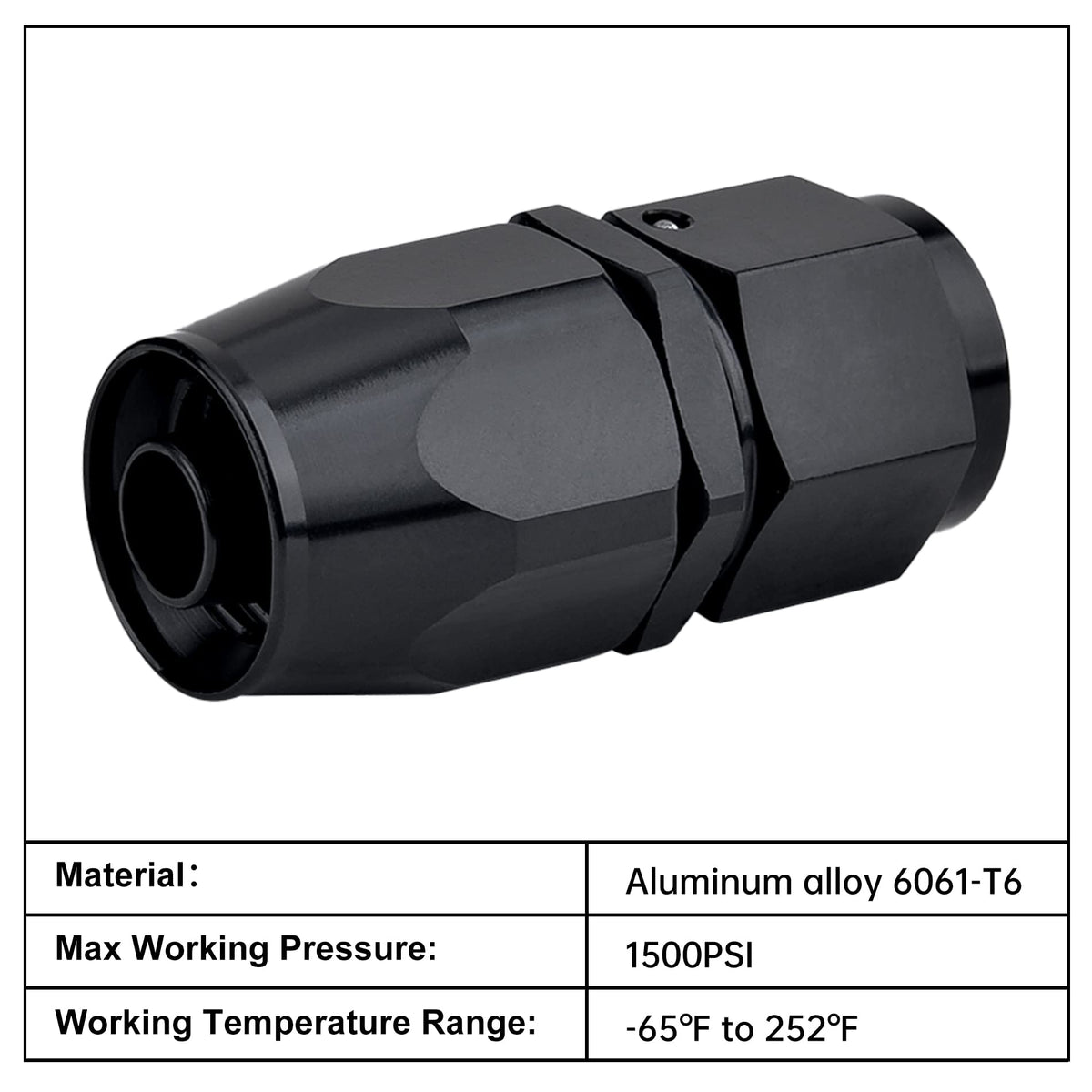

The fittings are made from 6061-T6 aluminum to balance strength and weight for automotive and light industrial use. They’re rated to a maximum working pressure of 1,500 PSI and can operate across a broad temperature range, making them suitable for many fluid systems under normal operating conditions.

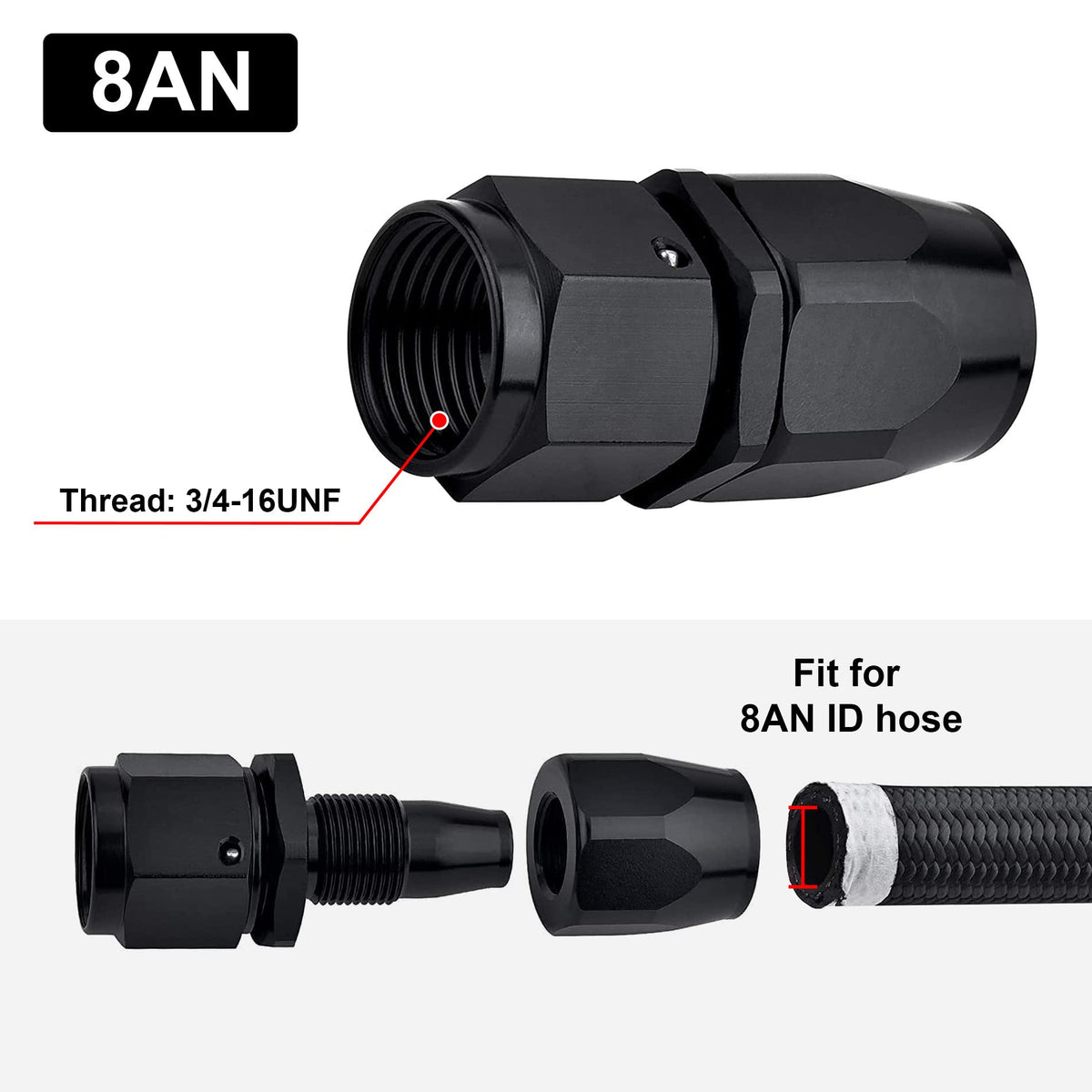

• Thread size: 8AN (3/4-16 UNF)
• Max working pressure: 1,500 PSI
• Operating temperature: -65°F to 252°F (-53°C to 122°C)

Can these fittings be reused and how do I maintain them?

Yes—EVIL ENERGY 8AN fittings are recyclable and designed for multiple assemblies. Routine inspection of sealing surfaces and O-rings (if used in your system) plus clean threads will help preserve seal integrity and service life.

• Reusable with proper seating and torque—avoid overtightening
• Inspect 37° sealing surface for nicks or contamination before reuse
• Clean threads and apply appropriate thread sealant or tape when required

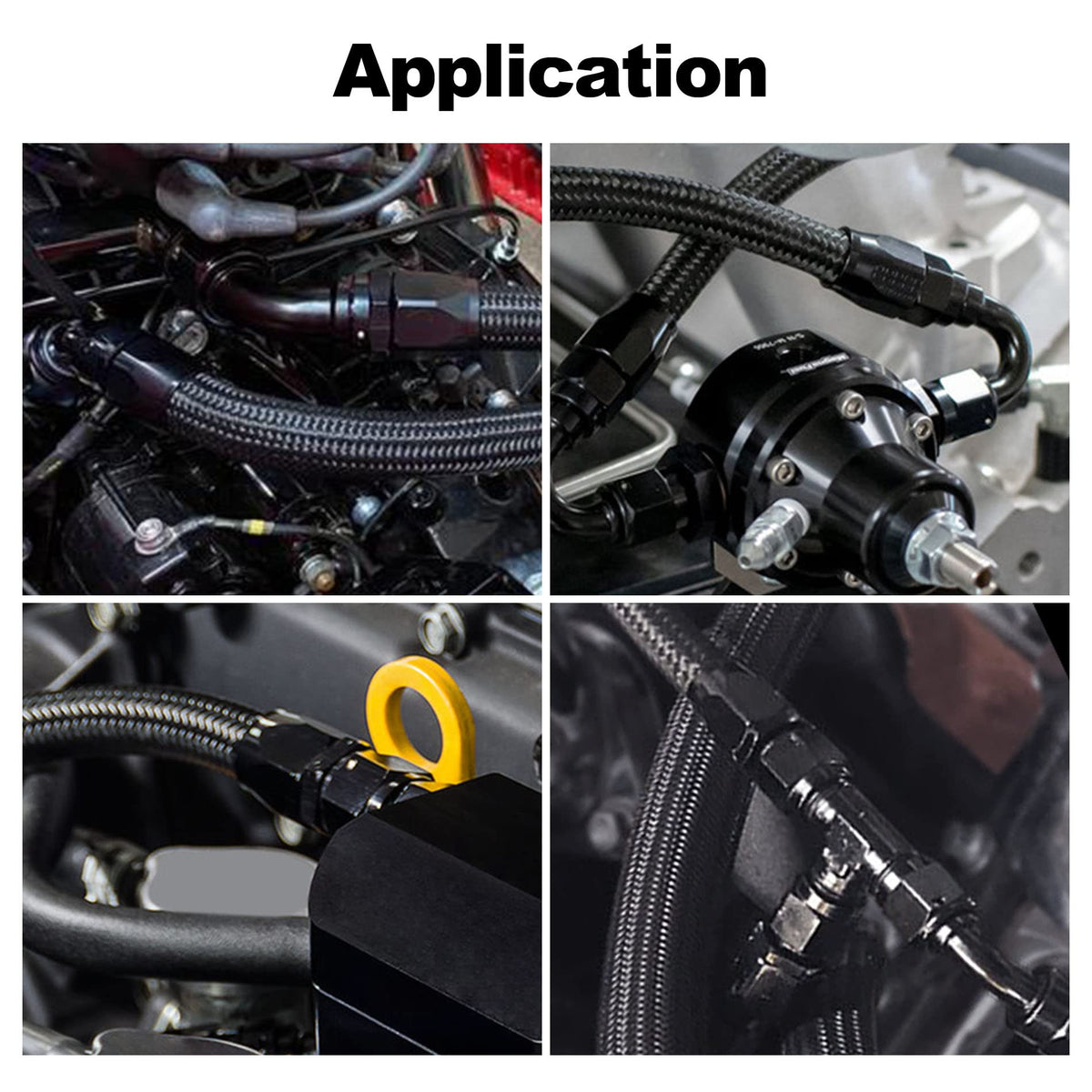

Who is this for? These EVIL ENERGY 8AN straight swivel fittings suit automotive enthusiasts, race teams, and mechanics who install or service braided fuel, oil, or coolant lines and need a compact, serviceable connector. If you work on turbo, fuel, or custom plumbing projects that require reliable AN sealing, corrosion-resistant aluminum construction, and easy hose routing, this 4-piece pack provides a practical, reusable option.
