EVIL ENERGY AN10 90° One-Piece Full-Flow Hose End Swivel — 7/8-14 UNF, 6061-T6 Aluminum, 1,500 PSI

This precision machined hose end from EVIL ENERGY is built from 6061-T6 aluminum and shaped for uninterrupted flow in tight spaces. Its one-piece, cutter-style design minimizes flow restriction and abrasion while the 90° swivel orientation helps route lines cleanly around engine bays or equipment panels. Rated for a maximum working pressure of 1,500 PSI and a temperature window from -40°F to 250°F, it is engineered for demanding automotive and industrial fluid systems that use braided hoses.

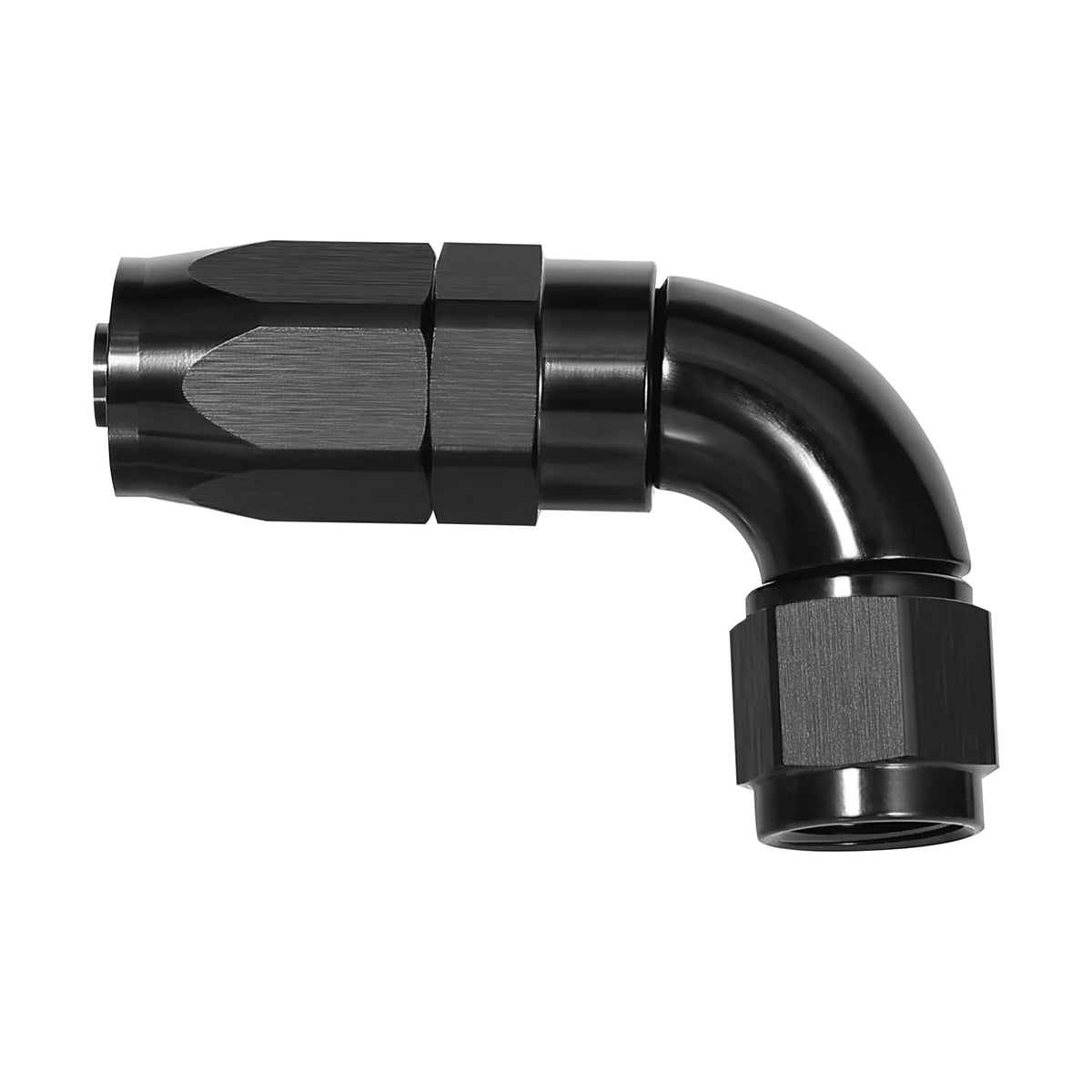

How does the 90° one-piece design improve hose routing and flow?

The 90° angle lets you change hose direction without bending the hose sharply, reducing stress and potential kinks. Being a one-piece full-flow fitting eliminates internal joints that can create turbulence or collect debris. The cutter-style end bites into braided hose coverings for a secure mechanical grip.

• Right-angle route for compact spaces and tight engine bays
• Full-flow internal profile reduces pressure drop across the fitting
• Cutter-style edge secures braid for leak-resistant installation

What hoses and thread standards are compatible with this AN10 fitting?

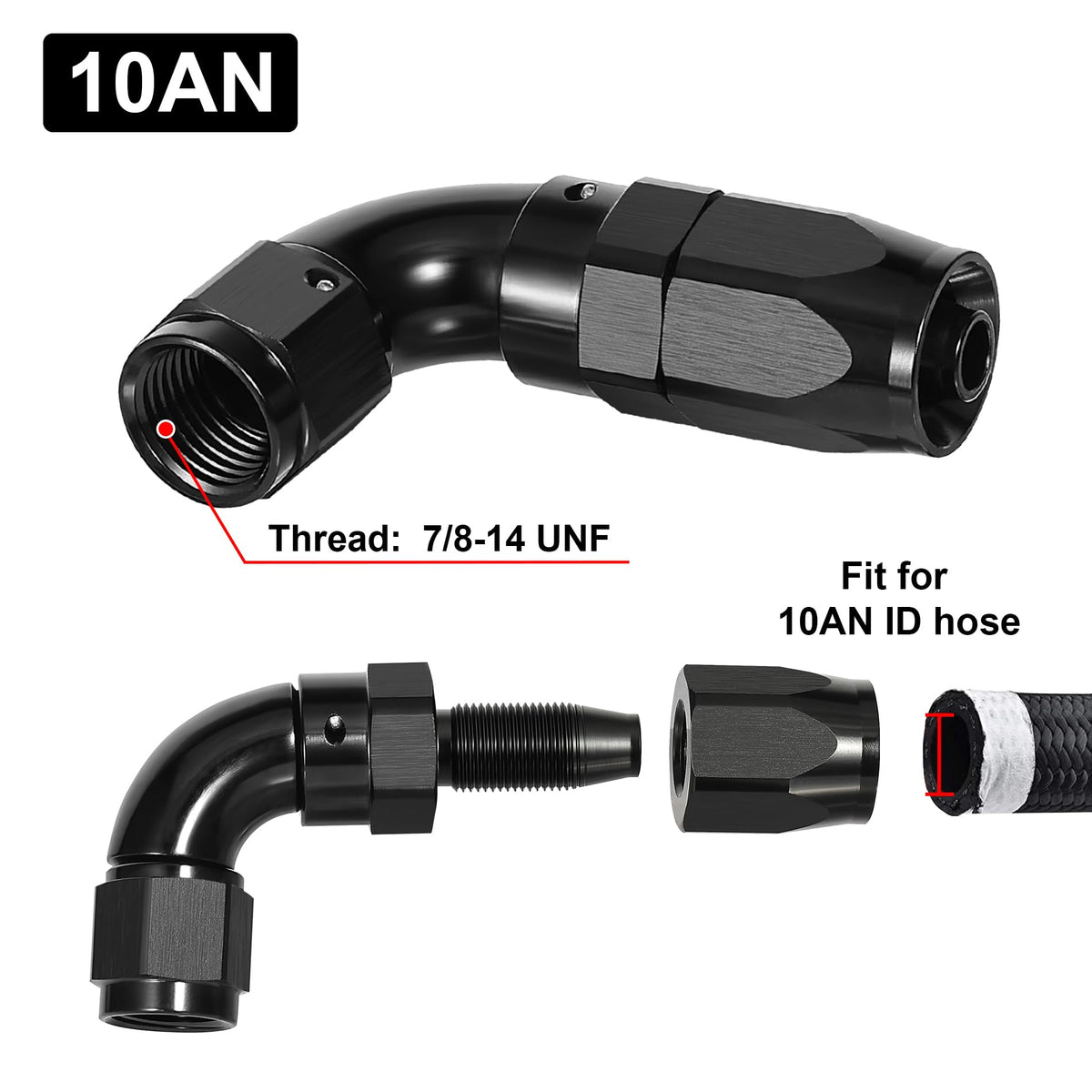

This item is sized AN10 and uses a 7/8-14 UNF threaded male connection with a 37° sealing surface on the AN side. It is specifically intended for use with stainless steel braided and nylon braided CPE hoses; it is not suitable for smooth rubber or unbraided lines. Always match thread pitch and sealing angle when mating to adapters or ports.

• AN size: 10AN (AN10) — common for high-flow lines

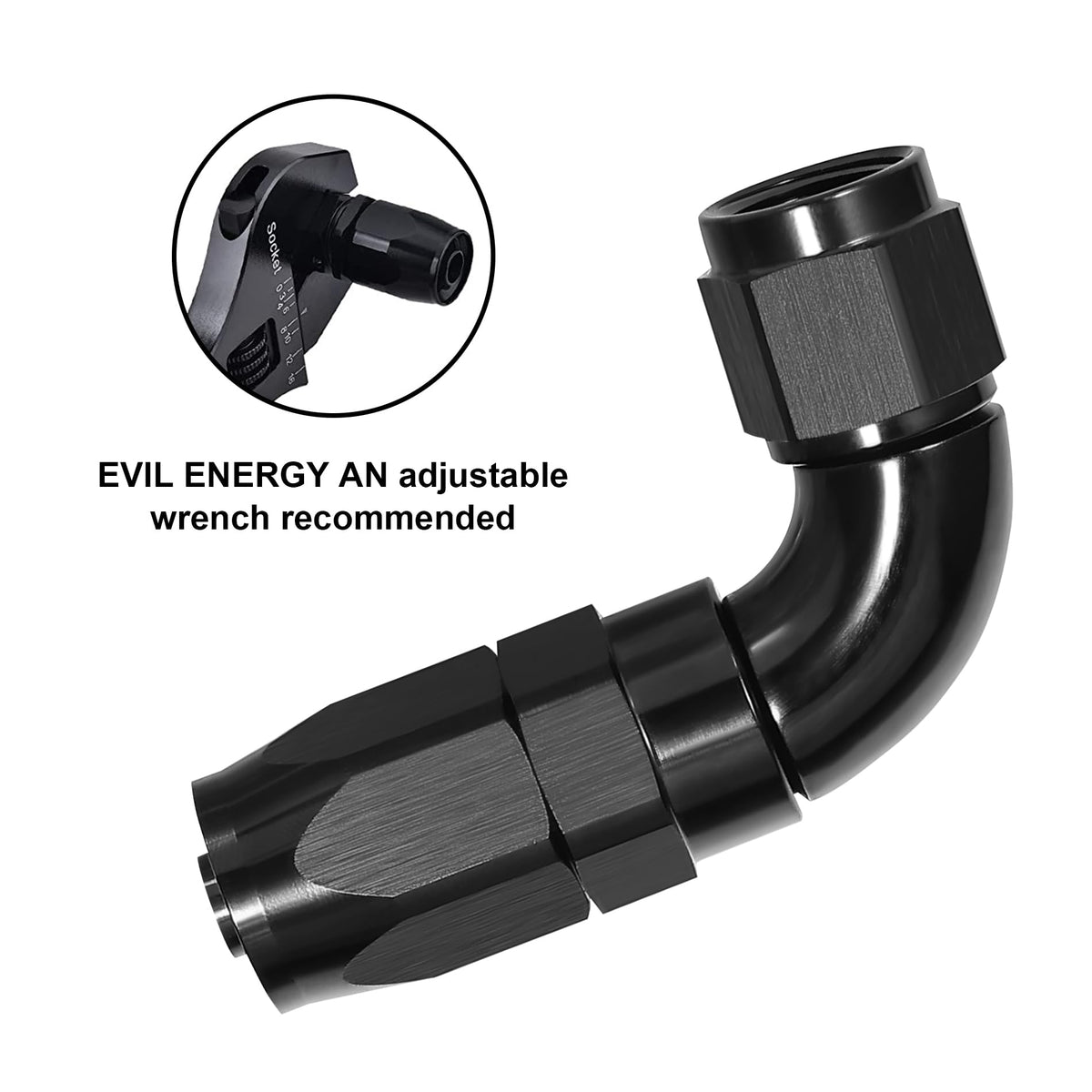

• Thread spec: 7/8-14 UNF with 37° AN sealing face
• Hose types: stainless steel braided and nylon braided CPE hoses only

How durable is the fitting under pressure and temperature extremes?

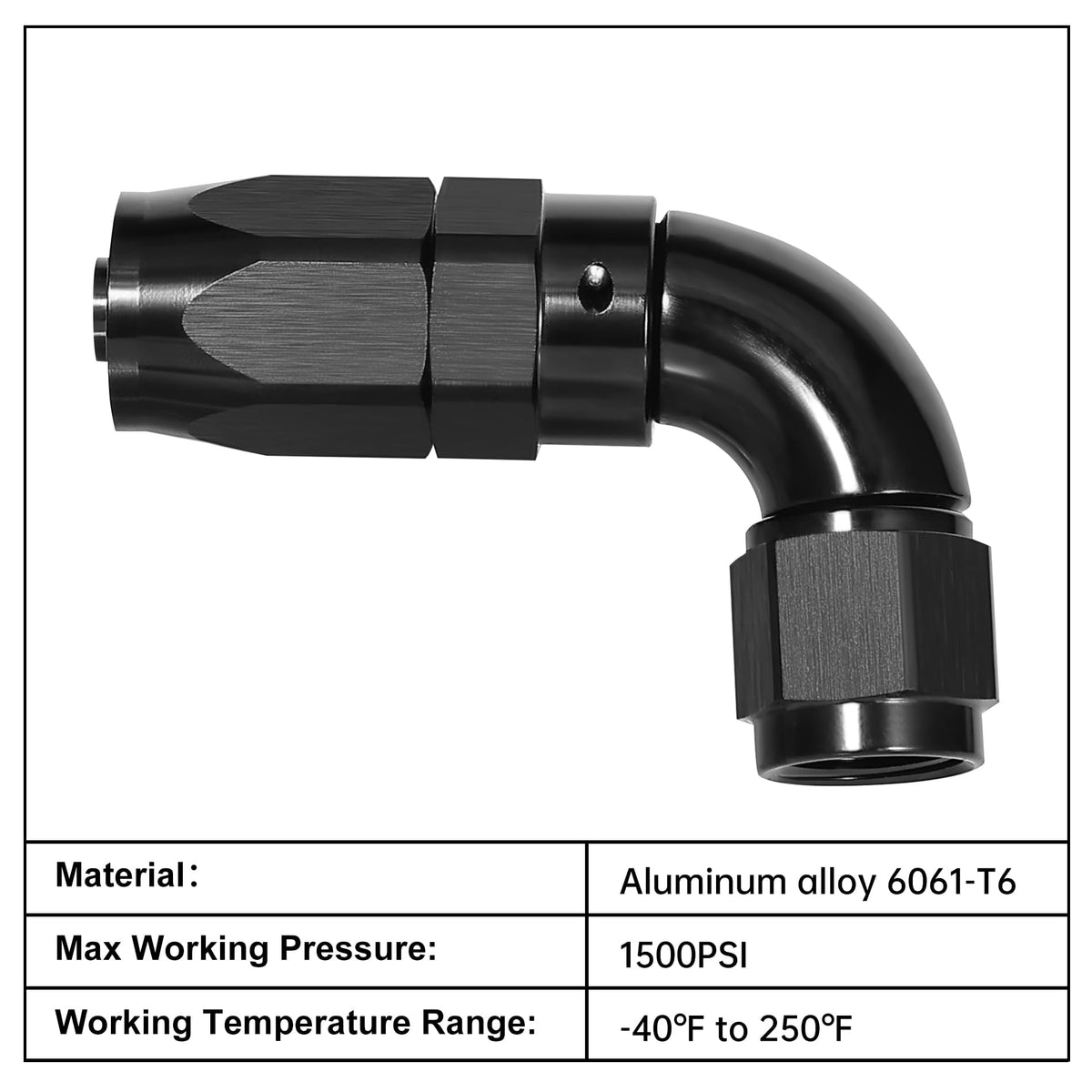

Machined from 6061-T6 aluminum, this fitting offers a strong strength-to-weight ratio and good corrosion resistance when anodized or coated. It is rated to a maximum working pressure of 1,500 PSI and performs across a wide operating temperature range, suitable for many automotive and industrial applications. Proper installation and compatible hose selection are essential to reach the specified performance limits.

• Material: 6061-T6 aluminum for strength and light weight
• Max working pressure: 1,500 PSI for high-pressure systems
• Temperature range: -40°F to 250°F for broad operating conditions

How should I install and maintain this AN10 hose end for best results?

Installation requires cutting the braided CPE hose square, inserting the hose fully onto the fitting, and securing per the hose manufacturer’s recommended method (typically clamping or ferrule compression when applicable). Inspect the braid and sealing faces for damage before assembly; ensure mating threads and the 37° seat are clean to prevent leaks. Periodic checks for abrasion, corrosion, and torque retention will prolong service life.

• Cut hose square and clean braid before fitting
• Match to compatible AN10 ports and torque to recommended specs
• Inspect regularly for wear, corrosion, and hose slippage

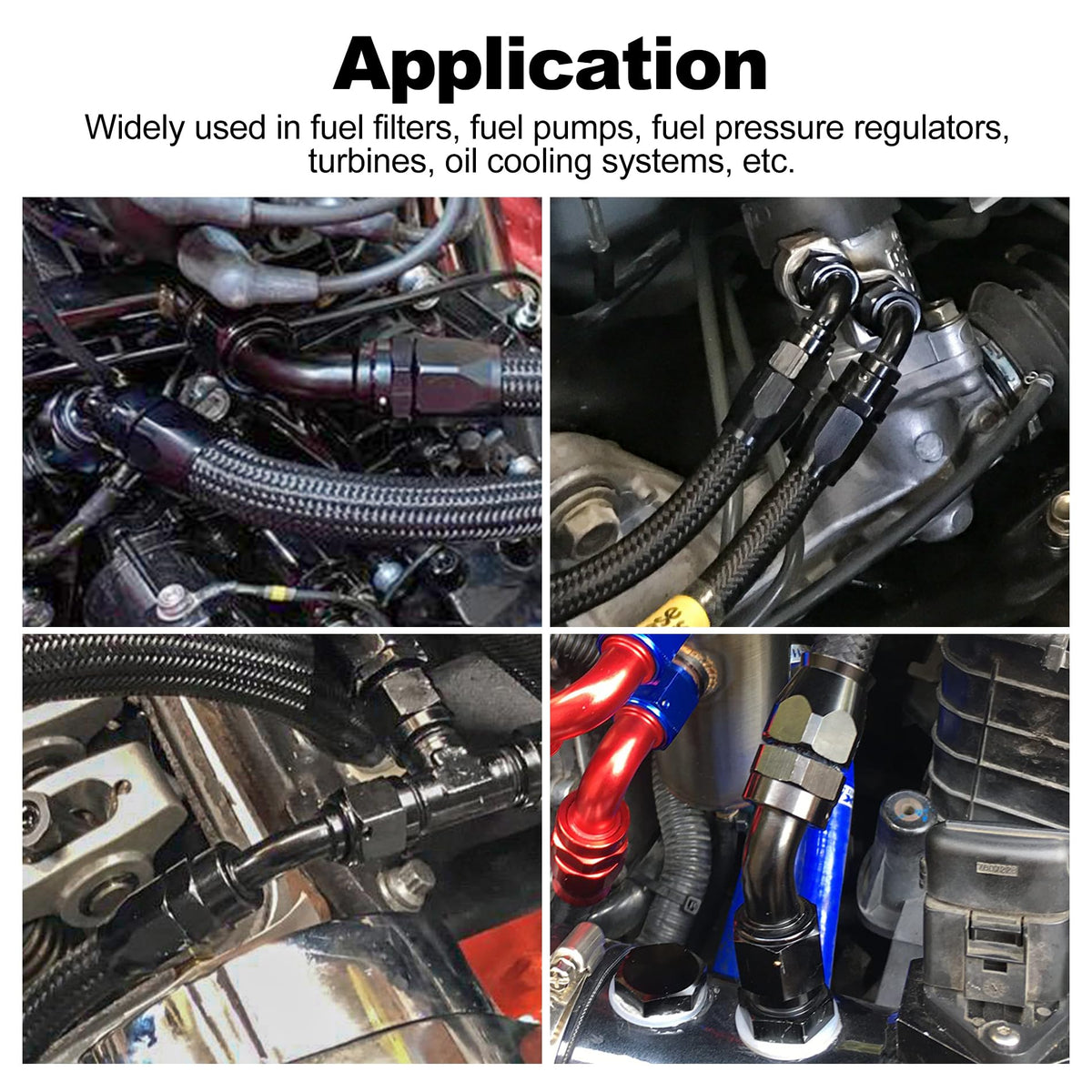

Who is this for: EVIL ENERGY’s AN10 90° one-piece full-flow hose end swivel is aimed at mechanics, motorsport teams, and DIY engine builders who need a compact, high-flow coupling for braided CPE hoses. It suits applications requiring reliable sealing under pressure, neat hose routing in constrained spaces, and lightweight yet durable hardware. Not intended for use with unbraided hoses or fittings mismatched in thread or sealing angle.
