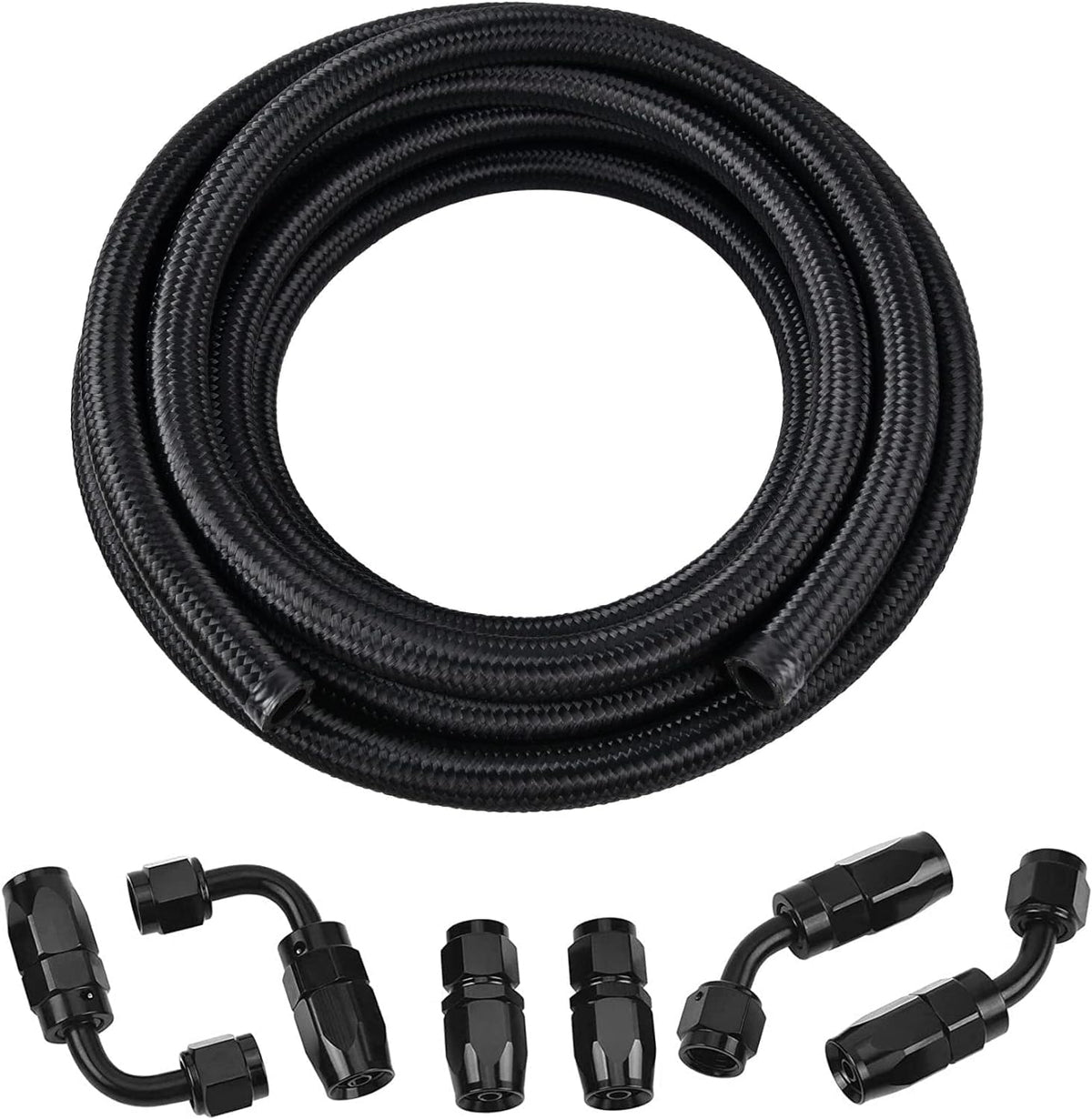

EVIL ENERGY AN10 Braided Fuel Line Kit 10ft CPE Core with 304 Stainless & Nylon Braid, 625 PSI

EVIL ENERGY's AN10 10ft braided fuel line kit is a durable CPE inner hose with 304 stainless wire and nylon outer braid engineered for fuel, oil, transmission fluid and race gas applications.

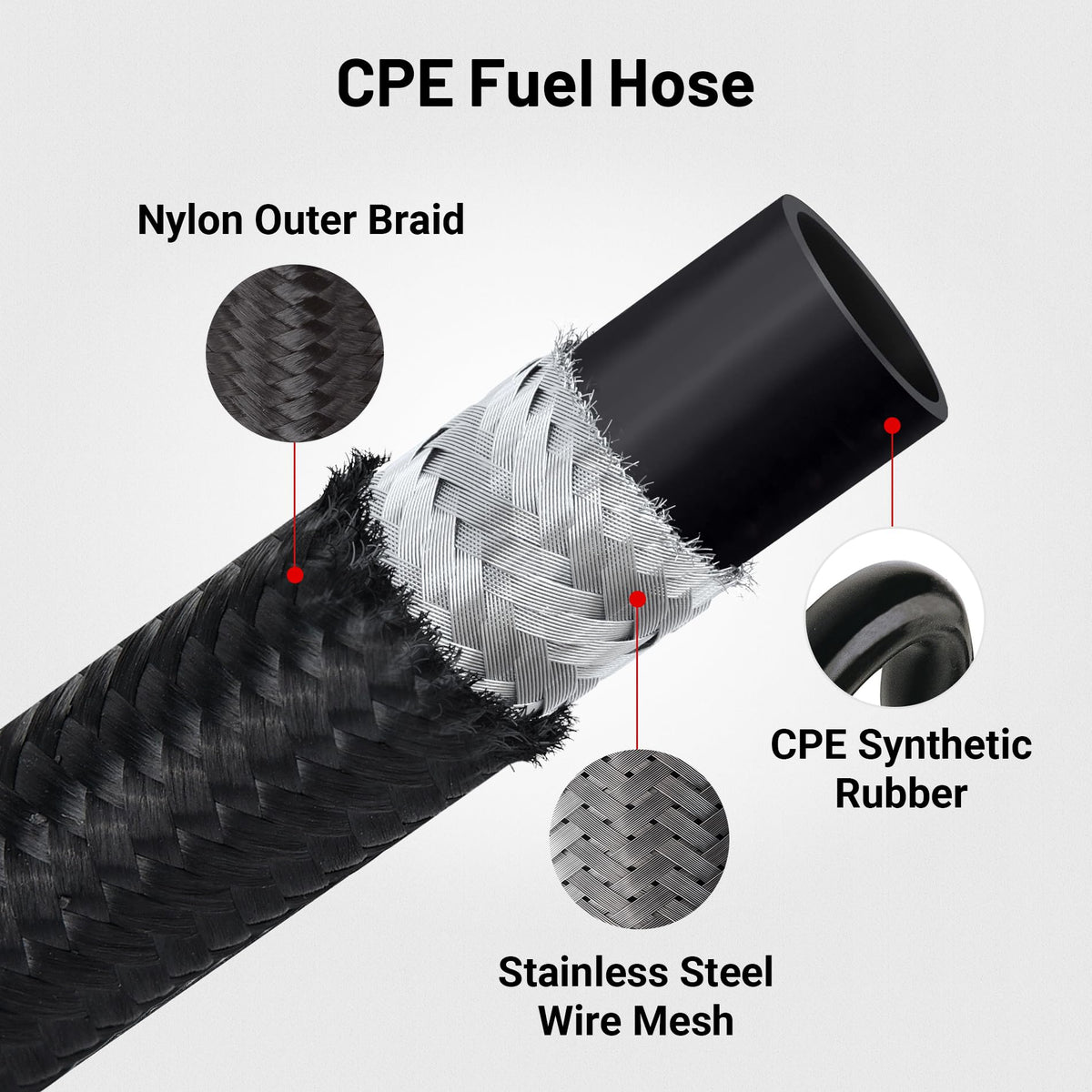

This AN10 fuel hose kit from EVIL ENERGY combines a chemically resistant CPE rubber core with a 304 stainless steel reinforcement and a protective nylon outer braid to give you a flexible, high-pressure line for motorsport, performance builds, or professional repairs. With a 10-foot length and 0.53" (13.5mm) inner diameter, the hose meets common AN10 sizing and withstands a wide temperature range and substantial working pressure, making it suitable for many liquid transfer needs in automotive and industrial settings.

What makes the EVIL ENERGY AN10 hose suitable for high-performance fuel systems?

The hose is purpose-built for demanding fluid transfers. Its CPE inner tube resists fuels and oils, while the 304 stainless braid provides mechanical strength and pressure resistance. The nylon outer layer protects against abrasion and UV exposure during installation and use.

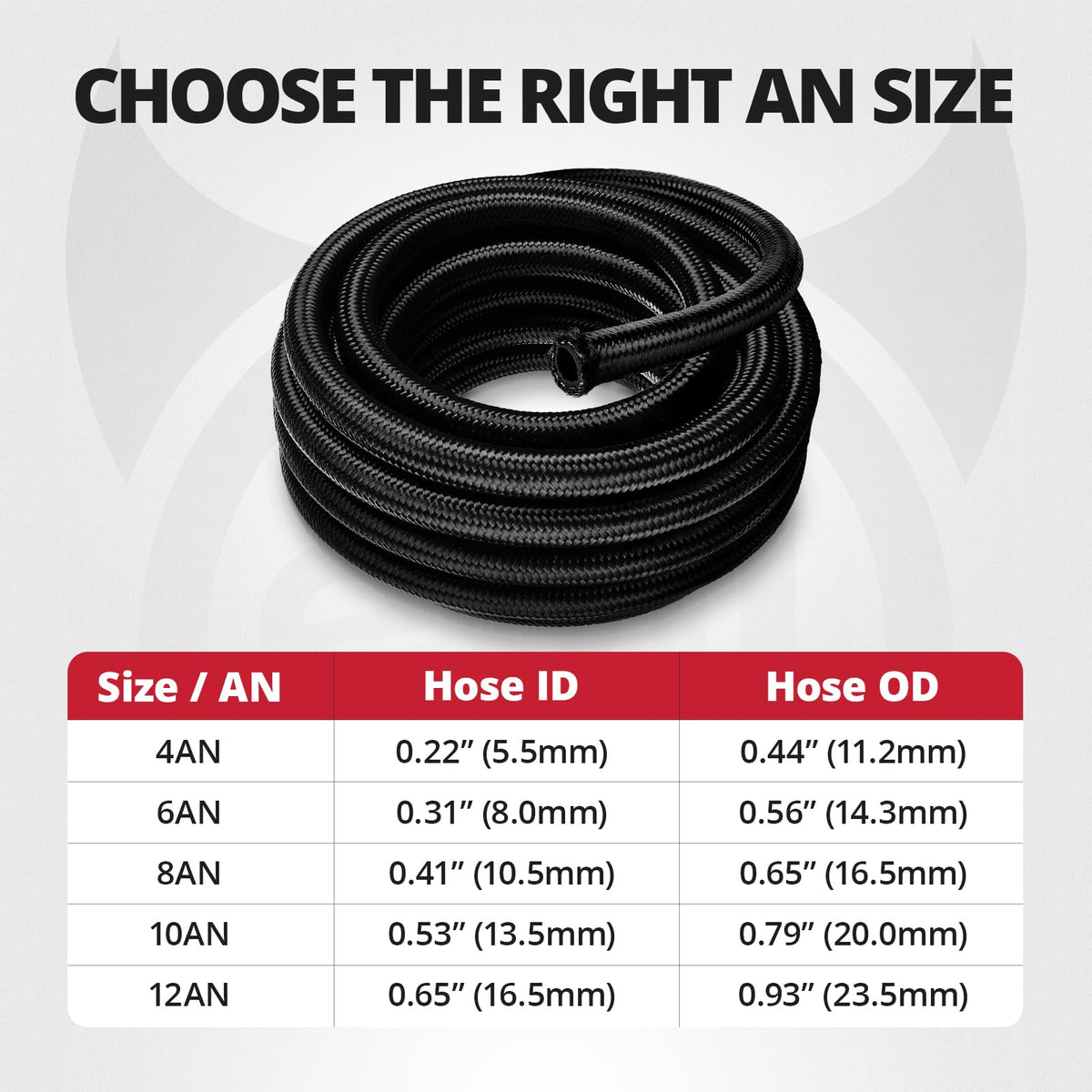

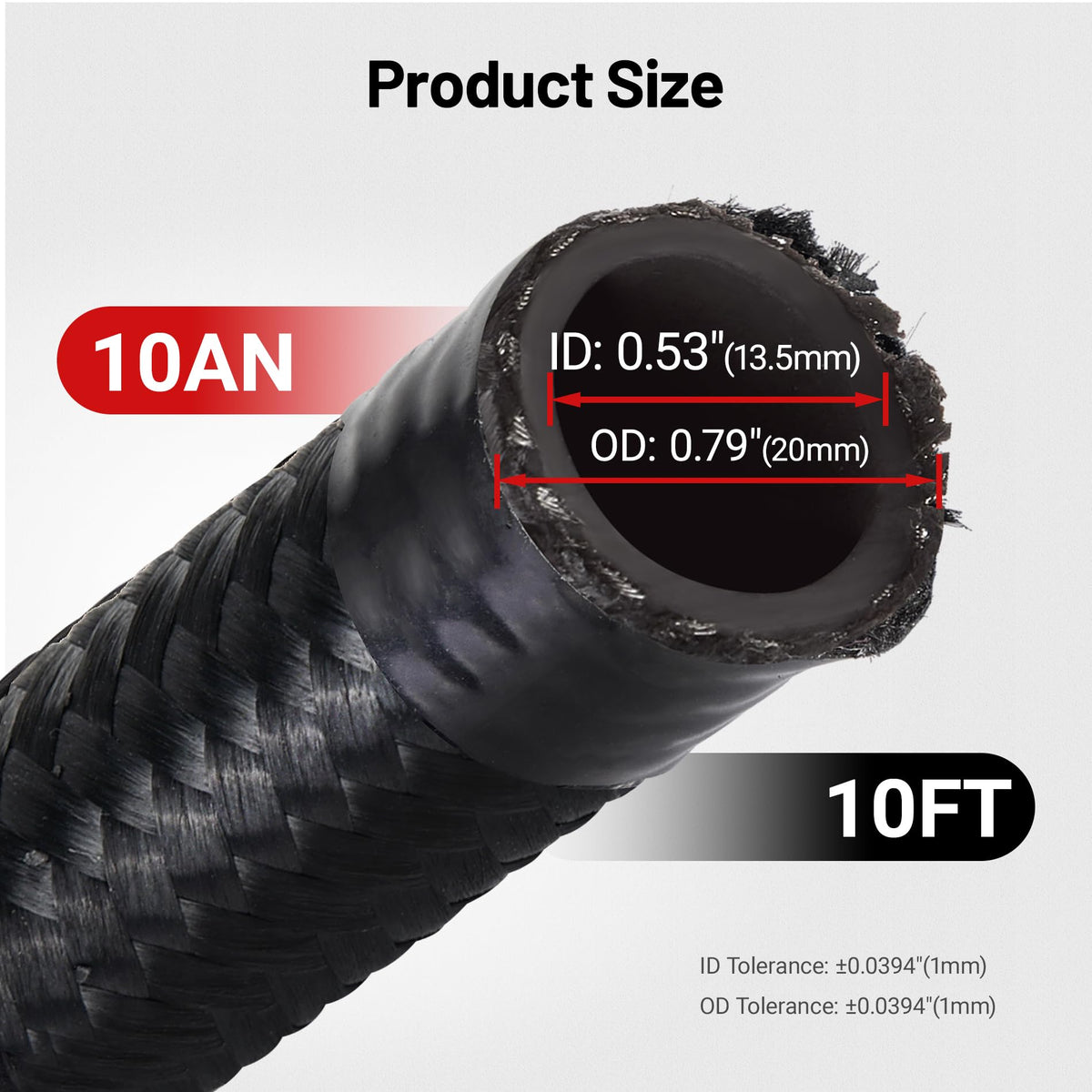

• Inner diameter: 0.53" (13.5 mm) and outer diameter: 0.79" (20 mm)

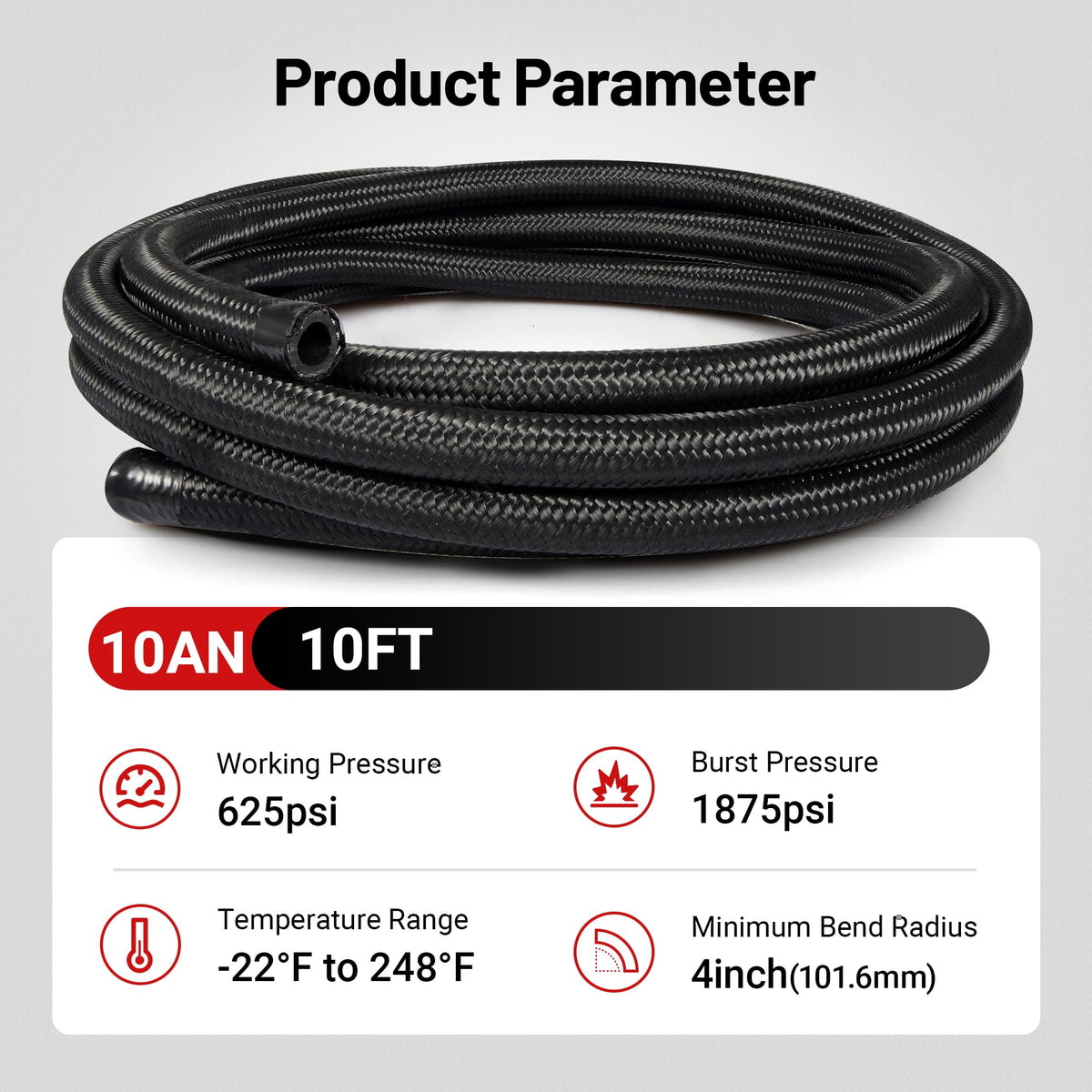

• Working pressure rated at 625 psi and burst pressure at 1875 psi
• CPE rubber core resists hydrocarbon-based fluids and solvents
• 304 stainless steel wire reinforcement prevents elongation and kinking

How does temperature and flexibility affect installation and operation?

EVIL ENERGY's AN10 hose remains functional across a wide thermal window, so it can be routed near hot engine areas or used in cold climates without becoming brittle. Its minimum bend radius allows practical routing in tight engine bays while preserving flow and structural integrity.

• Temperature tolerance: -22°F to 248°F (-30°C to 120°C)
• Minimum bending radius: 101.6 mm for secure, kink-free turns
• 10-foot length provides flexibility for custom runs or trimming to fit

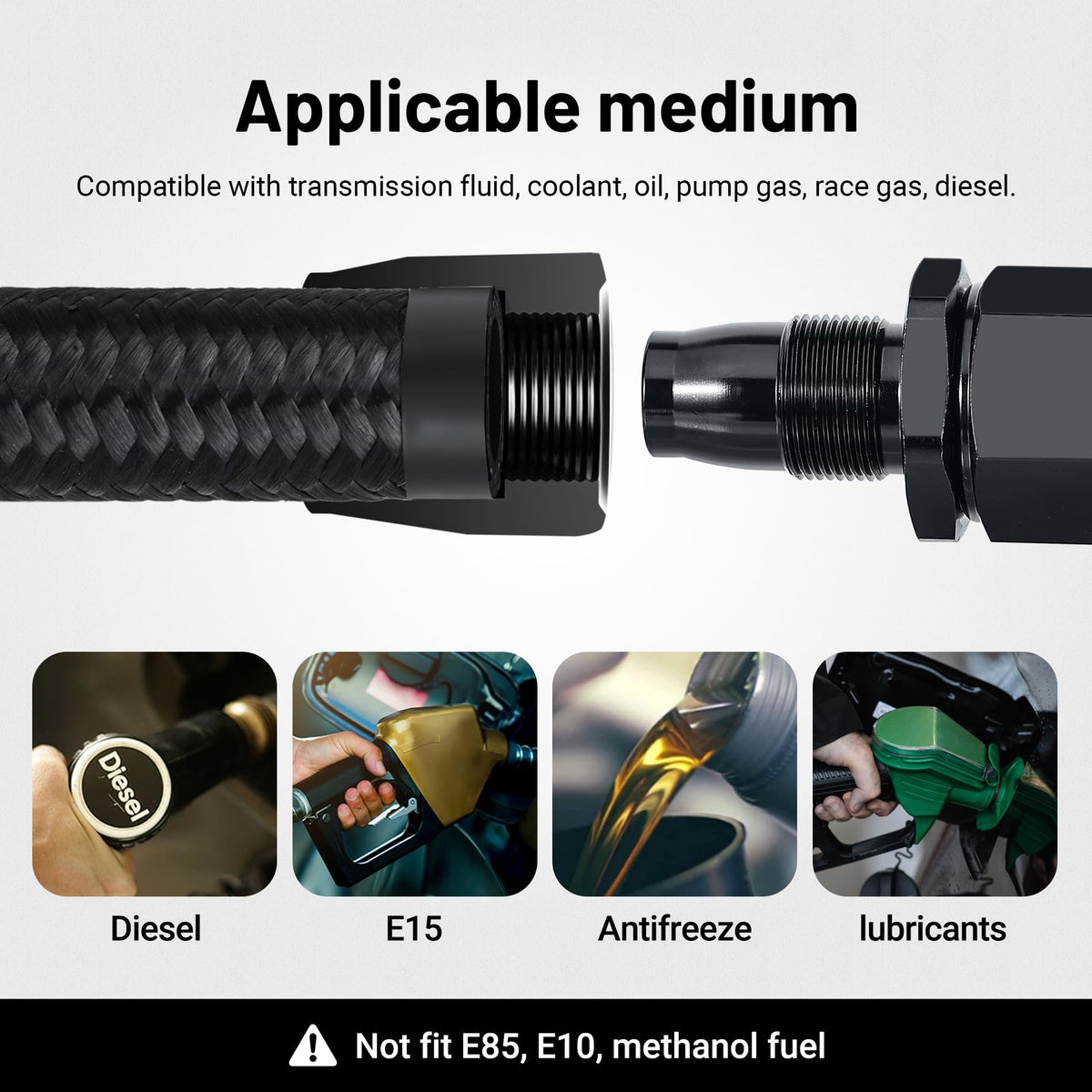

Which fluids and systems is this AN10 braided hose compatible with?

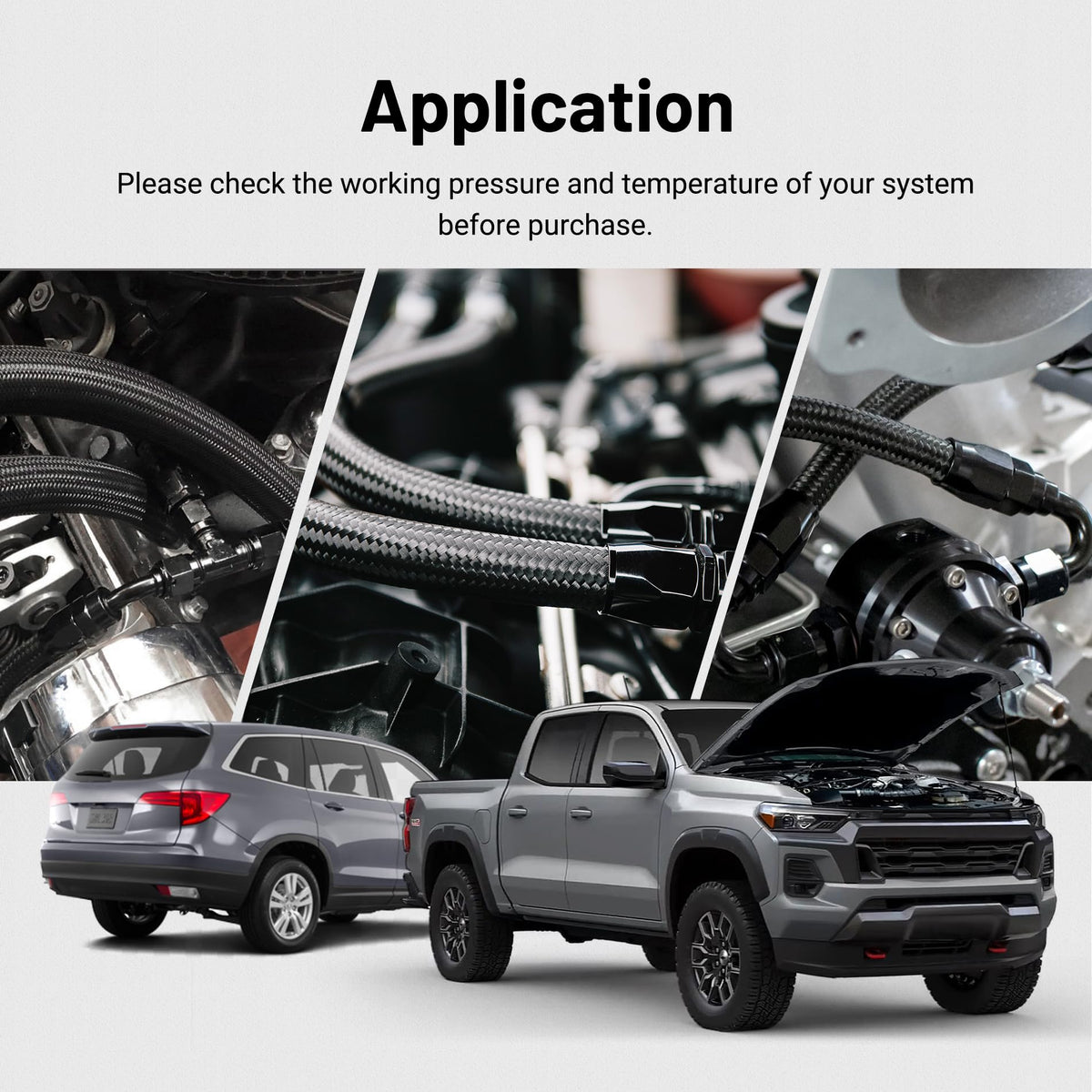

The materials were selected for broad compatibility with automotive and industrial fluids. Use it for fuel delivery, oil return lines, transmission cooling, and many hydronic or vacuum applications where AN10 sizing is required.

• Compatible with gasoline (including race blends), diesel, and many fuel additives
• Works for motor oil, transmission fluid, hydraulic fluid, vacuum lines, and coolant return in approved setups
• Not a replacement for specialized chemical lines without verifying chemical compatibility

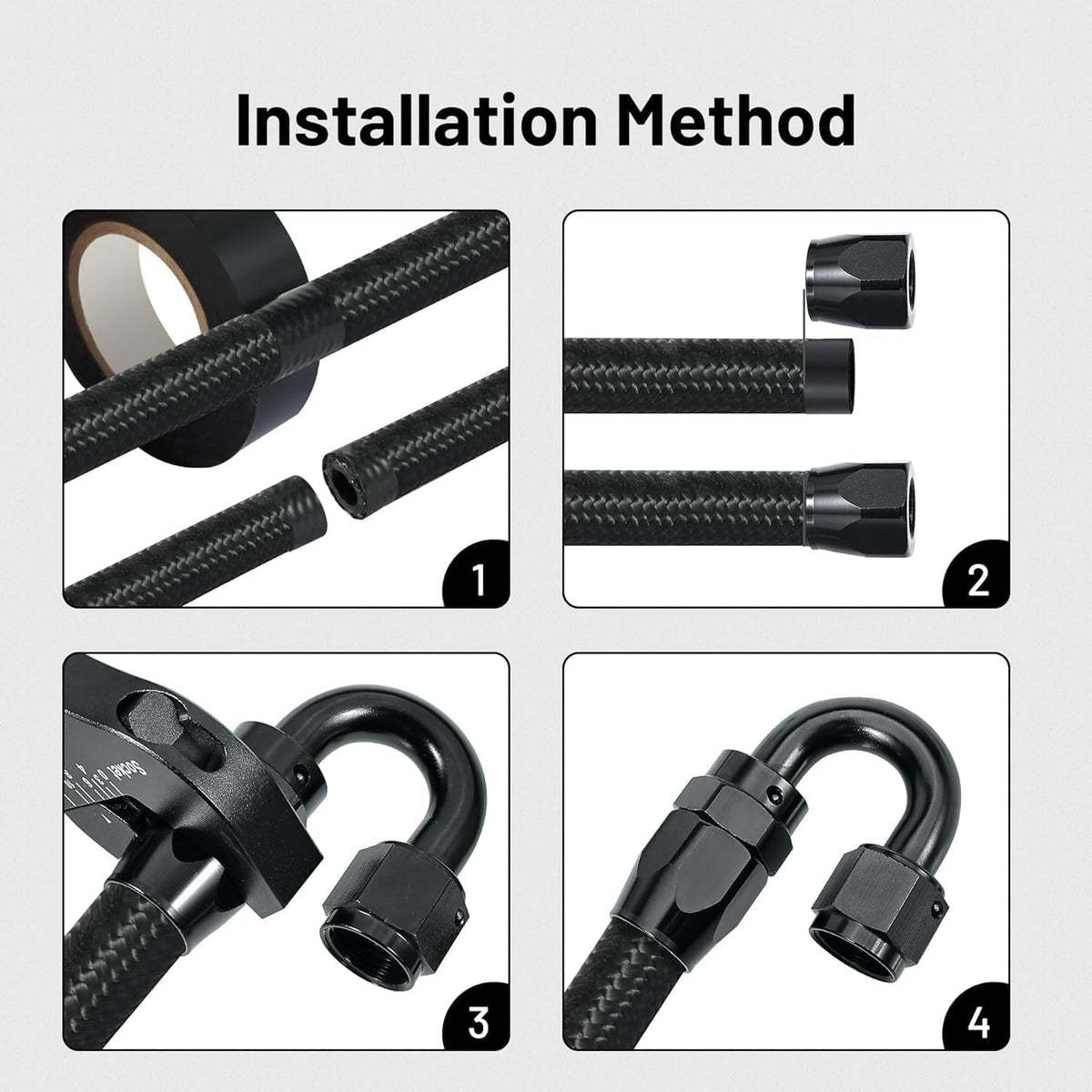

What installation details should I plan for when using this fuel line kit?

Measure routing carefully before trimming the 10ft hose and choose fittings rated for AN10 size to preserve pressure ratings. Support the hose at regular intervals and avoid sharp contact points that could abrade the nylon braid.

• Trim with a fine-tooth blade or hose cutter to square the end and prevent fraying
• Use properly matched AN10 fittings and clamps; tighten to manufacturer torque specs
• Inspect after first heat cycle and periodically for wear, chafe, or leak paths

Who this is for: Mechanics, fabricators, racers and DIY enthusiasts needing a flexible, high-pressure AN10 line for fuel, oil, transmission cooling, or hydraulic tasks will find this EVIL ENERGY CPE inner, 304 steel-reinforced and nylon-braided hose well suited to performance and maintenance projects. It fits builds that require a 10ft length with AN10 inner diameter and demands strong pressure ratings plus broad fluid compatibility.
