EVIL ENERGY AN6 Braided Fuel Hose 20ft Silver — 6AN CPE Core, 750 PSI Working Pressure

This 20-foot AN6 (6AN) braided fuel line from EVIL ENERGY is engineered for automotive and performance applications where reliability, pressure tolerance, and chemical compatibility matter. With a 0.31" inner diameter and 0.56" outer diameter, the hose fits standard 6AN swivel fittings and supports a wide range of fluids including gasoline, diesel, oil, transmission fluid, and hydraulic fluids. The layered construction—CPE inner tube, 304 stainless steel reinforcement, and nylon outer braid—offers a balance of flexibility, abrasion resistance, and working pressure suitable for street and track use.

How tough is this hose under pressure and temperature extremes?

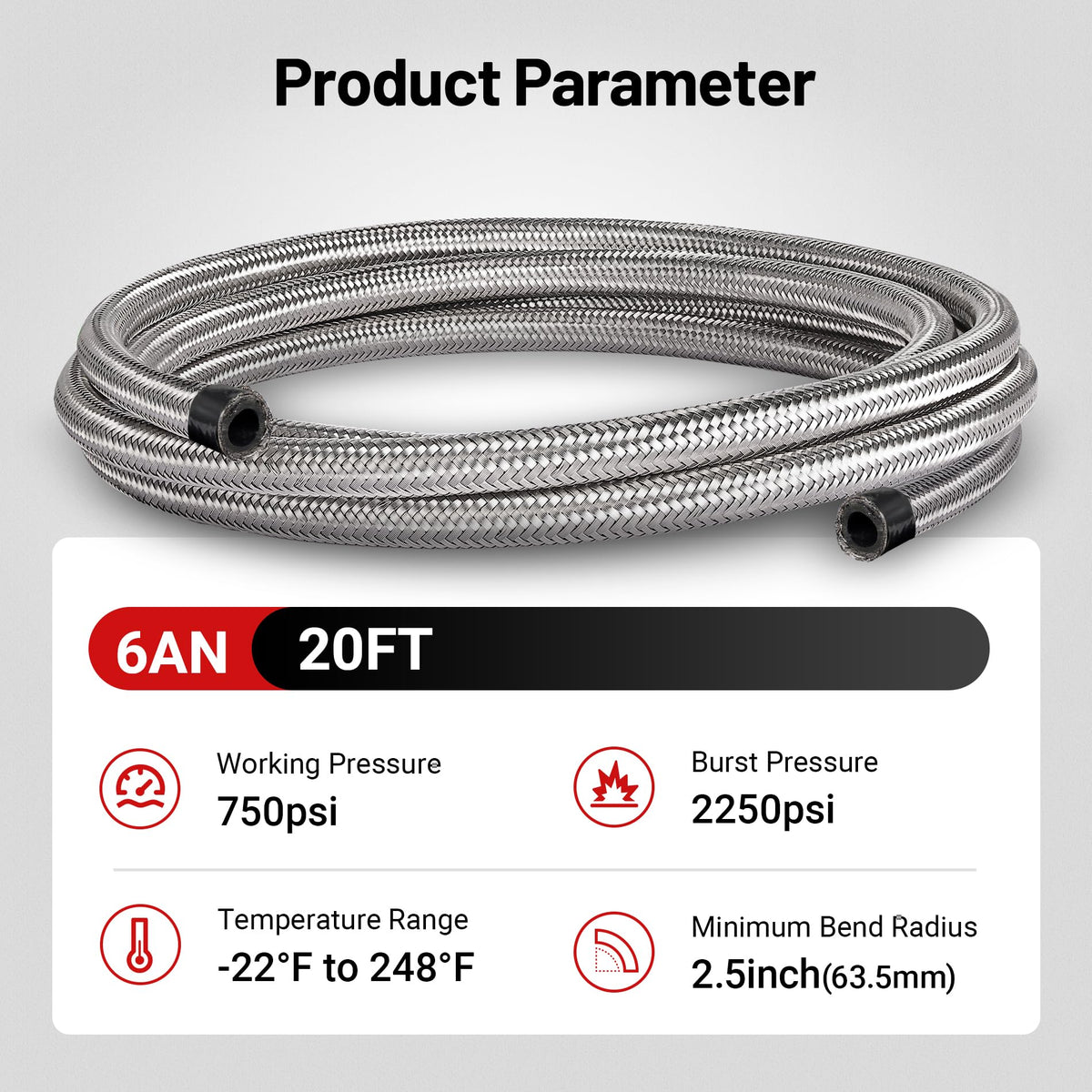

The EVIL ENERGY AN6 braided hose is rated for a maximum working pressure of 750 PSI and a bursting pressure of 2,250 PSI, giving a wide safety margin for most automotive uses. It is also designed to operate across a broad temperature range so it remains functional in both cold starts and hot engine bays.

• Maximum working pressure: 750 PSI
• Bursting pressure: 2,250 PSI
• Temperature range: -22°F to 248°F (-30°C to 120°C)

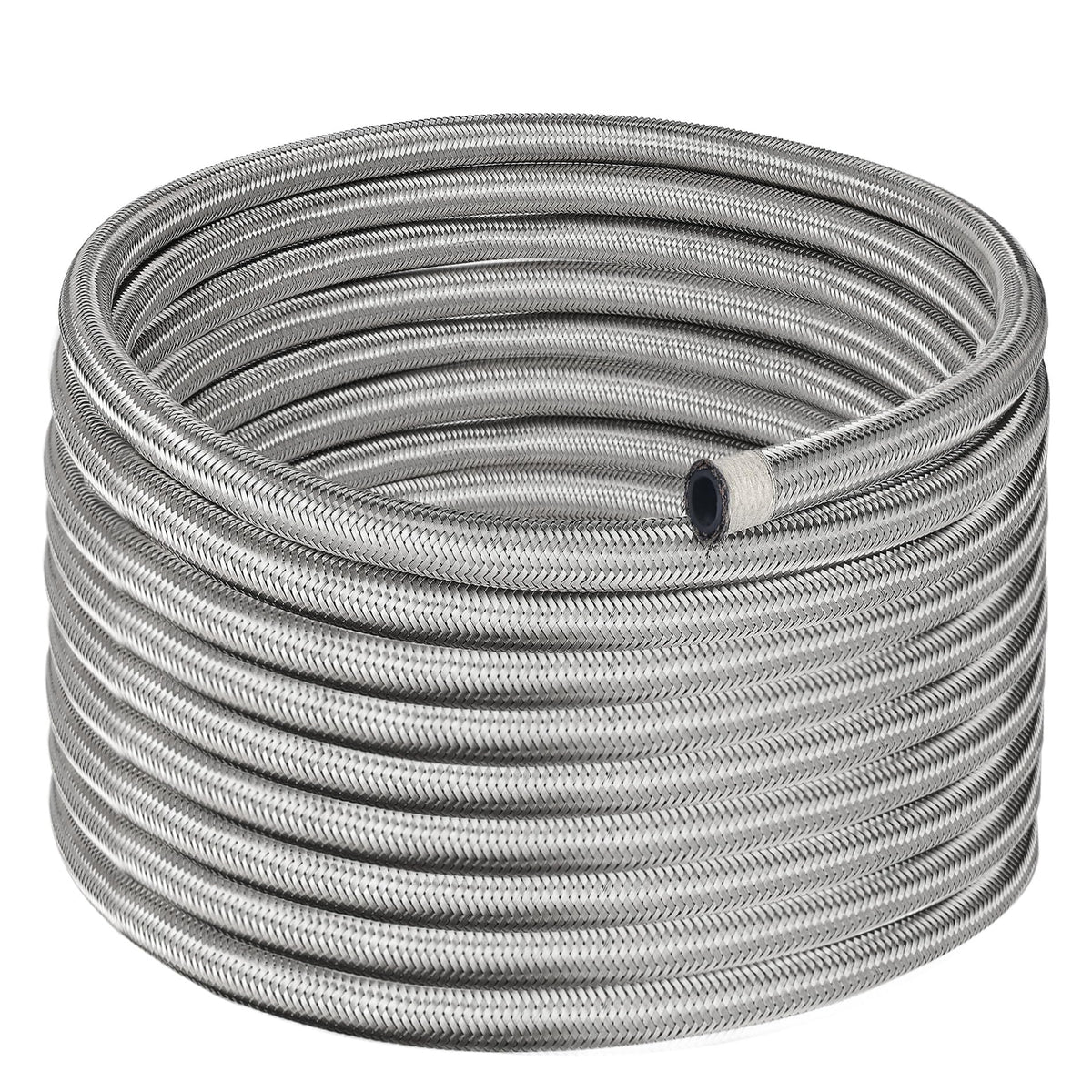

• 20 feet length for long runs without splice points

Which fluids and systems can I run through this AN6 hose?

This line is formulated to be compatible with a broad list of automotive and performance fluids. It's suitable for fuel supply and return lines, oil feed and cooler lines, vacuum and gauge lines, turbo cooler connections, and other low- to mid-pressure fluid circuits.

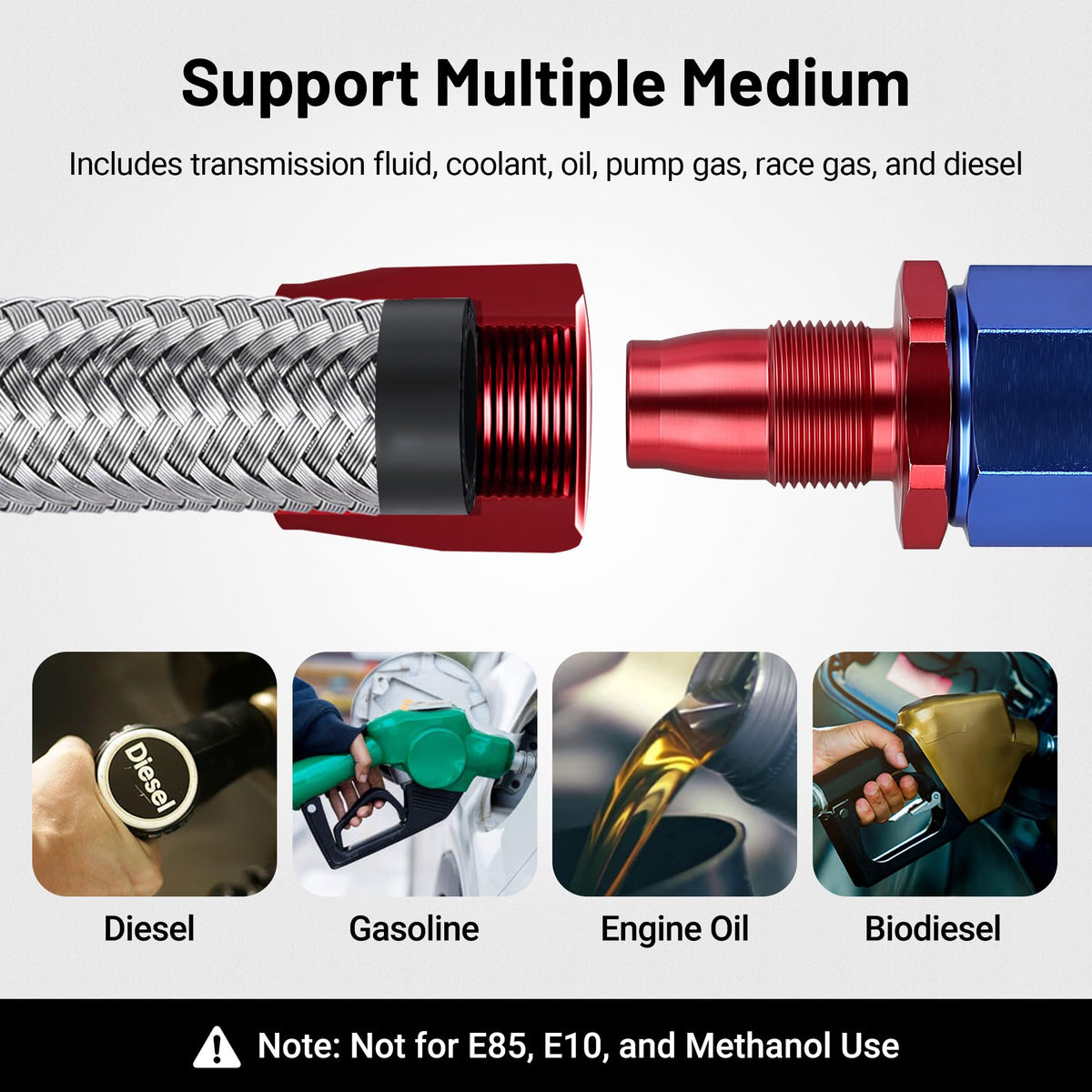

• Compatible with fuel, race gas, diesel, and fuel blends
• Works with oil, transmission fluid, hydraulic fluid, and coolant in many applications
• Not intended for use with aggressive chemical solvents without verification
• Use with 6AN swivel hose ends only for proper sealing

What are the construction details and installation needs?

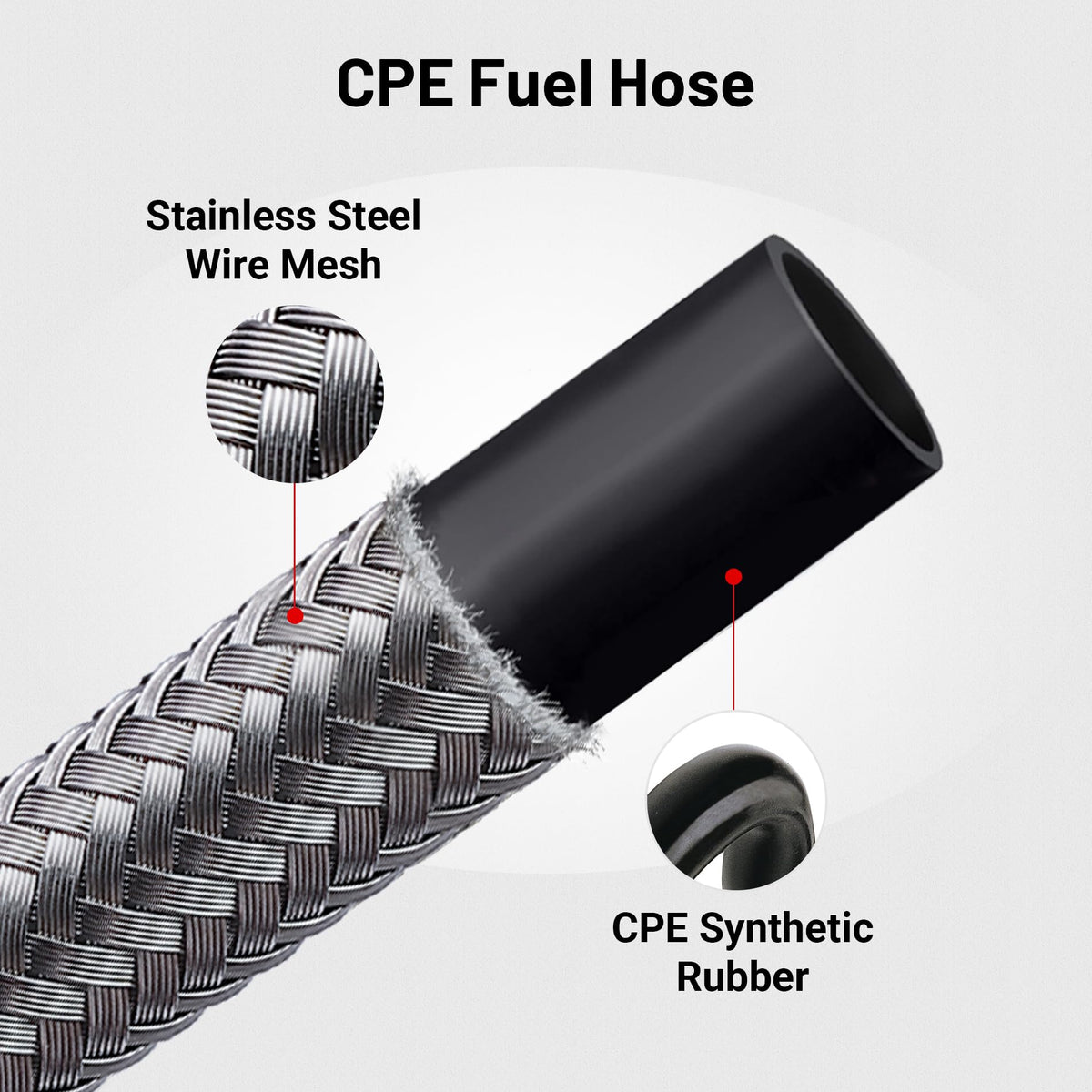

The hose uses a CPE (chlorinated polyethylene) inner tube for chemical resistance, wrapped in 304 stainless steel wire for reinforcement, and finished with a nylon braid to protect against abrasion and heat. It accepts 6AN swivel fittings and includes basic installation instructions; ensure correct clamping and routing to avoid sharp bends or chafing.

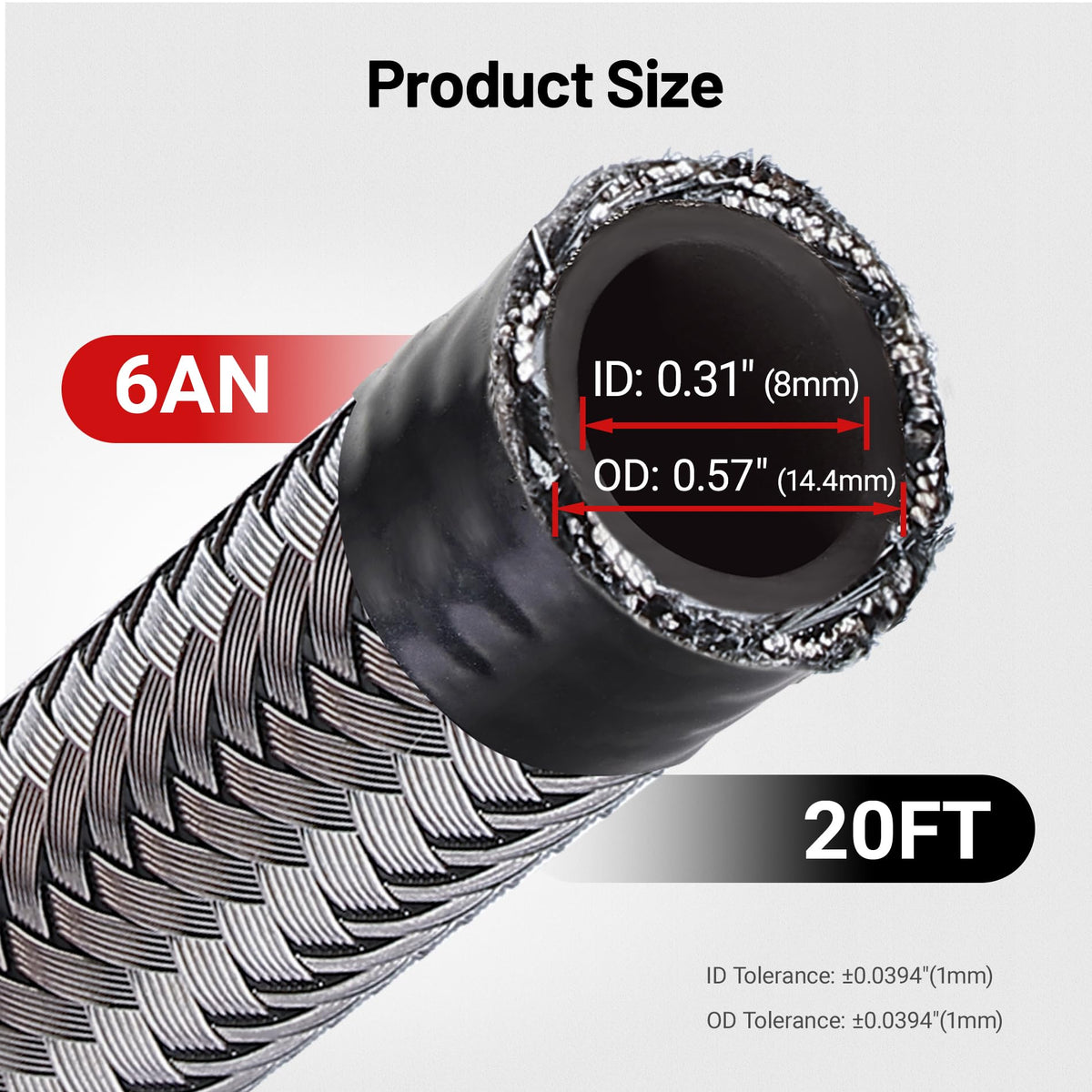

• Inner diameter (ID): 0.31 inches; outer diameter (OD): 0.56 inches
• Material layers: CPE inner tube, 304 steel wire reinforcement, nylon outer braid
• Length: 20 feet — cut to fit, end fittings required (6AN swivel hose end)
• Installation guide included; trim with hose cutter and secure fittings per torque specs

Who is this for? EVIL ENERGY's AN6 20ft braided fuel hose suits builders, tuners, racers, and DIY mechanics who need a long run of reliable AN6 plumbing. Choose this hose if you want a corrosion-resistant reinforcement layer, broad fluid compatibility, and a long, single-length line to minimize connectors and potential leak points. If your project uses specialized chemicals or requires extreme temperature performance beyond the specified range, verify compatibility or select a purpose-specific hose.
