EVIL ENERGY AN6 Braided Fuel Hose 25FT Black — CPE Core, 750 PSI Working

A 25-foot AN6 braided fuel hose from EVIL ENERGY built with a CPE inner tube, 304 stainless wire reinforcement and nylon outer braid for durable, high-pressure fuel and fluid routing.

This EVIL ENERGY 6AN fuel line is engineered for vehicle performance and industrial use where a flexible, abrasion-resistant hose is required. It combines a chemically resistant CPE rubber core with a stainless-steel reinforcement layer and a protective nylon braid to handle a wide range of fuels and fluids across a broad temperature window. The hose is sized for AN6 swivel fittings and supplied in a convenient 25-foot length, making it suitable for installations that need longer runs without multiple joints.

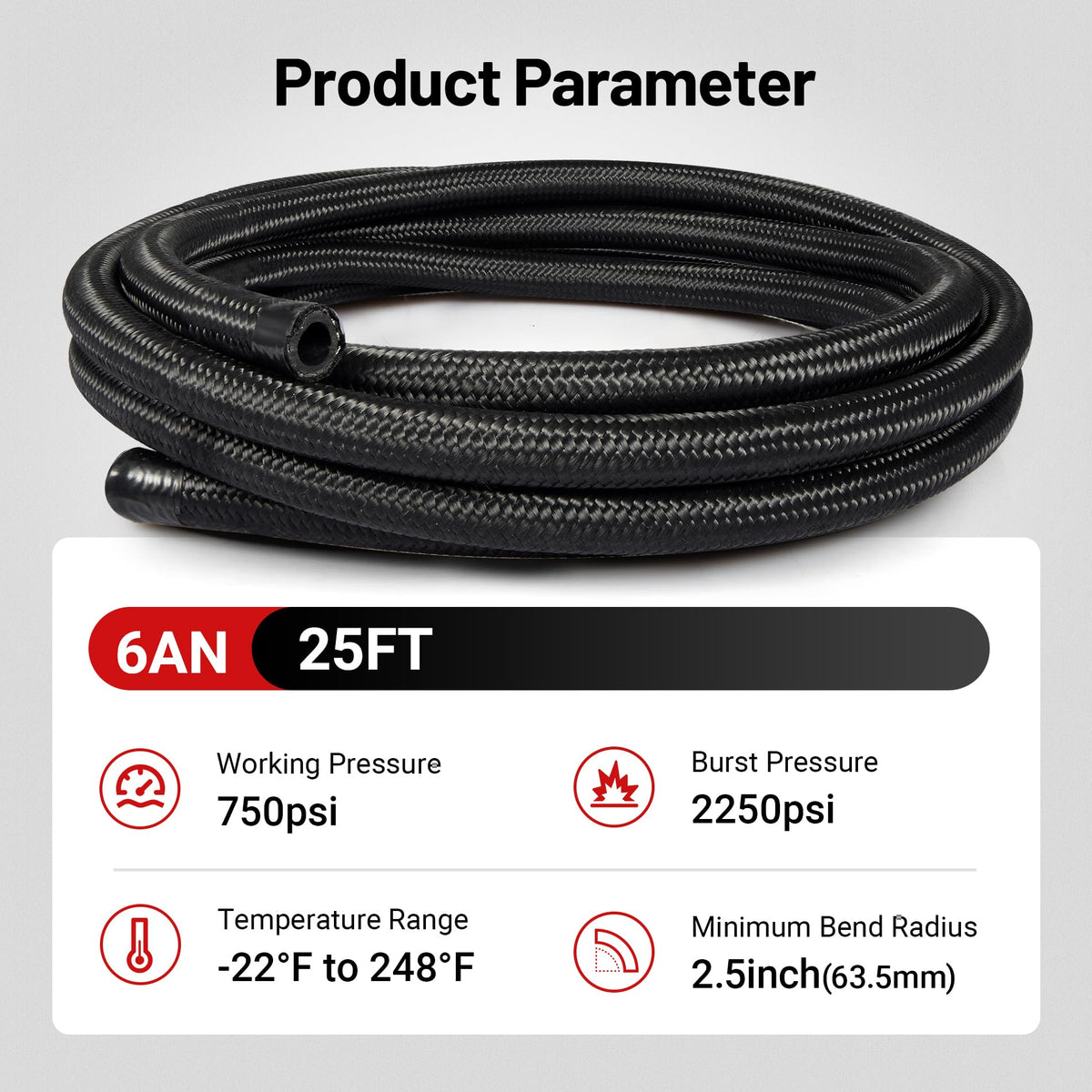

How tough is this hose under pressure and temperature extremes?

The hose is rated for continuous service at up to 750 PSI and can survive an ultimate burst near 2,250 PSI, giving a large safety margin for many automotive and performance applications. Its working temperature range spans from -22°F to 248°F, so it performs through cold starts and high-heat engine compartments without rapid degradation.

• Maximum working pressure: 750 PSI for routine use
• Burst pressure: approximately 2,250 PSI for safety margin
• Operating temperature range: -22°F to 248°F
• Durable materials resist heat, abrasion, and many automotive fluids

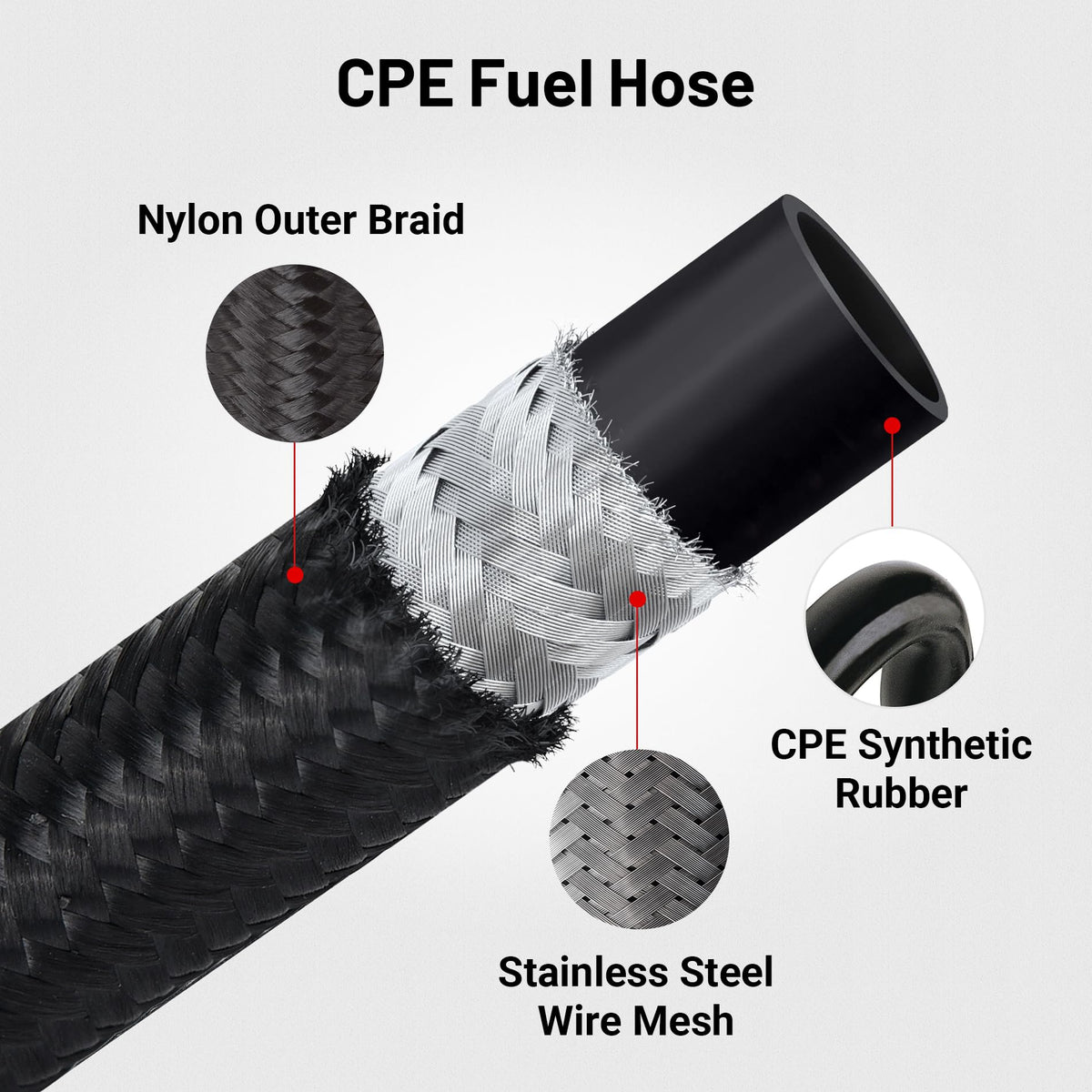

What materials and construction provide this hose's durability?

Construction uses a CPE rubber inner liner that resists fuel and chemical exposure, reinforced by a 304-grade stainless-steel wire braid for hoop strength, and finished with a nylon outer sheath for abrasion and UV resistance. Those layers work together to reduce permeation, avoid kinking, and extend service life in harsh environments.

• Inner layer: chemical-resistant CPE rubber for fuel compatibility
• Reinforcement: 304 stainless steel wire for pressure strength
• Outer braid: nylon for abrasion and UV protection
• Designed specifically for use with AN6 swivel hose ends

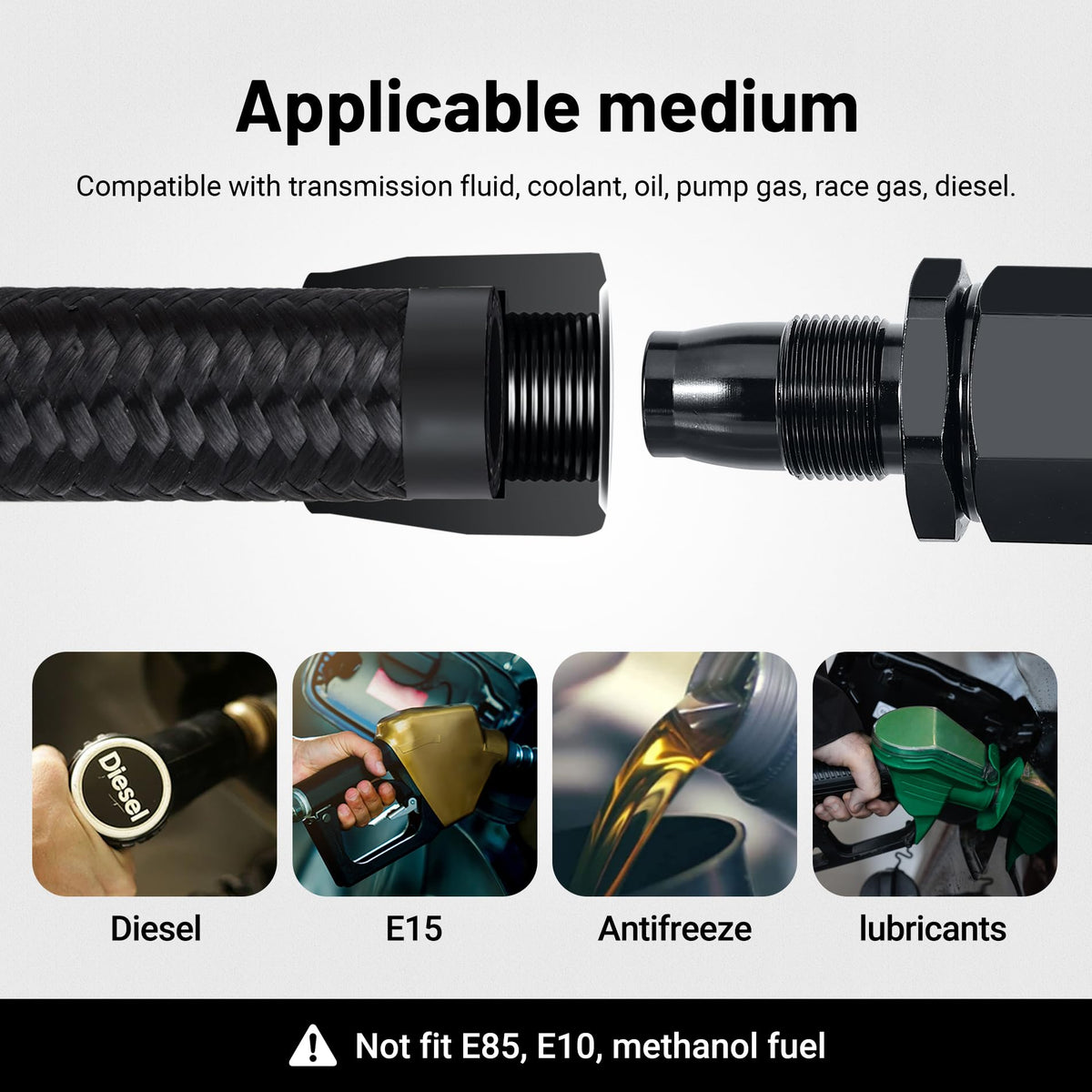

Which fluids and applications is the 6AN hose compatible with?

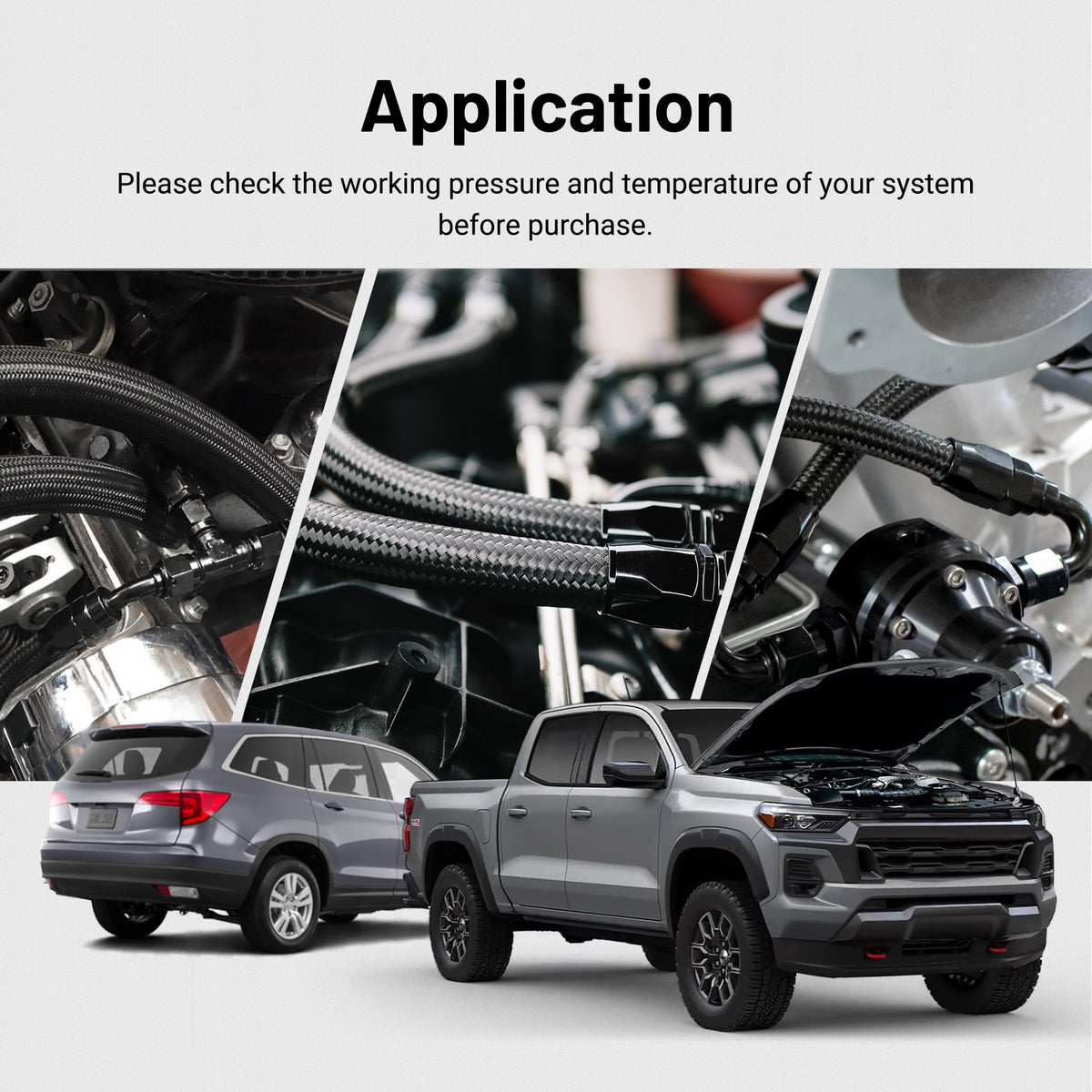

This braided line handles a wide spectrum of automotive and industrial liquids, including gasoline blends used in racing, diesel, oil, transmission fluid, hydraulic fluids, and vacuum lines. Because of its flexibility and pressure rating, it's commonly used for fuel supply and return, turbo cooler and oil feed lines, and coolant or transmission oil cooler connections.

• Compatible fluids: race gas, diesel, fuel, oil, transmission fluid, hydraulic fluid
• Common uses: fuel supply/return, oil feed, turbo cooler lines, coolant and vacuum lines
• Works with AN6 swivel hose ends only—requires appropriate fittings
• Supplied length minimizes coupling needs for long runs

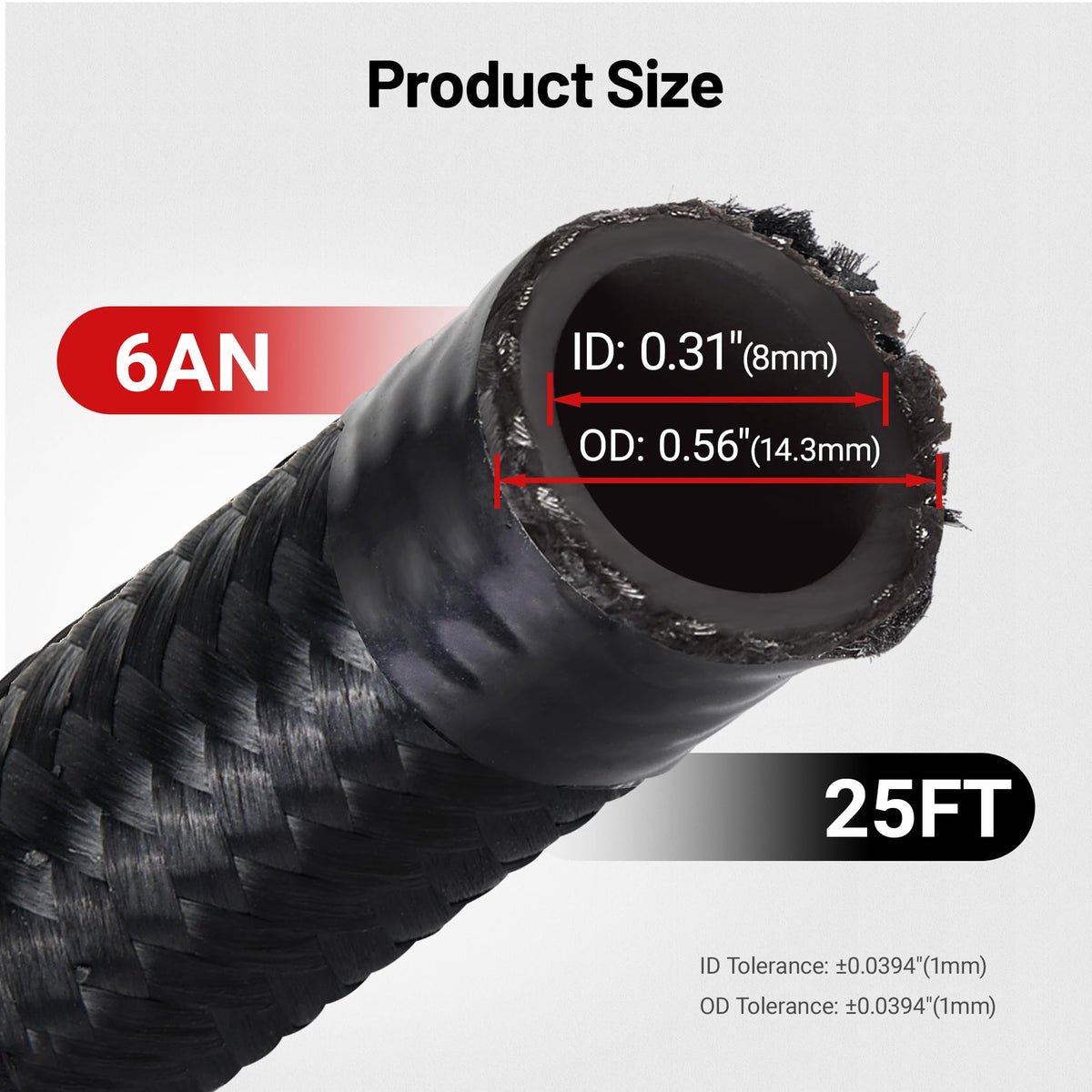

What are the hose dimensions and installation notes?

The hose has an internal diameter of 0.31 inches and an overall outside diameter of 0.56 inches, supplied as a 25-foot coil. Installation instructions are included; note that proper AN6 swivel fittings are required to attach the hose securely and maintain rated pressure performance.

• Hose ID: 0.31 inch — fits AN6 applications
• Hose OD: 0.56 inch — compact routing in tight areas

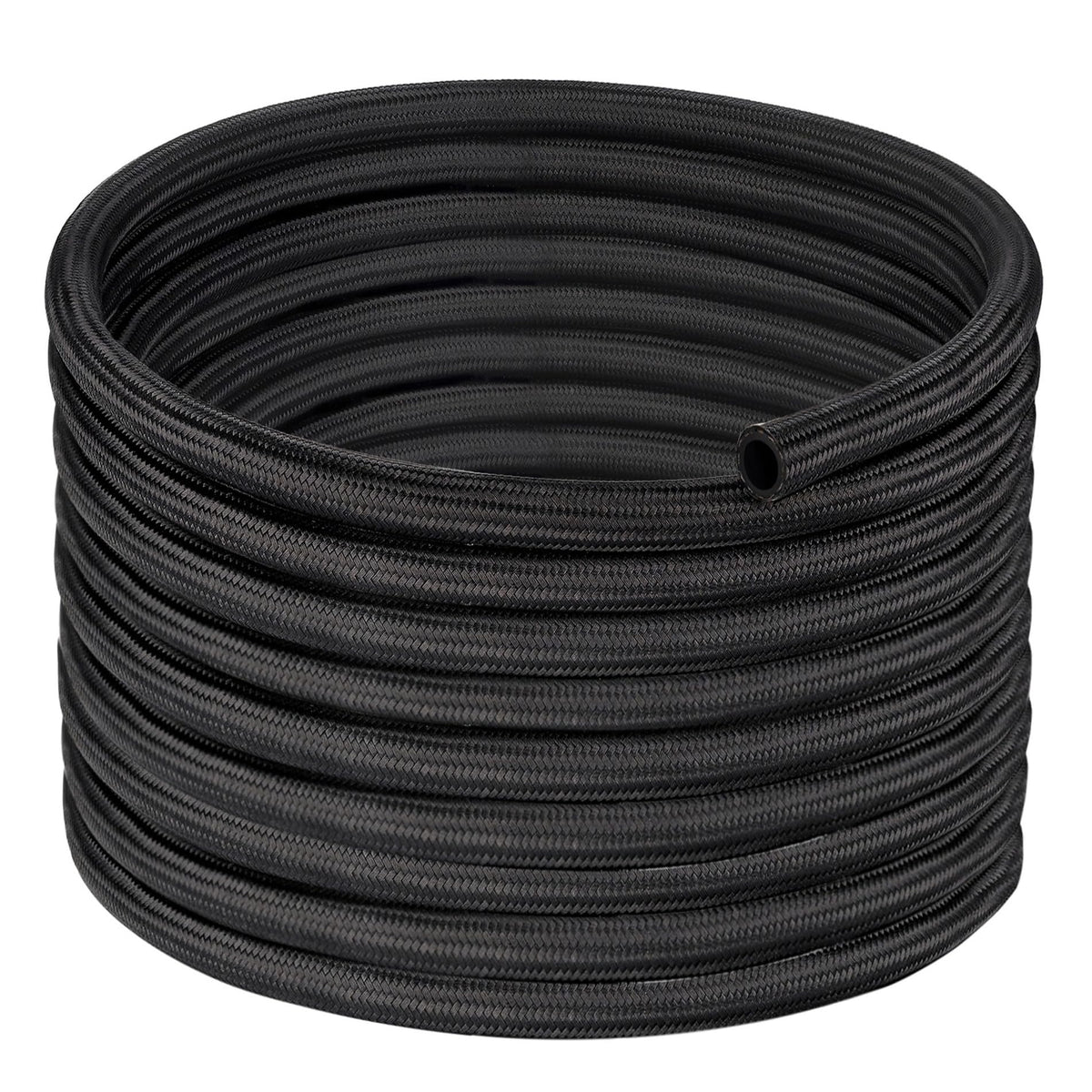

• Length: 25 feet — long continuous runs with fewer joints
• Includes installation instructions; use AN6 swivel hose ends only

Who this is for: The EVIL ENERGY 6AN braided fuel line suits automotive builders, performance tuners, motorsport teams and technicians who need a flexible, durable hose for fuel, oil, and fluid systems. It’s ideal when you want a long, single-piece run with strong pressure capacity and resistant materials for demanding engine-bay environments.
