EVIL ENERGY AN6 braided fuel hose 5ft - CPE core, 750 PSI working pressure

EVIL ENERGY 6AN braided fuel line is a 5-foot, nylon-braided AN6 hose with a CPE inner core and 304 steel reinforcement engineered to handle up to 750 PSI working pressure for fuel, oil, and fluid-transfer applications.

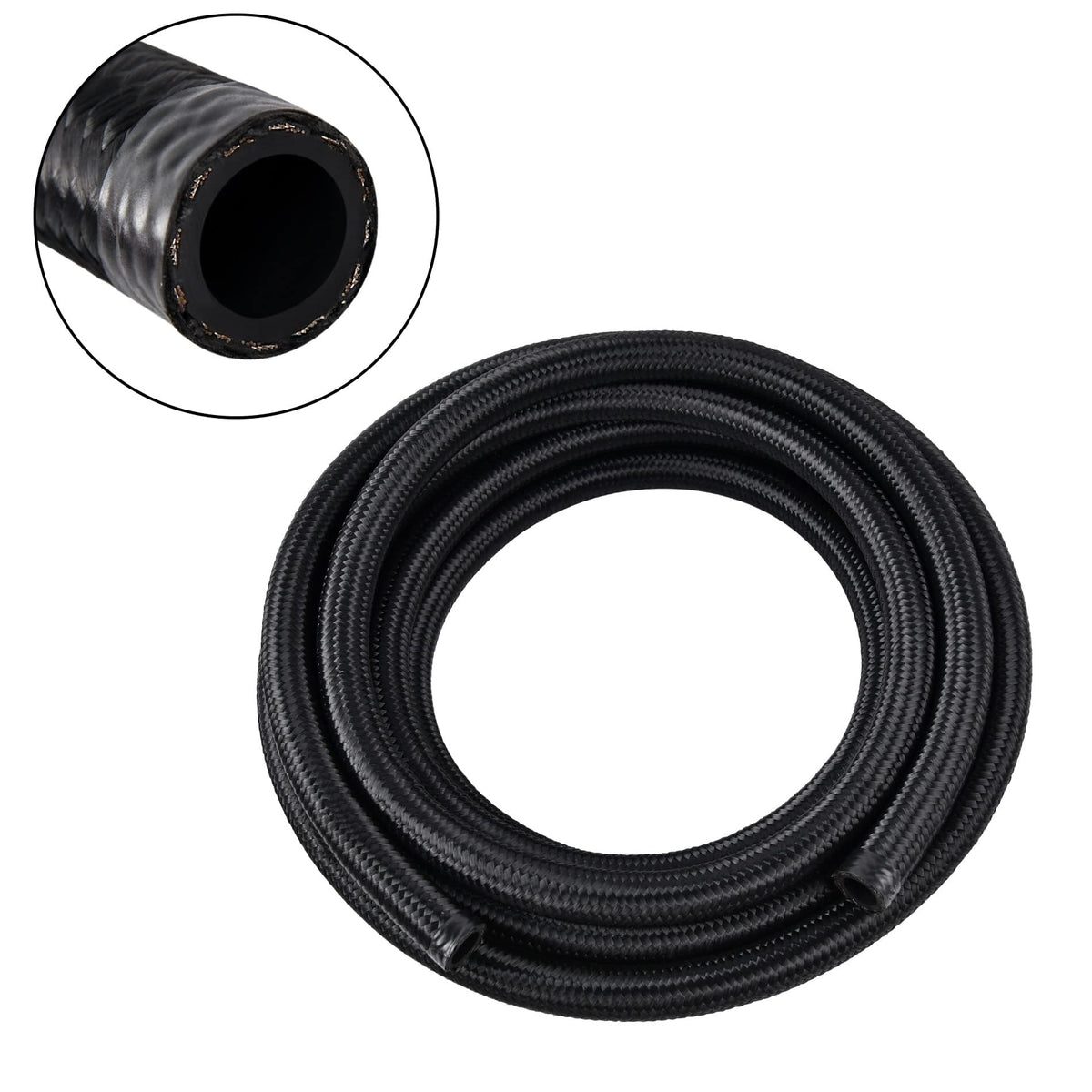

This 6AN braided hose from EVIL ENERGY combines a CPE rubber inner layer, a 304 stainless-steel wire reinforcement, and a durable nylon outer braid to deliver a resilient, flexible line for motorsport, performance, and industrial uses. Its 0.31" inner diameter and 0.56" outer diameter fit standard 6AN swivel fittings, and the included installation guidance helps you integrate the hose into fuel systems, oil coolers, vacuum lines, or turbo feeder circuits.

How rugged is this hose under pressure and temperature?

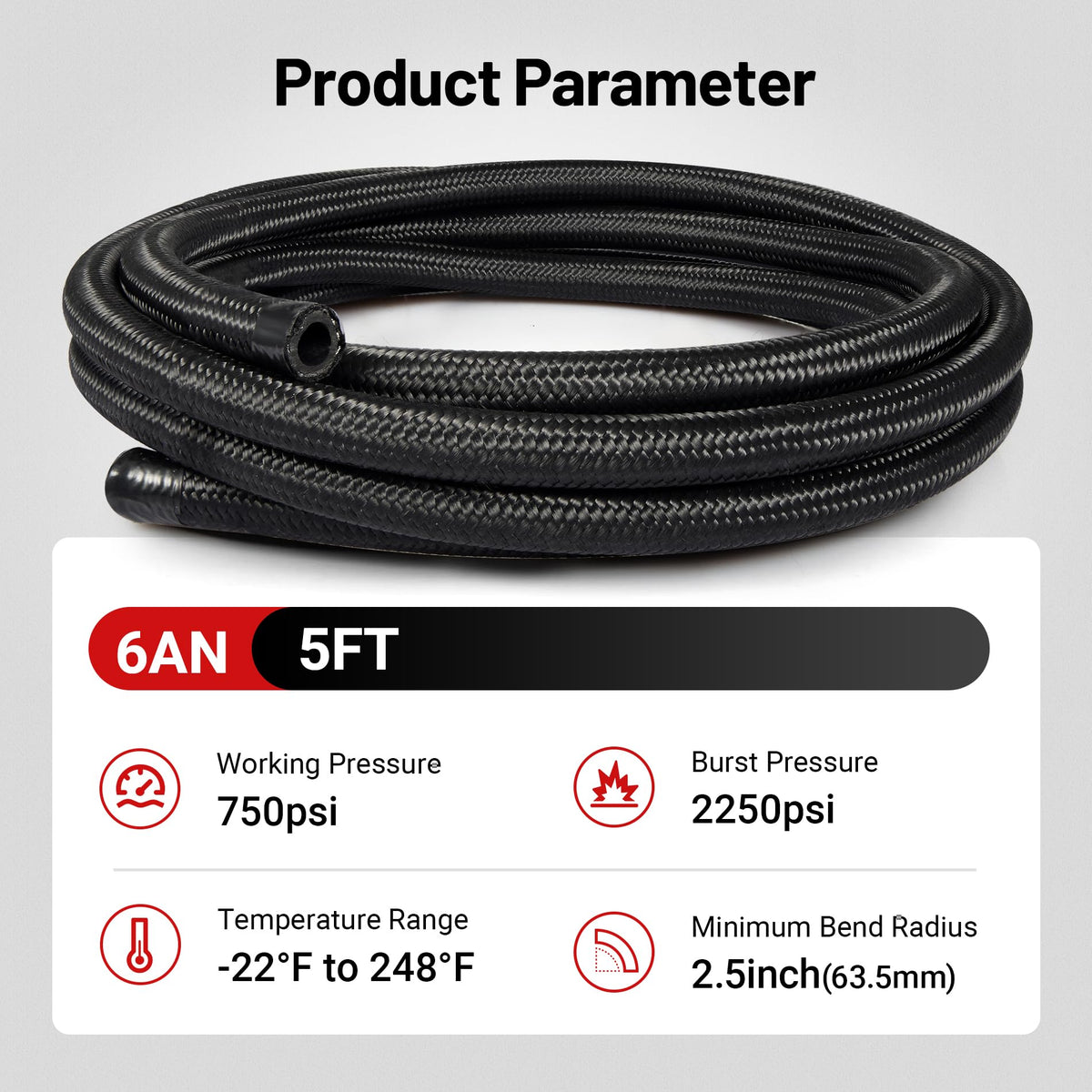

The EVIL ENERGY AN6 fuel line is built for demanding environments: it supports a maximum working pressure of 750 PSI and a bursting pressure of 2,250 PSI. The CPE core resists many automotive fluids while the stainless-steel braid adds tensile strength and abrasion protection.

• Working pressure: 750 PSI for sustained operation.
• Burst pressure: 2,250 PSI for safety margin.
• Temperature range: -22°F to 248°F for varied climates.

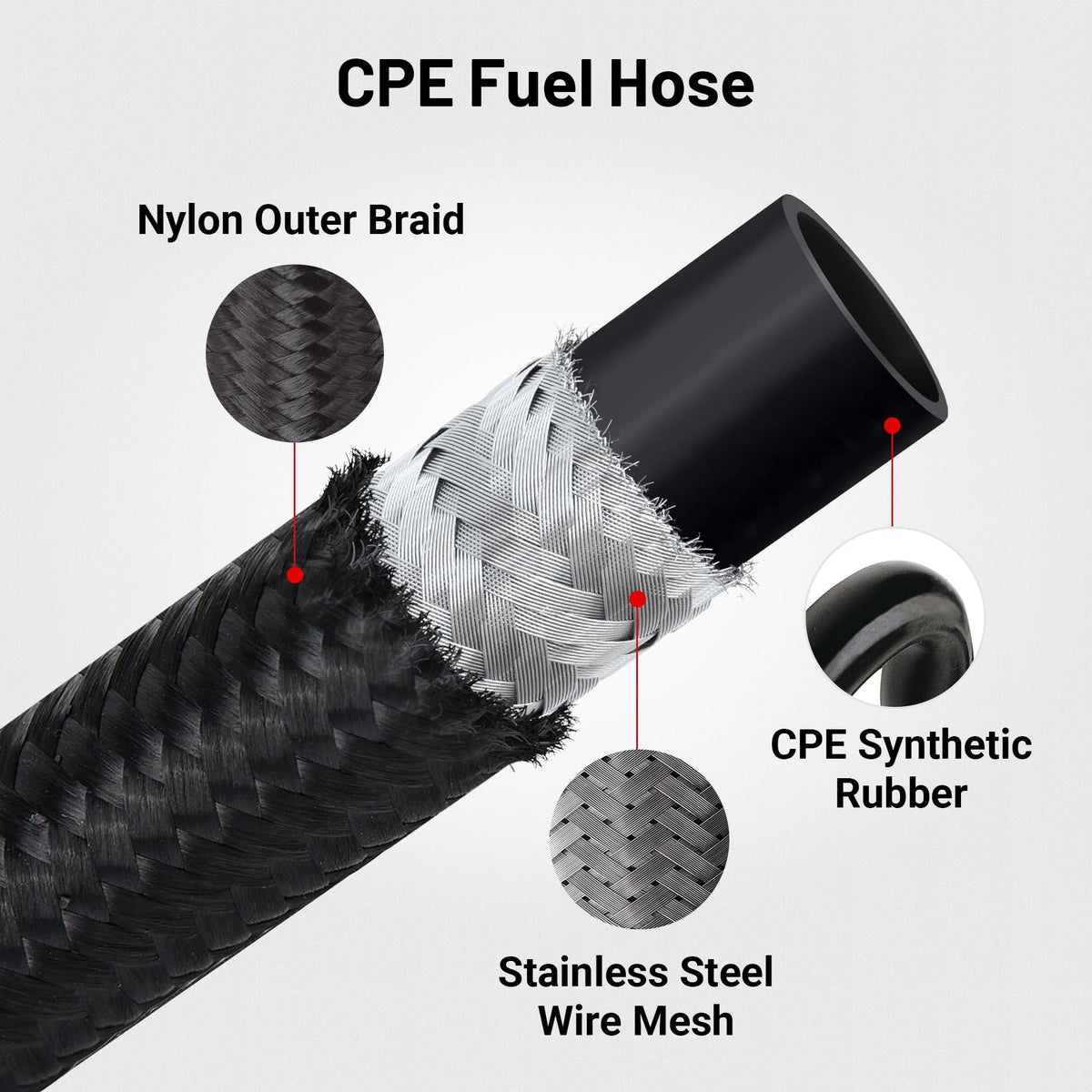

• Construction: CPE inner, 304 steel wire reinforcement, nylon outer braid.

Which fluids and systems are compatible with this AN6 braided hose?

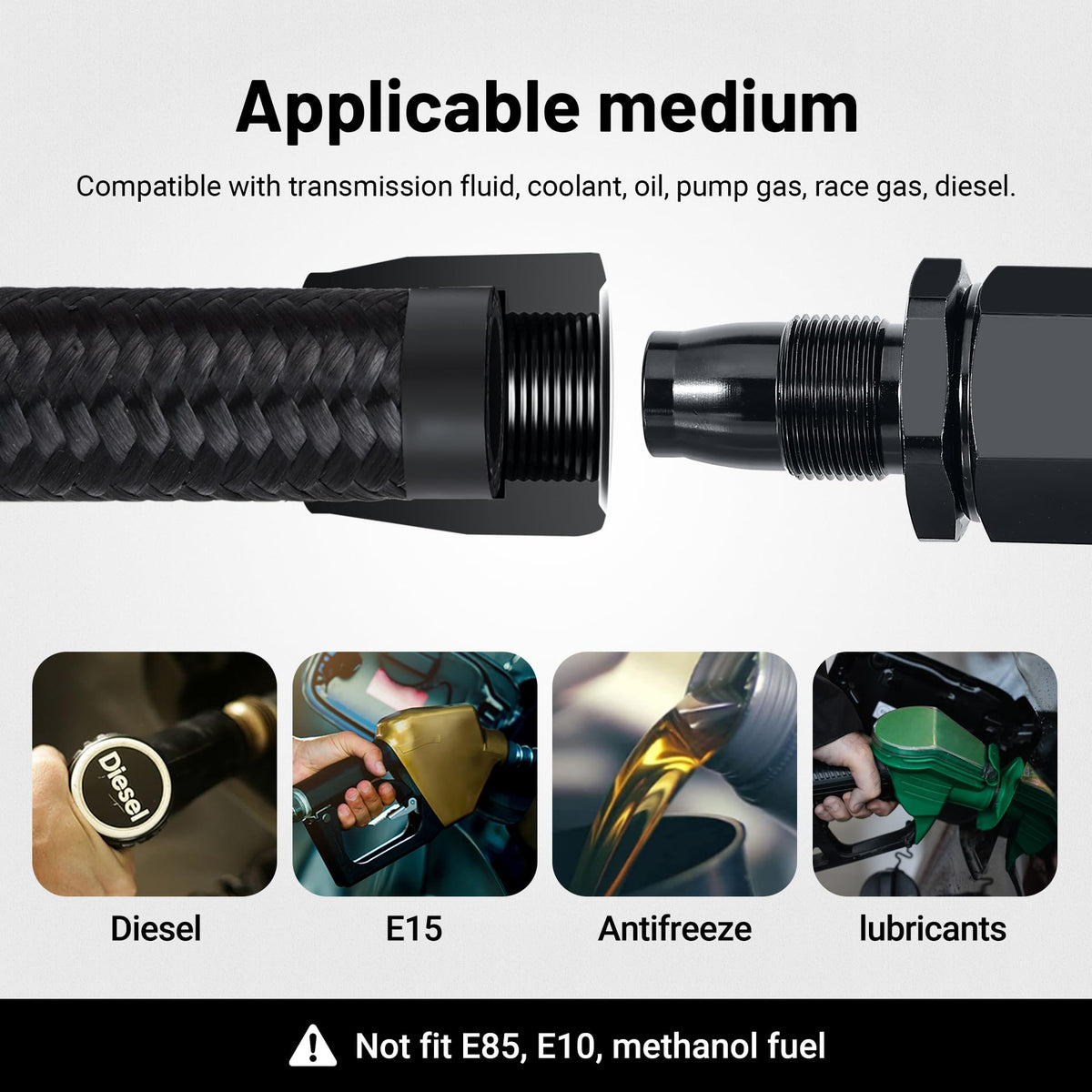

This 6AN braided fuel hose is chemically compatible with a wide range of automotive and industrial fluids, including gasoline, diesel, transmission fluid, hydraulic fluid, oil, and many race fuels. Its materials are selected to minimize swelling and degradation when exposed to common fuels and lubricants.

• Fuel: gasoline, diesel, and most race fuels.
• Fluids: transmission fluid, hydraulic fluid, and engine oil.
• Other uses: vacuum lines, fuel gauge lines, and turbo cooler feed lines.
• Note: Works with 6AN swivel hose ends only; check fittings before installation.

What are the size, length, and installation details I should know?

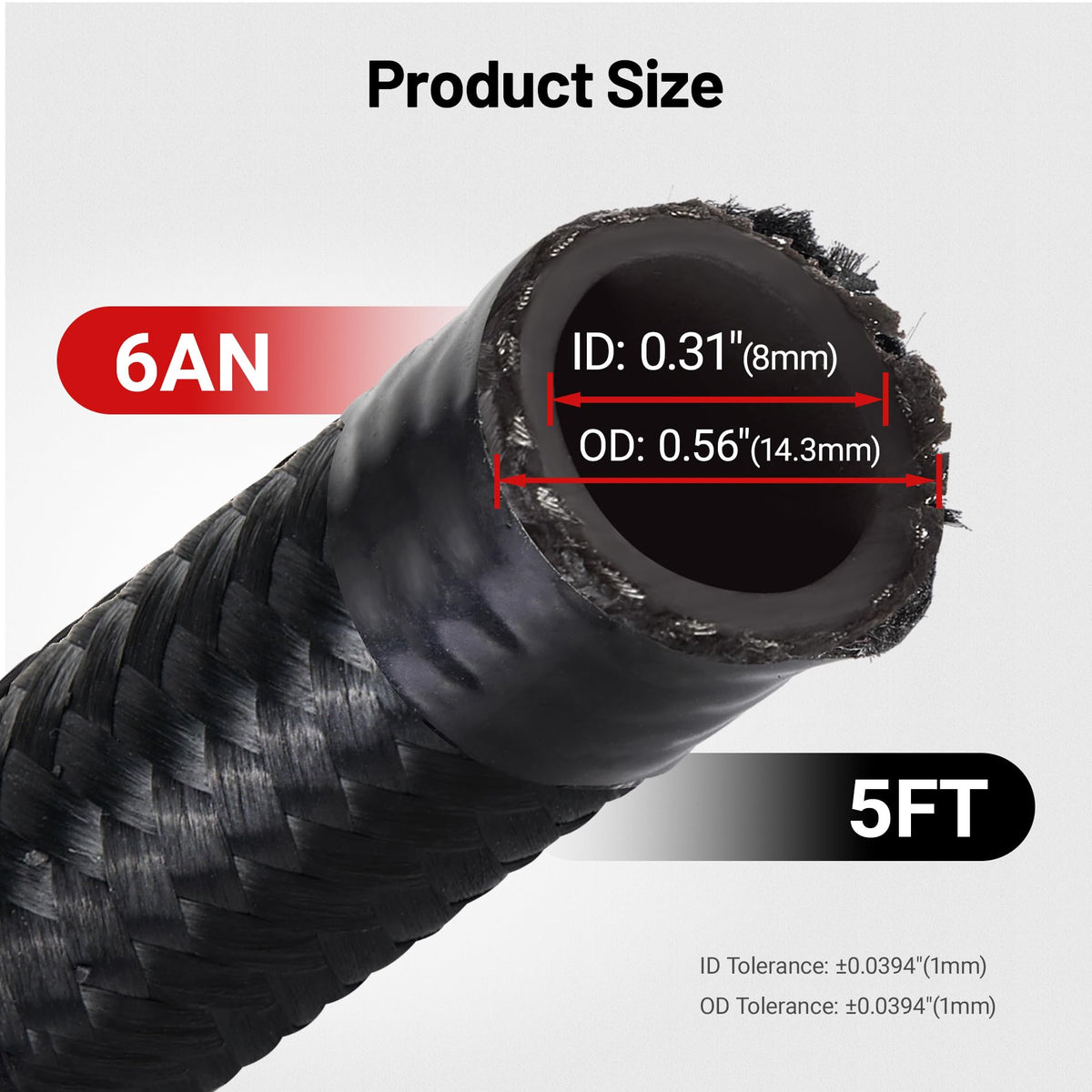

The hose measures 0.31 inch inside diameter and 0.56 inch outside diameter, supplied in a 5-foot length that’s convenient for many routing configurations. Installation instructions are included; this hose requires compatible 6AN swivel fittings and standard cutting and clamping tools to ensure leak-free connections.

• Inner diameter: 0.31 inch (6AN standard).
• Outer diameter: 0.56 inch for tight routing spaces.
• Length: 5 feet—cut to fit; keep ends clean before fitting.
• Installation: fits 6AN swivel hose ends; instructions included.

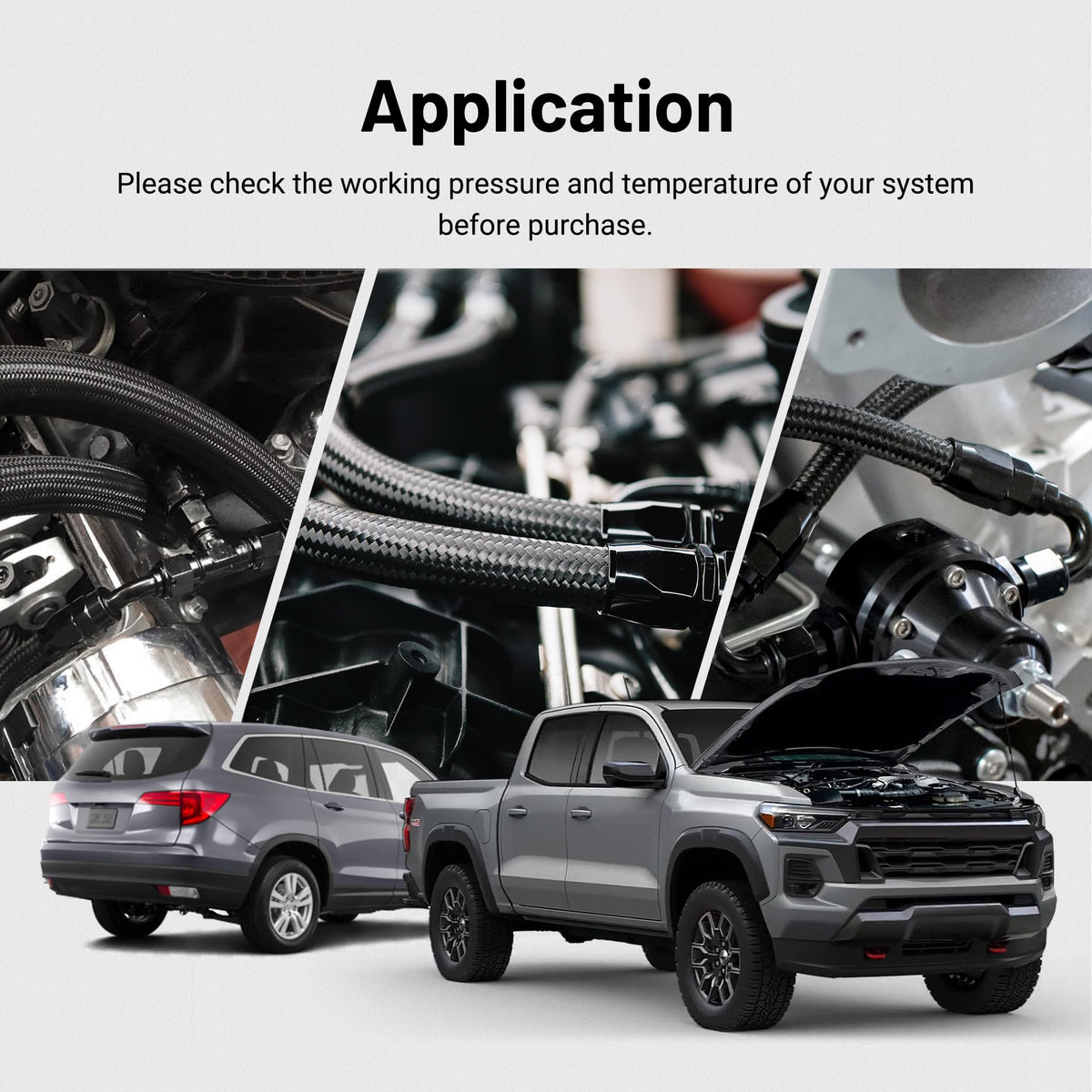

How does the hose hold up in real-world automotive or racing environments?

The layered construction—CPE core, steel wire braid, and nylon jacket—balances flexibility with abrasion resistance, making the hose suitable for visible engine-bay runs and protected under-chassis routing. It resists common chemicals, keeps shape under pressure, and reduces the chance of external wear from chafing or heat exposure when installed properly.

• Abrasion resistance from nylon outer braid for long service life.
• Steel wire reinforcement prevents excessive expansion under pressure.
• Flexible enough for bends typical in engine bays and fuel systems.
• Temperature tolerance supports use in warm or cold climates.

Who is this for: The EVIL ENERGY 6AN braided fuel line is aimed at mechanics, tuners, and motorsport enthusiasts who need a reliable 6AN hose for fuel delivery, oil feeds, coolant bypasses, or turbo plumbing. If you require a flexible yet robust 5-foot hose that fits 6AN swivel fittings and resists common automotive fluids across a wide temperature range, this product provides a practical balance of strength, compatibility, and ease of installation.
