EVIL ENERGY AN6 Braided Fuel Line Hose 10 ft Black — CPE Core & 304 Stainless Braid, 750 PSI

This 6AN (AN6) fuel hose from EVIL ENERGY combines a chemical-resistant CPE inner core, a stainless-steel reinforcement braid, and a nylon outer layer to deliver a durable 10-foot line rated for demanding automotive and motorsport use. It’s engineered to handle high working pressures, wide temperature swings, and repeated bending while remaining compatible with petrol, diesel, oil, transmission fluid and many racing fuels.

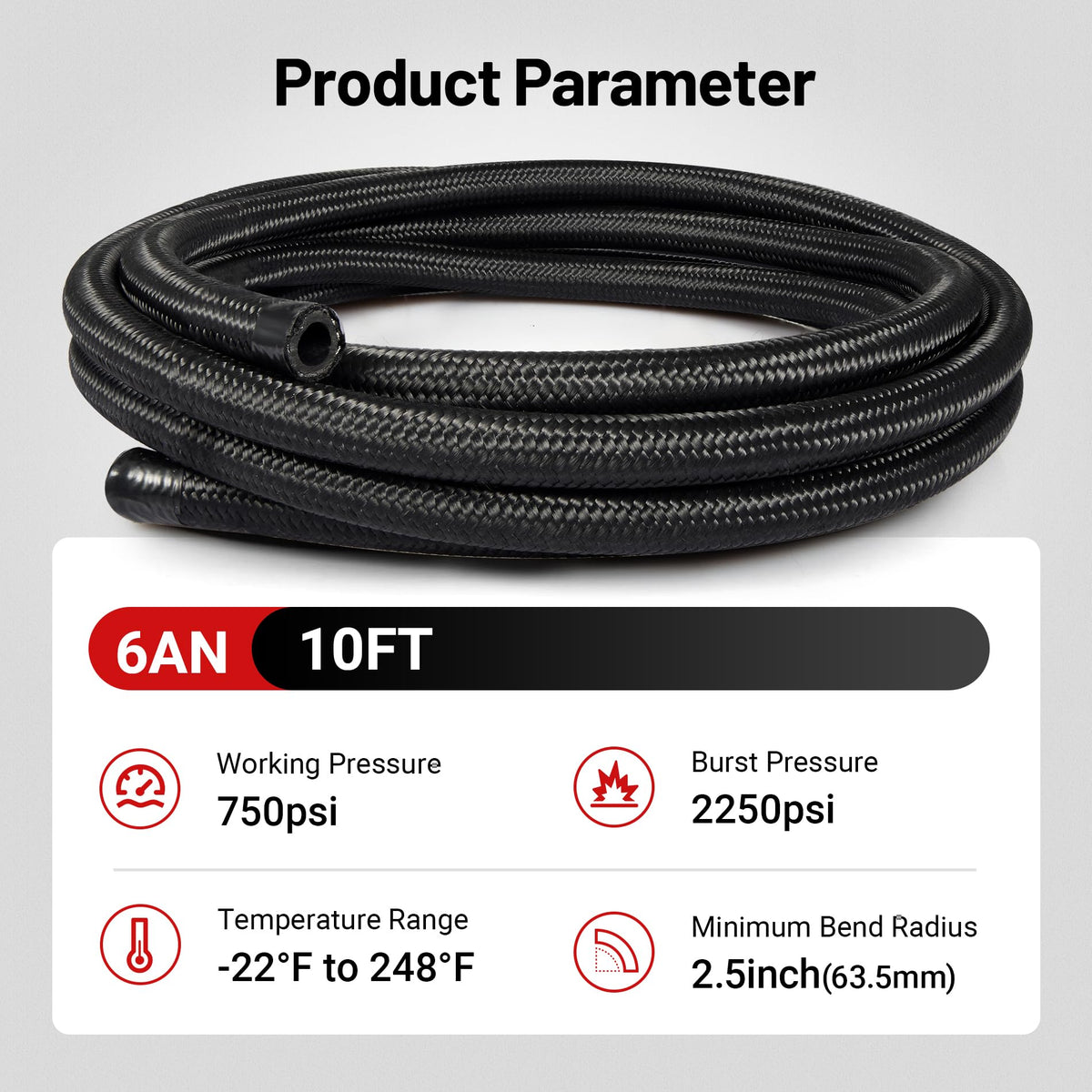

What are the key pressure, temperature and size specifications?

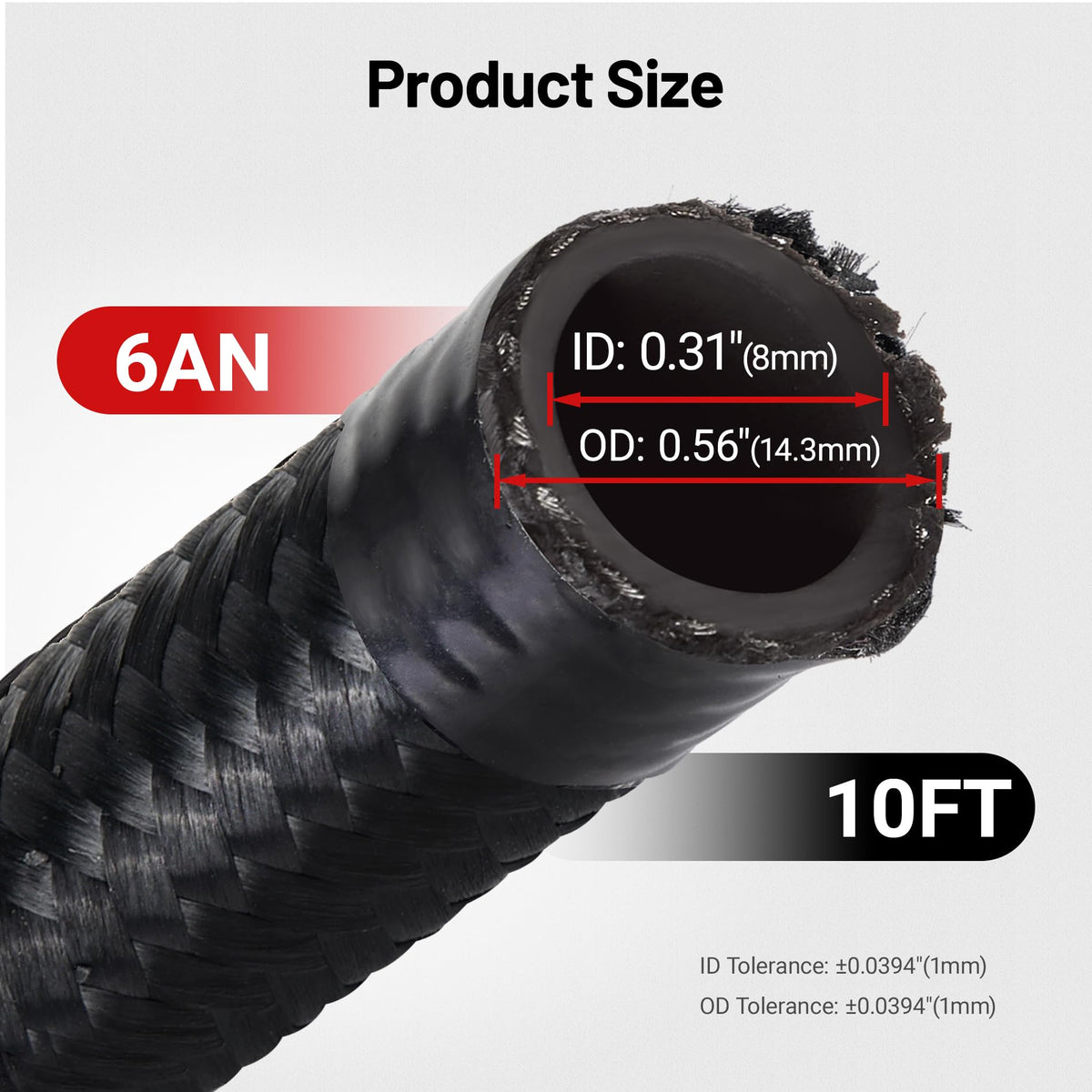

The hose has a 0.31 inch (8 mm) internal diameter and a 0.56 inch (14.3 mm) outside diameter, supplied as a 10-foot length. It is specified for a 750 psi working pressure and a 2250 psi burst pressure, and performs across a broad temperature range from -22°F to 248°F (-30°C to 120°C).

• Inner diameter: 0.31" (8 mm)
• Outer diameter: 0.56" (14.3 mm)
• Length: 10 ft (approx. 3.05 m)
• Working / burst pressure: 750 psi / 2250 psi
• Temperature range: -22°F to 248°F (-30°C to 120°C)

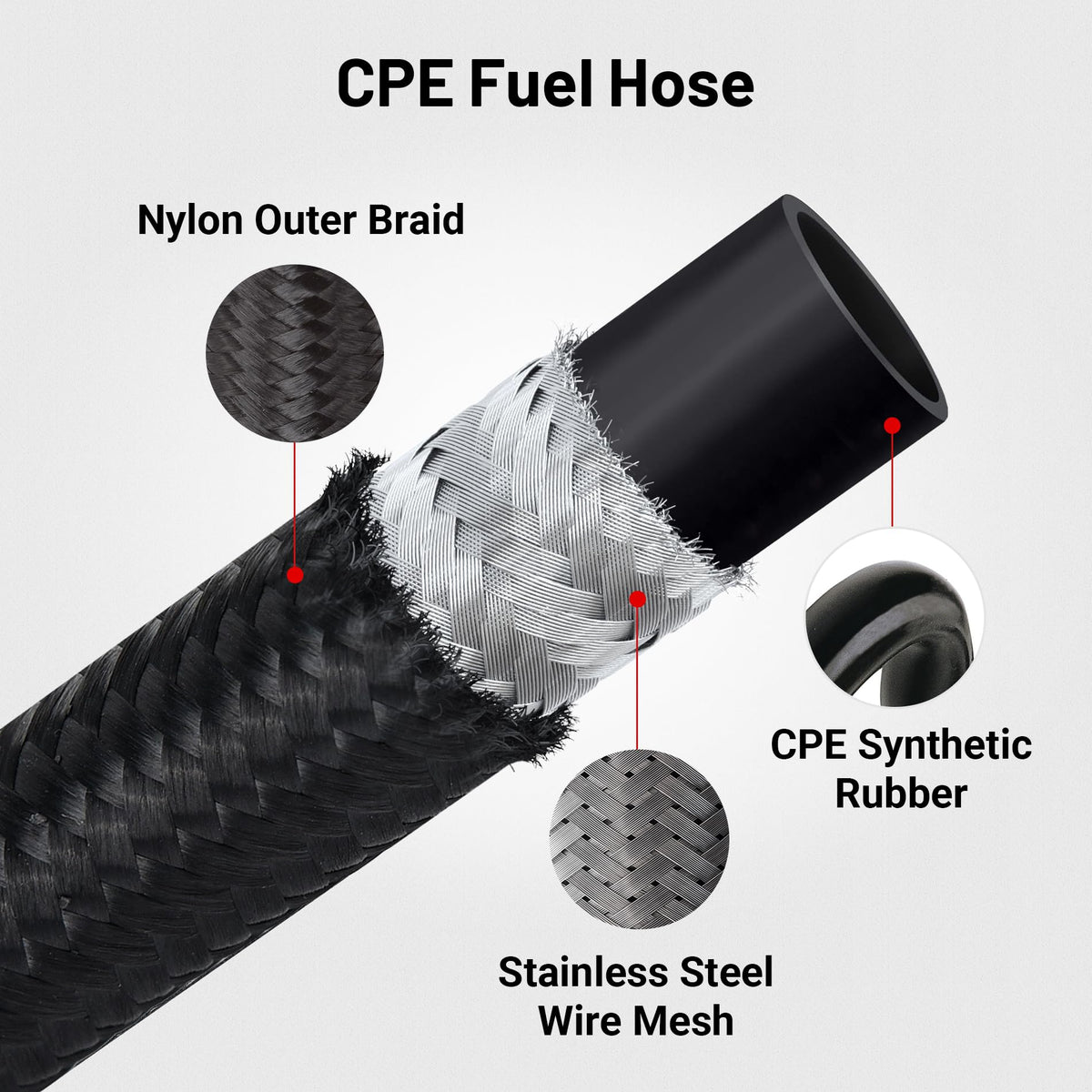

How is the hose constructed and why does that matter?

Layered construction gives the EVIL ENERGY line a balance of chemical compatibility, strength and abrasion resistance. A CPE rubber inner resists fuels and oils, a 304 stainless wire braid supplies mechanical strength and pressure containment, and a nylon outer braid protects against abrasion and UV exposure.

• CPE inner tube resists hydrocarbons and heat
• 304 stainless braid provides burst resistance and fatigue life
• Nylon outer braid improves abrasion and weather resistance
• Min bend radius: 63.5 mm for tight routing without kinking

Which fluids and applications is this hose compatible with?

Designed for versatile use, the AN6 braided hose accepts a wide variety of automotive and racing fluids. It’s commonly used for fuel delivery, return lines, oil feed/return, transmission fluid lines, vacuum and some hydraulic roles, depending on system requirements and fittings.

• Compatible with gasoline, race gas, diesel and blended fuels
• Safe for engine oil, transmission fluid and many hydraulic fluids
• Suitable for vacuum and breather lines in performance builds
• Not a substitute for specialized high-temp hydraulic hoses unless specified

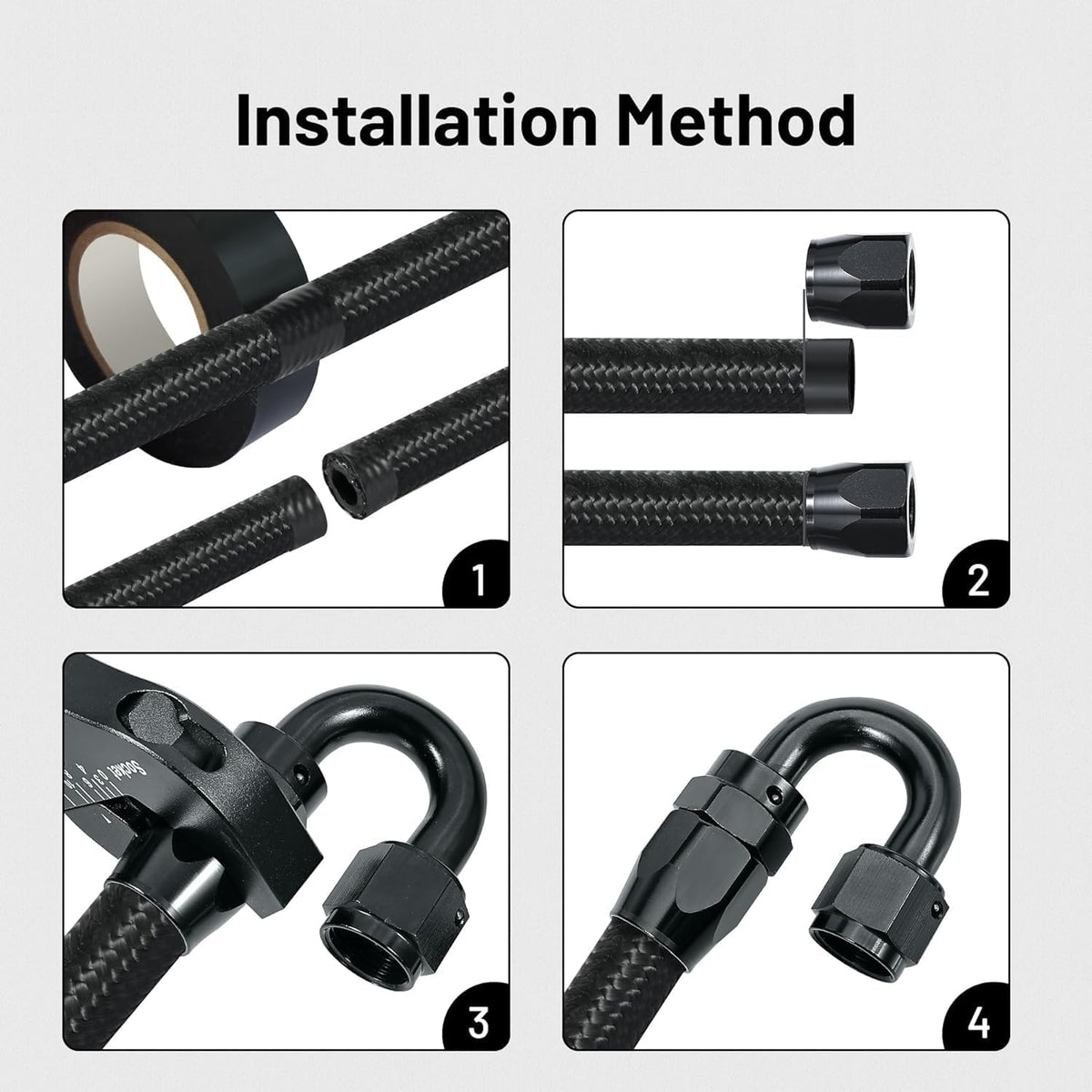

How do I trim and install the 10-foot AN6 hose correctly?

Cut the hose square with a fine-tooth blade or tube cutter and use AN6-compatible fittings or reusable hose ends designed for braided assemblies. Ensure fittings are properly sized to the 0.31" ID, check hose routing for minimum bend radius, and secure with clamps or mounts to reduce vibration and chafing.

• Trim cleanly and deburr before fitting
• Match fittings to AN6 thread and 8 mm internal diameter
• Respect the 63.5 mm minimum bend radius when routing
• Clamp and protect against sharp edges and heat sources

Who is this for: EVIL ENERGY’s AN6 10ft braided fuel hose is aimed at car and motorcycle enthusiasts, performance tuners, race teams and DIY mechanics who need a robust, fuel-compatible line for builds, repairs or custom plumbing. If you need a mid-size AN6 hose that handles elevated pressures, varied fuels and repeated flexing while offering abrasion resistance, this kit is a practical, ready-to-cut solution.
