EVIL ENERGY Inline Fuel Filter 10-Micron Aluminum with 1/2", 3/8", 5/16" Barb Adapters and 50mm Clamp — Stainless Element, Service

EVIL ENERGY Inline Fuel Filter is a universal aluminum fuel filter with a 10-micron stainless steel element, three barb adapters (1/2", 3/8", 5/16"), and a 50mm mounting clamp for gasoline and diesel lines.

This compact inline filter is built to block particles down to 10 microns and to adapt to common rubber fuel-line sizes using included barb fittings. Its aluminum body, stainless steel filter core, and O-ring seals give a corrosion-resistant assembly suitable for automotive, powersports, marine, or small-engine applications. The removable element and serviceable design let you inspect, clean, or replace the internals without swapping the whole housing.

How does the filter protect my engine's fuel system?

The 10-micron stainless steel element captures sediment, rust, and debris before they reach injectors, carburetors, or pump internals. By keeping particles out of sensitive components, the filter helps maintain reliable fuel flow and reduces wear from contaminants.

• 10-micron filtration rating for fine particle capture
• Stainless steel element resists clogging and corrosion
• O-ring sealed end caps reduce leaks at fittings
• Recommended routine inspection and cleaning to maintain flow

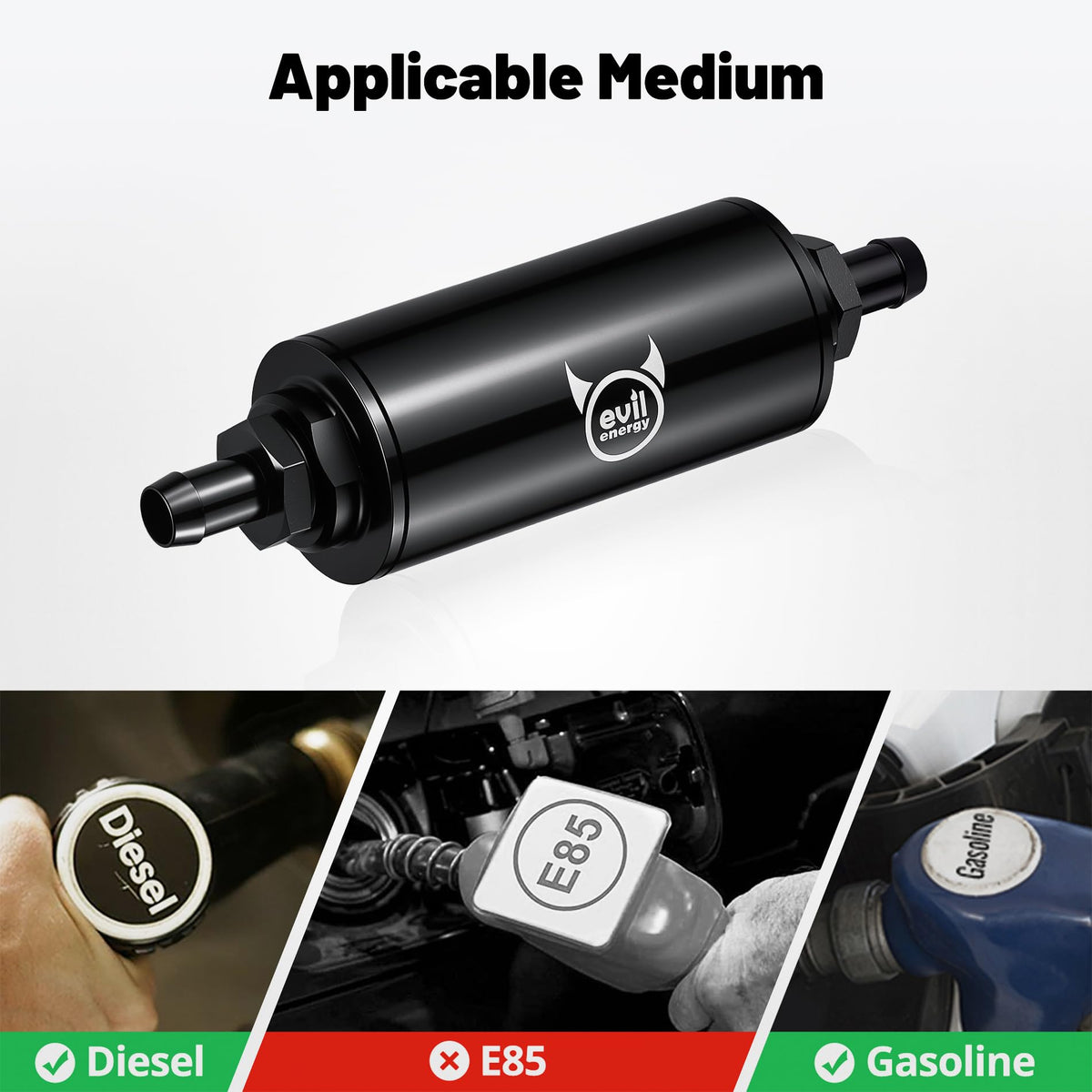

Which hose sizes and fuel types are compatible?

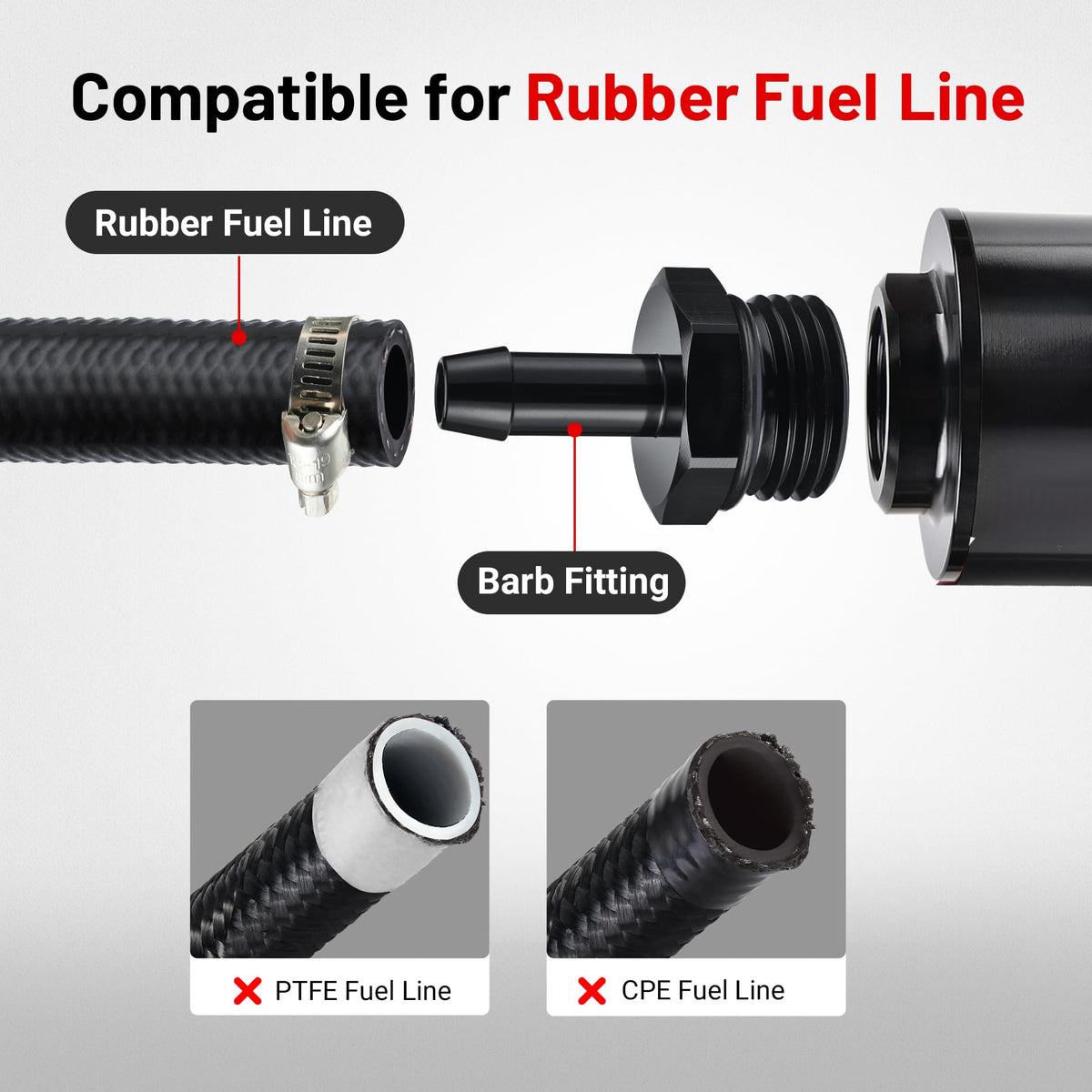

EVIL ENERGY includes three barb adapters—1/2", 3/8", and 5/16"—to fit a wide range of rubber fuel lines without custom fittings. The materials are compatible with common fuels; the filter works with gasoline and diesel systems in non-pressurized or low-pressure applications like returnless fuel systems, carburetors, and small engines.

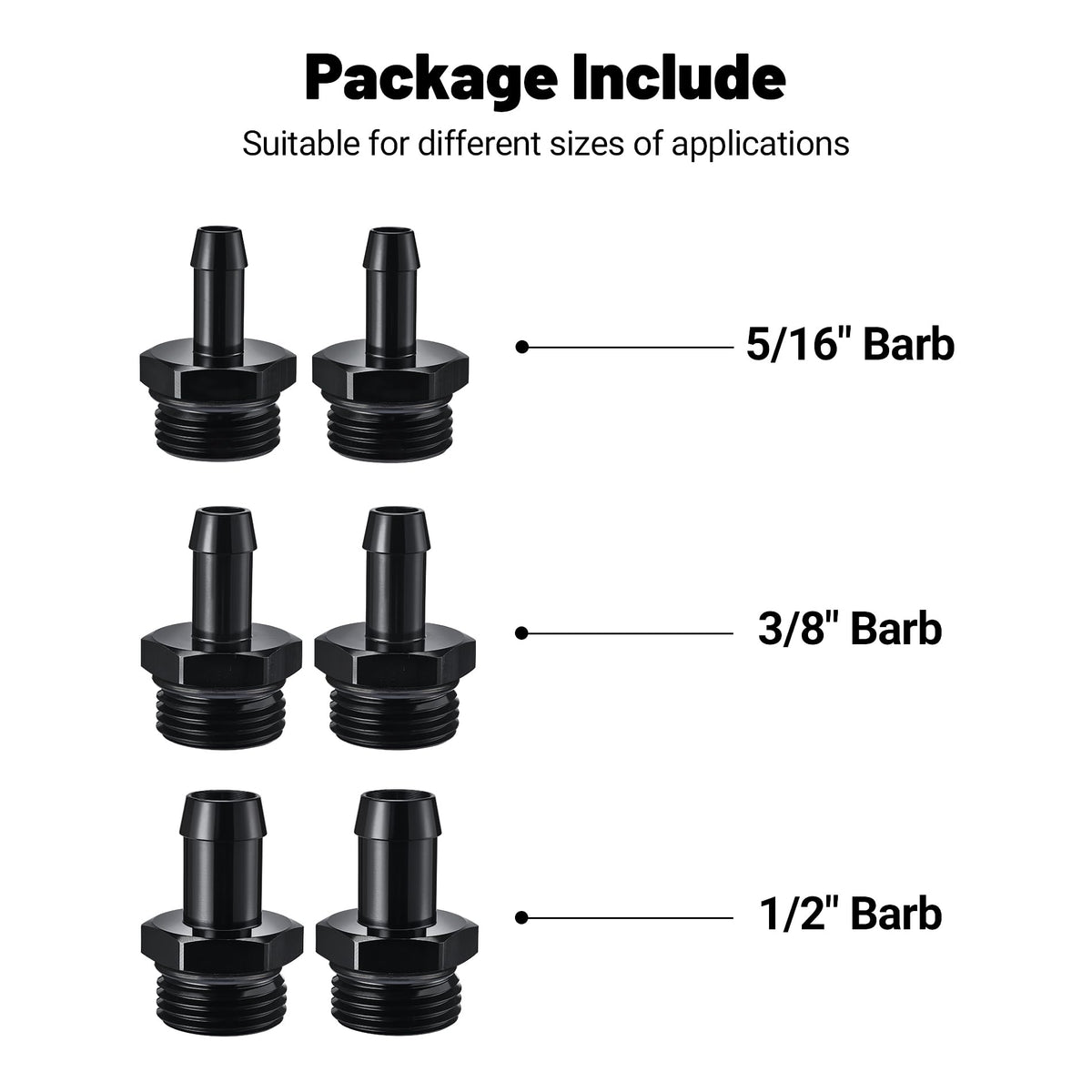

• 1/2", 3/8", and 5/16" barbed adapters included
• Suitable for gasoline and diesel (non-high-pressure lines)
• Aluminum body resists rust; stainless element resists fuel degradation
• Not intended for high-pressure direct-injection fuel rails

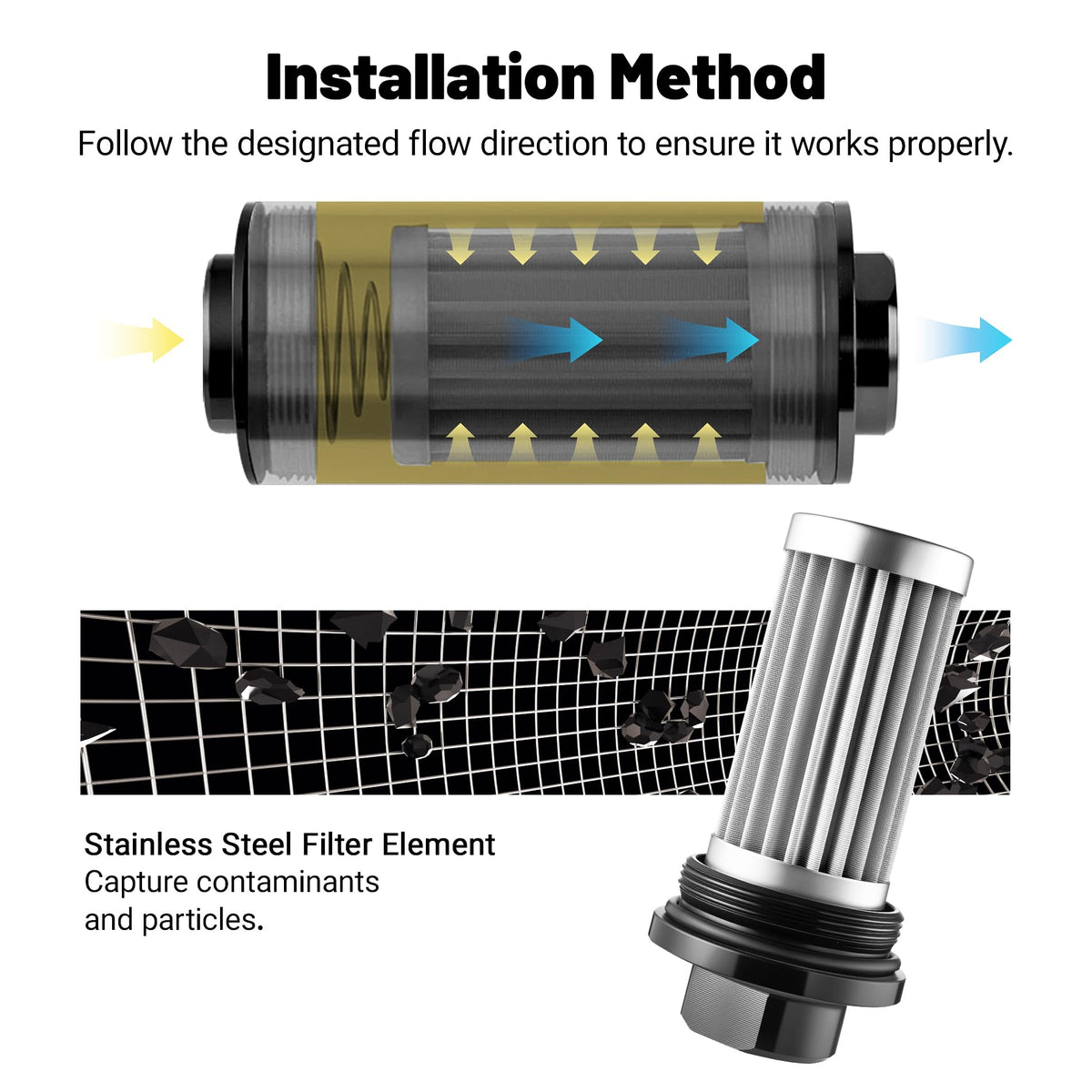

How do I install and service the inline filter correctly?

Install following the molded flow arrow: fuel must enter at the spring end and exit the opposite end for proper seating. Secure the filter with the supplied 50mm aluminum bracket and clamp, tighten hose clamps on barbs, and inspect the O-ring for a positive seal; remove and clean the stainless element when flow reduces or at scheduled service intervals.

• Align flow arrow so fuel flows from spring end to outlet

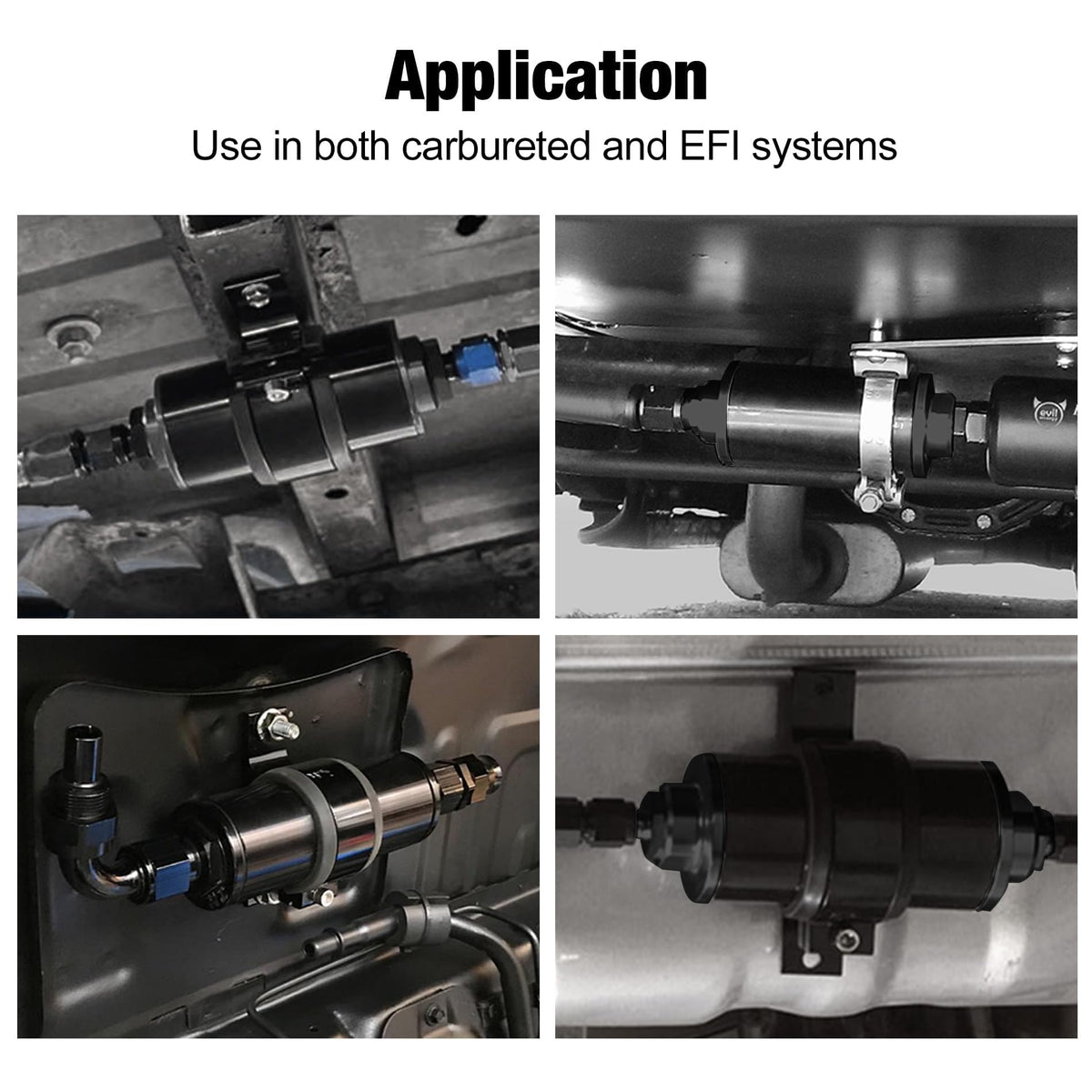

• Use included bracket to mount on firewall or chassis rail
• Replace or clean stainless element—removable design for easy service
• Check O-ring and fittings after initial run to prevent leaks

What are the build and durability highlights?

Constructed from aluminum alloy with a stainless steel filter core and O-ring seals, this unit is designed to withstand exposure to fuel and outdoor conditions. The compact 50mm can and robust bracket make it suitable for tight engine bays while keeping the fuel line tidy and accessible for maintenance.

• Aluminum housing for lightweight corrosion resistance
• Stainless steel element for long service life and cleanability
• Secure O-ring seals for reliable, low-leak assembly
• 50mm bracket clamps provide a neat, stable installation

Who is this for: EVIL ENERGY's inline fuel filter is ideal for DIY mechanics, hobbyists, and technicians working on cars, motorcycles, ATVs, generators, or small marine engines that use rubber fuel lines. If you need a serviceable, adaptable filter that handles gasoline and diesel in low-pressure applications, and want the flexibility of multiple barb sizes plus a sturdy mounting clamp, this unit offers a practical, easy-to-install solution.
