EVIL ENERGY Inline Fuel Filter 100 Micron — 50mm Compact with 6AN/8AN/10AN Adapters, Serviceable Stainless Element

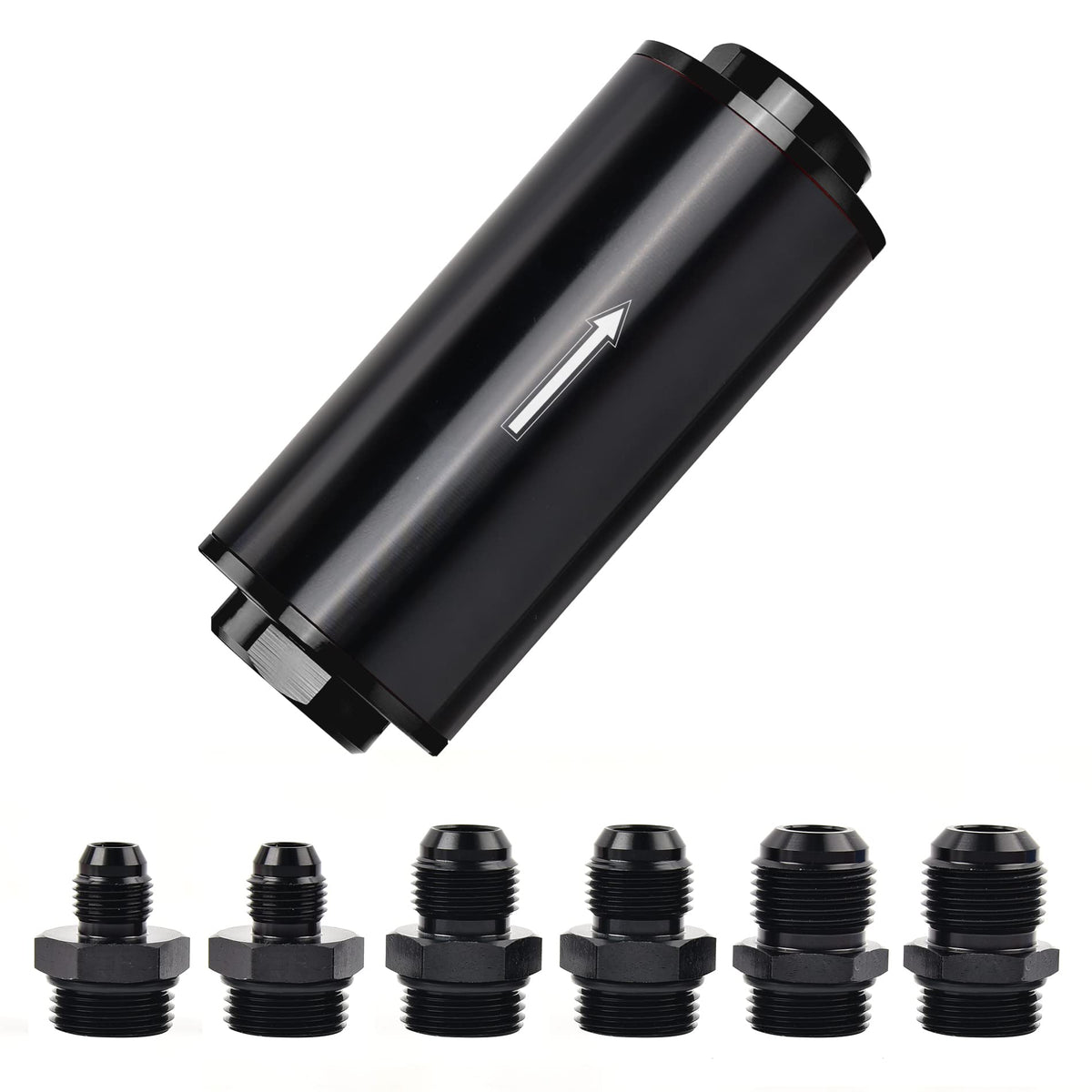

EVIL ENERGY Inline Fuel Filter 100 Micron is a universal, serviceable in-line fuel filter with 6AN/8AN/10AN adapters that traps particles 100 µm and larger to protect fuel-system components. This compact 50mm in-line filter combines an aluminum-alloy housing with a stainless-steel filter element and included AN adapters so you can fit a wide range of fuel lines without modifying fittings. Designed for gasoline and diesel applications (not compatible with E85), it uses a replaceable filter element and a sealed O-ring to keep contaminants and leaks out of your fuel rails, injectors, or carburetors.

How does this filter fit my fuel line sizes?

The EVIL ENERGY filter ships with three threaded AN adapters—6AN, 8AN, and 10AN—so you can attach it to different hose or AN-fitting setups without thread changes. The adapters thread into the housing and accept common AN hoses used in motorsports, classic cars, and custom plumbing.

• Includes 6AN, 8AN, 10AN adapters for versatile compatibility
• 50mm compact body fits tight engine bays or underbody mounts
• Adapters screw into the aluminum housing for a secure connection

What contaminants does the 100 micron element remove and when should it be serviced?

The stainless-steel element captures particles roughly 100 microns and larger, removing rust flakes, coarse debris, and larger sediment that can damage pumps and injectors. Because the element is removable and cleanable, service intervals depend on fuel quality and operating conditions; inspect and clean more often in dirty or restored fuel systems.

• 100 µm rating targets larger particulates like rust and visible debris
• Removable element allows cleaning or replacement for extended life
• Visual inspection recommended after initial hours and periodically thereafter

How do I install it correctly to avoid leaks and ensure flow?

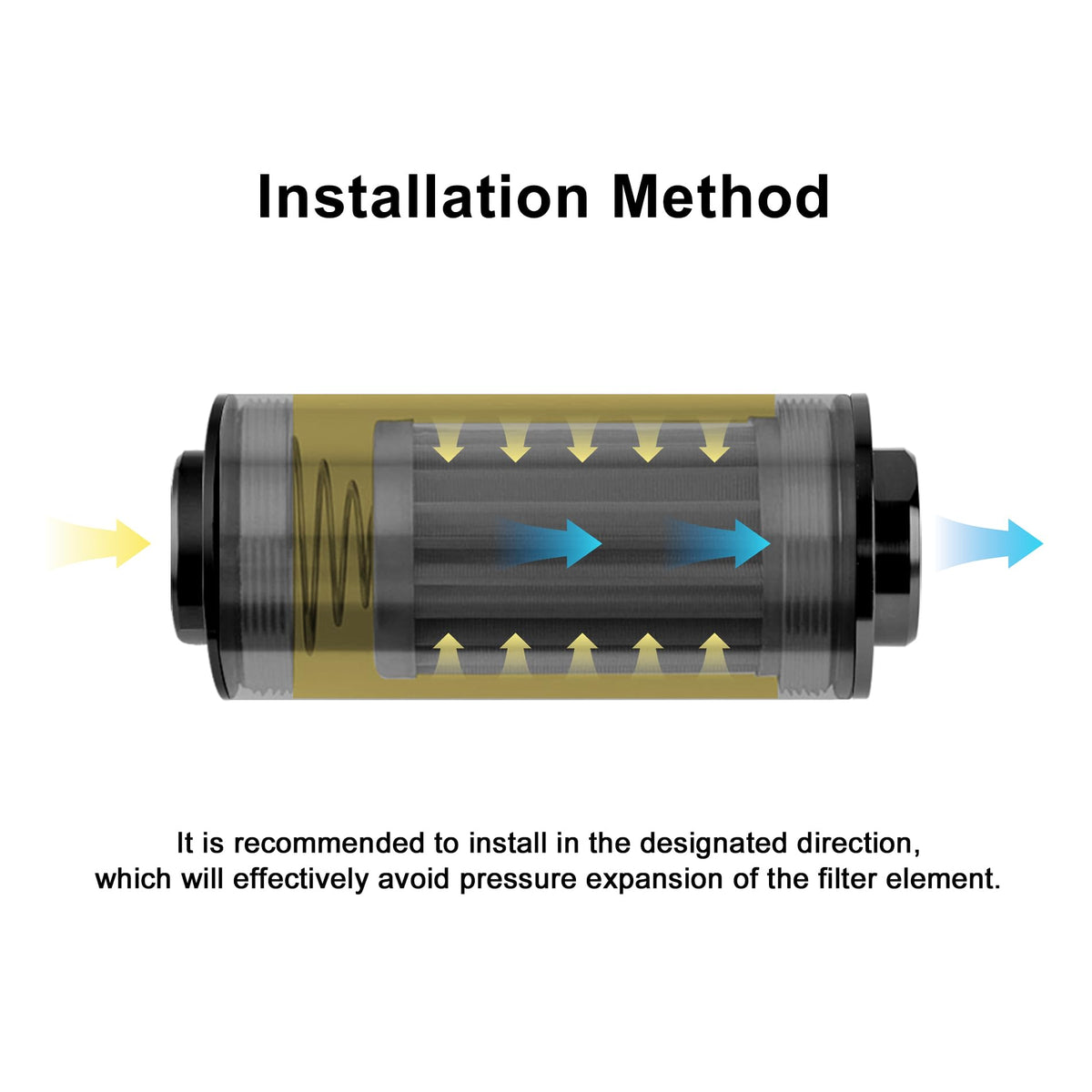

Installation is straightforward but orientation matters: the manufacturer pre-tests the filter direction. Confirm the arrow on the can points from the spring end toward the outlet so fuel flows through the element properly; the O-ring ensures a sealed connection at fittings and end caps.

• Follow the engraved flow arrow: spring end to outlet
• Ensure the closed end of the element seats against the spring
• Tighten adapters with appropriate torque and verify O-ring seating to prevent leaks

Can I use this filter with all fuel types and high-performance engines?

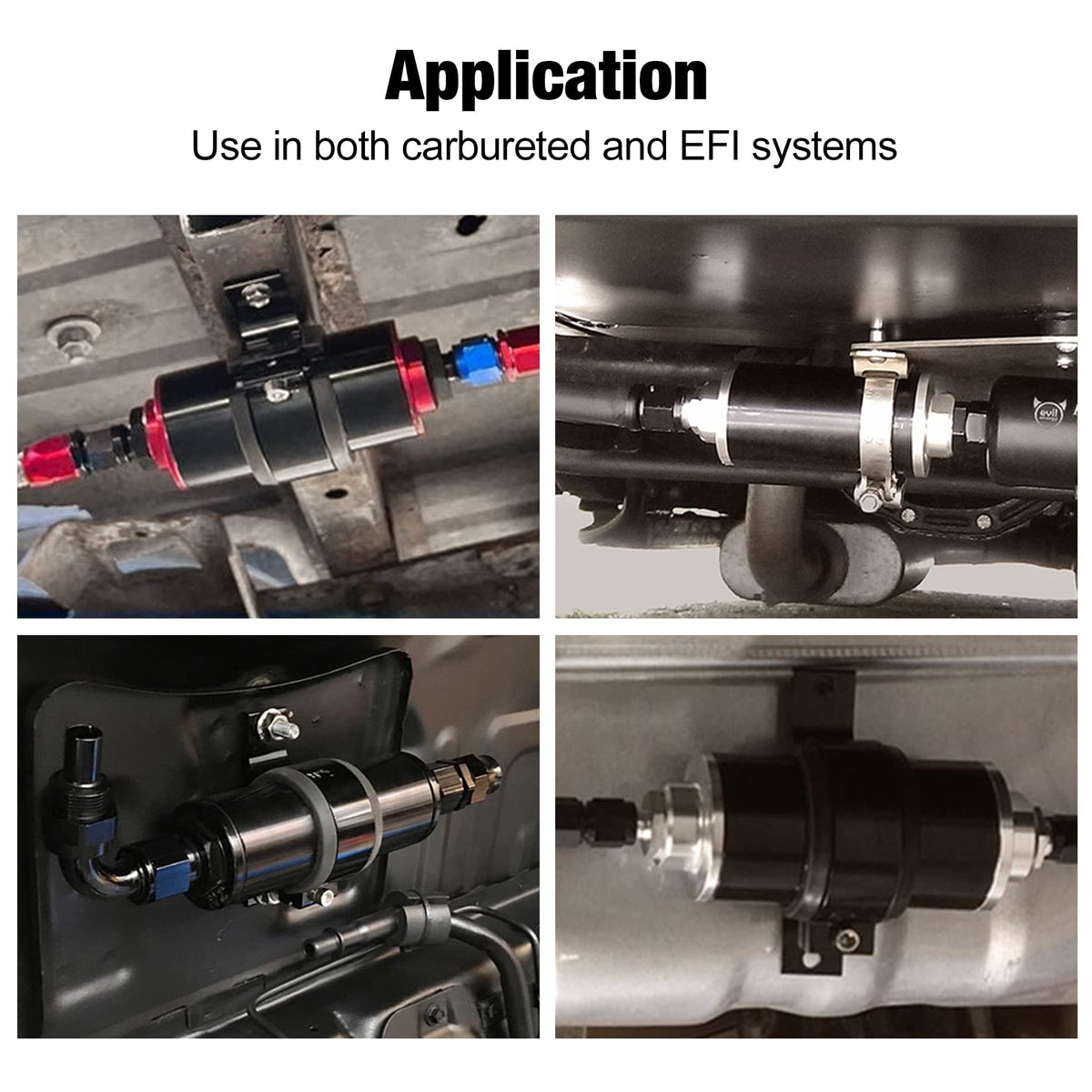

The EVIL ENERGY filter is suitable for standard gasoline and diesel fuels, offering contamination protection in many street and motorsport setups; however it is not compatible with ethanol-rich blends such as E85. For high-flow or fuel-injected engines requiring finer filtration, choose a filter element with a smaller micron rating or a higher-capacity unit.

• Compatible with gasoline and diesel fuels (not E85)
• 100 µm best for pre-filtering and protecting high-value components
• Consider finer filters where ultra-clean, pressurized fuel is required

Who is this for? This EVIL ENERGY inline filter is aimed at DIY mechanics, tuners, classic car restorers, and motorsport enthusiasts who need a compact, convertible filter that can be cleaned and reused. If you want a robust aluminum housing, a stainless-steel element rated for 100 microns, and the flexibility of 6AN, 8AN, and 10AN adapters in one low-profile unit, this filter provides an economical way to keep larger contaminants out of pumps and injectors while keeping installation adaptable across projects. Follow the supplied installation direction and inspect the removable element periodically to get reliable service life from the unit.

FAQ

Q: Is the EVIL ENERGY filter compatible with E85?

A: No. This filter is not compatible with ethanol-rich fuels such as E85; use with gasoline or diesel only.

Q: How often should I clean or replace the filter element?

A: Inspect after initial hours of use and periodically depending on fuel cleanliness; clean or replace when debris buildup reduces flow.
