EVIL ENERGY Inline Fuel Filter 100 Micron Aluminum Black with 1/2",3/8",5/16" Barb Adapters, Removable Element

EVIL ENERGY Inline Fuel Filter is a removable 100-micron aluminum fuel filter with 1/2", 3/8" and 5/16" barb adapters and a mounting clamp to protect gasoline and diesel fuel lines.

This compact inline filter combines an aluminum housing, stainless steel element and three barb fittings to work with most rubber fuel lines. It captures particles 100 microns and larger, ships with a bracket clamp for tidy installation, and uses an O-ring seal for leak resistance. Designed for routine maintenance, the element is removable so you can clean or replace it without replacing the whole assembly.

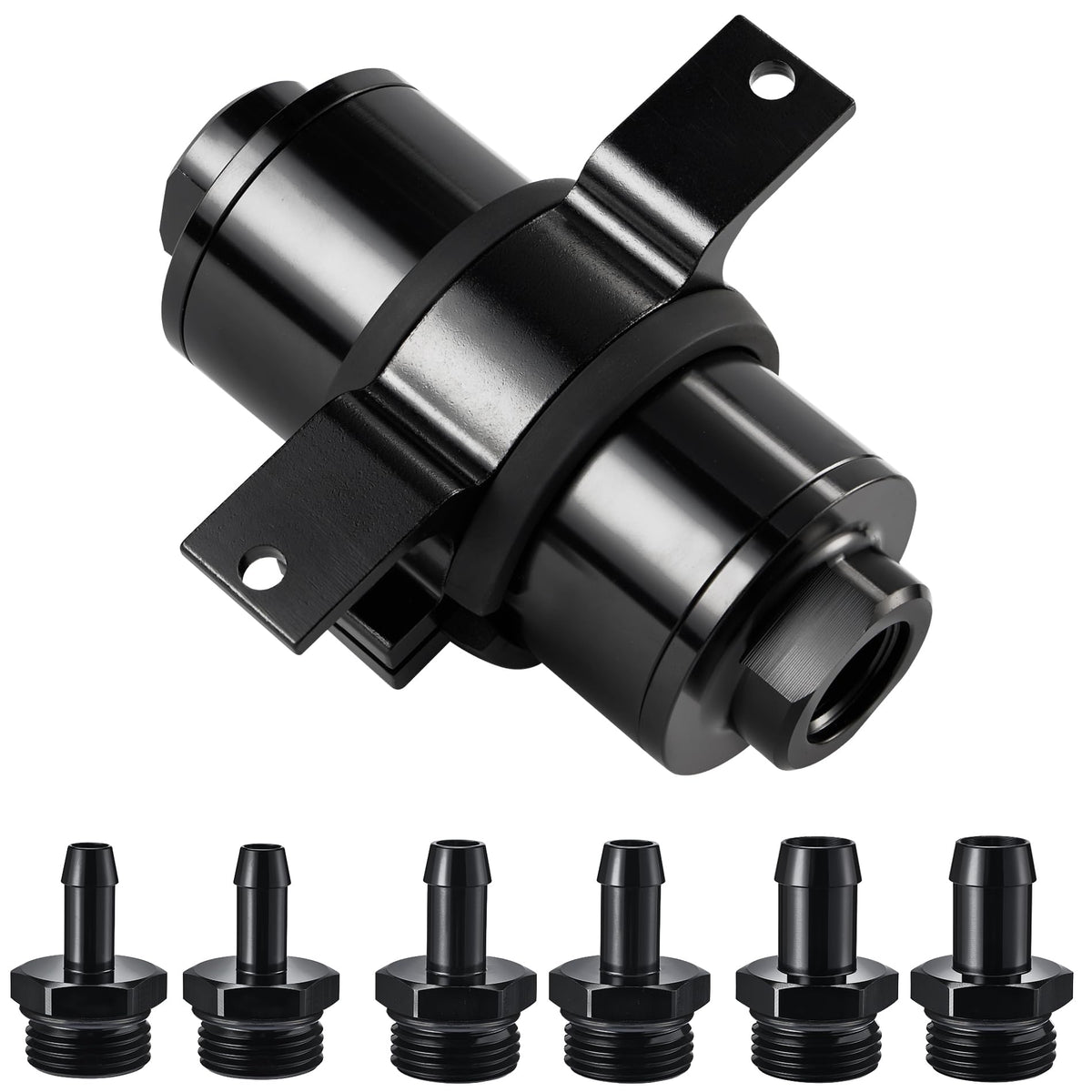

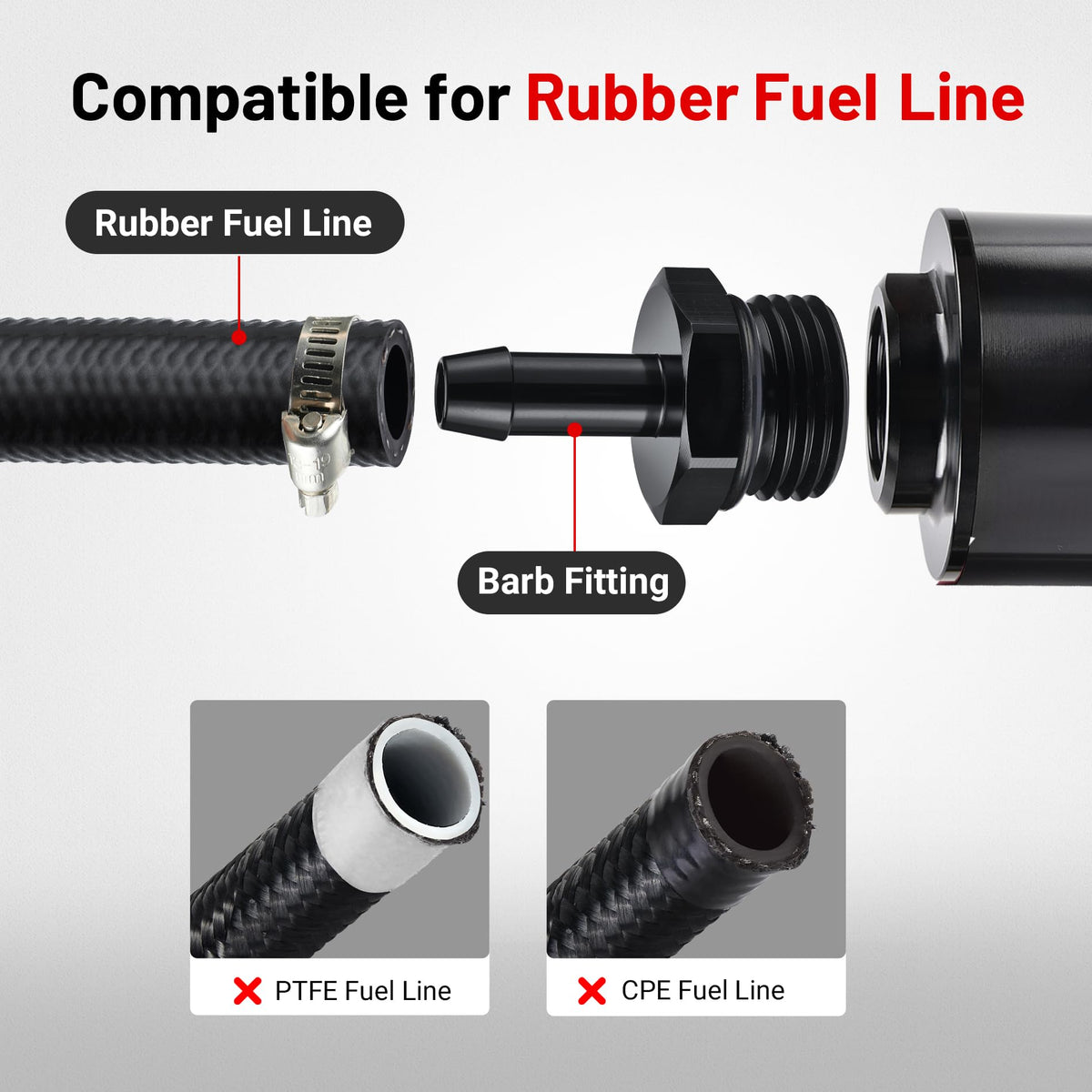

How does this filter fit different fuel lines?

The filter includes three barb adapters (1/2", 3/8", 5/16") so you can match it to common rubber fuel hose sizes. Change the barb to the correct diameter, secure the hose with a clamp, and mount the bracket to a chassis point for a stable run. The aluminum body keeps weight low while resisting corrosion.

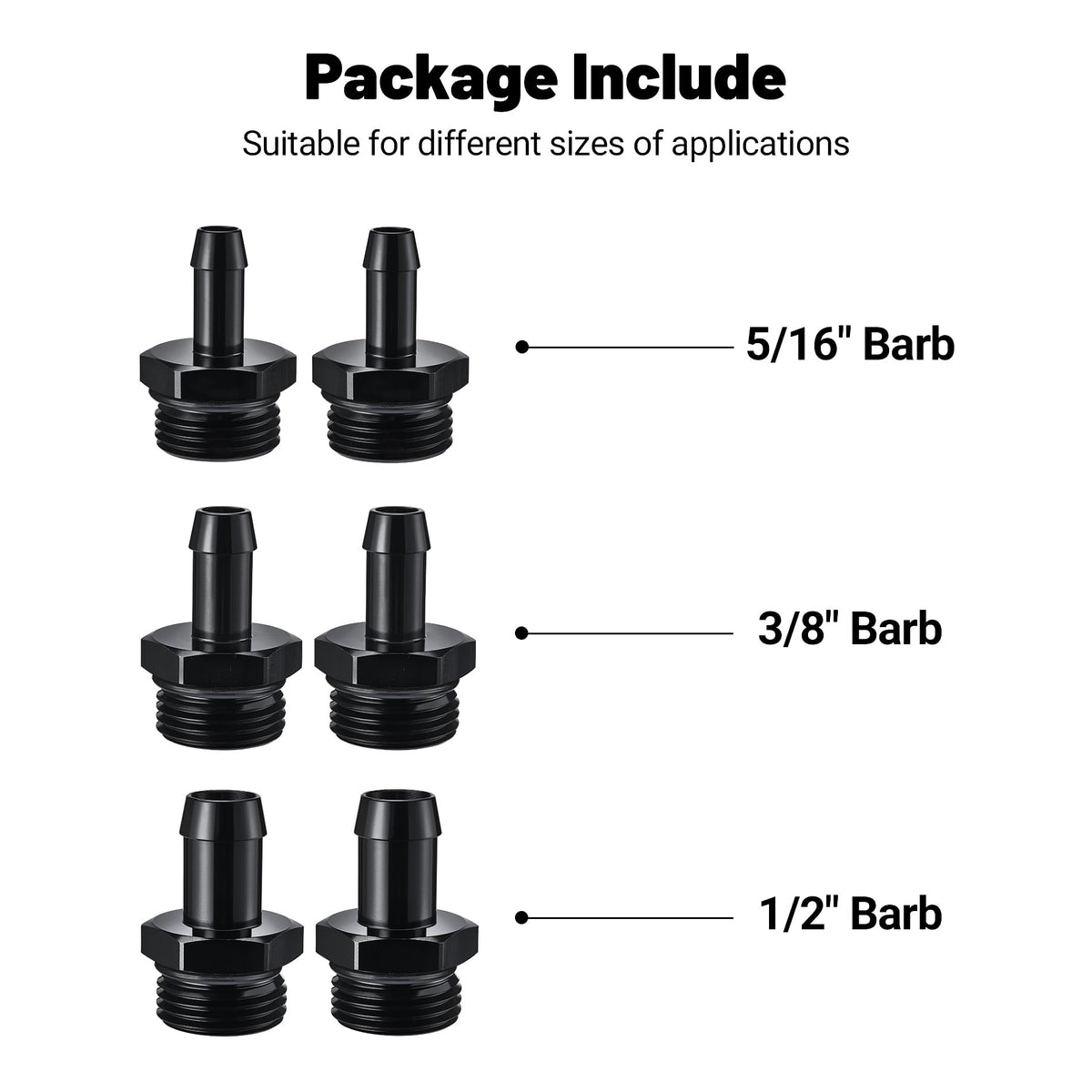

• Includes 1/2", 3/8", and 5/16" barb adapters for versatility
• O-ring at fittings and end caps maintains a tight seal
• Aluminum alloy housing for durability and light weight
• Works with gasoline and diesel rubber fuel lines

What protection does a 100-micron stainless steel element provide?

A 100-micron mesh blocks larger contaminants such as rust flakes, coarse debris and particulate that can clog injectors or carburetors. It’s intended as a pre-filter to guard downstream components rather than as an ultra-fine polishing filter. Because the element is stainless steel and removable, you can clean it and extend service life affordably.

• Catches particles 100 microns and larger to reduce wear
• Stainless steel element resists corrosion and cleans easily
• Removable design lowers long-term replacement costs
• Best used as an in-line pre-filter for pumps and carbs

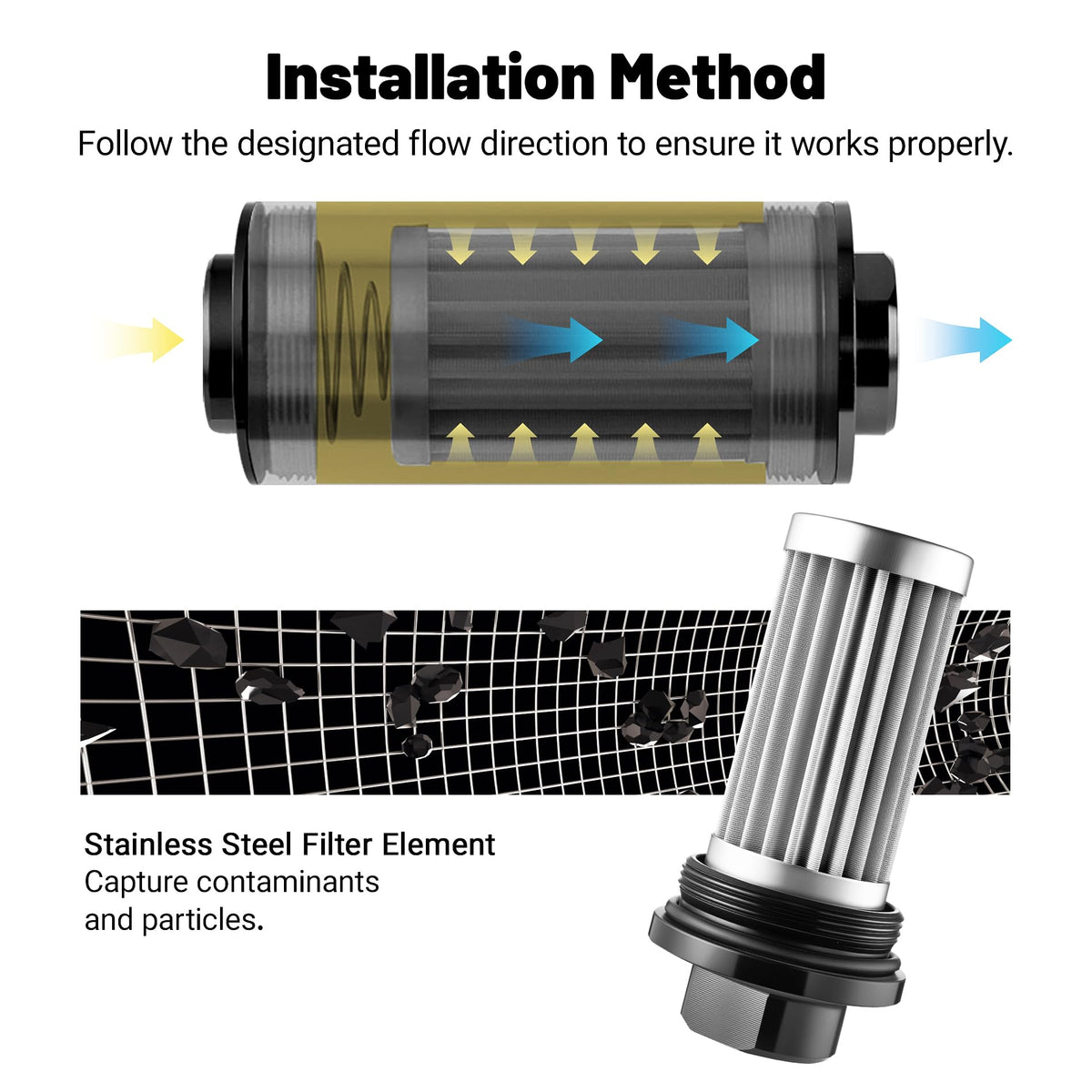

How do I install and maintain the filter for reliable service?

Installation is straightforward: orient the filter so fuel flows from the spring-end toward the open end following the arrow, select the correct barb, secure hose clamps, and fasten the bracket to a solid point. Regularly inspect for leaks and remove the element periodically to flush debris. Ensure the O-ring seats properly when reassembling to avoid seepage.

• Follow the arrow: flow must go from spring end to opposite end
• Check that the closed end of the element seats against the spring
• Use hose clamps and the included bracket for secure mounting
• Clean or replace the element at scheduled intervals

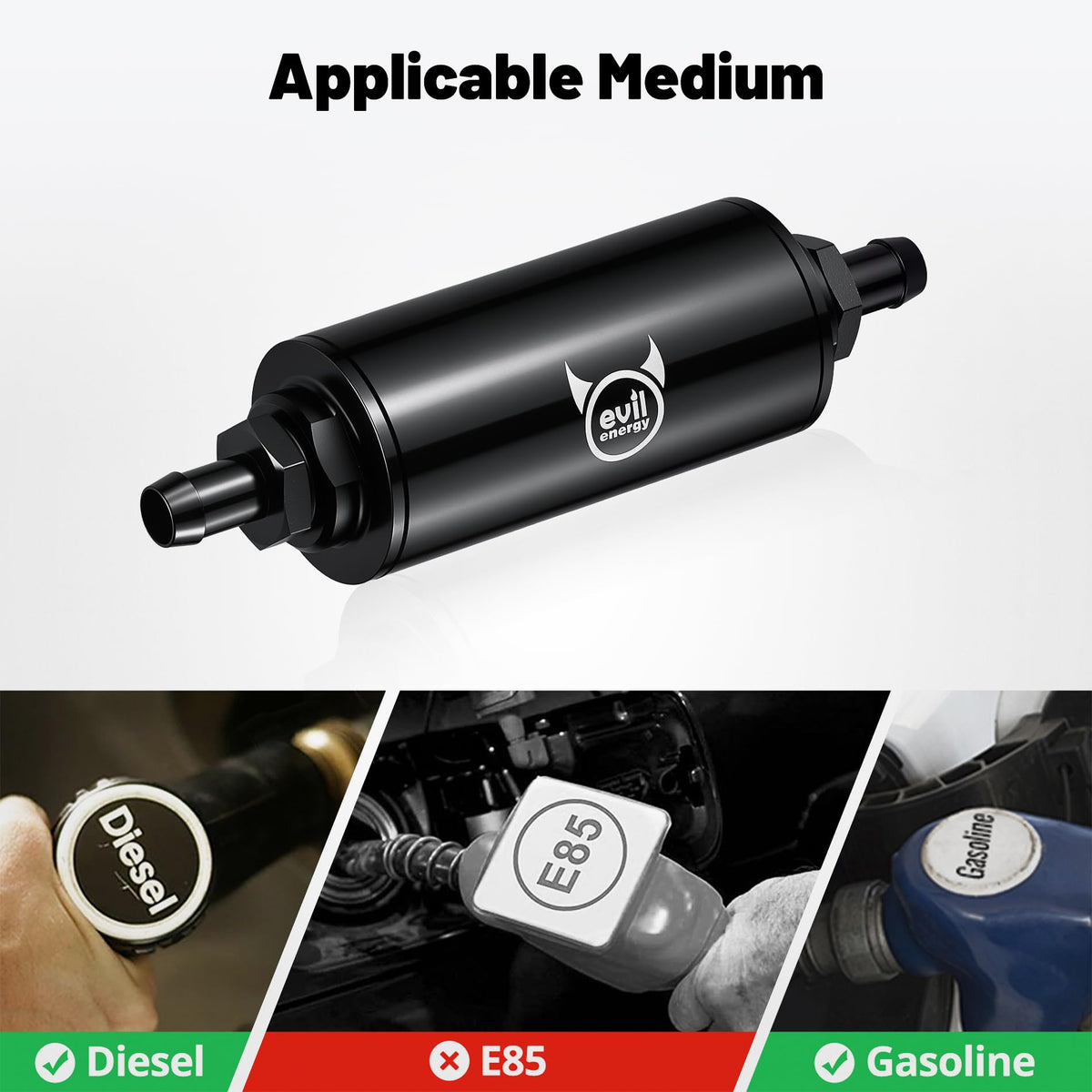

Can this be used with gasoline and diesel engines?

Yes — the materials and design are compatible with both gasoline and diesel fuels. The aluminum body and stainless element resist common fuel-related corrosion, while the O-ring and fittings provide a fuel-tight connection. Avoid contact with fuels or additives the product is not rated for; use as part of routine preventative maintenance.

• Suitable for gasoline and diesel fuel lines
• Materials chosen for fuel resistance and longevity
• Removable element adapts to changing maintenance needs
• Not intended as a chemical separator or fuel additive filter

Who is this for: The EVIL ENERGY 100 Micron Inline Fuel Filter is aimed at DIY mechanics, hobbyists, and professionals who need an affordable, serviceable pre-filter for engines that use rubber fuel lines. It’s useful for classic cars, motorcycles, small diesel engines, generators and any application where a rugged, easy-to-service inline filter with multiple barb sizes and a secure mounting option is needed.
