EVIL ENERGY Inline Fuel Filter 100 Micron - Aluminum Housing with 6AN/8AN/10AN Adapters & Mount

EVIL ENERGY Inline Fuel Filter is a universal, serviceable aluminum fuel filter that removes particles 100 microns and larger and includes 6AN, 8AN and 10AN adapters with a mounting bracket for tidy engine installation.

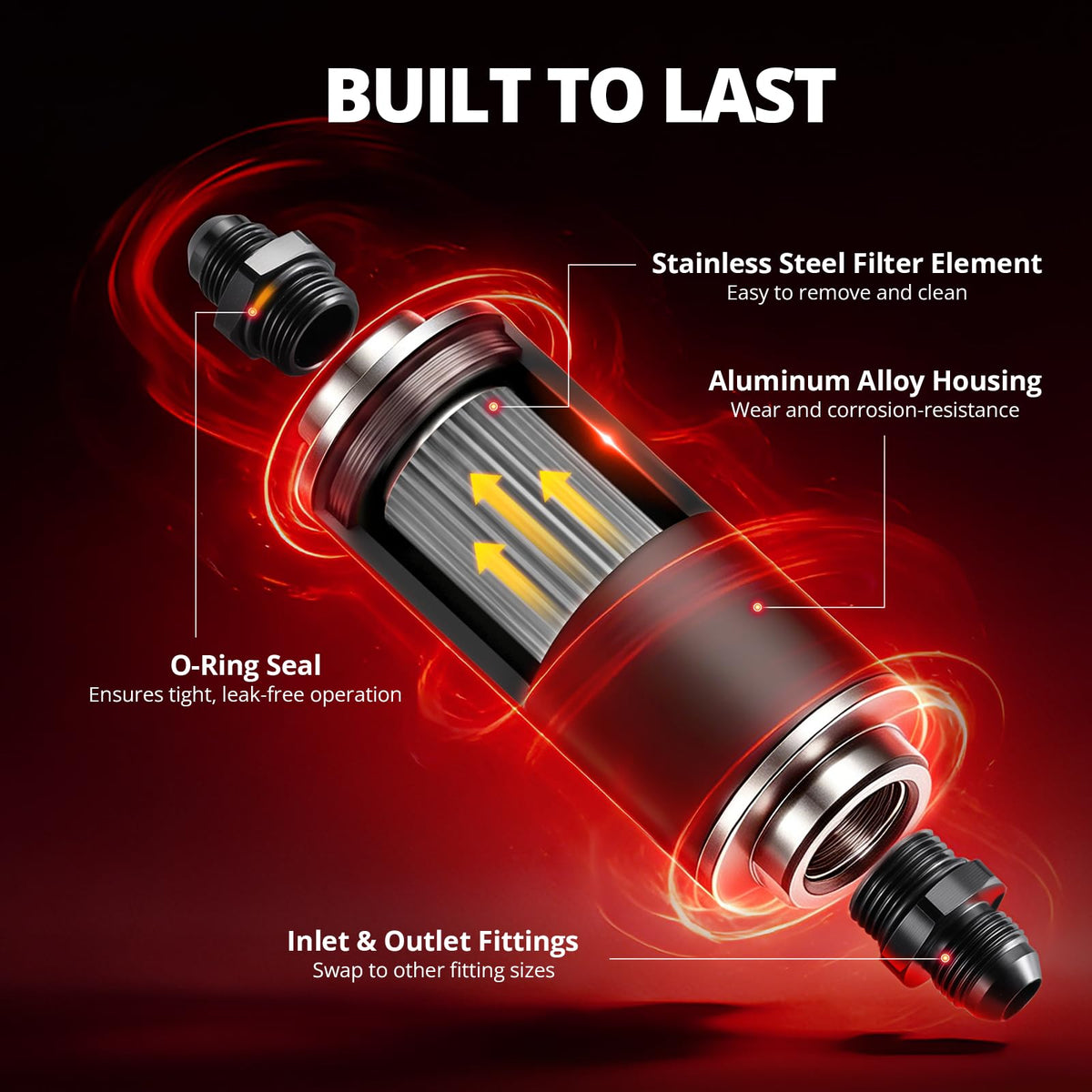

This compact inline filter combines an aluminum housing, stainless steel filter media and multiple AN-threaded adapters so you can add reliable particle protection to a wide range of gasoline and diesel fuel systems (not compatible with E85). It delivers straightforward protection for pumps, injectors and carburetors by trapping debris while offering a removable element for routine cleaning or replacement. The package also includes a bracket and clamp for neat mounting and an O-ring to maintain a leak-resistant connection.

How does this fuel filter protect my engine components?

The stainless steel element captures contaminants down to 100 microns, keeping grit and larger particles out of fuel pumps, injectors and carburetors. That reduces premature wear and helps maintain consistent fuel flow.

• 100 micron filtration rating for particle removal
• Stainless steel element resists corrosion and retains shape
• Sealed end caps and O-ring reduce seepage at fittings
• Inline placement between tank and pump for upstream protection

Which fuel lines and fittings will this filter fit?

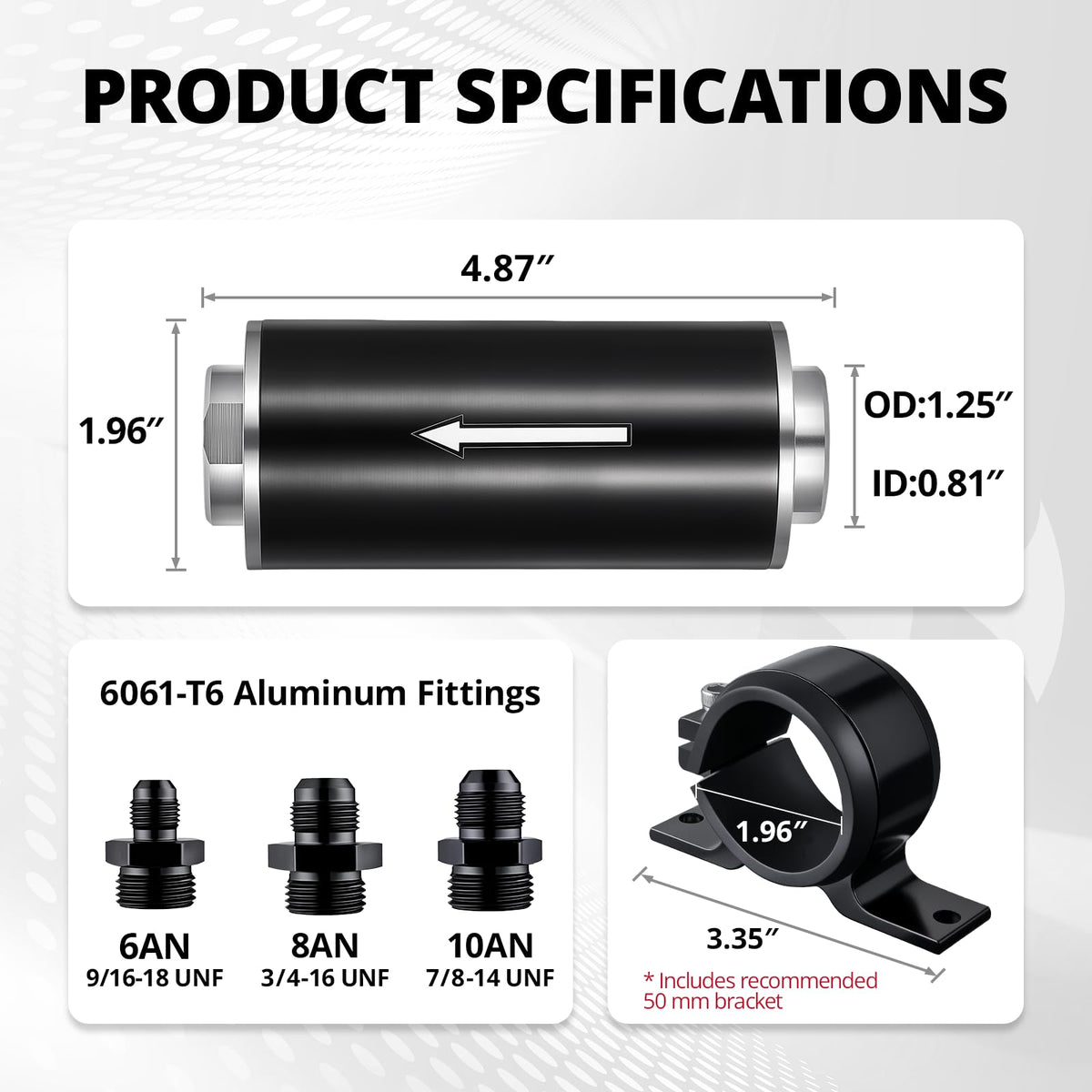

The kit includes three adapter fittings—6AN, 8AN and 10AN—so it adapts to popular aftermarket and OEM fuel lines without extensive plumbing changes. The aluminum housing accepts the supplied adapters for a secure, low-profile installation.

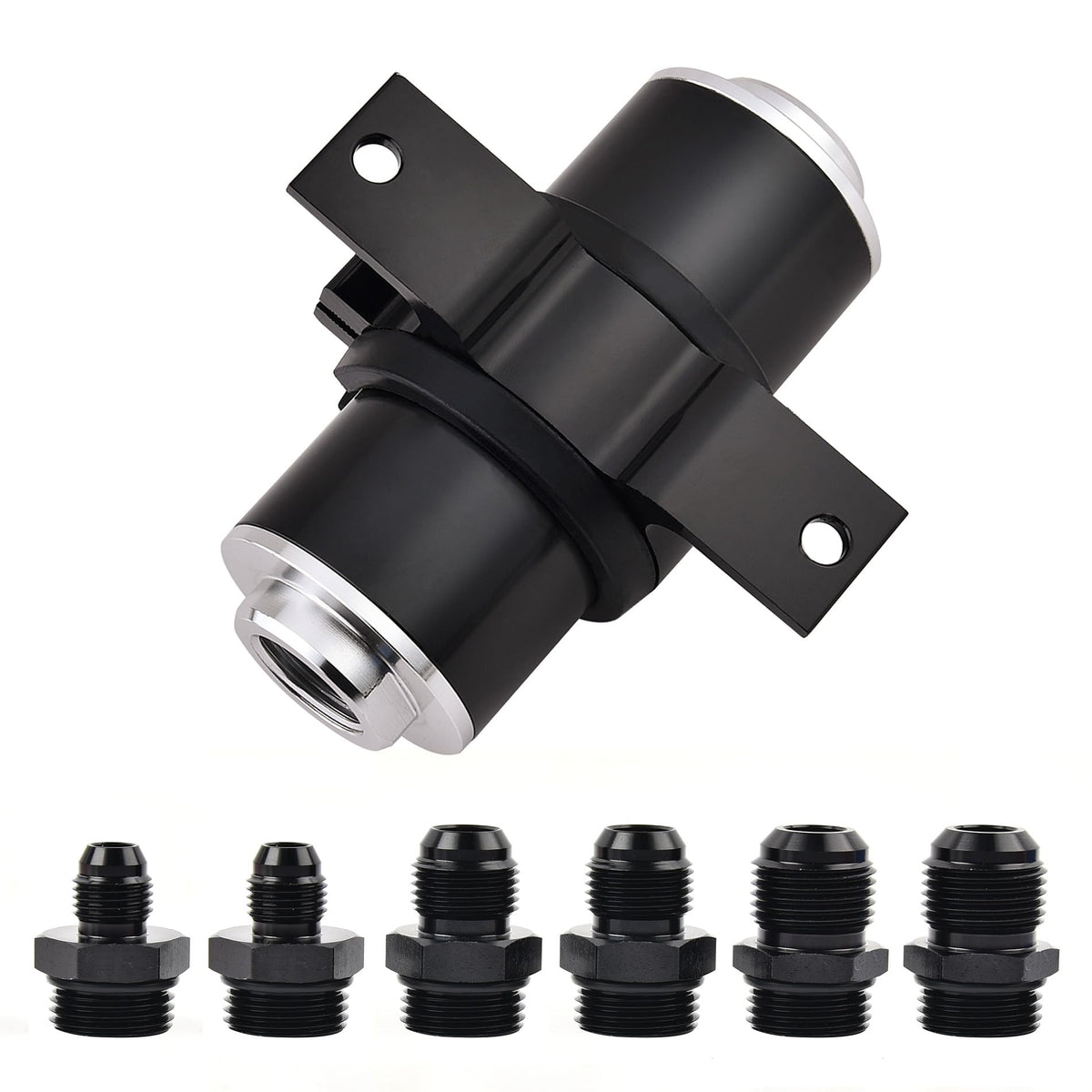

• Includes 6AN, 8AN and 10AN adapters for broad compatibility
• O-ring on fittings ensures a tight seal with the end caps
• Compact body fits into tight engine bays or along chassis rails
• Bracket and clamp keep the filter mounted and vibration-resistant

How do I install and service the filter correctly?

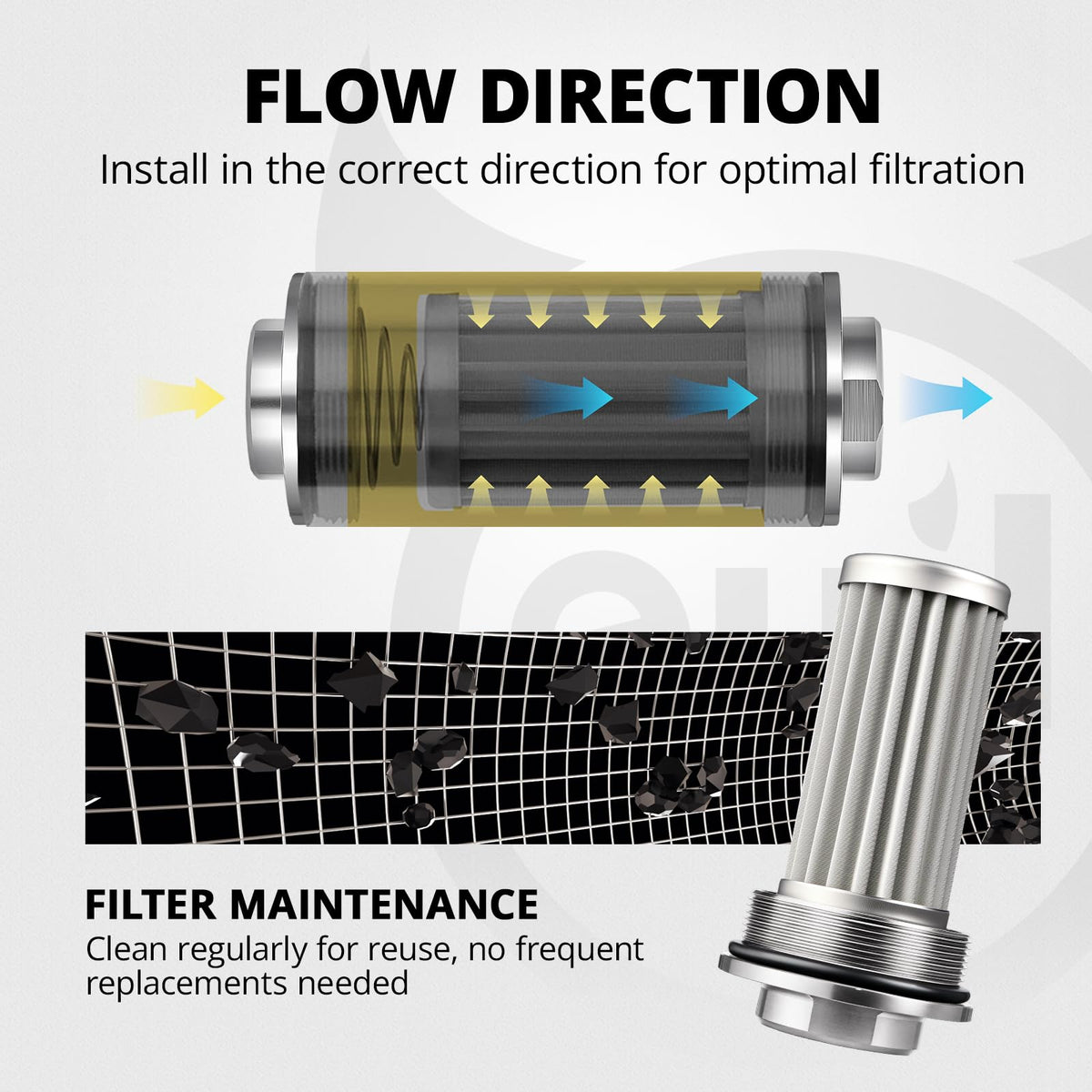

Installation is straightforward when you follow the flow-direction marking: fuel must enter the spring end and exit the opposite side. The filter element is removable for routine cleaning or replacement to preserve flow and filtration performance.

• Observe the arrow—fuel should flow from the spring end toward the open end
• Hand-tighten adapters with the O-ring in place to avoid leaks
• Mount using supplied bracket and clamp to minimize movement
• Serviceable design: remove end cap and clean or swap the stainless element

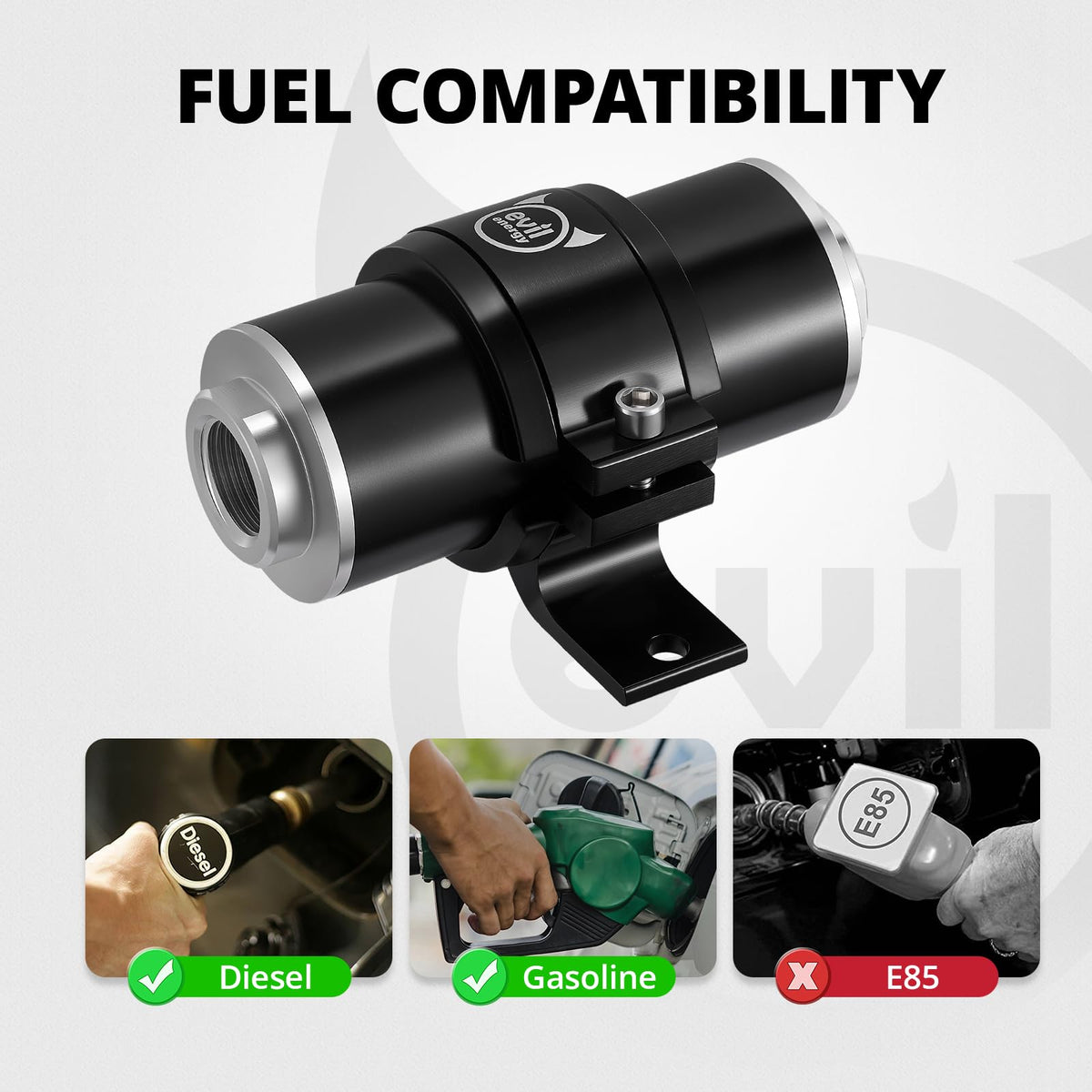

What fuels can I use this with, and what should I avoid?

The filter is designed for use with gasoline and diesel fuels and will handle typical blends used in street and light-performance applications. It is not rated for corrosive or high-ethanol fuels such as E85, so avoid those to prevent material degradation and flow issues.

• Suitable for gasoline and diesel
• Not compatible with E85 or high-ethanol fuels
• Stainless element tolerates typical fuel additives and detergents
• Check system compatibility before installing in performance or race setups

Who is this for: EVIL ENERGY's Inline 100 Micron Fuel Filter is aimed at DIY mechanics, tuners and vehicle owners who want a dependable, user-serviceable inline filter that fits a variety of aftermarket fuel lines. It's ideal for everyday cars, trucks, off-road rigs and mild performance builds where protecting pumps and injectors from visible debris is a priority. If you need a compact, adapter-ready filter you can mount cleanly and service without special tools, this unit delivers a practical, long-lived solution.
