EVIL ENERGY Inline Fuel Filter 60mm — 30-Micron Stainless Element with 6AN/8AN/10AN Adapters & Bracket

The EVIL ENERGY Inline Fuel Filter is a universal 60mm aluminum fuel filter with a stainless-steel 30-micron element and three AN adapters to fit various fuel lines.

This compact inline filter is designed to remove particles 30 microns and larger from gasoline and diesel (not rated for E85), helping protect injectors, pumps, and carburetors. Built with an aluminum canister, stainless mesh element, O-ring seals, and a removable core, it ships with 6AN, 8AN, and 10AN adapters plus a mounting bracket and clamp for tidy engine-bay installs.

How does this filter fit different fuel line sizes?

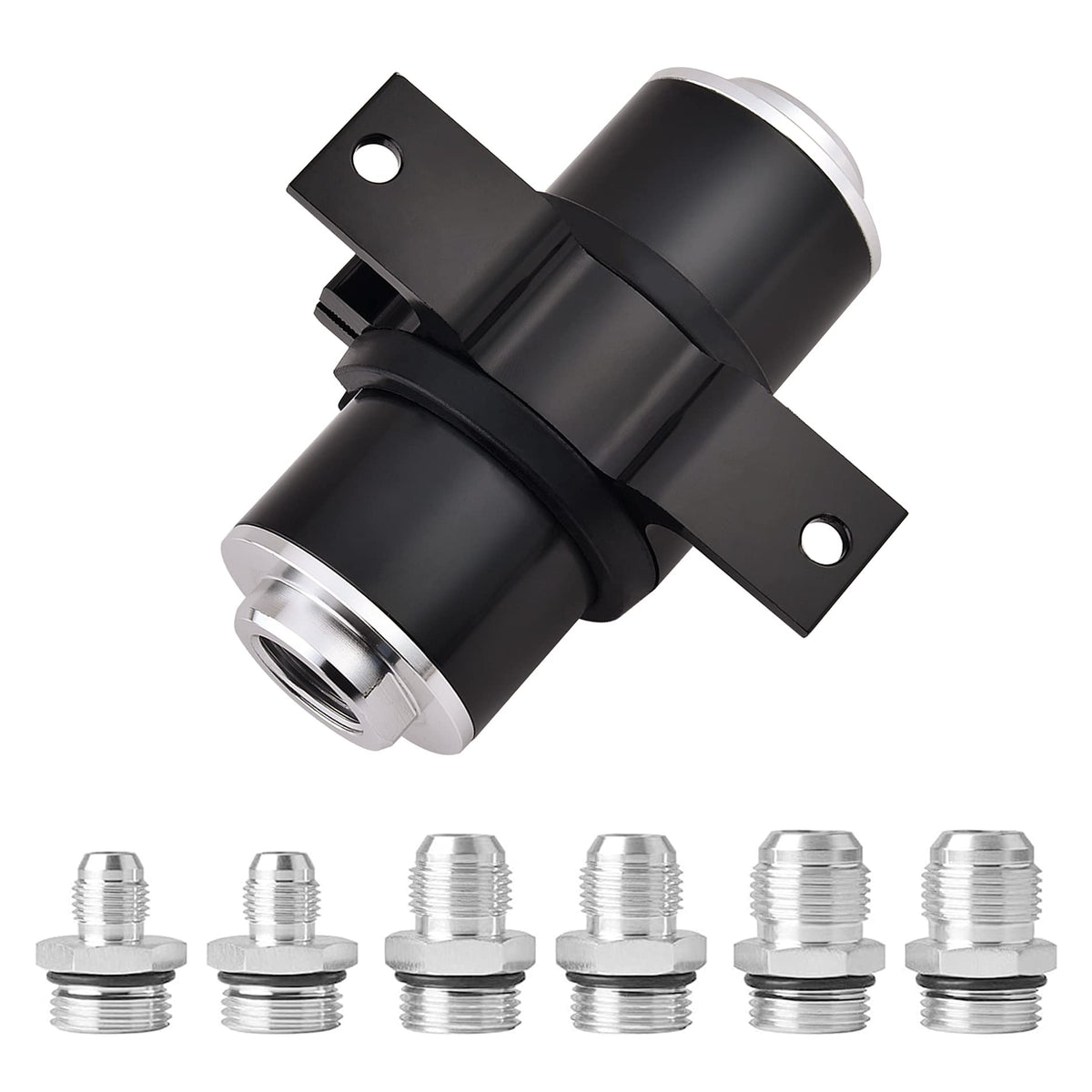

The filter includes three threaded AN adapters so you can match common fuel hose fittings without buying extra fittings. Each adapter screws into the filter ends, converting the housing to fit 6AN, 8AN, or 10AN hose sizes for flexible use across many vehicles and builds.

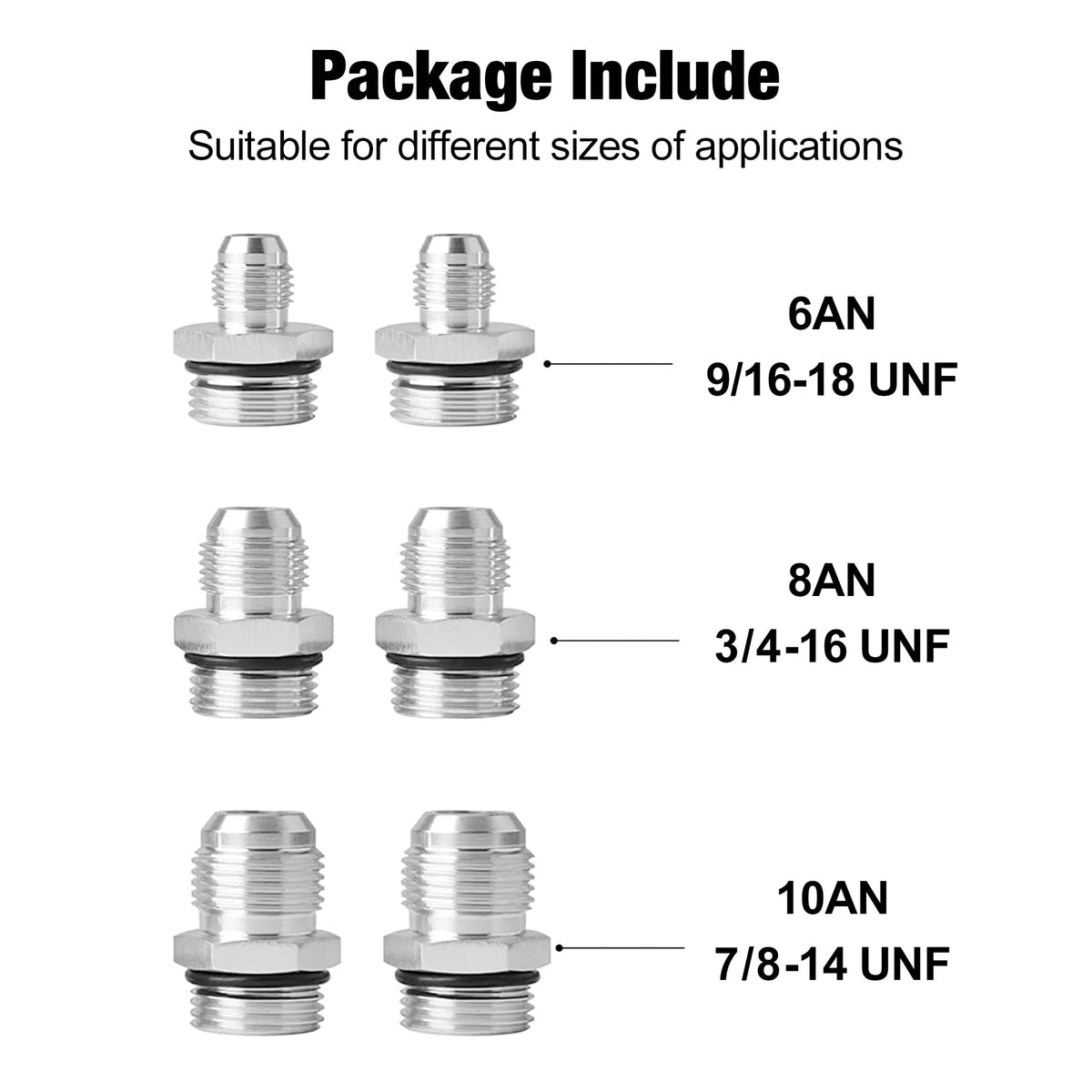

• Includes 6AN, 8AN, and 10AN adapter fittings for compatibility.
• Standard threaded ends accept adapters easily during install.
• O-ring seals reduce risk of leaks between adapter and housing.
• Useful for custom fuel lines, swaps, and performance setups.

What level of filtration and materials does it use?

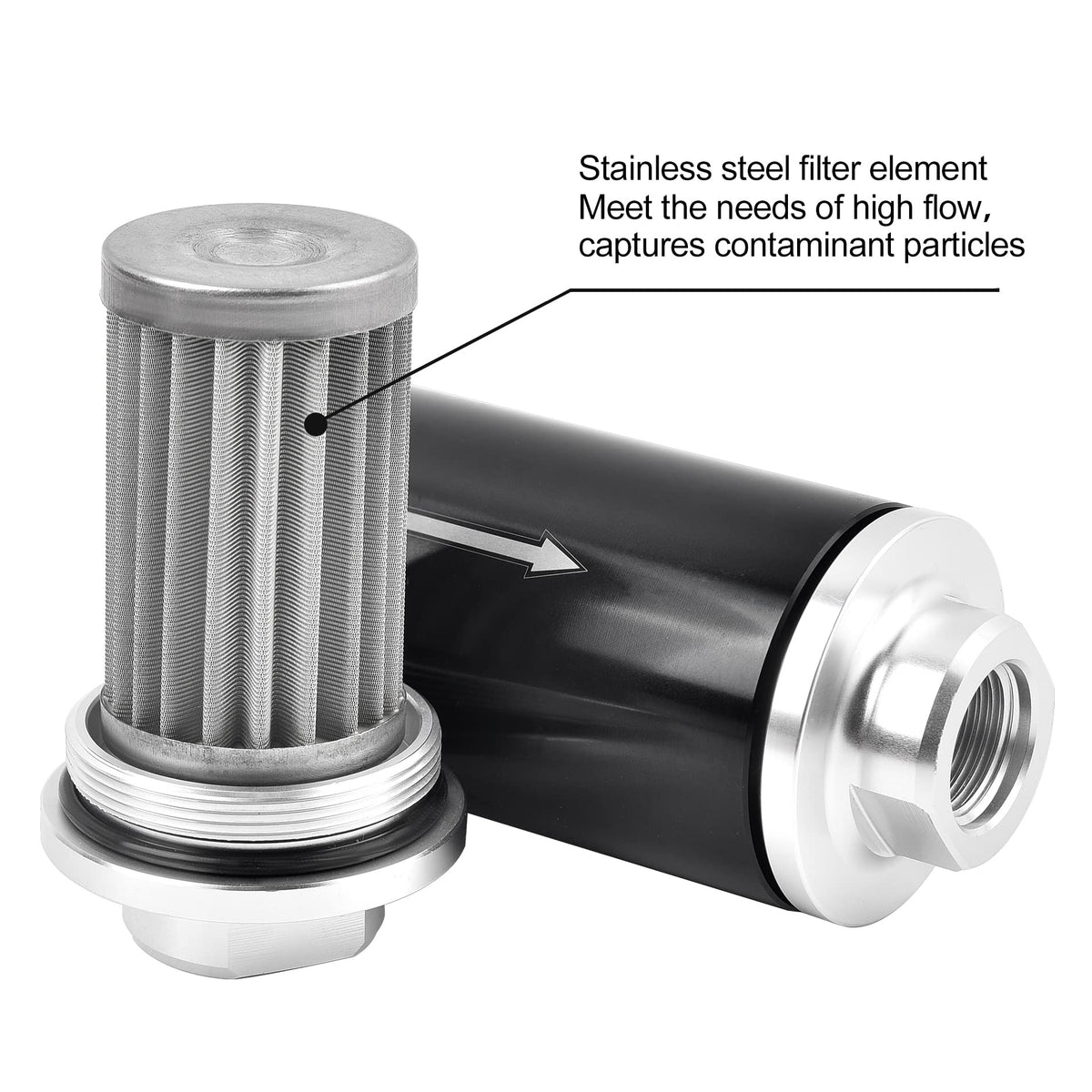

This inline unit uses a stainless-steel filter element rated at 30 microns to trap particles that can shorten pump and injector life. The outer can is machined from aluminum alloy for durability and corrosion resistance, while the O-ringed end caps ensure a tight seal under normal operating conditions.

• 30-micron stainless mesh element captures larger particulates.
• Aluminum alloy housing balances strength and light weight.
• Replaceable element design simplifies cleaning and service.
• O-ring provides a reliable seal against leaks.

How do I install and maintain this inline fuel filter?

Installation is straightforward if you follow the direction arrow molded on the filter and align the closed end of the cartridge with the spring per the included guidance. The mounting bracket and clamp let you secure the filter to the chassis, and the removable element allows periodic inspection or replacement without discarding the entire unit.

• Confirm flow direction: arrow points from spring end to outlet.

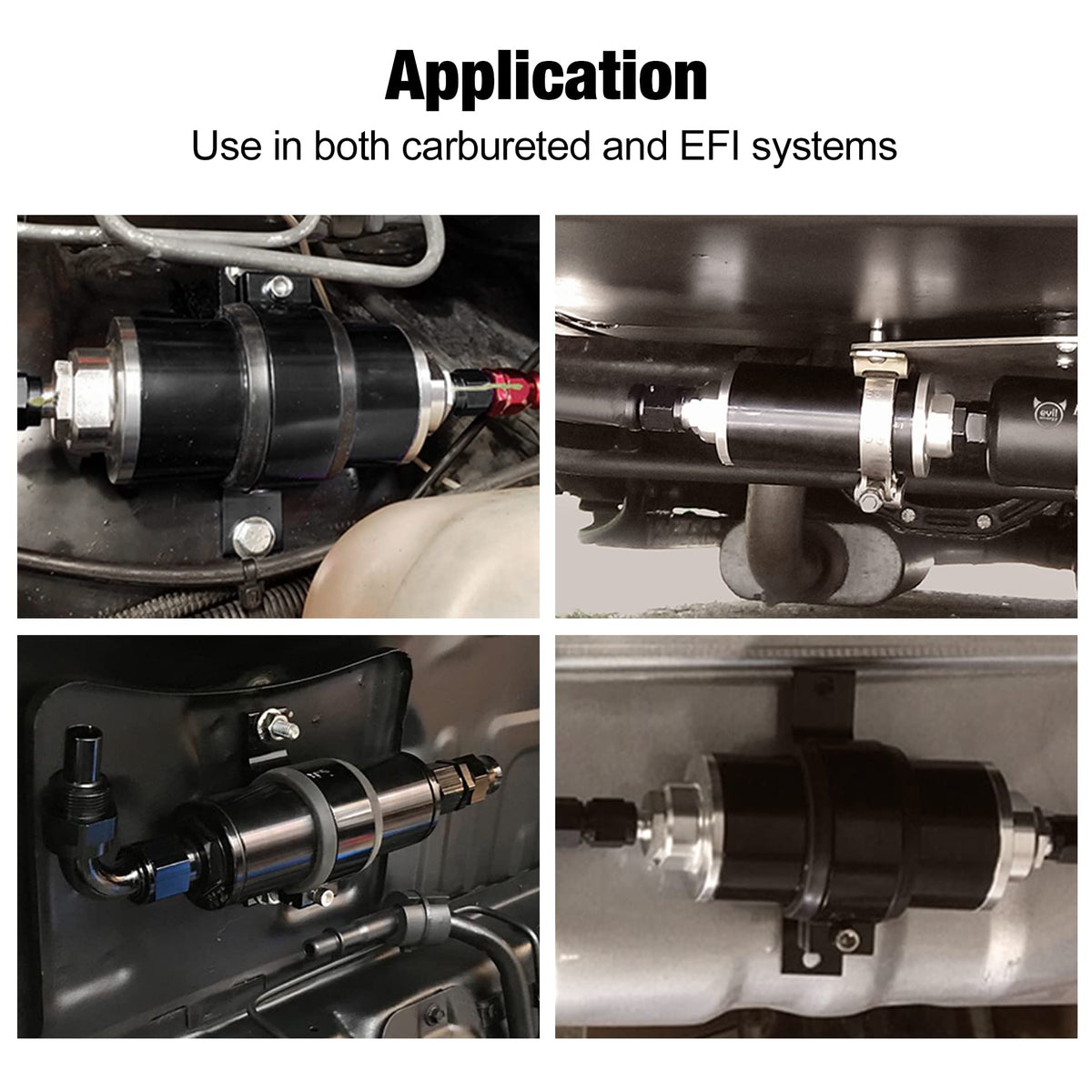

• Use supplied bracket and clamp to mount horizontally or vertically.
• Service by removing cap, cleaning or replacing the mesh cartridge.
• Not recommended for E85 or high-alcohol fuels; use with gasoline and diesel.

Will this filter work for performance or daily-driven vehicles?

The EVIL ENERGY filter suits both daily drivers and many performance applications where 30-micron filtration is appropriate. It helps trap dirt, rust, and debris before they reach sensitive fuel-system components, though engine builders requiring ultra-fine filtration might choose a finer-grade element separately.

• Good for routine protection of pumps and injectors.
• Adapters and clamp support aftermarket and OEM setups alike.
• Removable core makes it cost-effective to maintain long term.
• Check fuel compatibility before use; not for E85 blends.

Who is this for: This product is aimed at vehicle enthusiasts, home mechanics, and professionals who want a versatile inline fuel filter that fits multiple hose sizes and is simple to service. It's ideal for gasoline and diesel engines in cars, trucks, motorcycles, ATVs, or custom builds where moderate particle filtration and a clean installation matter.
