Ezamintaly Starter Motor & Solenoid Relay for John Deere BS Engines — 12V PMDD, CCW 14-Tooth Kit

Ezamintaly Starter Motor with Solenoid Relay is a 12V PMDD replacement kit built to restart compatible John Deere BS-engine mowers reliably and protect the electrical system.

This replacement starter and matching solenoid relay are designed for a range of John Deere compact tractors and lawn tractors powered by BS-series engines. Built with robust components and a protective relay, the unit aims to meet or exceed OEM fit and function so you can return to mowing with minimal downtime. It directly replaces common part numbers and fits many models across E100, LA, D-series, Z225 Eztrak, and several Sabre/Europa variants.

Which John Deere models does this starter fit?

This kit is compatible with many John Deere series that used the BS engine and similar starter specifications. Before ordering, confirm year and engine type on your tractor to ensure fitment.

• Fits E100 and E110 100 Series and Z225 Eztrak models
• Compatible with LA100, LA105, LA110, LA115, LA125 and L100/L105/L107 variants
• Works with D100, D105, D110, D120 and specified Sabre/Europa models (see detailed list)
• Replaces OEM numbers: 593934, 693551, LG693551, BS693551, MIA13018 and others

How does this starter and relay improve mower reliability?

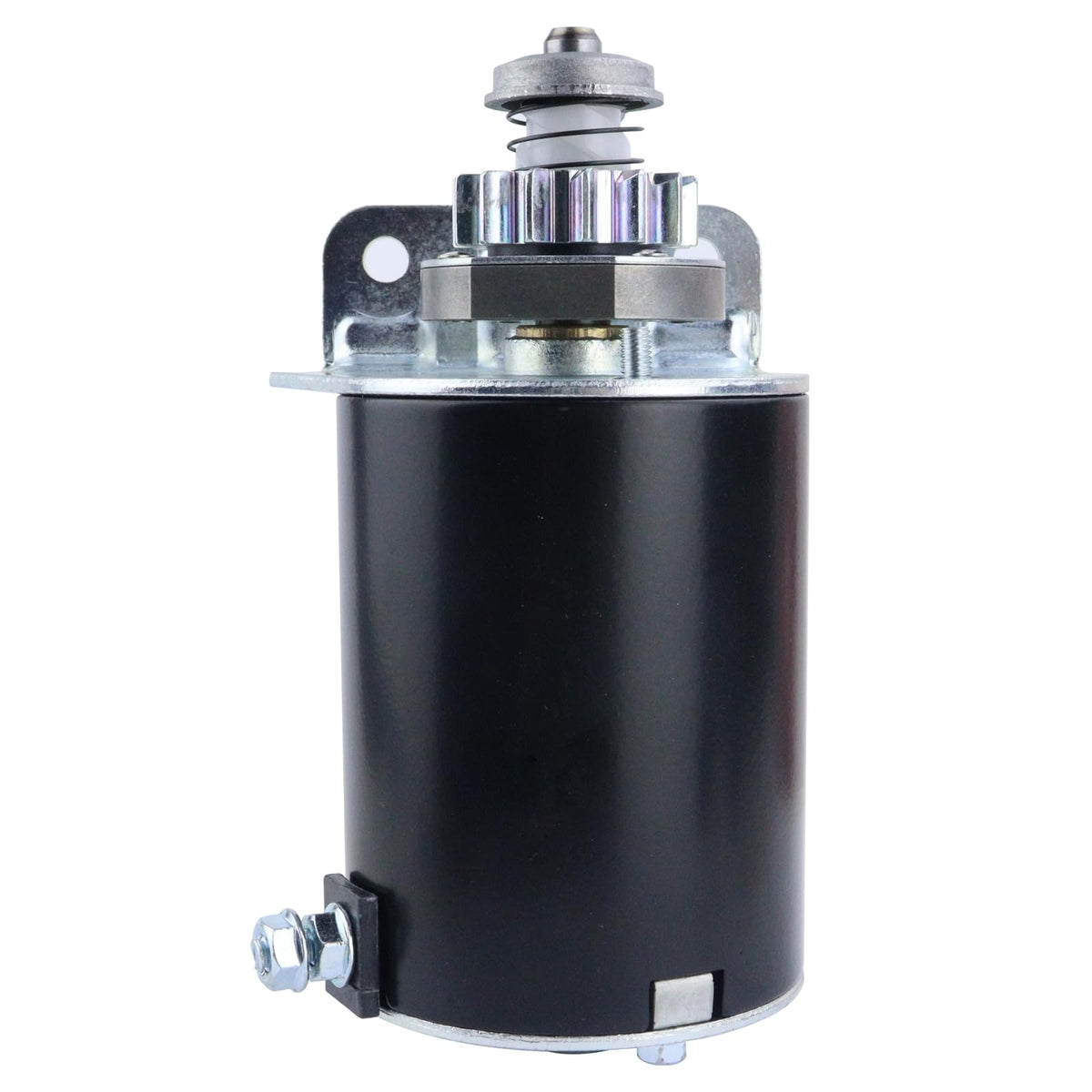

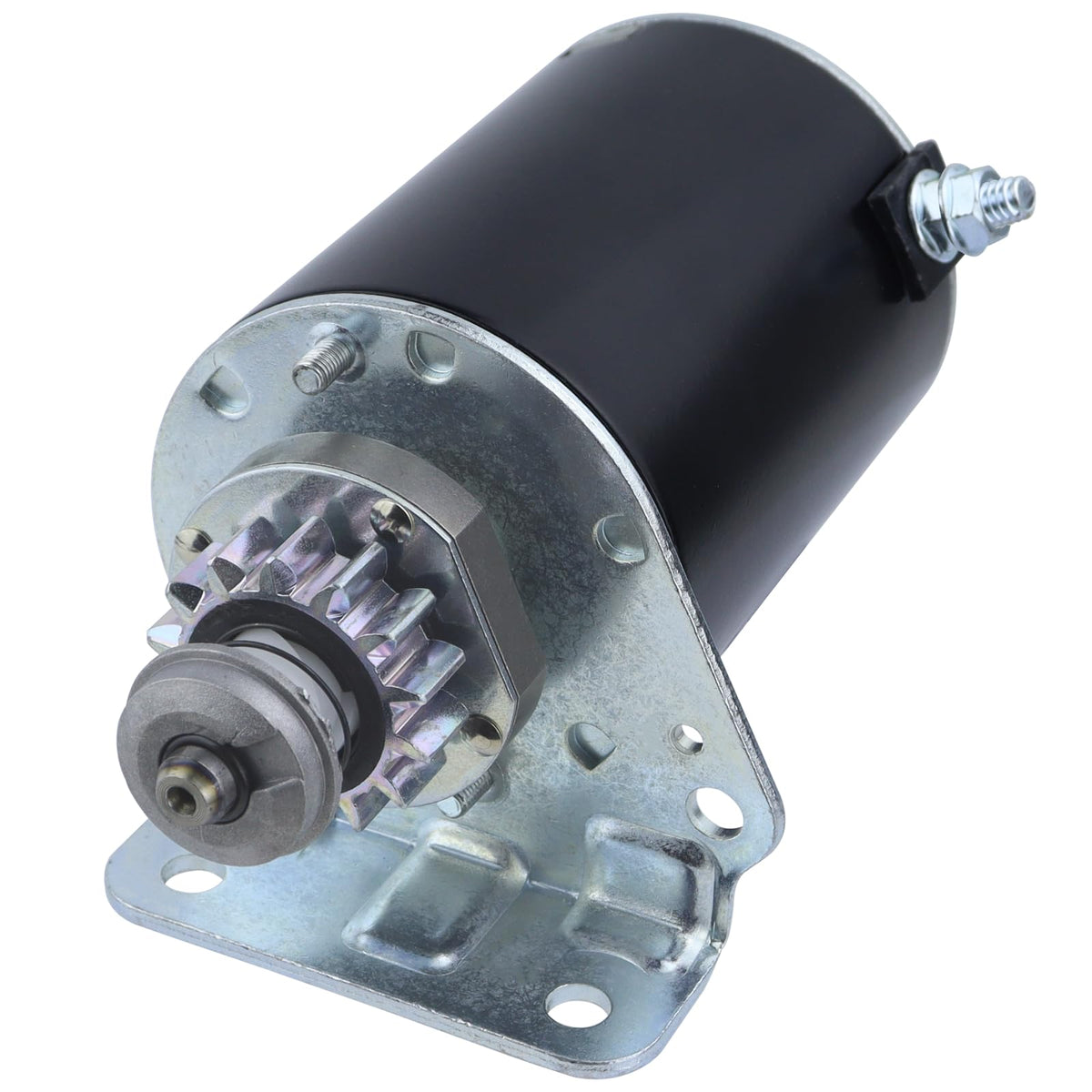

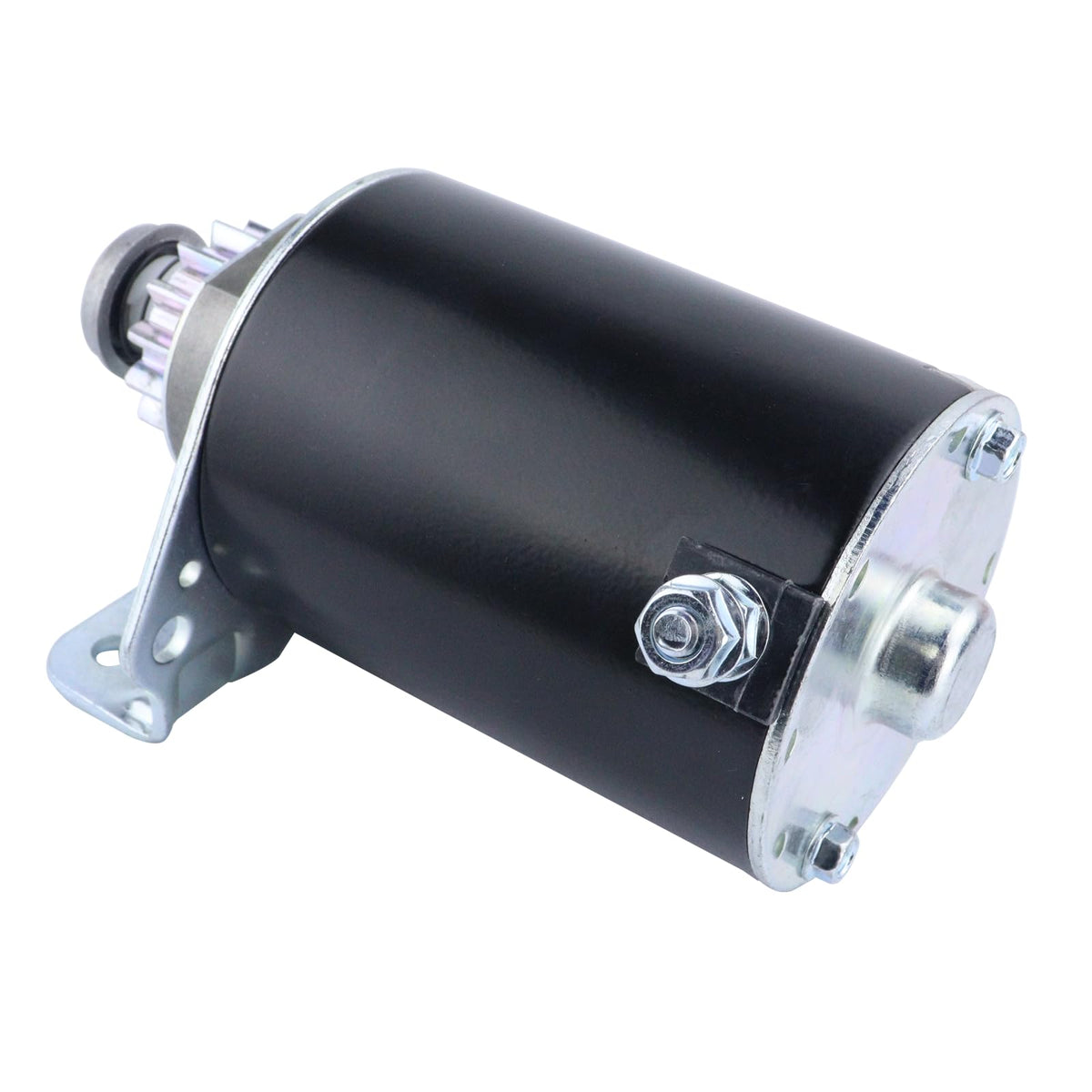

The starter motor is a permanent magnet direct drive (PMDD) design that provides consistent cranking performance at 12 volts and counterclockwise rotation. The included solenoid relay adds a layer of electrical safety by interrupting current flow if an overload or short circuit is detected, helping prevent further damage to wiring or components.

• 12V PMDD motor for efficient power transfer and fewer moving parts

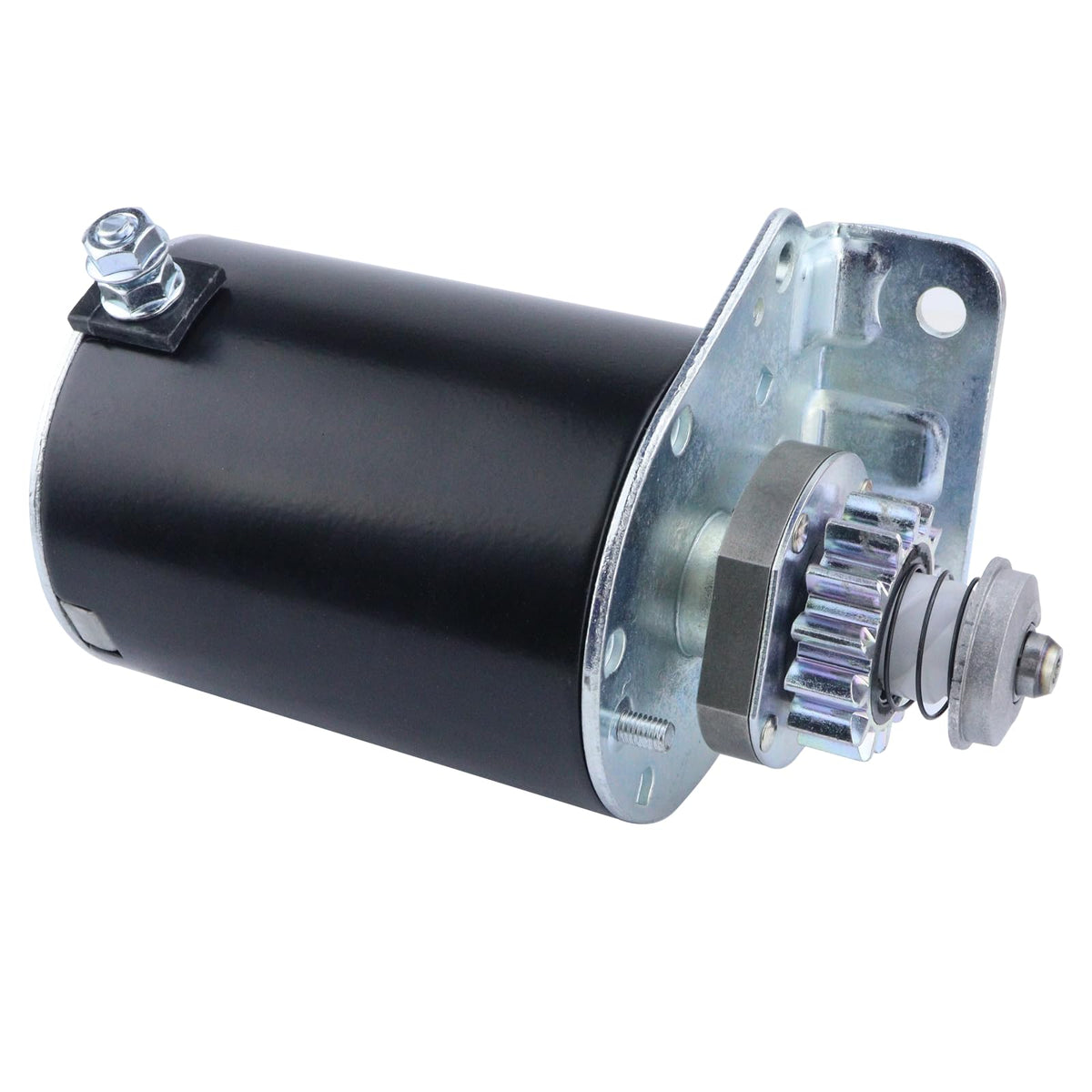

• Counterclockwise rotation and 14 teeth to match pinion engagement

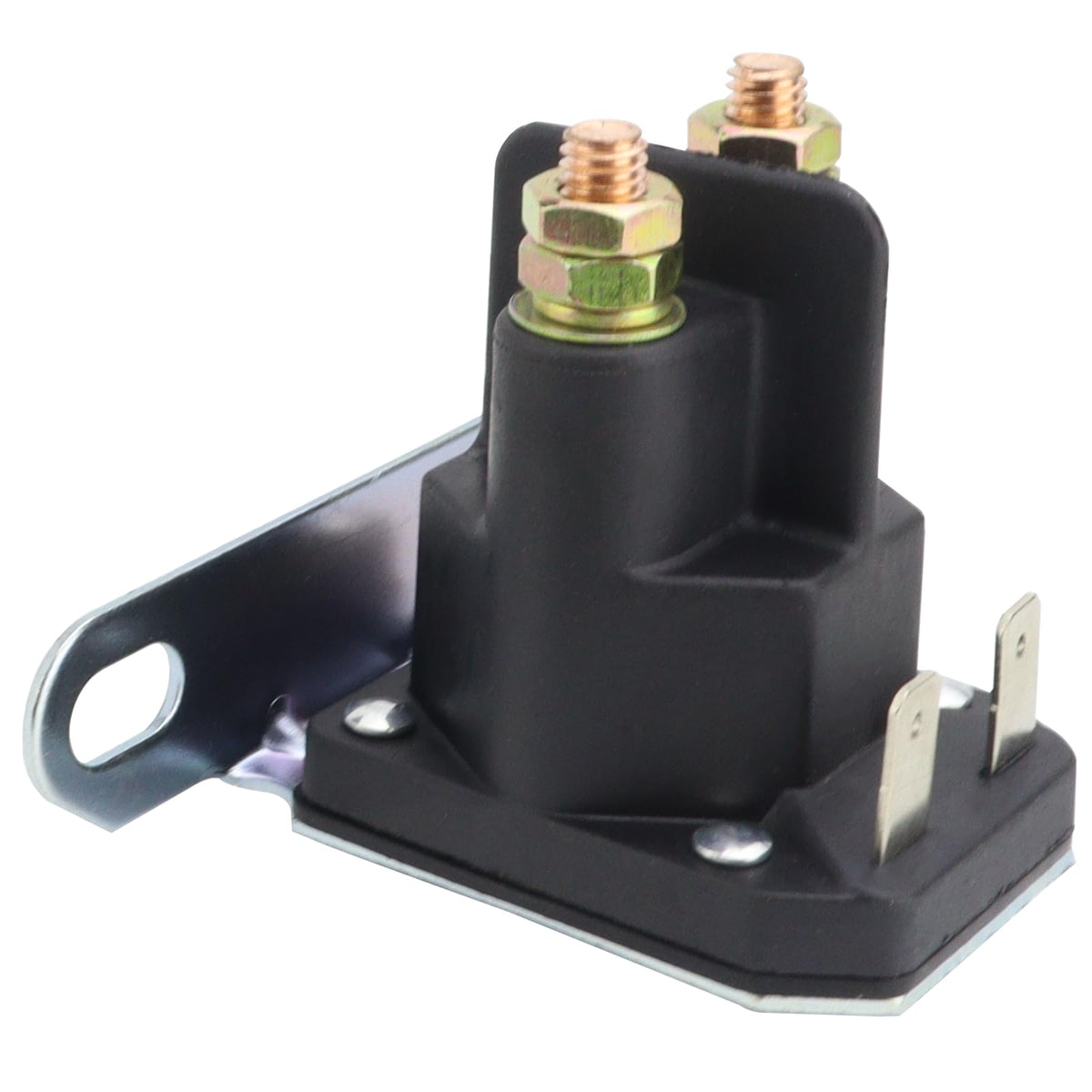

• Solenoid relay that trips under fault conditions to protect circuits
• Constructed with higher-quality internals to resist wear and heat

What are the technical specs I need to know before buying?

Know the electrical and physical details to verify compatibility with your tractor: voltage, rotation, tooth count and starter type are the critical specs. Compare these to the part you remove or to your owner's manual part list.

• Voltage: 12V — standard for these compact tractors
• Rotation: CCW (counterclockwise)
• Teeth: 14 on the starter pinion
• Starter Type: PMDD (permanent magnet direct drive)

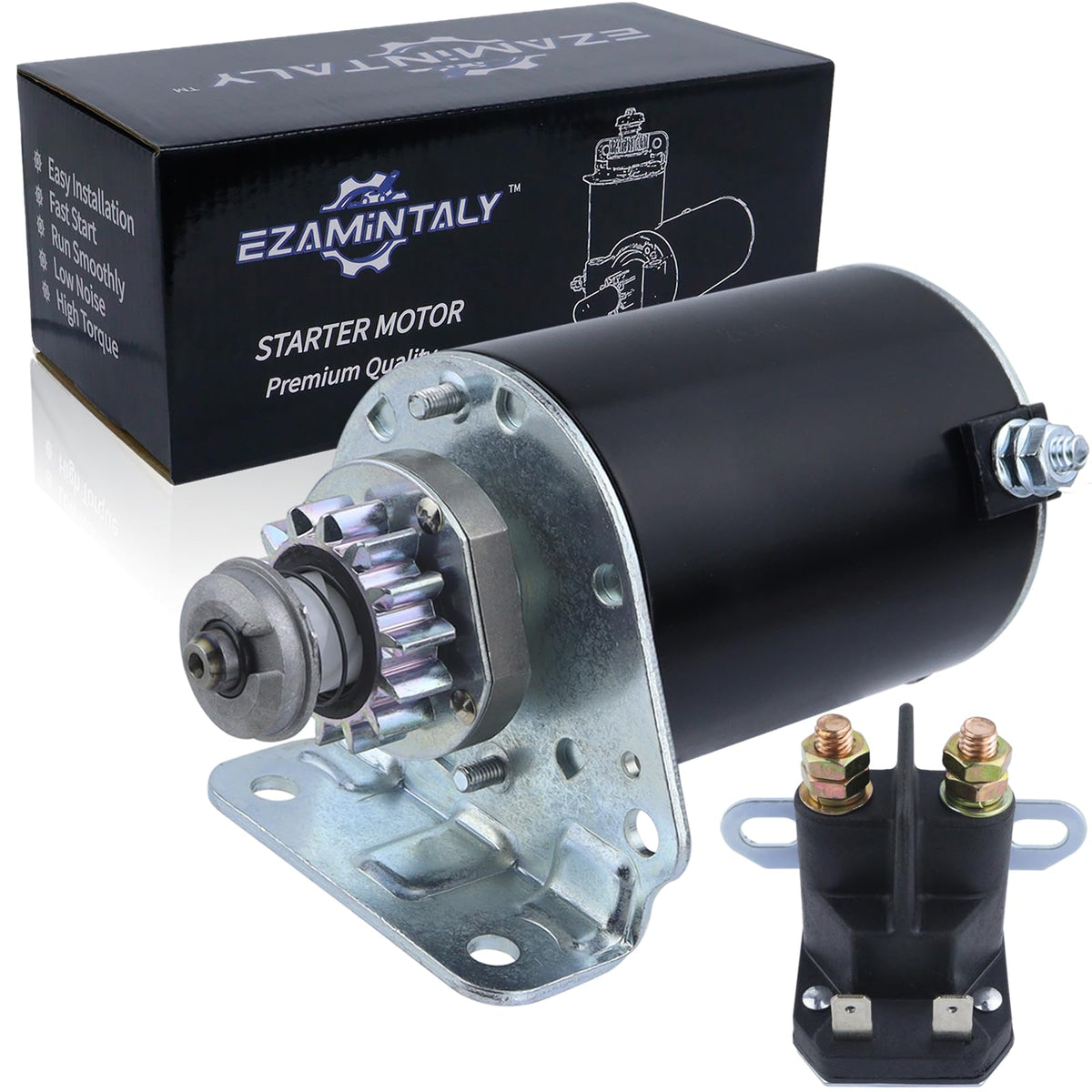

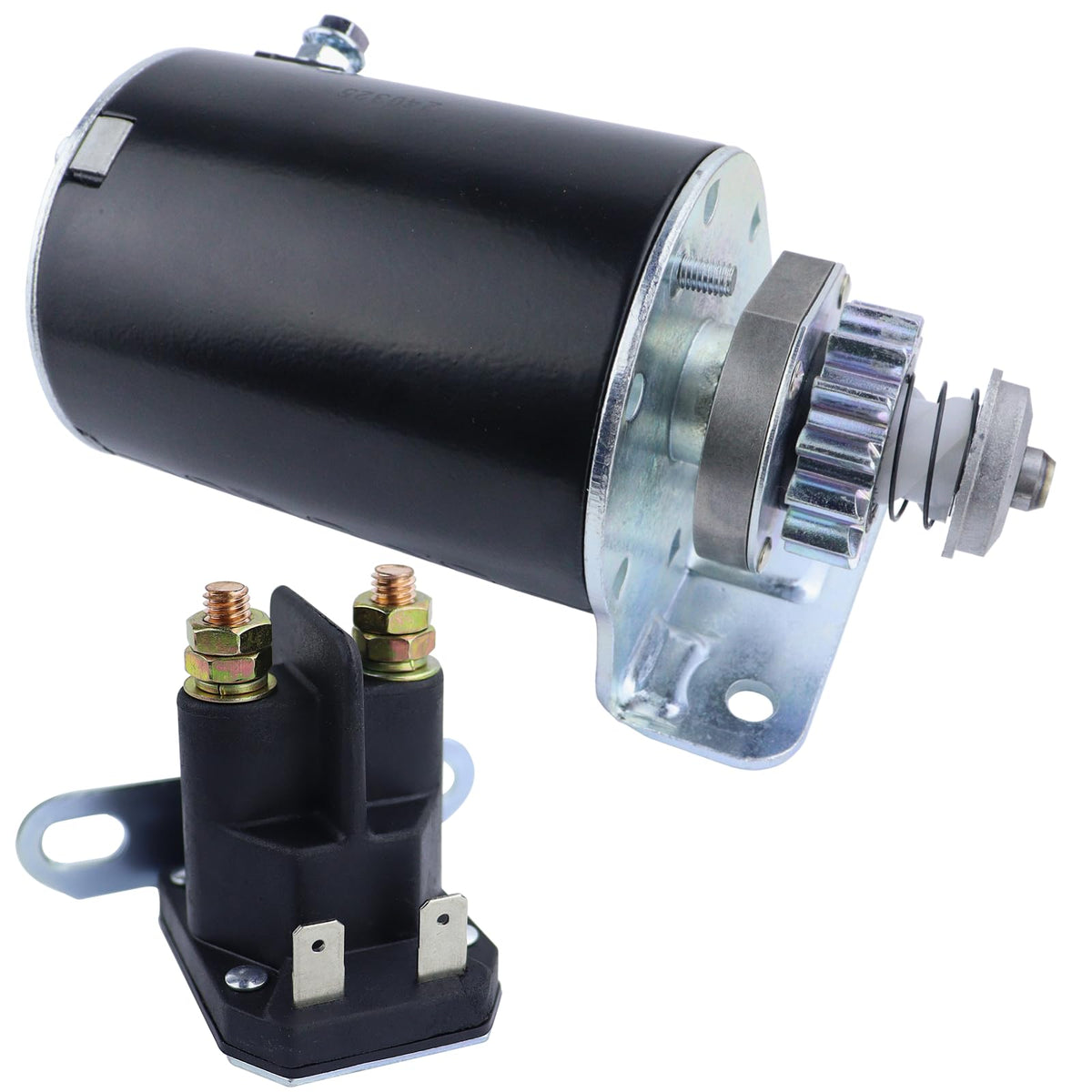

• Package includes 1 starter motor and 1 solenoid relay

Is installation difficult and what should I prepare?

Installation is straightforward for anyone comfortable with basic tractor electrical work and standard hand tools. Always disconnect the battery before starting; you'll need to remove the old starter, transfer any required mounting brackets or hardware, and reconnect wiring to the matched relay terminals.

• Recommended: disconnect battery to avoid shorts or shocks
• Typical tools: ratchet set, torque wrench, pliers, and wire cleaner
• Check that pinion and mounting flange align before tightening
• Contact professional service if you are unsure about wiring or fit

Who is this for: This Ezamintaly starter and solenoid relay kit is intended for owners and technicians who maintain John Deere E100-series, LA-series, D-series, Z225, and compatible Sabre/Europa mowers equipped with BS engines. It suits anyone needing a direct-fit replacement that restores starting performance and adds a protective relay to reduce electrical risk. If you want an OEM-compatible, higher-durability starter kit to minimize downtime and protect your mower’s electrical system, this product is a practical upgrade.
