Facet-Purolator Dura-Lift 12V Auxiliary Fuel Pump — 1/8 NPT, 120" Dry Lift, 33 GPH

The Facet Dura-Lift 40285 is a 12V electric auxiliary fuel pump built to draw fuel from deep-sump tanks—offering a minimum dry lift of 120 inches while delivering up to 33 GPH free-flow or 4–7 psi under no-flow conditions.

If your main pump sits well above the fuel source or your fuel pickup needs extra vertical reach, the Facet Dura-Lift is engineered to pull fuel from farther below the pump than standard units. Manufactured by Facet-Purolator in the USA, this model combines high vertical lift capability with a durable nylon housing, an easily serviceable 80-micron intake screen, and a clear sight bowl to monitor filter condition and sediment. It’s compatible with gasoline, E85 blends, diesel, biodiesel, and common fuel additives, and ships with a 2-pin Weather Pack connector for simple electrical hookup.

How does the Dura-Lift reach fuel from deep tanks?

The Dura-Lift uses an internal design optimized for vertical suction so it can maintain a minimum dry lift of 120 inches (10 feet). That makes it suitable for installations where the pickup is several feet below the pump, such as in auxiliary tanks or when feeding a high-pressure main pump.

• Minimum dry lift: 120 inches (10 feet)
• Large-capacity intake filter (80 micron) for improved suction reliability
• Clear sight bowl to confirm prime and detect sediment

What are the flow and pressure specifications?

The pump can free-flow up to 33 gallons per hour and produces about 4–7 psi when operating against a closed or restricted outlet. In typical service it often supplies around 20 GPH at roughly 3 psi, which is sufficient to feed many secondary or high-pressure pumps.

• Free-flow rate: up to 33 GPH
• Typical operating: ~20 GPH at 3 psi
• No-flow pressure range: 4–7 psi

What are the installation and durability features?

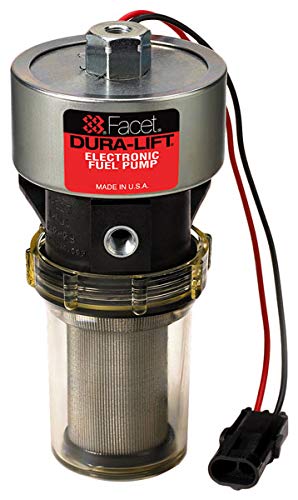

The Dura-Lift measures about 8 inches tall with a 3-1/4 inch outer diameter and includes a molded 2-bolt mounting flange for secure attachment. Inlet and outlet ports are 1/8 NPT female threads. The wiring harness arrives with a shrouded 2-pin Weather Pack connector for weather-resistant electrical connections.

• Overall size: 8" tall × 3.25" OD
• Mounting: built-in 2-bolt flange
• Ports: 1/8 NPT female inlet and outlet
• Electrical: 12V DC with 2-pin Weather Pack connector installed

How do you service and maintain the pump?

Routine maintenance focuses on the removable 80-micron intake screen and the clear sight bowl. The screen is designed for easy removal and cleaning, while the sight bowl provides a quick visual check for clogs or sediment without disassembly.

• Removable 80-micron intake filter for cleaning
• Clear sight bowl for visual inspection of filter and sediment
• Simple electrical connector reduces wiring issues

Who is this for: The Facet Dura-Lift 40285 is aimed at technicians, fabricators, and vehicle owners who need reliable auxiliary suction from deep or remote fuel pickups—ideal for marine auxiliary tanks, RV or overland installations, specialty race setups, or any application where the fuel source sits several feet below the feed pump. Choose this pump when vertical lift, fuel compatibility (gasoline, E85, diesel, biodiesel), serviceability, and a compact footprint are priority selection factors.
