FANOVO R134a Refrigerant Recharge Kit — Compact fridge & home AC charging set with gauge hose, BPV‑31 piercing tap and self‑sealin

A compact FANOVO R134a refrigerator freon recharge kit that combines a clear gauge hose, bullet‑piercing tap valve and self‑sealing adapter for topping up home AC and fridge systems.

Keep your home refrigeration and small air‑conditioning systems serviceable with a simple, portable charging kit designed for R‑134a and compatible refrigerants. This FANOVO set bundles a puncture‑style can tap, an easy‑to‑read multicolour pressure gauge hose, a BPV‑31 bullet‑piercing valve for tubing, and an RH self‑sealing adapter so you can work with both puncture cans and modern self‑sealing refrigerant cans. All connections use 1/4" SAE fittings with internal gaskets to reduce leakage, and the hose and brass fittings are built for repeated high‑pressure use.

How do I know this kit fits my refrigerator or home AC?

The FANOVO kit targets small home refrigeration and R‑134a systems and also supports older R‑12 and R‑22 refrigerants when compatible adapters or service procedures are used. The main charging hose has a 1/4" SAE female port that mates with common service ports, and the BPV‑31 valve fits 1/4", 5/16" and 3/8" outside diameter tubing. Check your appliance service port size and refrigerant type before proceeding.

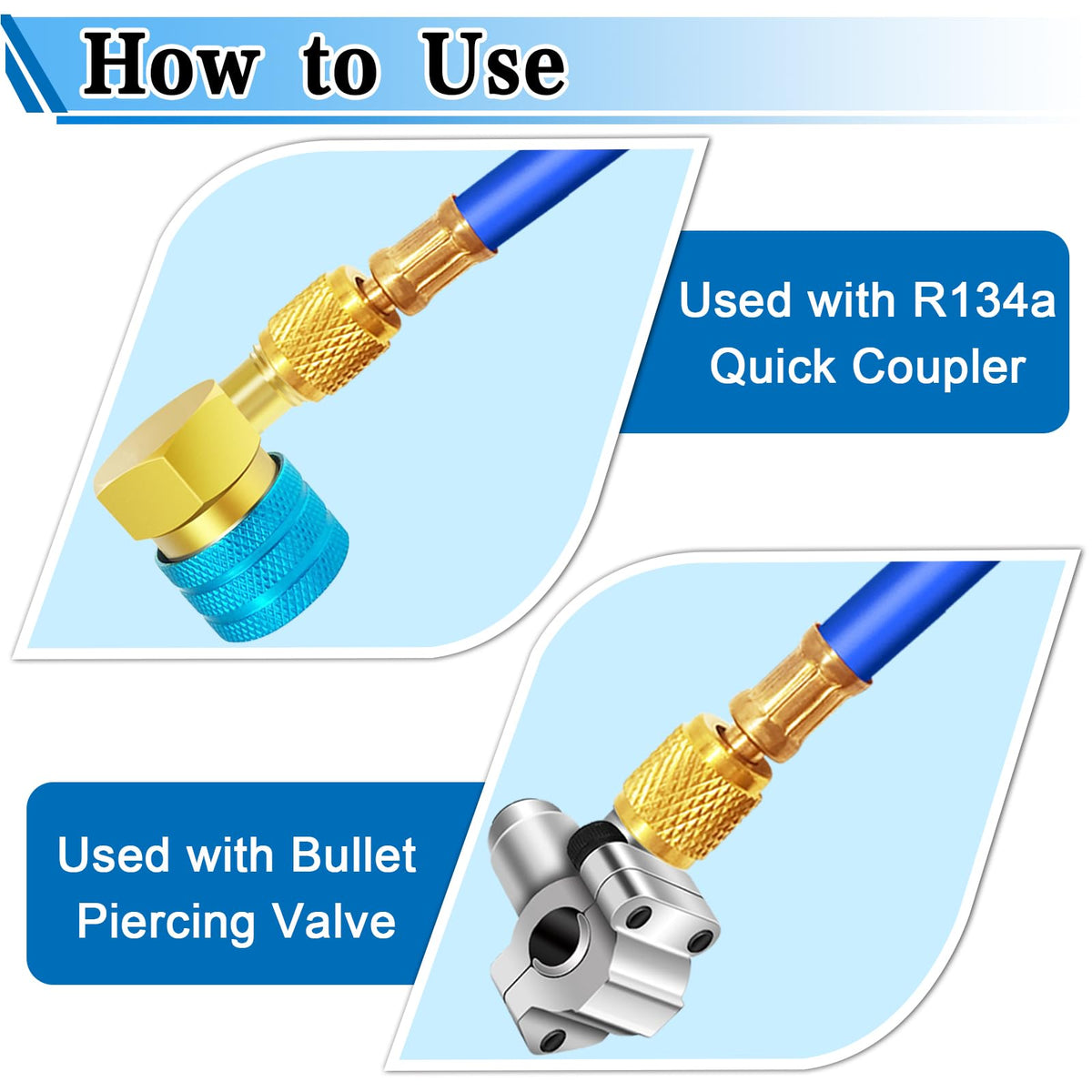

• 1/4" SAE female fitting on the hose for standard service ports
• BPV‑31 bullet‑piercing valve fits three common tube diameters

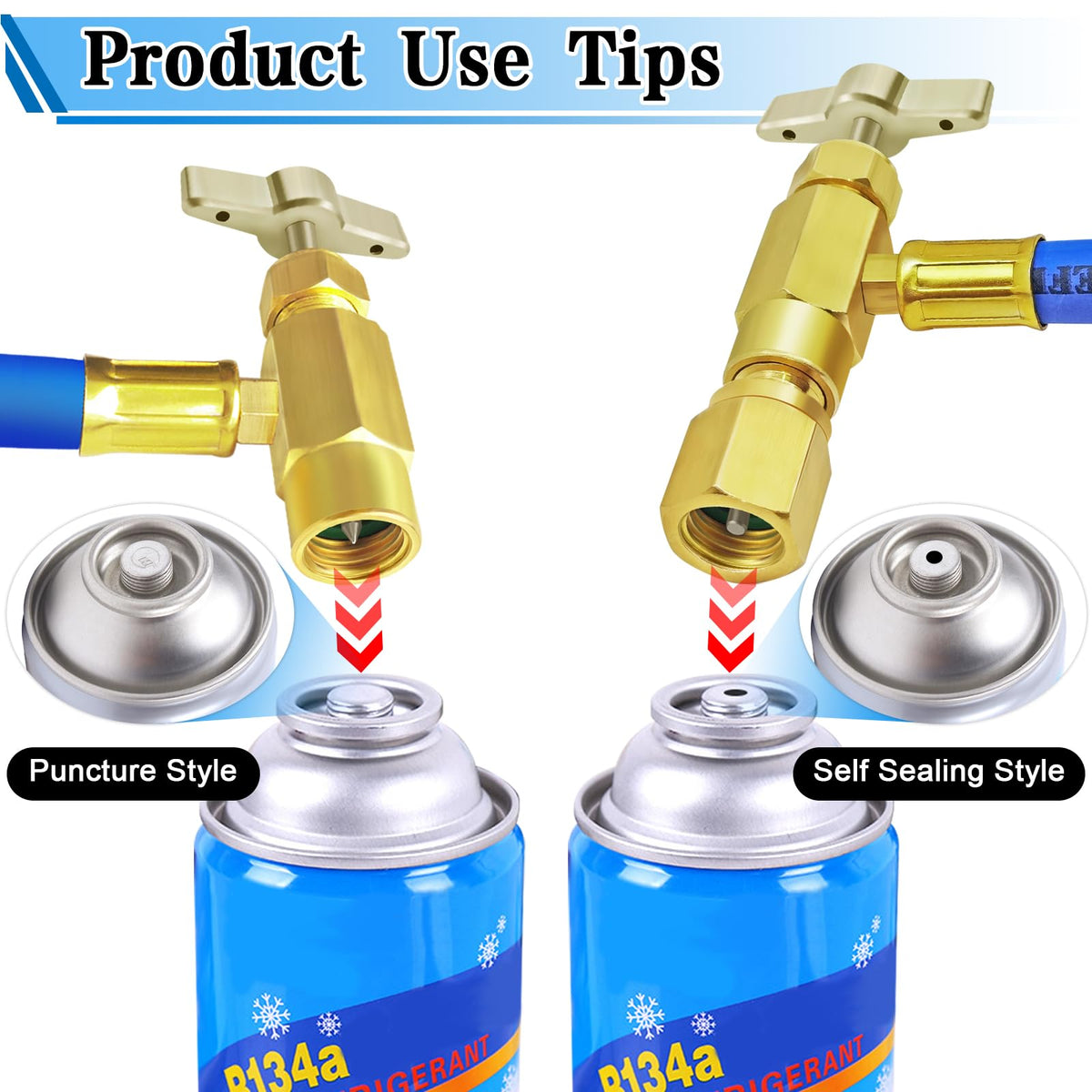

• RH self‑sealing adapter for modern refrigerant cans
• Gauge calibrated for R‑134a readings

What components are included and why they matter?

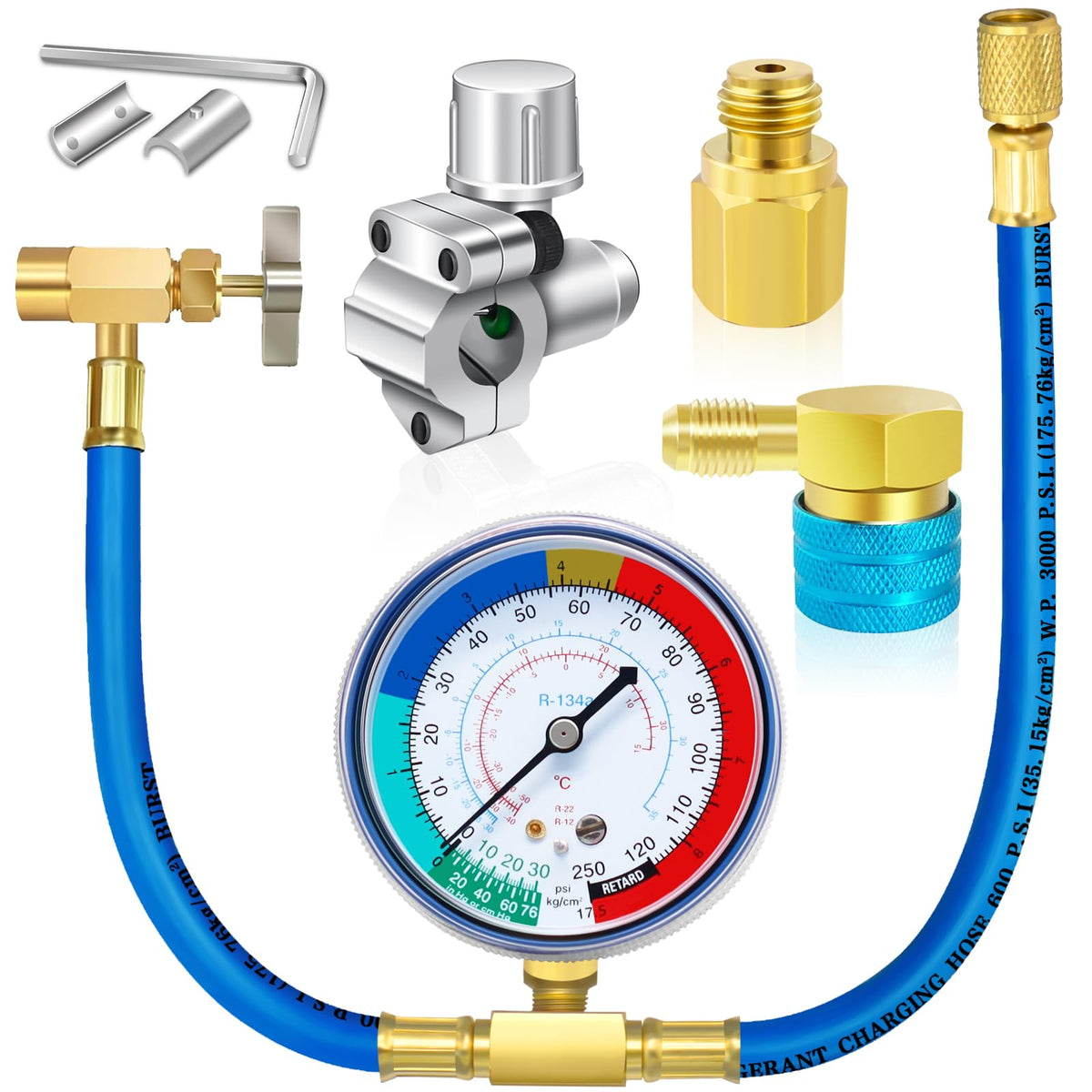

The kit comes complete with a pressure gauge hose, a bullet‑piercing tap valve and a self‑sealing adapter — the three pieces cover most home charging scenarios. The gauge hose helps you monitor pressure while charging, the brass bullet tap allows tapping into hard tubing, and the RH adapter makes it easy to attach self‑sealing R‑134a cans without leakage.

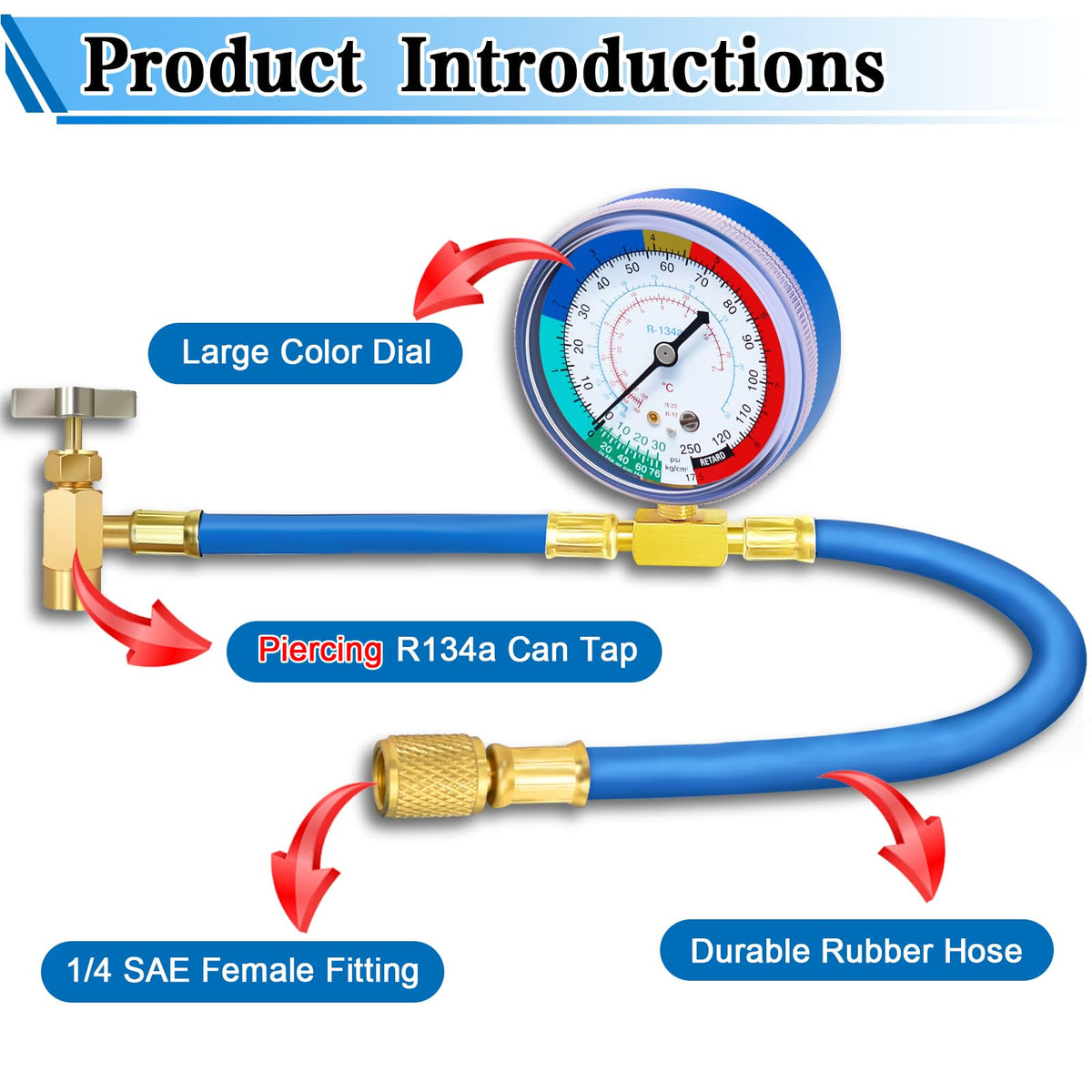

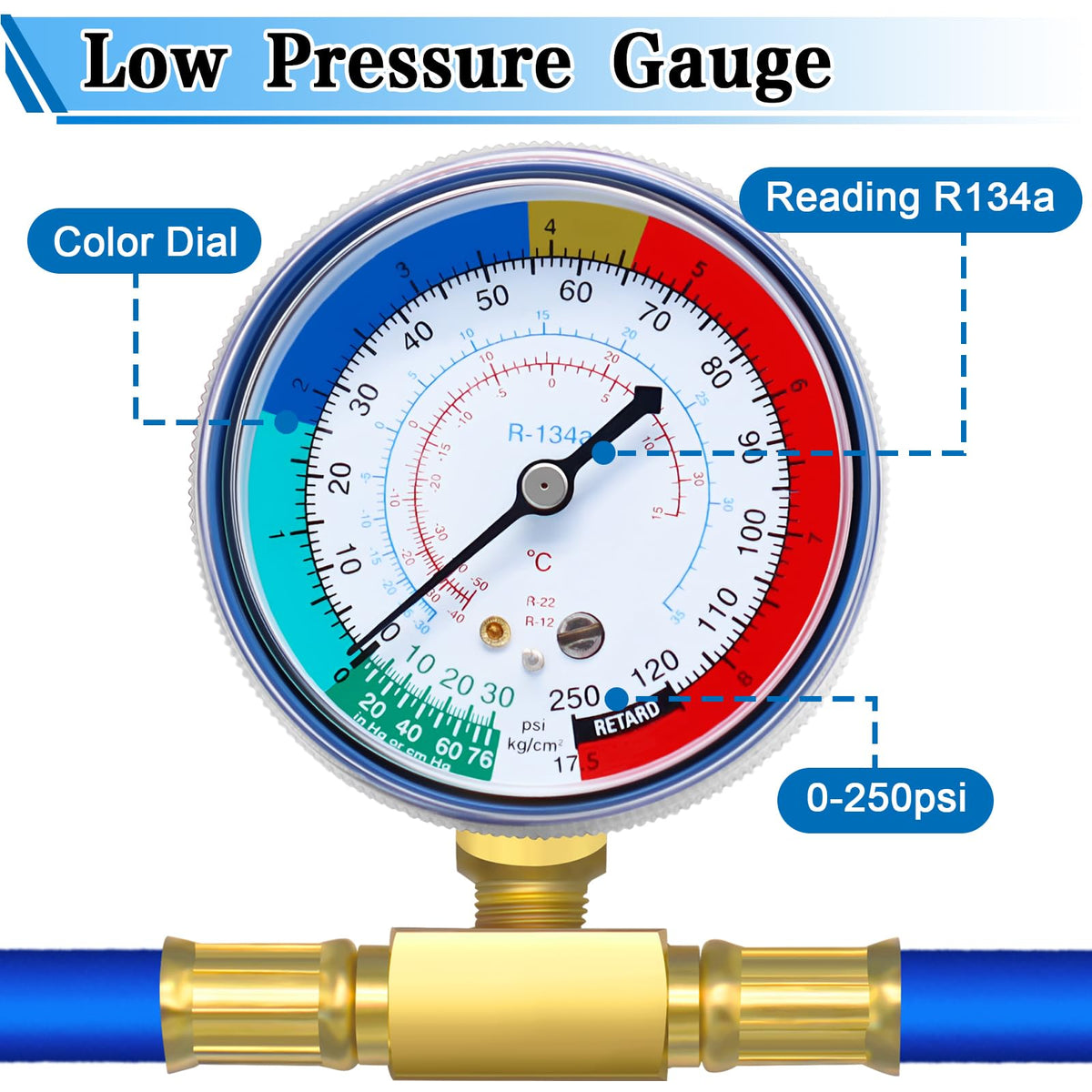

• R134a recharge hose with multicolour, easy‑to‑read gauge

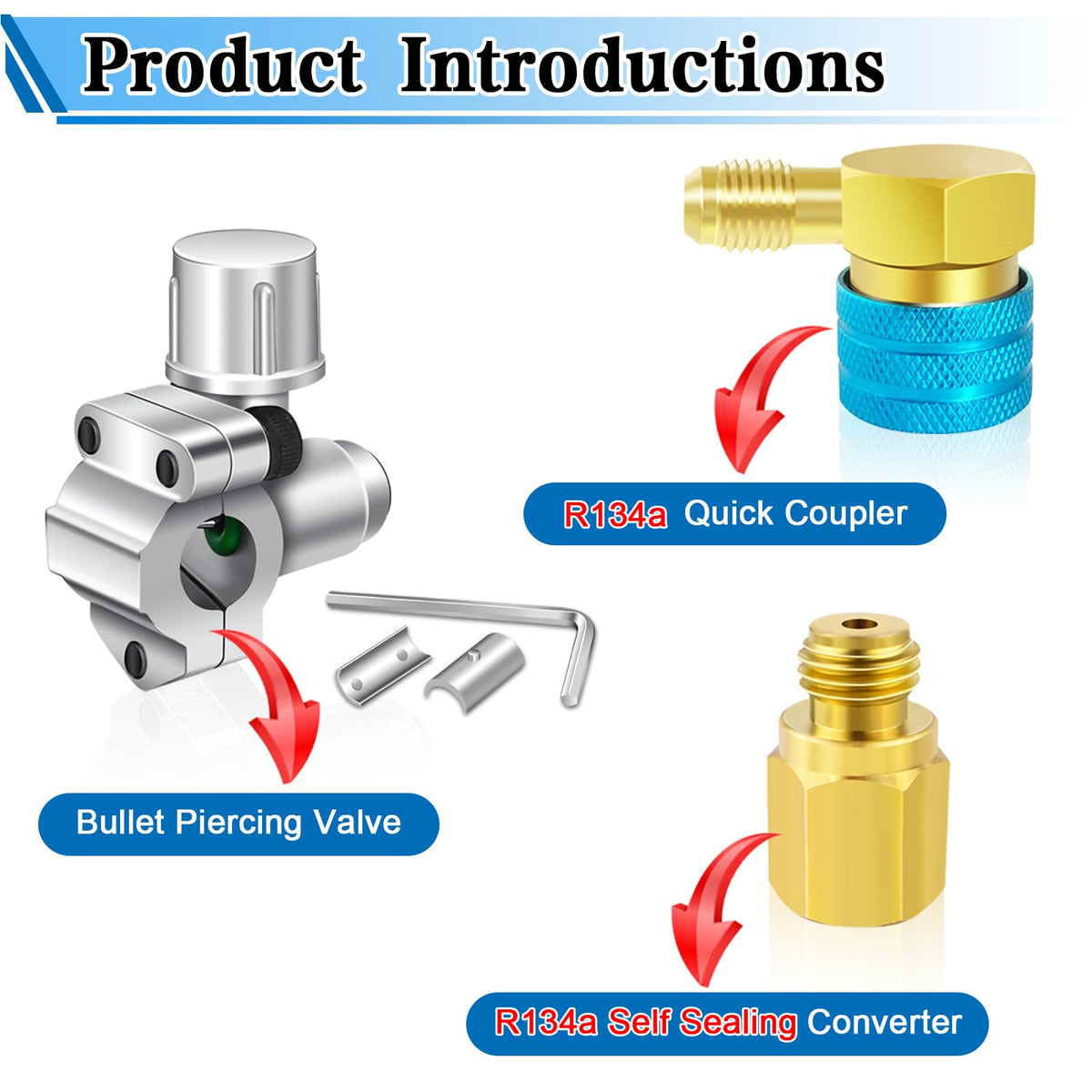

• BPV‑31 bullet piercing tap valve for tube access
• RH R134a self‑sealing adapter for canned refrigerant
• Internal gaskets in ports to minimize leaks during service

How do I use the kit safely and effectively?

Use basic HVAC safety practices: work in a ventilated area, wear eye protection and follow manufacturer refrigerant handling rules. Attach the hose to the service port, use the bullet‑piercing tap only on suitable tubing, and monitor the gauge while adding refrigerant to avoid overcharging. If you’re unsure, consult a certified technician to prevent equipment damage or safety hazards.

• Ventilate work area and wear safety goggles and gloves
• Confirm refrigerant type (R‑134a or compatible) before charging
• Attach fittings hand‑tight, then secure to avoid cross‑threading
• Monitor gauge and stop when recommended pressures are reached

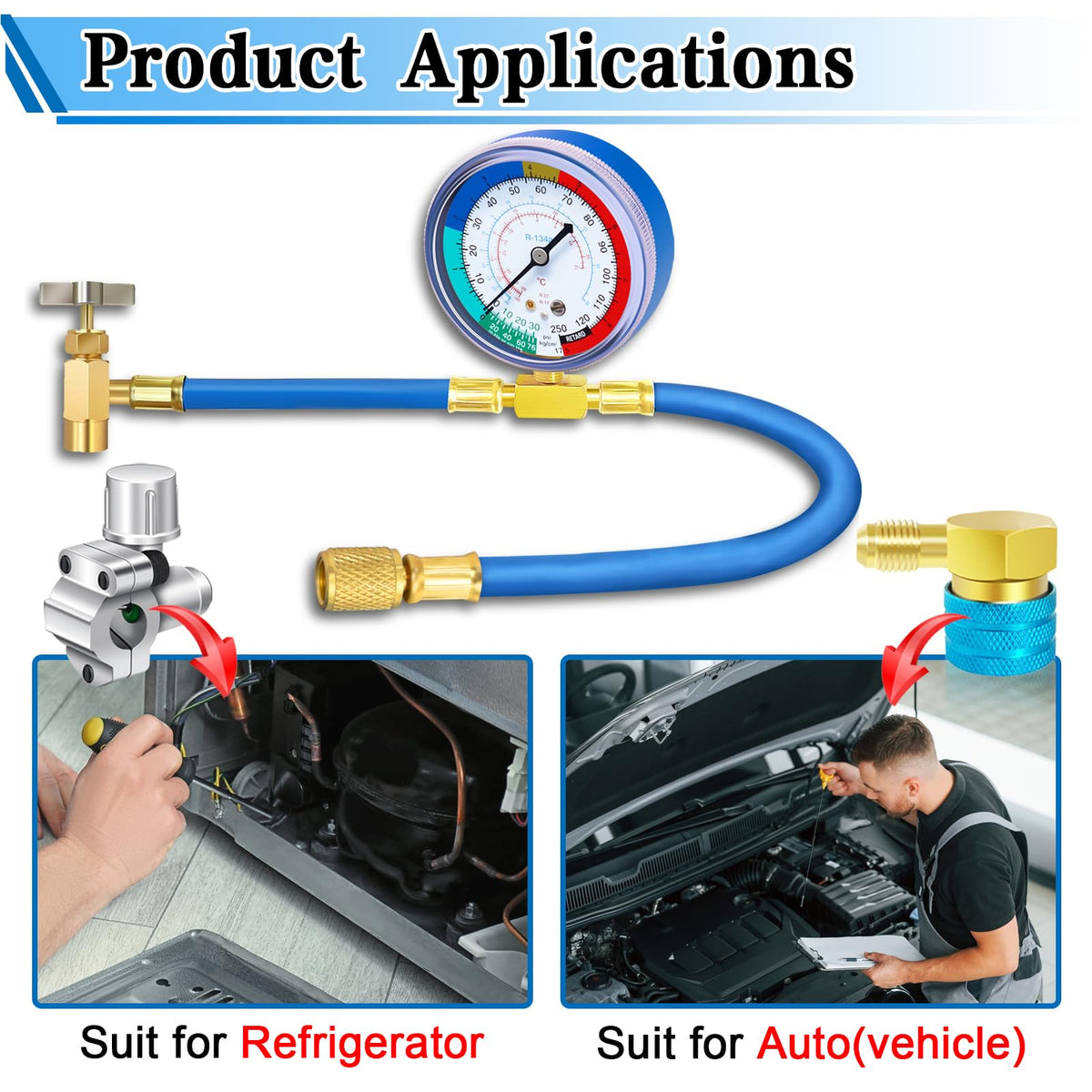

Who this is for: DIY homeowners and small‑appliance technicians who need a compact, versatile charging solution for household refrigerators, freezers and small air conditioners. The FANOVO R134a freon recharge kit suits users comfortable with basic HVAC tasks who want clear gauge feedback, reliable brass fittings and the flexibility to work with both puncture and self‑sealing refrigerant cans. It is not a substitute for professional service in complex systems — for uncertain diagnoses or large commercial units, seek certified HVAC assistance.
