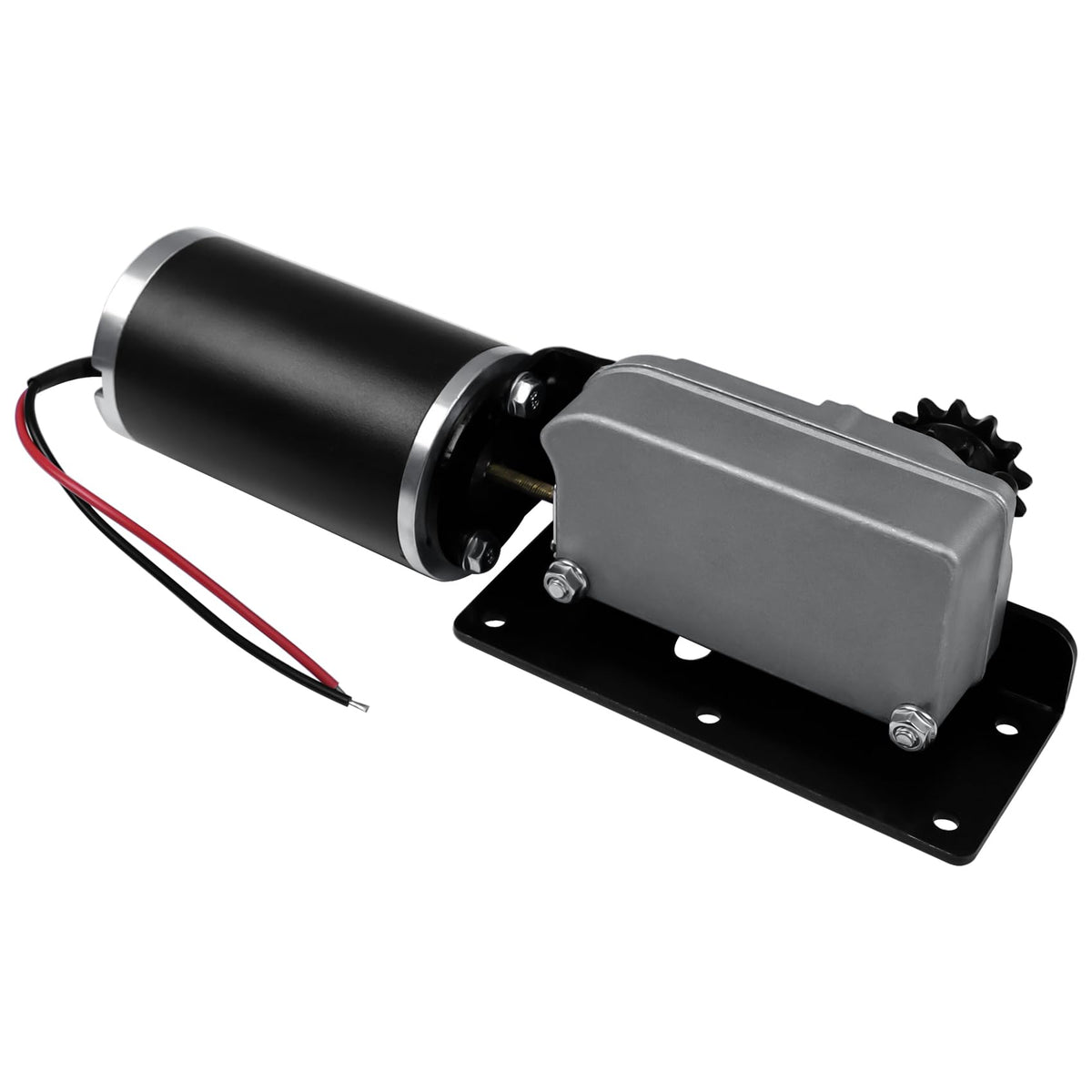

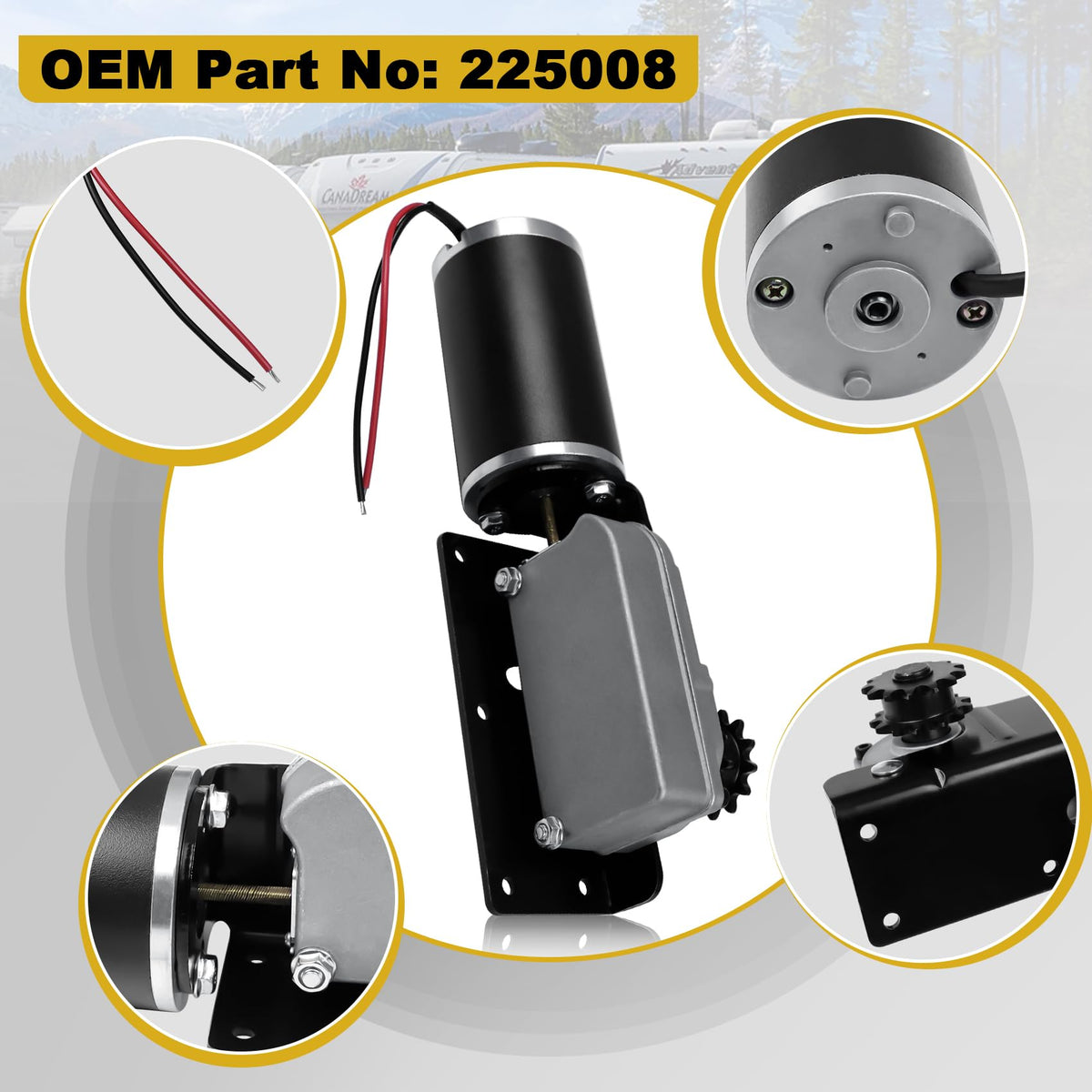

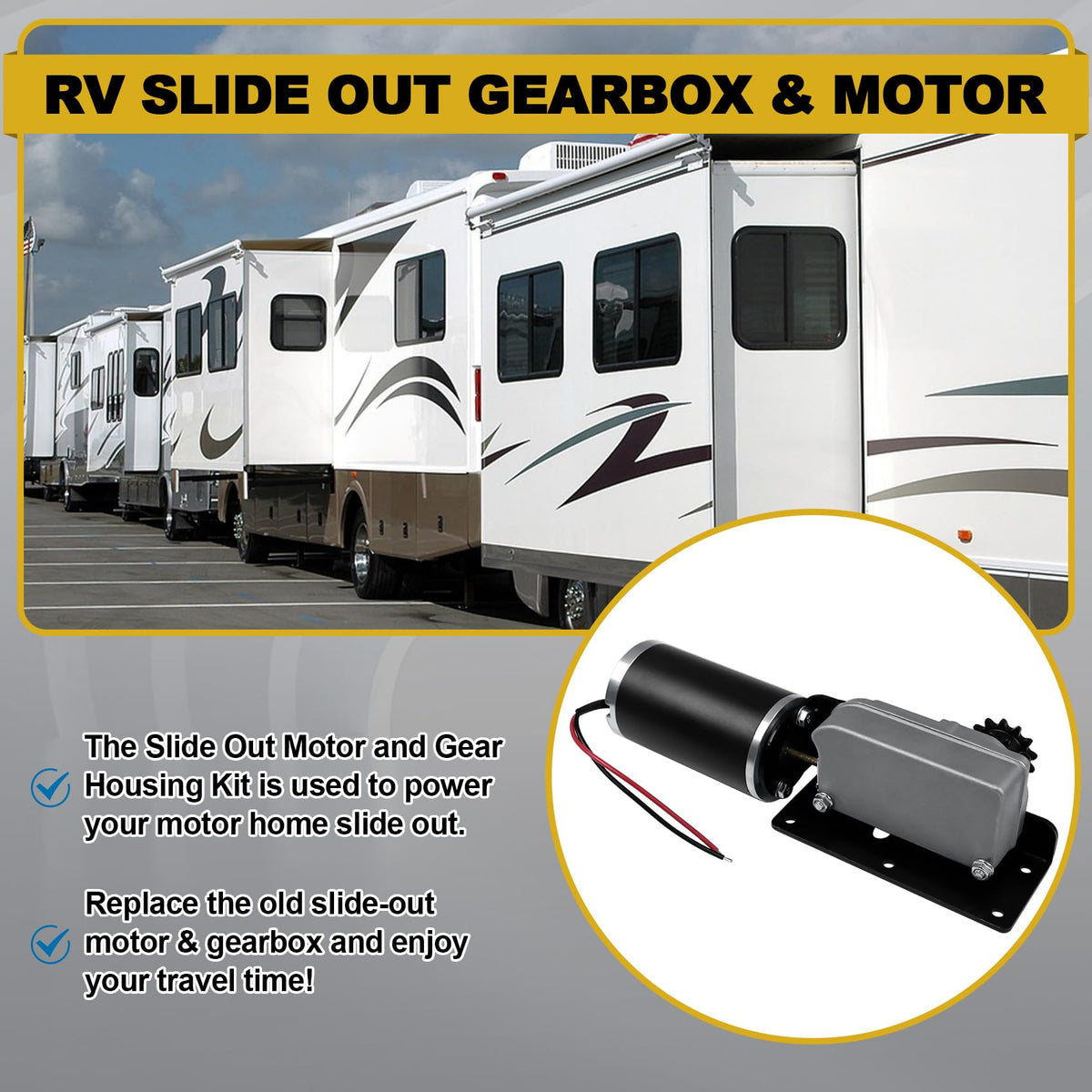

FHRHRY RV Slide-Out Motor & Gear Housing 12V — Direct Replacement for BAL Accu-Slide, High-Torque

If your travel trailer’s cable-driven slide-out is slow, noisy, or no longer moves, this replacement assembly restores reliable operation without modifying the original system. Manufactured to OEM specifications, the unit is designed for direct swap-in compatibility with BAL Accu-Slide setups and the standard 225008 part footprint, delivering a robust gearbox, a high-torque motor, and factory-style electrical hookups.

How will this assembly fit my BAL Accu-Slide cable-driven slide-out?

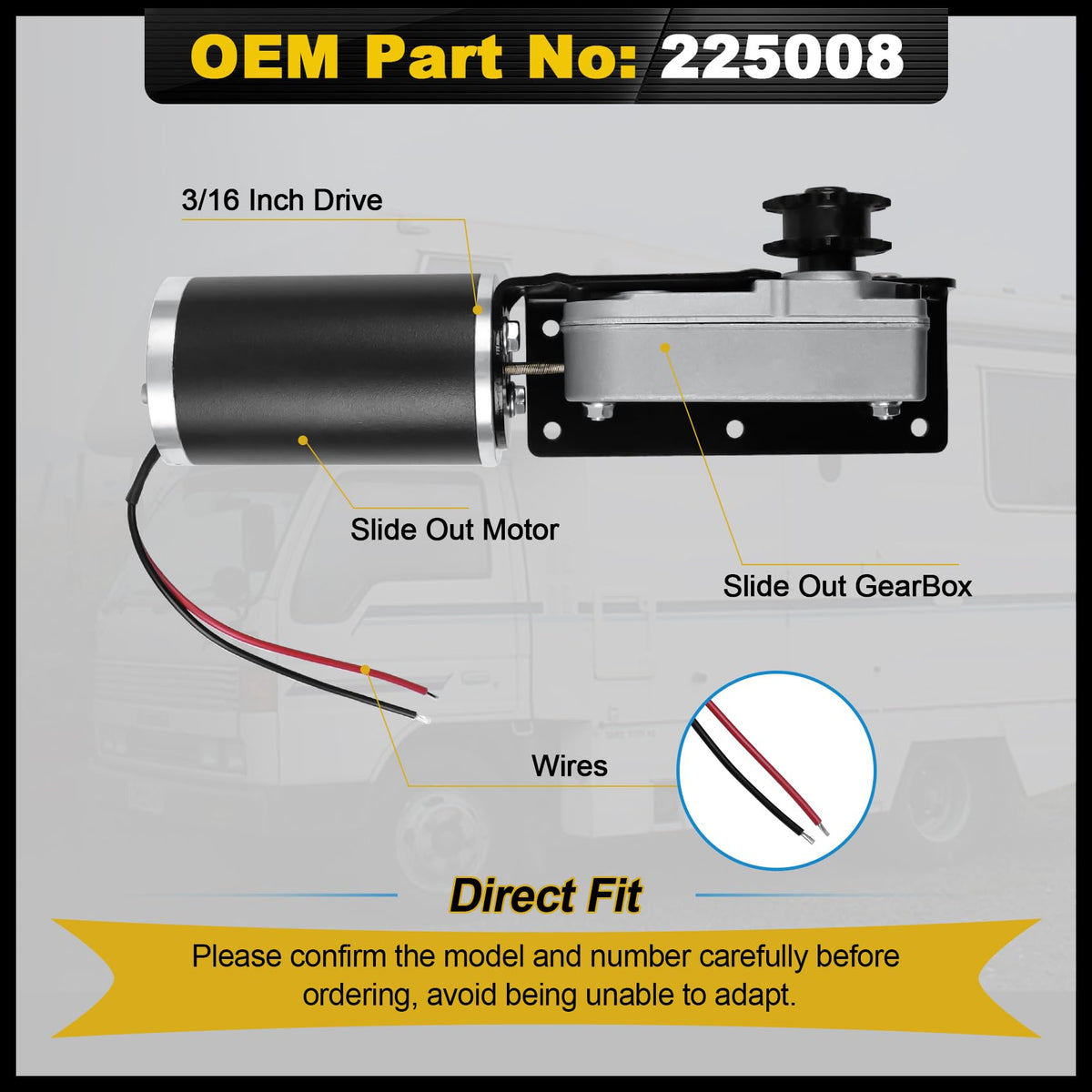

The FHRHRY assembly is built to match the original 225008 dimensions and mounting points so it installs like the factory part. Wiring uses the same connector style for a plug-and-play hook up, and the 13-tooth gear meshes with the original chain configuration for correct motion.

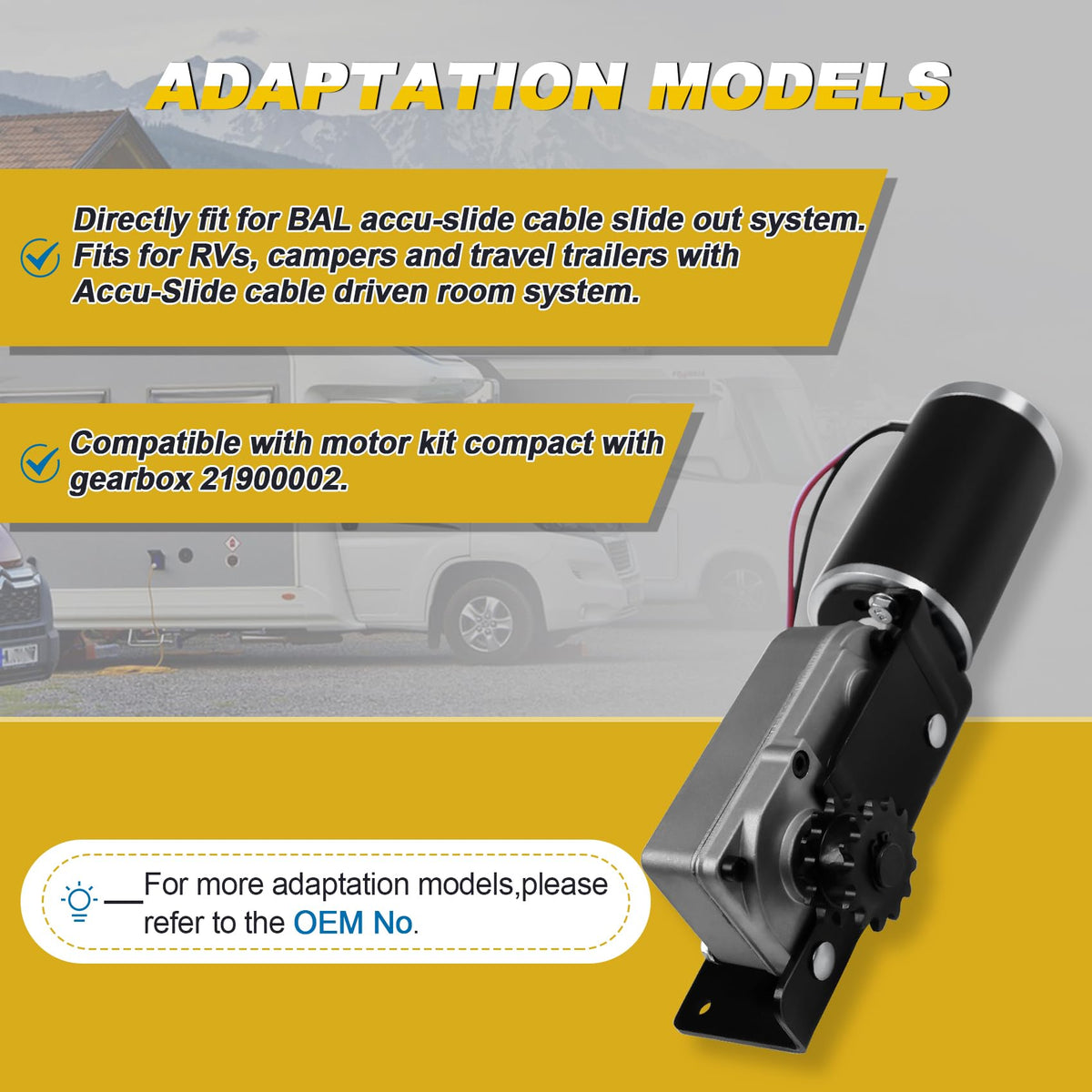

• Direct replacement for BAL Accu-Slide and 225008 part numbers

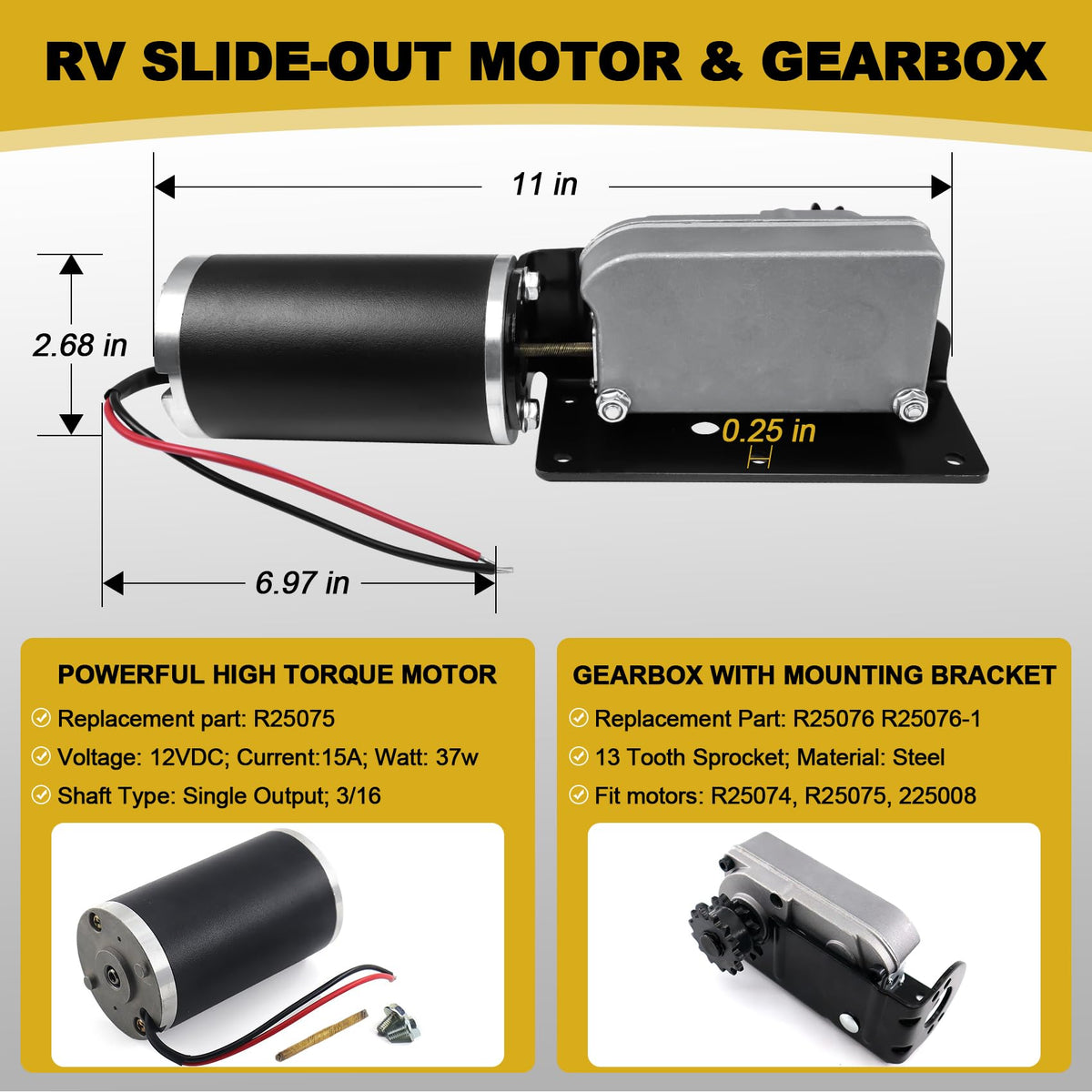

• Same mounting hole pattern and shaft size (3/16" single output)
• Compatible with motor kit compact gearbox 21900002 where applicable
• 13-tooth gear fits original chain for secure engagement

What electrical and performance specifications should I expect?

This slide-out assembly runs on 12 volts and typically draws around 15 amps under normal load, driven by the included R25075 high-torque motor and protected by a durable gearbox. The housing and internal components are finished for corrosion resistance and reliable circuit connections, promoting long service life in mobile applications.

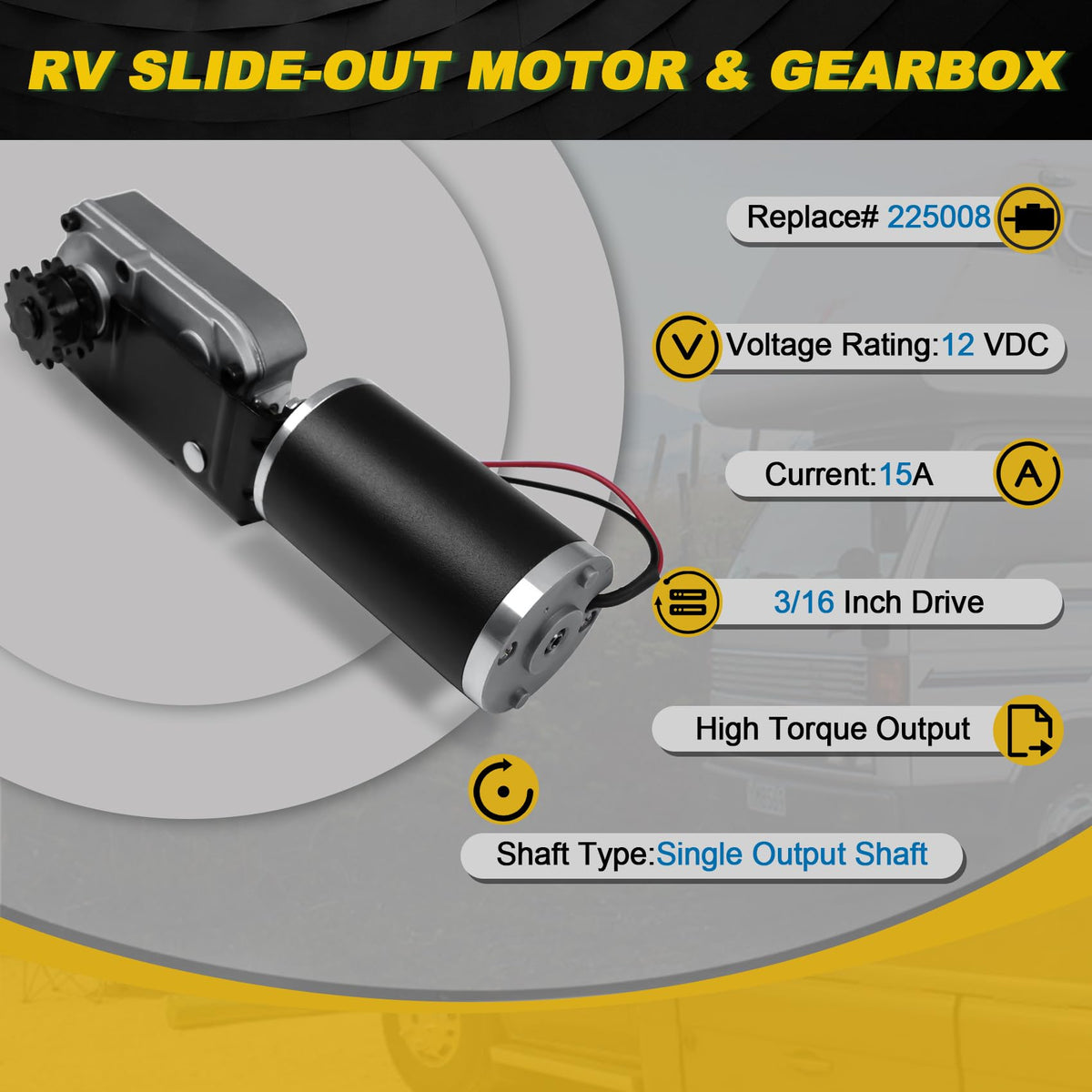

• Rated voltage: 12 V DC
• Typical current draw: 15 A
• High-torque motor paired with R25076/R25076-1 gearbox
• Robust housing for circuit protection and durability

How difficult is installation and what tools do I need?

The unit is designed for straightforward do-it-yourself replacement in most trailers and campers, often completed in about 20 minutes by someone comfortable with basic hand tools. Because it replaces the original part directly, no special adapters or cutting are required—simply unbolt, unplug, and bolt the new assembly in place.

• Plug-and-play wiring matches original connector
• Same physical size and mounting points as OEM 225008
• Typical tools: ratchet set, screwdrivers, possibly pliers
• Estimated install time: ~20 minutes for an experienced DIYer

What warranty and support come with this replacement unit?

FHRHRY supports the slide-out motor and gear housing with a 36-month warranty and customer service availability to help troubleshoot installation or fit questions. If anything arrives damaged or doesn’t match your system, contacting support prompts assistance or replacement per warranty terms.

• 36 months limited warranty coverage
• 24-hour email support for installation and compatibility questions
• Recommended to replace the gearbox and motor together to avoid repeat labor

Who is this for: RV owners, repair shops, and DIY technicians who need a reliable, OEM-spec replacement for BAL Accu-Slide cable slide-out systems. It’s ideal for travel trailers and campers using the 225008/R25076/R25075 configuration who want a long-lasting, plug-and-play fix without modifying the original slide mechanism.
