Fill-Rite 1" Automatic Fuel Transfer Nozzle SDN100GAN, Green — 5–25 GPM, Cast-Aluminum Shutoff

Fill-Rite SDN100GAN is a 1" automatic shutoff fuel transfer nozzle that delivers 5–25 GPM with a durable cast-aluminum body and a green jacket for diesel and compatible fuels.

The SDN100GAN blends rugged construction and automatic shutoff convenience in a standard-duty nozzle designed for everyday fueling tasks. Engineered for reliable performance, this model supports gasoline, diesel, biodiesel up to B20, E15 ethanol blends, and kerosene. Its 1-1/8" spout size and green color coding make it easy to identify for diesel use while offering adjustable flow control and built-in latching for a smoother refueling process.

How will the SDN100GAN improve my refueling workflow?

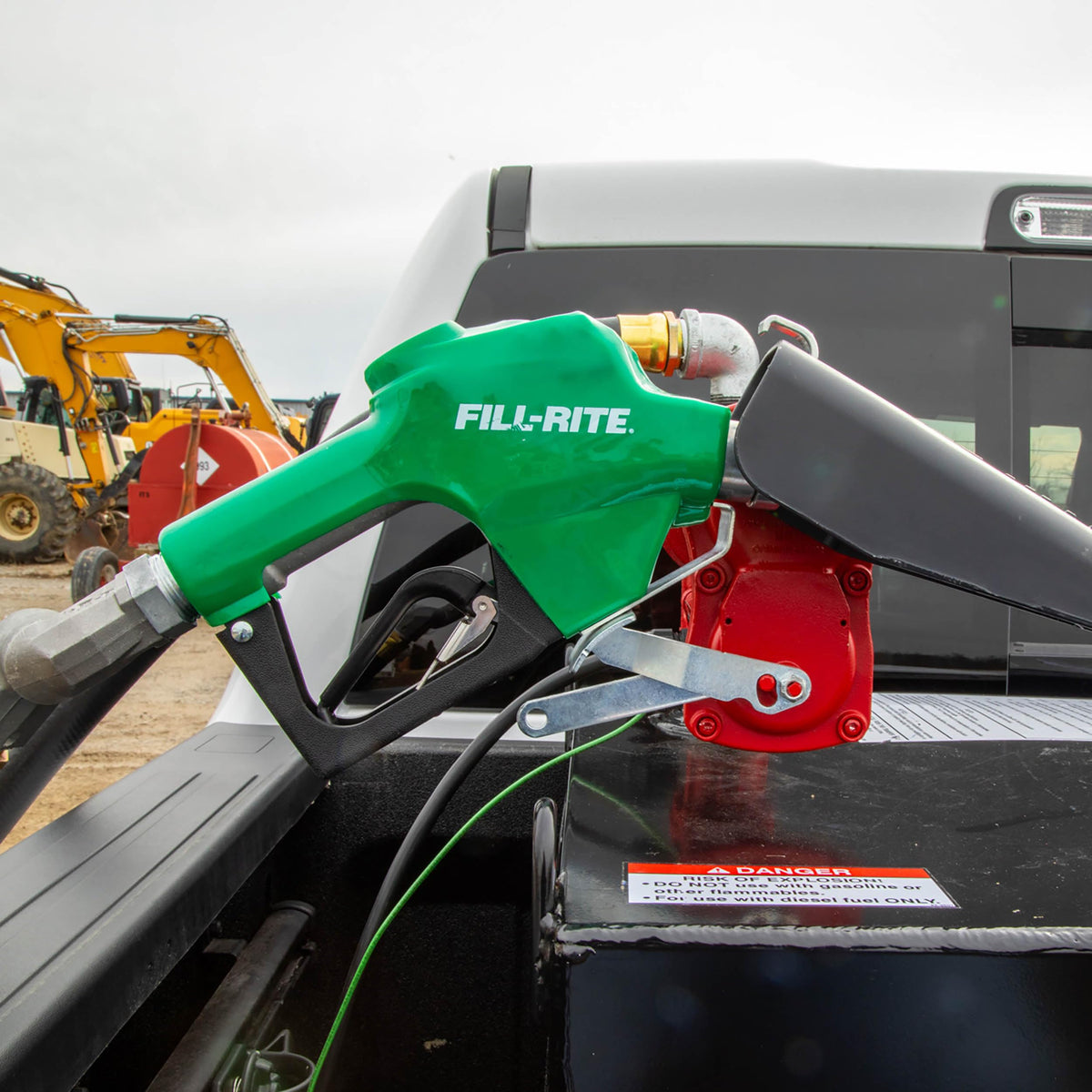

This nozzle reduces time and fuss during transfers by offering consistent flow rates and an automatic shutoff that stops fuel when the tank is full. The adjustable latching positions let you set a comfortable flow for varying tanks or equipment, minimizing manual attention. Built-in spout spring and ergonomic geometry help align the nozzle quickly and reduce wear on spout and tank openings.

• Automatic shutoff prevents overfilling and spills for cleaner, faster fills

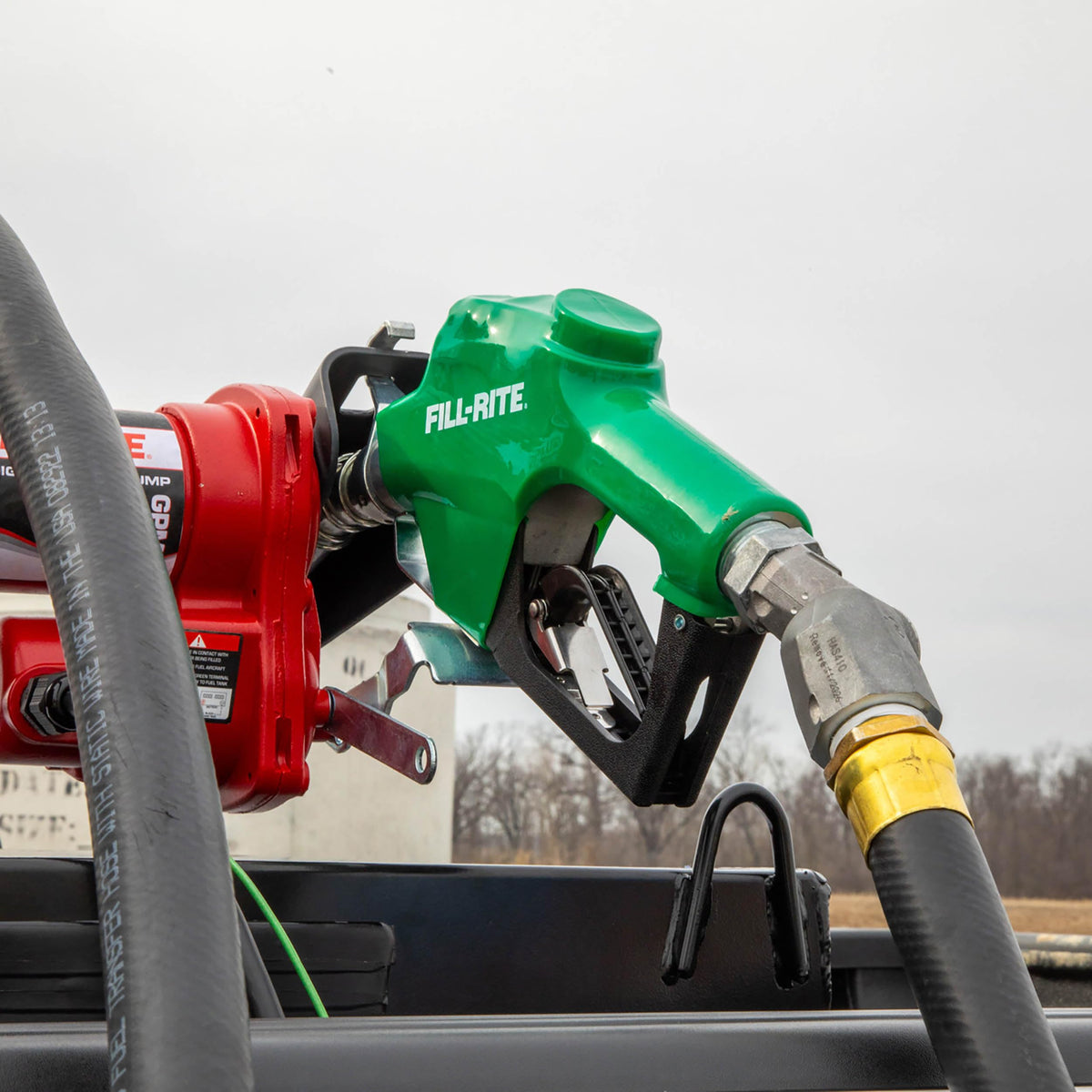

• Three latch positions tailor flow between low, medium, and full rates
• Spout spring improves placement and protects fittings from damage
• Green jacket and 1-1/8" spout clearly identify diesel-capable nozzle

Is this nozzle compatible with the fuels I use?

The SDN100GAN is compatible with gasoline, diesel, kerosene, and common blended fuels like B20 biodiesel and E15. Its materials and construction are selected for broad fluid compatibility in standard-duty applications. For specialty fuels or aggressive additives, verify chemical compatibility before prolonged use.

• Works with diesel and gasoline for mixed-fleet operations
• Rated for biodiesel blends up to B20 and ethanol up to E15
• Safe for kerosene transfers in heating or aviation support roles
• Cast-aluminum body resists corrosion in general fueling environments

How durable and serviceable is the Fill-Rite SDN100GAN?

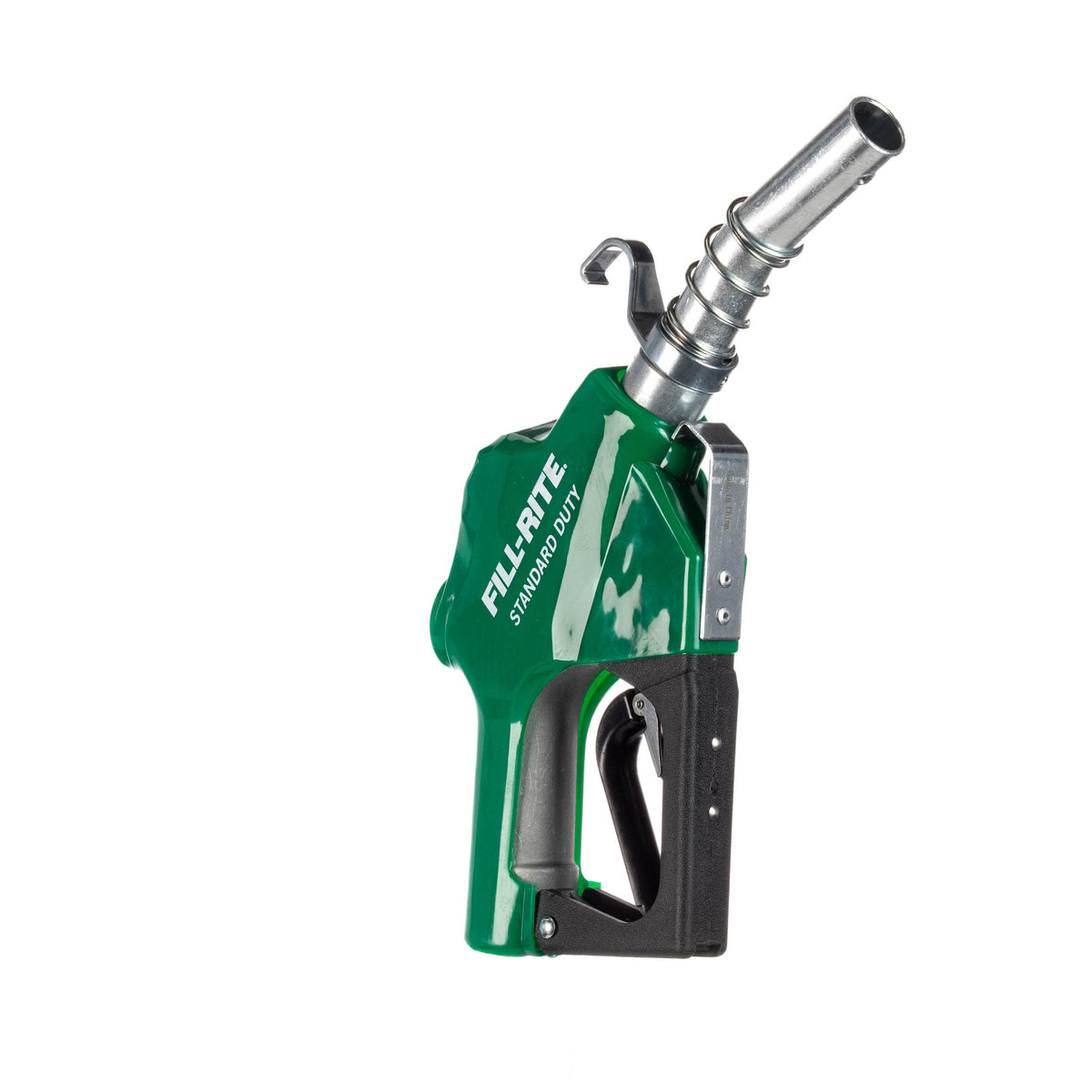

Constructed from cast-aluminum, this nozzle balances strength and weight for daily use. The design emphasizes serviceability: common wear items are accessible and the latching mechanism is adjustable for long-term usability. While classified as standard-duty, it delivers dependable life for general fueling applications when maintained properly.

• Rugged cast-aluminum housing stands up to regular use
• Replaceable spout components and springs simplify maintenance
• Adjustable latch positions prolong useful service by adapting flow
• Economical option for fleets and job-site fueling where heavy industrial duty isn’t required

What installation and setup details should I know?

Installation is straightforward: attach the 1" inlet to your hose or pump fitting and confirm thread compatibility. The nozzle ships with a green jacket and a 1-1/8" large spout—verify tank openings fit the spout diameter to ensure a secure seal. After mounting, test the automatic shutoff and latch positions with a small transfer to confirm proper performance.

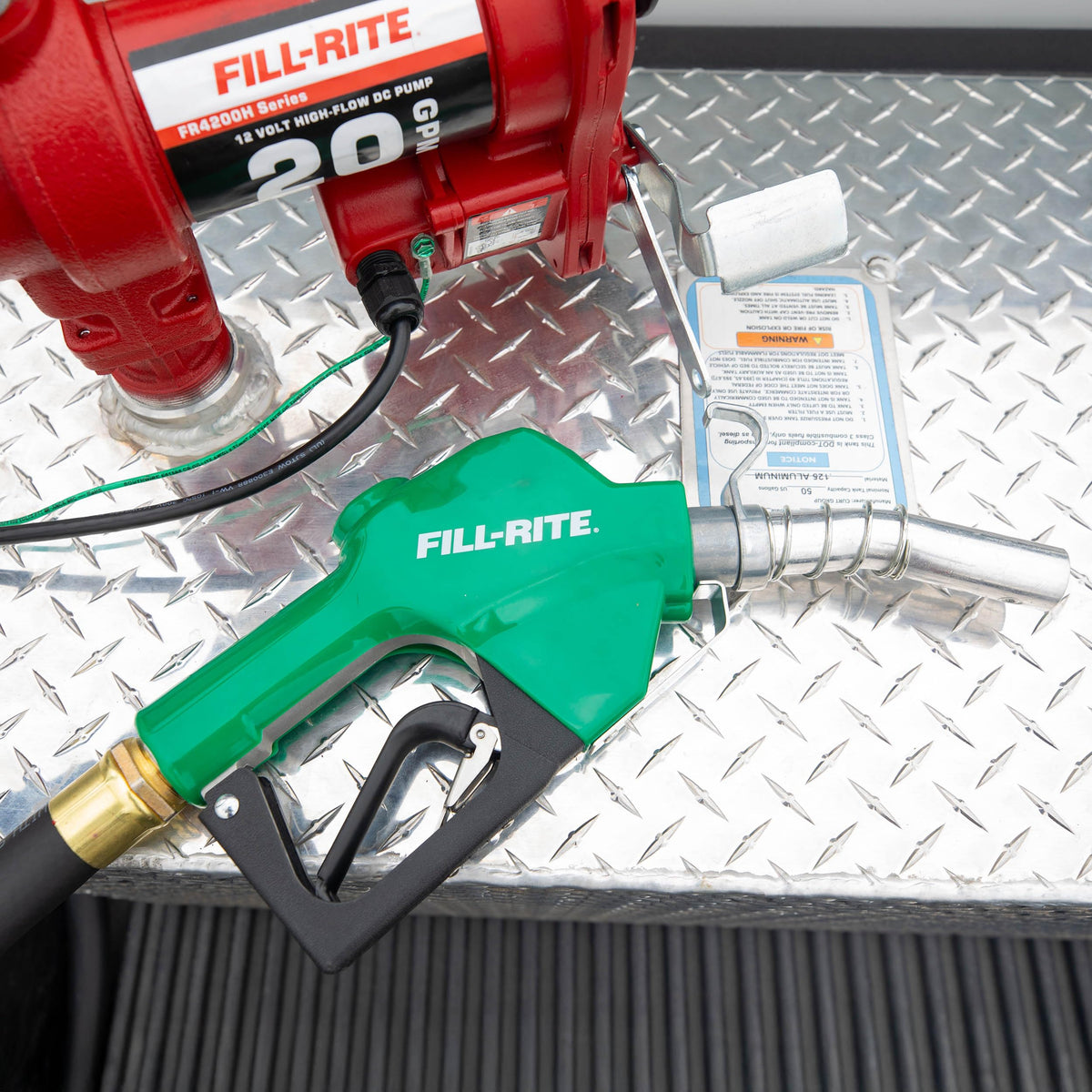

• 1" inlet fits common pump and hose configurations for 5–25 GPM systems

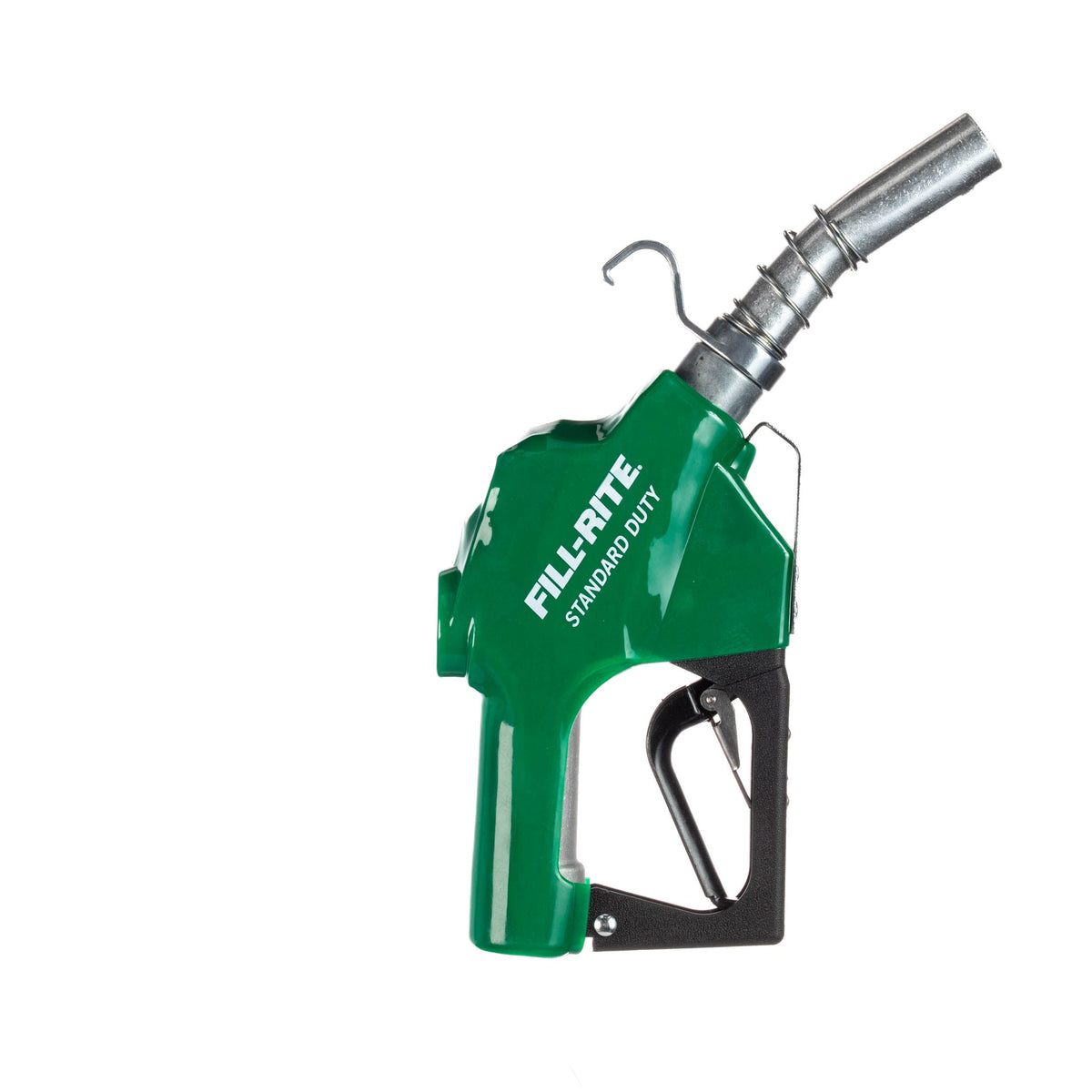

• 1-1/8" spout size requires compatible tank openings for leak-free use
• Pre-check automatic shutoff and latch settings during first use
• Regular inspection of springs and seals extends nozzle life

Who is this for: The Fill-Rite SDN100GAN is aimed at service stations, fleet operators, farms, and contractors who need a dependable, cost-effective automatic fuel nozzle for everyday fueling tasks. It’s a solid choice when you need a nozzle that handles a range of common fuels, offers adjustable flow control, and keeps spills to a minimum without the expense of heavy-duty models.
