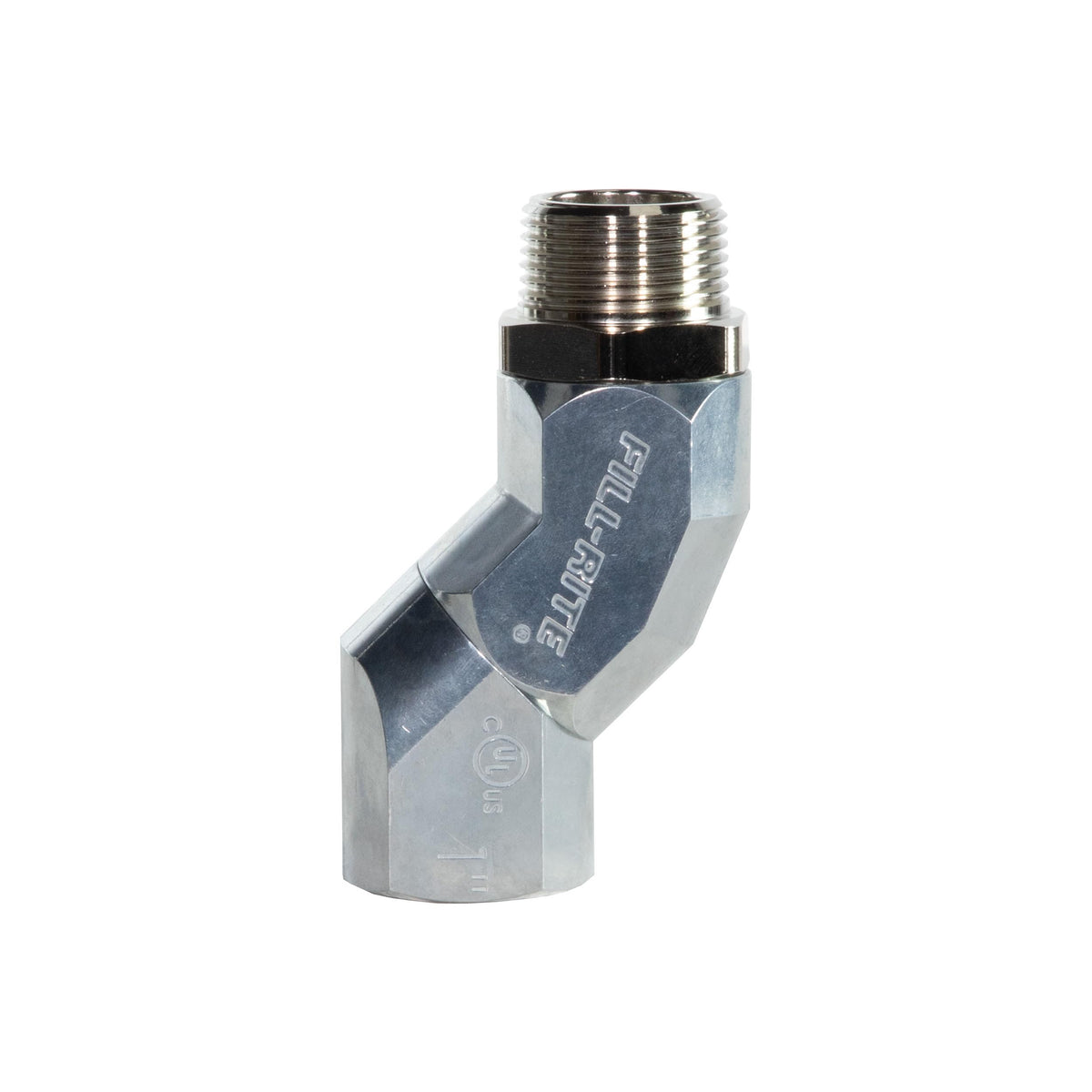

Fill-Rite 1" Multi-Plane Fuel Nozzle Swivel SD100UL - Cast Aluminum, 360° Rotation, Leak-Resistant Seal

The Fill-Rite SD100UL is a 1" multi-plane fuel nozzle swivel engineered to swivel freely in all directions, reducing hose twist, easing handling, and extending fuel hose life.

Built from rugged cast aluminum with a leak-resistant internal seal and UL listing, the SD100UL installs between a 1" female and male NPT connection to create a smooth, multi-axis rotation point for fuel transfer hoses and nozzles. It’s compatible with gasoline, diesel, biodiesel blends up to B20 and ethanol blends up to E15, and is pressure-rated for typical fuel transfer systems, making it a dependable component for commercial, agricultural, and fleet fueling setups.

How does the swivel reduce hose strain and kinking?

By allowing the nozzle assembly to rotate independently of the hose, the swivel takes twisting forces out of the hose body so it doesn’t rub, bend sharply, or develop fatigue points. This reduces the chance of kinks that impede flow and shortens wear patterns that lead to failures.

• 360° multi-plane rotation eliminates torque transfer to the hose

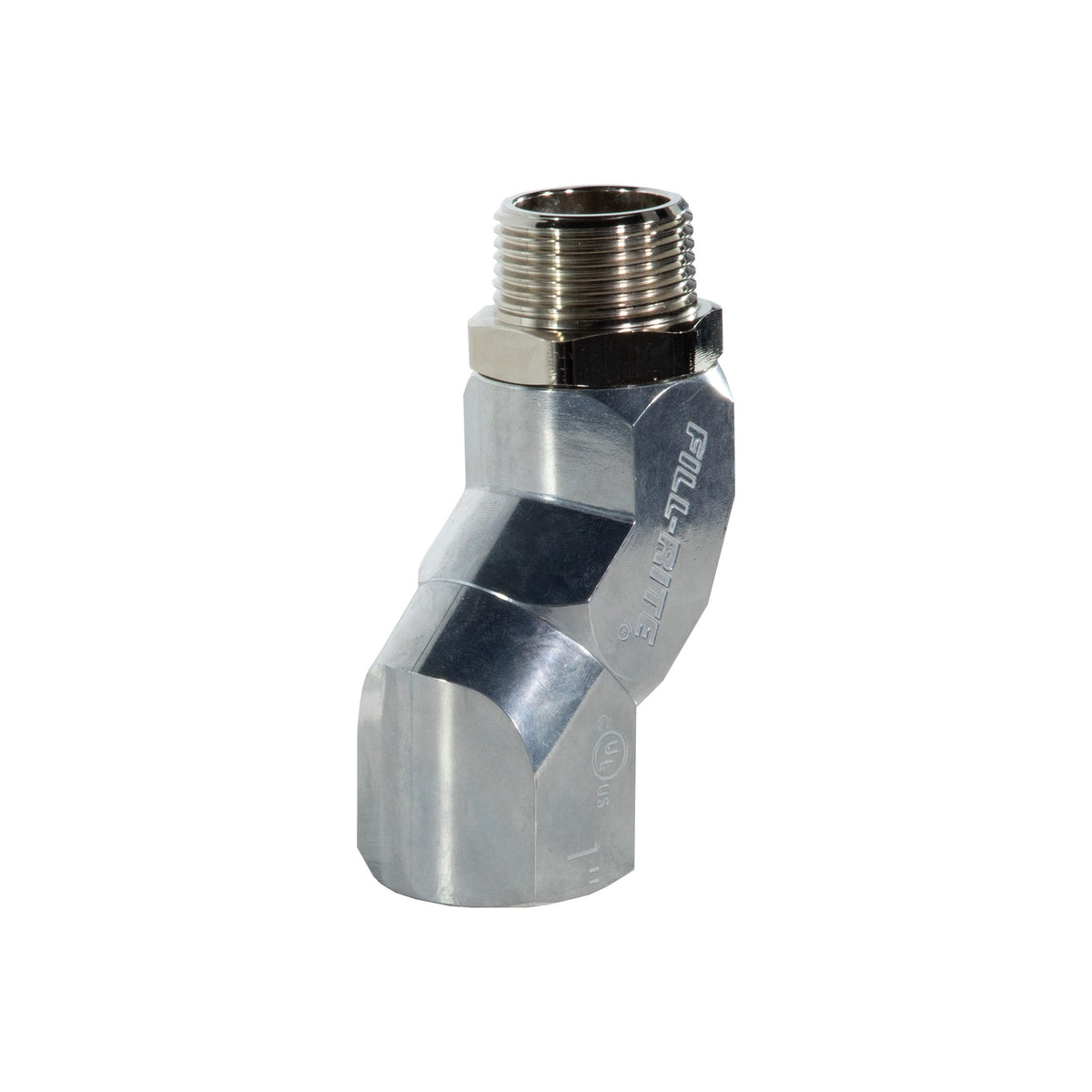

• Internal leak-resistant seal maintains containment while allowing movement
• Sturdy cast aluminum housing resists deformation under load

Will this part fit my existing fuel hose and nozzle?

The SD100UL uses standard 1" NPT male and female threads for straightforward inline installation between nozzle and hose. It’s designed for common fueling hardware so you can retrofit pumps, meters, and transfer hoses without custom adaptors in most systems.

• Standard 1" NPT male and female connections for ease of installation
• Compatible with typical nozzle and hose assemblies used in fleet and farm service
• UL listing indicates it meets recognized safety and manufacturing standards

What fuels and pressures does the swivel handle safely?

The swivel is built from fuel-rated materials and tested to perform at conventional transfer pressures, making it suitable for gasoline, diesel, and many fuel blends used in commercial operations. Avoid use outside manufacturer compatibility lists for specialty chemicals or fuels not specified.

• Suitable for gasoline, diesel, B20 biodiesel blends, and E15 ethanol blends
• 50 PSI rating supports common transfer pump and meter pressures
• Leak-resistant internal design helps maintain safe containment

How durable and serviceable is the SD100UL?

Constructed from corrosion-resistant cast aluminum with quality internal seals, the SD100UL is built to withstand daily use in challenging fueling environments. Its straightforward threaded connections and familiar form factor make inspection, replacement, or upgrades uncomplicated for maintenance teams.

• Rugged cast aluminum body resists corrosion and mechanical wear
• Replaceable or serviceable seal areas where applicable for longer life
• Designed for professional fuel transfer, meter, and pump installations

Who is this for? The Fill-Rite SD100UL is intended for fleet managers, farmers, mechanics, fueling station operators, and maintenance technicians who need a reliable, easy-to-install swivel that reduces hose wear and improves operator comfort. It’s a practical retrofit for existing transfer systems and a wise component choice for new installations where longevity, safety compliance, and fewer hose failures matter.

Features from the manufacturer include over five decades of experience in fuel transfer equipment, heavy-duty materials chosen for long life, innovation-driven product development, and U.S. origin manufacturing. The SD100UL is a compact, practical upgrade to make fueling operations smoother, safer, and less demanding on hoses and personnel.
