Fill‑Rite 10‑Micron Spin‑On Fuel Filter F1810PM0 — 3/4" 18 GPM, 1"‑12 UNF Thread, For Diesel & Gasoline

The Fill‑Rite F1810PM0 is a 10‑micron spin‑on particulate fuel filter engineered to trap dirt, rust, and sediment before they reach pumps, engines, and injectors.

This rugged spin‑on filter fits common Fill‑Rite filter heads and fuel transfer systems, offering reliable particulate protection for diesel, gasoline, kerosene, B20 biodiesel, and E15 blends. Rated for systems up to 25 gallons per minute, the F1810PM0 uses a 1"‑12 UNF threaded connection so installations are quick and compatible with many transfer setups. Its 10‑micron media balances fine filtration with flow capacity to protect downstream components without unduly restricting fuel delivery in medium‑ to high‑flow applications.

How does this filter protect my fuel system during routine fueling?

The F1810PM0 captures particles down to 10 microns, removing contaminants that cause wear and clog injectors or pump components. By stopping rust, dirt and soot before they circulate, the filter reduces abrasive damage and helps maintain consistent fuel flow and engine performance.

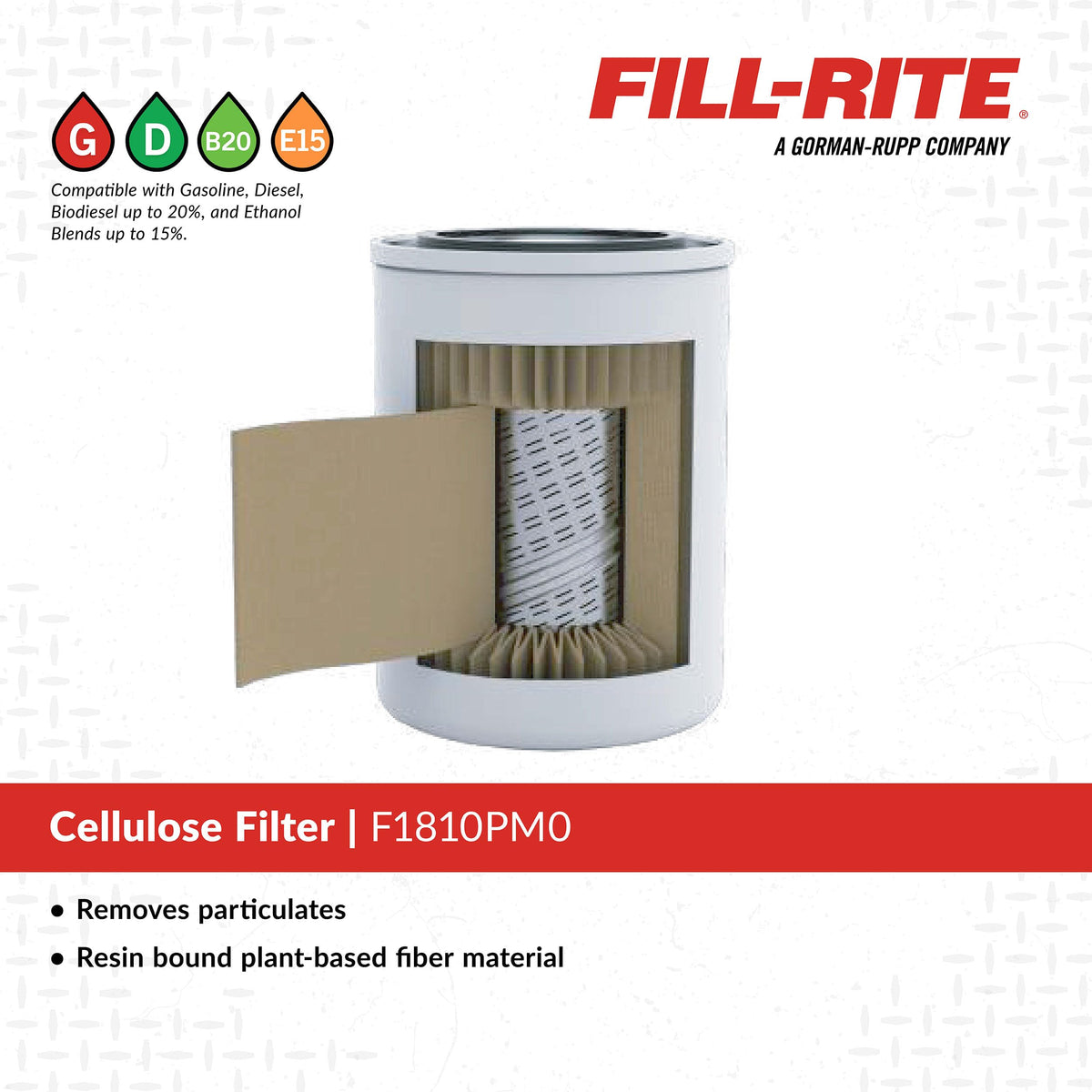

• 10‑micron particulate media traps fine contaminants that bypass coarse filters.
• Spin‑on design enables fast replacement with minimal downtime.
• Compatible with diesel, gasoline, kerosene, B20, and E15 so it fits mixed‑fuel fleets.

Will the F1810PM0 support high‑flow transfer rates without restriction?

Yes — it’s rated for fuel transfer systems up to 25 GPM, designed to balance filtration efficiency and flow. In typical medium‑ to high‑flow transfer rigs it delivers protection while preserving near‑rated throughput, making it suitable for fleet fueling and commercial dispensing.

• Rated up to 25 GPM (68 LPM) for medium‑ to high‑flow operations.
• Optimized media pore size to reduce pressure drop at common flow rates.
• Spin‑on body keeps sealing reliable under sustained transfer conditions.

How easy is installation and maintenance for this spin‑on filter?

Installation is straightforward: the standard 1"‑12 UNF thread pairs with Fill‑Rite filter heads and many transfer accessories for a quick swap. The spin‑on format requires no special tools for service, and routine replacement every ~six months keeps systems performing well under normal use.

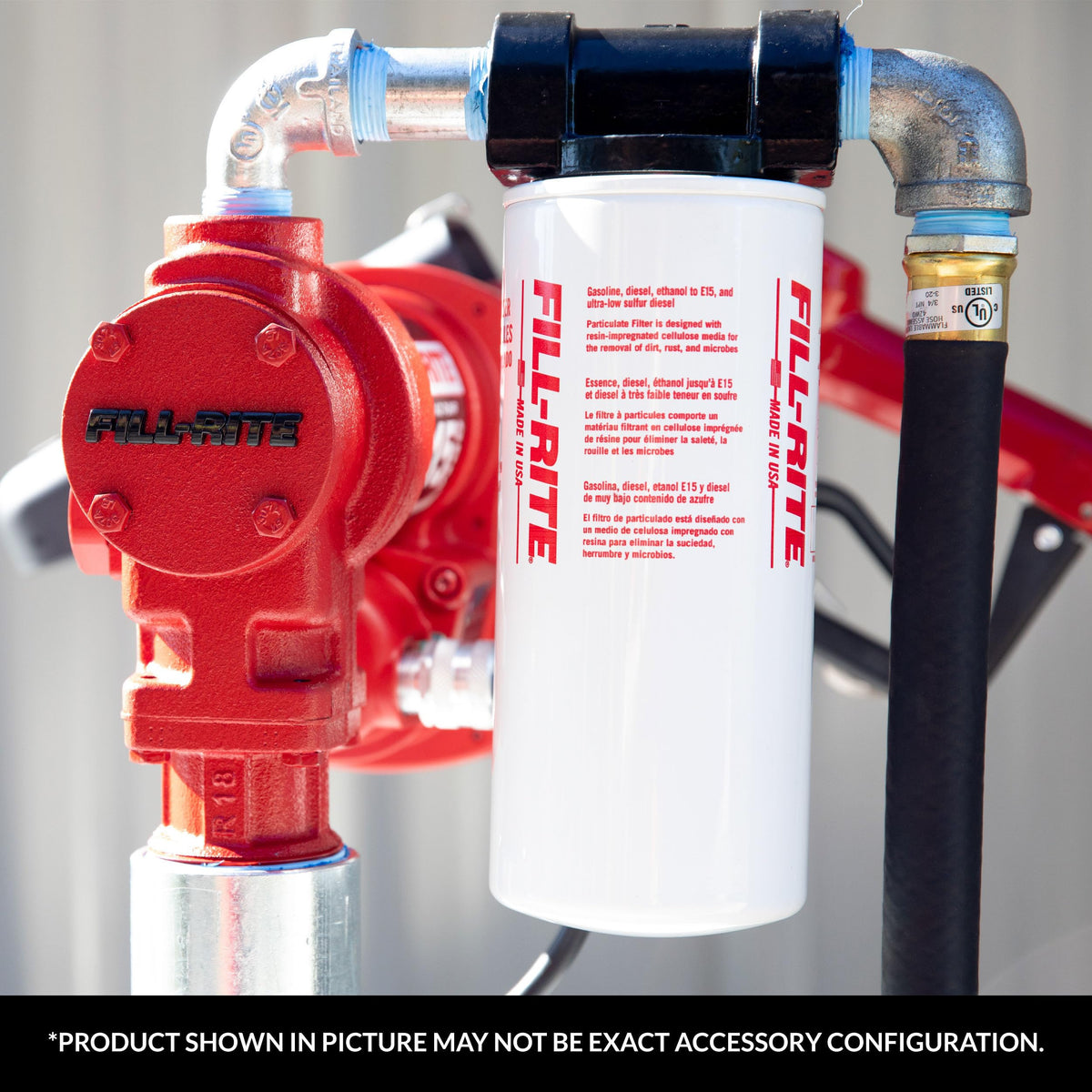

• 1"‑12 UNF threaded connection fits common Fill‑Rite heads (e.g., 1200KTG9075, 1200KTG9100).
• Tool‑free spin‑on removal and replacement for fast maintenance.
• Suggested service interval ~every six months, depending on fuel cleanliness and operating hours.

Which fuels and environments is this filter compatible with?

The F1810PM0 is built for rugged fueling environments and accepts a wide range of fuels used in modern operations. It resists typical contaminants found in storage and transfer systems, and is suitable for mixed‑fuel fleets that handle diesel, gasoline, kerosene, and common biofuel blends.

• Compatible with diesel, gasoline, kerosene, B20 biodiesel, and E15 ethanol blends.
• Durable construction for commercial, agricultural, and industrial fueling sites.
• Designed to reduce particulate ingress during storage, transfer, and dispensing.

Who is this for: Operators managing fleet, agricultural, construction, or commercial fueling who need dependable particulate protection without sacrificing transfer capacity. If you run medium‑ to high‑flow fuel transfer equipment, use mixed fuel types, or want a quick, tool‑free maintenance option to help reduce wear on pumps and injectors, the Fill‑Rite F1810PM0 provides a practical balance of filtration efficiency, flow rating, and rugged compatibility.
