Fill-Rite 3/4 inch Automatic Fuel Transfer Nozzle SDN075GAN, Green — 3–15 GPM, Cast-Aluminum

The Fill-Rite SDN075GAN is a 3/4" automatic shut-off fuel transfer nozzle that delivers reliable 3–15 GPM flow for gasoline, diesel, biodiesel up to B20, E15 and kerosene in a durable, green-jacketed housing.

Built for everyday fueling tasks where dependable shut-off and consistent flow matter, the SDN075GAN pairs cast-aluminum strength with a spring-assisted spout and user-adjustable latching. Rated to 50 PSI and designed around a 15/16" spout, this standard-duty nozzle balances cost-effectiveness with the Fill-Rite reputation for durability. It’s intended for routine service, fleet, farm and light industrial applications where compatibility with common fuels and easy handling are priorities.

How does the automatic shut-off protect my operation?

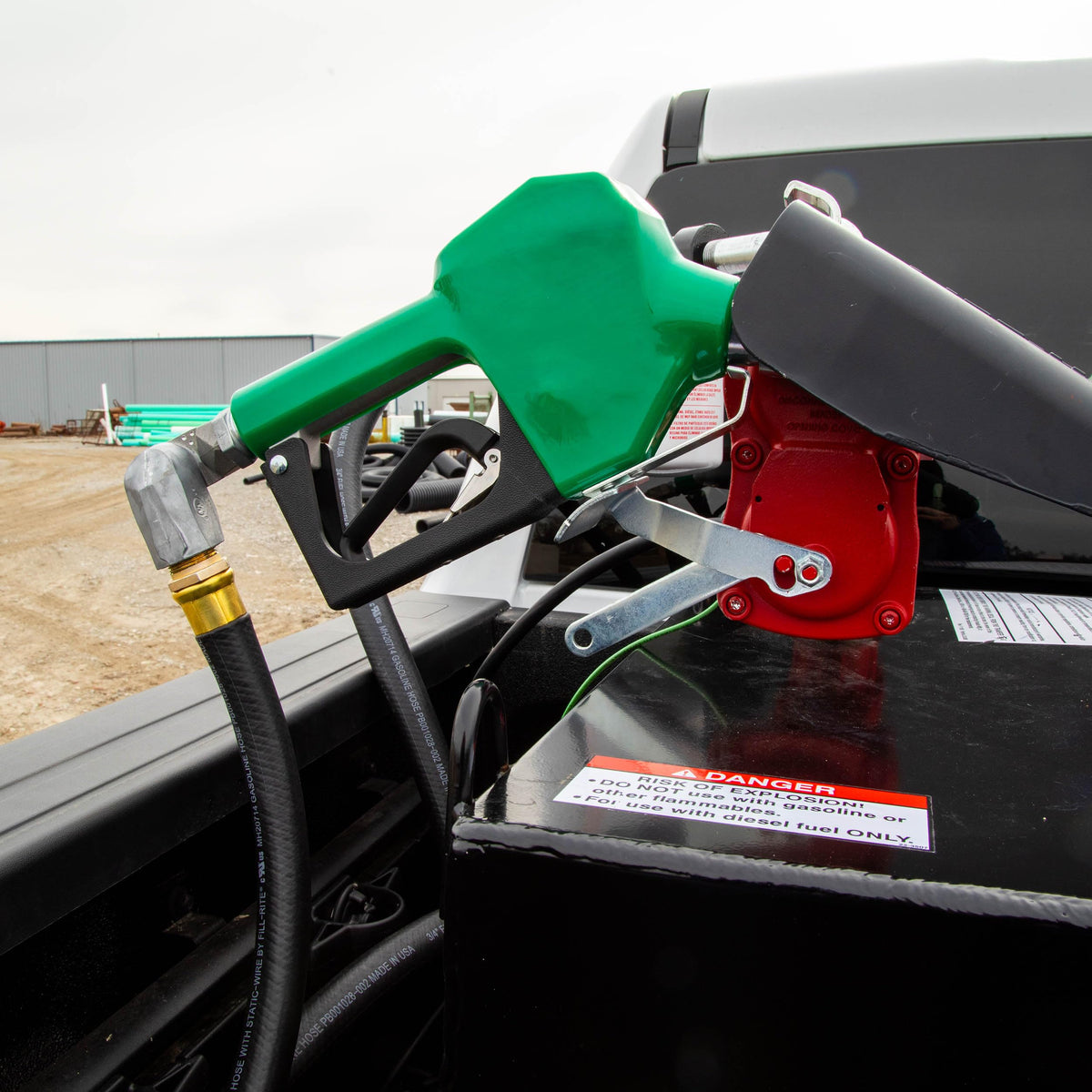

The SDN075GAN’s automatic shut-off senses back pressure and stops flow before overfilling occurs, reducing spills and cleanup time. The mechanism provides repeatable stops without manual intervention, improving safety and minimizing product loss.

• Sensitive shut-off for clean, reliable stops
• Reduces fuel waste and potential environmental exposure
• Helps prevent tank overfill during unattended fills

What fuel types and flow range does this nozzle handle?

This model supports gasoline, diesel, biodiesel blends up to B20, E15 ethanol blends and kerosene, making it versatile across common fueling needs. The working flow range from 3 to 15 GPM adapts to slow fills for small tanks and faster delivery for larger equipment.

• Compatible with gasoline, diesel, B20, E15 and kerosene
• 3–15 GPM for variable fill speeds
• Rated to 50 PSI for typical dispensing pressure

How durable and serviceable is the SDN075GAN?

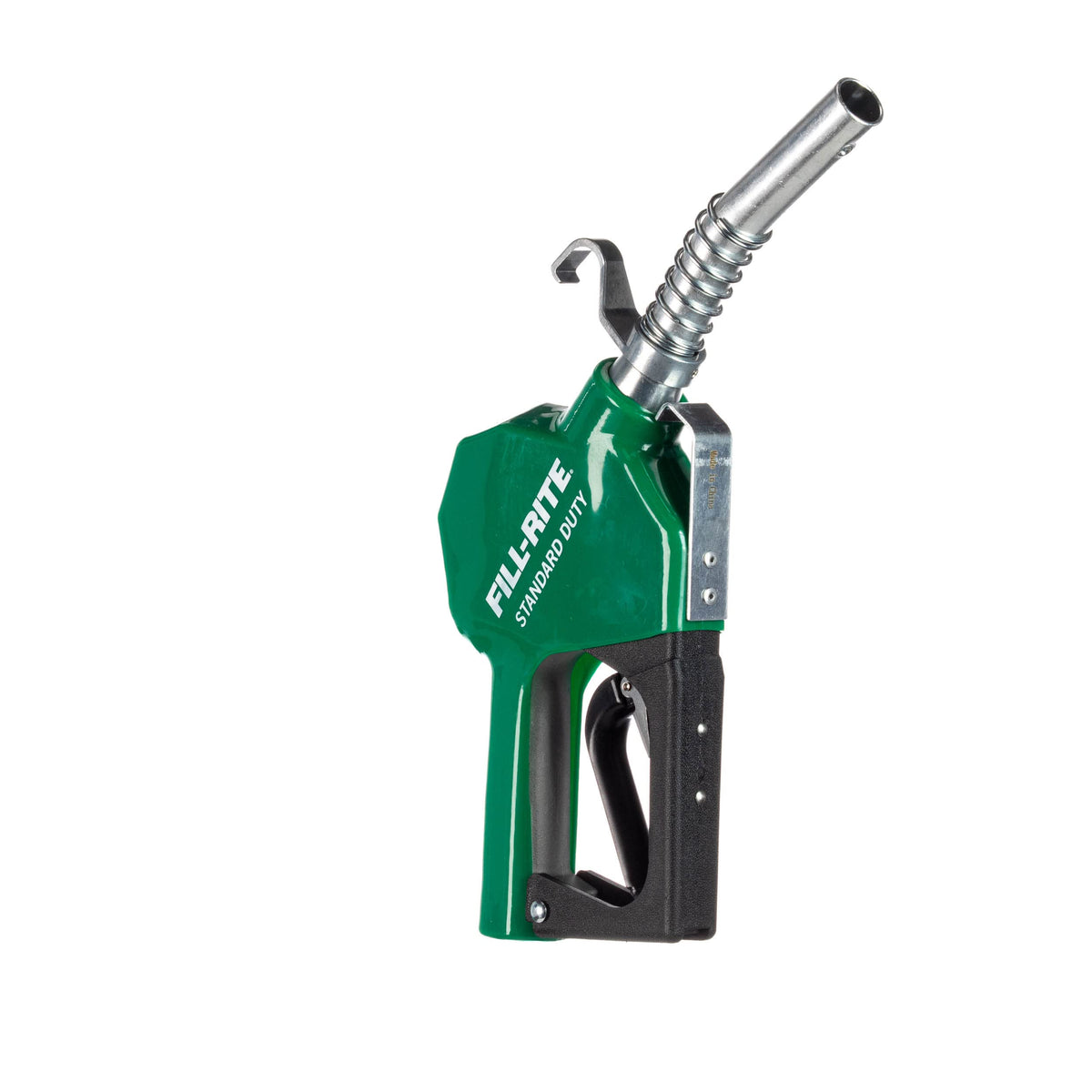

Constructed from rugged cast aluminum with a protective green jacket, the nozzle is built for repeated daily use in non-corrosive environments. Fill-Rite backs the SD Series with a one-year warranty and designs the nozzle for easy replacement of wear components if needed.

• Cast-aluminum body for strength and long life
• Spring-assisted spout to prevent damage and ensure correct positioning
• Three-position adjustable latch for flow control and versatility

What features make fueling easier and more accurate?

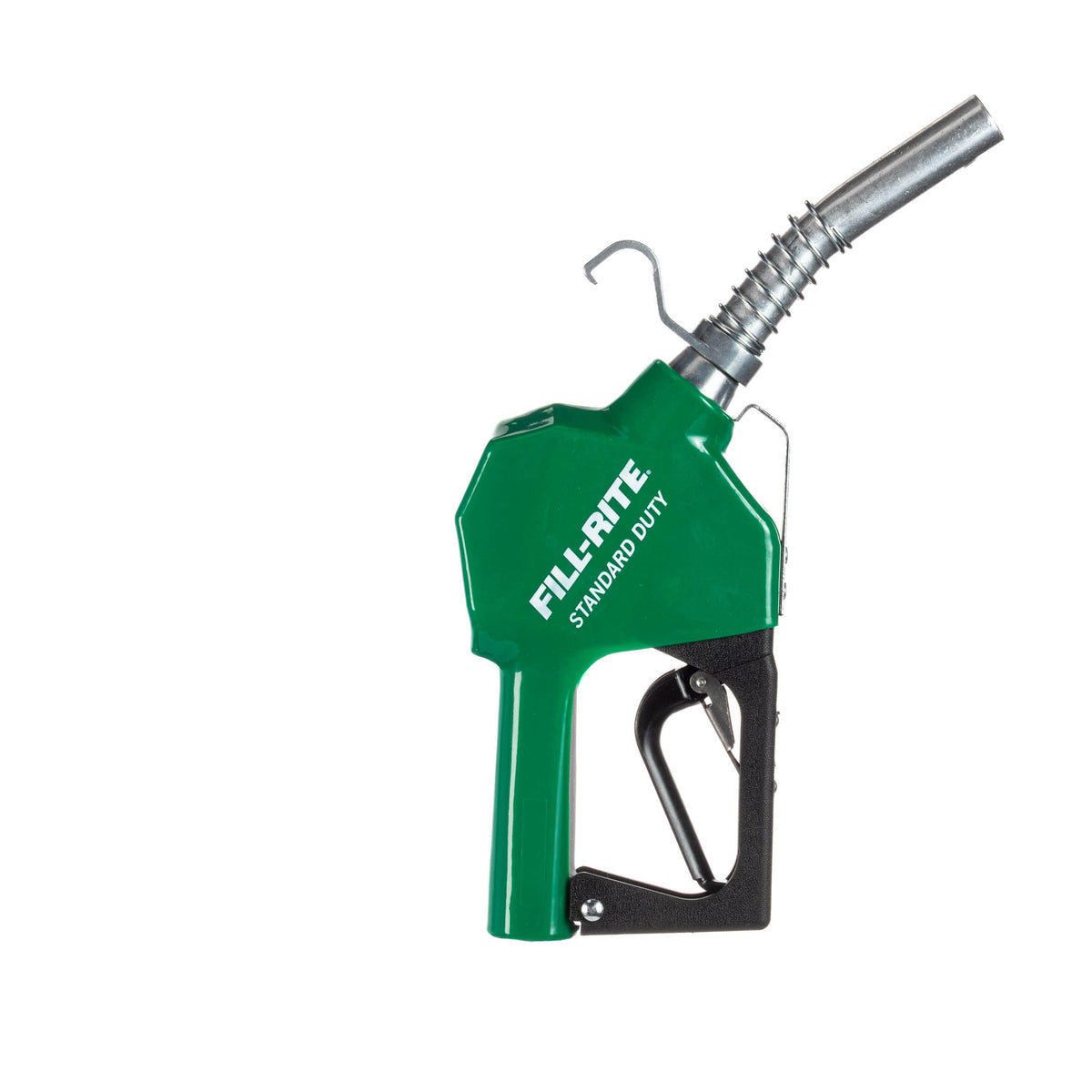

Small but practical details on the SDN075GAN cut down on user error and speed up routine refueling. The included spout spring aligns the nozzle and protects the spout, while multiple latch positions let operators tailor flow without additional tools.

• Spout spring for correct alignment and reduced wear
• Three latch positions to limit or permit full flow
• Green jacket for quick fuel-type identification on busy pumps

Who is this for: The Fill-Rite SDN075GAN is aimed at fleet managers, farm operators, small service stations and maintenance shops that need a cost-effective, multi-fuel automatic nozzle for everyday fueling tasks. If you want a standard-duty nozzle that accepts common fuel blends, provides reliable automatic shut-off, and is simple to operate and maintain, this model is a practical choice.
