Fill-Rite FR1210HA1 12V 15 GPM Fuel Transfer Pump Kit — Green, Cast-Iron, Automatic Nozzle Included

The Fill-Rite FR1210HA1 is a 12V, 15 GPM rotary-vane fuel transfer pump kit that delivers fast, reliable transfer of gasoline, diesel, kerosene, and approved blends with a 3/4" discharge hose and automatic nozzle included.

This complete pump assembly combines durable cast-iron construction, thermal overload protection, and a removable junction box for flexible wiring. It’s designed for mobile, battery-powered fuel transfer from trailers, trucks, or portable tanks and supports common fuel blends including ethanol and methanol up to 15% and biodiesel up to B20. The kit arrives ready to mount with a 34" telescoping steel suction pipe, 12 GA power cable, hose, nozzle, fittings and installation accessories.

How fast and how much fuel will this pump move?

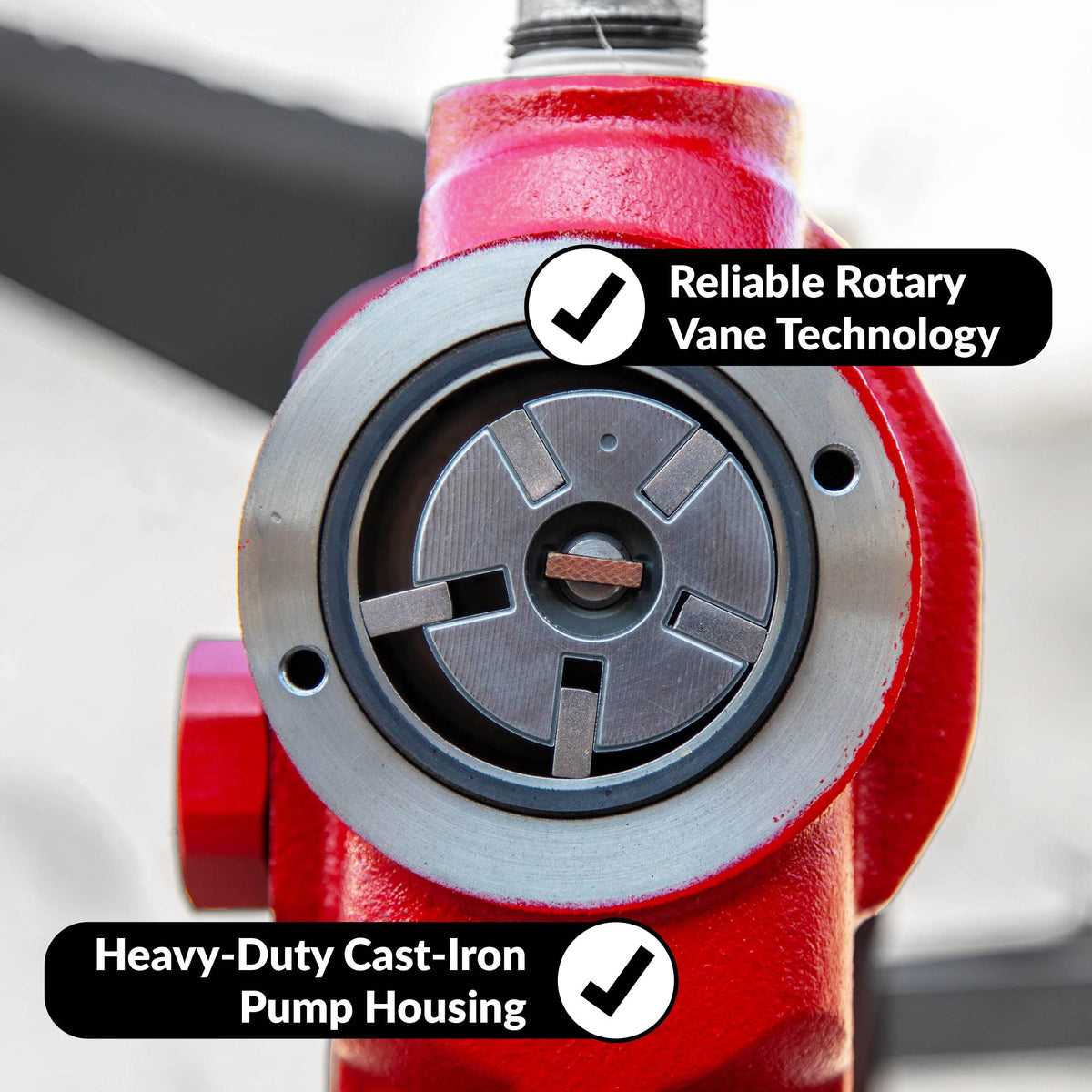

The FR1210HA1 delivers up to 15 gallons per minute at 12 volts under normal operating conditions. Its rotary vane design maintains flow consistency even as internal parts wear, giving dependable performance for repeated transfers.

• Maximum flow rate: 15 GPM
• 12-volt DC operation for battery-powered setups
• Designed to pull from tank depths up to 8 feet
• Capable of discharging fuel to heights up to 37 feet

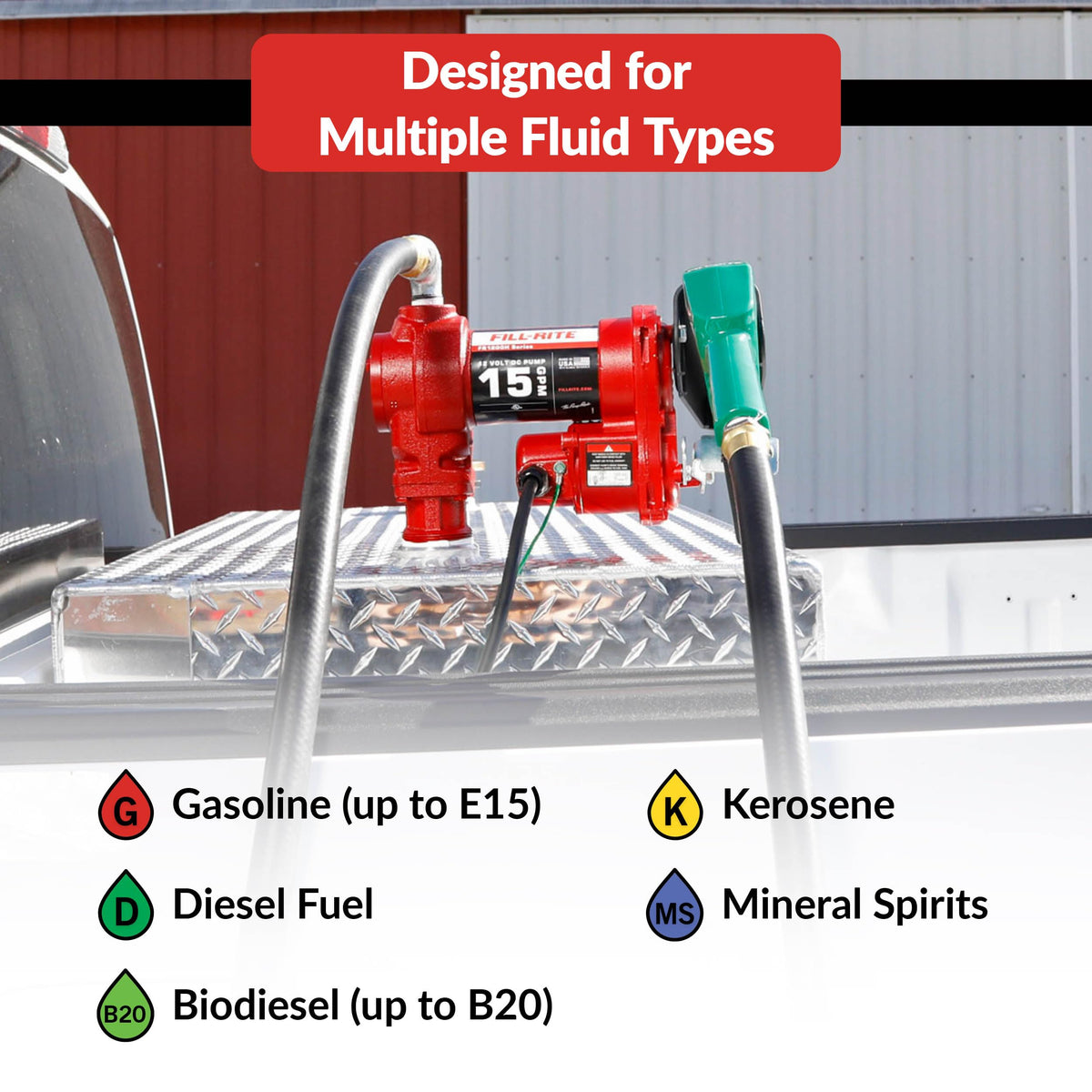

What fuels and blends can I use with this pump?

This pump is compatible with gasoline, diesel, kerosene, and several common fuel blends within specified limits. Avoid fuels or additives outside the manufacturer’s compatibility list to maintain safety and warranty coverage.

• Gasoline and diesel — direct compatibility
• Ethanol blends up to E15 and methanol blends up to M15
• Biodiesel use allowed up to B20
• Not intended for fuels outside these blend limits or corrosive solvents

How does this unit protect itself and simplify installation?

The FR1210HA1 includes thermal overload protection to prevent motor overheating during abnormal use, and a junction box that rotates 180° to ease wiring in confined spaces. These features reduce installation time and lower the risk of damage from misuse.

• Thermal overload protection for motor safety
• Rotating removable junction box for flexible wiring
• 18' 12 AWG power cable and ground wire included for secure connection
• PTFE tape, wire nuts and a 3/4" street elbow supplied for faster setup

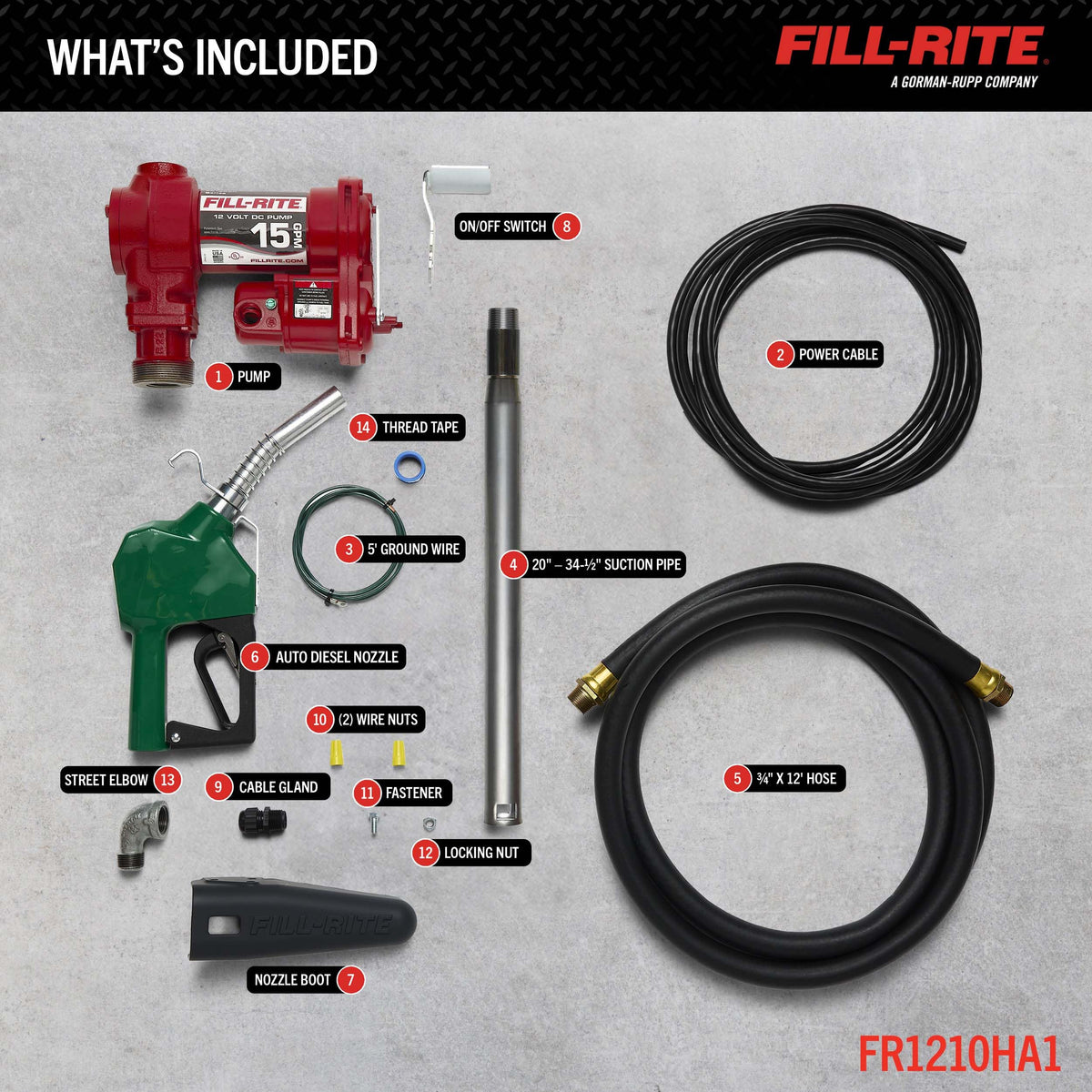

What comes in the kit and how is the pump built?

The kit includes everything needed for a typical bung-mounted installation and is constructed for heavy-duty use. Cast iron housing and quality components make it suitable for rugged mobile operations.

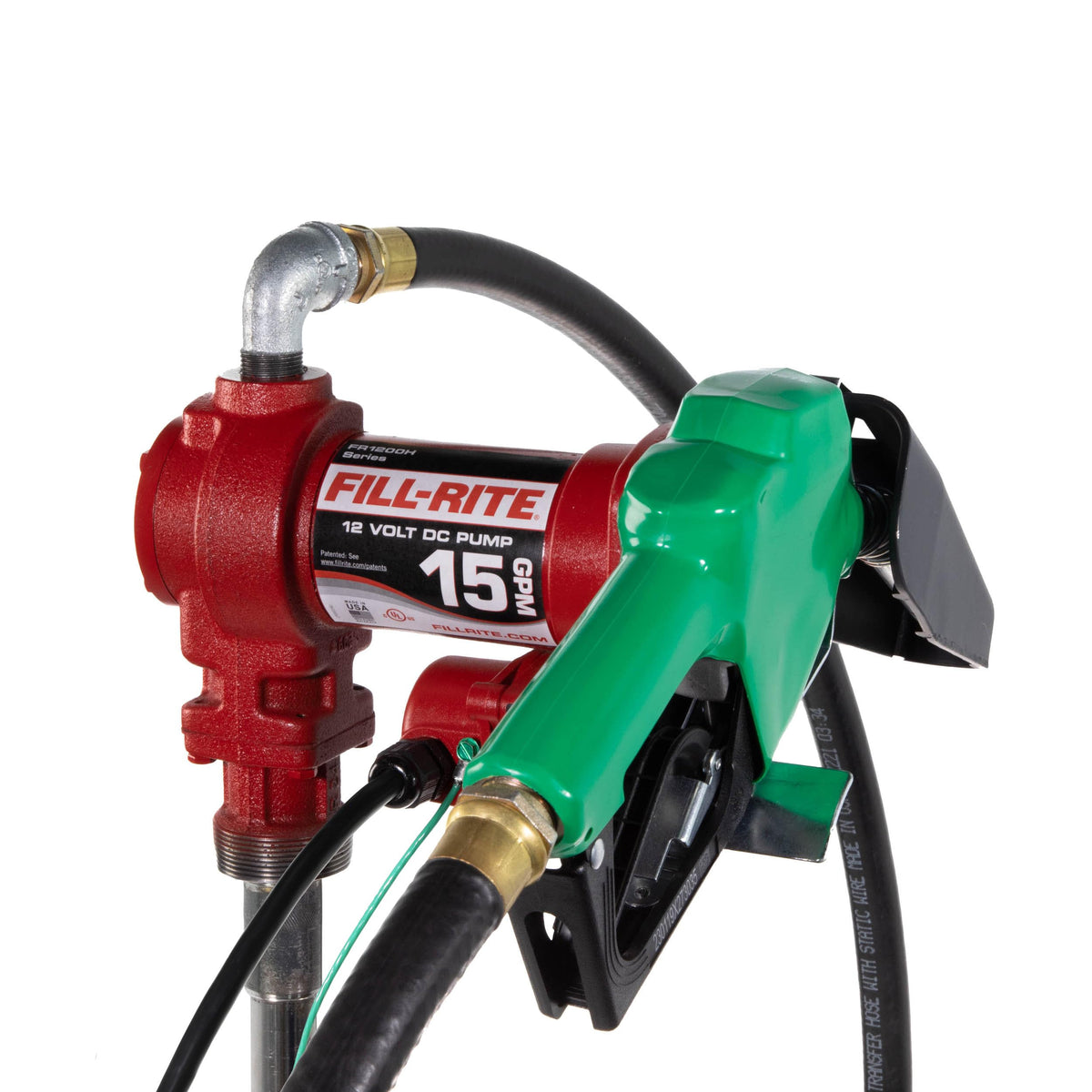

• 3/4" x 12' discharge hose and green 3/4" automatic nozzle
• 34" telescoping steel suction pipe for flexible tank reach
• 18' 12 GA power cable, ground wire, (2) wire nuts, PTFE tape and 3/4" street elbow
• Cast iron pump body with a limit lifetime warranty on 1200 series pumps

Who is this for? The Fill-Rite FR1210HA1 is aimed at contractors, fleet operators, farmers, and anyone needing portable, high-volume fuel transfer from truck or trailer tanks. It suits users who want a robust, USA-built pump with proven rotary vane performance, straightforward installation accessories, and safety features for frequent field use.
