Fill‑Rite Hydrosorb 3/4" Fuel Filter Kit 18 GPM — 10‑Micron Cartridge & Water‑Detecting Head

The Fill-Rite 1210KTF7019 is a complete 3/4" Hydrosorb fuel filter kit that removes 10‑micron particulates and flags excess water for reliable fuel transfer up to 18 GPM (68 LPM).

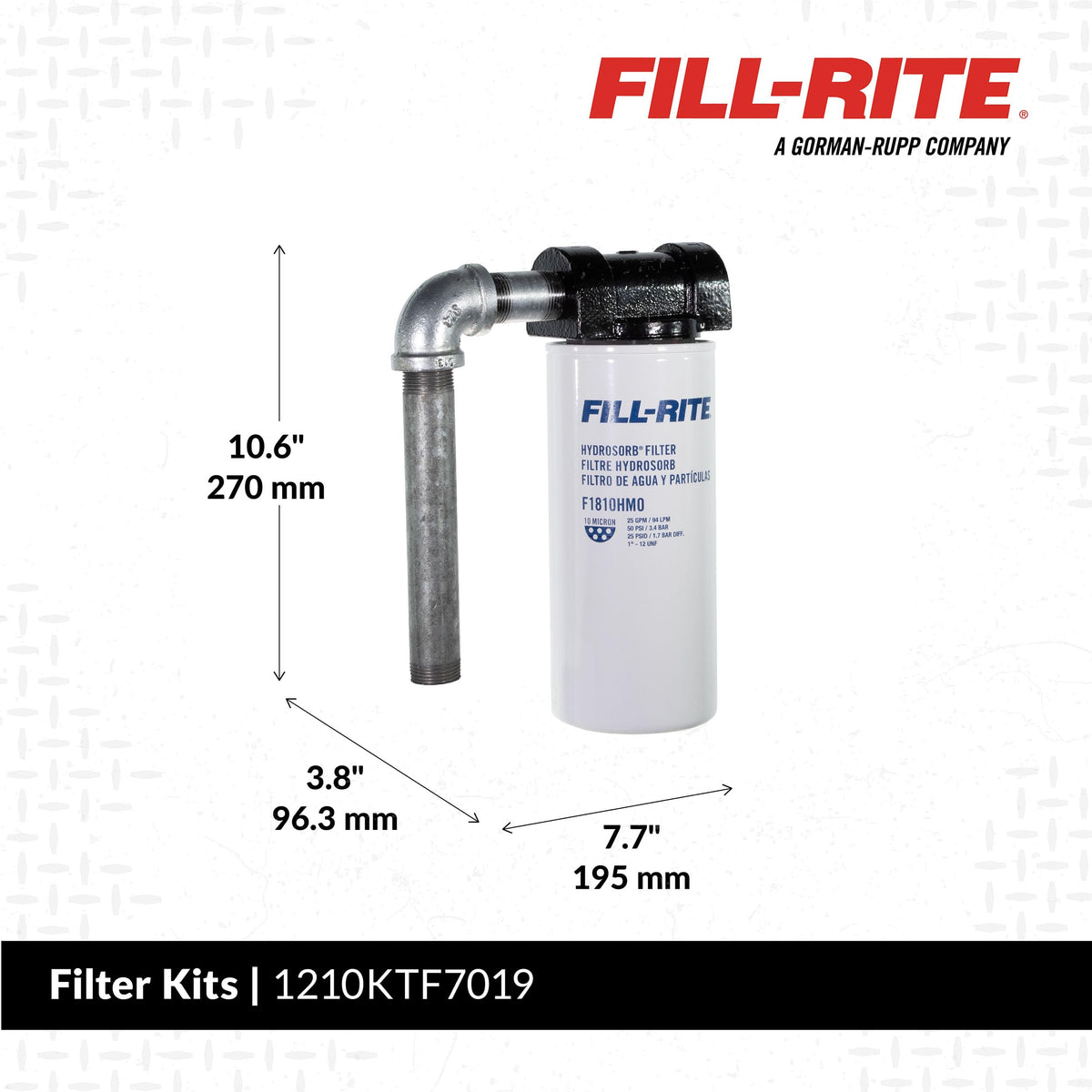

This kit combines a Hydrosorb F1810HM0 filter cartridge with a 1200KTG9075 filter head and practical fittings, delivering a turnkey solution for inline fuel transfer and refueling setups. It’s engineered to trap fine debris, give an early warning when water appears in fuel, and fit standard 1"‑12 UNF threaded filter installations. The included elbow and two pipe nipples simplify installation so you can integrate the filter into pumps, dispenser lines, or service rigs quickly.

How does this filter help protect pumps and engines?

The 10‑micron Hydrosorb media captures small particles that can accelerate wear in fuel pumps and injectors while the water‑detecting function highlights contamination before damage occurs. By reducing debris and separating water, the filter helps maintain flow quality and extend service intervals.

• 10‑micron rated media for trapping fine particulates
• Water‑detecting design creates flow restriction when water is present
• Compatible with common fuel pumps and inline transfer systems
• Protects downstream components like metering valves and injectors

What fittings and connections are included for installation?

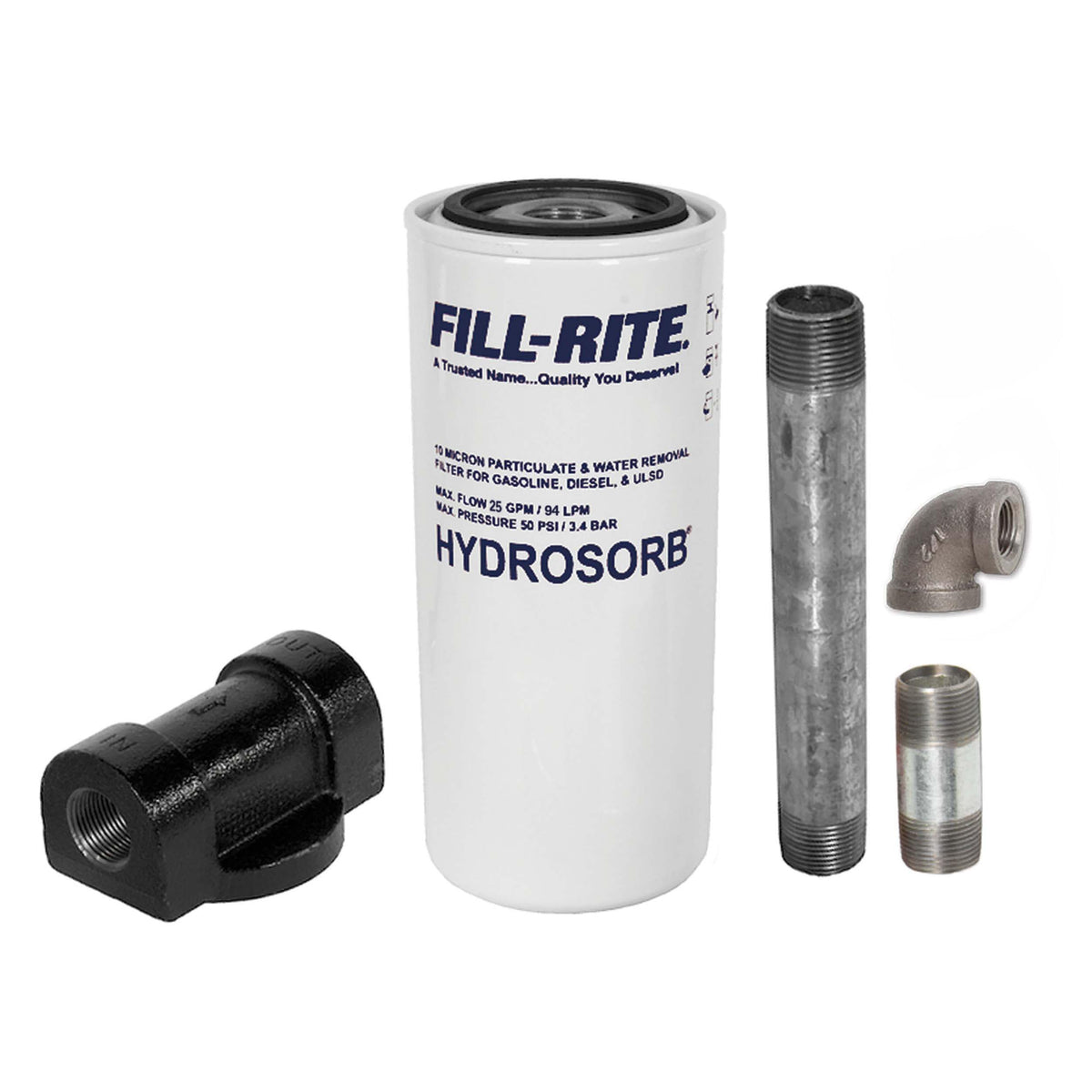

The kit includes a 1200KTG9075 filter head with 3/4" (0.75") fuel ports and standard 1"‑12 UNF filter threads for the cartridge. Additonal hardware in the package — a 3/4" elbow plus 3/4" x 7.25" and 3/4" x 2.5" pipe nipples — offers attachment options for tight spaces or common pump inlet/outlet arrangements.

• Filter head with 0.75" fuel ports for direct hose or pipe connection
• 1"‑12 UNF threaded filter mount for the F1810HM0 cartridge
• 3/4" elbow to change flow direction without extra adapters
• Two pipe nipples (7.25" and 2.5") to set the desired run length

What flow rates and applications does the kit support?

Rated for flows up to approximately 18 GPM (68 LPM), the assembly suits many service station, fleet, and field refueling tasks where moderate to high transfer rates are needed. It’s ideal for refueling light‑ to medium‑duty equipment, fuel trucks, and mobile dispensers that require reliable particulate removal and water detection.

• Operates efficiently up to 18 GPM (68 LPM)
• Suitable for fuel transfer, refueling carts, and dispenser lines
• Hydrosorb media works with diesel and many petroleum fuels
• Compact design fits pump mounting racks and service vehicles

How often should I replace the filter cartridge?

Fill‑Rite recommends swapping the cartridge at routine intervals to preserve filtration performance; a six‑month replacement cadence is a common baseline. Actual life depends on fuel cleanliness and volume processed, so inspect for flow restriction or water indication and change sooner if performance drops.

• Manufacturer guideline: replace every six months for typical use
• Change earlier if you notice reduced flow or water detection
• Regular replacement prevents bypass and protects downstream systems
• Keep a spare F1810HM0 cartridge on hand for quick swaps

Who is this for: Technicians, fleet managers, and mobile fuel operators who need a ready‑to‑install filter head and Hydrosorb cartridge combo that intercepts fine particulates and warns of water contamination. If you operate service rigs, fuel trucks, or portable dispensers and you want a durable, serviceable filtration solution with common fittings included, this Fill‑Rite kit makes installation straightforward and maintenance predictable.
