Filluck Marine-Grade Heat Shrink Ring Connector Kit, 300pcs Assortment — #10/1/4/5/16/3/8, Waterproof Tinned Red Copper, 3:1 Adhes

Filluck 300pcs Marine Grade Heat Shrink Ring Connectors are waterproof, tinned red-copper crimp terminals designed to create durable, corrosion-resistant electrical connections for boats, vehicles, and RVs.

This compact kit gives you a full assortment of heat-shrink ring terminals in four stud sizes and three insulation colors, housed in an organized storage box. Each connector uses thickened red copper with a tin coating and an adhesive-lined 3:1 shrink ratio sleeve to form a 360-degree moisture barrier when heat is applied. The design focuses on reliable conductivity and mechanical strength in harsh, high-vibration environments such as marine and automotive applications.

How do these connectors protect against moisture and corrosion?

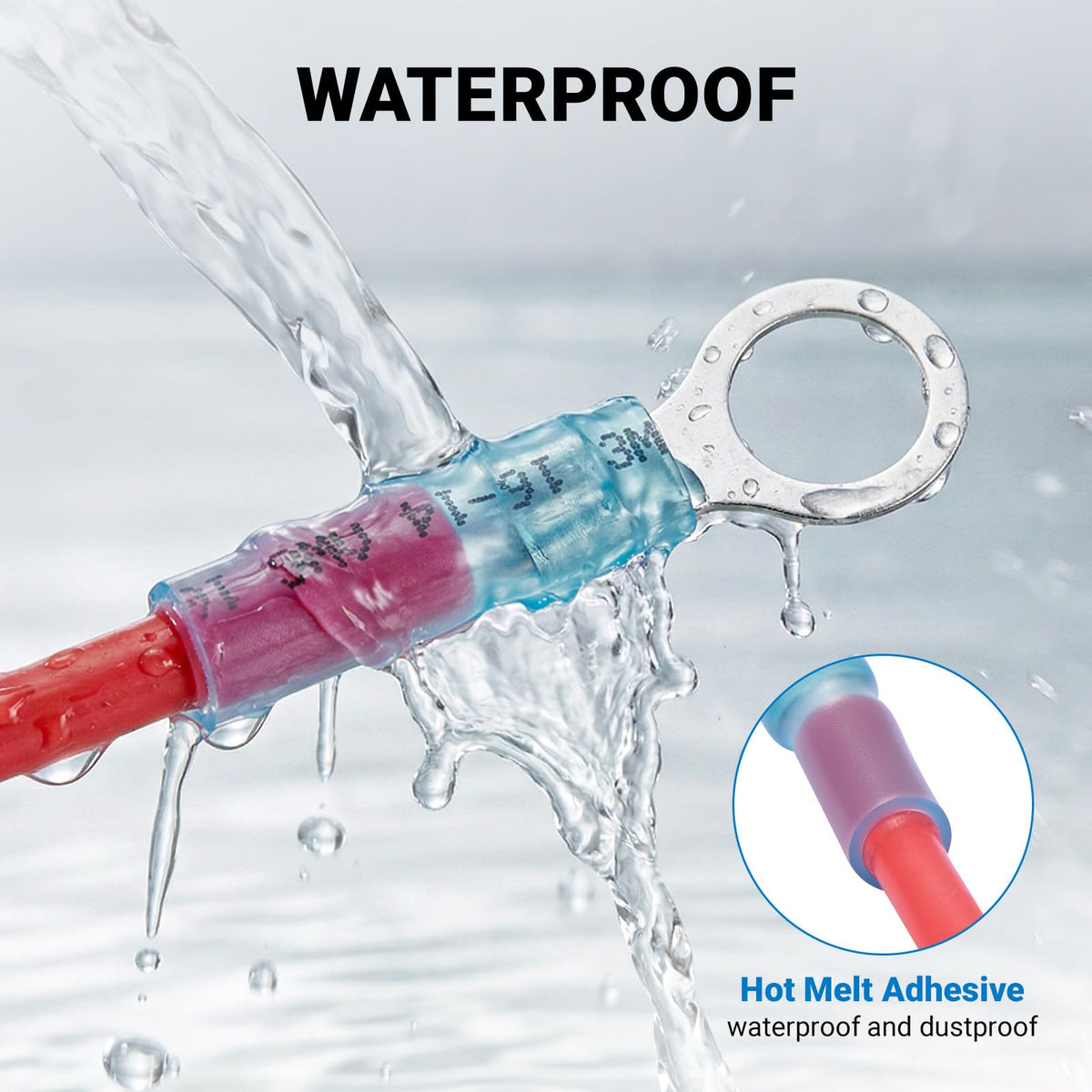

The connectors combine a tin-plated red copper barrel with a double-wall heat-shrink sleeve containing a thermoplastic adhesive. Heating the sleeve melts the adhesive and shrinks the polymer, creating a sealed bond around the wire and stud that blocks water ingress and resists salt spray.

• Adhesive-lined double-wall shrink sleeve for a 360° seal
• Tinned red copper resists oxidation and improves longevity
• 3:1 shrink ratio ensures snug fit over varied cable insulation
• Proven for marine and outdoor exposure when properly heated

What sizes and wire gauges are included in the kit?

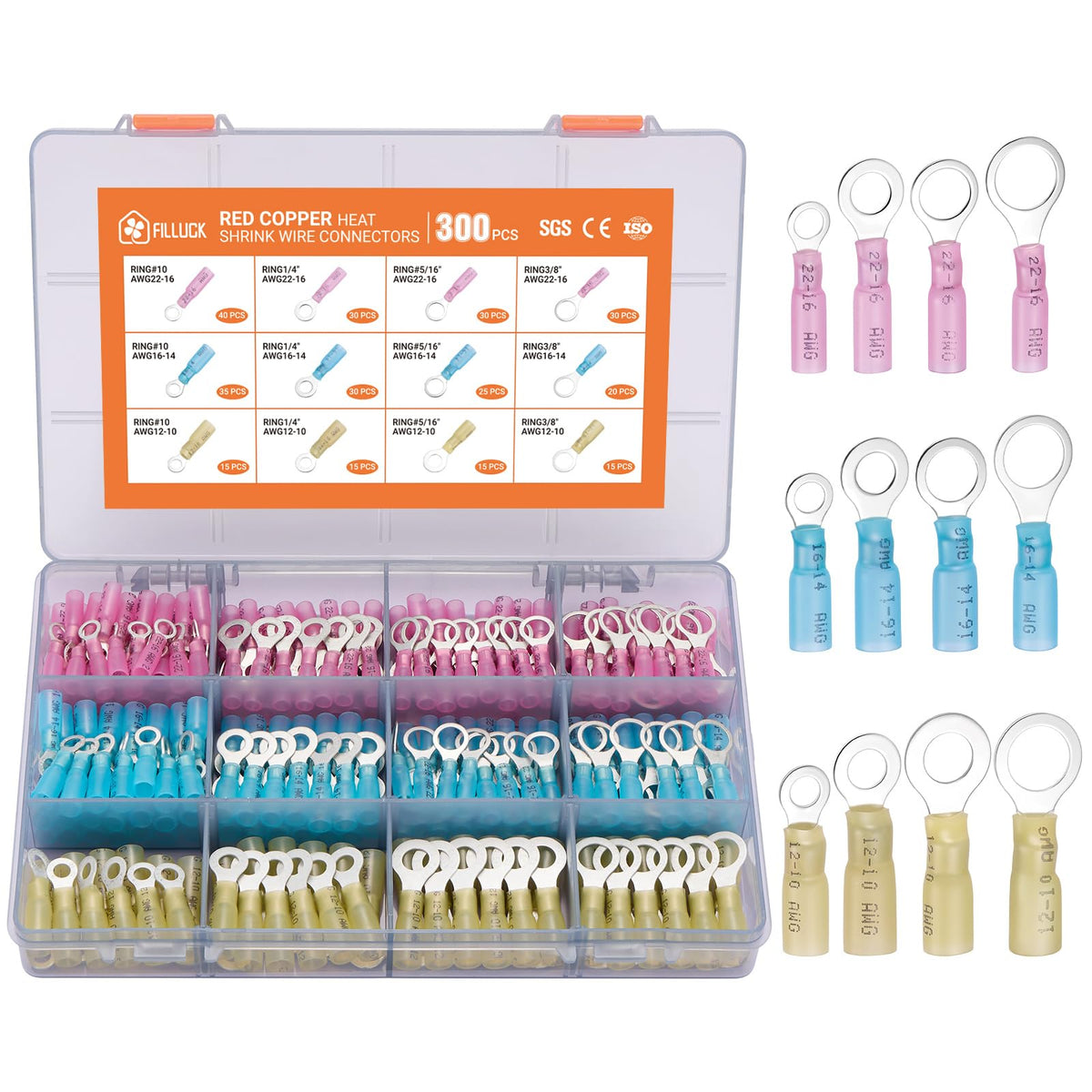

The Filluck set includes 300 terminals across three insulation colors that correspond to common AWG ranges, plus four stud diameters to cover typical ring terminal use. This assortment is intended to reduce trips to the hardware store by giving you the most-used sizes for vehicle and boat wiring.

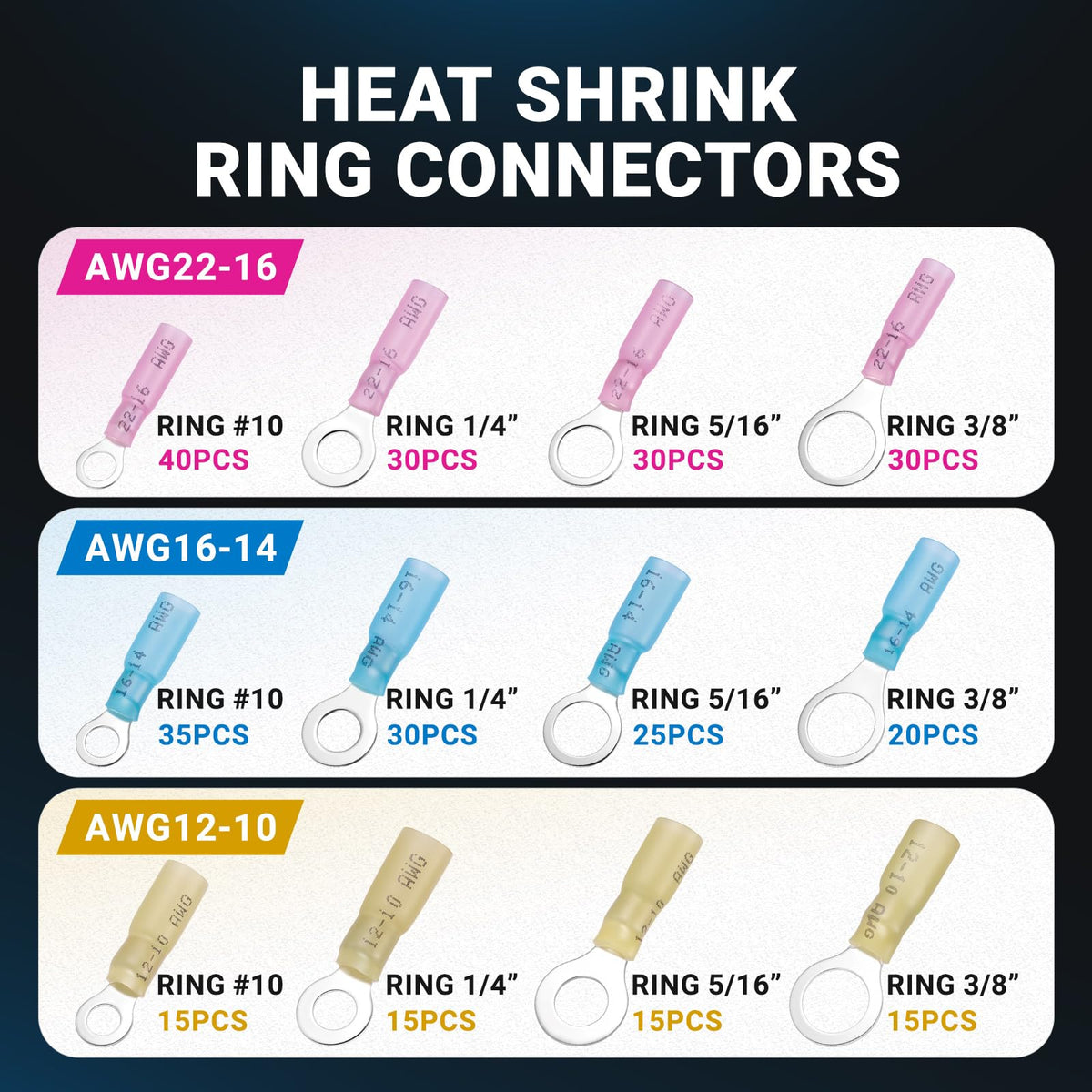

• Red: 22–16 AWG (small conductors)
• Blue: 16–14 AWG (medium conductors)
• Yellow: 12–10 AWG (larger conductors)
• Stud sizes: #10, 1/4", 5/16", 3/8" for common bolt and stud terminals

How do these terminals perform under vibration and electrical load?

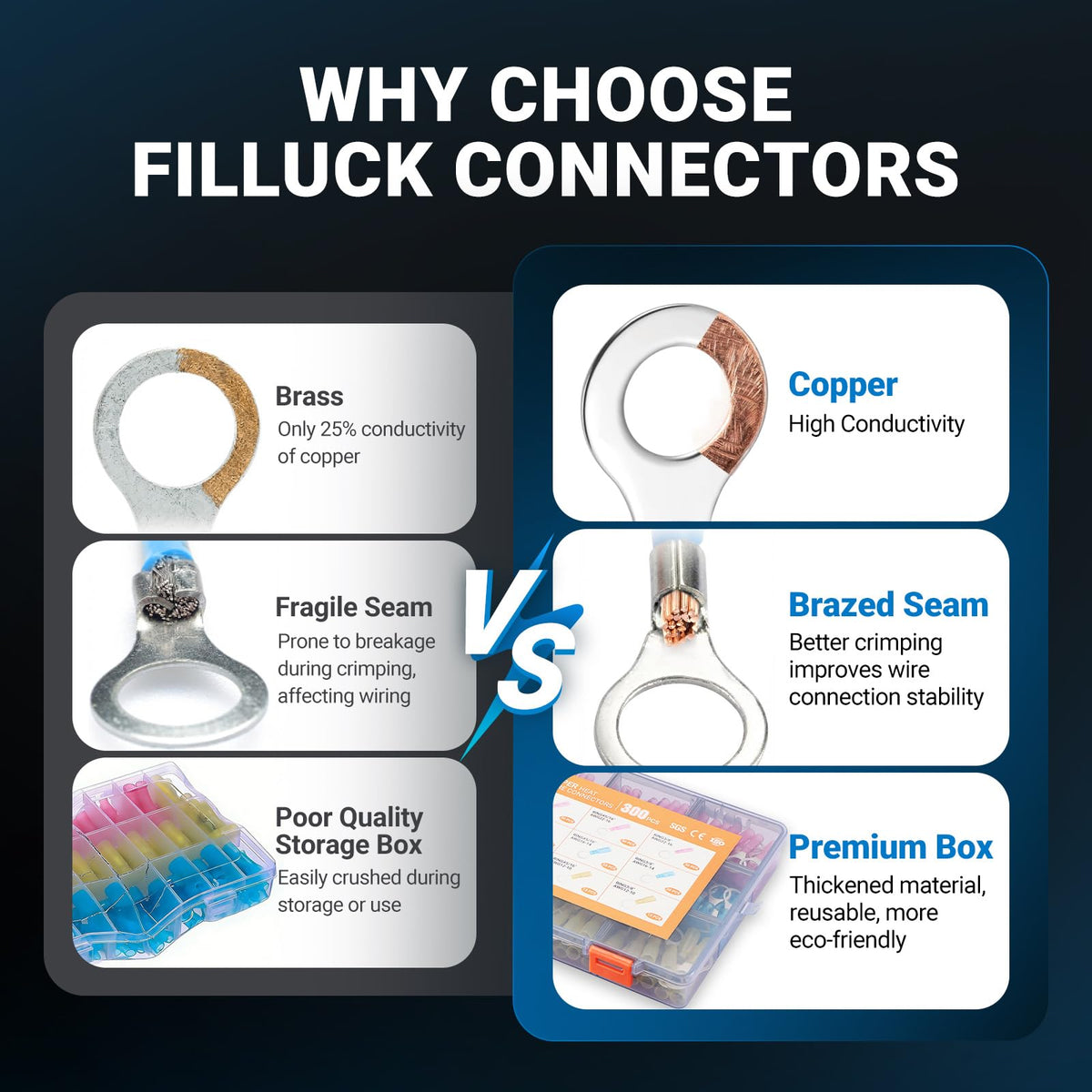

Thickened copper barrels and secure crimps reduce the risk of wire fatigue and loosening under repeated vibration. The combination of full copper contact and a sealed sleeve maintains consistent conductivity and prevents arcing in demanding conditions.

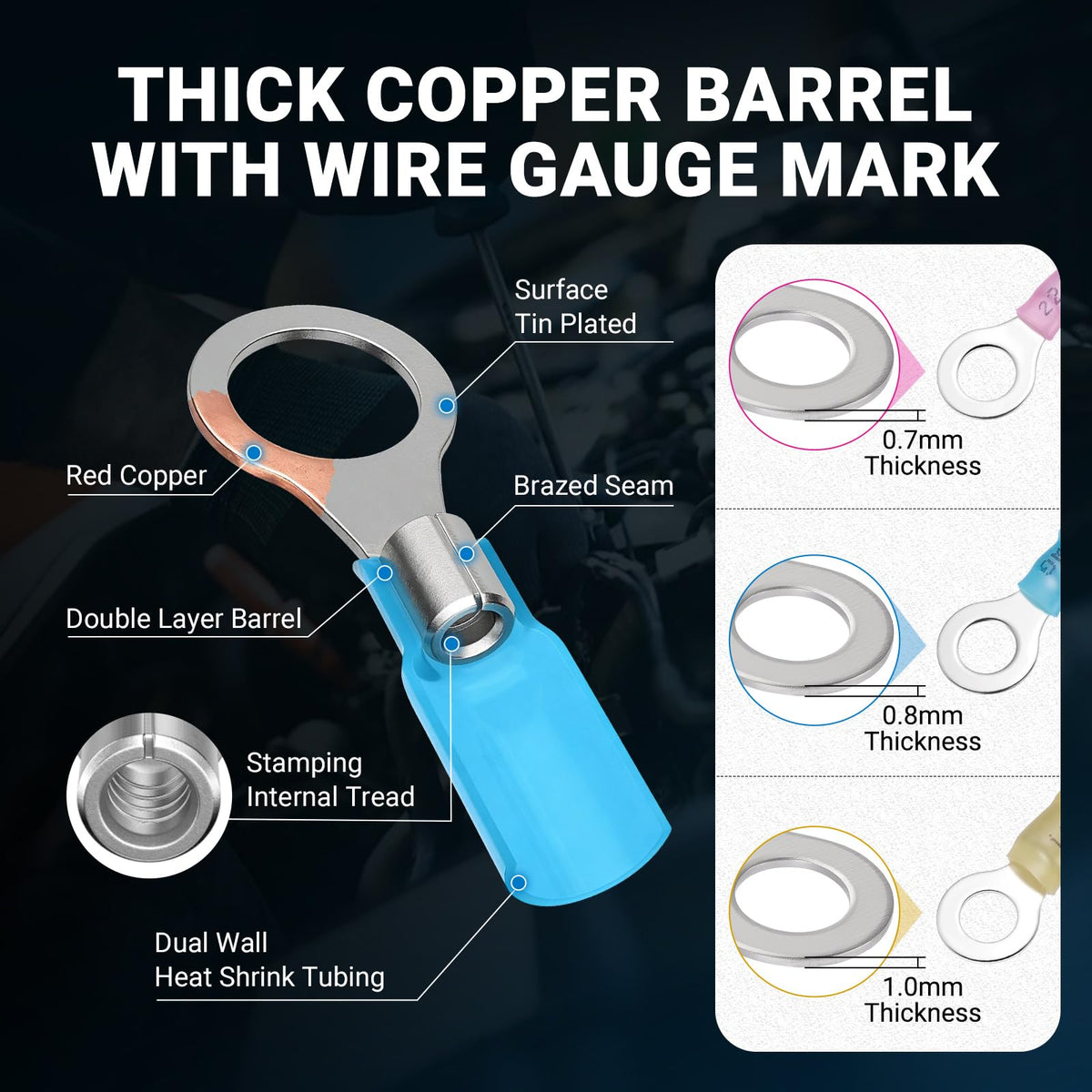

• 0.7–1.0mm high-purity red copper for strong mechanical crimp
• Tin plating improves electrical contact and corrosion resistance
• Crimp plus heat-shrink creates both mechanical and environmental protection

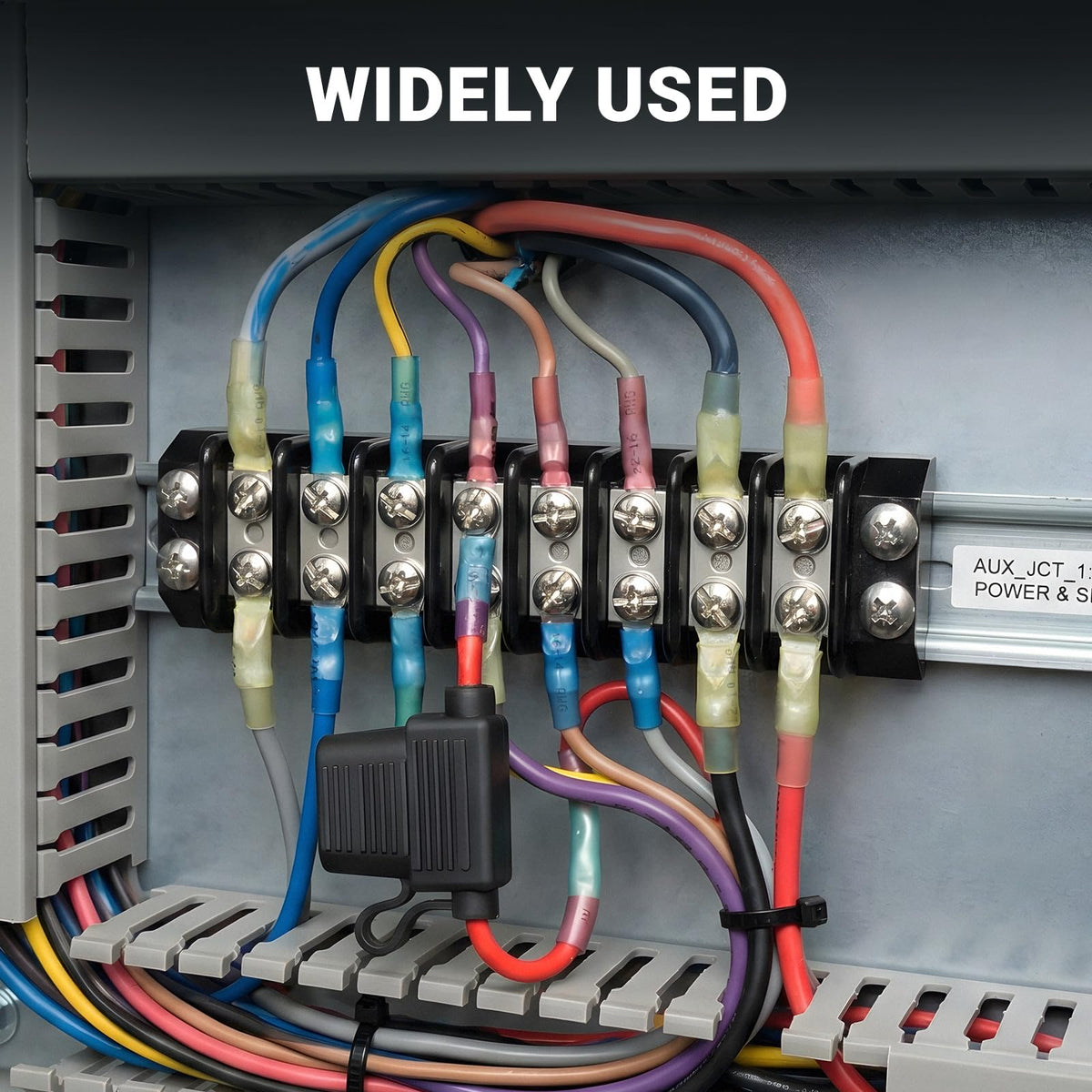

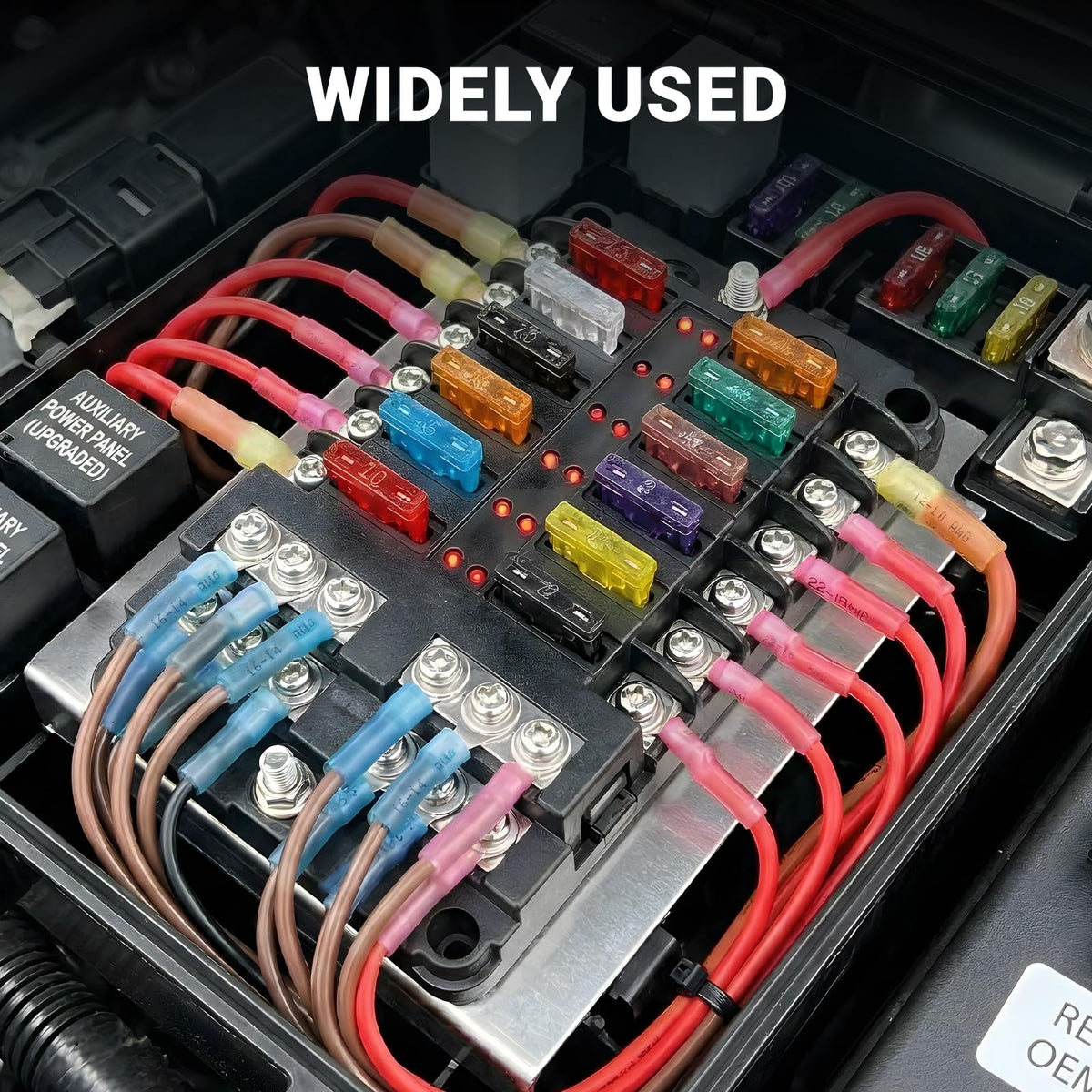

• Designed for automotive, marine, motorcycle, and RV installations

How do I use these heat-shrink ring terminals correctly?

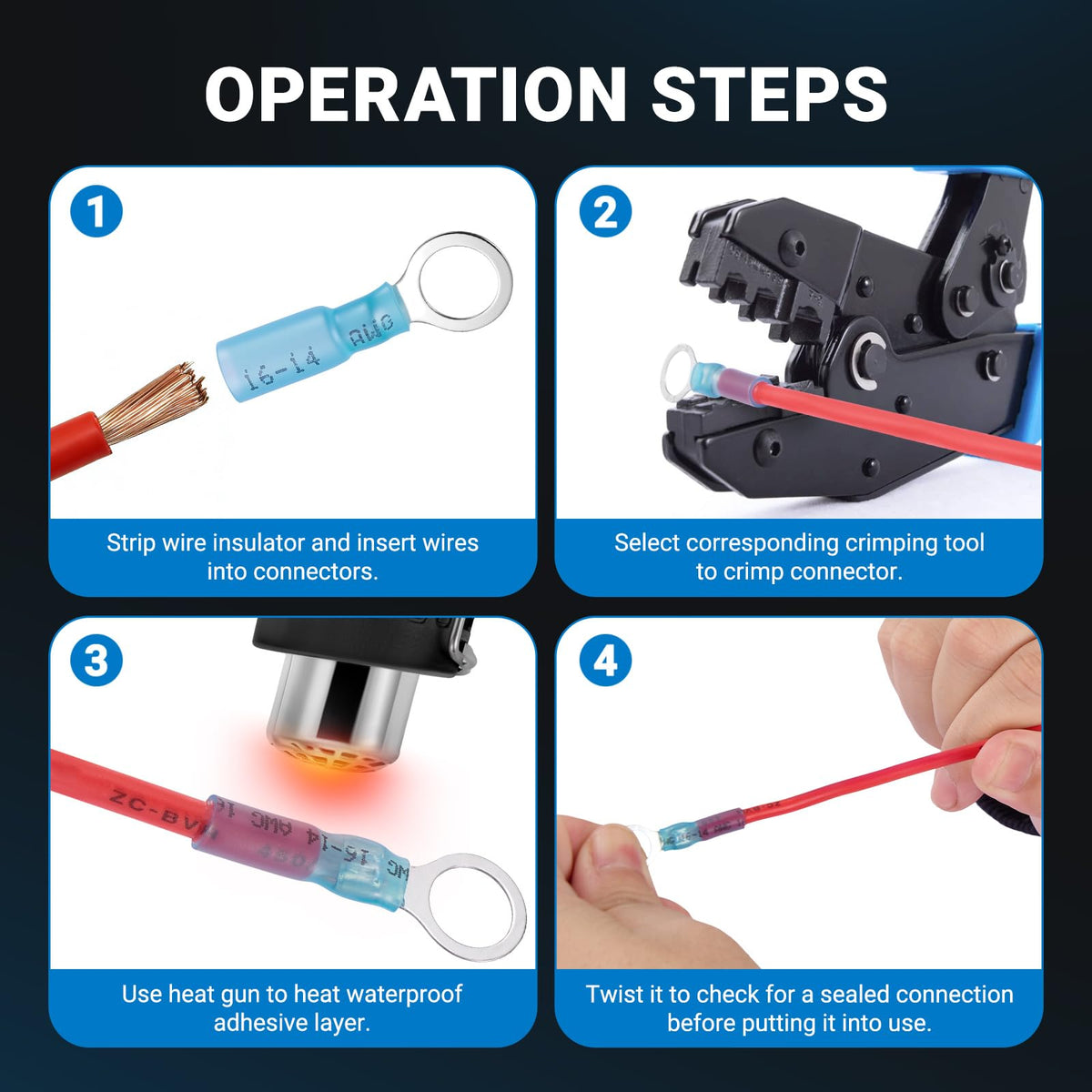

Strip the wire to the recommended length, insert it fully into the copper barrel, then crimp using a proper crimp tool rated for insulated terminals. After crimping, apply heat evenly to the shrink sleeve using a heat gun until the adhesive flows and the sleeve conforms to wire and stud surfaces.

• Strip wire per terminal gauge markings and insert fully before crimping
• Use a matched crimp tool to avoid barrel deformation
• Heat with a heat gun for controlled, even shrinkage—avoid open flame
• Allow adhesive to cure and cool before testing electrical load

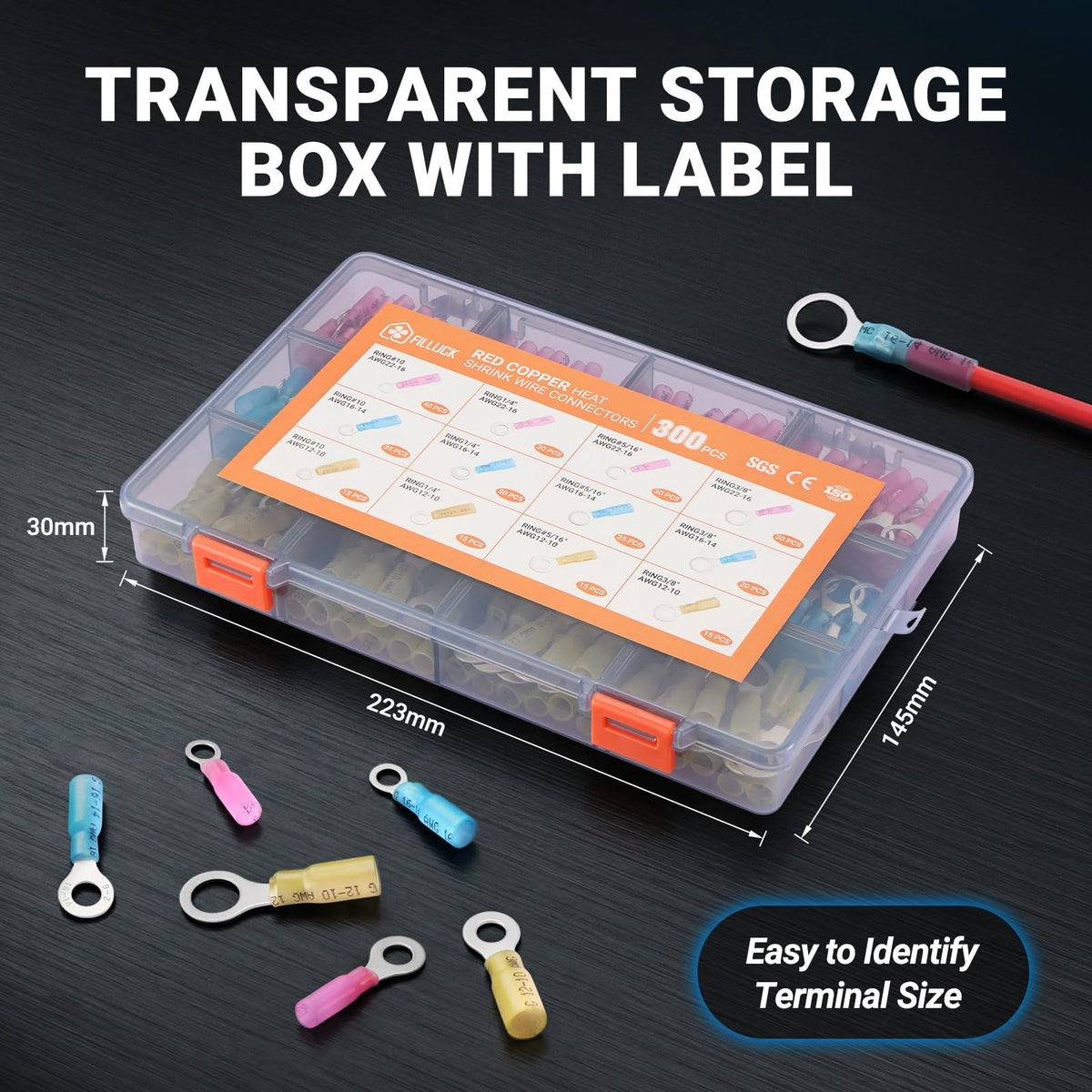

Who is this for? The Filluck 300pcs Marine Grade Heat Shrink Ring Connectors kit is made for professional electricians, boat owners, mechanics, RV enthusiasts, and DIYers who need a reliable, corrosion-resistant terminal assortment. If you work with electrical systems exposed to moisture, vibration, or salt air, this kit provides the sizes, materials, and environmental protection required for dependable splices and stud terminations. The labeled storage box keeps components organized so you can find the right terminal quickly when on the job or at the dock.
