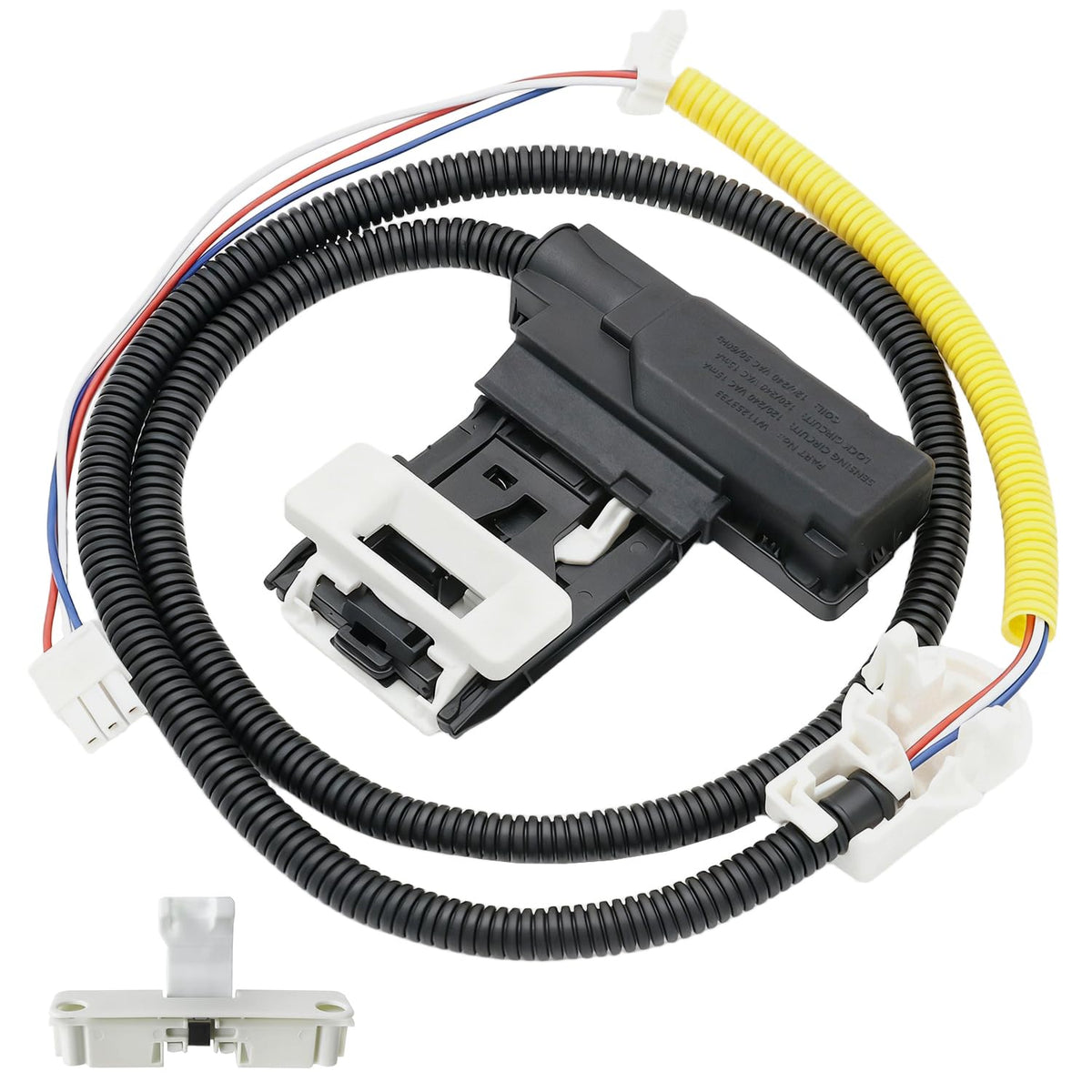

FIRMERST Washer Lid Lock Assembly W11307244 with W10837741 Lid Strike — 3‑Wire VMW Fit, Restores No‑Start/No‑Spin

If your top-load washer won’t start, won’t spin, or is showing lid-related diagnostic codes, a failed lid lock is often the culprit. This FIRMERST kit replaces several factory part numbers (including W10682535, W10838613, W11253733) and fits many VMW three-pin connector models so you can quickly get laundry cycles running again. The assembly ships unlocked and will auto-lock the first time you power up and press START after installation.

How will this lid lock fix my washer’s startup and spin problems?

The lid lock assembly completes the safety interlock circuit that tells the control board the lid is closed; without it the washer may refuse to begin or to enter the spin/drain phase. Replacing a burnt, stuck, or broken actuator with this compatible FIRMERST unit typically clears no-start and no-spin behavior when the original part has failed.

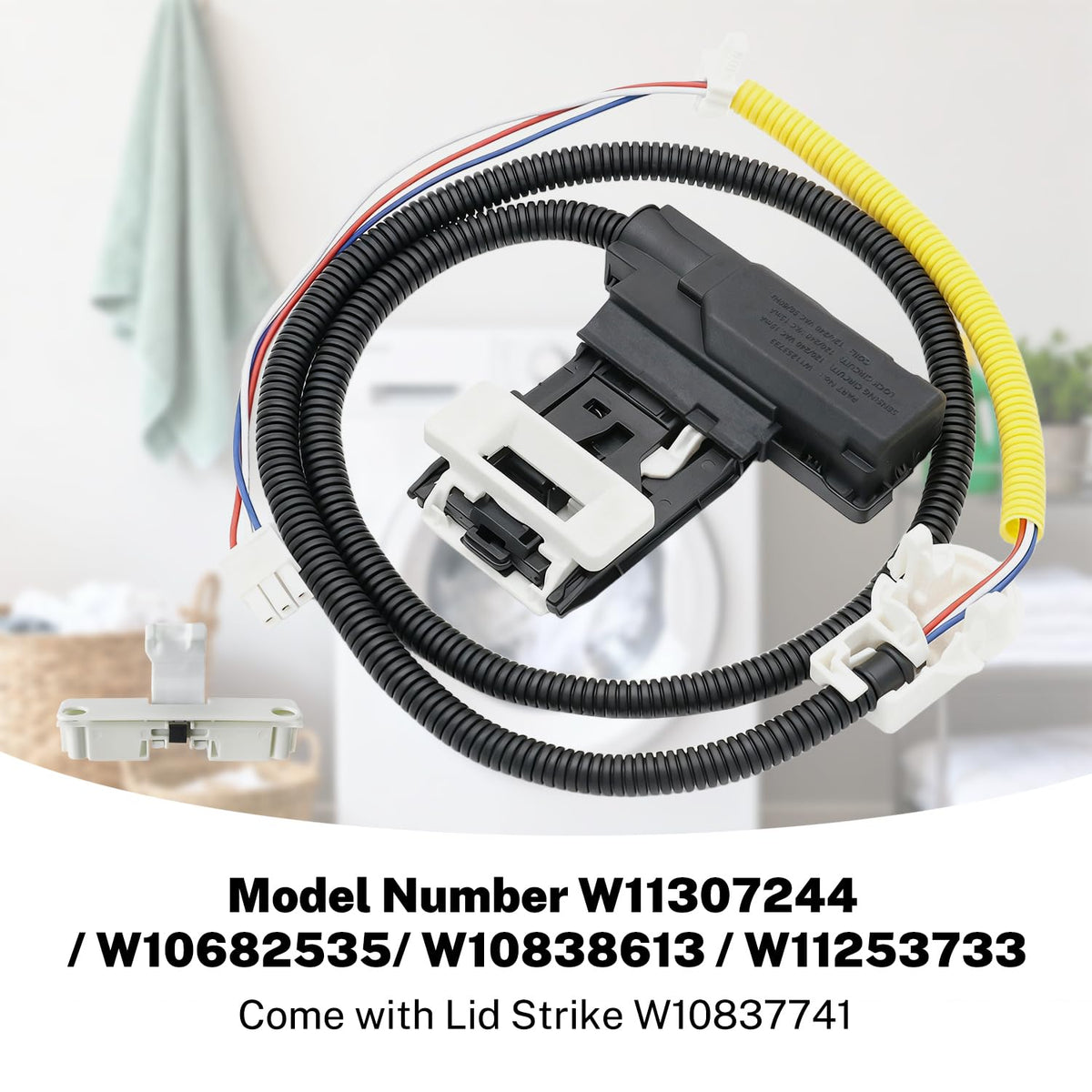

• Replaces OEM numbers W10682535, W10838613, W11253733.

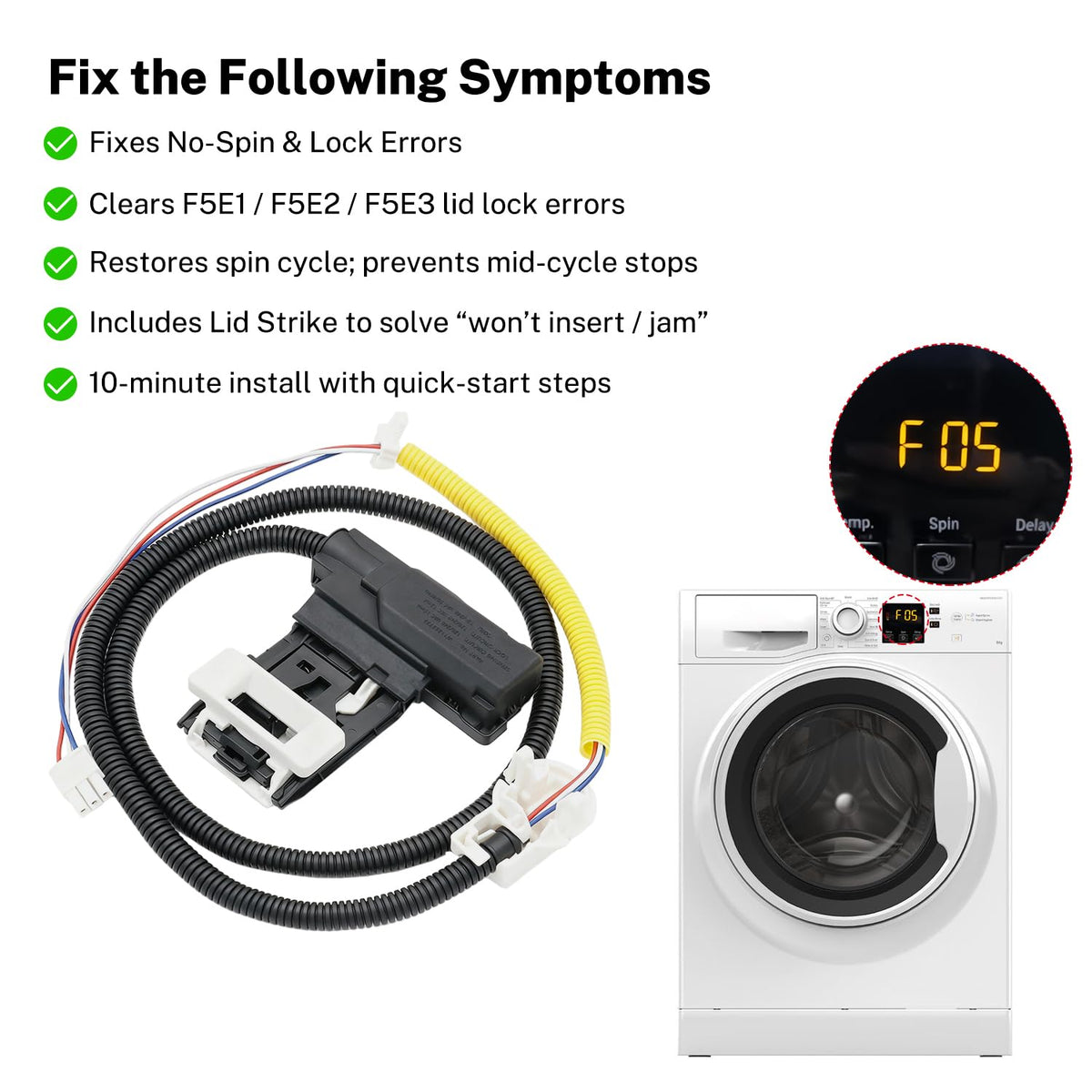

• Resolves common symptoms like no-start, won’t spin, or lid-related error codes.
• Designed for three-wire VMW models with a 3-pin connector.
• Includes matching lid strike W10837741 for a complete repair.

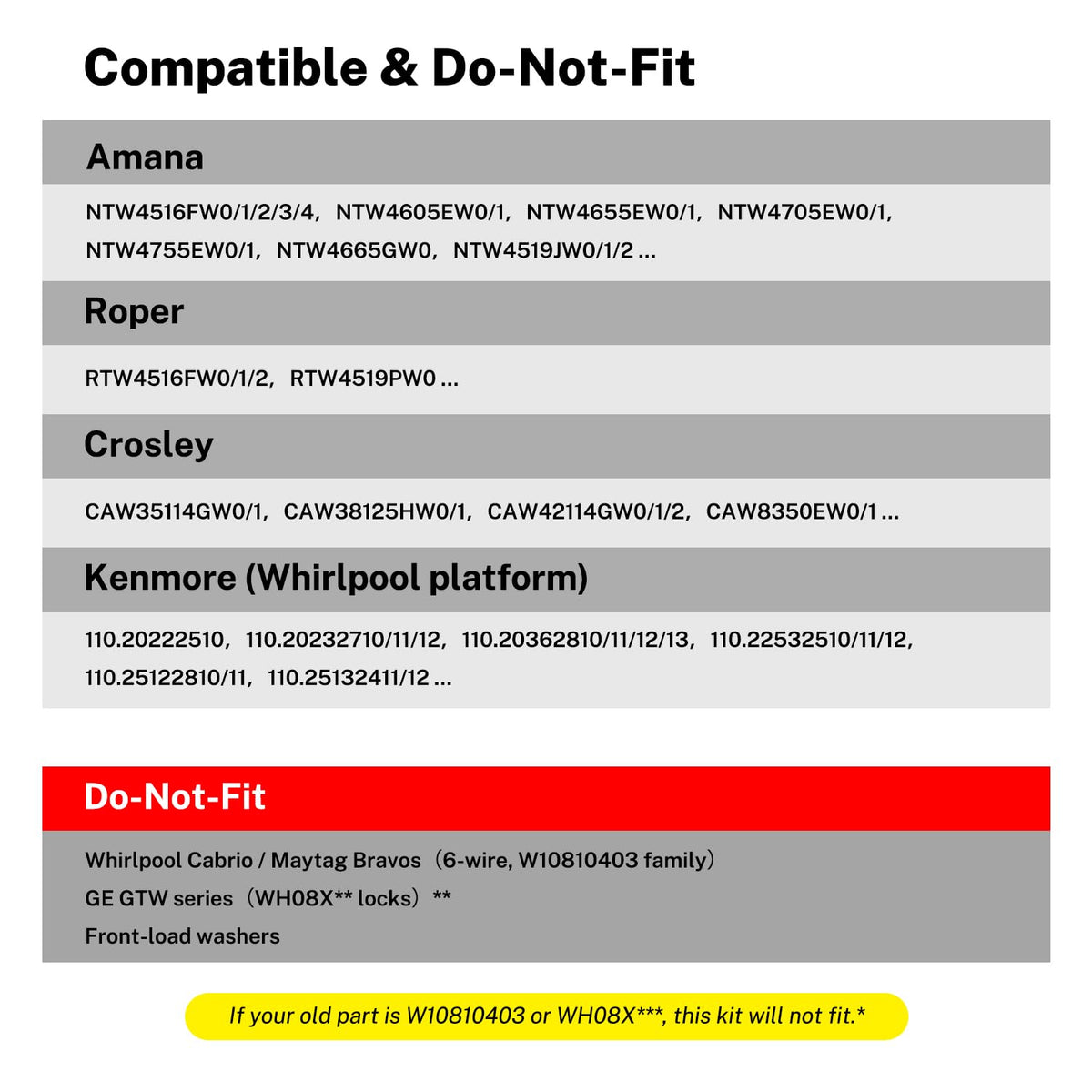

Which washer models are compatible with this FIRMERST replacement?

This kit fits a broad list of Whirlpool, Maytag, Amana and select Kenmore top-load machines that use the VMW-style 3-wire lid lock. It is important to verify your washer’s exact model number against the supported list before ordering.

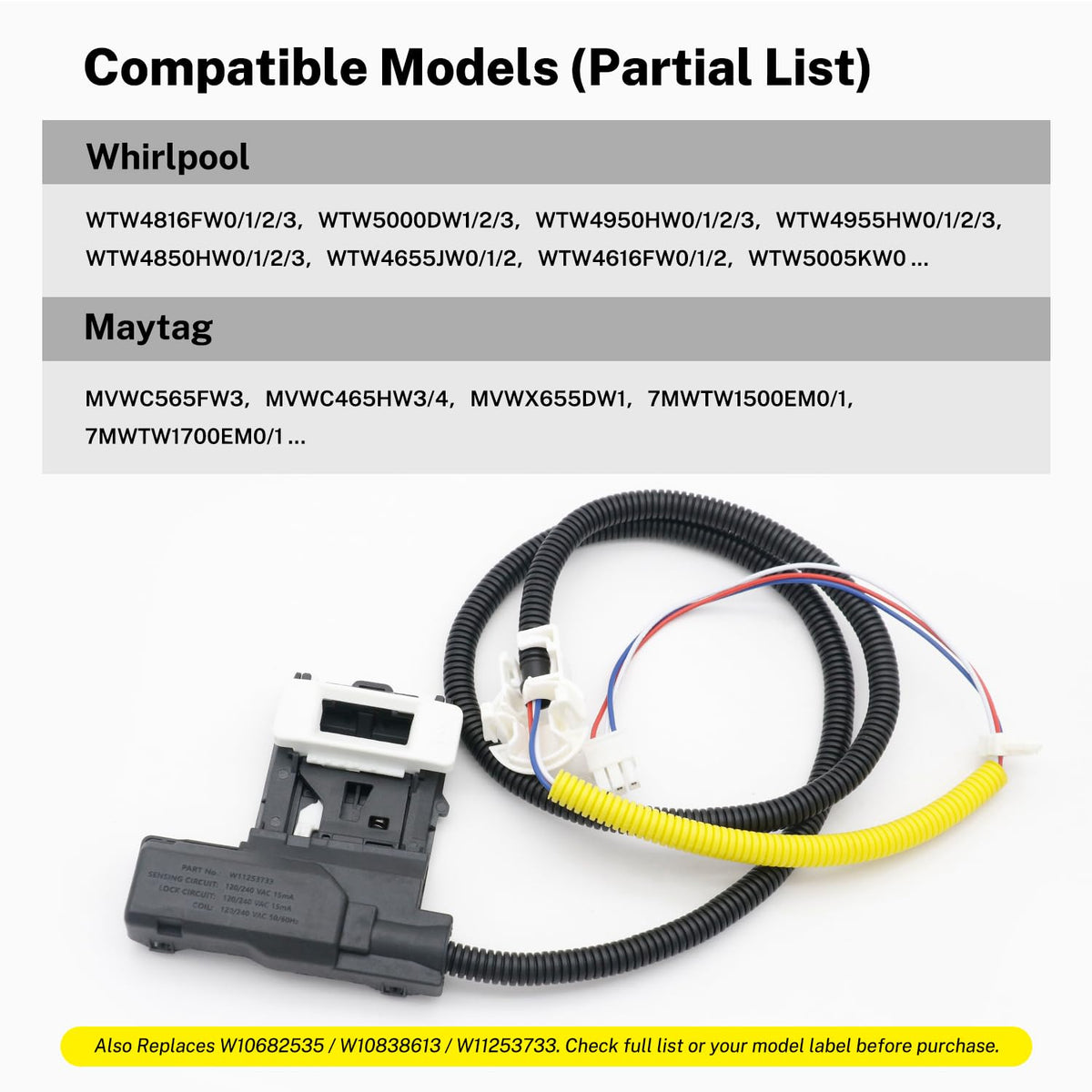

• Whirlpool examples: WTW4816FW*, WTW5000DW*, WTW4950/4955HW* series.
• Maytag examples: MVWC565FW3, MVWX655DW1 and similar models.
• Amana example: NTW4516FW* and compatible Roper/Crosley/Kenmore 110-series.
• Search your model or check wiring — designed for VMW 3-wire (3-pin) configurations.

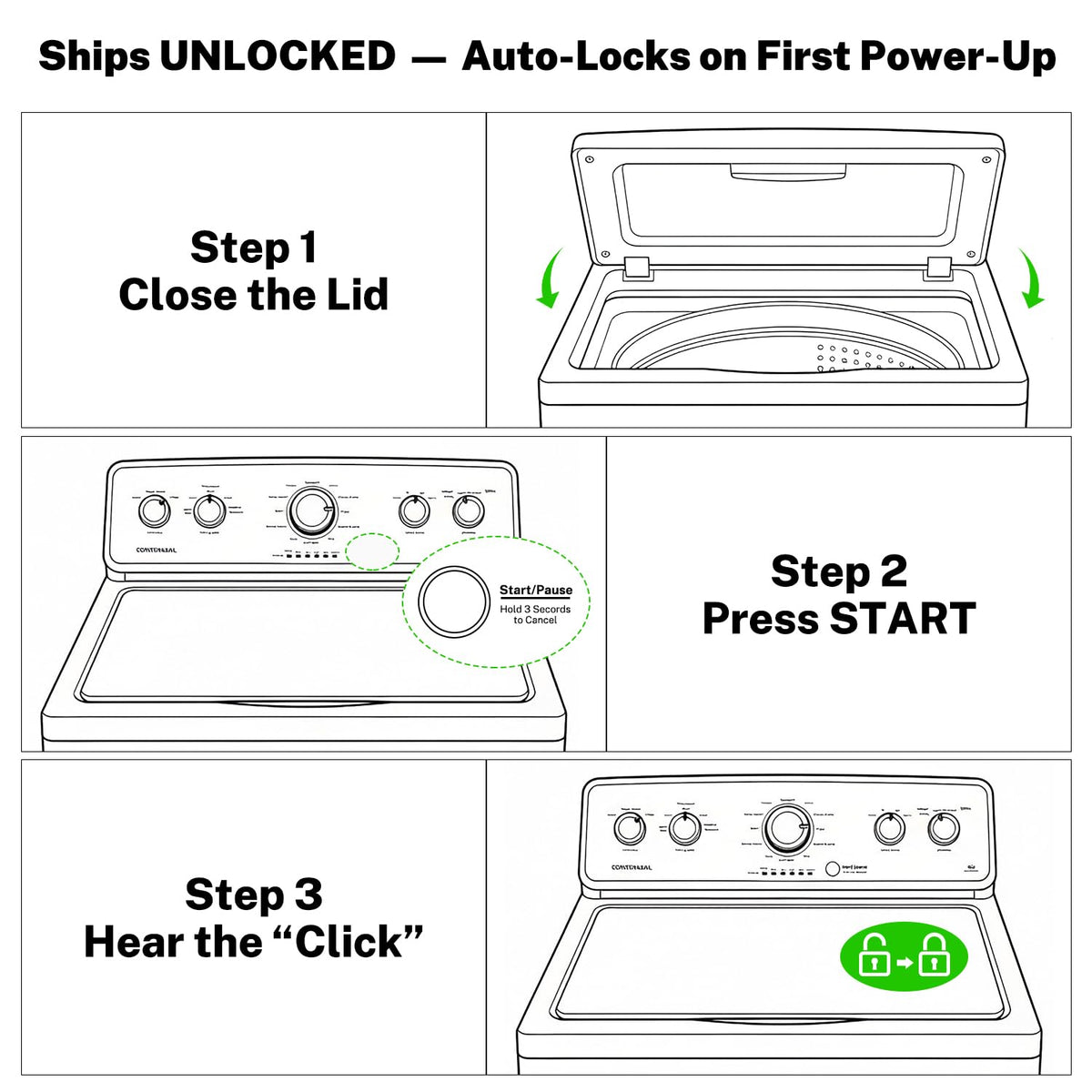

What should I know about installation and first power-up?

Installation is straightforward for anyone comfortable removing a washer control or front panel and swapping the lock assembly. The part ships in the unlocked position; after you mount it and restore power, close the lid and press START. The mechanism will automatically lock on that first cycle, confirmed by an audible click.

• Ships UNLOCKED — auto-locks when you close lid and press START after installation.
• No special programming required; functions as a direct swap for the listed OEM parts.
• Works with diagnostic routines — may clear F5E1 / F5E2 / F5E3 codes caused by lid-lock failure.
• Consult model-specific videos by searching “W11307244 lid lock replacement” or your washer model.

Who is this replacement kit for? If you own a compatible Whirlpool, Maytag, Amana, Roper/Crosley or Kenmore top-load washer that uses the VMW three-wire lid lock and you’re experiencing lid-related errors, interrupted cycles, or a non-starting machine, this FIRMERST W11307244 + W10837741 kit is built to restore safe, reliable operation. It’s intended for homeowners, appliance technicians, and repair shops wanting an OEM-equivalent spare that fits the same connector and bolt pattern as the originals. Always confirm your model number and connector type before purchase to ensure compatibility.
