FLETERGIB 26ft 4-Pin 5-Wire Trailer Wiring Harness — PVC-Jacketed 16AWG Waterproof Y-Shaped

FLETERGIB's 26ft 4-pin 5-wire trailer wiring harness is a Y-shaped, PVC-jacketed kit that provides waterproof, 16AWG wiring to power both-side taillights and standard 4-way flat trailer lighting.

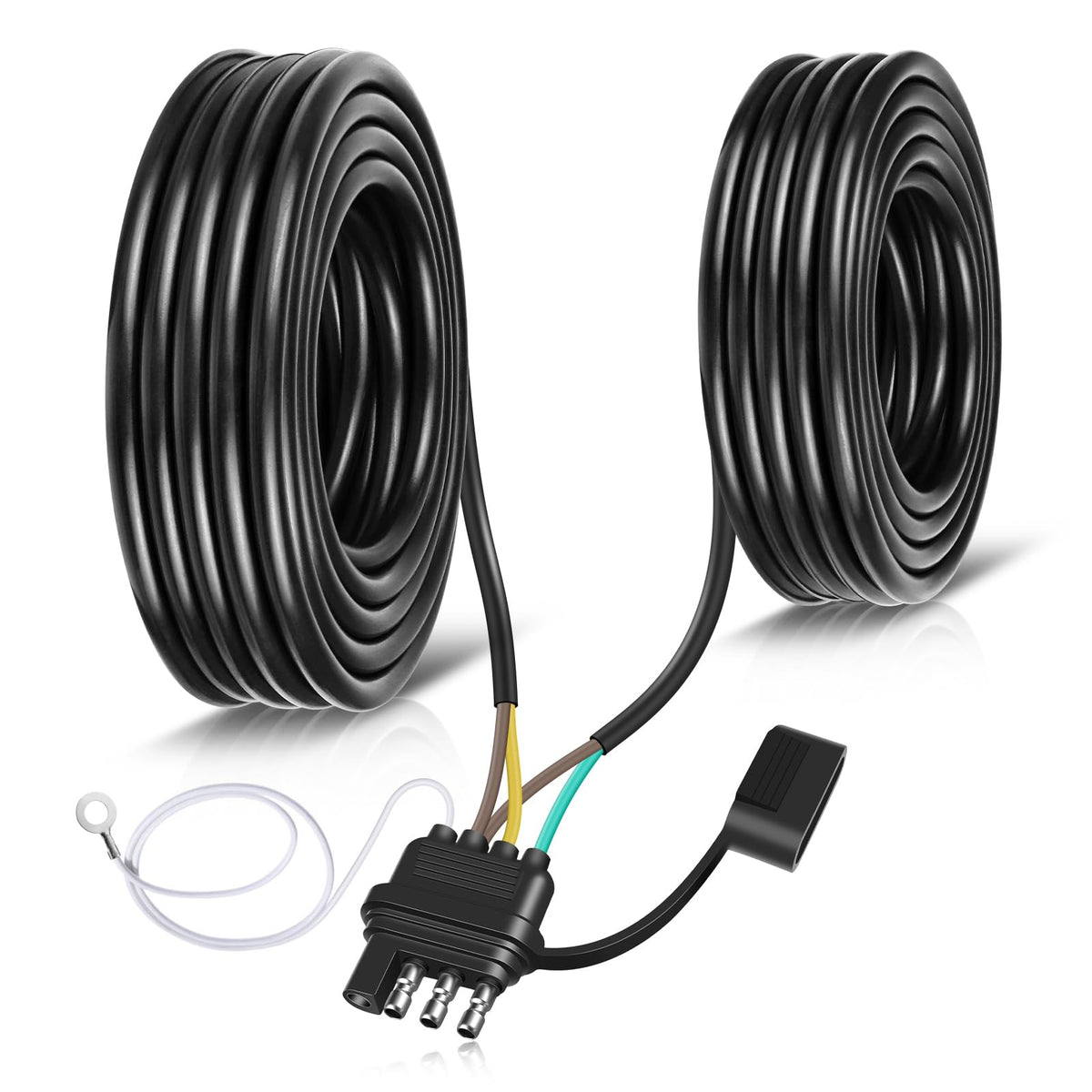

This wiring harness is built to replace or upgrade a standard 4-way flat connector on trailers, boats, and campers. With a Y-shaped layout, color-coded conductors, and a durable PVC outer jacket, it simplifies installation while improving corrosion resistance and current flow. The assembly includes a long 26-foot run plus a 2.5-foot ground lead to reach most trailer layouts without splicing extra wire.

How does the Y-shaped design simplify trailer lighting?

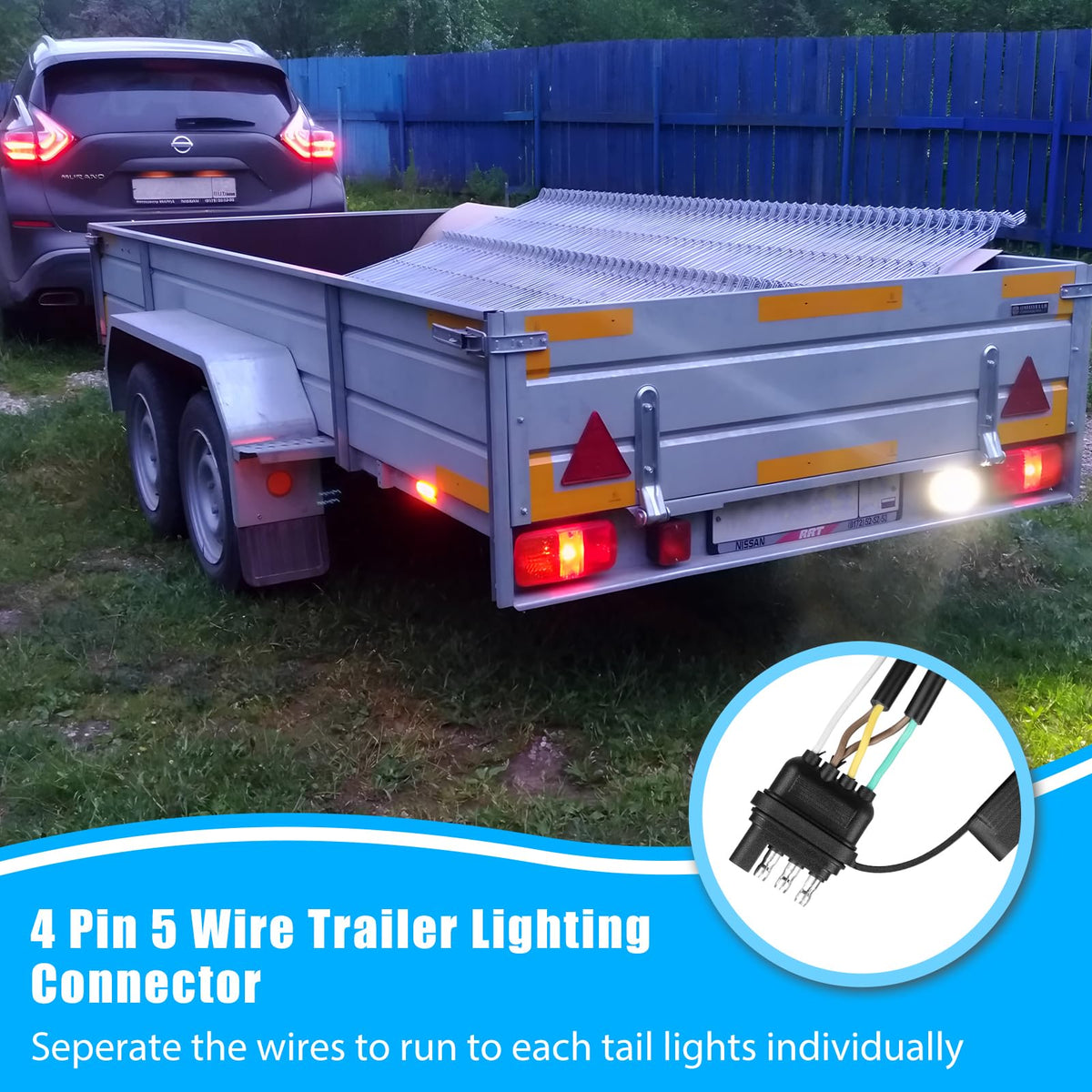

The Y-shaped configuration splits the taillight feed so both left and right taillights receive power directly from the harness instead of relying on a single run and extra splices. This reduces installation steps and potential failure points where water or corrosion can enter.

• Direct left and right taillight feeds without additional splicing
• Streamlines wiring on trailers up to standard widths (suitable under 90 inches)
• Minimizes connection points, lowering the risk of corrosion

Is this harness weatherproof and durable for marine use?

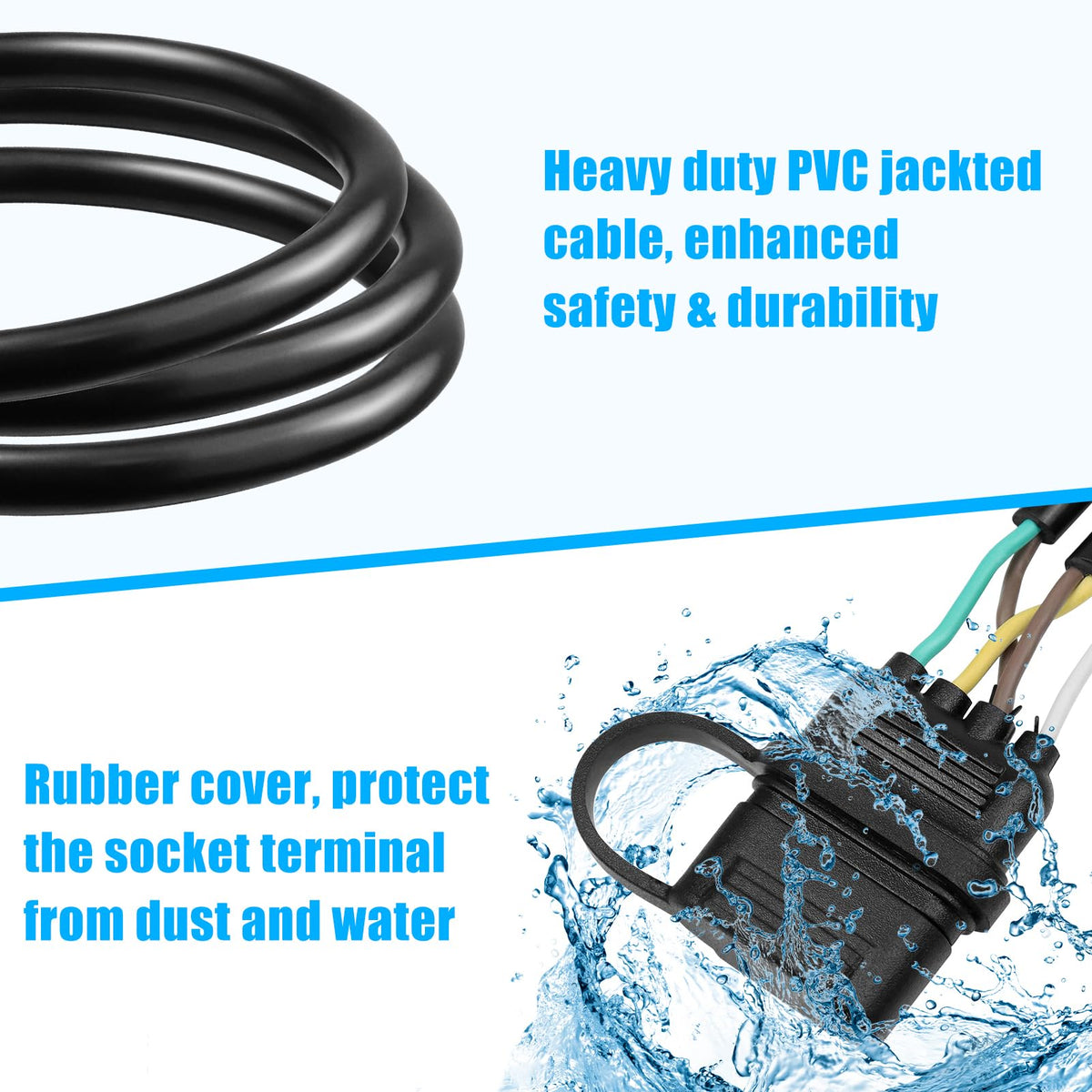

The harness is wrapped in a PVC jacket that protects the 16AWG conductors from water, salt spray, and abrasion common to boat trailers. The material resists corrosion and keeps the internal wiring shielded across a wide temperature range.

• PVC jacket for water and corrosion resistance
• Rated to operate in temperatures from -22°F to 221°F
• Designed for outdoor environments like boat ramps and road use

Will the 16AWG wire handle my trailer lighting needs?

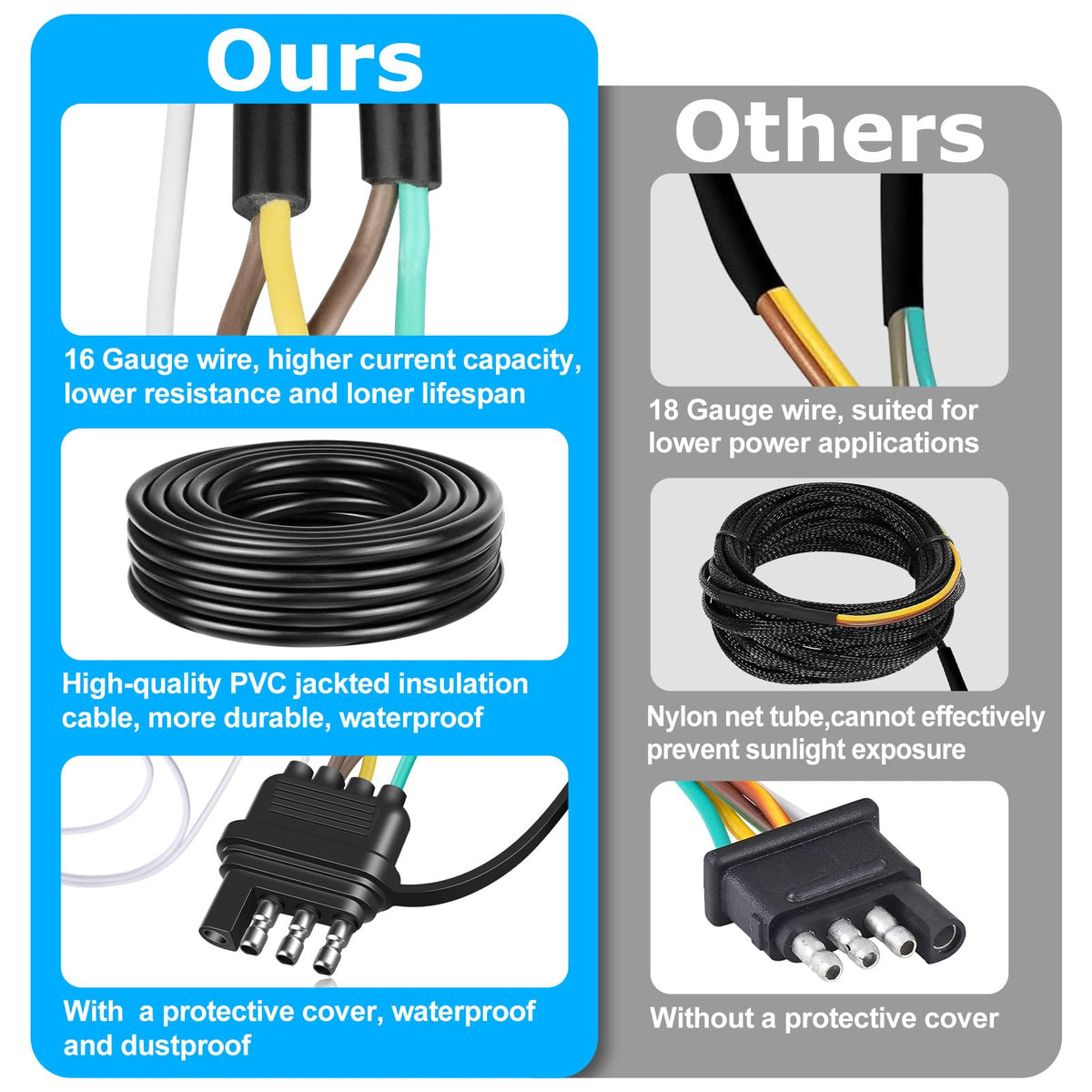

Using 16-gauge, high-conductivity wire reduces resistance and improves current capacity compared with thinner wire, which lowers voltage drop to your taillights and turn signals. This helps keep lights bright and reduces heat buildup at connectors during extended use.

• 16AWG conductors for better current flow and lower resistance
• 300V rated insulation for reliable electrical performance

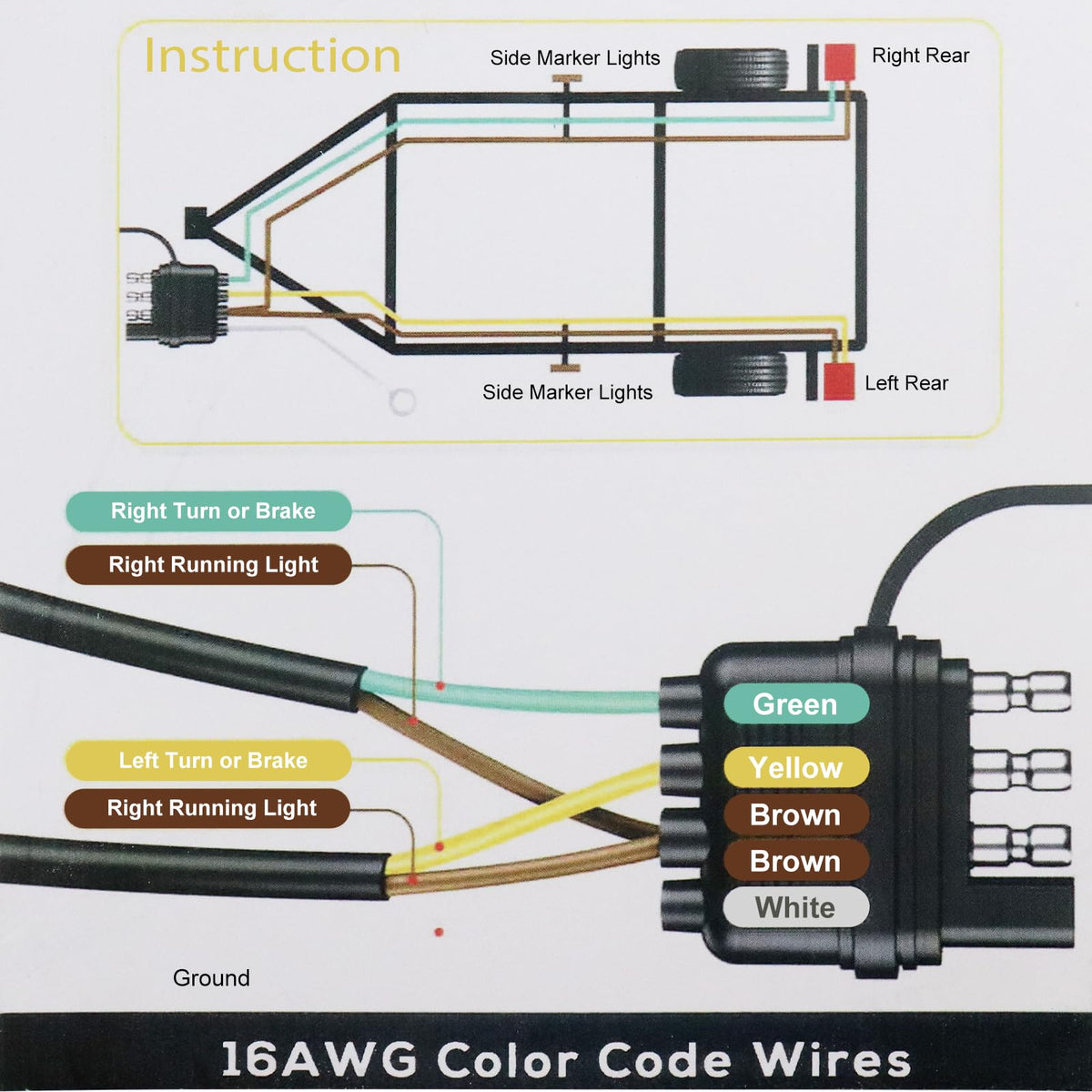

• Color-coded wires to match industry-standard 4-way flat sockets

How long is the harness and will it fit my trailer layout?

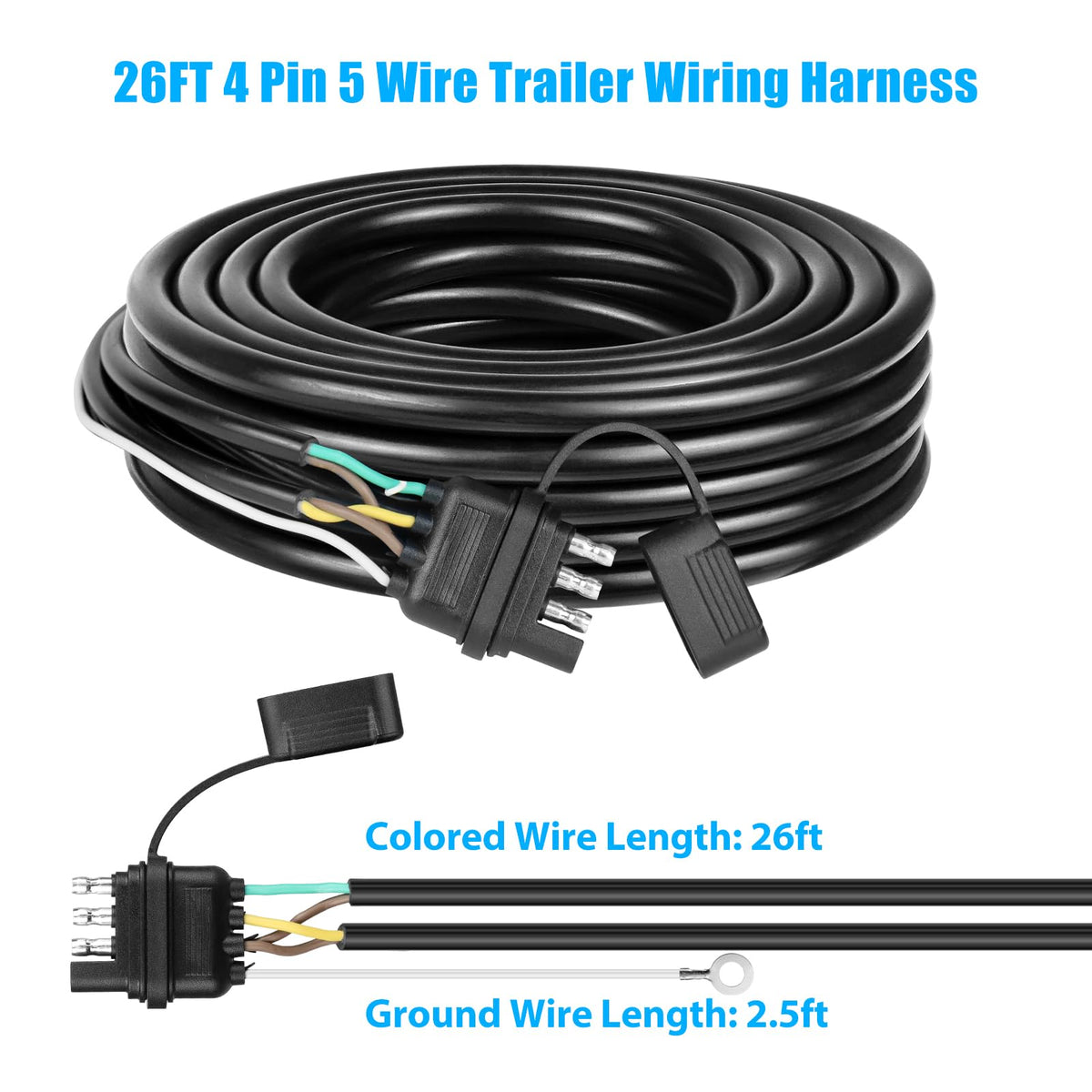

The kit includes a 26-foot main cable plus a 2.5-foot ground lead, providing generous reach for common trailer sizes without need for extension. That length covers most light-duty utility, boat, ATV, cargo, and camper trailers with a 4-way plug configuration.

• 26ft main length for flexible routing from hitch to rear
• 2.5ft dedicated ground wire for secure chassis grounding
• Appropriate for trailers under 90 inches wide and typical mounting setups

Who is this for: This harness suits DIYers, boat owners, and small-fleet operators who need a robust, weatherproof replacement for a worn 4-way flat harness or want a cleaner, easier install with separate left/right taillight feeds. It’s especially useful for marine trailers, light utility trailers, and camper trailers where moisture resistance and durable conductors matter. Avoid using it for systems that require more circuits than a 4-way flat supports (e.g., separate reverse or brake-control circuits) unless paired with additional wiring or adapters.
