Ford Motorcraft PM-20 DOT 4 LV Brake Fluid 16 oz - Low-Viscosity, High-Performance DOT‑4

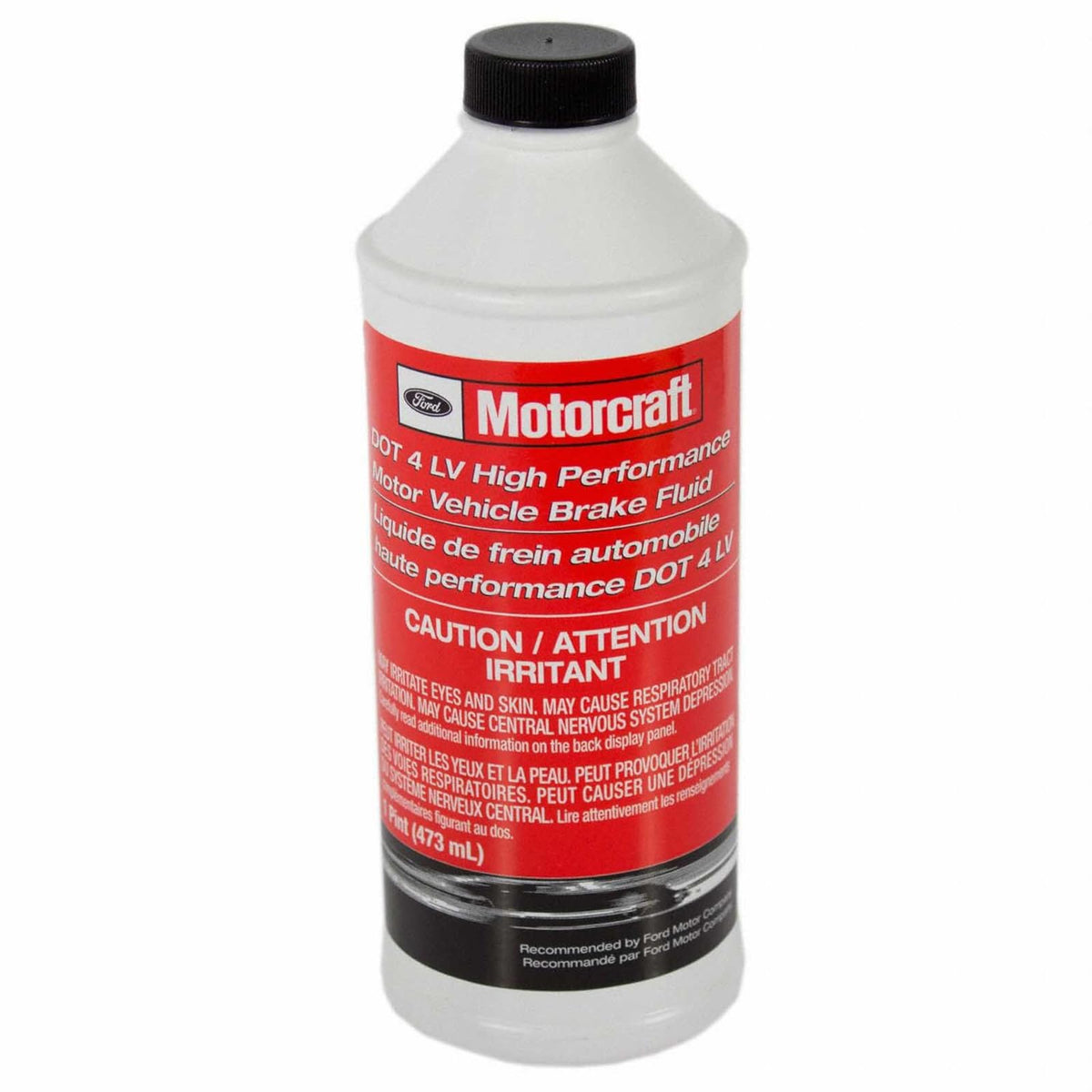

Ford Motorcraft PM-20 DOT 4 LV is a low-viscosity, high-performance brake fluid in a 16 fl oz bottle formulated for Ford and Lincoln vehicles requiring DOT 4 LV (WSS‑M6C65‑A2) or DOT 3 (WSS‑M6C65‑A1) specifications.

This 16-ounce bottle of Motorcraft brake fluid is engineered to meet Ford's original equipment standards and is sold under the Ford Motorcraft parts program. The fluid is yellow, formulated with a lower cold-temperature viscosity for quicker hydraulic response, and meets FMVSS DOT‑4 and ISO 4925 Class‑6 performance requirements. It is specifically recommended for many Ford and Lincoln models from roughly 2013 onward, particularly vehicles equipped with ABS and electronic stability control systems that demand a higher boiling point and improved low-temperature flow.

Which Ford and Lincoln models should use PM-20 DOT 4 LV?

PM-20 is intended for a broad range of Ford and Lincoln models that specify DOT 4 LV or compatible DOT 3 fluids in their service literature. Always confirm the correct fluid by checking your vehicle's brake fluid reservoir cap, owner's manual, or the workshop manual before topping up or replacing fluid.

• Ford examples: C‑Max, E‑Series vans (E‑150/E‑250/E‑350/E‑450), Edge, Escape, Expedition, Explorer, F‑series Super Duty trucks, Fiesta, Flex, Focus, Fusion, GT, Taurus (model years as listed by Ford).
• Lincoln examples: MKS, MKT, MKX, MKZ, Navigator (model years as specified).
• Required for certain models beginning in the 2012–2013 model years onward.

How does the low-viscosity formula affect braking performance?

Lower viscosity at cold temperatures means the fluid moves more readily through passages and ABS valves, helping the system respond more quickly during initial pedal application in cooler conditions. The formulation still maintains DOT‑4 performance targets, including elevated boiling point properties for demanding driving conditions.

• Faster hydraulic response at low temperatures compared with conventional higher-viscosity fluids.
• Designed for ABS and stability-control systems with tight valve tolerances.
• Yellow color assists visual identification during inspection or service.

What standards and safety attributes does Motorcraft PM-20 meet?

PM‑20 conforms to DOT‑4 requirements and ISO 4925 Class‑6 benchmarks, which include minimum boiling point and performance measures relevant to mountain driving and sustained braking scenarios. It is produced to Ford's specification and intended to match the fit-and-function expectations of the original braking system.

• Meets FMVSS DOT‑4 and ISO 4925 Class‑6 standards.
• Formulated to satisfy Ford WSS‑M6C65‑A2 and compatible WSS‑M6C65‑A1 requirements.
• Recommended by Ford for vehicles specifying DOT‑4 LV fluid.

How should I use and store this brake fluid safely?

Brake fluid absorbs moisture over time, so always keep the bottle sealed until use and avoid introducing contaminants into the brake system. Replace fluid using manufacturer-recommended procedures and handle with care to prevent spills on painted surfaces.

• Store sealed in a cool, dry place away from direct sunlight and moisture.
• Use fresh fluid when bleeding brakes; do not top off old fluid repeatedly.
• Clean any spills immediately—brake fluid can damage vehicle paint and certain plastics.

Who is this for: This 16 fl oz bottle of Ford Motorcraft PM‑20 DOT 4 LV brake fluid is aimed at owners, technicians, and fleet maintainers who need a Ford‑approved fluid for compatible Ford and Lincoln vehicles. Choose PM‑20 when your model year and service documentation call for DOT‑4 LV or WSS‑M6C65‑A2 specification fluid and you want an OE‑sourced, high‑performance option for ABS and stability control systems.
