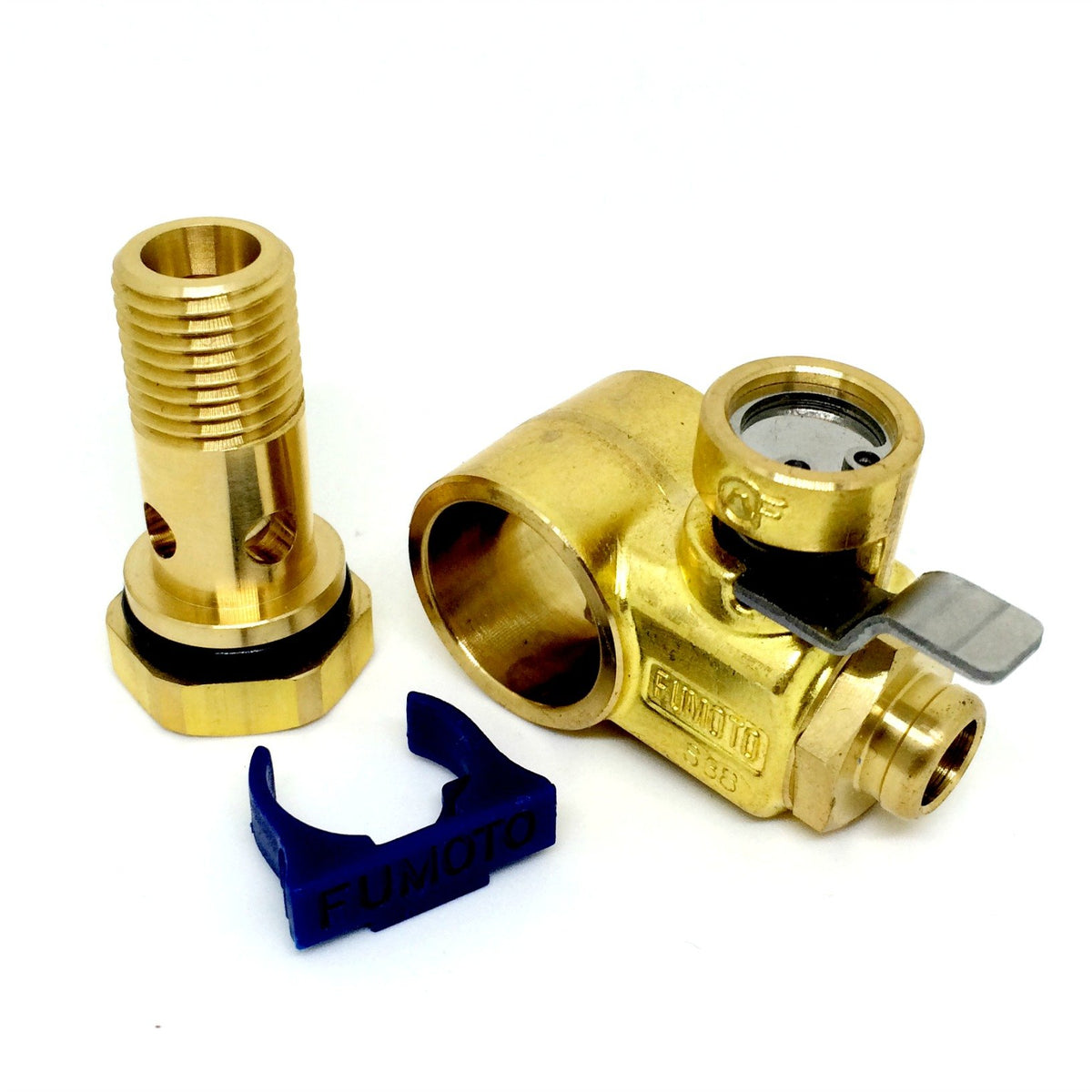

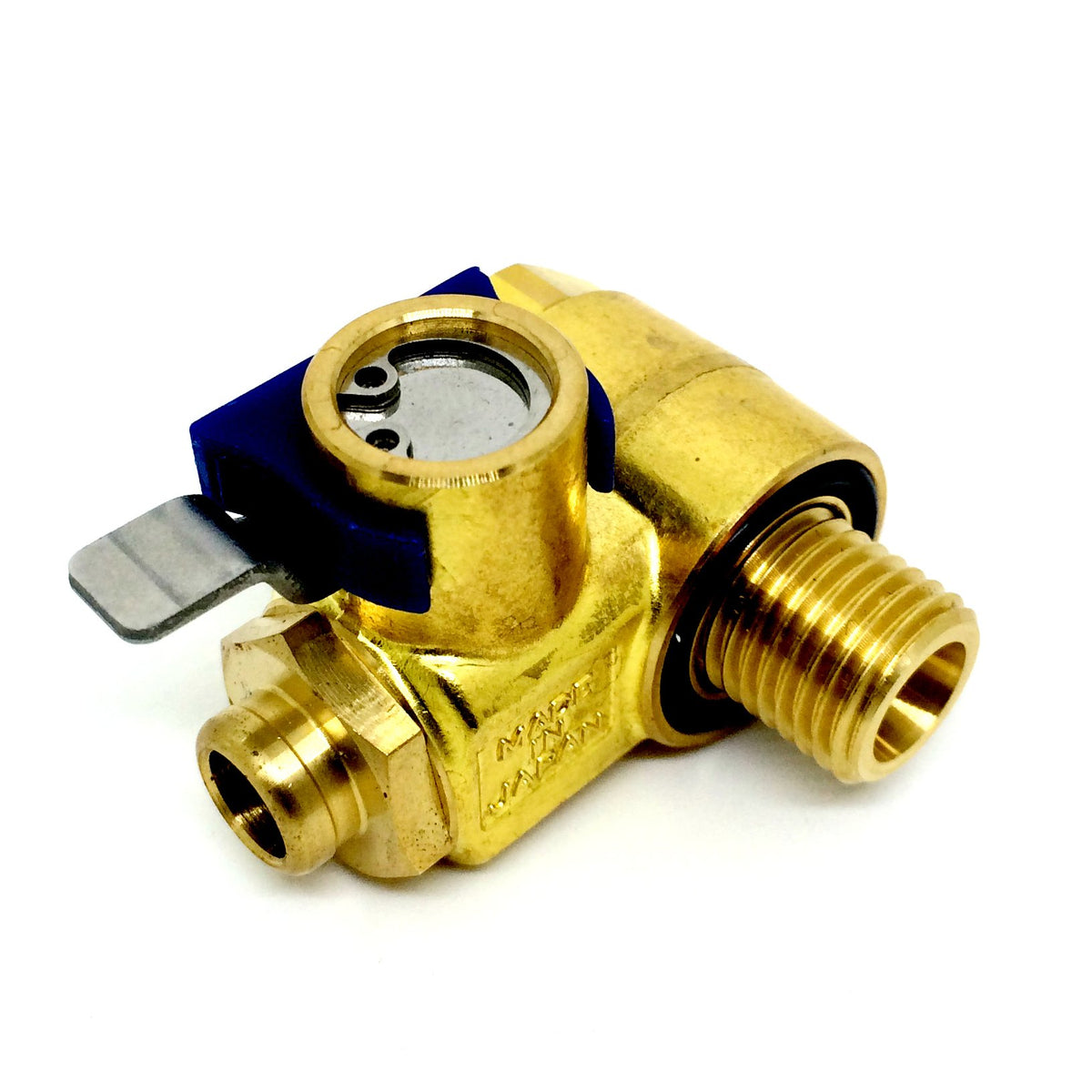

Fumoto F103SX quick oil drain valve 12mm-1.25 — lever-operated, drip-free replacement for drain plug

The Fumoto F103SX is a new-generation quick oil drain valve with a 12mm-1.25 thread that lets you drain engine oil cleanly and safely without removing the drain plug.

The F103SX replaces the conventional oil drain plug with a threaded valve engineered for repeatable, drip-free operation. Designed as part of Fumoto's SX series, this model fits engines with a 12mm-1.25 drain thread and can often be installed without an adapter where older valves required one. It reduces mess, minimizes burns from hot oil, and speeds up routine maintenance for DIYers and professional technicians alike.

How does the F103SX make oil changes easier?

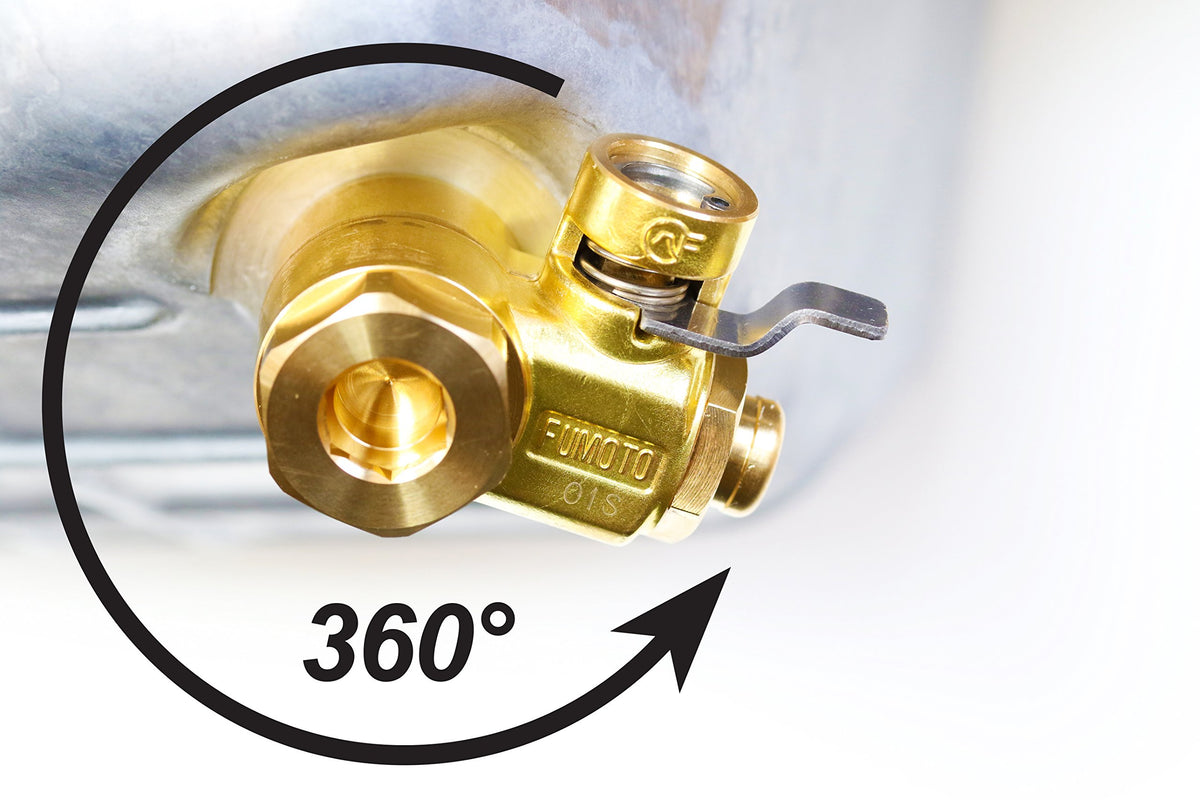

The valve converts the drain port into a controlled outlet: turn the lever to open, let oil flow, then close to seal—no tools required for each change. That control removes the need to wrestle with a hot plug and reduces the chance of spilling oil on the driveway or shop floor.

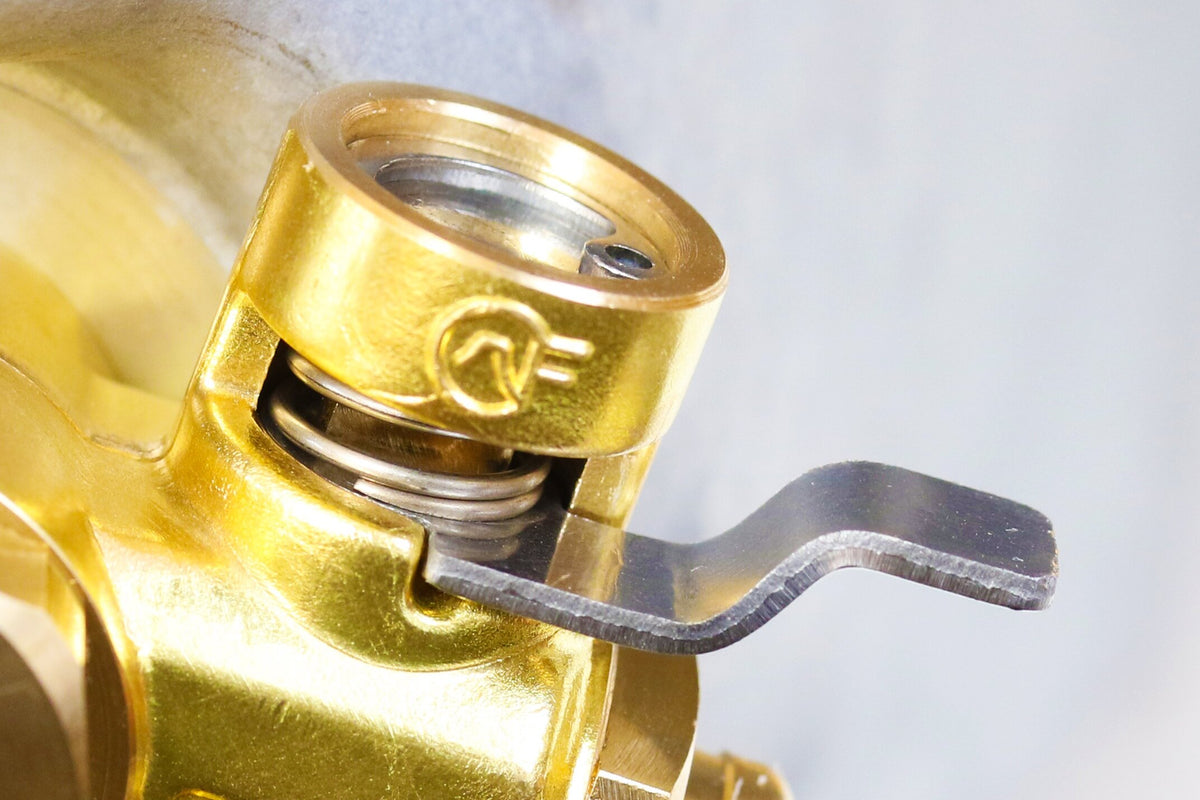

• Quick lever operation for fast on/off control
• Threaded installation secures like a conventional plug
• Drip-free seal locks oil inside when closed
• Reusable design eliminates repeated plug removal

Will the F103SX fit my vehicle with a 12mm-1.25 drain thread?

The F103SX is made specifically for engines with a 12mm-1.25 drain-thread specification and installs where the original drain plug matches that size. For some applications the SX-series geometry allows direct installation without adapters; always confirm thread size and clearance before purchase.

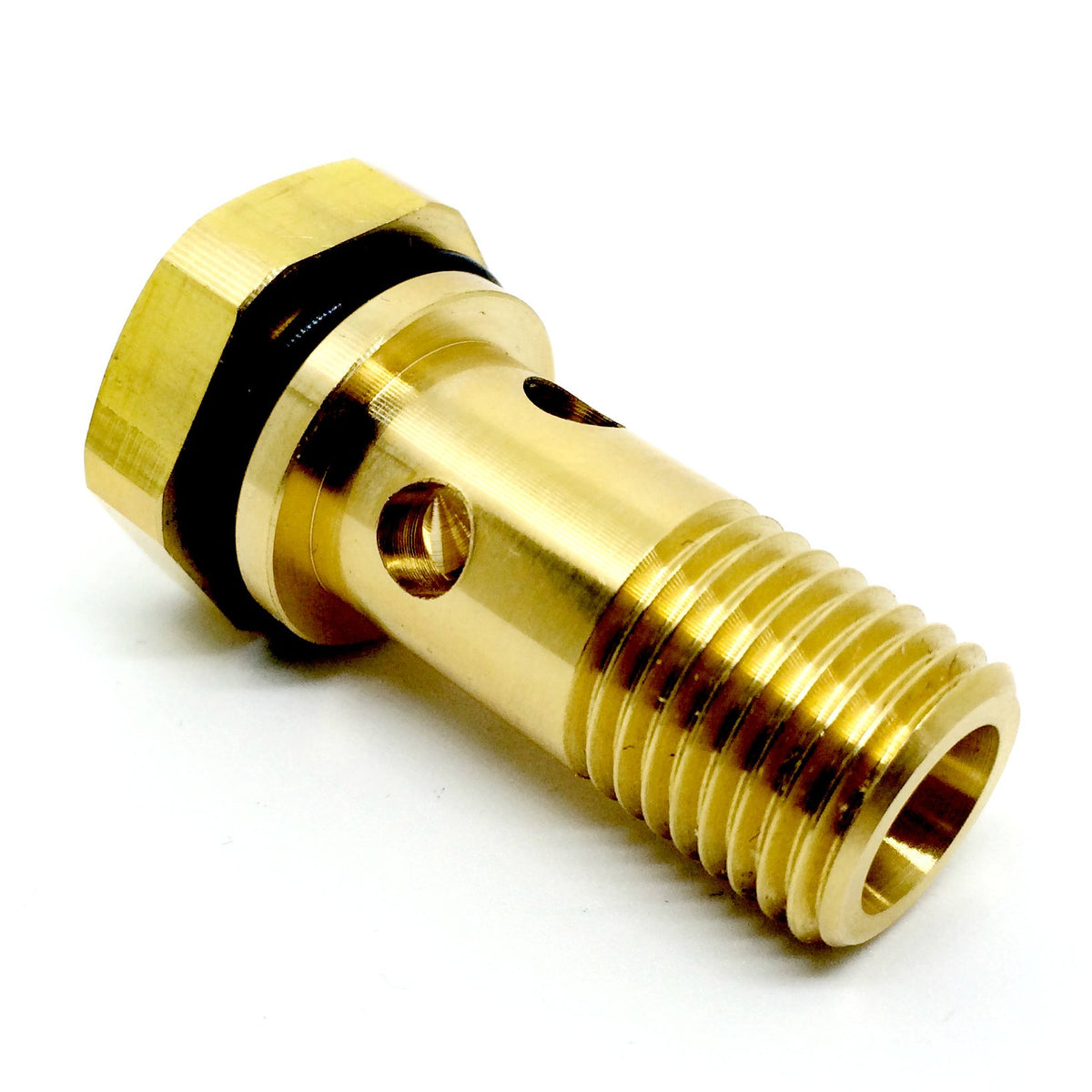

• Fits standard 12mm-1.25 threaded drain ports
• Check oil pan clearance around the drain port for lever movement
• May remove need for an adapter on compatible models
• Compatible with many cars and light trucks when thread matches

What materials and safety features does the valve use?

Fumoto valves are built from durable metals with engineered seals to withstand oil and temperature exposure found in typical engine compartments. The F103SX keeps hot oil contained while you position a catch container away from the pan, decreasing burn risk and cleanup time.

• Metal body for long-term wear resistance
• Seal materials chosen for oil and heat compatibility
• Lever designed for safe operation without direct contact with hot oil
• Robust threads reproduce plug torque feel for secure fit

How do I install and maintain the F103SX?

Installation replaces the factory drain plug: drain the oil, uninstall the plug, screw in the F103SX, and torque to the manufacturer’s specification. Maintenance is minimal—inspect the seal and lever periodically, and replace if damaged or leaking.

• Hand-tighten then torque per vehicle spec on initial install

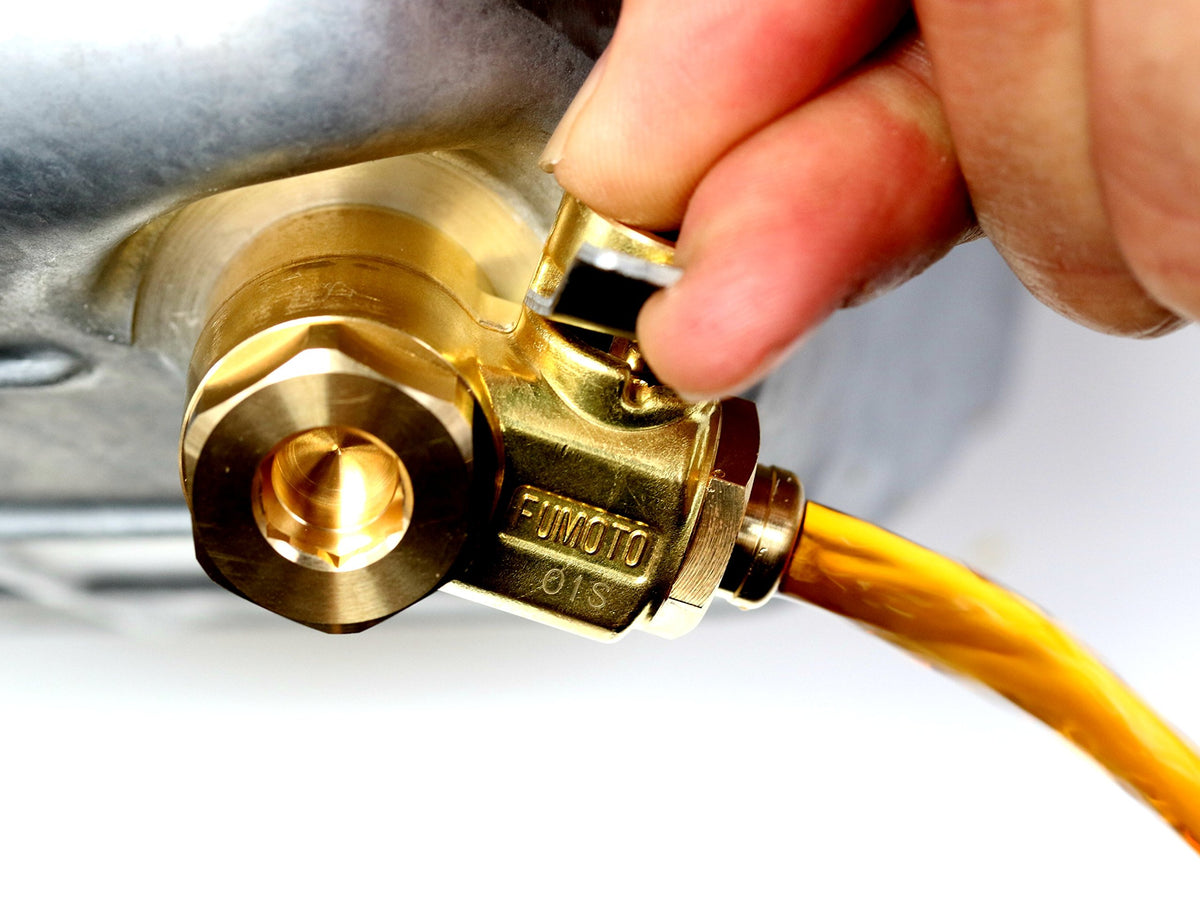

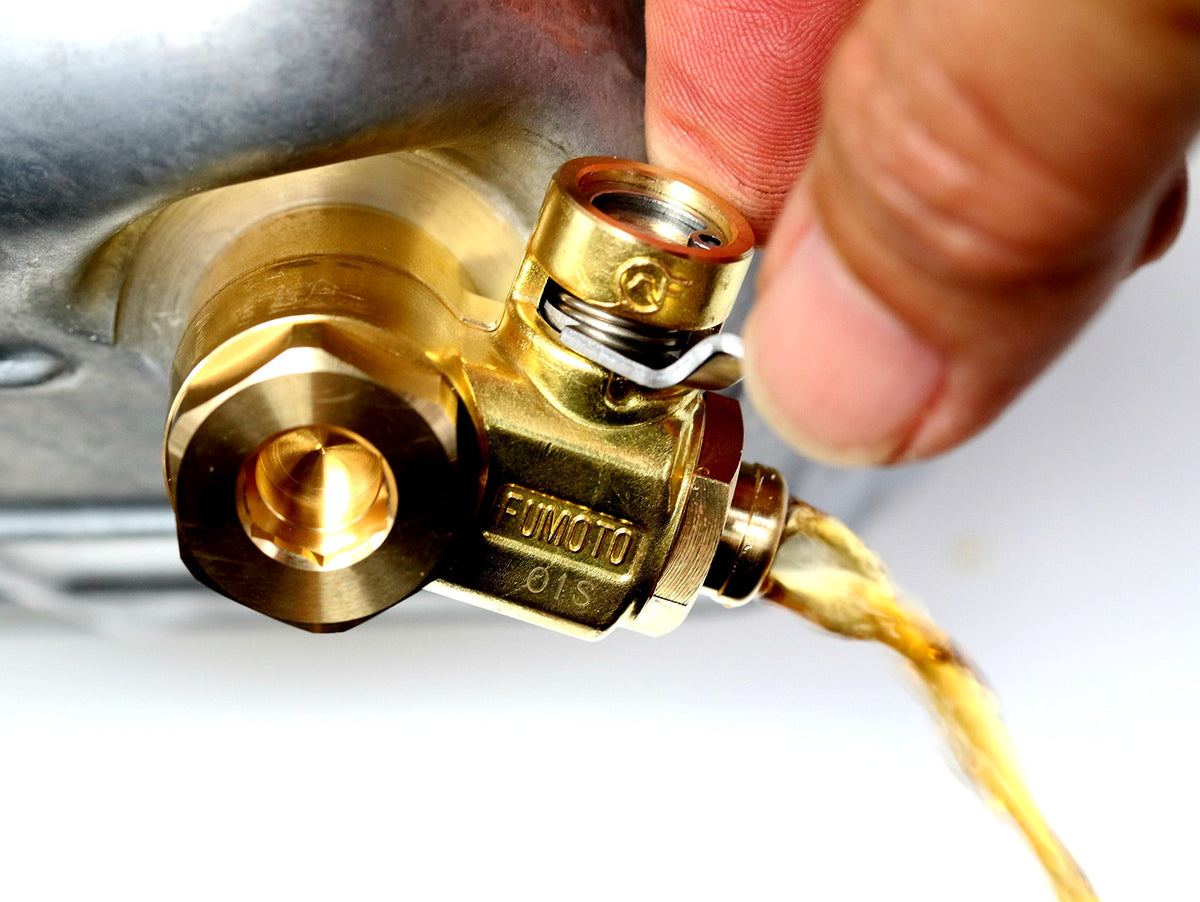

• Open lever over a drain container to change oil; close when finished
• Inspect sealing surface and O-ring annually or with each oil change
• Follow vehicle maker’s guidelines for oil-change procedures

Who is this for: The Fumoto F103SX suits vehicle owners, fleet managers, and mechanics who want faster, cleaner oil changes on engines with a 12mm-1.25 drain thread. It’s ideal for anyone who performs regular maintenance—home DIYers seeking less mess, professional shops aiming to save time, and owners of older vehicles who prefer a permanent, reliable drain valve. Always verify thread compatibility and clearance with your vehicle’s oil pan before purchase; international versions may have different labeling or fit details.
