GaiRen 3/4" Heim Joint Rod End Kit — 4-Pack Chromoly RH/LH, 28,000 lb Load

This rod-end kit supplies everything needed to build or repair a solid panhard bar, traction bar, tie rod, or link on hot rods, off-road vehicles, and custom suspension projects. Each heim is heat treated and hard chrome plated for corrosion resistance and long service life, and the package includes zinc-coated jam nuts and a tube adapter sized for a 1 1/4" OD tube with a .120" wall.

How strong are these heim joints for performance suspension?

These rod ends are manufactured from chromoly and heat treated, then finished with hard chrome plating to resist wear. The manufacturer specifies a 28,000-pound static load rating, making them suitable for demanding mechanical linkages where high tensile strength is required.

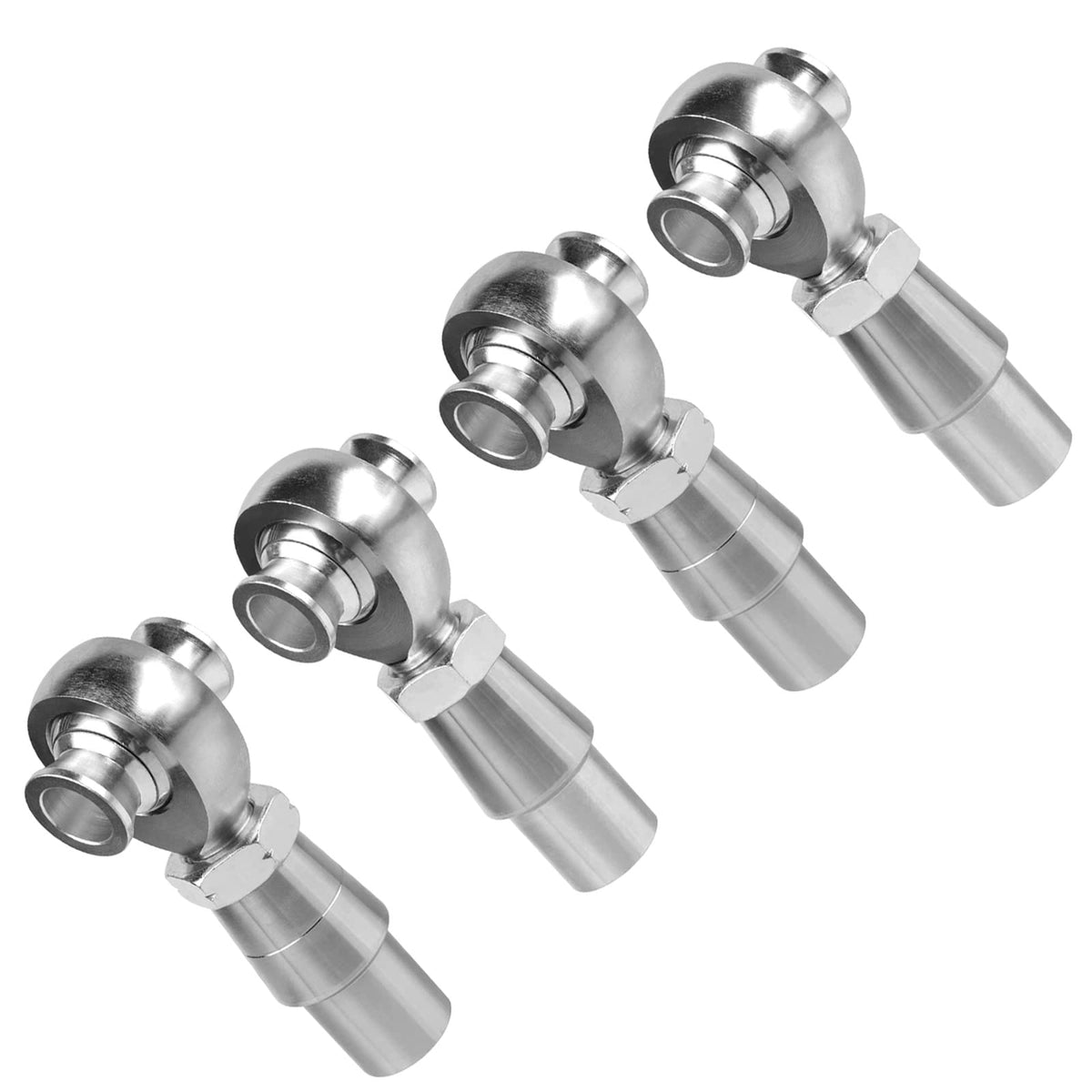

• Material: chromoly construction for high strength
• Surface finish: hard chrome plating for corrosion resistance
• Static load rating: 28,000 lb as stated by the maker

What sizes and thread directions are included in the kit?

This four-piece set contains two right-hand and two left-hand 3/4" shaft heim joints with 16 threads-per-inch, providing a matched pair for adjustable bars and anti-rotation setups. The bore measures 3/4" and the recommended tube fits 1 1/4" OD x .120" wall.

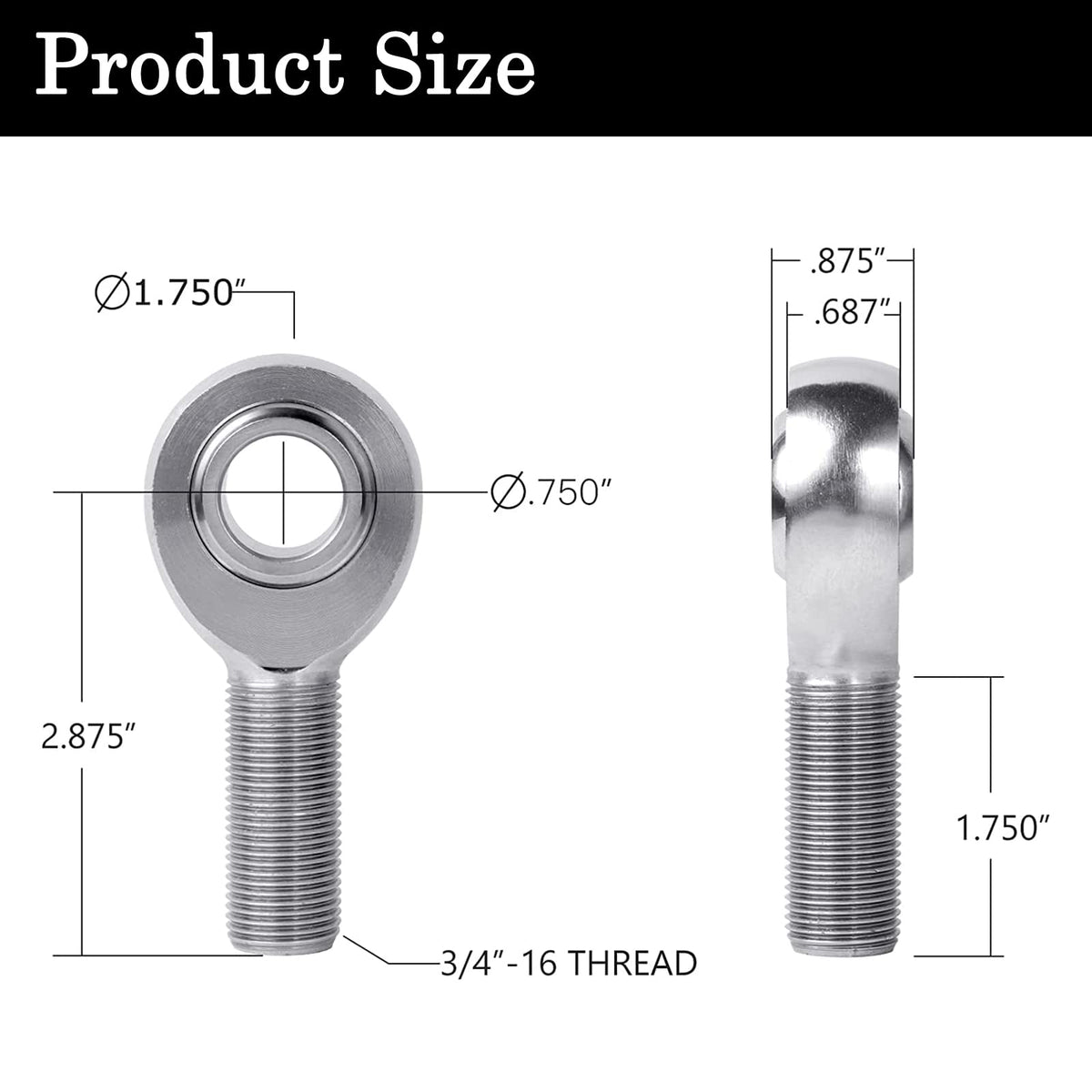

• Shaft diameter: 3/4" with 16 TPI
• Bore: 3/4" (strong heim construction)

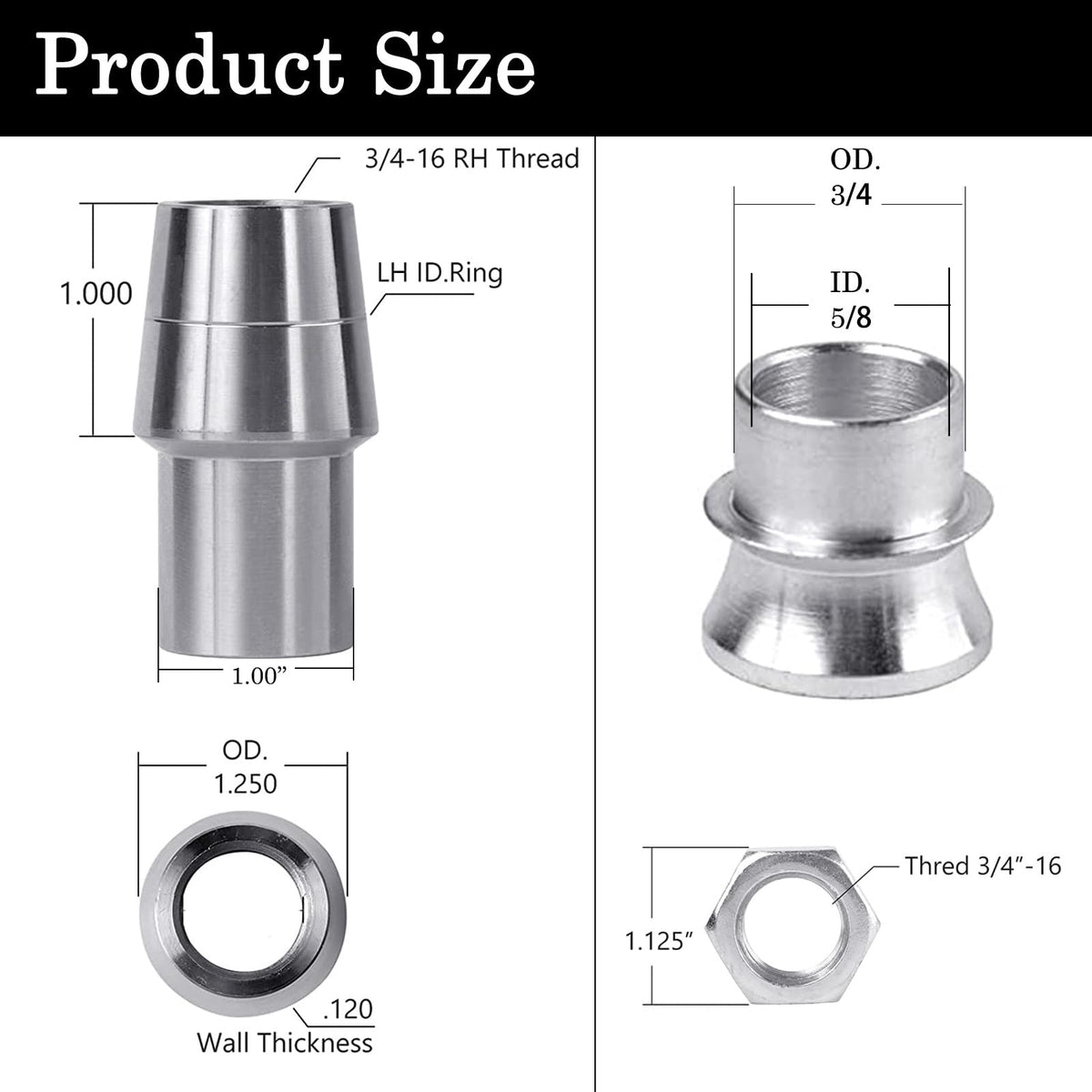

• Compatible tube: 1 1/4" OD, .120" wall, 1.01" ID

What hardware and adapters come with the panhard kit?

In addition to the four chromoly heim joints, the kit includes zinc-coated jam nut spacers to lock adjustments and a tube adapter for secure installation into the specified tube size. The zinc coating adds durability and corrosion resistance for outdoors and under-hood environments.

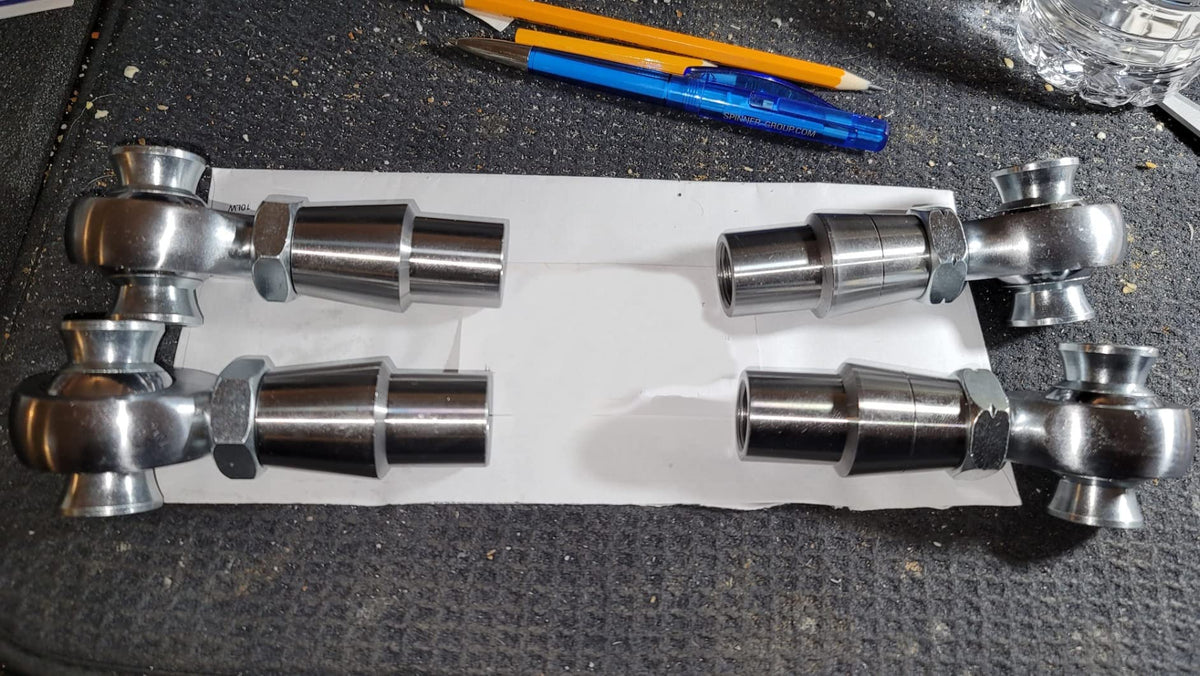

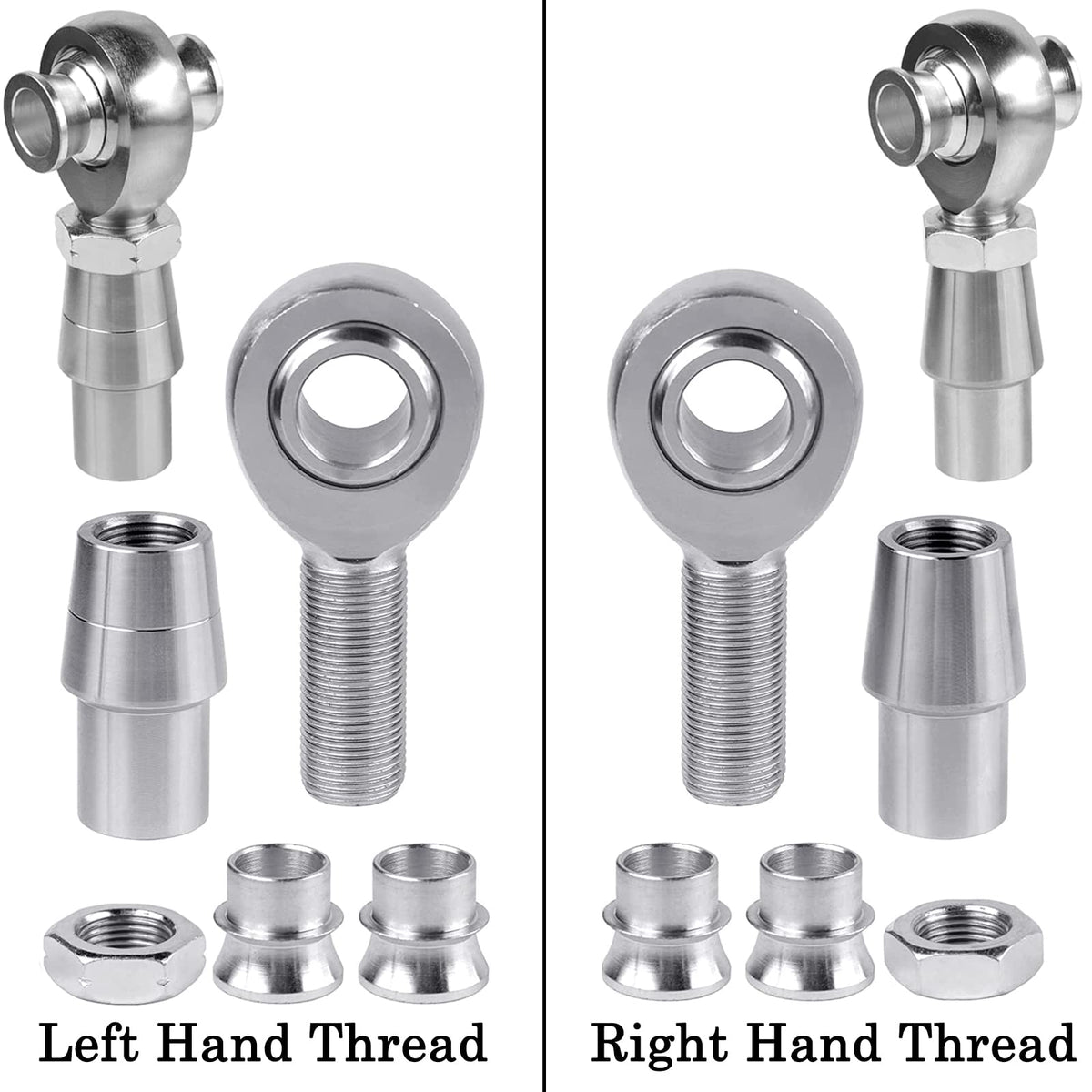

• Included: 2 RH and 2 LH heim joints (4 total)
• Locking: zinc-coated jam nut spacers for adjustment security
• Adapter: tube adapter sized for 1 1/4" OD tubes

Where are these rod ends commonly used and how do they fit?

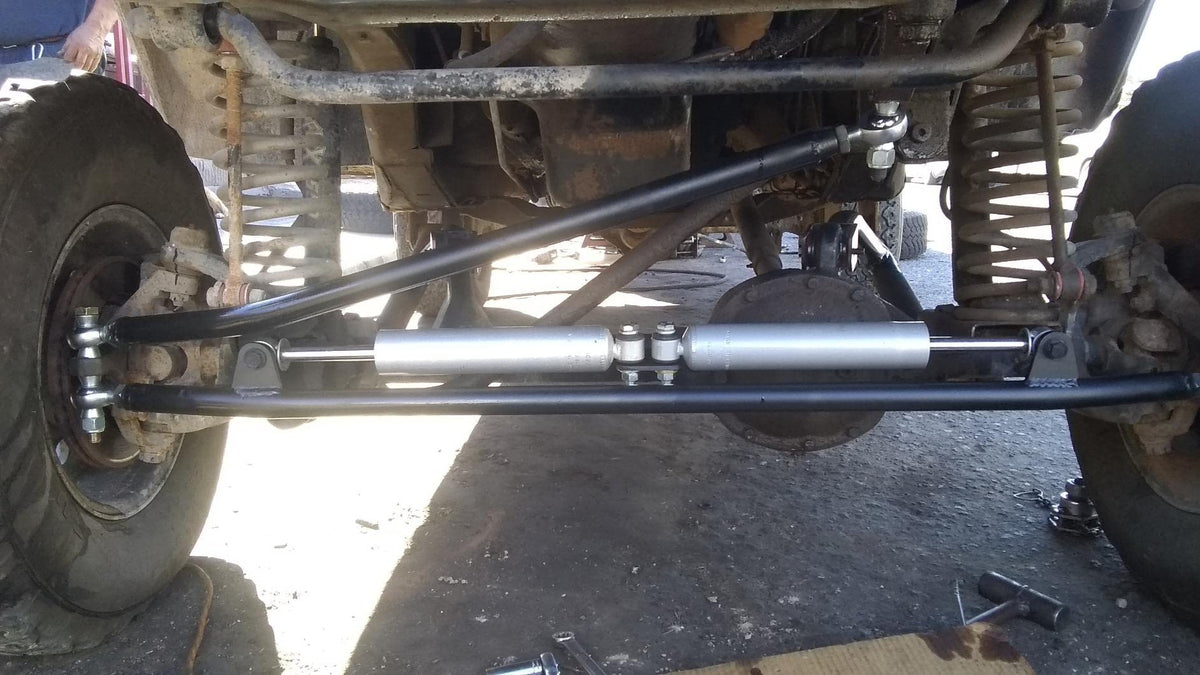

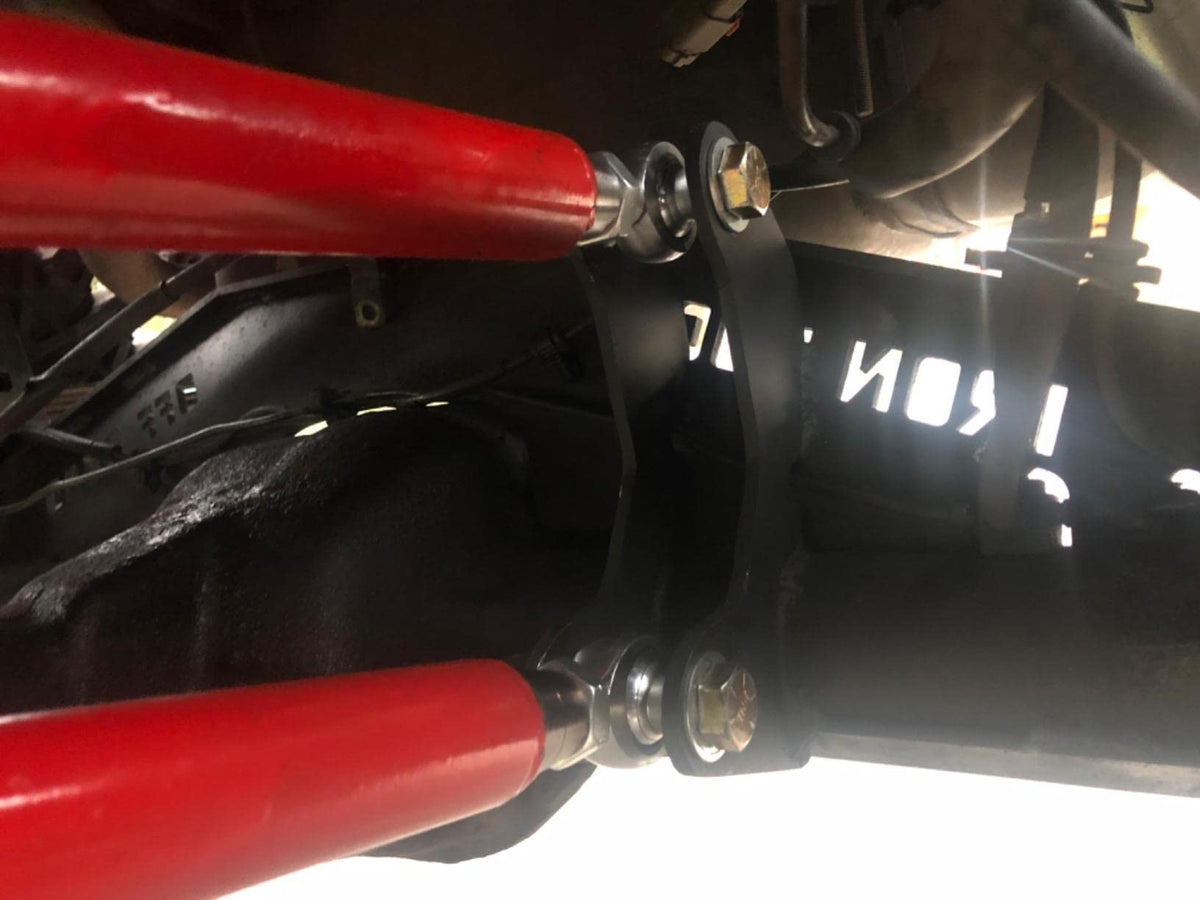

These rod ends are widely used in steering and suspension linkages such as tie rods, panhard bars, traction bars, and custom link assemblies for hot rods and off-road vehicles. The matched RH/LH set simplifies building an adjustable bar that resists rotation and makes alignment straightforward.

• Applications: panhard bars, traction bars, tie rods, steering joints
• Vehicle types: hot rods, custom builds, off-road and race vehicles
• Mounting width: approximately 1-7/8" for common link brackets

Who is this for: This GaiRen heim joint rod end kit is aimed at builders, fabricators, and DIY enthusiasts who need a compact, high-strength solution for adjustable suspension and steering links. If you’re restoring a hot rod, fabricating a traction bar, or upgrading linkages on an off-road rig, this four-piece chromoly kit supplies the threaded directions, load capacity, and hardware to assemble durable, adjustable connections. For questions about fitment or installation, GaiRen customer service is available to assist.
